Presentation Transcript

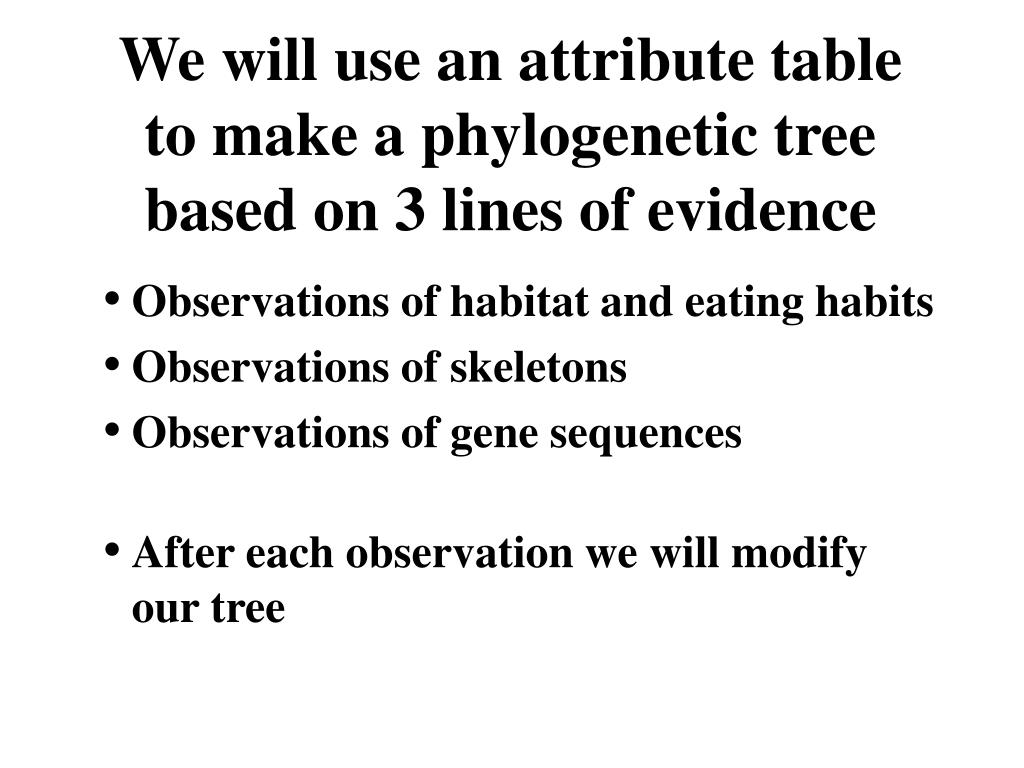

We will use an attribute table to make a phylogenetic tree based on 3 lines of evidence l.jpg
We will use an attribute table to make a phylogenetic tree based on 3 lines of evidence

  • Observations of habitat and eating habits

  • Observations of skeletons

  • Observations of gene sequences

  • After each observation we will modify our tree


Black bear ursus americanus terrestrial omnivore l.jpg
Black bear ( based on 3 lines of evidenceUrsus americanus)Terrestrial Omnivore


Harp seal phoca groenlandica l.jpg
Harp Seal ( based on 3 lines of evidencePhoca groenlandica)


Harp seal phoca groenlandica aquatic terrestrial carnivore l.jpg
Harp Seal ( based on 3 lines of evidencePhoca groenlandica)Aquatic & Terrestrial, Carnivore


Hippopotamus amphibius terrestrial aquatic herbivore l.jpg
Hippopotamus amphibius based on 3 lines of evidenceTerrestrial & Aquatic, Herbivore


Sea otter enhydra lutris aquatic carnivore l.jpg
Sea Otter ( based on 3 lines of evidenceEnhydra lutris)Aquatic, Carnivore


King penguin aptenodytes patagonicus aquatic terrestrial carnivore l.jpg
King Penguin ( based on 3 lines of evidenceAptenodytes patagonicus)Aquatic & Terrestrial, Carnivore


Harbor porpoise phocoena phocoena aquatic carnivore l.jpg
Harbor Porpoise ( based on 3 lines of evidencePhocoena phocoena)Aquatic, Carnivore


Blue whale balaenoptera musculus aquatic omnivore l.jpg
Blue Whale ( based on 3 lines of evidenceBalaenoptera musculus)Aquatic, Omnivore



Skeletal evidence l.jpg
Skeletal evidence habitat

  • Skeletons provide strong evidence that all vertebrates share a common ancestry

  • Skeletal evidence comes from species that are now living and from fossils of species that have become extinct


Several fossil discoveries show how amphibians descended from fish l.jpg
Several fossil discoveries show how amphibians descended from fish

  • These fossils are literally half fish, half amphibian

  • Fossils that show transitions between species are called “transitional fossils”

Ichthyostega


Fossil record also clearly shows the reptile to mammal transition l.jpg
Fossil record also clearly shows the reptile to mammal transition

  • Examples of features that are part reptilian and part mammalian:

    • Jaw joint

    • Tooth

    • Ribs on neck vertebrae

Lycaenops -- a carnivorous therapsid

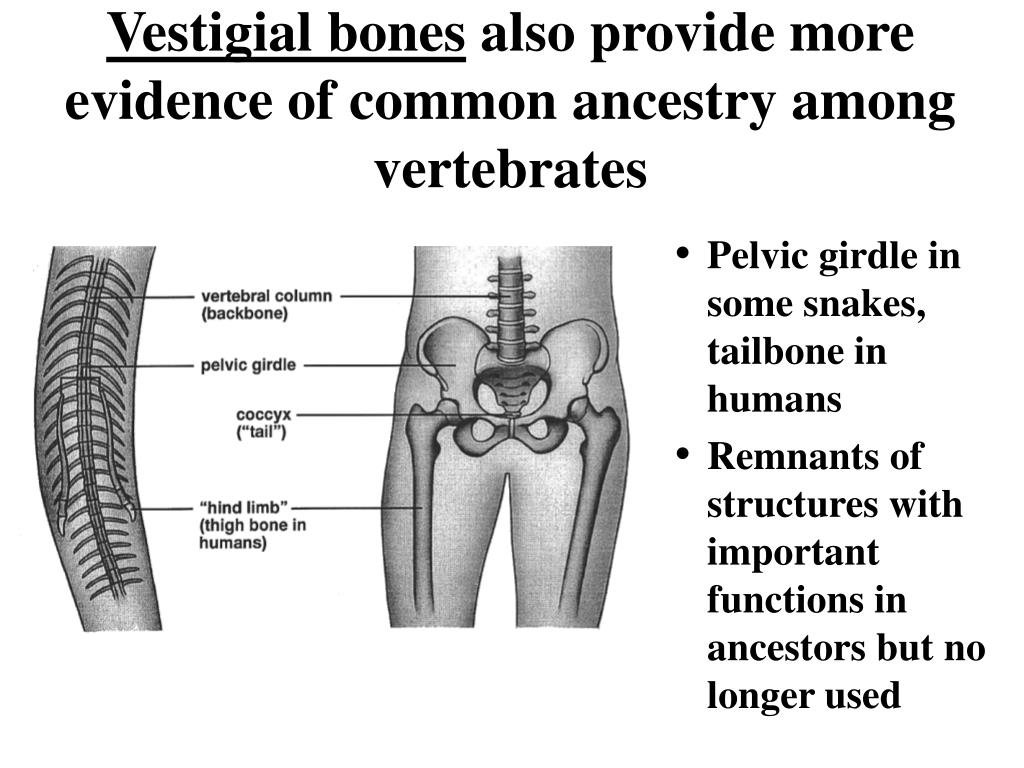

Vestigial bones also provide more evidence of common ancestry among vertebrates l.jpg
Vestigial bones transition also provide more evidence of common ancestry among vertebrates

  • Pelvic girdle in some snakes, tailbone in humans

  • Remnants of structures with important functions in ancestors but no longer used



Homologous structures in mammal skeletons demonstrates common ancestry l.jpg
Homologous structures legs? in mammal skeletons demonstrates common ancestry

  • Features, like the bones of mammals, are said to be homologous, because they share a common structural pattern

  • Conclusion: all mammals are derived from a common ancestor


Slide18 l.jpg
Bear legs?




Sea otter l.jpg
Sea otter legs?


Penguin l.jpg
Penguin legs?


Porpoise l.jpg
Porpoise legs?


Whale l.jpg
Whale legs?



Molecular biology evidence l.jpg
Molecular biology evidence features

  • A common genetic code for all living things is evidence that all are related

  • Comparison of DNA among living organisms has strengthened and clarified our understanding of evolutionary relationships


Genes from other organisms that also occur in h sapiens deep genetic homologies l.jpg
% Genes from other organisms that also occur in featuresH. sapiens: deep genetic homologies

  • Mouse - 86%* Fruit fly - 44%

  • Nematode worm - 25% Yeast - 30%

  • Amoeba - 22% Mustard (plant) - 19%

  • E. coli (bacterium) - 9%*Of those genes now identified in mice, 86% of them also occur humans


Common ancestry of organisms explains many puzzles such as the distribution of the hb gene l.jpg

Because it was present in a common ancestor billions of years ago!

Hb

Common ancestry of organisms explains many puzzles such as the distribution of the Hb gene

Hb

Hb

  • Puzzle posed earlier: The hemoglobin gene is widely distributed throughout living organisms. Why?

Hb

Hb

Hb

Hb

Hb


Hemoglobin again how molecular biology is used to estimate dates of common ancestry l.jpg
Hemoglobin (again) - how molecular biology is used to estimate dates of common ancestry

  • All vertebrates have genes that make hemoglobin

  • Like many other genes, hemoglobin genes mutates at a fairly constant rate, even if they are in different animal groups

  • Rate of change can be used to estimate how long ago groups or organisms diverged from one another!

* Changes per 100 codons


Using molecular biology evidence to draw phylogenetic trees l.jpg
Using molecular biology evidence to draw phylogenetic trees estimate dates of common ancestry

  • Evolutionary relationships are reflected in the similarity of DNA and proteins among species

  • The closer the match between sequences, the more recent the common ancestor



Two related species start with similar dna but mutations occur making their dna different l.jpg
Two related species start with similar DNA, but mutations occur, making their DNA different

  • Assume species A & B just arose from the same common ancestor

    • There DNA is the same (or nearly so)

    • Each of their proteins are the same

  • With time mutations make their DNA (and proteins) different

  • Computers can align regions of DNA that did not change

Computer alignment:



Slide34 l.jpg

A portion of the aligned sequences occur, making their DNA different


Part of the aligned dna sequences l.jpg
Part of the aligned DNA sequences occur, making their DNA different




About the hippo whale relationship l.jpg
About the hippo-whale relationship sequence data

  • DNA data suggested hippos as whale’s closest land relative but there was no fossil evidence to support this theory

  • Recent discovery of 47 million year old fossils from a proto-whale provided fossil evidence -- hippo’s and whales are closely related

  • Key fossil evidence -- the hippo has a distinctive ankle bone and so does the proto-whale!


Recent discoveries of transitional fossils show that whale ancestors did have legs l.jpg
Recent discoveries of transitional fossils show that whale ancestors did have legs

Ambulocetus

(the walking whale)

Carl Dennis Buell
