Presentation Transcript
objectives
Objectives
  • Explain the similarities and differences between Newton’s law of universal gravitation and Coulomb’s law.
  • Explain how the force between two like charges and the force between two unlike charges are different.
  • Describe how to create an electric field.
  • Define electric potential difference or voltage.
  • Differentiate between AC and DC .
  • Identify the most common sources of DC voltage.
  • Describe how to connect DC voltage sources so that voltages will add.
gravitational force
Gravitational Force
  • Newton’s universal law of gravitation Every object in the universe attracts every other object with a force that is directly proportional to the mass of each body and that is inversely proportional to the square of the distance between them.

m1m2

N m2

Fg= G

Where G = 6.67 x 10-11

d2

kg2

electric charge
Electric Charge
  • Charge – the property of an object that causes electrical force.
  • Positive and Negative charges exist.
  • Like charges repel
  • Unlike charges attract (opposites attract)

+

-

gravity and electrical force
Gravity and Electrical Force
  • Both are inverse square laws
  • Both give magnitude of the force one object exerts on another
  • Gravitational force is always attractive, but electrical force can be attractive or repulsive.
  • Gravitational forces govern large bodies
  • Electrical forces govern smaller bodies
origins of electrical charge
Origins of electrical charge
  • Anatomy of an atom?
    • Protons – Positive charge
    • Neutrons – Neutral charge
    • Electrons – Negative charge
  • Normal atom has no net charge
  • Electrons can move in some substances
  • Principle of conservation of charge
    • The net electrical charge in an isolated system never changes. (hair and comb)
electrical force7
Electrical Force
  • Charles Coulomb and his law
    • The electrical force between two charged bodies is directly proportional to the charge on each body and inversely proportional to the square of the distance between them.

charges

q1q2

N m2

FE= K

Where K = 9.0 x 109

d2

C2

Distance

SI unit = Coulomb (C)

Elementary Charge - Charge on one electron or proton = 1.6 x 10-19 C

gravitational and electrical fields
Gravitational and Electrical Fields
  • The fields are the space between two masses or charges and the effects within them.

Opposite charges

Positive charge

Negative charge

Opposite plates

Like charges

electrical potential
Electrical Potential
  • When charges are within an electric field an electrical potential difference is created.
  • Volt – unit of measurement for potential difference. (electrical potential, voltage)
  • Voltage is the prime mover in electrical systems (like pressure in fluid system).
electrical potential10
Electrical Potential

Flow caused by “potential” difference

Fluid system

Electrical system

Current – Flow

sources of difference
Sources of Difference

A pump is a source of fluid pressure difference

A battery is a source of electrical potential difference

components of electrical systems
Components of Electrical Systems
  • Voltage source (battery or generator)
  • Conductors (wires or circuit board)
  • Load (motor, lights, etc.)
  • Control element (switch)

Electrical circuit

Control

Voltage source

Electrical Load

conductors

ac vs dc
AC vs. DC
  • Direct Current (DC) – charge flows in one direction.
    • Batteries
    • Solar Panels
  • Alternating Current (AC) – charge flows back and forth.
    • Alternators
    • Generators

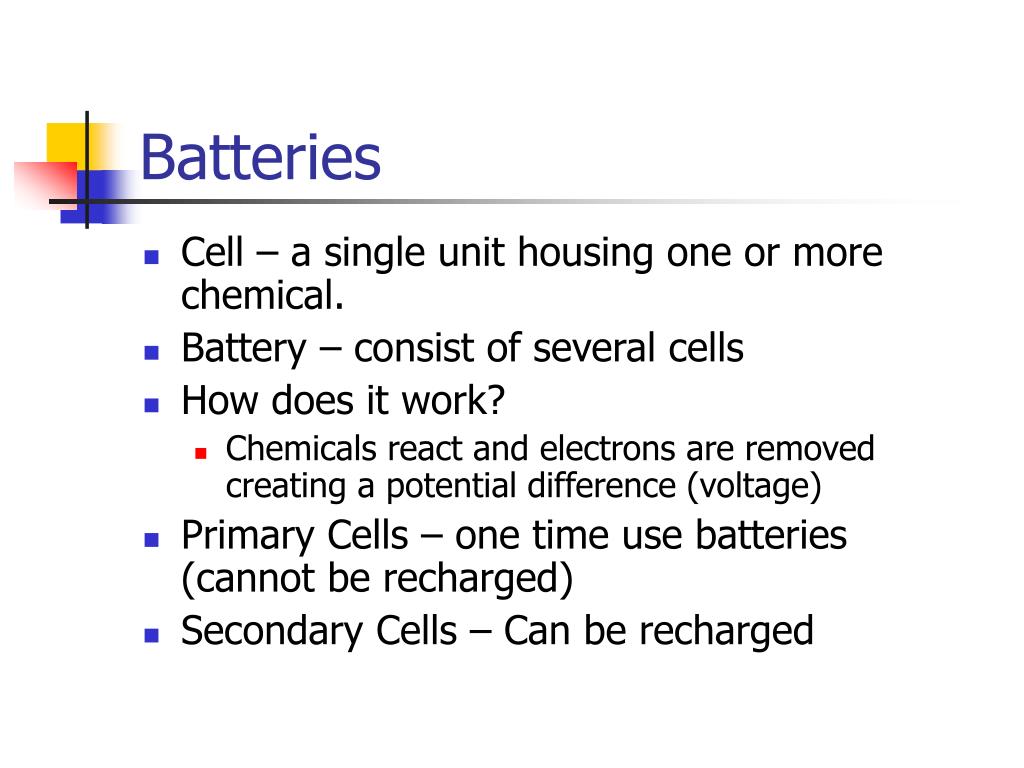

batteries
Batteries
  • Cell – a single unit housing one or more chemical.
  • Battery – consist of several cells
  • How does it work?
    • Chemicals react and electrons are removed creating a potential difference (voltage)
  • Primary Cells – one time use batteries (cannot be recharged)
  • Secondary Cells – Can be recharged
connecting cells
Connecting cells
  • Electrodes – the positive and negative terminals on a battery (cell).
  • Positive electrode (red) called anode.
  • Negative electrode (black) called cathode.
  • Voltages add when cells are connected in series.

-

+

-

+

Battery

Battery

1.5 v

1.5 v

-

+

3.0 v

ac circuits
AC Circuits
  • An AC voltage source reverses the positive and negative terminals many times per second.
  • The current flows one direction and then the other then the other…..
  • This changing of polarity or cycling is called frequency, measured in cycles per second (hertz).
where does ac come from
Where does AC come from?
  • The main source of 60hz current comes from electrical power plants, through power lines and into your homes.
  • Generally 110 – 120 volts
  • Some larger electrical devices need 220 – 240 volts.
summary
Summary
  • Newton’s law of universal gravitation and Coulomb’s law are both inverse squares laws. The magnitudes of both forces decrease with the square of the distance between the masses and the charges.
  • Atoms are composed of proton, neutrons and electrons. Protons are positively charged, electrons are negatively charged, and neutrons have no charge.
  • The flow of electrons in an electrical system is a current.
  • Unlike charges attract, like charges repel.
summary cont
Summary (cont.)
  • An electric field is a model of the alteration of space around one or more charges. You can use the field to predict the force exerted on a charge placed in a the field.
  • The potential difference, or voltage, between two points in a uniform electric field is the product of the field strength and the distance between the points.
  • Voltage is the prime mover in electrical systems.
  • A battery is a source of DC voltage. It can maintain a current in an electrical circuit.
  • Batteries or cells can be connected in series to increase voltage.
