CHAPTER 4 – ANGLES & DIRECTIONS. 4/27/03. Read Kavanagh Ch. 4 Angles and Directions. Read all of chapter 4. 4.1Horizontal Angle Review Horizontal angle is the angle in the horizontal plane, even if measured from uphill point to downhill point, etc.

Download Presentation

CHAPTER 4 – ANGLES & DIRECTIONS

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Chapter 4 angles directions l.jpg

CHAPTER 4 – ANGLES & DIRECTIONS

4/27/03


Read kavanagh ch 4 angles and directions l.jpg

Read Kavanagh Ch. 4 Angles and Directions

Read all of chapter 4.

4.1Horizontal Angle Review

Horizontal angle is the angle in the horizontal plane, even if measured from uphill point to downhill point, etc.

Common methods of measuring horizontal angles = transit, theodolite, total station. Can also lay out angles by taping or measuring distances (trilateration).

Horizontal angles have a direction or sense: L or R, clockwise or counterclockwise

Common angles: angles to right, interior angles, deflection angles (L or R)


4 2 directions of lines l.jpg

4.2Directions of lines

Horizontal directions must be tied to a fixed line of known or assumed direction defined as a reference meridian. There are four basic types:

1. Astronomic meridian = true meridian = geographic meridian = points to North pole = line of longitude

2. Magnetic meridian = direction of a magnet = points to magnetic north pole = varies with location

3. Grid meridian = parallel with central meridian of a State Plane Coordinate System

4. Assumed meridian

In the field, horizontal directions and angles are determined relative to a line of known or assumed direction called a baseline.


Slide4 l.jpg

Bearings = angle of a line from N or S reference meridian; always < 90E


Slide5 l.jpg

Azimuth = angle measured clockwise from any reference meridian (usually from N); ranges from 0E to 360E


Slide6 l.jpg

Quadrants


4 3 reference meridians l.jpg

4.3Reference meridians

Astronomic Meridian

Magnetic Meridian (Magnetic North)

Declination = horizontal angle between direction of a compass needle and true (geographic) north


Slide10 l.jpg

1985 Isogonic Map


Grid meridian grid north l.jpg

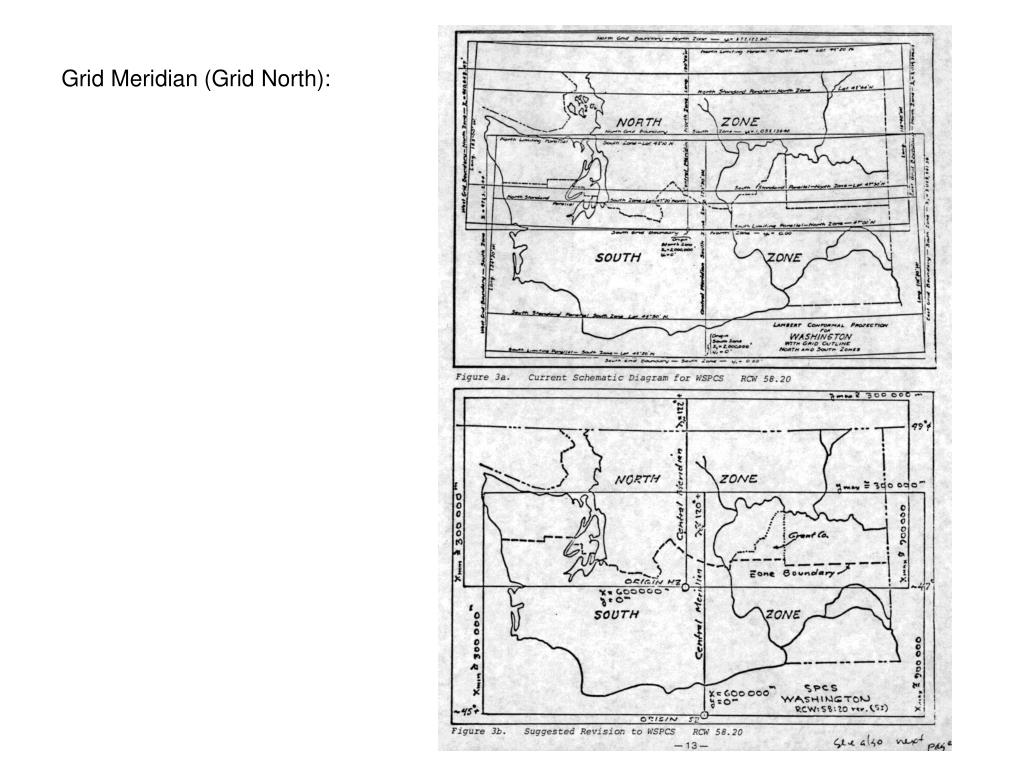

Grid Meridian (Grid North):


4 4 how to read a compass l.jpg

4.4How to read a compass

Procedure for determining directions:

1)Set local declination

2)Sight on object

3)Rotate compass housing to center magnet in housing’s N arrow


4 5 direction calculations l.jpg

4.5Direction calculations

Reverse Directions

Reverse BearingsReverse Azimuths


Slide14 l.jpg

Azimuth Computations

Rules:

  • If the computation is proceeding in a counterclockwise manner, add the interior angle to the back azimuth of the previous course to obtain the azimuth of the next course.

  • If the computation is proceeding in a clockwise manner, subtract the interior angle from the back azimuth of the previous course to obtain the azimuth of the next course. If the bearings of the sides are also required, they can now be derived from the computed azimuths.


Slide15 l.jpg

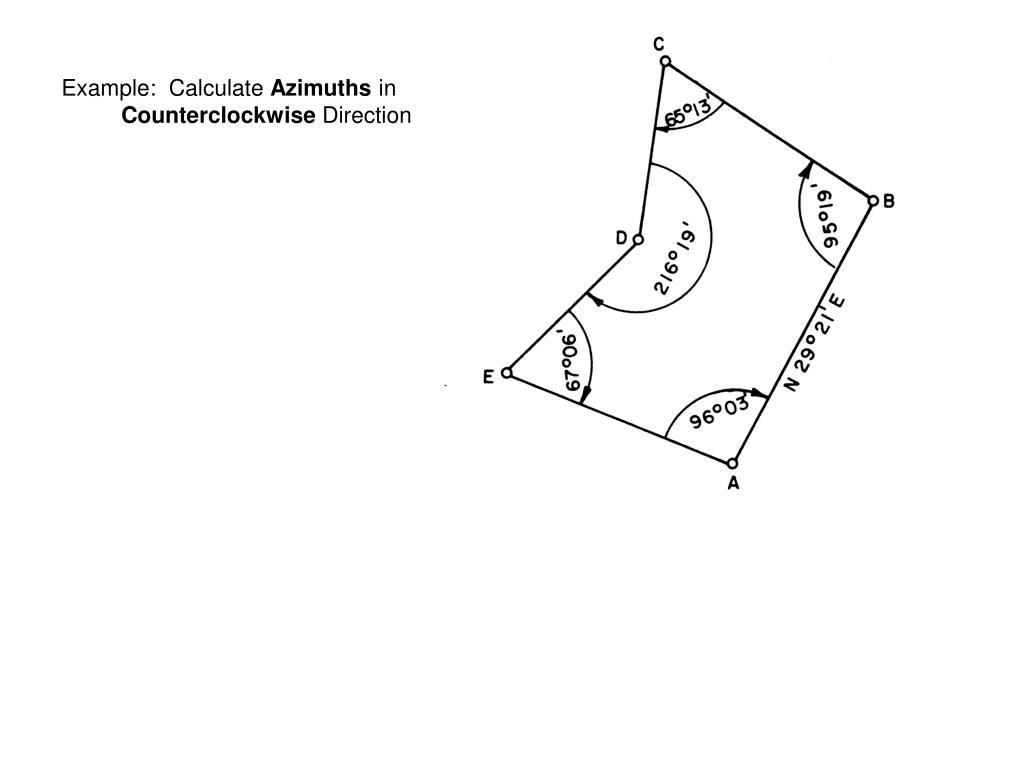

Example: Calculate Azimuths in Counterclockwise Direction


Slide16 l.jpg

Example: Calculate Azimuths in Clockwise Direction


Slide17 l.jpg

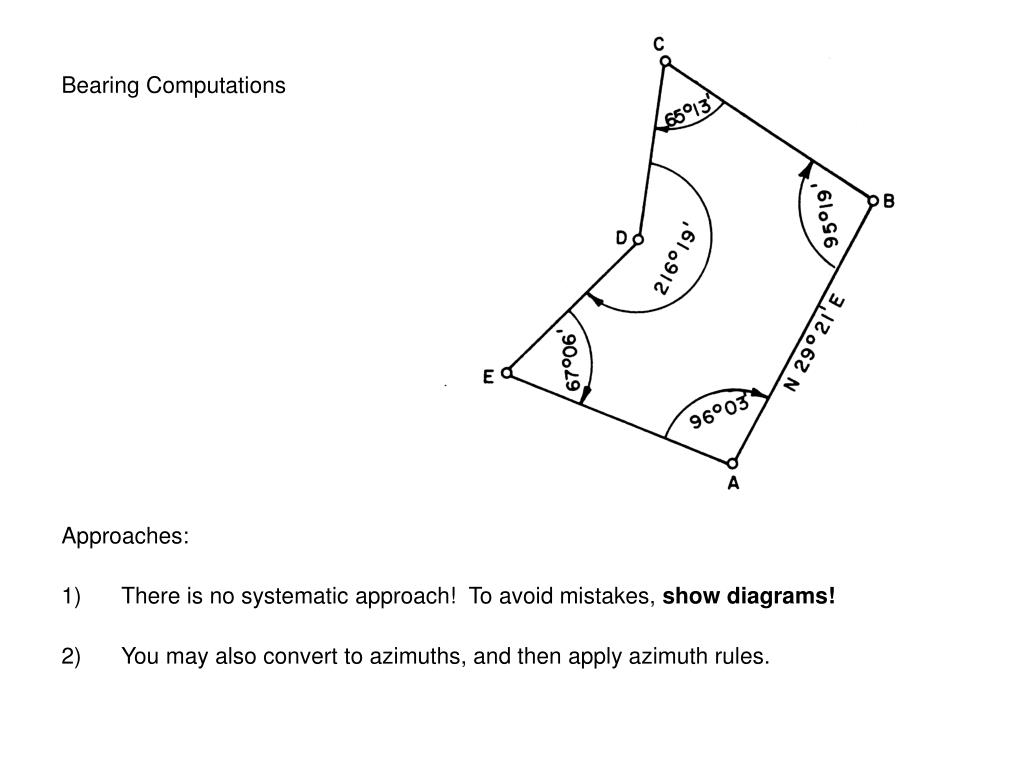

Bearing Computations

Approaches:

  • There is no systematic approach! To avoid mistakes, show diagrams!

  • You may also convert to azimuths, and then apply azimuth rules.


Slide18 l.jpg

Example: Bearing Computations


Magnetic declination computations l.jpg

Magnetic declination computations

Example: Retrace an old magnetic bearing

A magnetic bearing of N 15E40’ E was recorded on a lot line survey dated January 1, 1903. The bearing represented the direction from the property corner Pt. A to the property corner at Pt. B. On June 1, 2003, you find Pt. A, and want to find Pt. B. What compass bearing should you use to find Pt. B? The location of the survey is shown on the following isogonic map.

B

A


Slide20 l.jpg

Survey location

1985 Isogonic Map


Slide21 l.jpg

Survey "calls" = statement of direction and distance

Example of Bearing + Distance call: N 01E13'24" E 213.46'

Basis of bearing or basis of azimuth must be known

To be able to determine a call, you must have a base line

Base Line = survey line between two known points used as a reference

line for the rest of the survey or map area


4 6 angles by measured distances trilateration l.jpg

4.6Angles by Measured Distances (Trilateration)

Trilateration = method of computing angles by measuring distances

“3-4-5 Method”

Laying out a building: Match the diagonals

Trigonometric Relations

1) Law of Sines

2) Law of Cosines

These two equations can be used to solve just about any soluble geometric problem. Other “methods” are just special cases of these two equations.
