Presentation Transcript
Cem 888 molecular modeling applications for experimentalists l.jpg

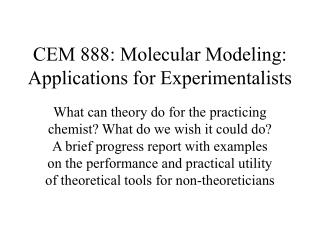

CEM 888: Molecular Modeling: Applications for Experimentalists

What can theory do for the practicing chemist? What do we wish it could do? A brief progress report with examples on the performance and practical utility of theoretical tools for non-theoreticians


The evolving roles of theory l.jpg
The Evolving Roles of Theory Experimentalists

Pattern-matching–>Explanatory–>

Exploratory–>Predictive–>Prescriptive?

  • Organize data around common themes

  • Develop physical insights into data

  • Interpolate and extrapolate from data to analogous systems

  • Predict results for proposed new expts

  • Identify and propose new experiments


Wish list add items as desired l.jpg
Wish List (add items as desired) Experimentalists

Zeroth order wishes:

  • Theory should always get the answer right

  • Should be applicable to “real” molecules, materials, and situations

  • Should teach us something so we can better think about science (who wants to always need a supercomputer in their back pocket?)


Chemistry wishes structure l.jpg
Chemistry Wishes: Structure Experimentalists

  • Internal: distances, angles, dihedrals

  • Rotational constants and symmetry

  • Conformational preferences

  • Solvation sphere

  • Lattice packing

  • Sensitivity to environment (solvent, pressure, fields, etc.)


Chemistry wishes energetics l.jpg
Chemistry Wishes: Energetics Experimentalists

  • Heats of formation

  • Isomer relative energies

  • “Effect” energies: strain, aromaticity, solvation, etc.

  • Heats of fusion, vaporization; heat capacities

  • Ionization potentials/e– affinities

    • UPS/XPS, E-chem, redox reagent chemistry

  • Bond strengths, atomization energies

    • MS, reaction paths


Chemistry wishes observables l.jpg
Chemistry Wishes: ExperimentalistsObservables

  • Melting and boiling points

  • Density, viscosity

  • Refractive index, optical rotation, CD/ORD

  • Solubilities in various solvents

  • pKa (or other ionic dissociation abilities)

  • Dipole, polarizability

  • Magnetic susceptibility and e–-e– coupling


Chemistry wishes spectroscopies l.jpg
Chemistry Wishes: ExperimentalistsSpectroscopies

  • UV-vis-IR/Raman-µwave absorption/emission

    • Peak positions

    • Transition intensities, rates (Abs, ISC, Emission, Internal conv.)

  • NMR

    • Chemical shifts, 

    • Spin-spin couplings, JAB

    • Relaxation times

    • NOE intensities

    • Conformational dynamics

  • EPR

    • Spin densities

    • Hyperfine coupling constants


Chemistry wishes reactivity and mechanism l.jpg
Chemistry Wishes: ExperimentalistsReactivity and Mechanism

  • Activation parameters

  • Transition state structures and reaction paths

  • Conformational interconversion barriers (NMR)

  • Isotope effects

  • Solvent effects on all (structure, energetics, etc.)


Chemistry wishes new insights l.jpg
Chemistry Wishes: ExperimentalistsNew Insights

  • Charge allocation to atoms--meaningful?

  • Why aren’t some classically valid-looking structures stable?

  • Are orbitals or resonance structures “real”?

  • How about “ring currents”

  • “Steric” vs. “Electronic” effects

  • VSEPR?


Performance of the methods structure l.jpg
Performance of the Methods: Structure Experimentalists

  • “Ordinary” compounds--simple hydrides AHn

    • LiH, BeH2, BH3, BH4–, CH4, NH3, NH4+, OH2, FH

    • NaH, MgH2, AlH3, AlH4–, SiH4, PH3, PH4+, SH2, ClH

  • Simple A-B bonded systems HmA-BHn

    • H3C-CH3, H2N-NH2, HO-OH, F-F

    • H3C-NH2, H3C-OH, H3C-F, etc.

  • Multiple bonded AB systems ABHn


Beyond minima reactions l.jpg
Beyond Minima: Reactions Experimentalists

  • Potential Energy Surfaces

  • Transition Structures

  • Reaction Paths

  • Transition States

  • Reaction Rates


Generic textbook reaction path usually for unimolecular processes l.jpg
Generic Textbook Reaction Path ExperimentalistsUsually for unimolecular processes

• How are stationary points and reaction path defined?

• Are they unique and independent of coordinate system?

• What is a “Reaction Coordinate” anyway, in 3n-6 dimensions?


Simplest p e curve diatomics l.jpg
Simplest P.E. Curve: Diatomics Experimentalists

  • Diatomic dissociation is familiar

  • Linear structure: 3n-5 =1 mode

  • Reaction Coord. is uniquely defined as r(A…B)


Generic reaction path common for bimolecular processes l.jpg
Generic Reaction Path ExperimentalistsCommon for bimolecular processes

• In gas phase, two fragments always “stick” together a bit.

• TS may be above or below fragment totals.

• Minima may have inverse E order e.g. H3O–


Rxn paths ts vibrational modes l.jpg
Rxn Paths: TS Vibrational Modes Experimentalists

Vibrations in the TS for the (degenerate) SN2 attack of Cl– on CH3Cl. Note: all but the Reaction Coord motion are positive “ordinary” vibrations

From Anwar G. Baboul and H. Bernhard Schlegel, “Improved method for calculating projected frequencies along a reaction path” J. Chem. Phys.1997, 107, 9413-9417.


The transition structure l.jpg
The Transition Structure Experimentalists

  • Stationary Point (i.e. gradients ~ 0)

  • One imaginary frequency (“Nimag=1”)

  • Locate by minimizing gradient (dE/dxi)

  • Structure is independent of coordinate system, nuclear masses

  • Is this structure the transition “state”?

  • How to get close enough for local optimiz’n


Searching for the mep or irc l.jpg
Searching for the MEP or IRC Experimentalists

  • At the TS only, the reaction coord is well defined, as the mode with the imaginary freq.

  • From TS, follow steepest descent at each step.

  • Reaction path points not independently defined; path curves (i.e. rxn coord makeup varies)

  • Search scheme, step size, intermediate optimization are all important.


Sample pes l.jpg
Sample PES Experimentalists


Anglada j m besal e bofill j m crehuet r j comput chem 2001 22 387 406 l.jpg
Anglada, J. M.; Besalú, E.; Bofill, J. M.; Crehuet, R. ExperimentalistsJ. Comput. Chem.2001, 22, 387-406.

Figure 9. The Müller-Brown potential surface. Dashed line, energy contours. Solid line is the reduced potential surface defined as gx0, gy=0. The black circles are the stationary points, minimum, M1 and M2, transition state, TS1. The empty circles are the starting point, P, and the turning point, TP. The black dots are the different points evaluated by the algorithm; see text for more details.
