Project management

Project Management

Henry C. Co

Technology and Operations Management,

California Polytechnic and State University


What is a project

What is a project?

A unique, one-time effort

Requires the completion of a large number of interrelated activities

Resources, such as time and/or money, are limited

Typically has its own management structure


What is project management

What is project management?

Project management is the discipline of defining and achieving targets while optimizing the use of resources (time, money, people, materials, energy, space, etc) over the course of a project (a set of activities of finite duration).


What are the objectives of project management

What are the objectives of project management?


10 cpm

  • To ensure that the project is correctly designed to meet its objectives

  • To ensure that the project is completed on schedule, within resources and budget

  • To provide a mechanism for monitoring the project

Source: Buruhani Nyenzi , CLIPS Training Workshop for RA I

http://www.wmo.ch/web/wcp/clips2001/modules/Project%20Management.ppt

Project Scheduling (Henry C. Co)


To ensure that the project is correctly designed to meet its objectives

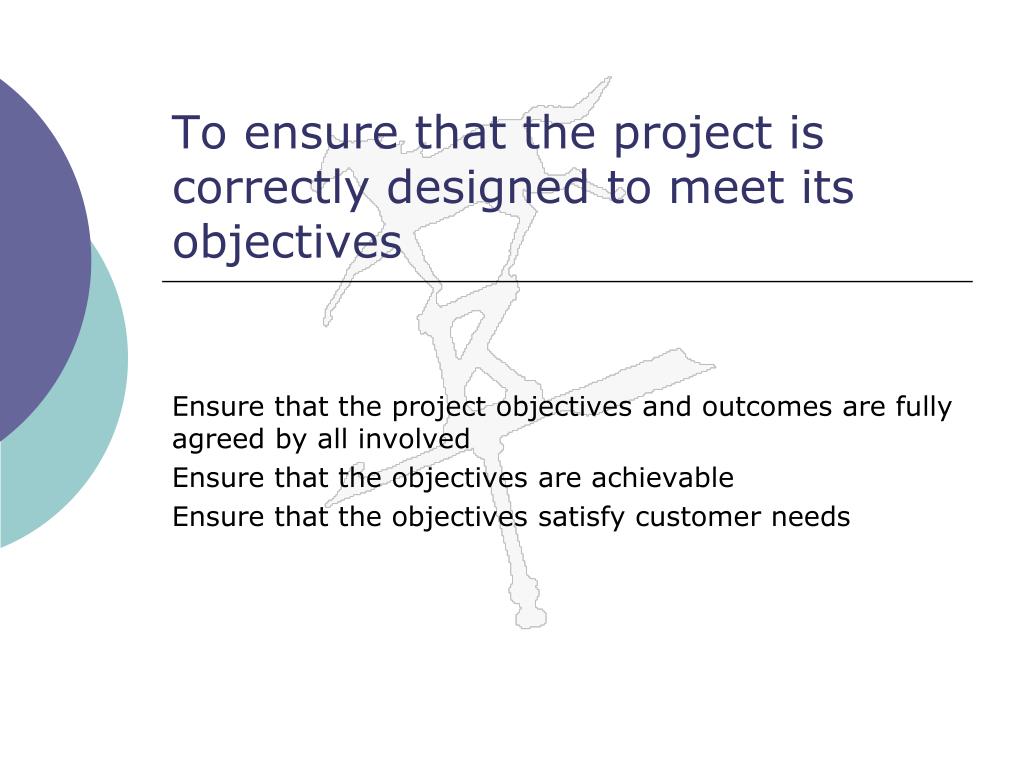

To ensure that the project is correctly designed to meet its objectives

Ensure that the project objectives and outcomes are fully agreed by all involved

Ensure that the objectives are achievable

Ensure that the objectives satisfy customer needs


To ensure that the project is completed on schedule within resources and budget

To ensure that the project is completed on schedule, within resources and budget

Ensures that the resources and budget are agreed and are consistent with the needs of the project

Ensures that the life of the project is clearly defined


To provide a mechanism for monitoring the project

To provide a mechanism for monitoring the project

Ensures project does not depart from agreed path

Provides mechanism for examining project progress (quarterly progress reports, agreed regular communication…)

Provides mechanism for correcting or stopping failing projects (project restructuring)


Pert cpm

PERT/CPM


Pert and cpm

PERT and CPM

  • PERT: Program Evaluation and Review Technique

  • CPM: Critical Path Method

    • Graphically displays project activities

    • Estimates how long the project will take

    • Indicates most critical activities

    • Show where delays will not affect project

Project Scheduling (Henry C. Co)


10 cpm

Project Scheduling (Henry C. Co)


Project schedule

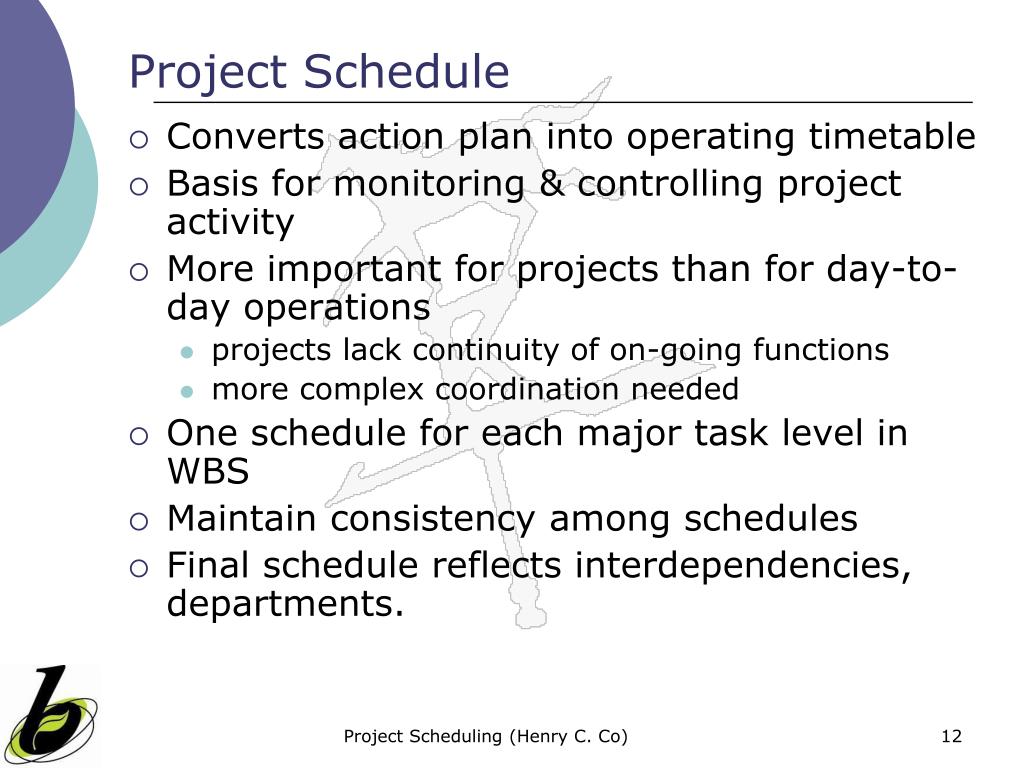

Project Schedule

  • Converts action plan into operating timetable

  • Basis for monitoring & controlling project activity

  • More important for projects than for day-to-day operations

    • projects lack continuity of on-going functions

    • more complex coordination needed

  • One schedule for each major task level in WBS

  • Maintain consistency among schedules

  • Final schedule reflects interdependencies, departments.

Project Scheduling (Henry C. Co)


Network model

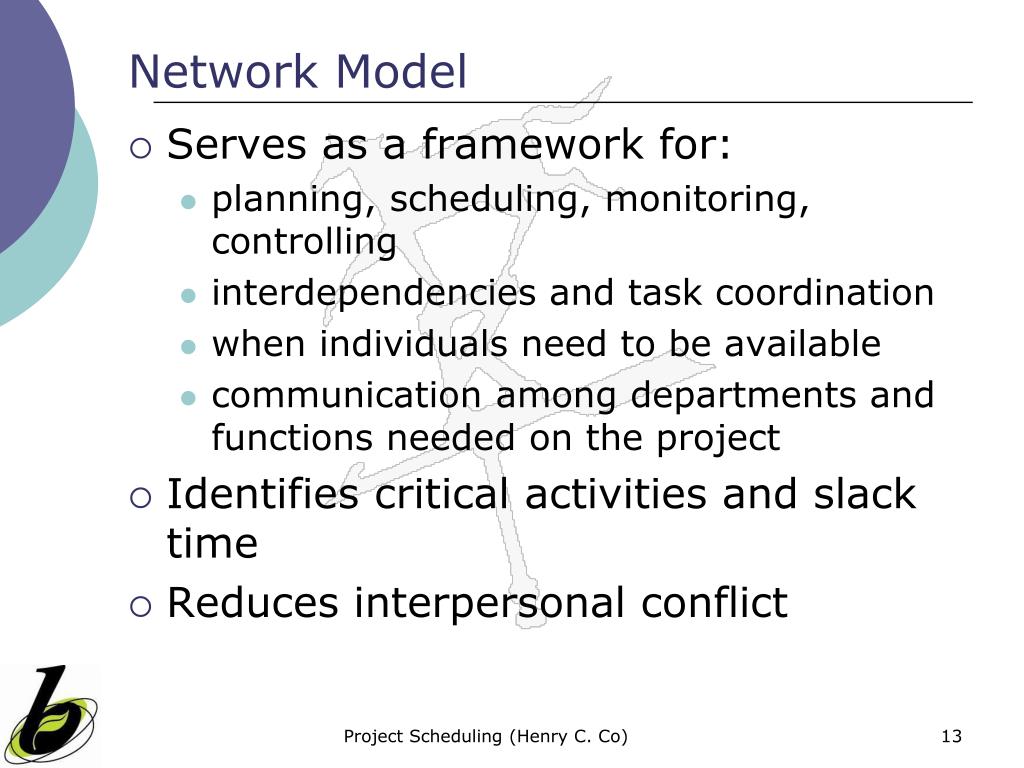

Network Model

  • Serves as a framework for:

    • planning, scheduling, monitoring, controlling

    • interdependencies and task coordination

    • when individuals need to be available

    • communication among departments and functions needed on the project

  • Identifies critical activities and slack time

  • Reduces interpersonal conflict

Project Scheduling (Henry C. Co)

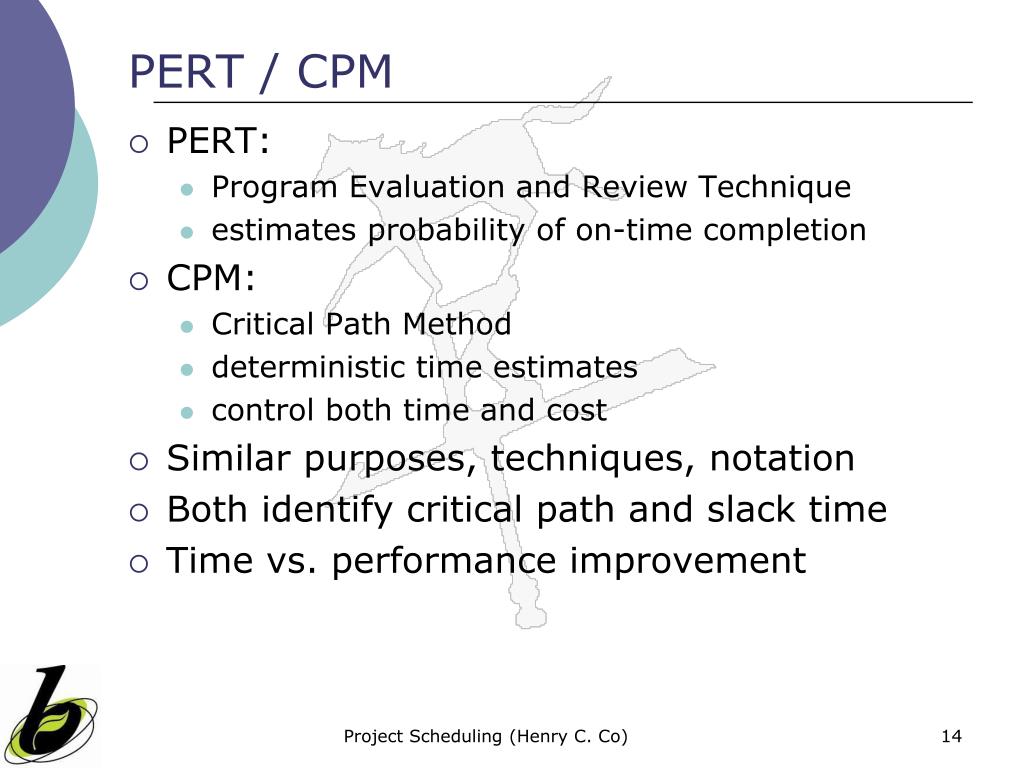

Pert cpm1

PERT / CPM

  • PERT:

    • Program Evaluation and Review Technique

    • estimates probability of on-time completion

  • CPM:

    • Critical Path Method

    • deterministic time estimates

    • control both time and cost

  • Similar purposes, techniques, notation

  • Both identify critical path and slack time

  • Time vs. performance improvement

Project Scheduling (Henry C. Co)

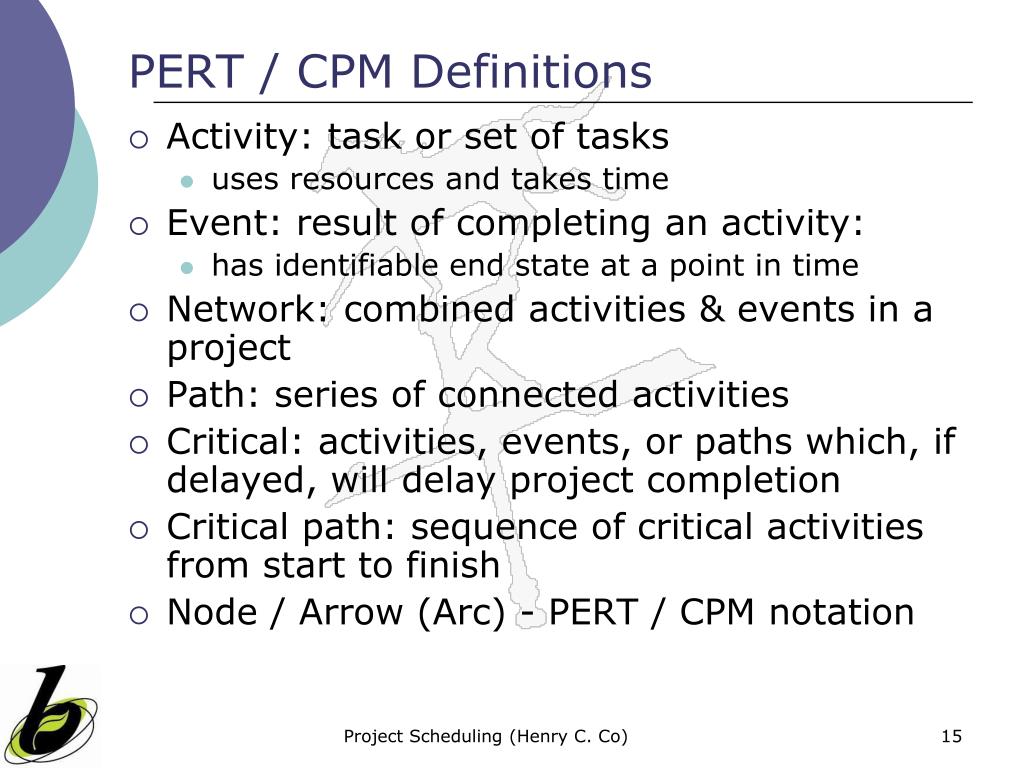

Pert cpm definitions

PERT / CPM Definitions

  • Activity: task or set of tasks

    • uses resources and takes time

  • Event: result of completing an activity:

    • has identifiable end state at a point in time

  • Network: combined activities & events in a project

  • Path: series of connected activities

  • Critical: activities, events, or paths which, if delayed, will delay project completion

  • Critical path: sequence of critical activities from start to finish

  • Node / Arrow (Arc) - PERT / CPM notation

Project Scheduling (Henry C. Co)

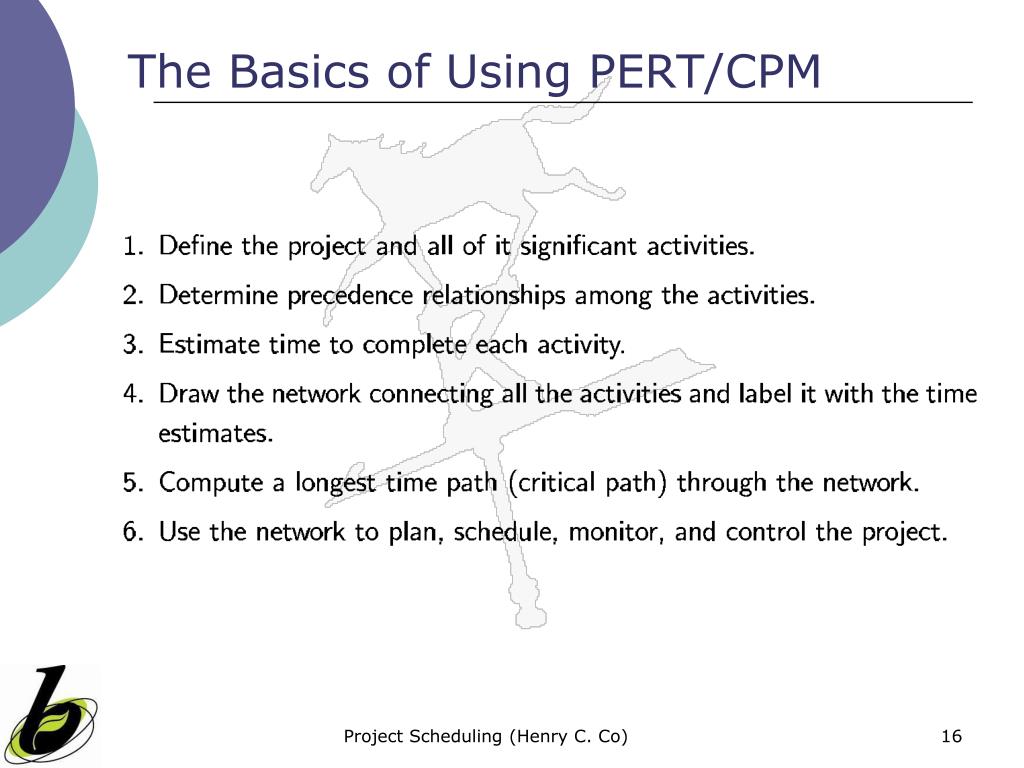

The basics of using pert cpm

The Basics of Using PERT/CPM

Project Scheduling (Henry C. Co)


The project network model

The Project Network Model

Project Scheduling (Henry C. Co)


Pert cpm notations

PERT / CPM Notations

  • EOT:

    • earliest occurrence time for event

    • time required for longest path leading to event

  • LOT: latest occurrence time for event

  • EST: earliest starting time for activity

  • LST: latest starting time for activity

  • Critical time: shortest time in which the project can be completed

  • Notation: AOA, AON, dummy activities

Project Scheduling (Henry C. Co)


Slack time

Slack Time

Project Scheduling (Henry C. Co)

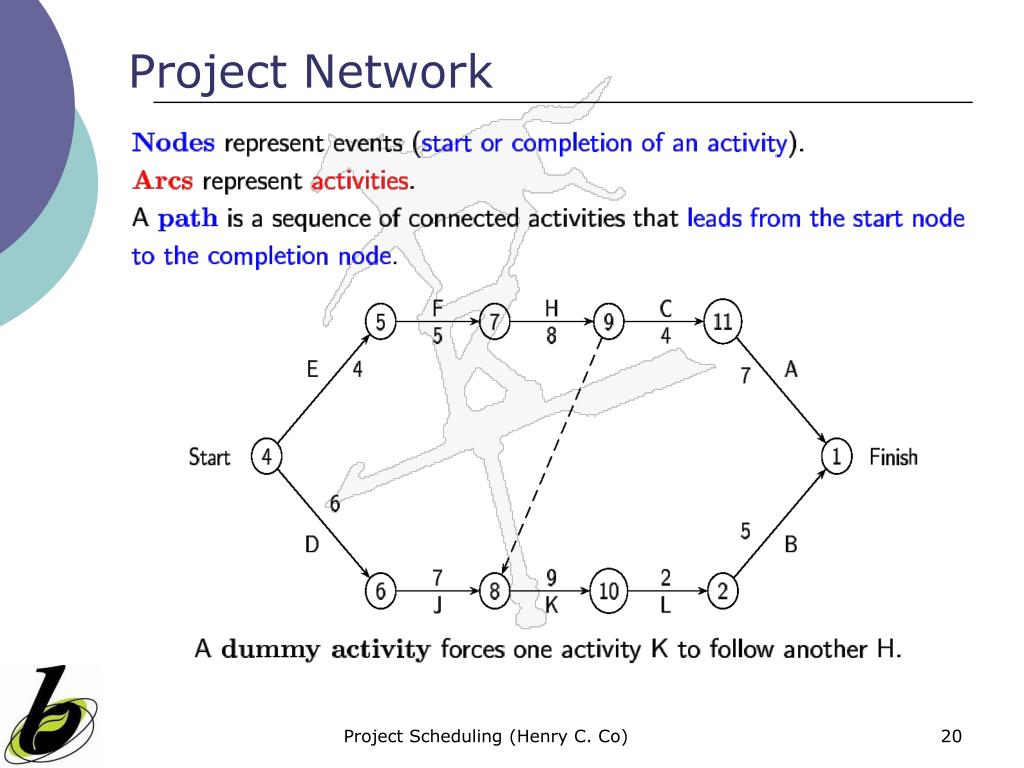

Project network

Project Network

Project Scheduling (Henry C. Co)

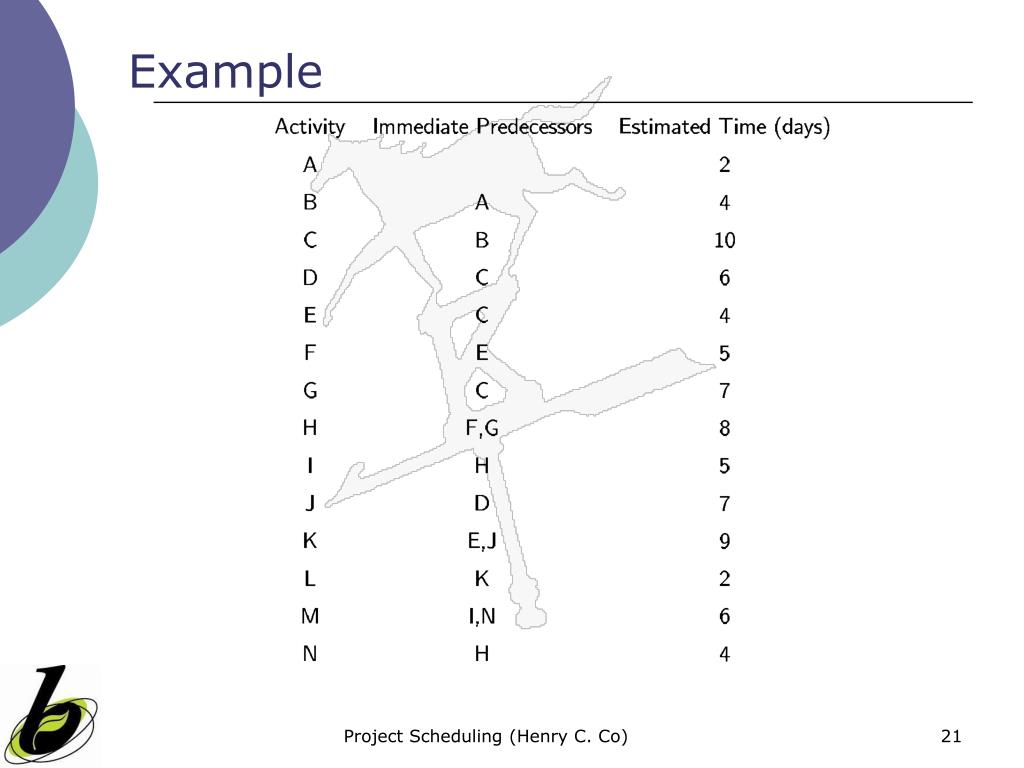

Example

Example

Project Scheduling (Henry C. Co)


Partial network

Partial Network

How should activity K be added?

Project Scheduling (Henry C. Co)


10 cpm

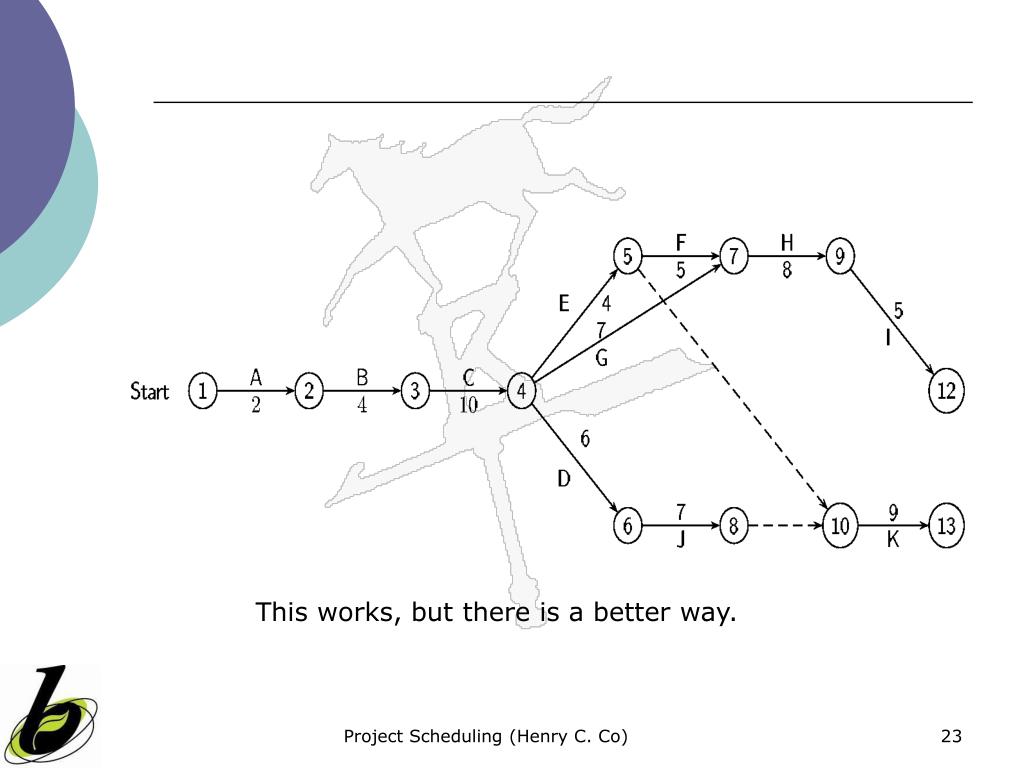

This works, but there is a better way.

Project Scheduling (Henry C. Co)

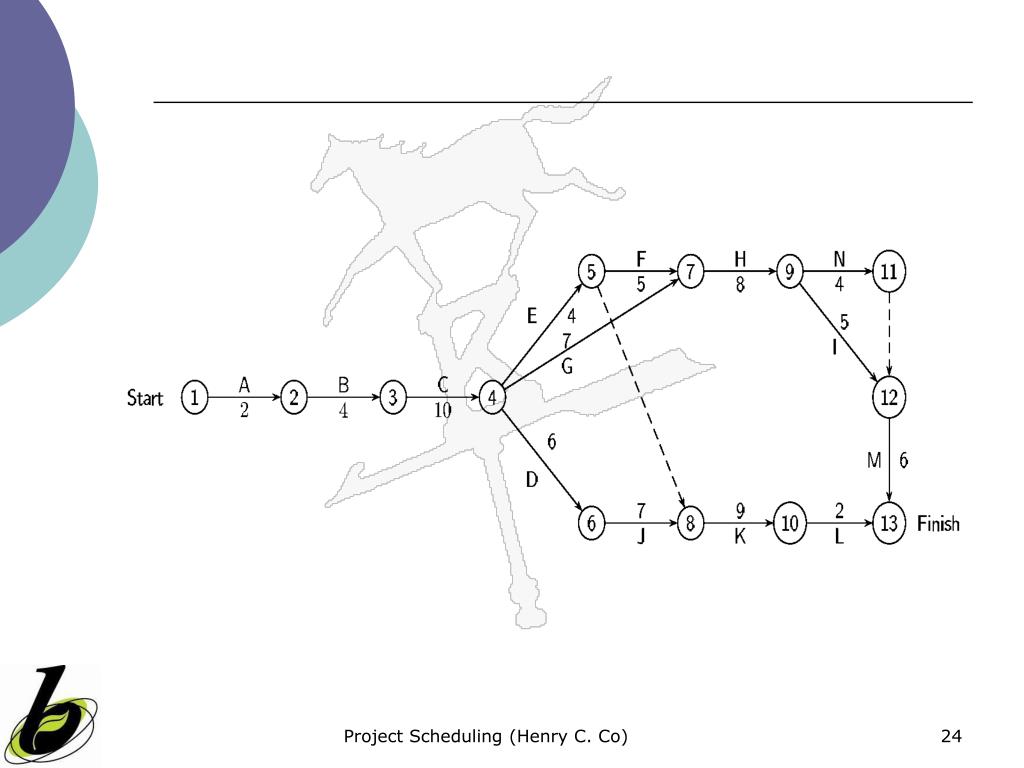

10 cpm

Project Scheduling (Henry C. Co)


Earliest time for an event

Earliest Time for an Event

Project Scheduling (Henry C. Co)

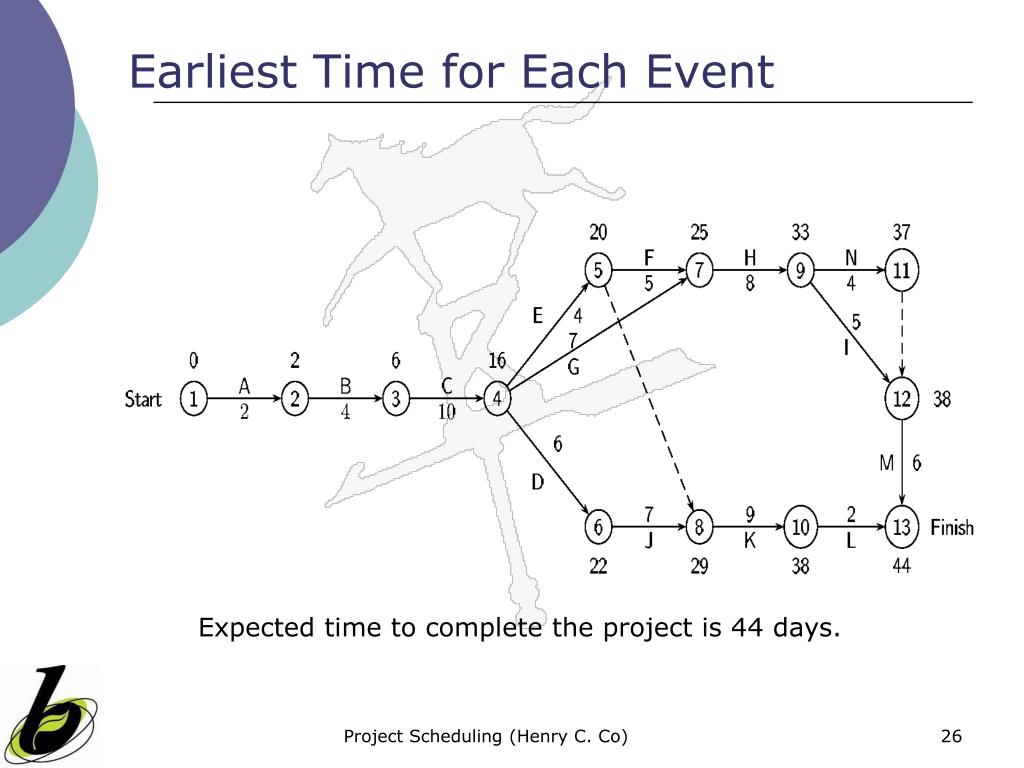

Earliest time for each event

Earliest Time for Each Event

Expected time to complete the project is 44 days.

Project Scheduling (Henry C. Co)


Latest time for an event

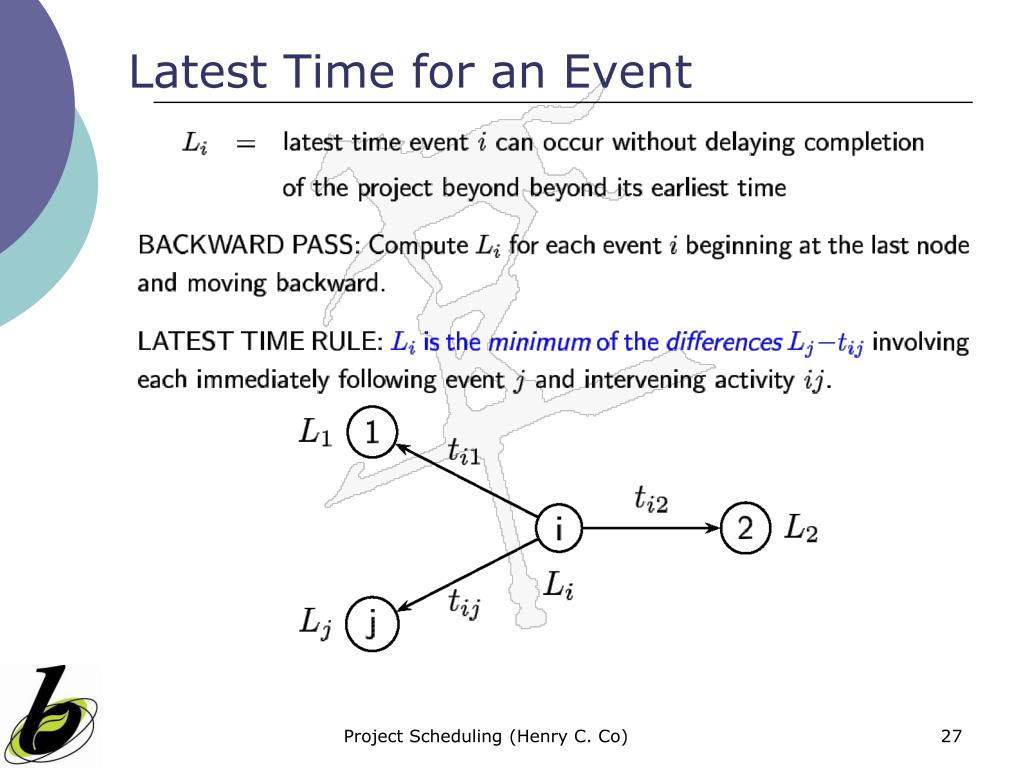

Latest Time for an Event

Project Scheduling (Henry C. Co)


Latest time for each event

Latest Time for Each Event

Expected time to complete the project is 44 days.

Project Scheduling (Henry C. Co)


Slack time1

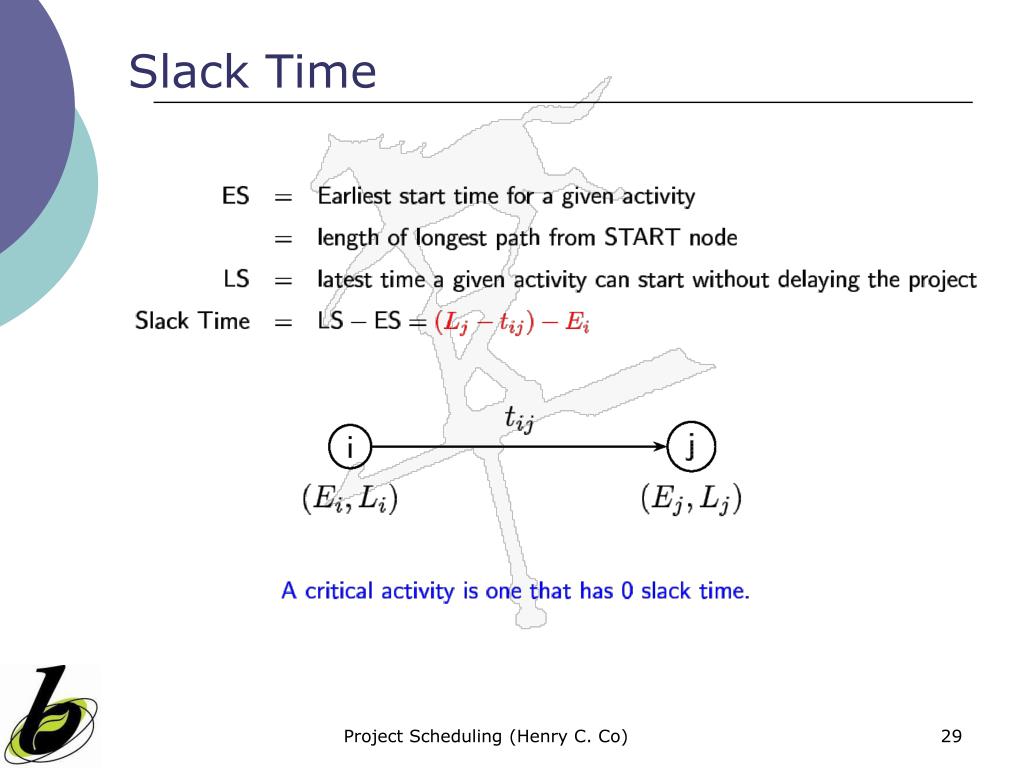

Slack Time

Project Scheduling (Henry C. Co)


Critical activities

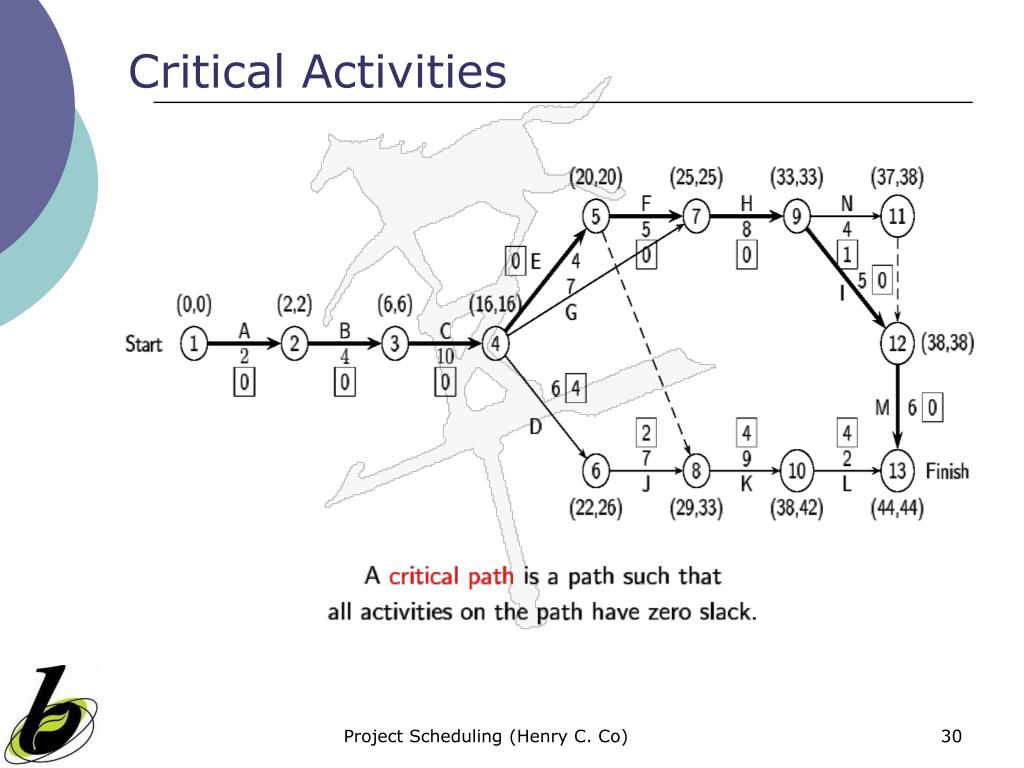

Critical Activities

Project Scheduling (Henry C. Co)


Probabilistic time estimation

Probabilistic Time Estimation


10 cpm

  • Expected completion time:

  • Based on optimistic, pessimistic, most likely

  • Take weighted average of the 3 times

    • TE = (a + 4m + b)/6

  • Uncertainty = variance (range of values)

  • Probability of completion of project in desired time D

  • Project Scheduling (Henry C. Co)
