Presentation Transcript
robotics learning opportunities
RoboticsLearning Opportunities

Students work independently-project work

  • What is a robot?
  • What can a robot be used for?

Dangerous environments

Inaccessible areas

Repetitive boring jobs

Play

future robotics developments
Future Robotics Developments

Artificial Intelligence

Can Machines think?

Turing Test 1950

Cyborg- part human, part robot

Kevin Warwick, University of reading

robotic resource
Robotic Resource

http://www.thetech.org/robotics/

http://www.es.northropgrumman.com/remotec

http://www.irobot.com/

http://www.robot.org.uk/

http://www.ibotz.com

http://www.kevinwarwick.com/

http://www.heanet.ie/services/services.php?serID=115&subID=29

http://marsrover.nasa.gov/home/index.html

Play Video now

http://citroenpampeana.com.ar/images/picasso.mpg

Play Video now

http://www.theembassyvfx.com/qt/Citroen_480.mov

Play Video now

http://robotics.nasa.gov/courses/summer05/main/index.php?crs=june23/2&opt=0

http://video.search.yahoo.com/search/video?p=robomo&fr=FP-tab-vid-t&toggle=1&cop=&ei=UTF-8 

slide5
Anatomy of the BrainiBorg robot
  • Software – CD
  • Programs:

(i) move forward – simple code

(ii) move backward — simple code

(iii) Gait

(iv) event

(iv) to detect obstacle

(vi) light event

slide6

BrainiBorg Anatomy

  • 3 motors-front middle back
  • left LED , right LED

( emit light )

  • Phototransistors

( detect visible and infra red light )

  • micro-controller
  • battery packs
  • socket for PC
  • on/off switch
  • Piezo sounder

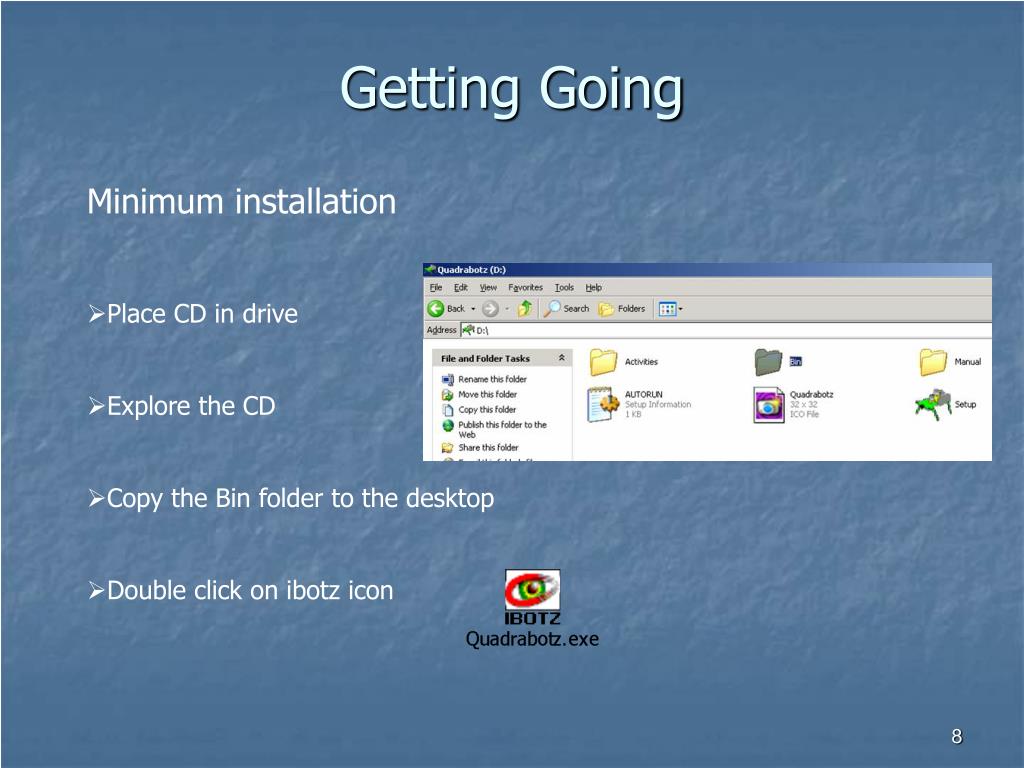

getting going
Getting Going
  • Minimum installation
  • Place CD in drive
  • Explore the CD
  • Copy the Bin folder to the desktop
  • Double click on ibotz icon
slide9
Full Installation
  • Place CD in CD tray
  • Autorun should start. (If not, Double Click My Computer on desktop, Right Click the CD Rom drive, Click Explore, Click Setup.exe) Click Install, percentage progress bar appears.
  • Message box: Quadrabotz is now installed. Run Program? Yes No Click Yes
  • Message box: Run first tutorial activity? Yes No Click Yes When the activity is complete move on the step 5.
  • Examine Brainiborg (BB): Note battery cases, 3 motors, ON / OFF switch, cable connection port, LED and Infra Red (+ visible light) sensors and Sounder. Fit batteries to Brainiborg
  • Connect cable to Comms. port on computer and to the earphone jack port (RS 232) on the BB.
  • To check for connectivity; Click on Options Comms. A message box appears, as follows:
  • If necessary change the comms port number and try again until you get a successful connection.

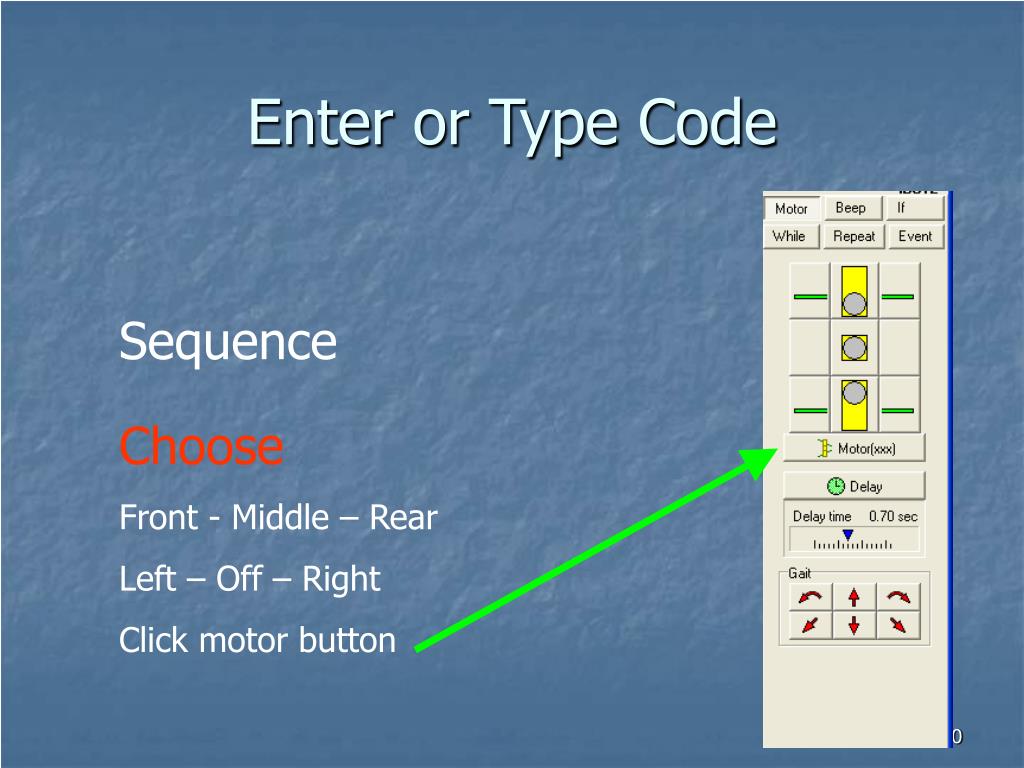

enter or type code
Enter or Type Code

Sequence

Choose

Front - Middle – Rear

Left – Off – Right

Click motor button

slide11

Programme Execution

1. Front left leg moves forward

slide17
To make the robot move backward

Type /Enter in the following code

  • MOTOR(xLx)
  • Delay(14)
  • Motor(LxR)
  • Delay(14)
  • Motor(xRx)
  • Delay(14)
  • Motor(RxL)
  • Delay(14)
slide18
To make the robot move forward

Type/Enter in the following code

  • Motor(xLx)
  • Delay(14)
  • Motor(RxL)
  • Delay(14)
  • Motor(xRx)
  • Delay(14)
  • Motor(LxR)
  • Delay(14)
slide19
Gait
  • With a Gait all instructions are included.
  • To move the robot back, now type in Gait(gRev)
  • To move the robot forward type in Gait(gFwd)
  • try Gait(gRight)

Gait(gLeft)

slide20
The interface also has 6 gait buttons at the bottom.

Each press will execute one cycle.

  • Forward Gait
  • Backward Gait
  • Turn-left Gait
  • Turn-right Gait
  • Backward Left Gait
  • Backward Right Gait
  • As an exercise try a few and notice the code appearing and test.
slide21
Event Programming
  • The Gait forward command instructs the robot to walk forward allthe time, until something in the outside world happens.
  • This is called an event.
  • In the main, enter the following code:

Gait(gFwd)

  • Then click Event. In Obstacle Event box, click the Right button and the Event RightObs box appears. Now enter in the following commands as shown below.
  • Download the program to BB. When BB is moving, place an obstacle in the front right position. Observe BB’s reaction.
slide22
Back off from light

The robot does nothing until light shines on it and then

it reverses.

Enter in the following

Beep(27) Gait(gRev)

Beep(248) Gait(gRev)

then test to see what happens
