Presentation Transcript


The reproductive structure of flowering plants l.jpg
The Reproductive Structure of Flowering Plants:

Perianth

Petal: Corolla

Sepal:Calyx


Flower anatomy l.jpg
Flower Anatomy

Calyx: the outer whorl of sepals; typically these are green, but are petal-like in some species.


Flower anatomy5 l.jpg
Flower Anatomy

Corolla: the whorl of petals, which are usually thin, soft and colored to attract animals that help the process of pollination.

The coloration may extend into the ultraviolet, which is visible to the compound eyes of insects, but not to the eyes of birds.


Flower anatomy6 l.jpg
Flower Anatomy

Androecium (from Greek andros oikia: man's house): one or more stamens, each with a filament topped by an anther where pollen is produced.

Pollen contains the male gametes.


Flower anatomy7 l.jpg
Flower Anatomy

Gynoecium (from Greek gynaikos oikia: woman's house): all the female parts—the pistil(s) withovule(s) inside.


Flower anatomy8 l.jpg
Flower Anatomy

The basic unit of the female reproductive structure is the carpel. Each physcial body is called a pistil.

A flower may have a single carpel, which is a simple pistil (unicarpellate), or several carpels united in one compound pistil (syncarpous), or a cluster of un-united carpels/pistils (apocarpous)

The sticky tip of the pistil, the stigma, is the receptor of pollen.

The supportive stalk, the style, becomes the pathway for pollen tubes to grow from pollen grains adhering to the stigma, to the ovules, containing the gametes, housed inside the ovary.


Flower anatomy carpel l.jpg
Flower Anatomycarpel

carpel structure

fertilization


Evolution of the carpel l.jpg
Evolution of the Carpel

See figures 3.1 and 3.2 in your book


Fruit and seed formation l.jpg
Fruit and Seed Formation

A fruit develops from an ovary. A seed develops from an ovule.


Flower structure variation l.jpg
Flower Structure Variation

perfect

imperfect

imperfect

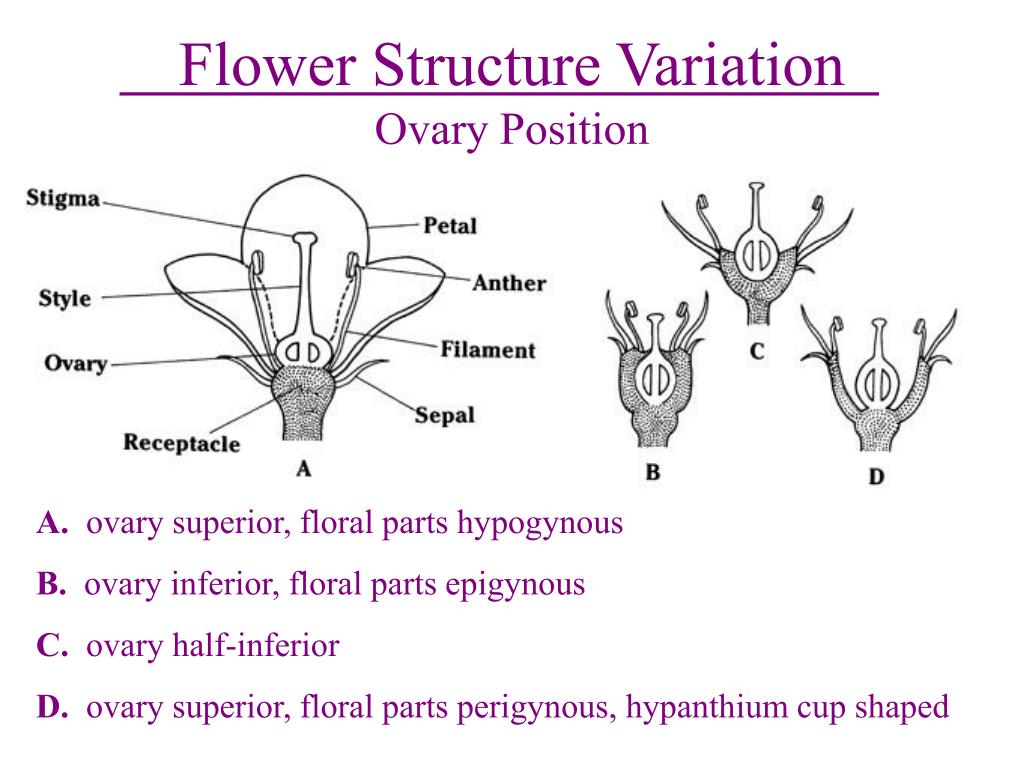

Flower structure variation ovary position l.jpg
Flower Structure VariationOvary Position

A. ovary superior, floral parts hypogynous

B. ovary inferior, floral parts epigynous

C. ovary half-inferior

D. ovary superior, floral parts perigynous, hypanthium cup shaped

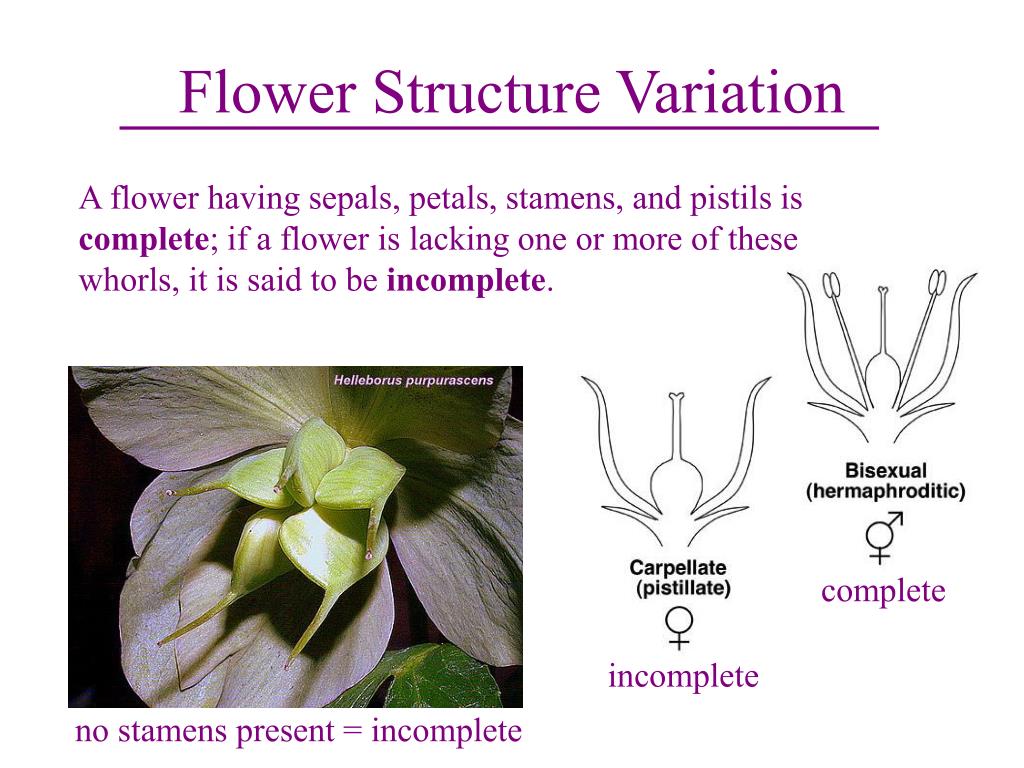

Flower structure variation14 l.jpg
Flower Structure Variation

A flower having sepals, petals, stamens, and pistils is complete; if a flower is lacking one or more of these whorls, it is said to be incomplete.

complete

incomplete

no stamens present = incomplete


Inflorescences l.jpg
Inflorescences

An inflorescence is a group or cluster of flowers. It may be branched or unbranched. Modifications can involve the length, variations in the proportions, compressions, and swellings, and the order in which the flowers open.

Usually the modifications have been evolved to optimize the plant’s method of pollen dispersal.


Inflorescences16 l.jpg
Inflorescences

raceme

spike

corymb

umbel


Inflorescences17 l.jpg
Inflorescences

spadix

head

catkin


Pollen dispersal by animals l.jpg
Pollen Dispersal by Animals

Bees, Beetles, Bats, Birds, Butterflies, etc…


Symmetry l.jpg
Symmetry

Flowers that are actinomorphic have "radial symmetry", meaning they can be divided into symmetrical halves by more than one longitudinal plane passing through the axis, much as a pie can be cut into several equal and identical pieces.

Zygomorphic flowers are "yoke shaped” or have"bilateral” symmetry, where flowers can be divided by only a single plane into two mirror-image halves, much like a yoke or a person's face.

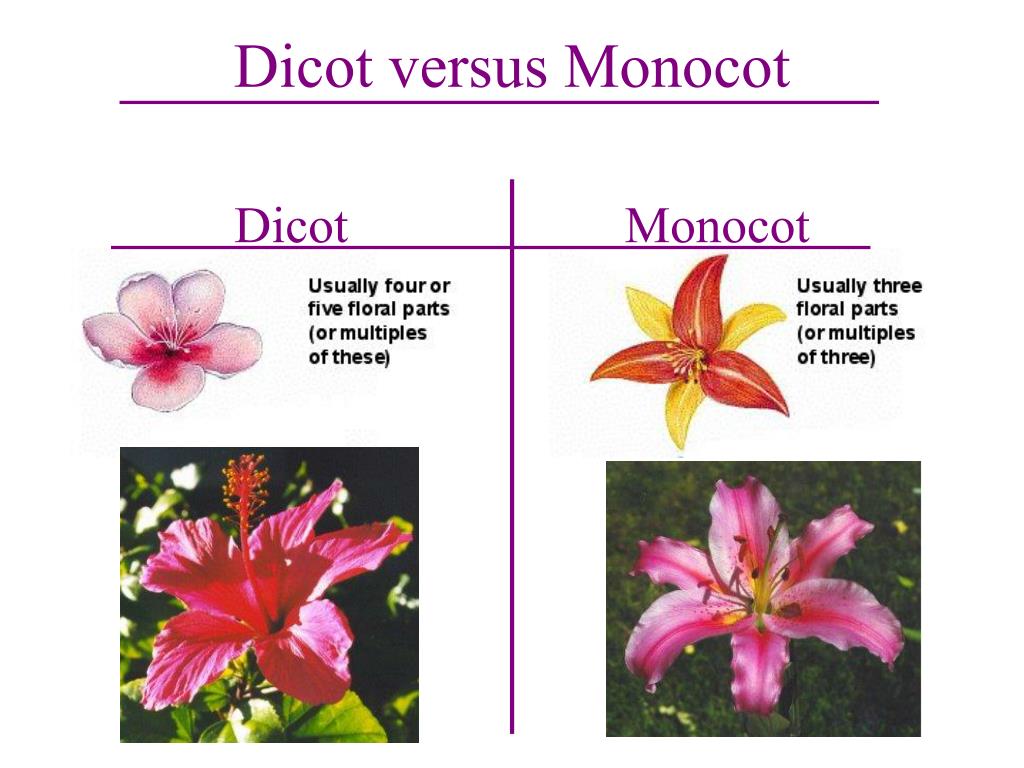

Dicot versus monocot l.jpg
Dicot versus Monocot

Dicot

Monocot


Lab objectives l.jpg
Lab Objectives

1. Flowers are arranged in groups called inflorescences. We will examine some inflorescences particular to certain families later in the semester. For now, know what an inflorescence is and which ones we looked at today.

2. DRAW a longitudinal section of a typical flower labeling the following parts: receptacle, calyx, sepals, corolla, petals, perianth, pedicel, ovary, ovule, style, stigma, pistil, gynoecium, anther, filament, stamen, and androecium.

3. EXAMINE by dissection the floral material provided making long and cross sections of the flower and its parts. On a separate sheet of paper, SKETCH the flowers and label the parts. Then, FOR EACH FLOWER, answer the following questions:

A. Is the flower actinomorphic (regular) or zygomorphic (irregular)?

B. How many sepals are present? Petals? Stamens? Carpels? To count carpels, count the locules, styles, style branches, and/or the zones of placentation by cross- sectioning the ovary.

C. Is the ovary inferior or superior?

D. Is the flower from a monocotyledonous or dicotyledonous plant?

E. Is the flower perfect (both sexes present) or imperfect? Complete (all four floral whorls) or incomplete?
