Presentation Transcript


How to thread the sewing machine l.jpg

How to thread the Sewing Machine


Winding the bobbin l.jpg

Winding the Bobbin

Place your thread on the spool pin

Pull thread around knob on opposite end of the machine

Thread bobbin up through the middle out one of the holes

Place bobbin on bobbin winder

Push knob in. (Machine needle will not operate when knob is pushed in).

It will automatically stop when it’s finished winding


Threading the top thread l.jpg

Threading the Top Thread

Thread it through the tension.

Then down through the thread guide

Up through the take up lever.

Make sure you pull the thread behind the hook by the needle

The thread will make a capital “N”.

Make sure you thread all parts or it will not work Properly.

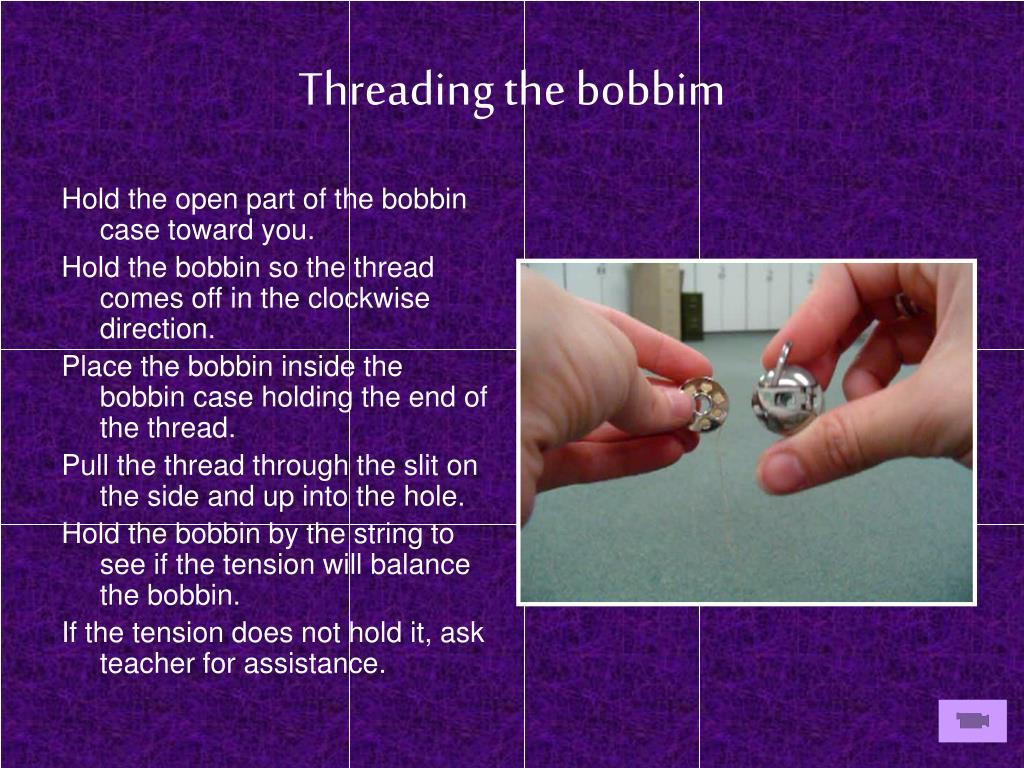

Threading the bobbim l.jpg

Threading the bobbim

Hold the open part of the bobbin case toward you.

Hold the bobbin so the thread comes off in the clockwise direction.

Place the bobbin inside the bobbin case holding the end of the thread.

Pull the thread through the slit on the side and up into the hole.

Hold the bobbin by the string to see if the tension will balance the bobbin.

If the tension does not hold it, ask teacher for assistance.


Slide5 l.jpg

Threading the bottom

Turn the open part of the bobbin case away from you.

Make sure the arm of the bobbin case is pointing up (toward the ceiling).

Look inside the machine and you can see where the arm will fit in.

Push it into place

It is not complete until you here a snap.

Then you will turn the hand wheel so the needle goes down once and back up.

This will grab the thread on the bottom and pull it up
