Presentation Transcript

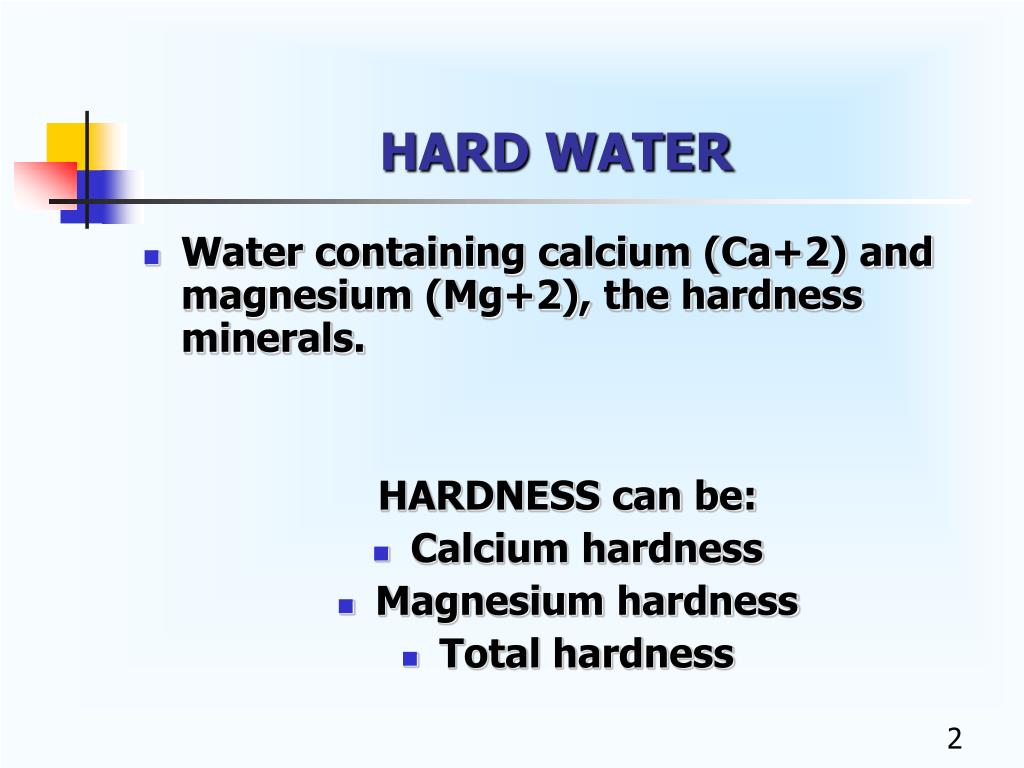

Hard water
HARD WATER

  • Water containing calcium (Ca+2) and magnesium (Mg+2), the hardness minerals.

    HARDNESS can be:

  • Calcium hardness

  • Magnesium hardness

  • Total hardness


Measurment of hardness
MEASURMENT OF HARDNESS

  • Milligrams per liter (mg/L)

  • Parts per million (ppm)

  • Grains per Gallon (gpg)

    1 mg/L = 1 ppm

    1 gpg = 17.1 ppm = 17.1 mg/L

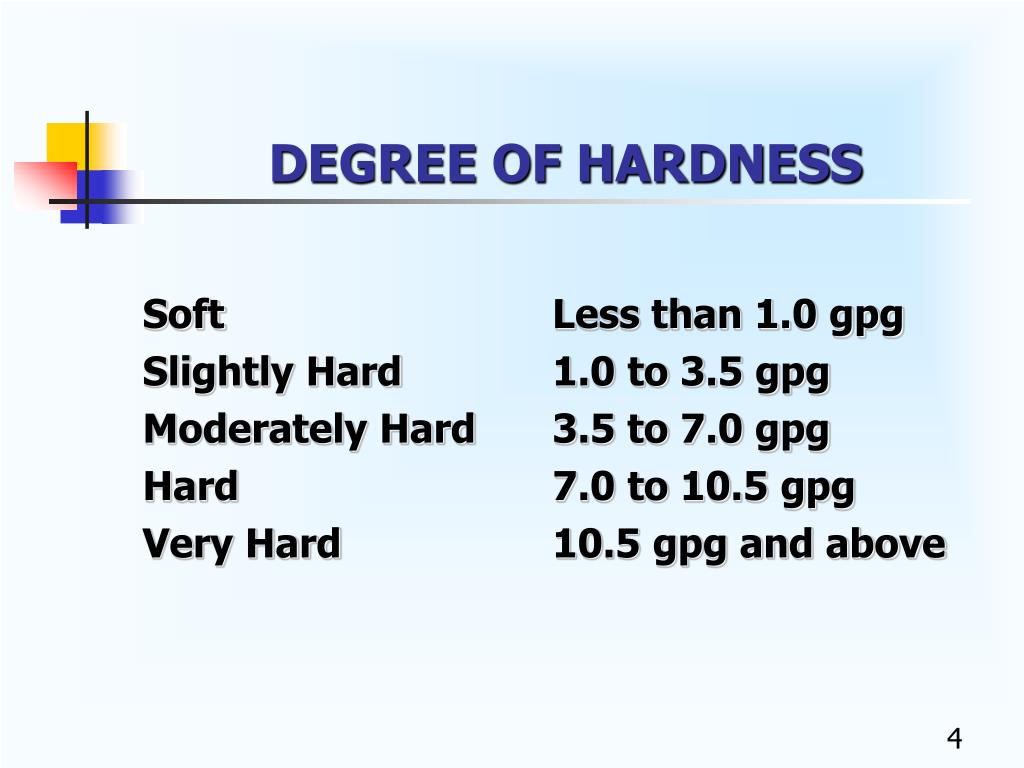

Degree of hardness
DEGREE OF HARDNESS

Soft Less than 1.0 gpg

Slightly Hard 1.0 to 3.5 gpg

Moderately Hard 3.5 to 7.0 gpg

Hard 7.0 to 10.5 gpg

Very Hard 10.5 gpg and above


Problems caused by hard water
PROBLEMS CAUSED BY HARD WATER

  • Decreases the efficiency of the detergents.

  • Scaling of pipes, water heaters and boilers.


Benefits of using soft water
BENEFITS OF USING SOFT WATER

  • Soaps and detergents are used more efficiently.

  • Materials and surfaces are cleaned better.

  • Scales in boilers and water heaters are reduced.

  • Precipitates are eliminated from the canned food products.

  • Softened rinse water does not leave scale.

  • Fabric washed in soft water lasts longer.

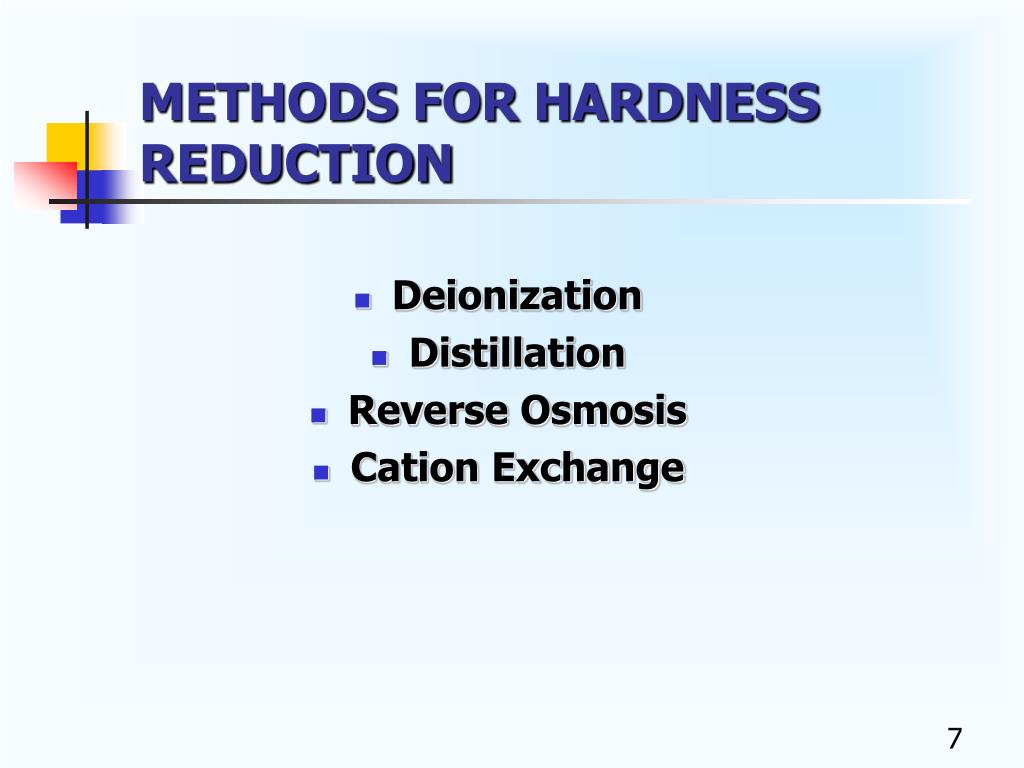

Methods for hardness reduction
METHODS FOR HARDNESS REDUCTION

  • Deionization

  • Distillation

  • Reverse Osmosis

  • Cation Exchange



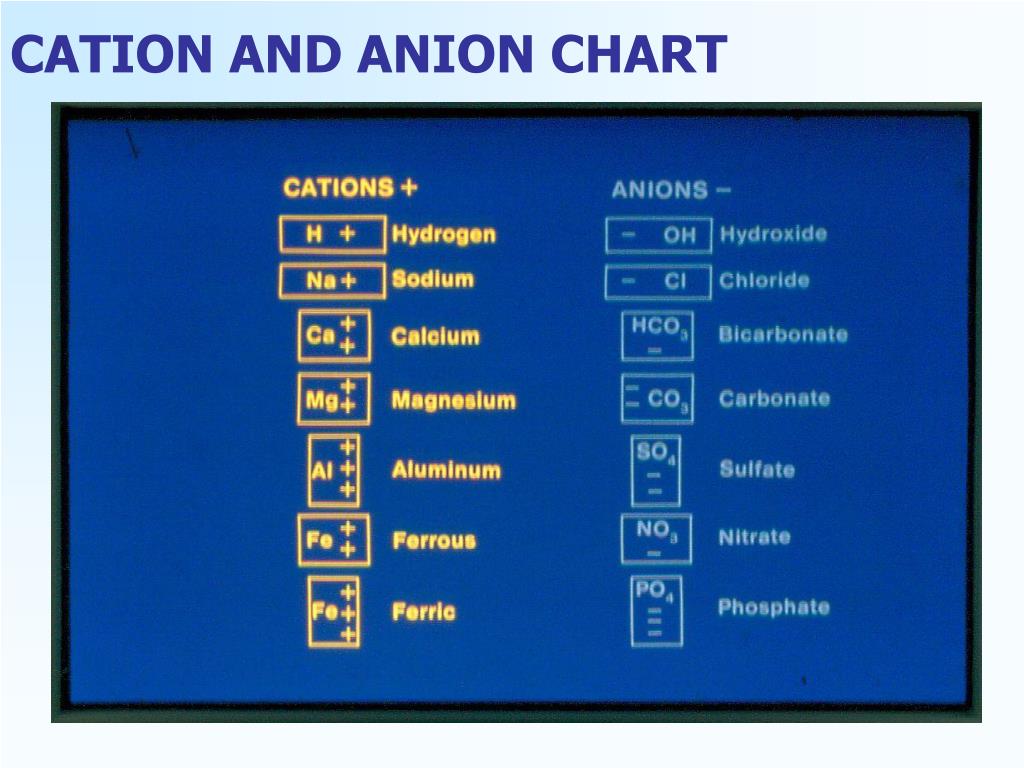

RESIN

  • Plastic beads made of cross linked polystyrene with functional groups (sulphonates) that act as ion exchange sites.

  • The sulphonate group has a negative charge allowing it to attract and hold (exchange) positive ions or cations such as H+, Ca+2, Mg+2, Fe+2, Na+.

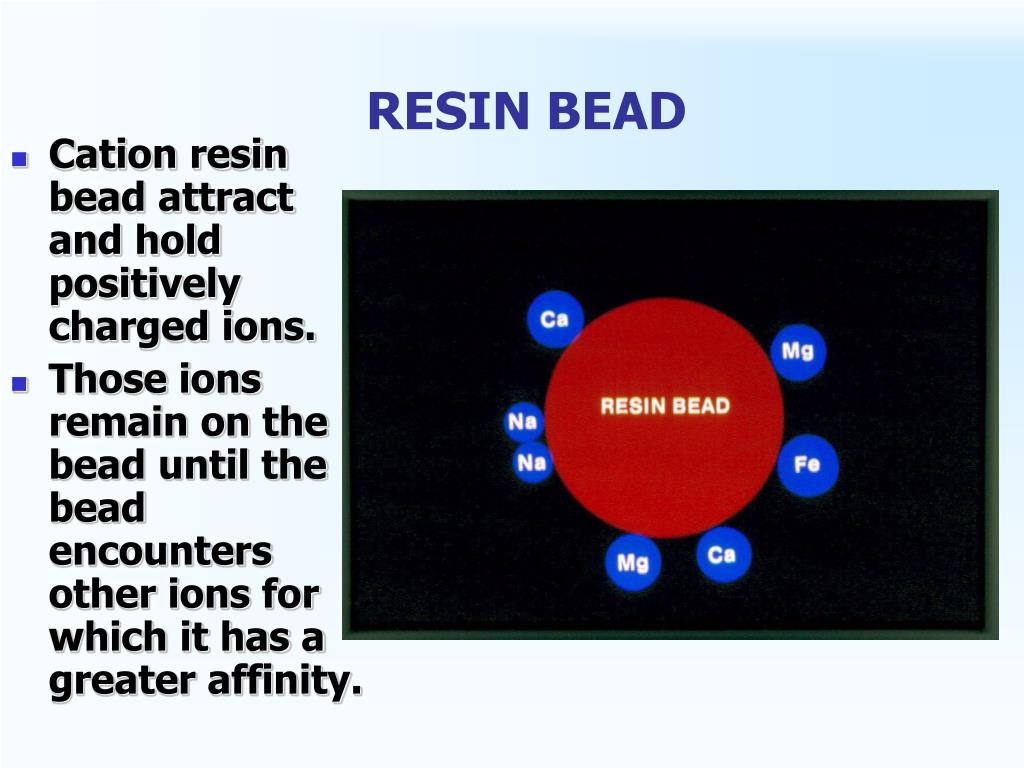

Resin bead
RESIN BEAD

  • Cation resin bead attract and hold positively charged ions.

  • Those ions remain on the bead until the bead encounters other ions for which it has a greater affinity.

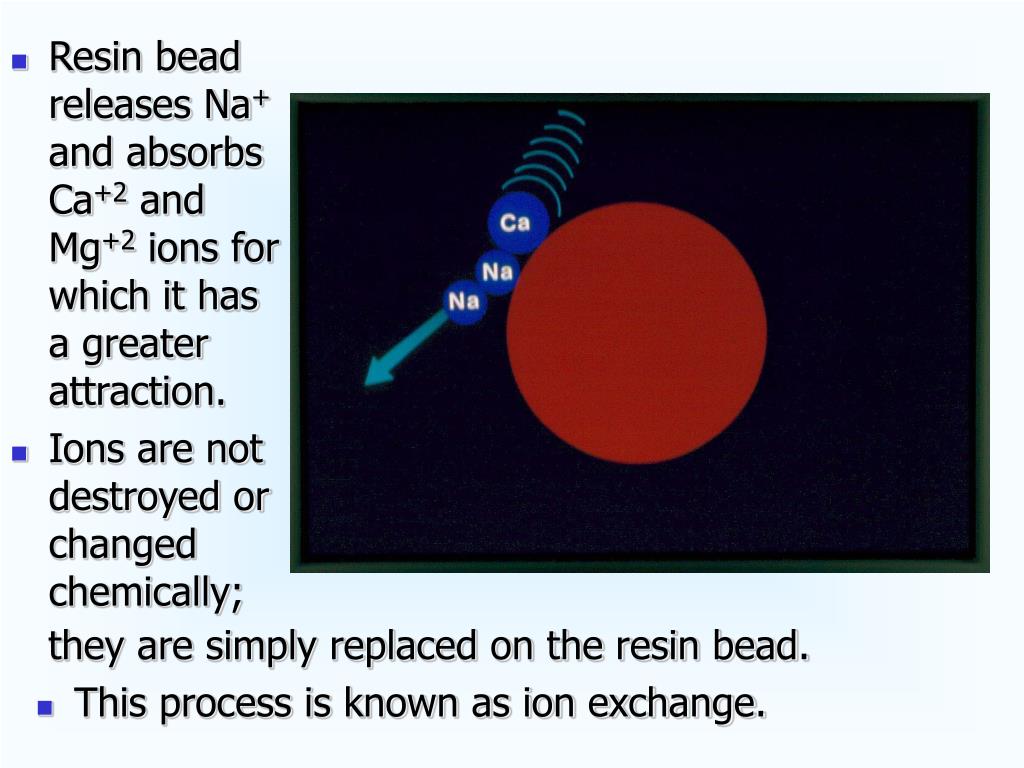

Resin bead releases Na+ and absorbs Ca+2 and Mg+2 ions for which it has a greater attraction.

Ions are not destroyed or changed chemically;

they are simply replaced on the resin bead.

This process is known as ion exchange.

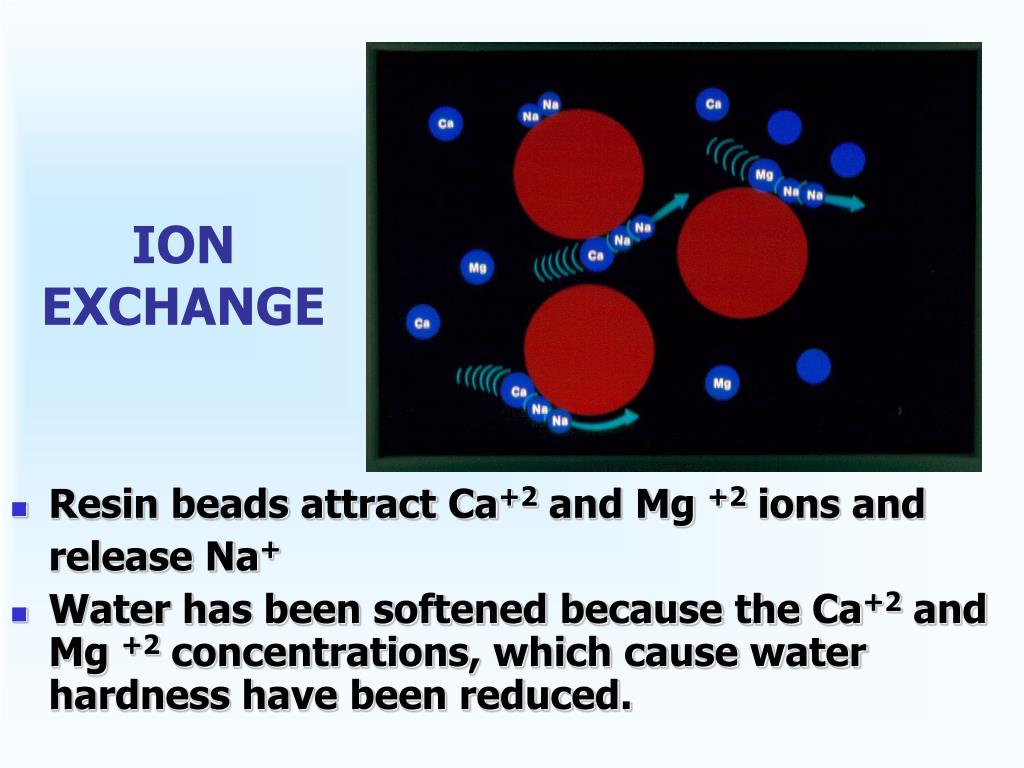

Ion exchange
ION EXCHANGE

  • Resin beads attract Ca+2 and Mg +2 ions and

    release Na+

  • Water has been softened because the Ca+2 and Mg +2 concentrations, which cause water hardness have been reduced.


After a vast number of Ca+2 and Mg+2 ions have become attached to the resin beads, and most of the Na+ ions have been released, the resin can no longer soften the water.

If no new chemical reaction is set, the incoming Ca+2 and Mg+2 ions flow untouched through the unit because there is no room for them on the resin beads.

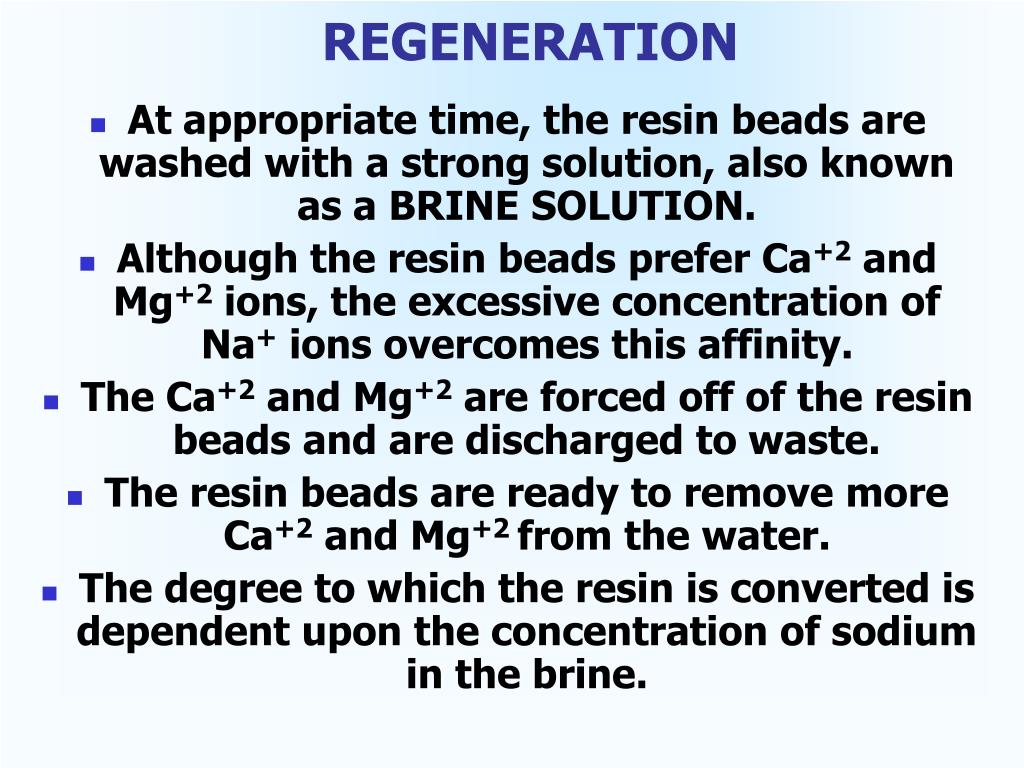

Regeneration
REGENERATION concentration of sodium in the solution.

  • At appropriate time, the resin beads are washed with a strong solution, also known as a BRINE SOLUTION.

  • Although the resin beads prefer Ca+2 and Mg+2 ions, the excessive concentration of Na+ ions overcomes this affinity.

  • The Ca+2 and Mg+2 are forced off of the resin beads and are discharged to waste.

  • The resin beads are ready to remove more Ca+2 and Mg+2 from the water.

  • The degree to which the resin is converted is dependent upon the concentration of sodium in the brine.


The softening reaction is given as: concentration of sodium in the solution.

2RNa+ + Ca+2 RCa+2 + 2Na+

2RNa+ + Mg+2 RMg+2 + 2Na+

The reverse reaction is give as:

2RNa+ + Ca+2 RCa+2 + 2Na+ High Sodium

Concentration

2RNa+ + Mg+2 RMg+2 + 2Na+ High Sodium

Concentration

NOTE: R represents the resin macro-molecule.


Operational modes
OPERATIONAL MODES concentration of sodium in the solution.

In practice softeners can be

  • In service

  • Exhausted and waiting for regeneration

  • In regeneration

  • In standby

  • Bypassed and out of service

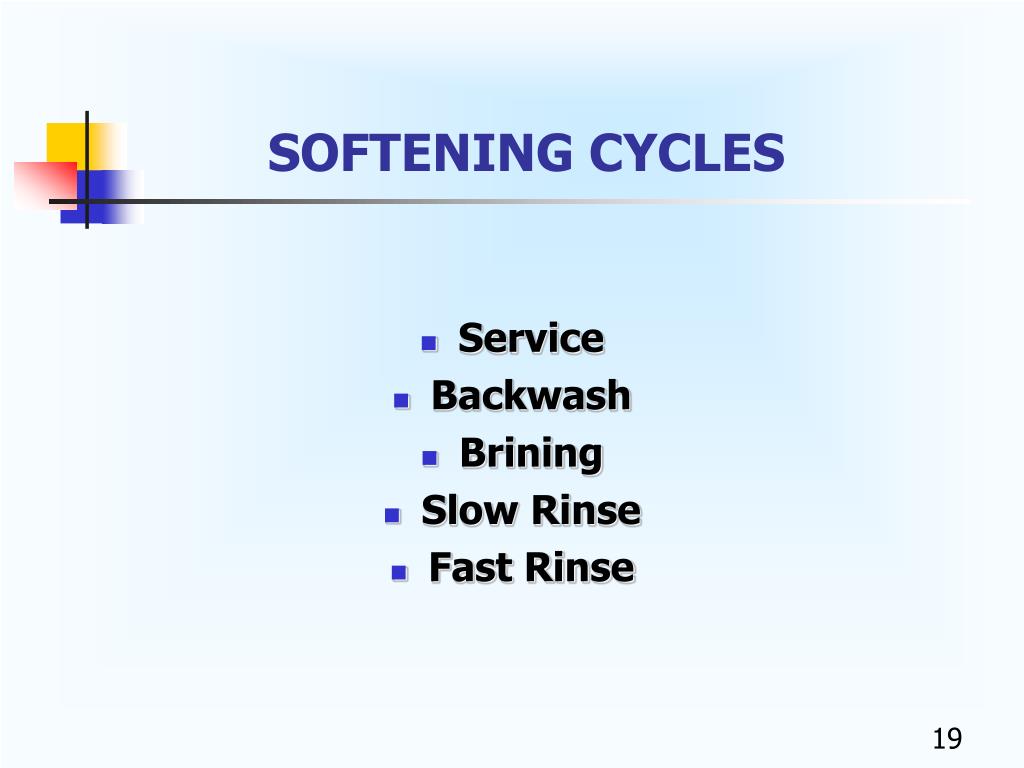

Softening cycles
SOFTENING CYCLES concentration of sodium in the solution.

  • Service

  • Backwash

  • Brining

  • Slow Rinse

  • Fast Rinse

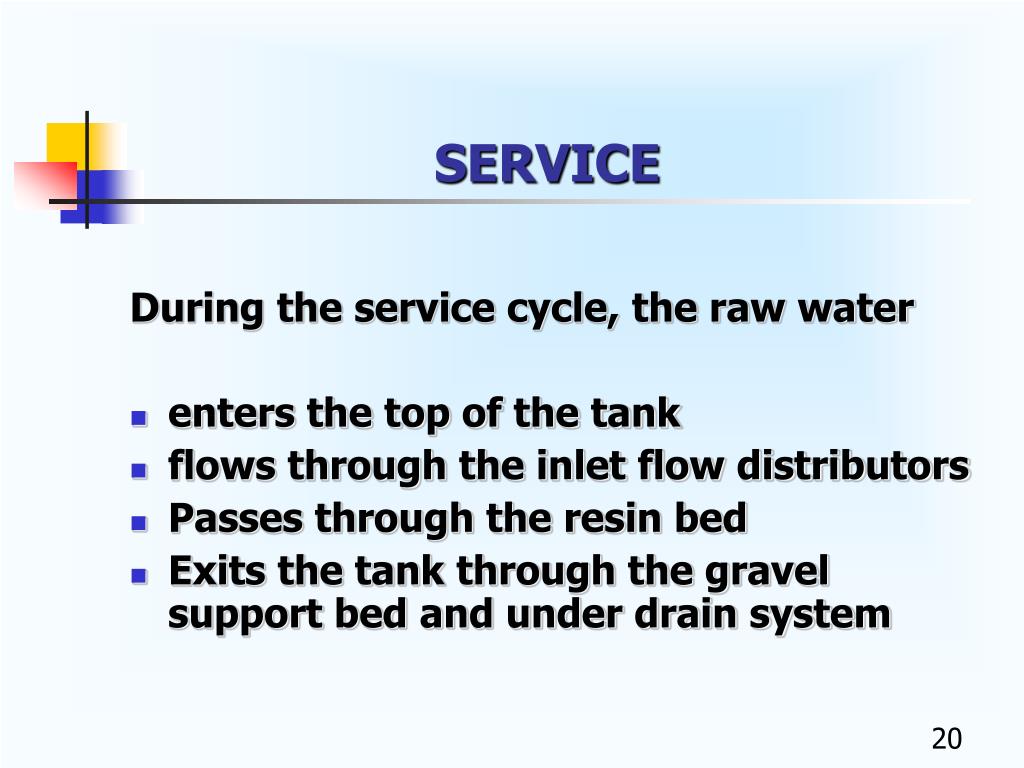

Service
SERVICE concentration of sodium in the solution.

During the service cycle, the raw water

  • enters the top of the tank

  • flows through the inlet flow distributors

  • Passes through the resin bed

  • Exits the tank through the gravel support bed and under drain system


Service1
SERVICE concentration of sodium in the solution.

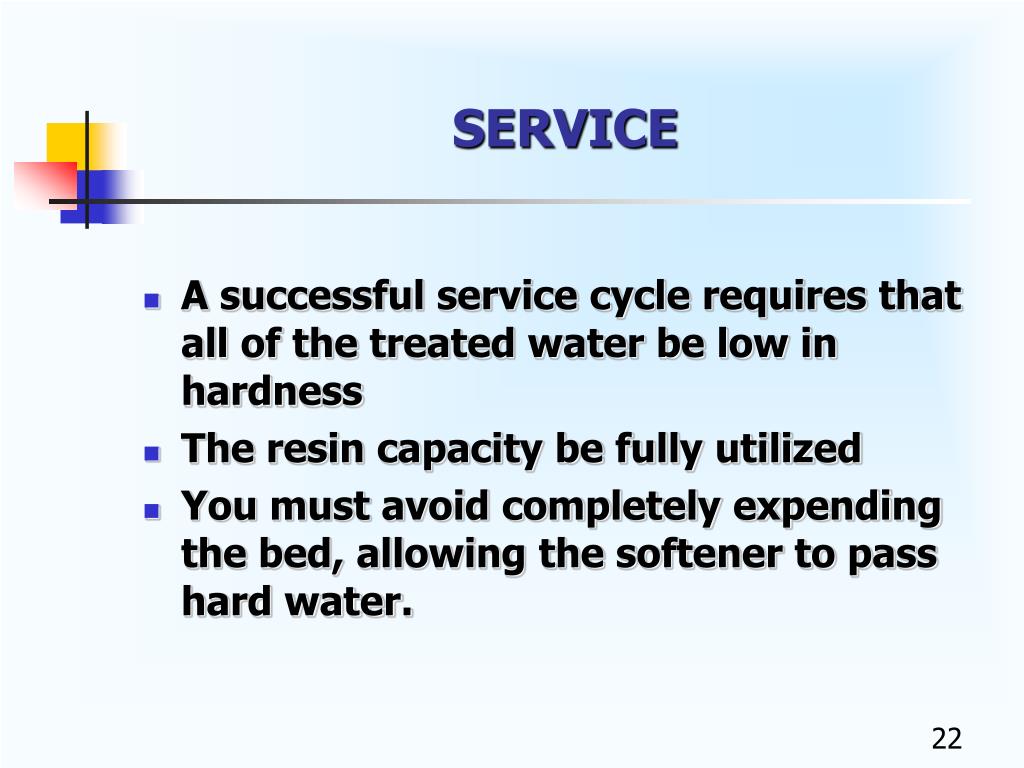

Service2
SERVICE concentration of sodium in the solution.

  • A successful service cycle requires that all of the treated water be low in hardness

  • The resin capacity be fully utilized

  • You must avoid completely expending the bed, allowing the softener to pass hard water.

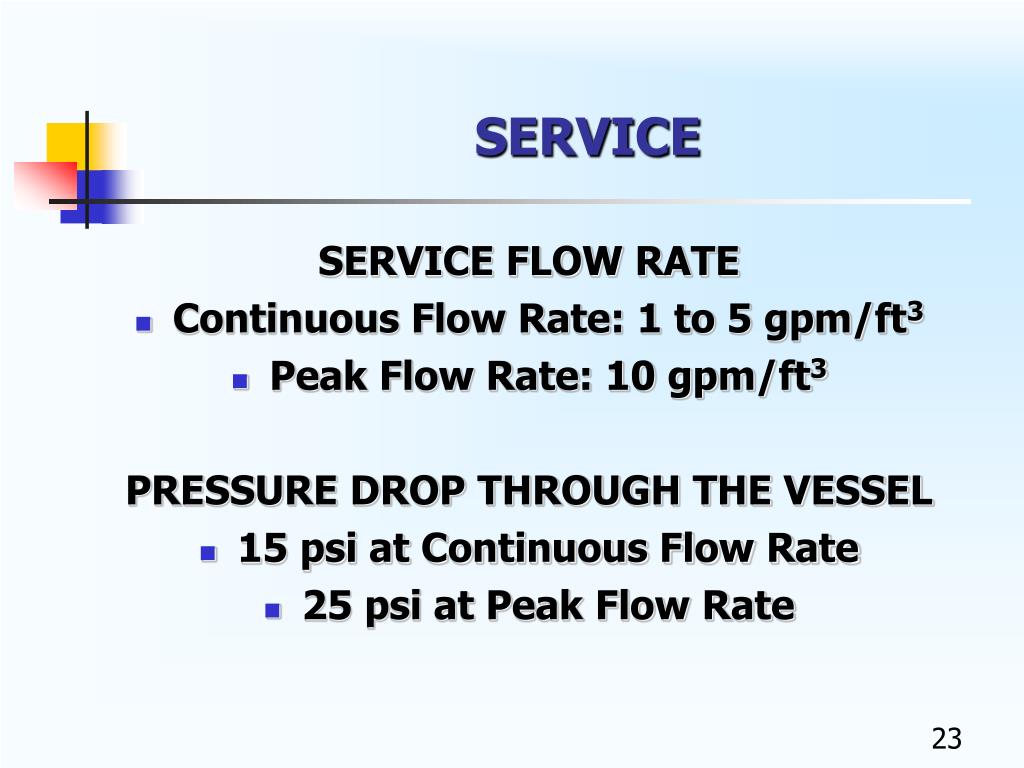

Service3
SERVICE concentration of sodium in the solution.

SERVICE FLOW RATE

  • Continuous Flow Rate: 1 to 5 gpm/ft3

  • Peak Flow Rate: 10 gpm/ft3

    PRESSURE DROP THROUGH THE VESSEL

  • 15 psi at Continuous Flow Rate

  • 25 psi at Peak Flow Rate


Backwash
BACKWASH concentration of sodium in the solution.

In Backwash, the raw water

  • enters the bottom of the bed through the underdrain system

  • exits through the top of the tank to waste

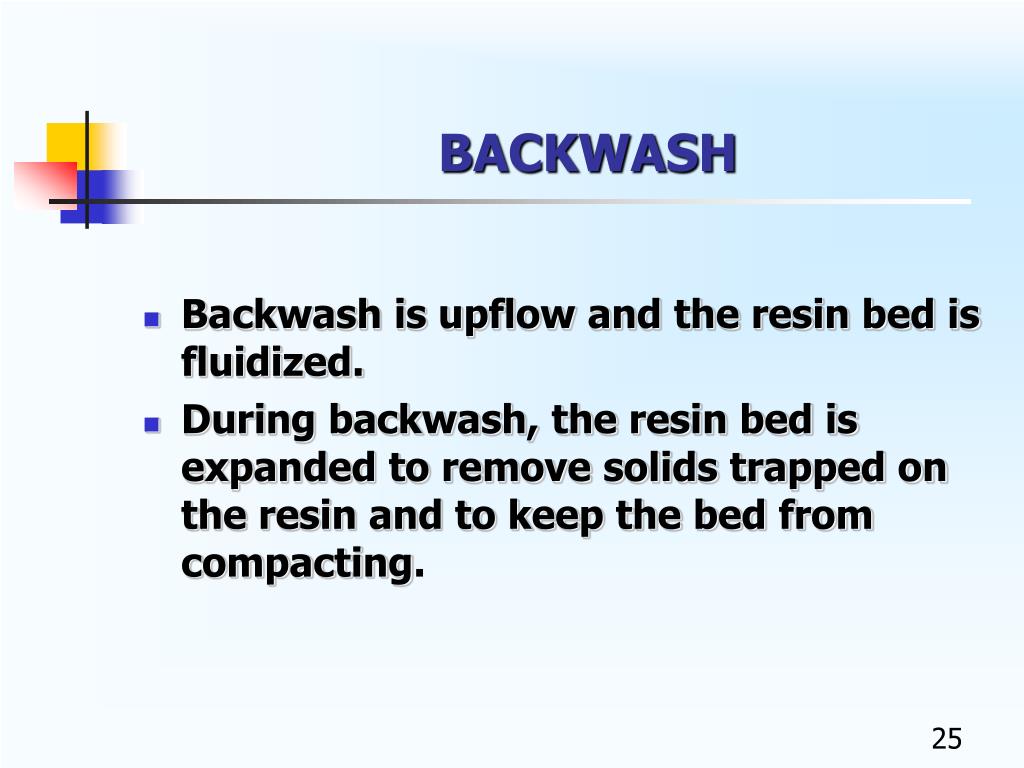

Backwash1
BACKWASH concentration of sodium in the solution.

  • Backwash is upflow and the resin bed is fluidized.

  • During backwash, the resin bed is expanded to remove solids trapped on the resin and to keep the bed from compacting.


Backwash2
BACKWASH concentration of sodium in the solution.


Backwash3
BACKWASH concentration of sodium in the solution.

  • The rate of flow must be controlled during the backwash to make certain the bed is expanded but not washing any of the resin out of the softener.


Backwash flow control
BACKWASH FLOW CONTROL concentration of sodium in the solution.

  • Flow controllers provide accurate backwash flow rates

  • These are installed in the waste line

  • Backwash flow controller is a plates with one or more orifices

  • The orifices are designed to give a constant flow rate over a broad range of pressure drop

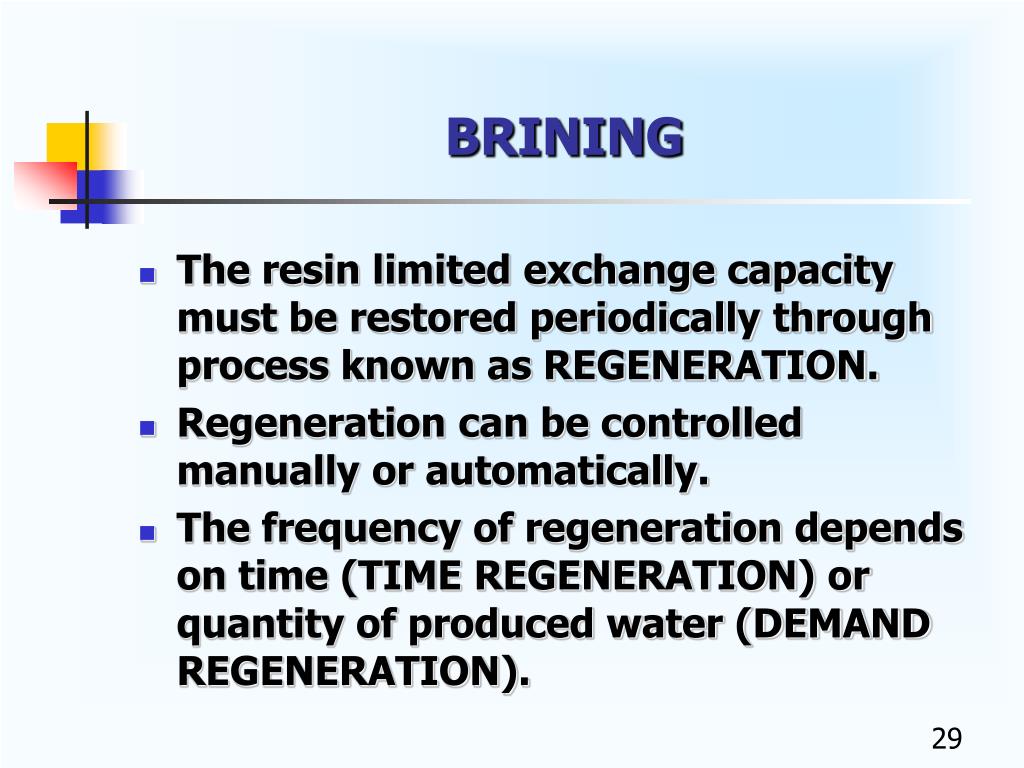

Brining
BRINING concentration of sodium in the solution.

  • The resin limited exchange capacity must be restored periodically through process known as REGENERATION.

  • Regeneration can be controlled manually or automatically.

  • The frequency of regeneration depends on time (TIME REGENERATION) or quantity of produced water (DEMAND REGENERATION).


Brine making
BRINE MAKING concentration of sodium in the solution.

  • A brine tank is plastic or fiberglass tank with a perforated salt platform.

  • Granular salt is added to a brine tank.

  • A Brine valve keeps the tank filled with water to a preset level.

  • The solid salt is in contact with the water above the platform and thus dissolves in the water.

  • Saturated brine is 26% salt by weight.

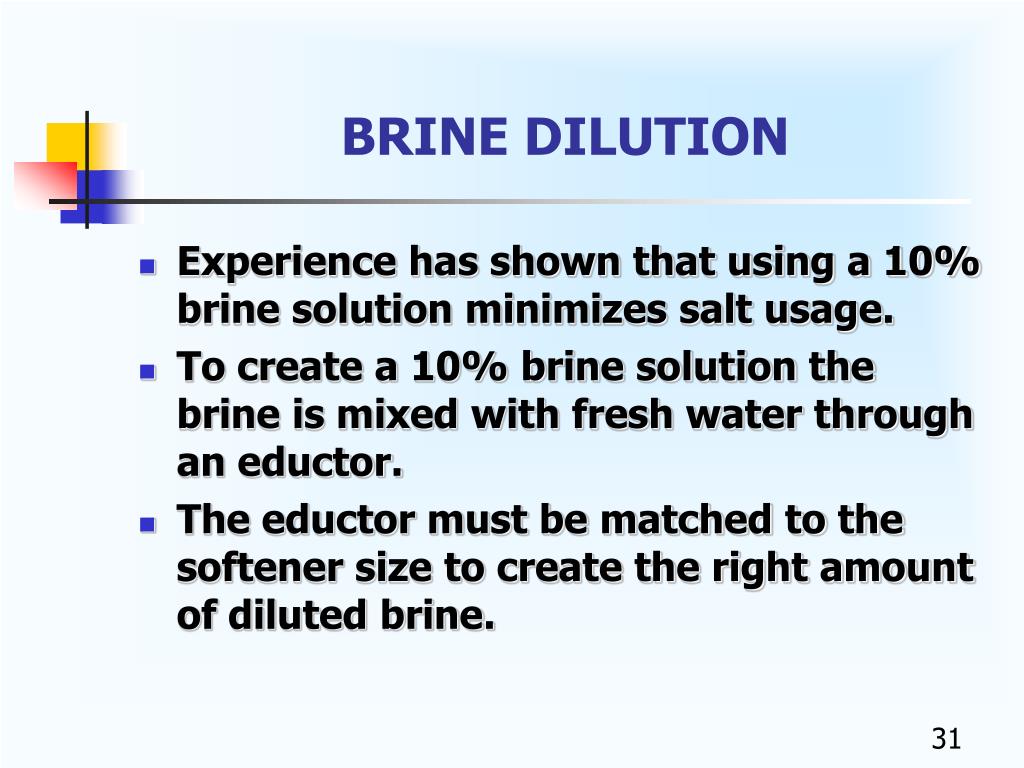

Brine dilution
BRINE DILUTION concentration of sodium in the solution.

  • Experience has shown that using a 10% brine solution minimizes salt usage.

  • To create a 10% brine solution the brine is mixed with fresh water through an eductor.

  • The eductor must be matched to the softener size to create the right amount of diluted brine.

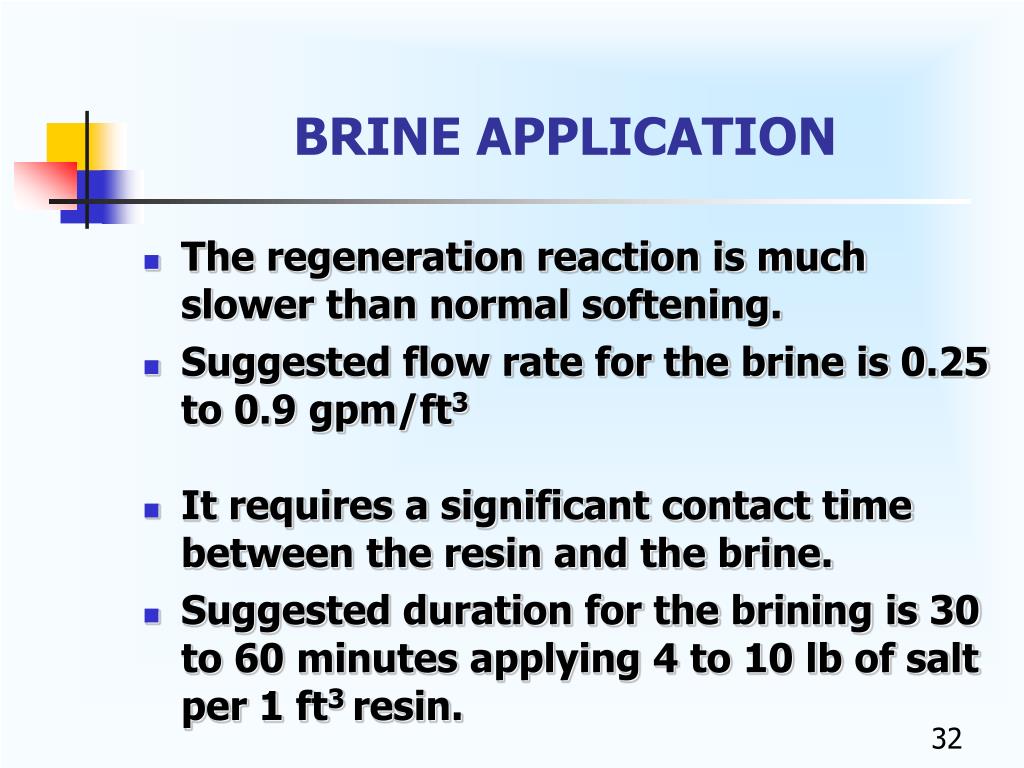

Brine application
BRINE APPLICATION concentration of sodium in the solution.

  • The regeneration reaction is much slower than normal softening.

  • Suggested flow rate for the brine is 0.25 to 0.9 gpm/ft3

  • It requires a significant contact time between the resin and the brine.

  • Suggested duration for the brining is 30 to 60 minutes applying 4 to 10 lb of salt per 1 ft3 resin.


Slow rinse
SLOW RINSE concentration of sodium in the solution.

  • To gradually push the brine out of the resin bed after regeneration.

    Recommended flow rate is 0.25 to 0.9 gpm/ft3.

  • Recommended duration is 30 minutes.

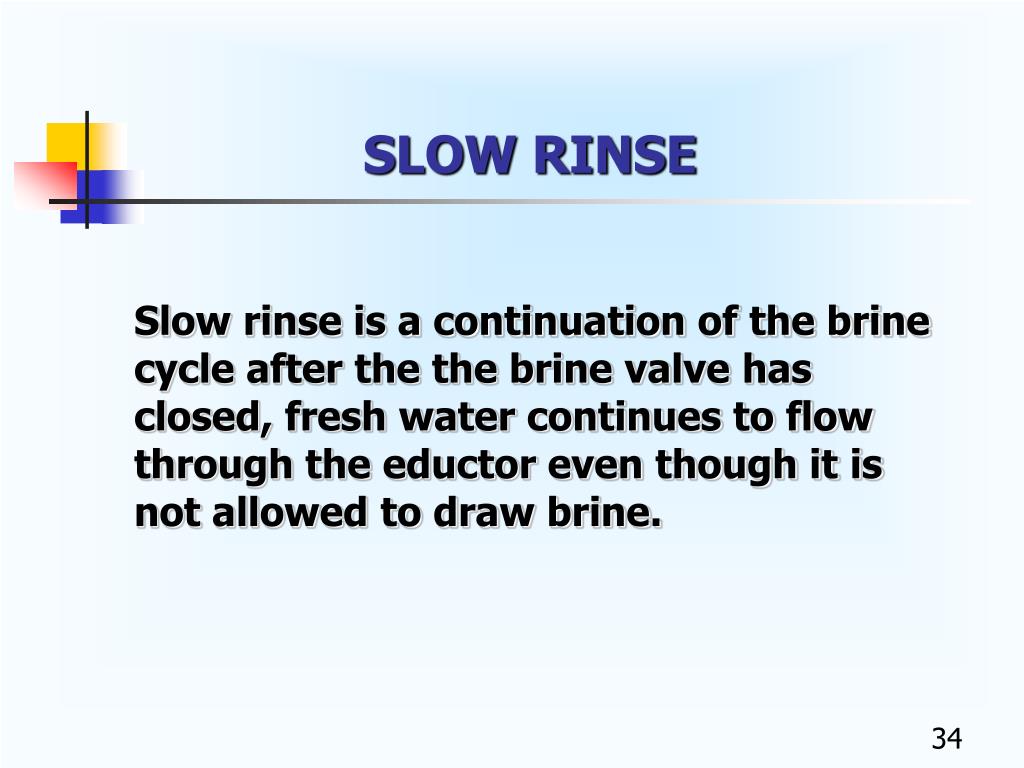

Slow rinse1
SLOW RINSE concentration of sodium in the solution.

Slow rinse is a continuation of the brine cycle after the the brine valve has closed, fresh water continues to flow through the eductor even though it is not allowed to draw brine.

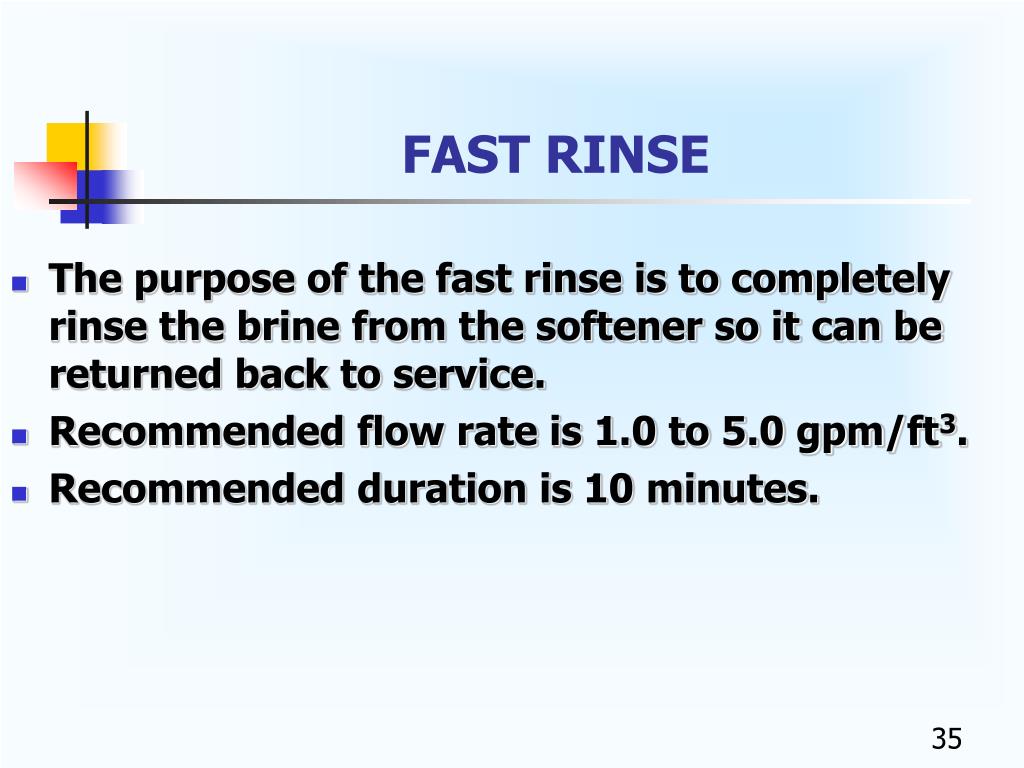

Fast rinse
FAST RINSE concentration of sodium in the solution.

  • The purpose of the fast rinse is to completely rinse the brine from the softener so it can be returned back to service.

  • Recommended flow rate is 1.0 to 5.0 gpm/ft3.

  • Recommended duration is 10 minutes.

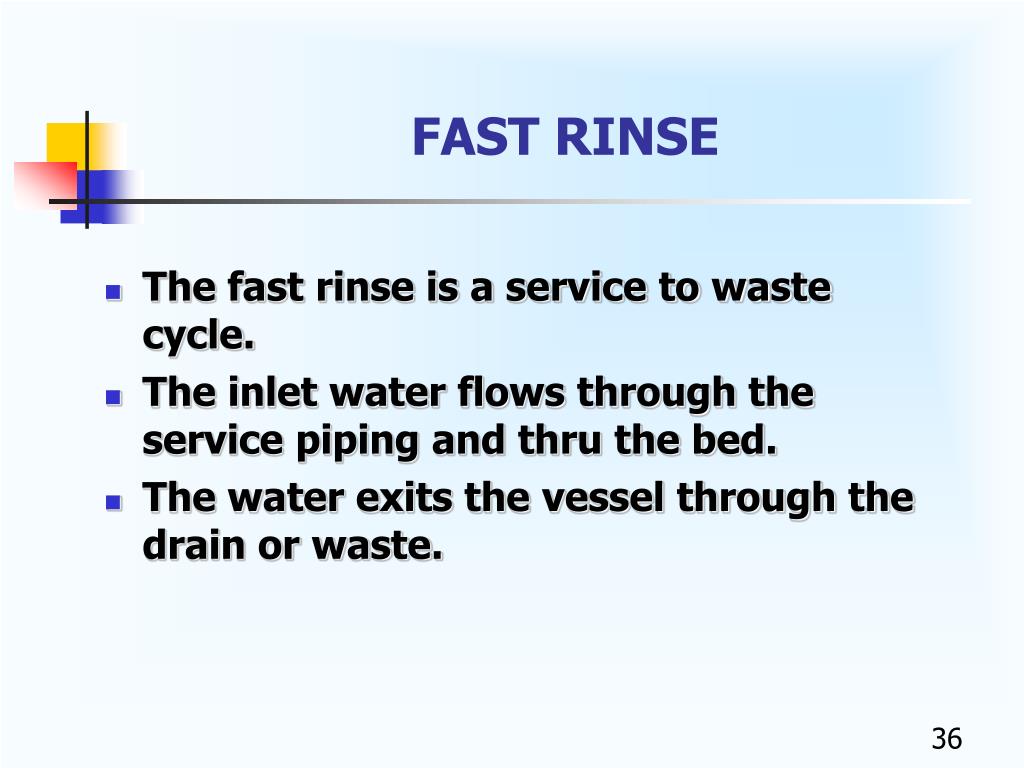

Fast rinse1
FAST RINSE concentration of sodium in the solution.

  • The fast rinse is a service to waste cycle.

  • The inlet water flows through the service piping and thru the bed.

  • The water exits the vessel through the drain or waste.


Types of water softeners
TYPES OF WATER SOFTENERS concentration of sodium in the solution.

  • Manual

  • Semi-Automatic

  • Fully Automatic

  • Demand Initiated Regeneration

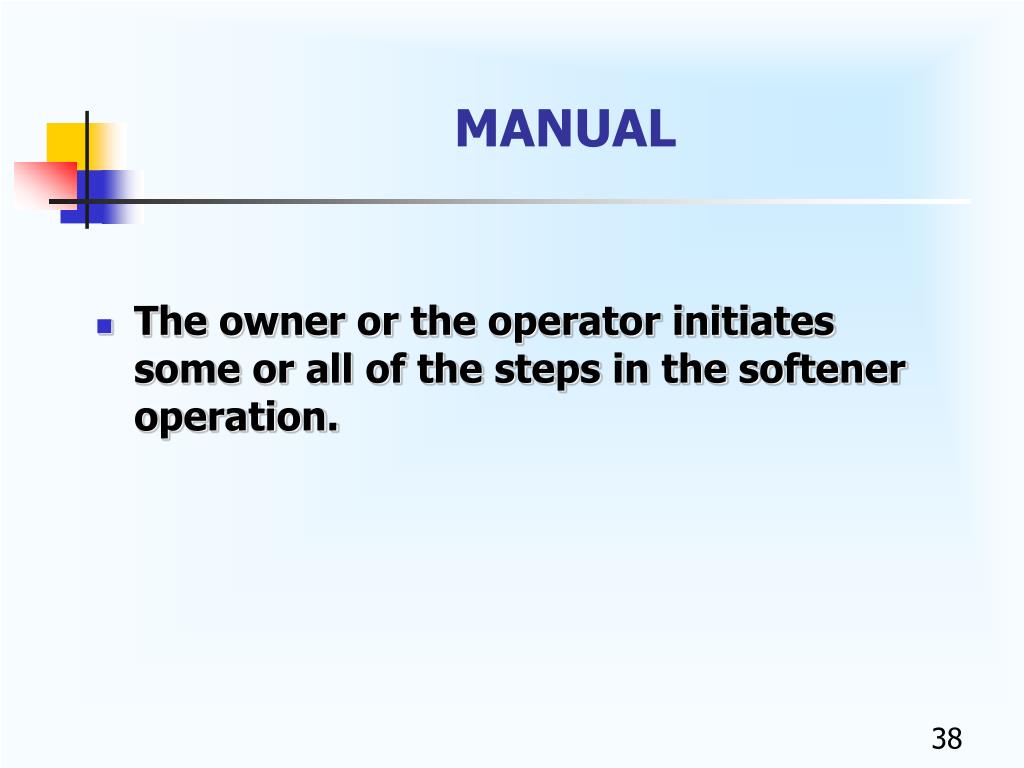

Manual
MANUAL concentration of sodium in the solution.

  • The owner or the operator initiates some or all of the steps in the softener operation.


Semi automatic
SEMI - AUTOMATIC concentration of sodium in the solution.

  • The semi-automatic units require only the regeneration cycle to be initiated by the operator.

  • All necessary steps of regeneration and return to service are handled by the softener controls.

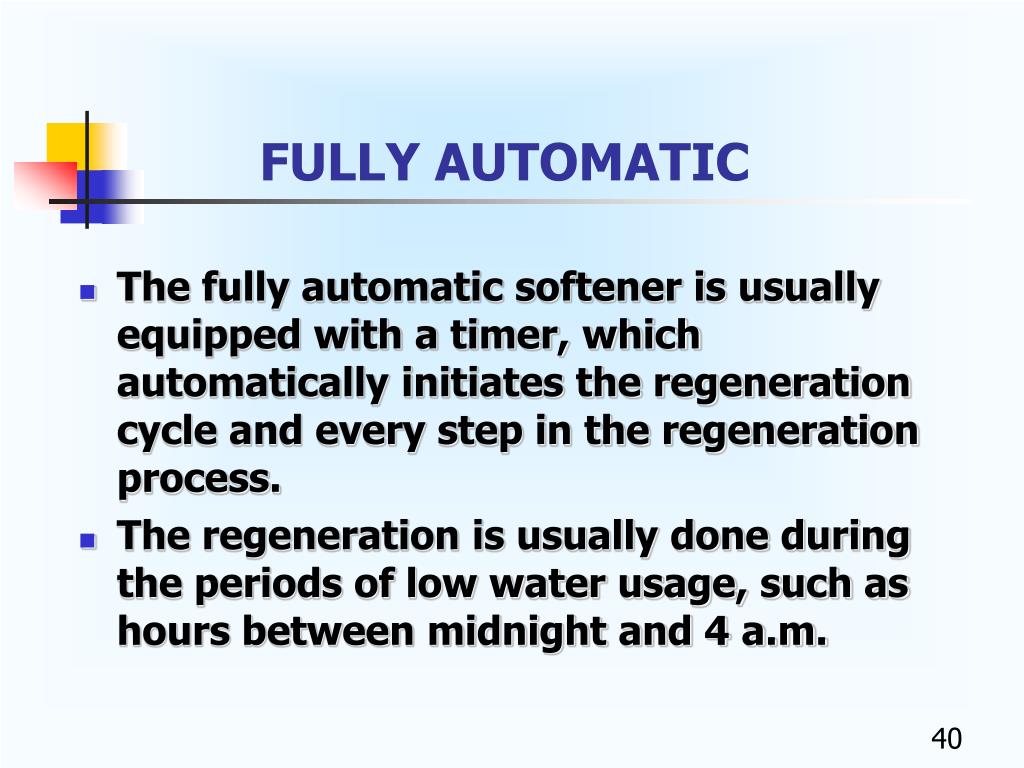

Fully automatic
FULLY AUTOMATIC concentration of sodium in the solution.

  • The fully automatic softener is usually equipped with a timer, which automatically initiates the regeneration cycle and every step in the regeneration process.

  • The regeneration is usually done during the periods of low water usage, such as hours between midnight and 4 a.m.

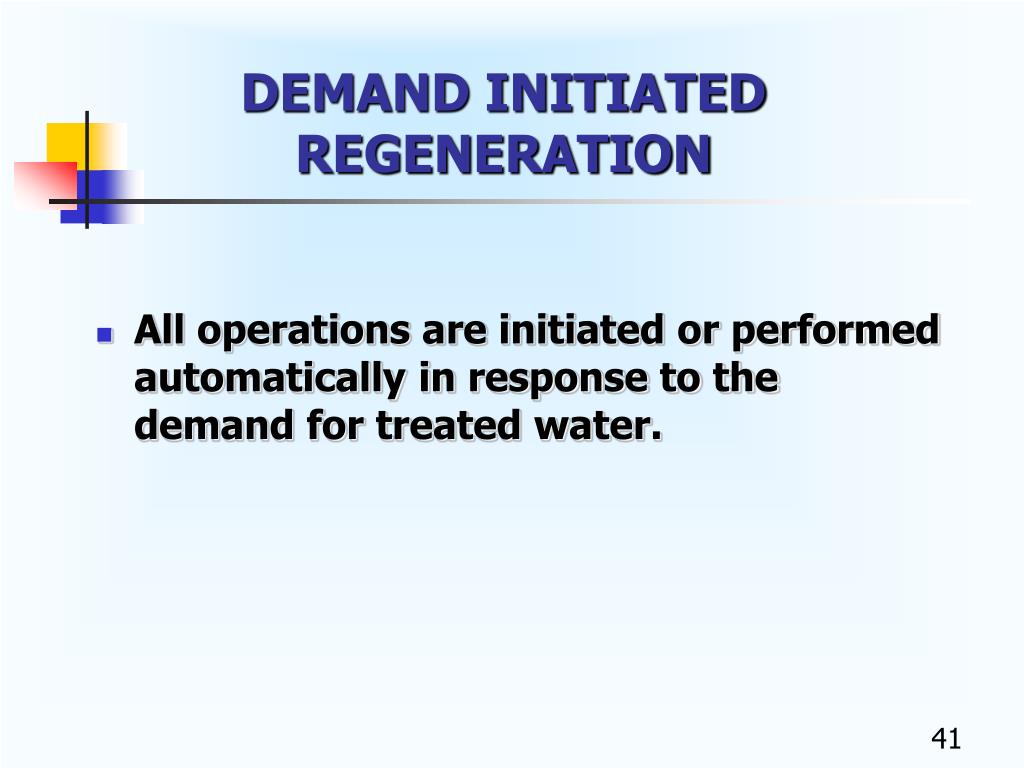

Demand initiated regeneration
DEMAND INITIATED REGENERATION concentration of sodium in the solution.

  • All operations are initiated or performed automatically in response to the demand for treated water.

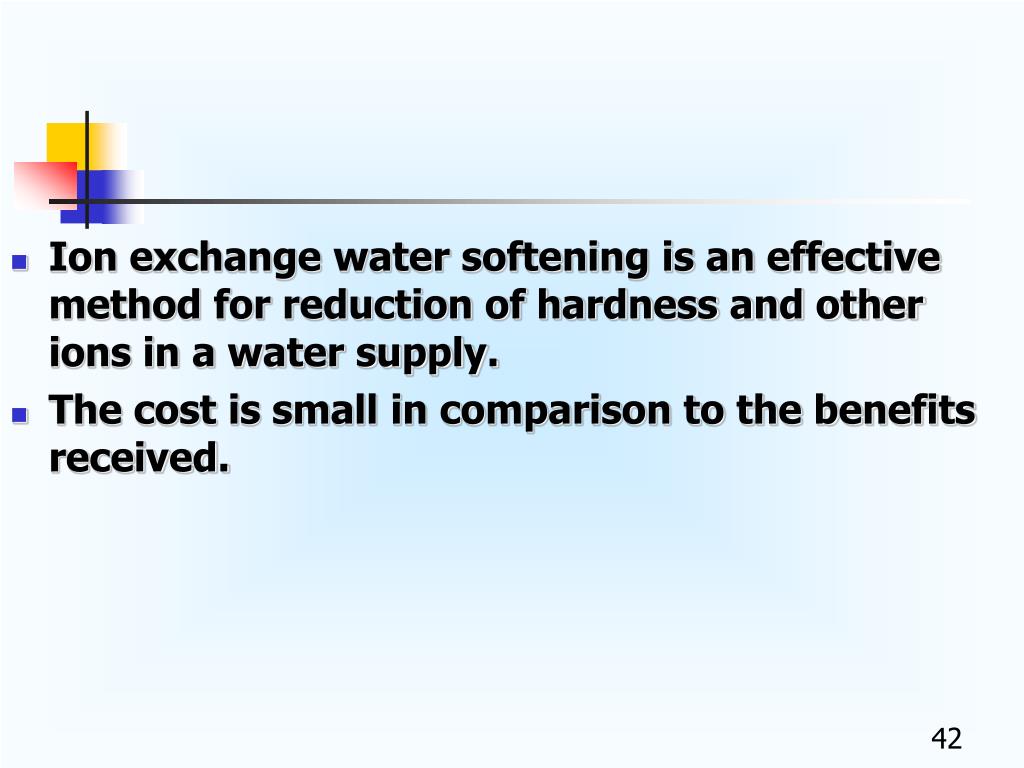

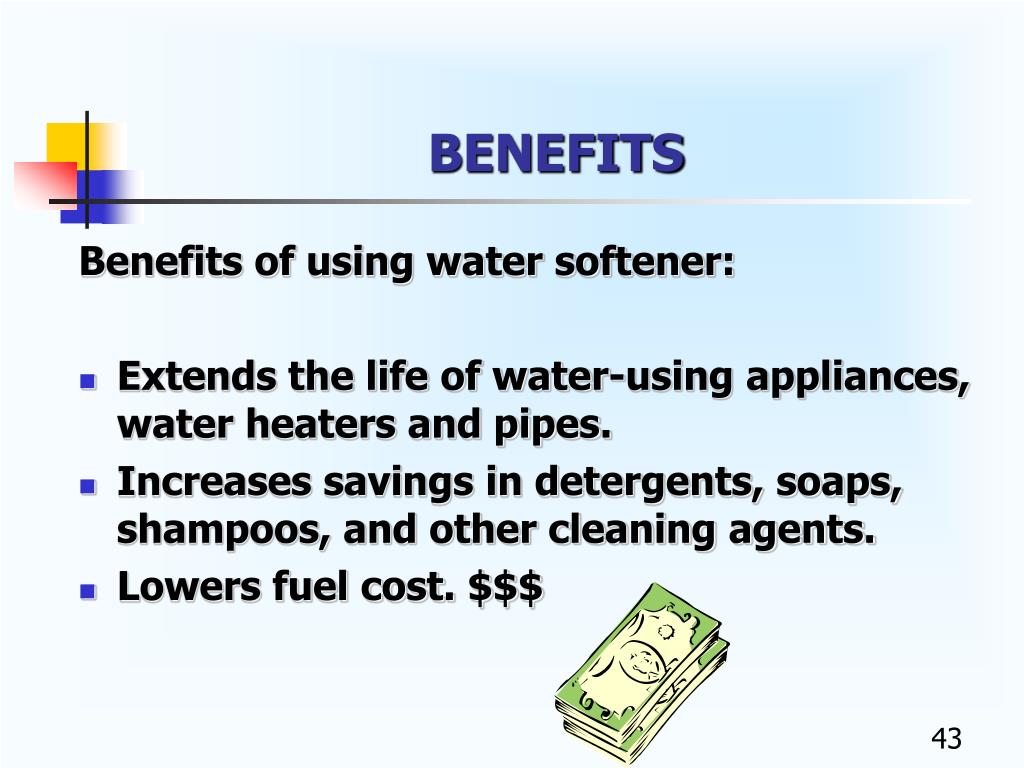

Benefits
BENEFITS reduction of hardness and other ions in a water supply.

Benefits of using water softener:

  • Extends the life of water-using appliances, water heaters and pipes.

  • Increases savings in detergents, soaps, shampoos, and other cleaning agents.

  • Lowers fuel cost. $$$

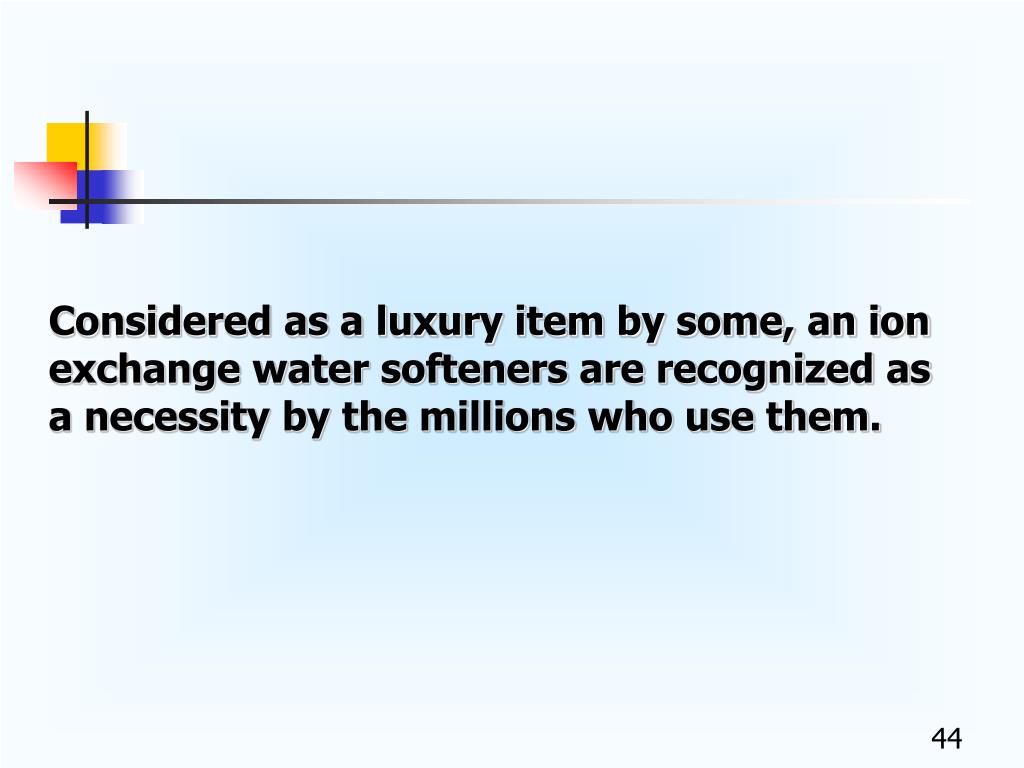

Considered as a luxury item by some, an ion exchange water softeners are recognized as a necessity by the millions who use them.


Water king inc
WATER KING, INC. softeners are recognized as a necessity by the millions who use them.

102 Charbonnet Road

Duson, LA 70529

Phone: (337) 988-2360

Fax: (337) 981-7922

E-mail: [email protected]

Web site: www.waterking.com


THE END softeners are recognized as a necessity by the millions who use them.
