Presentation Transcript


Chapter 15 the milky way galaxy l.jpg

Chapter 15:The Milky Way Galaxy


What do you think l.jpg

WHAT DO YOU THINK?

  • How many stars does the Milky Way Galaxy contain?

  • Where is our Solar System located in the Milky Way Galaxy?

  • Is the Sun moving through the Milky Way Galaxy and, if so, about how fast?


You will discover l.jpg

You will discover…

  • the Milky Way Galaxy—billions of stars along with gas and dust bound together by mutual gravitational attraction

  • the properties of our Milky Way Galaxy

  • Earth’s location in the Milky Way

  • how interstellar gas and dust enable star formation to continue in our Galaxy

  • that observations reveal the presence of significant mass in the Milky Way that astronomers have yet to identify

  • that there is a black hole at the center of our Galaxy

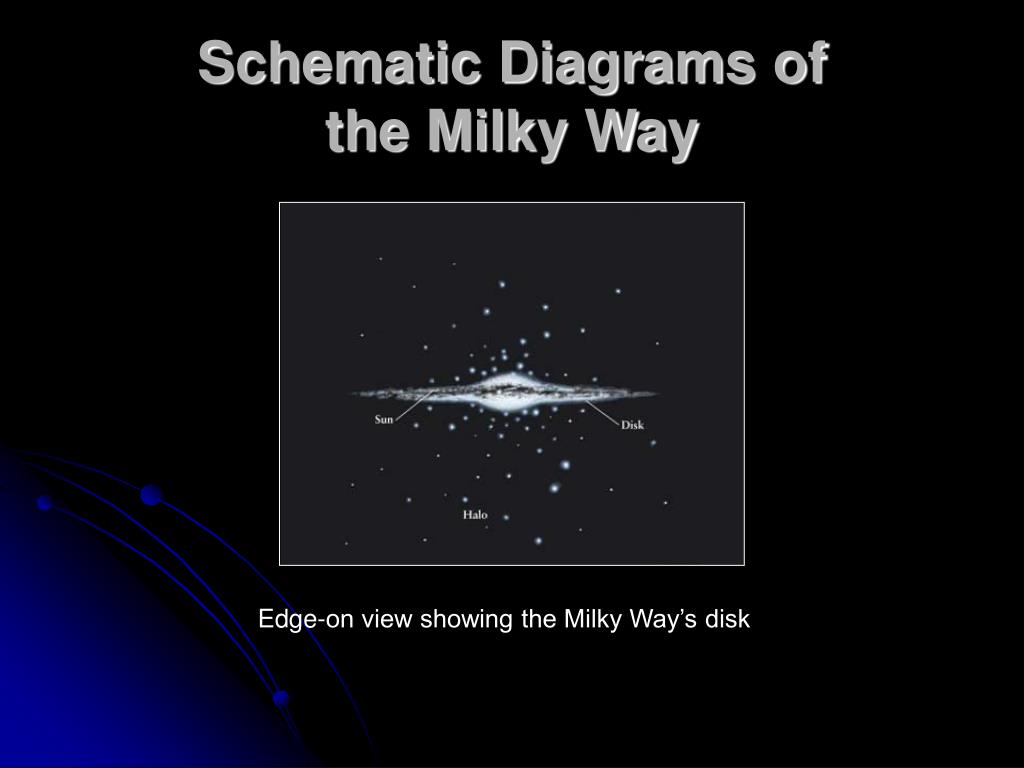

Schematic diagrams of the milky way l.jpg

Schematic Diagrams ofthe Milky Way

Edge-on view showing the Milky Way’s disk


Schematic diagrams of the milky way5 l.jpg

Schematic Diagrams ofthe Milky Way

Two possible distributions of the spiral arms of our Galaxy. Our Galaxy has at least four major spiral arms and several shorter arm segments.


Telescope of the mid nineteenth century l.jpg

Telescope of the Mid-Nineteenth Century

Built by the Earl of Rosse in 1845, a 1.8-m-diameter telescope.


Telescope of the mid nineteenth century7 l.jpg

Telescope of the Mid-Nineteenth Century

Lord Rosse’s sketch of the spiral structure of the galaxy M51

A modern photograph of M51 (also called NGC 5194)


Messier 100 and cepheids l.jpg

Messier 100 and Cepheids


Period luminosity relation l.jpg

Period-Luminosity Relation


Our galaxy l.jpg

Our Galaxy

Wide-angle photograph spanning half the Milky Way, as seen from the equatorial latitudes


View toward the galactic center l.jpg

View Toward the Galactic Center

More than a million stars in the disk of our Galaxy fill this view, which covers a relatively clear window just 4º south of the galactic nucleus in Sagittarius.


Electron spin the hydrogen atom l.jpg

Electron Spin & the Hydrogen Atom


Mapping the galaxy l.jpg

Mapping the Galaxy

Radio waves from various gas clouds exhibit slightly different Doppler shifts, permitting astronomers to sort out the gas clouds and map the Galaxy.

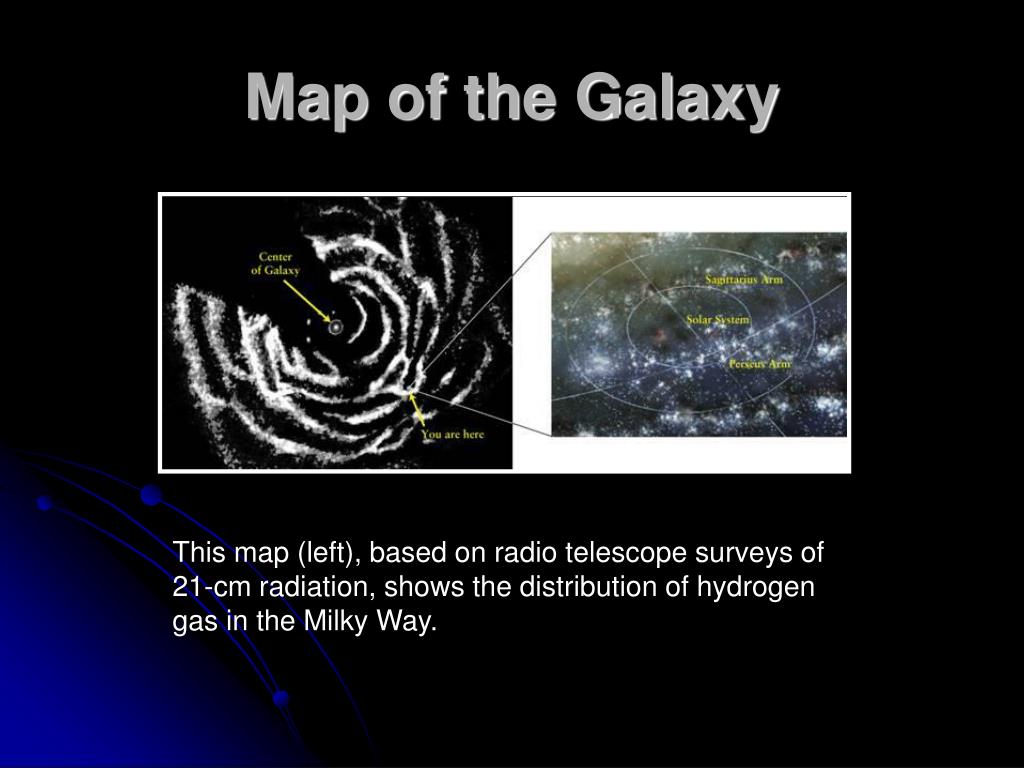

Map of the galaxy l.jpg

Map of the Galaxy

This map (left), based on radio telescope surveys of 21-cm radiation, shows the distribution of hydrogen gas in the Milky Way.


Two views of spiral galaxy m83 l.jpg

Two Views of Spiral Galaxy M83


Our galaxy16 l.jpg

Our Galaxy

  • Diameter is about 100,000 ly

  • Sun about 26,000 ly from the galactic center

  • Disk contains gas, dust and Population I stars

  • Halo is composed mostly of Population II stars.


Infrared view of the milky way l.jpg

Infrared View of the Milky Way

Taken by the COBE satellite in 1997


The galactic center l.jpg

The Galactic Center


Two views of the galactic nucleus l.jpg

Two Views of the Galactic Nucleus

Radio image taken at the VLA


Two views of the galactic nucleus20 l.jpg

Two Views of the Galactic Nucleus

Infrared image showing the motion of six stars in the vicinity of the unseen massive object at the position of the radio source Sagittarius A* ().


Orbits of stars in our galaxy l.jpg

Orbits of Stars in Our Galaxy

NGC 4144, very similar to the Milky Way

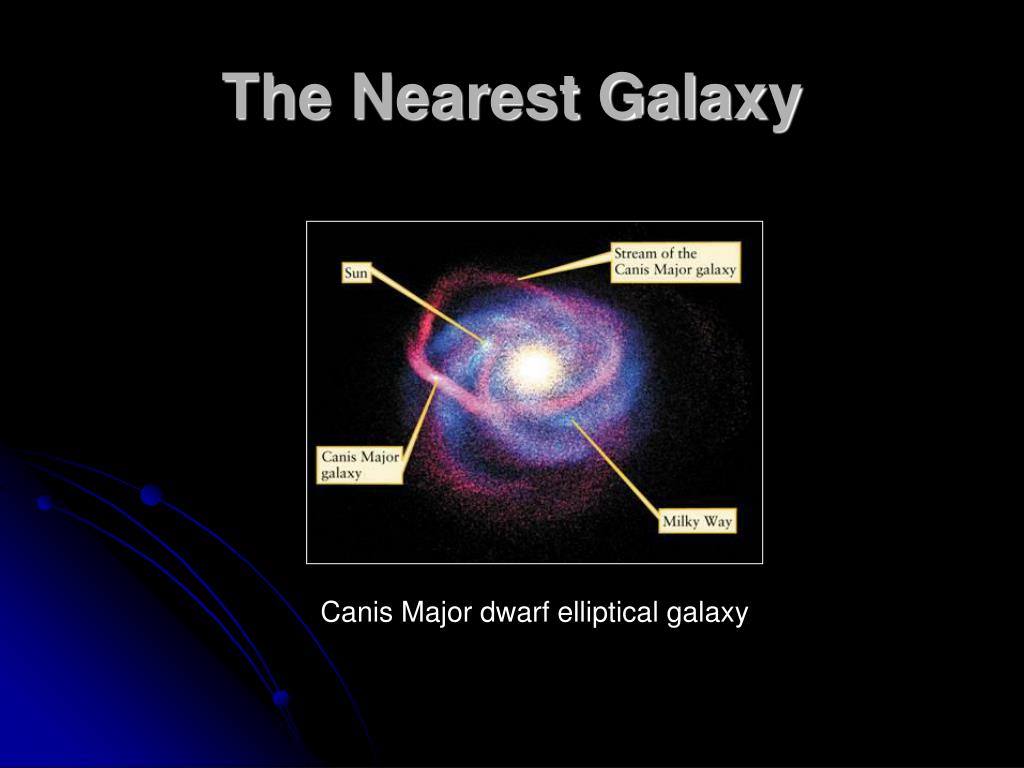

The nearest galaxy l.jpg

The Nearest Galaxy

Canis Major dwarf elliptical galaxy


Differential rotation of the galaxy l.jpg

Differential Rotation of the Galaxy

Stars closer to the Galaxy’s center than the Sun are overtaking the solar system, while stars farther from the center are lagging behind us.


The galaxy s rotation curve l.jpg

The Galaxy’s Rotation Curve


Microlensing by dark matter in the galactic halo l.jpg

Microlensing by Dark Matterin the Galactic Halo

Gravitational fields cause light to change direction.


Microlensing by dark matter in the galactic halo26 l.jpg

Microlensing by Dark Matterin the Galactic Halo

The light curve of the gravitational microlensing of light from a star in the Galaxy’s nuclear bulge by an intervening object.


What did you think l.jpg

WHAT DID YOU THINK?

  • How many stars does the Milky Way Galaxy contain?

  • The Milky Way has about 200 billion stars.

  • Where is our solar system located in the Milky Way Galaxy?

  • The solar system is between the Sagittarius and Perseus spiral arms about 26,000 ly from the center of the Galaxy.

  • Is the Sun moving through the Milky Way Galaxy and, if so, how fast?

  • The Sun orbits the center of the Milky Way Galaxy at a speed of 828,000 km per hour.

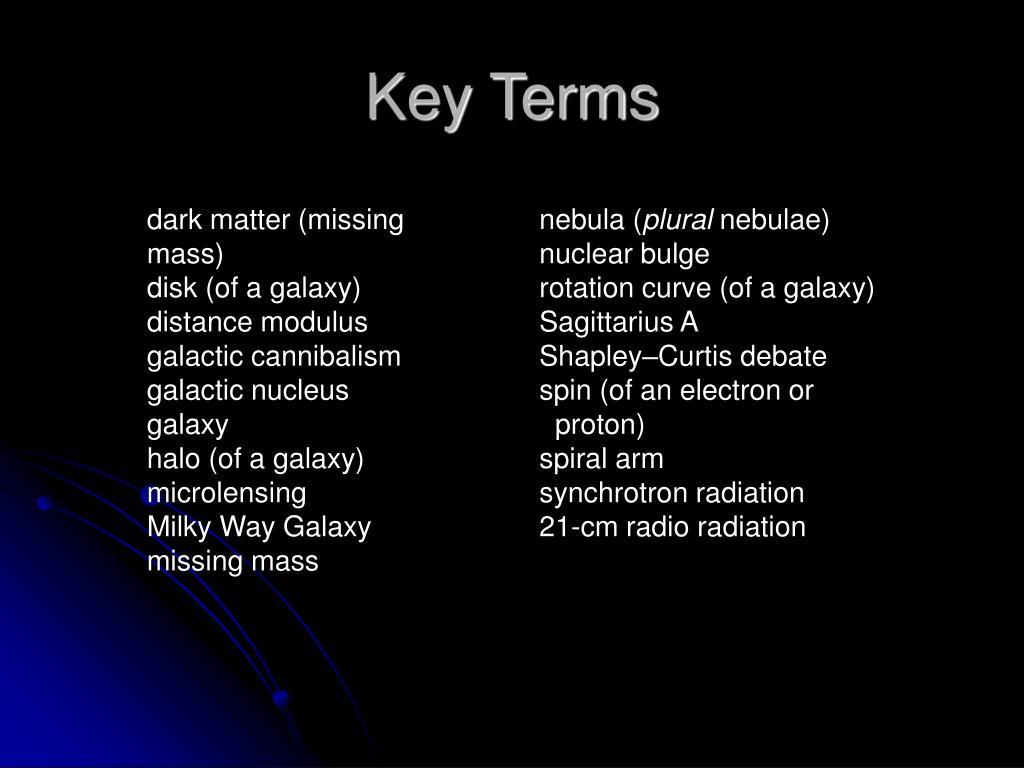

Key terms l.jpg

Key Terms

dark matter (missing mass)

disk (of a galaxy)

distance modulus

galactic cannibalism

galactic nucleus

galaxy

halo (of a galaxy)

microlensing

Milky Way Galaxy

missing mass

nebula (plural nebulae)

nuclear bulge

rotation curve (of a galaxy)

Sagittarius A

Shapley–Curtis debate

spin (of an electron or

proton)

spiral arm

synchrotron radiation

21-cm radio radiation
