Heat transfer lab

Heat Transfer Lab

8th Grade ScienceButler Middle SchoolLowell, MA

R. RogersMar 8, 2011


Heat transfer lab

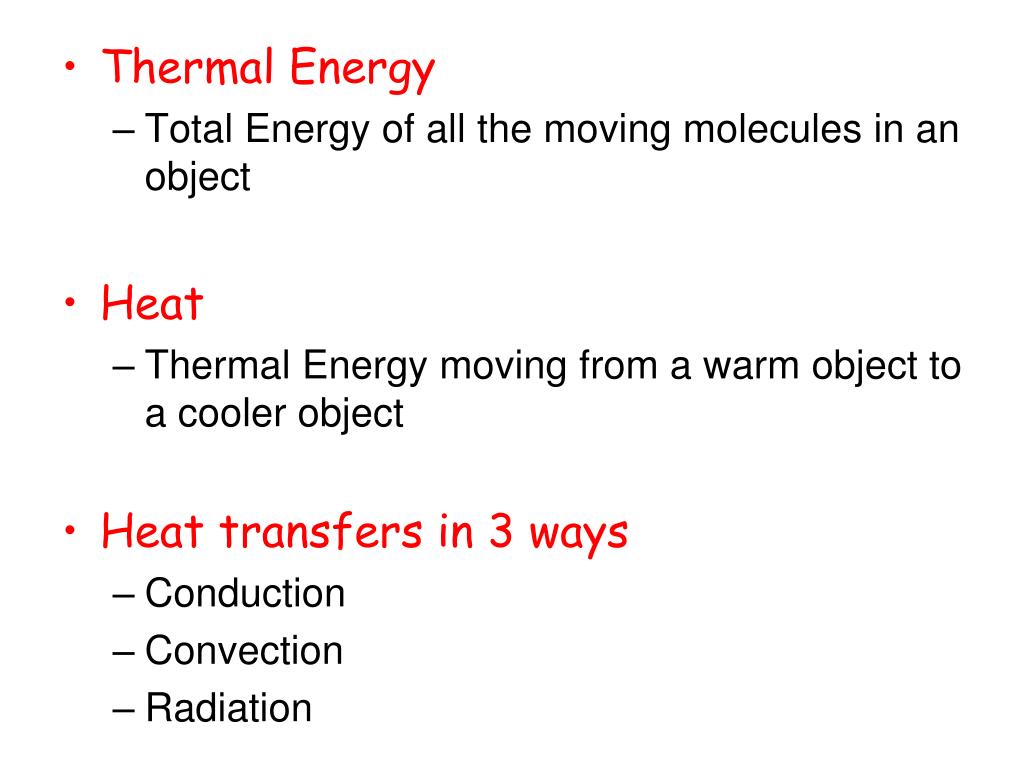

  • Thermal Energy

    • Total Energy of all the moving molecules in an object

  • Heat

    • Thermal Energy moving from a warm object to a cooler object

  • Heat transfers in 3 ways

    • Conduction

    • Convection

    • Radiation


Heat transfer lab

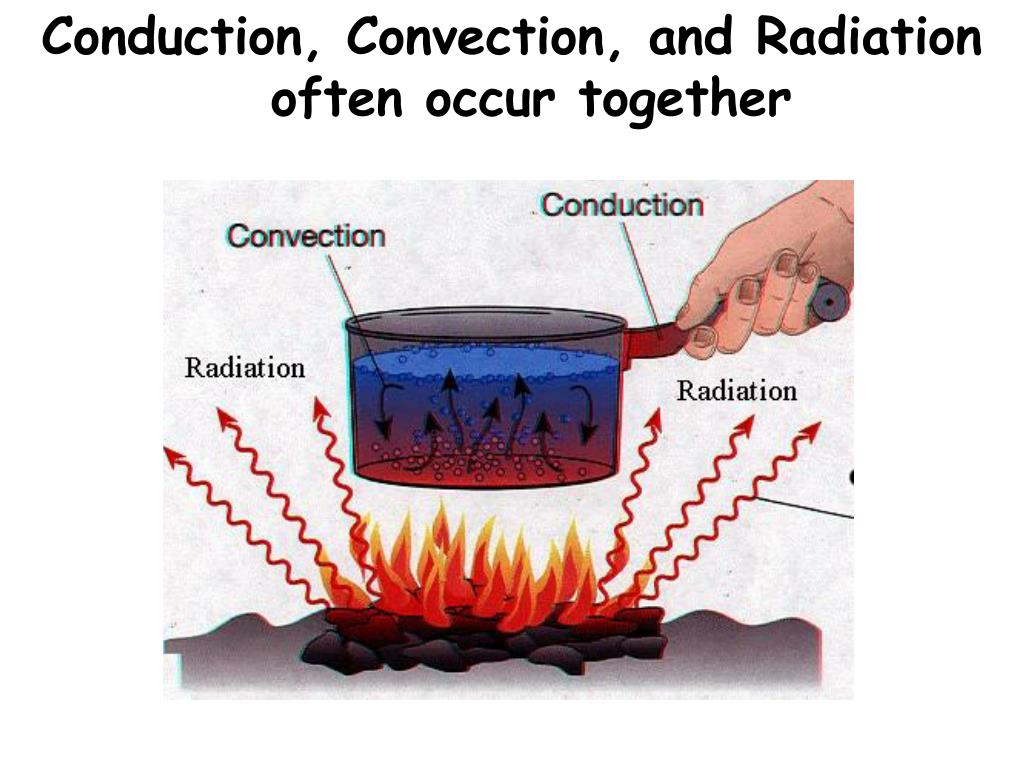

Conduction, Convection, and Radiationoften occur together


Heat transfer lab

  • Energy

    • Ability to do work or cause change

    • Exists in many different forms

  • Kinetic Energy

    • Energy from motion or movement

  • Temperature

    • A measure of the average Kinetic Energy of all the molecules in an object


Thermometer

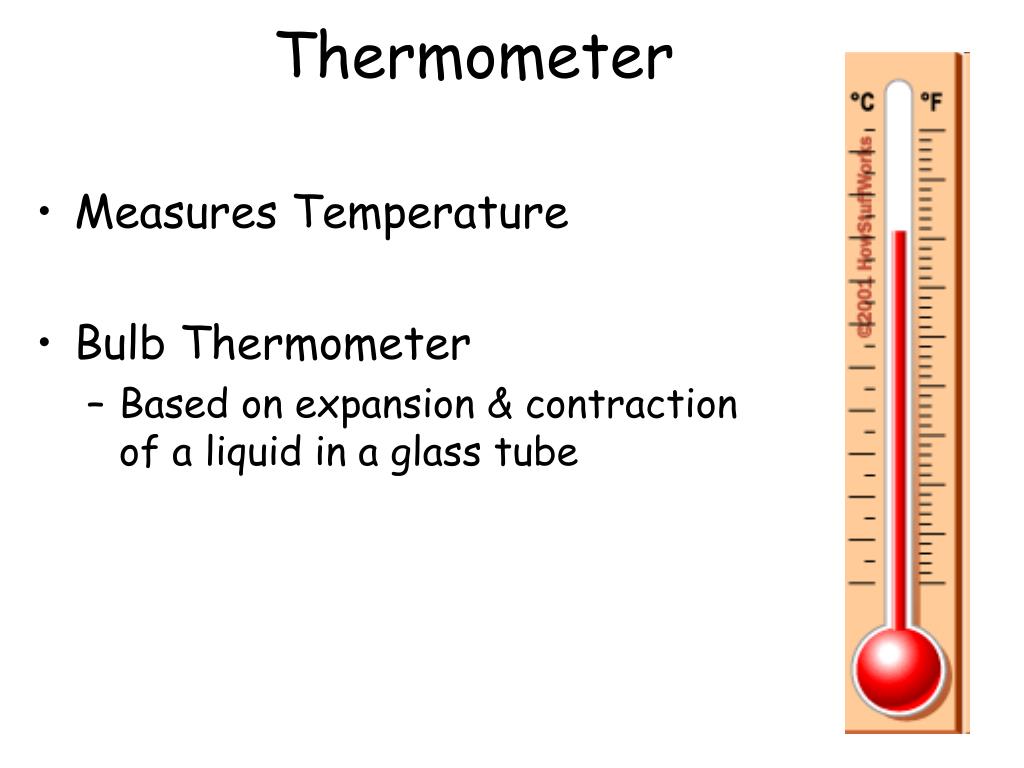

Thermometer

  • Measures Temperature

  • Bulb Thermometer

    • Based on expansion & contraction of a liquid in a glass tube


Temperature scales

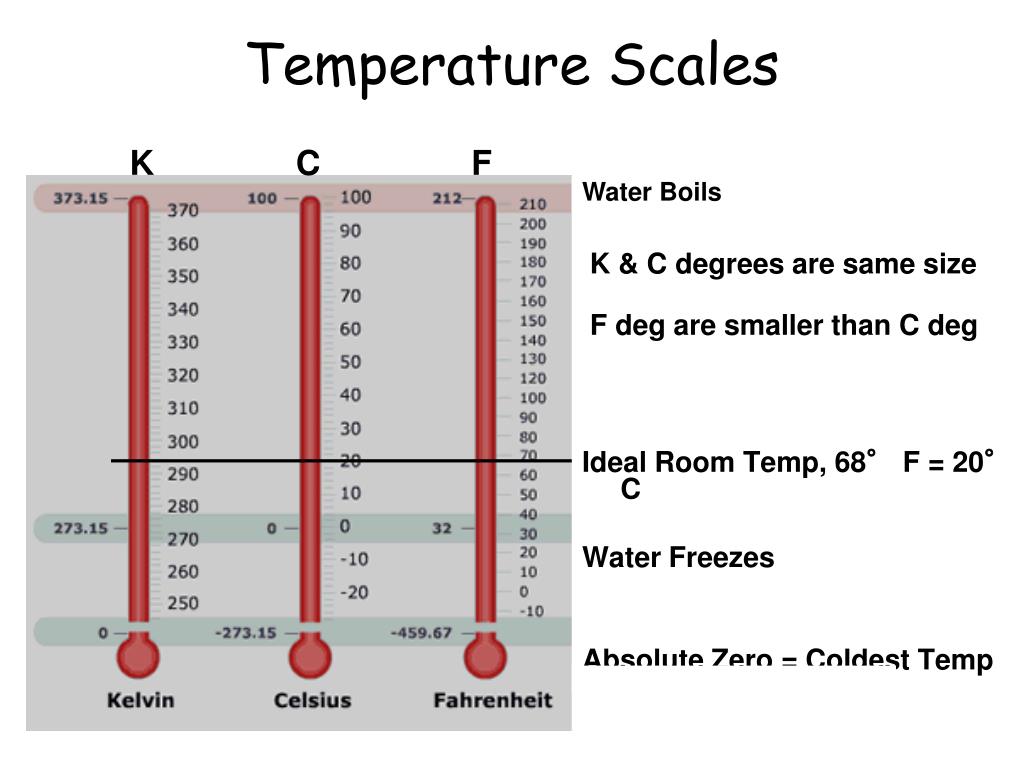

Temperature Scales

K C F

Water Boils

Water Boils

K & C degrees are same size

F deg are smaller than C deg

Ideal Room Temp, 68° F = 20° C

Water Freezes

Absolute Zero = Coldest Temp


Heat transfer lab

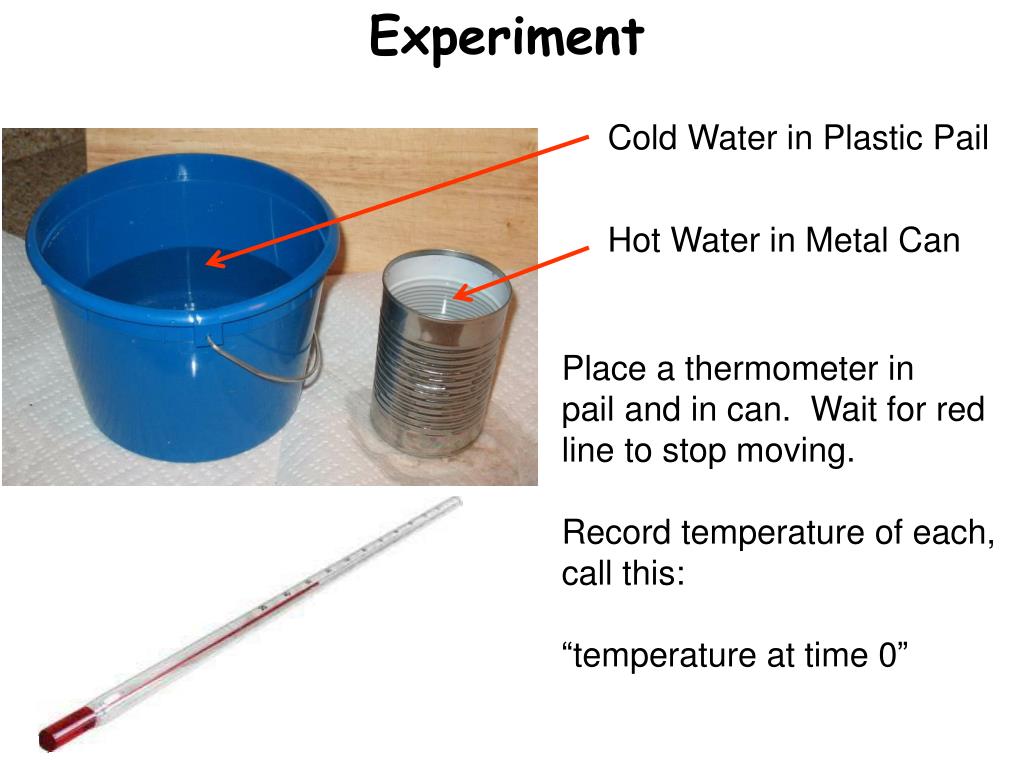

Experiment

Cold Water in Plastic Pail

Hot Water in Metal Can

Place a thermometer in

pail and in can. Wait for red

line to stop moving.

Record temperature of each,

call this:

“temperature at time 0”


Heat transfer lab

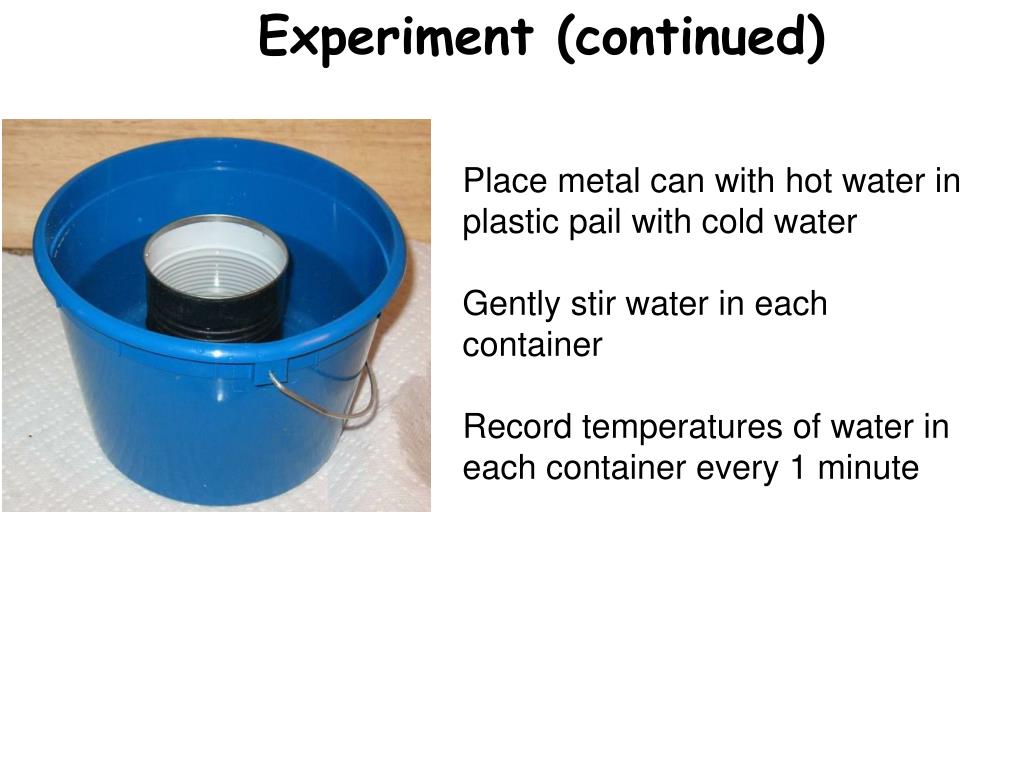

Experiment (continued)

Place metal can with hot water in plastic pail with cold water

Gently stir water in each container

Record temperatures of water in each container every 1 minute


Heat transfer lab

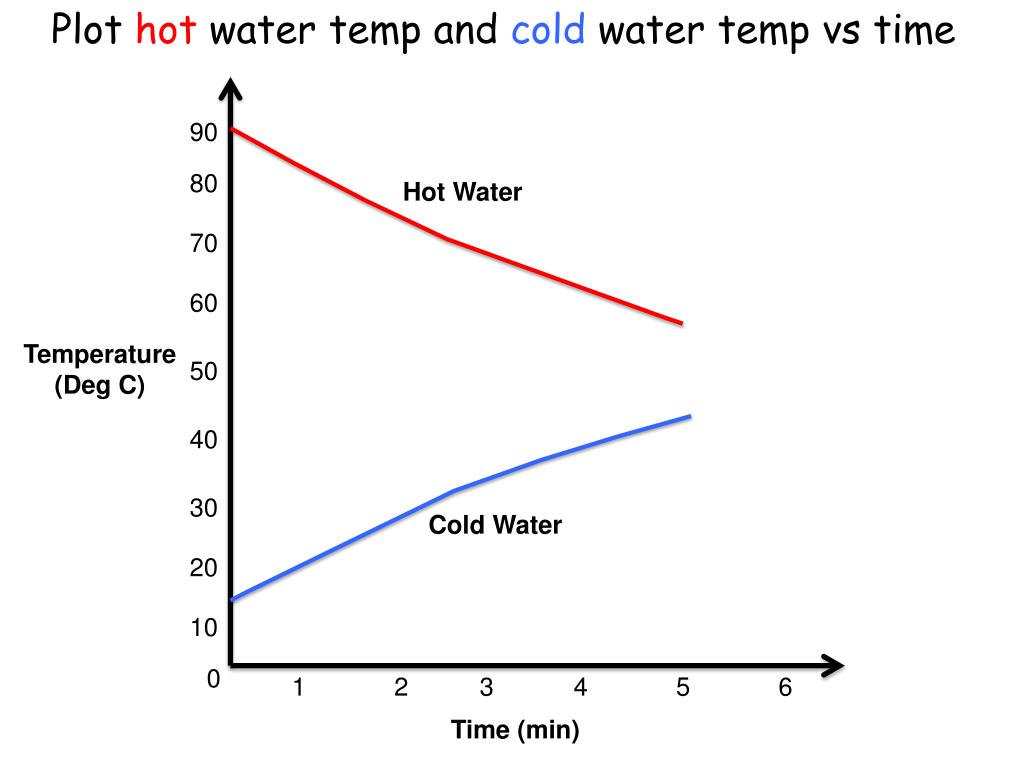

Plot hot water temp and cold water temp vs time

90

80

Hot Water

70

60

Temperature

(Deg C)

50

40

30

Cold Water

20

10

0

1

2

3

4

5

6

Time (min)
