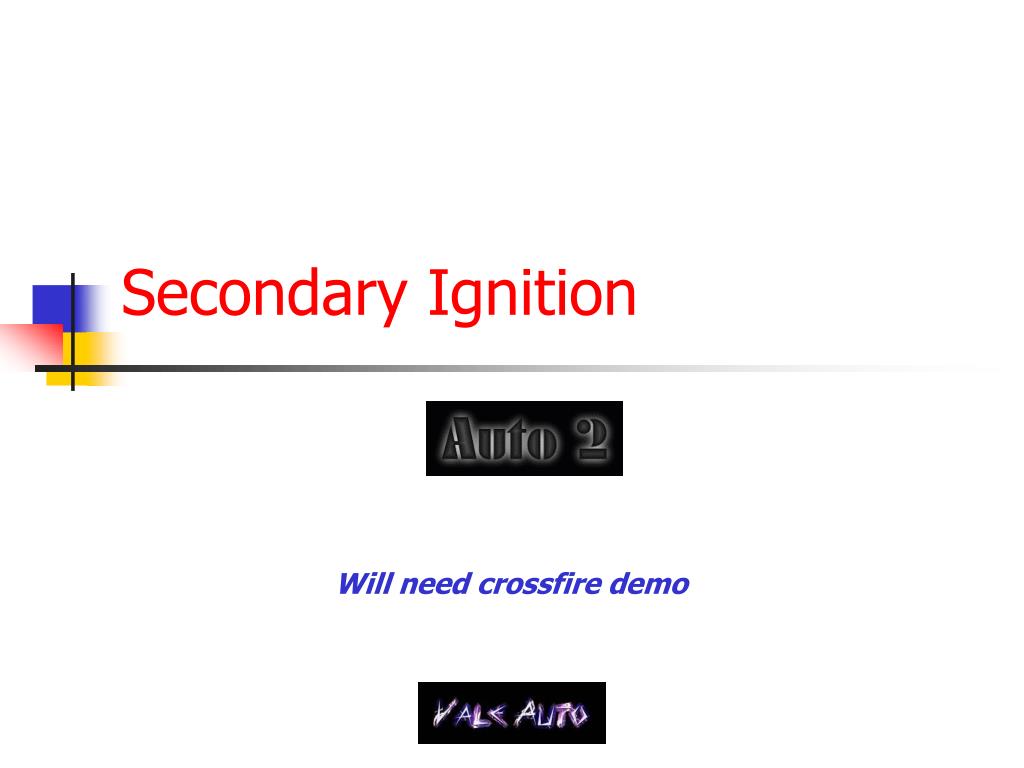

Secondary ignition

Secondary Ignition

Will need crossfire demo



Points close or transistor

turns on. . .

Primary circuit is complete

current flows

VHS Auto

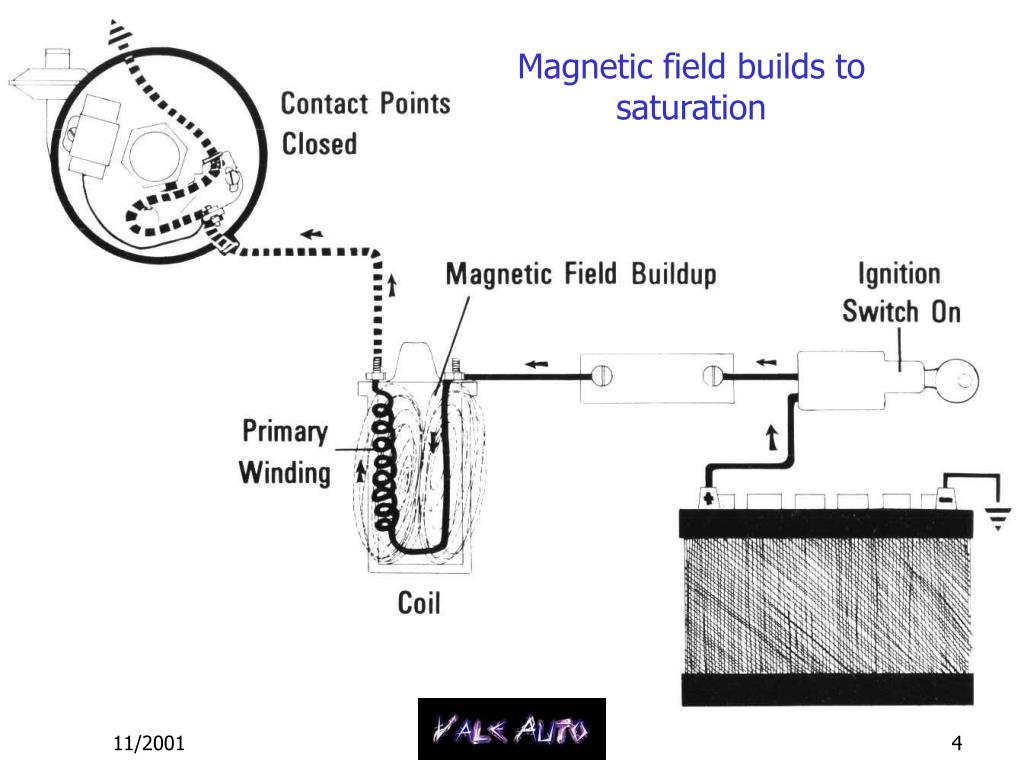

Magnetic field builds to

saturation

VHS Auto

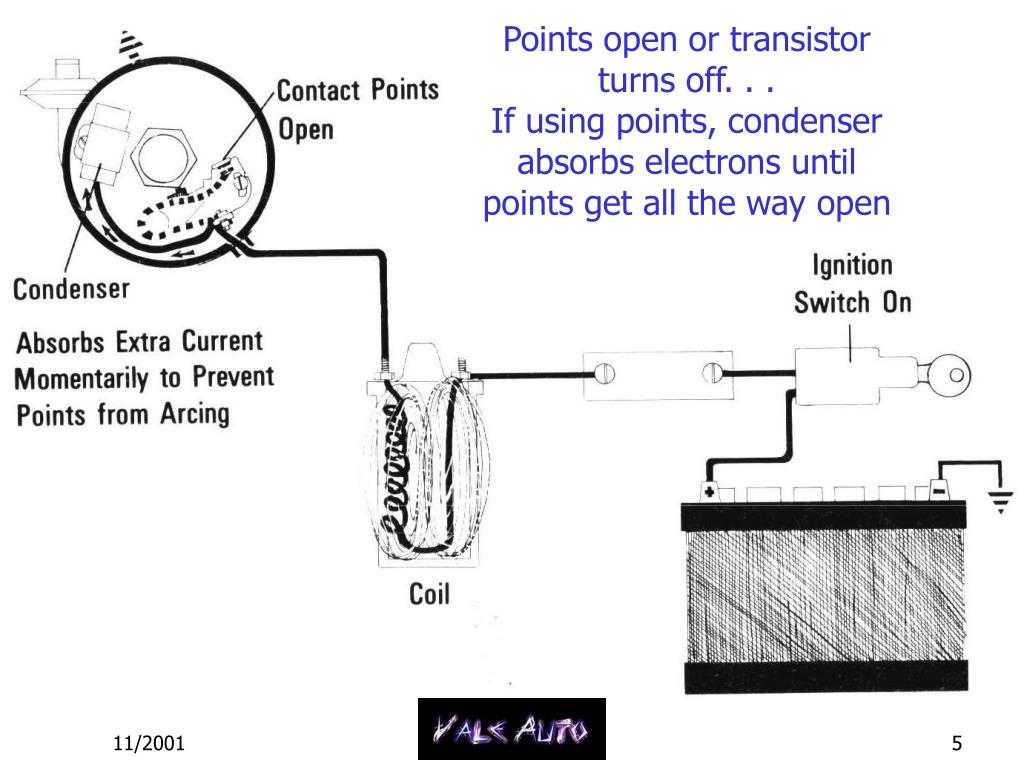

Points open or transistor

turns off. . .

If using points, condenser

absorbs electrons until

points get all the way open

VHS Auto

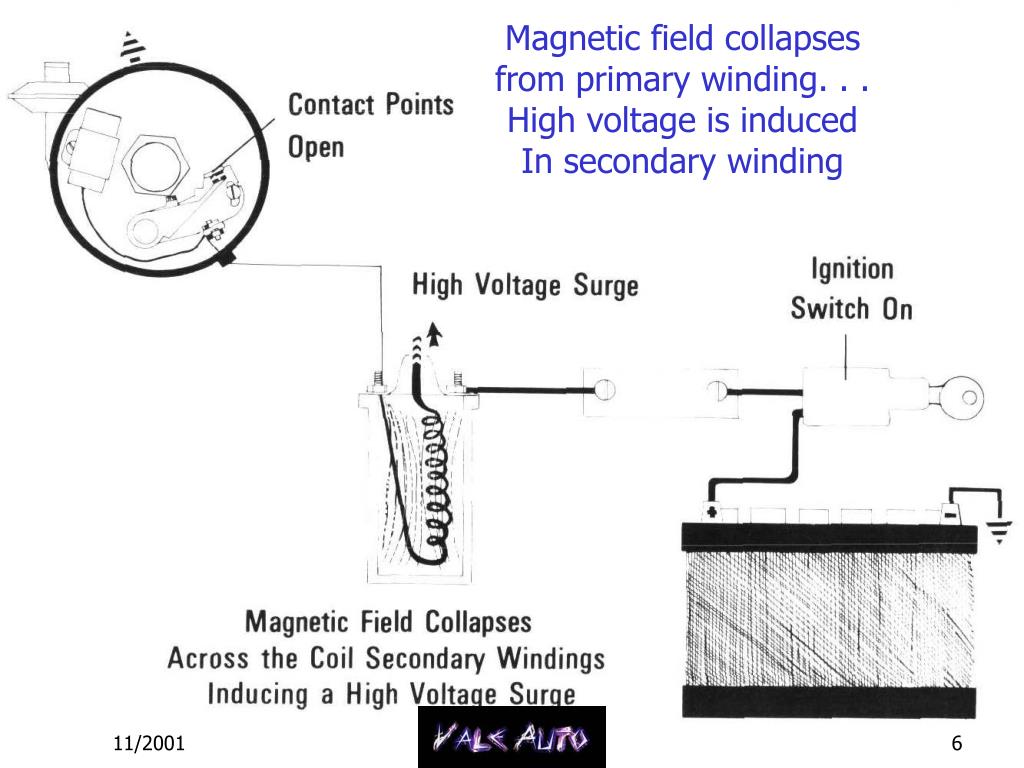

Magnetic field collapses

from primary winding. . .

High voltage is induced

In secondary winding

VHS Auto


Yea we have heard that enough times now what does it do
Yea, we have heard that enough times!Now what does it do?

VHS Auto

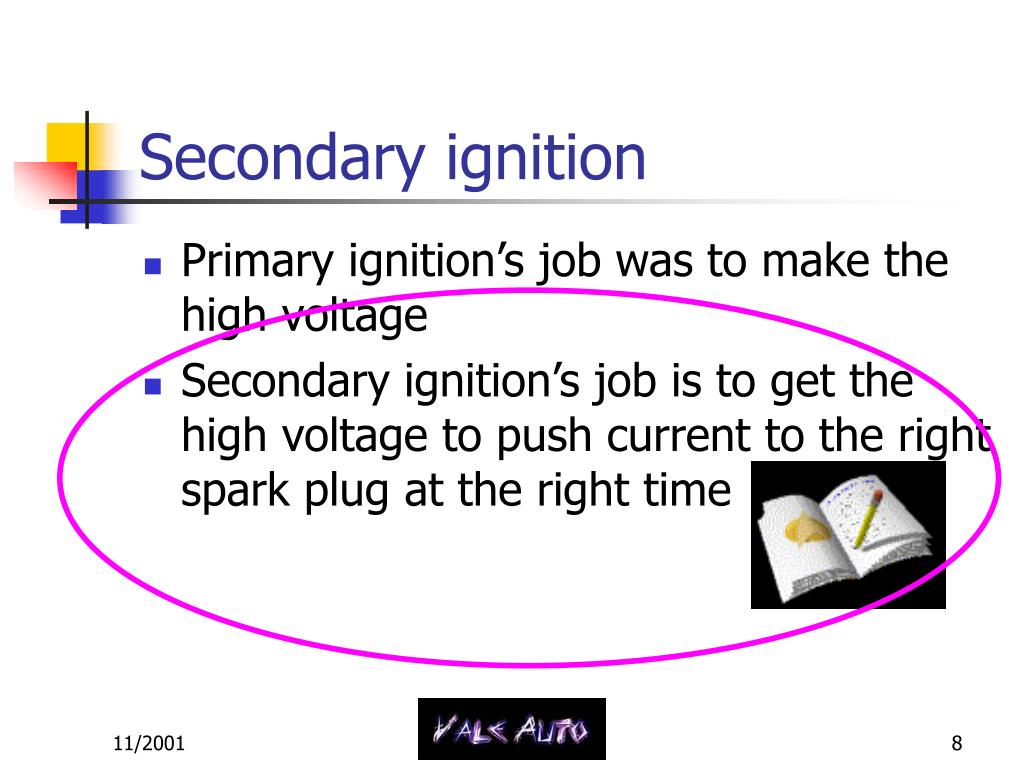

Secondary ignition1
Secondary ignition

  • Primary ignition’s job was to make the high voltage

  • Secondary ignition’s job is to get the high voltage to push current to the right spark plug at the right time

VHS Auto


High voltage pushes

Current (less than 10 mA)

to spark plug through

secondary circuit

VHS Auto

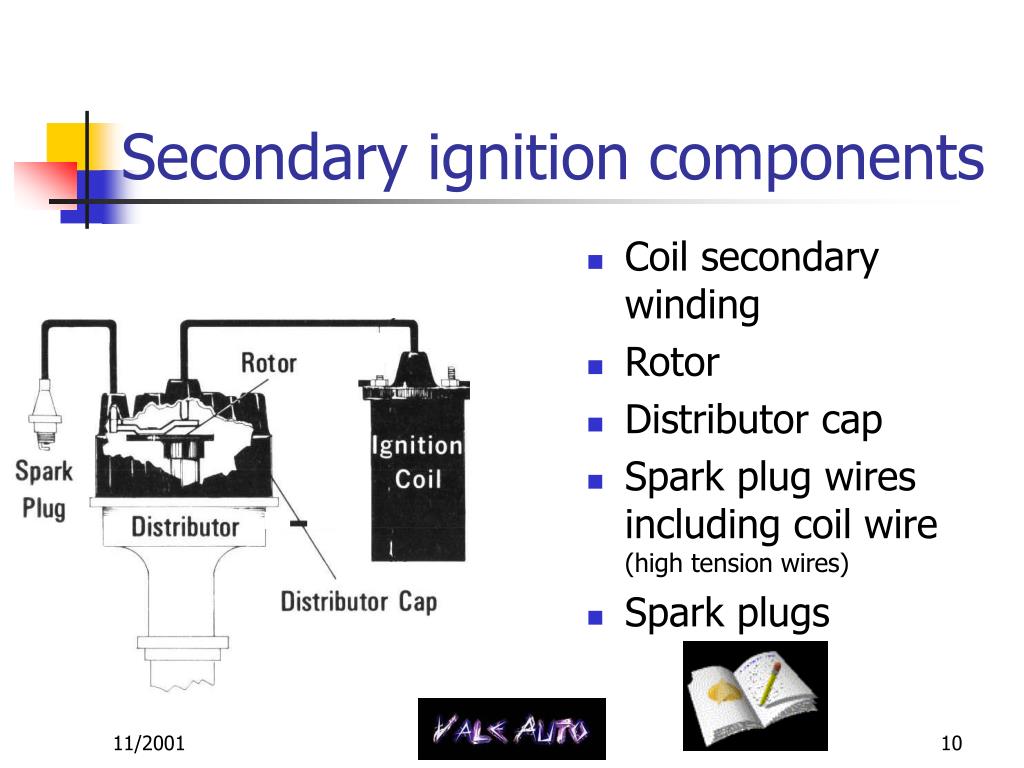

Secondary ignition components

Coil secondary winding

Rotor

Distributor cap

Spark plug wires including coil wire (high tension wires)

Spark plugs

Secondary ignition components

VHS Auto

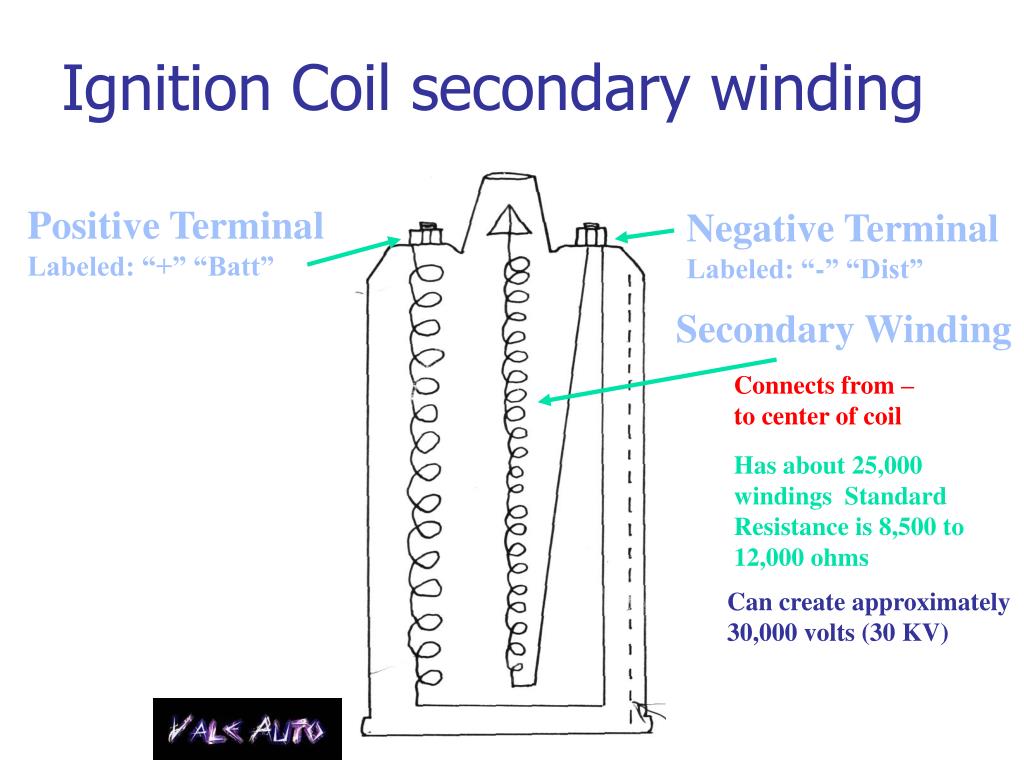

Ignition coil secondary winding

Positive Terminal

Labeled: “+” “Batt”

Negative Terminal

Labeled: “-” “Dist”

Secondary Winding

Connects from –

to center of coil

Ignition Coil secondary winding

Has about 25,000

windings Standard

Resistance is 8,500 to

12,000 ohms

Can create approximately

30,000 volts (30 KV)

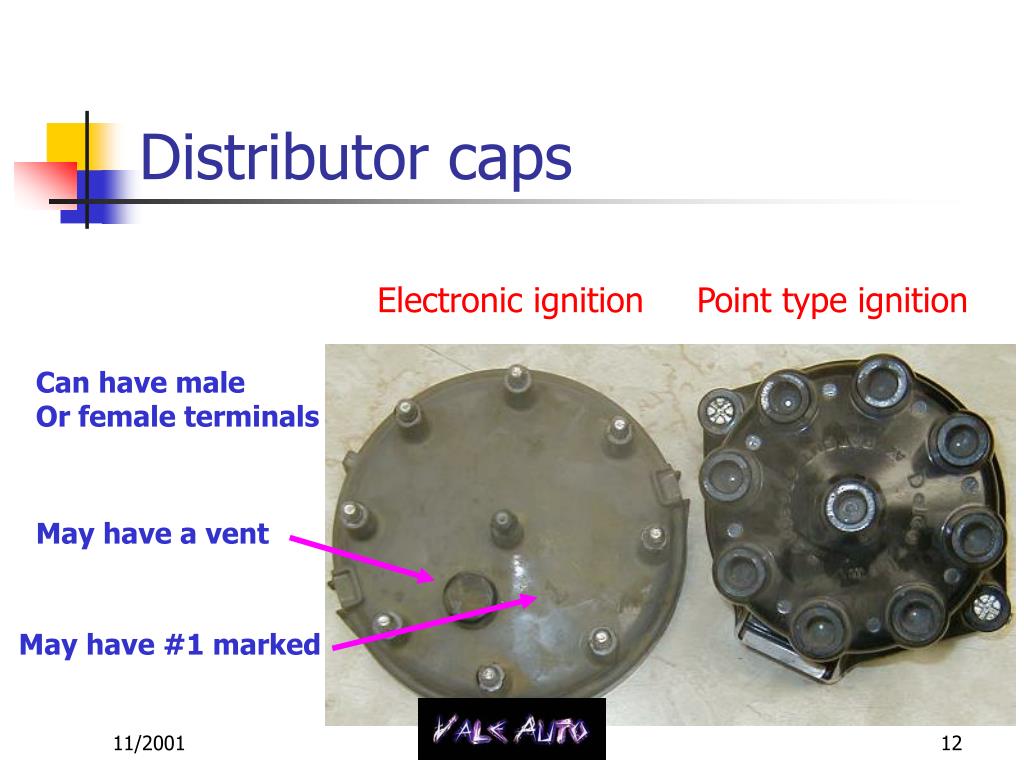

Distributor caps

May have a vent

Distributor caps

Electronic ignition Point type ignition

Can have male

Or female terminals

May have #1 marked

VHS Auto

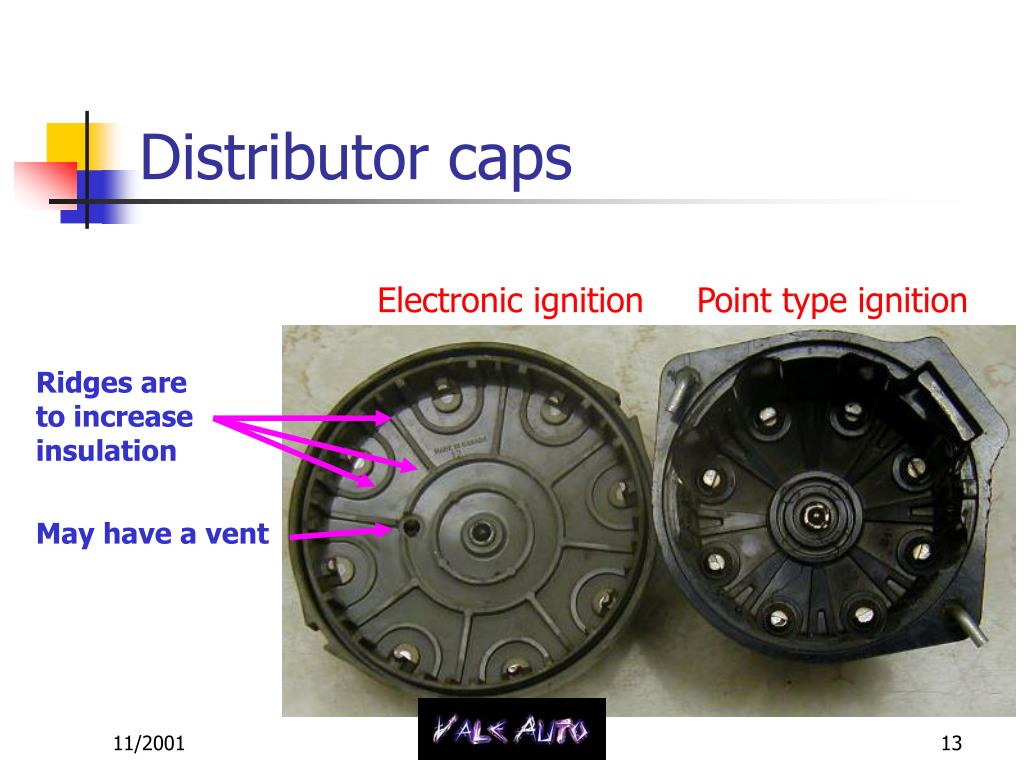

Distributor caps1

Ridges are

to increase

insulation

May have a vent

Distributor caps

Electronic ignition Point type ignition

VHS Auto


Inspecting distributor cap
Inspecting distributor cap

  • Underside

    • Look for cracks

    • Look for worn or missing center carbon button

    • Look for carbon tracks

    • Look for build-up on terminals

    • Look for moisture

  • Outside

    • Look for corrosion on terminals

VHS Auto


Carbon tracks replace cap

Don’t try to clean, will come right back

Carbon tracks (replace cap)

VHS Auto


External corrosion
External corrosion

Prevent by using

Diaelectric grease

VHS Auto




Arcing cap
Arcing cap

VHS Auto

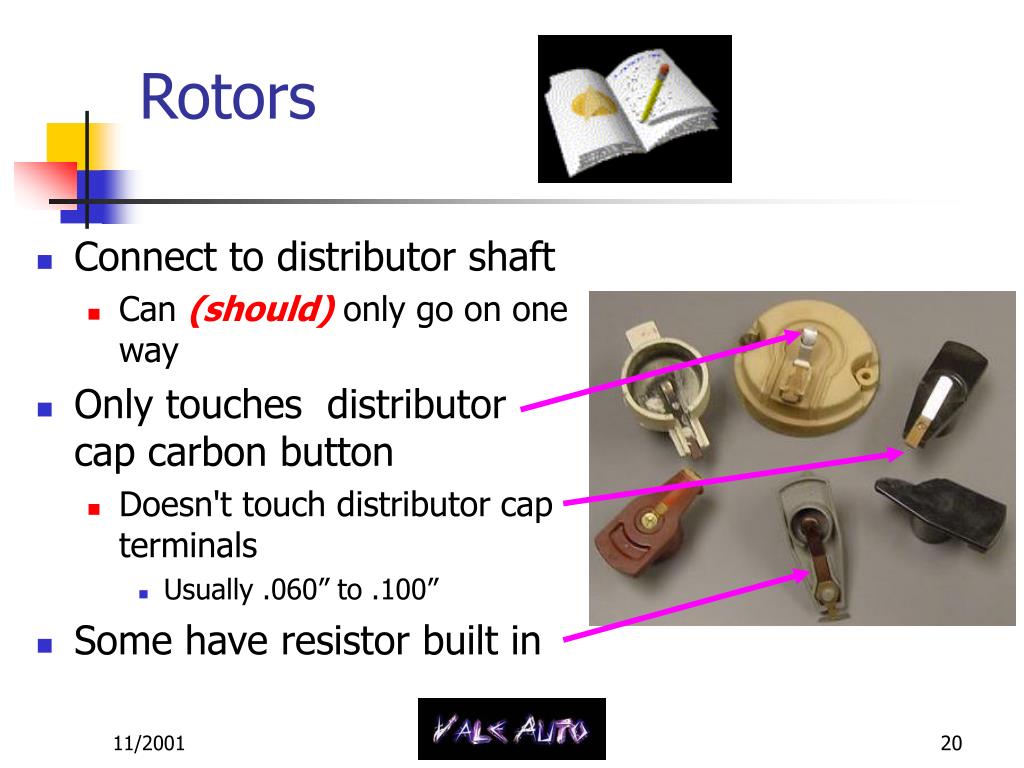

Rotors
Rotors

  • Connect to distributor shaft

    • Can (should) only go on one way

  • Only touches distributor cap carbon button

    • Doesn't touch distributor cap terminals

      • Usually .060” to .100”

  • Some have resistor built in

VHS Auto

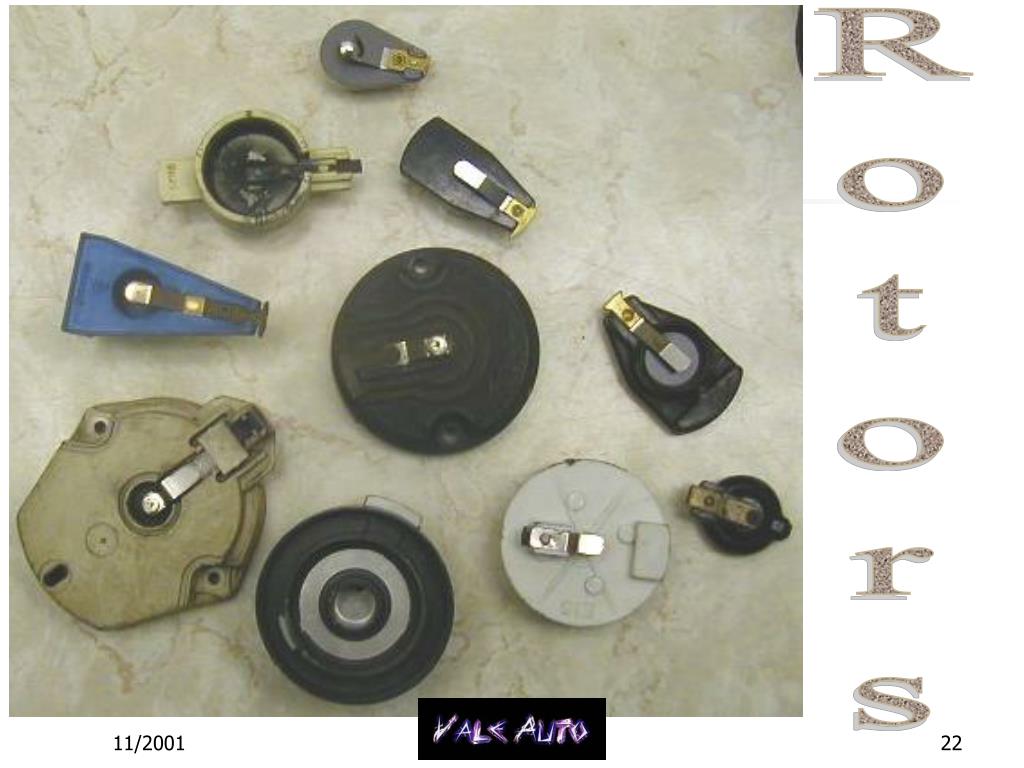

Rotors

VHS Auto

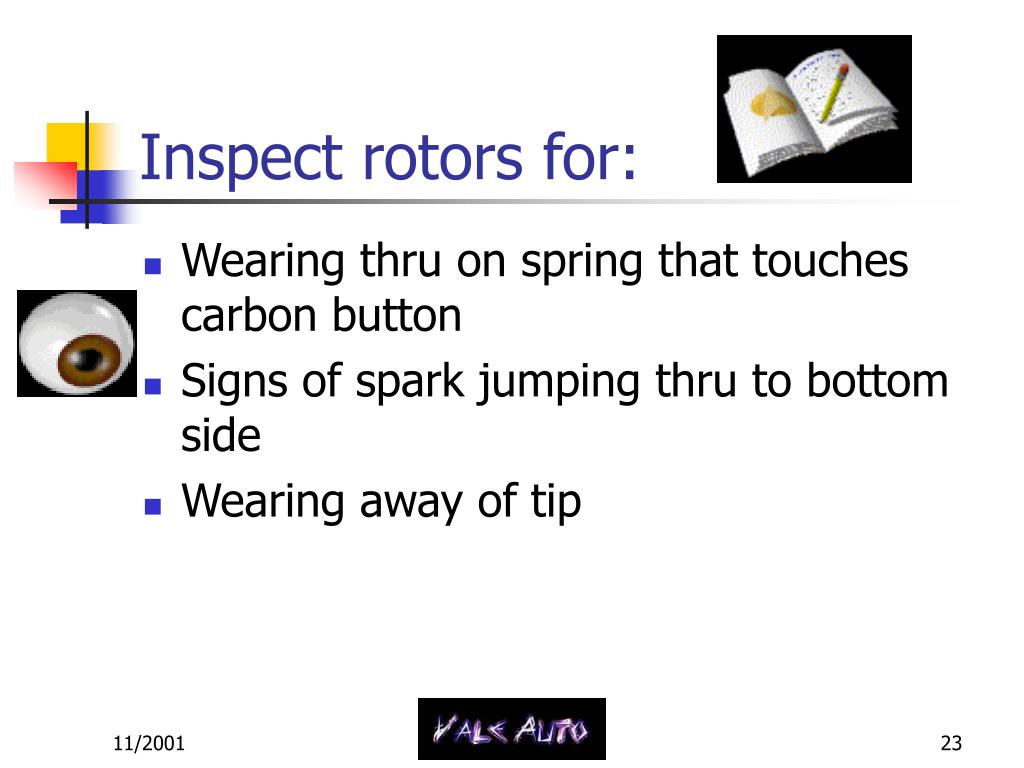

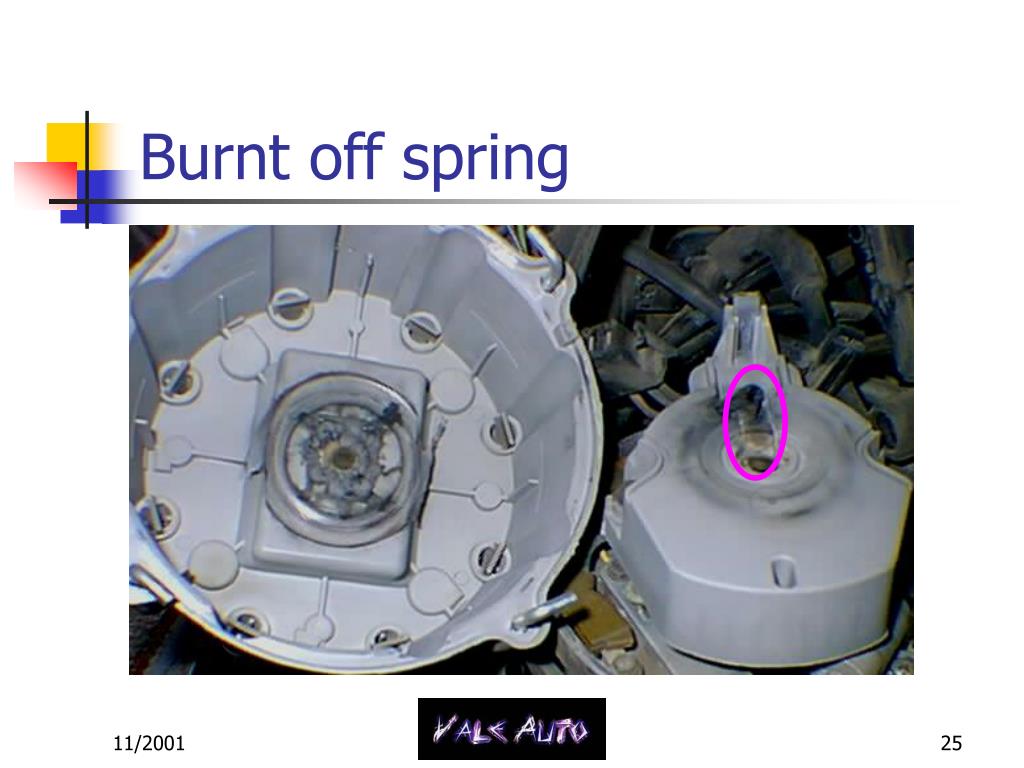

Inspect rotors for
Inspect rotors for:

  • Wearing thru on spring that touches carbon button

  • Signs of spark jumping thru to bottom side

  • Wearing away of tip

VHS Auto

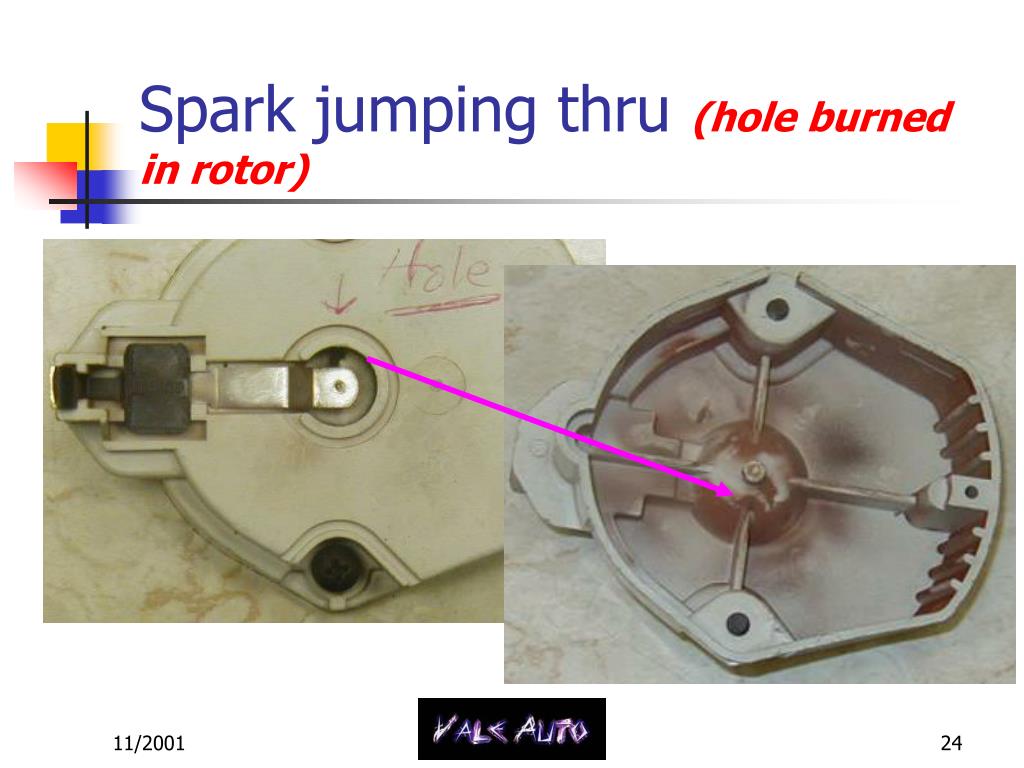

Spark jumping thru hole burned in rotor
Spark jumping thru (hole burned in rotor)

VHS Auto

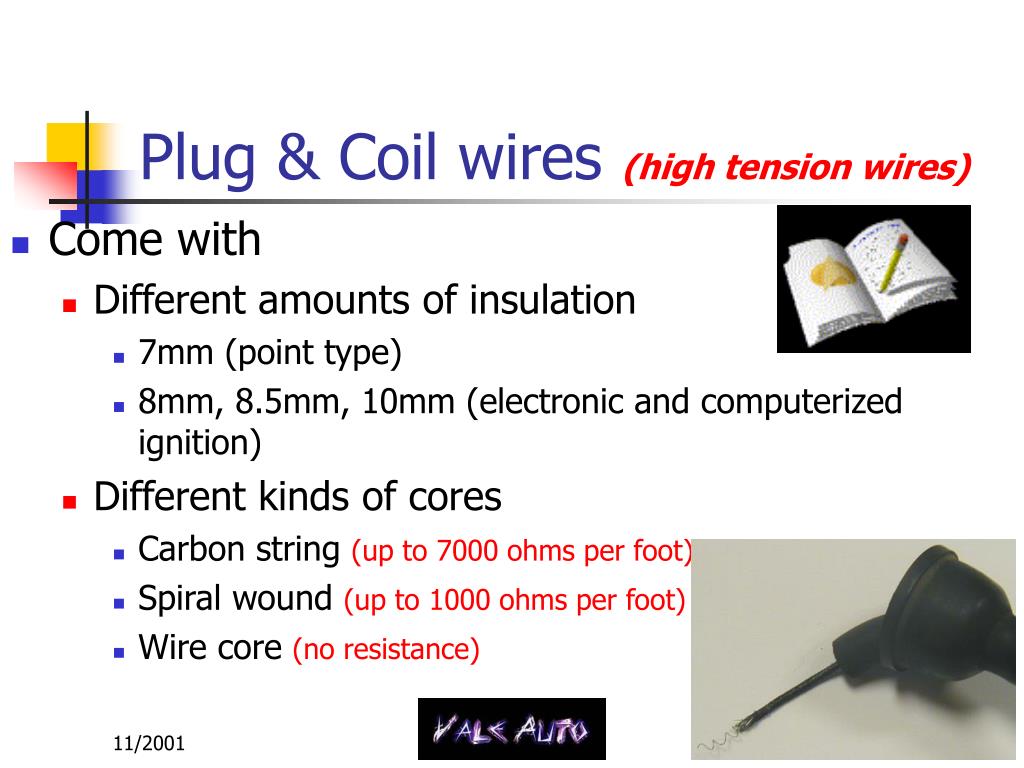

Plug coil wires high tension wires
Plug & Coil wires (high tension wires)

  • Come with

    • Different amounts of insulation

      • 7mm (point type)

      • 8mm, 8.5mm, 10mm (electronic and computerized ignition)

    • Different kinds of cores

      • Carbon string (up to 7000 ohms per foot)

      • Spiral wound (up to 1000 ohms per foot)

      • Wire core (no resistance)

VHS Auto


Removing wires
Removing wires

  • Grasp boot and twist and pull

    • Do not pull on wire

  • Can use plug wire removing tool if there is room to get down under

VHS Auto

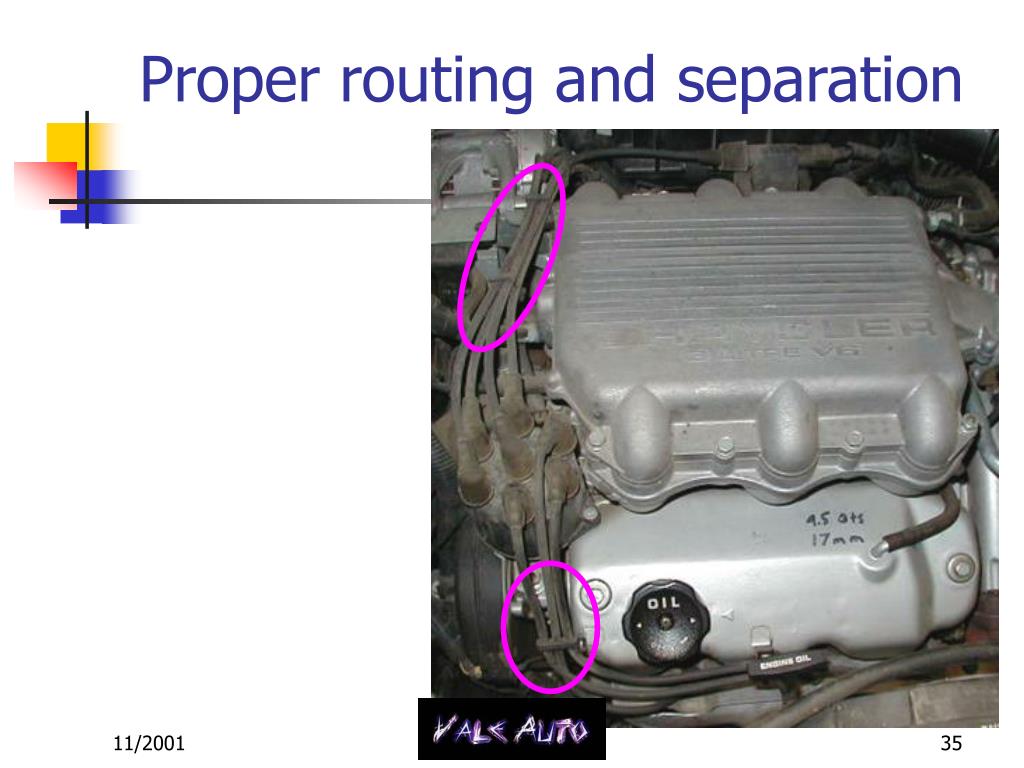

Wire separators
Wire separators

  • Use factory routing of wires

  • Improper routing and separation can cause pre-ignition and holes in pistons

VHS Auto


Firing orders that cause problems
Firing orders that cause problems

GM’s & Chrysler

VHS Auto

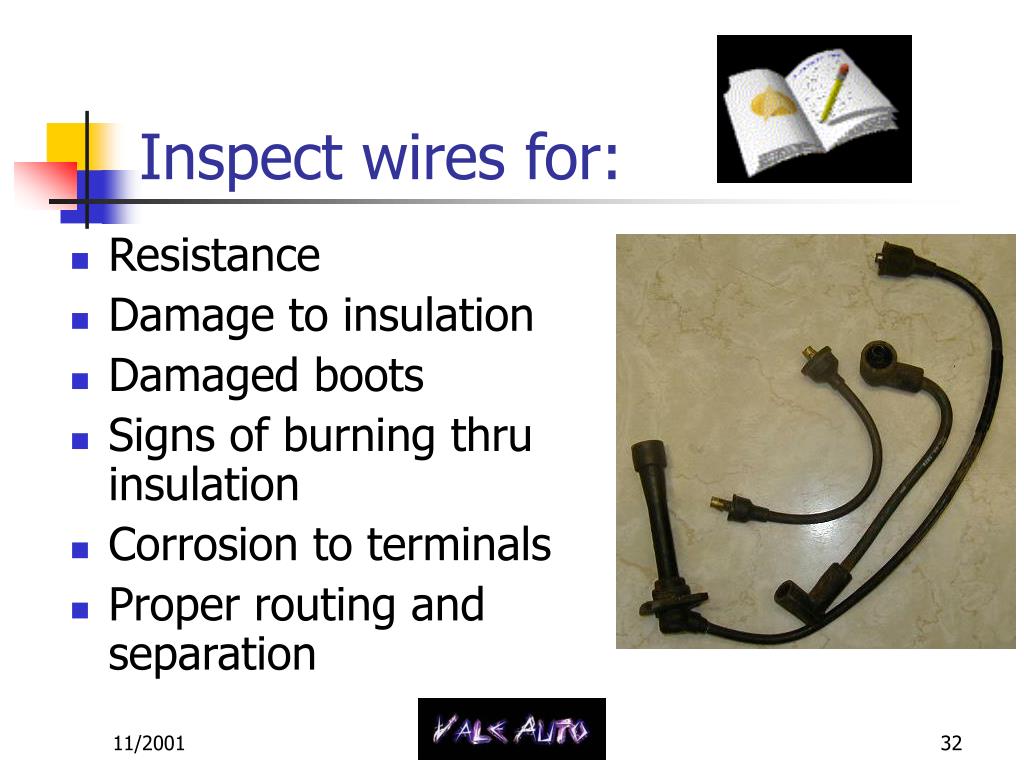

Inspect wires for
Inspect wires for:

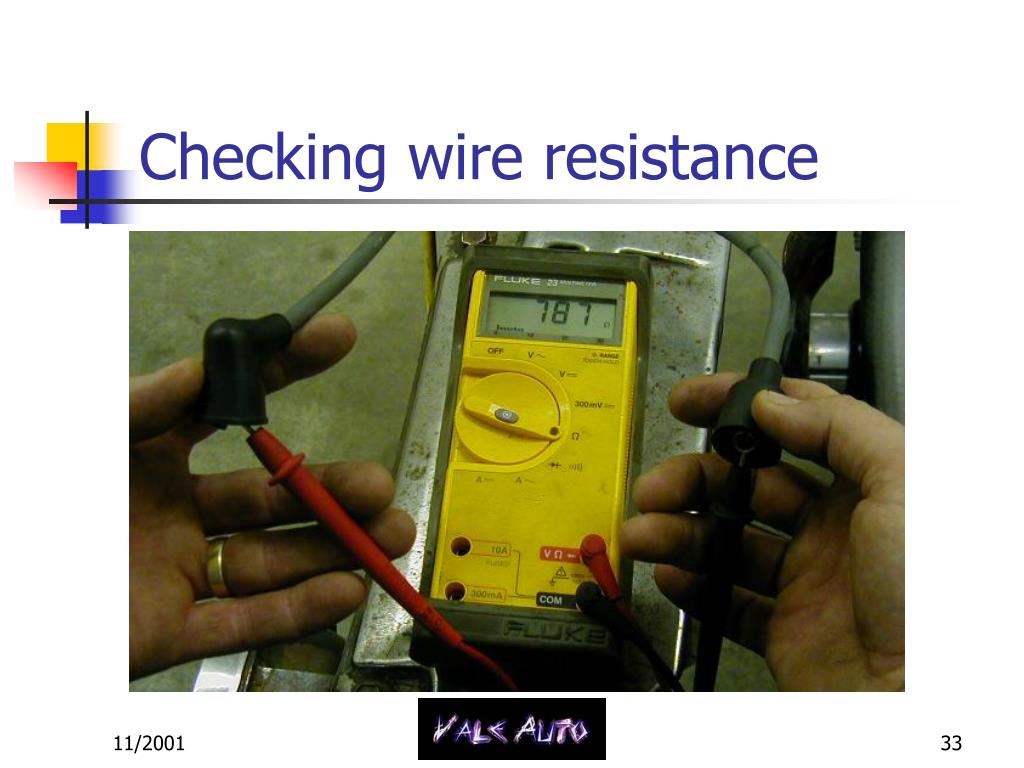

  • Resistance

  • Damage to insulation

  • Damaged boots

  • Signs of burning thru insulation

  • Corrosion to terminals

  • Proper routing and separation

VHS Auto

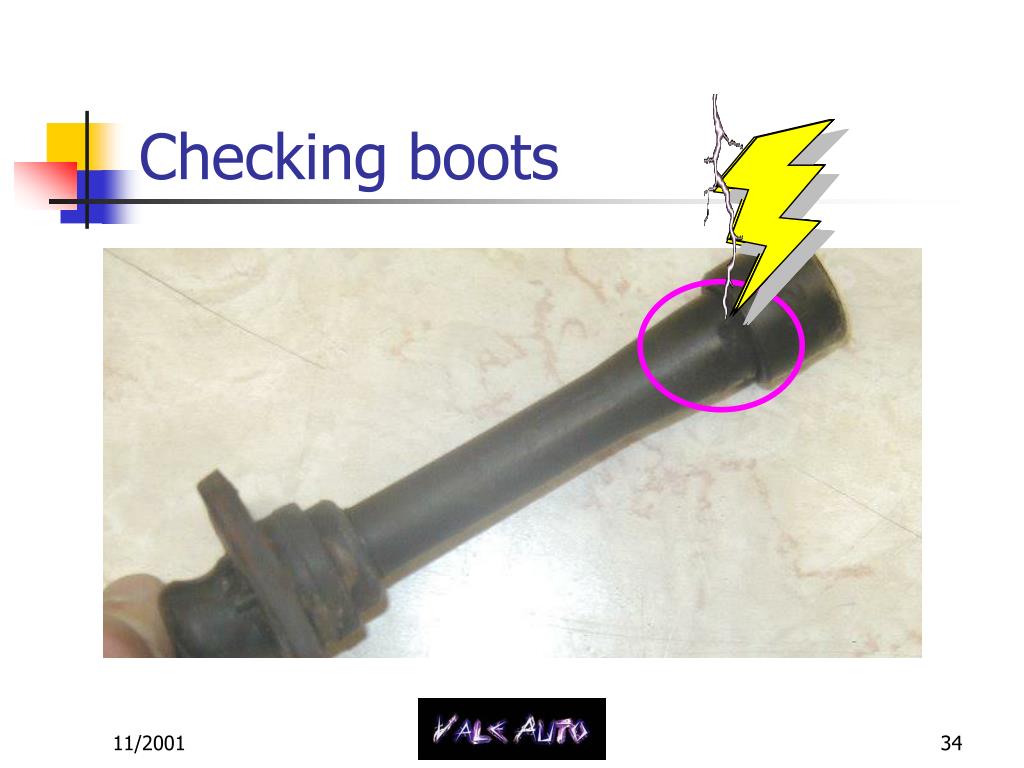

Checking boots
Checking boots

VHS Auto



Checking wire insulation under load
Checking wire insulation under load

  • Mist water onto plug wires with spray bottle

  • Load engine or give vacuum leak

  • Look and listen for spark jumping out of wires to common

  • Works best at night

VHS Auto

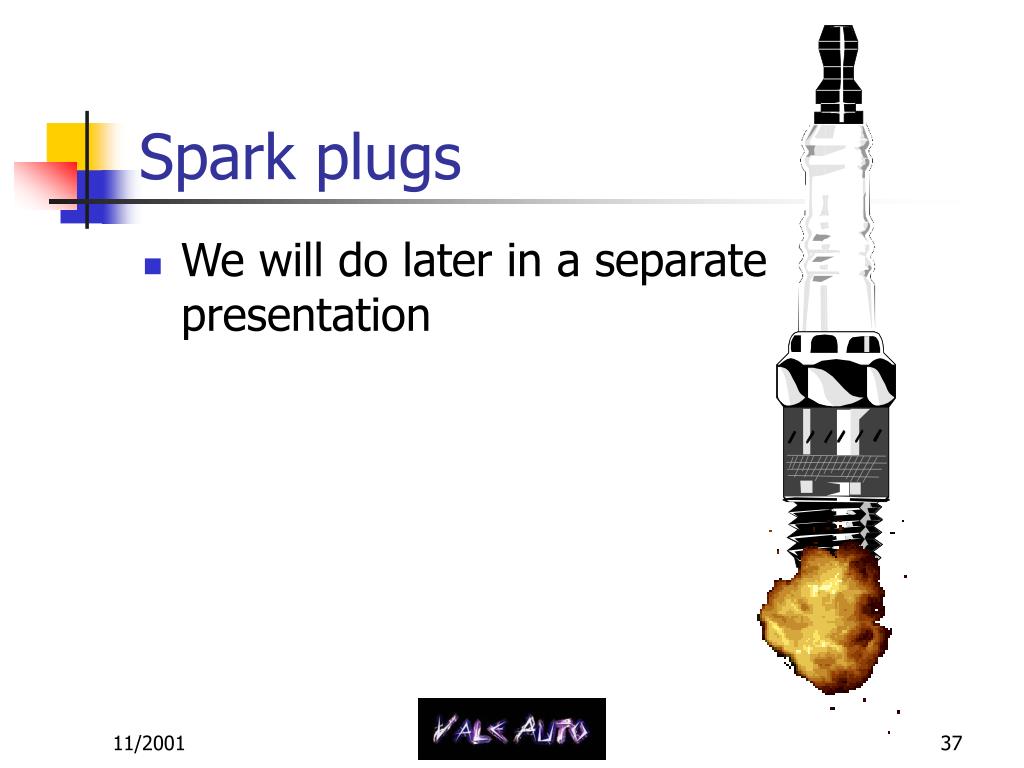

Spark plugs
Spark plugs

  • We will do later in a separate presentation

VHS Auto

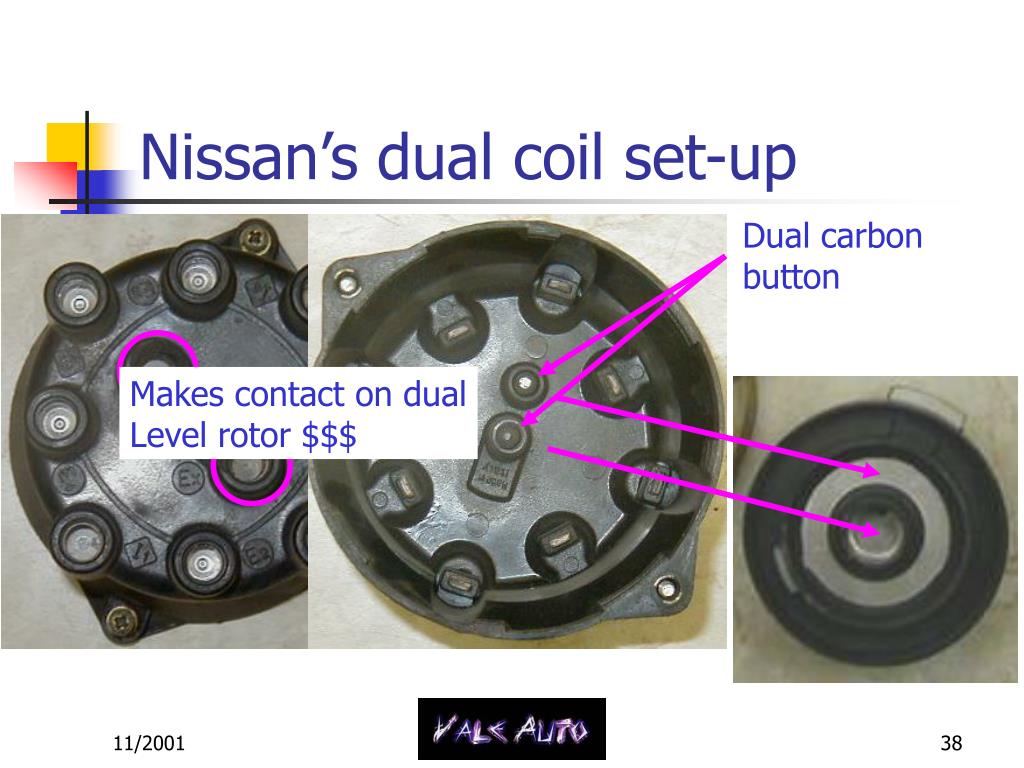

Nissan s dual coil set up

Dual carbon

button

Makes contact on dual

Level rotor $$$

Nissan’s dual coil set-up

VHS Auto


Secondary ignition review
Secondary ignition review

  • High voltage, low amperage (up to 50,000v, .010a)

  • Requires excellent insulation

  • Parts include

    • Secondary winding in coil

    • Distributor cap

    • Rotor

    • High Tension wires

    • Spark Plugs

VHS Auto
