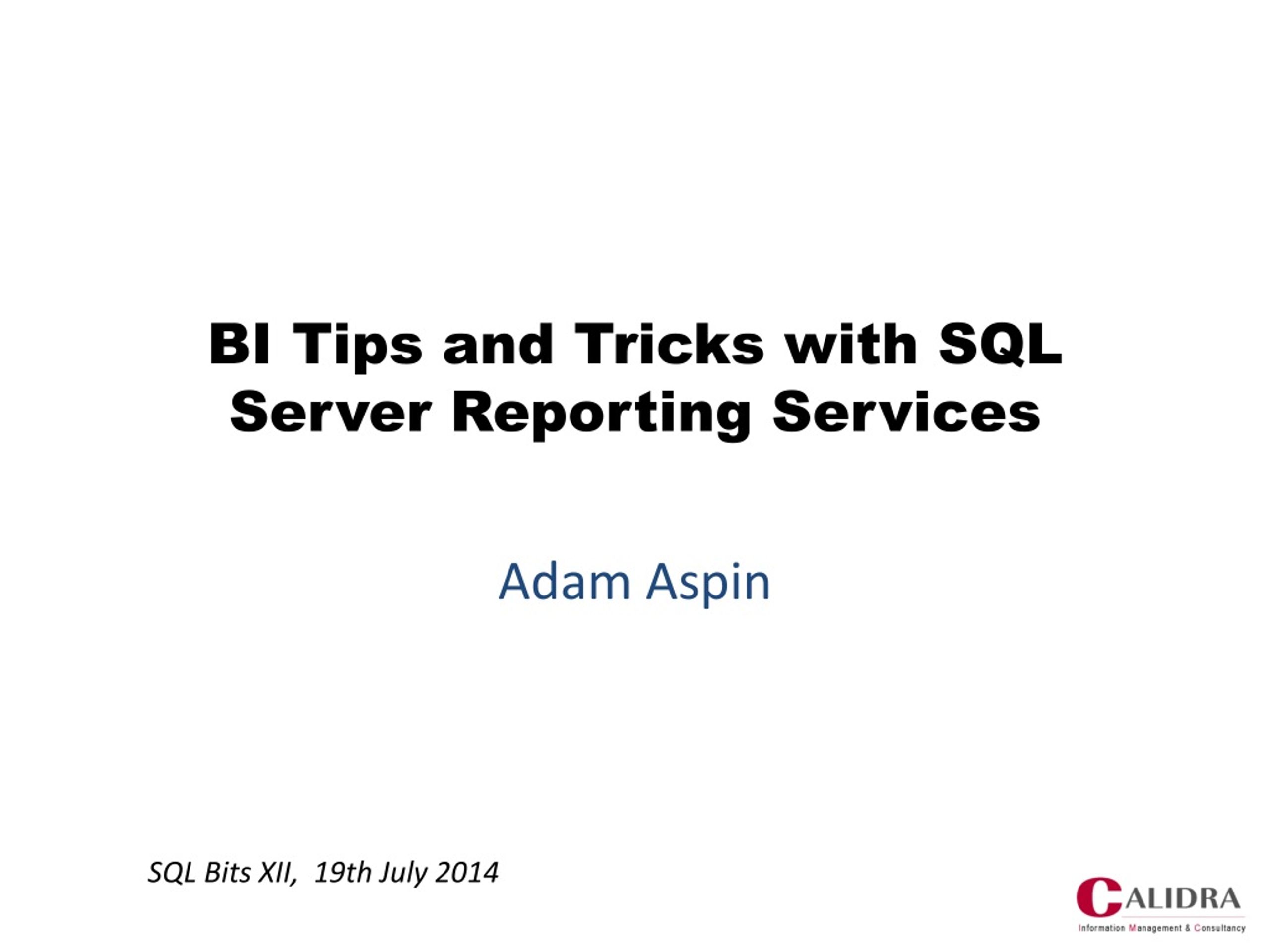

  1. BI Tips and Tricks with SQL Server Reporting Services Adam Aspin SQL Bits XII, 19th July 2014

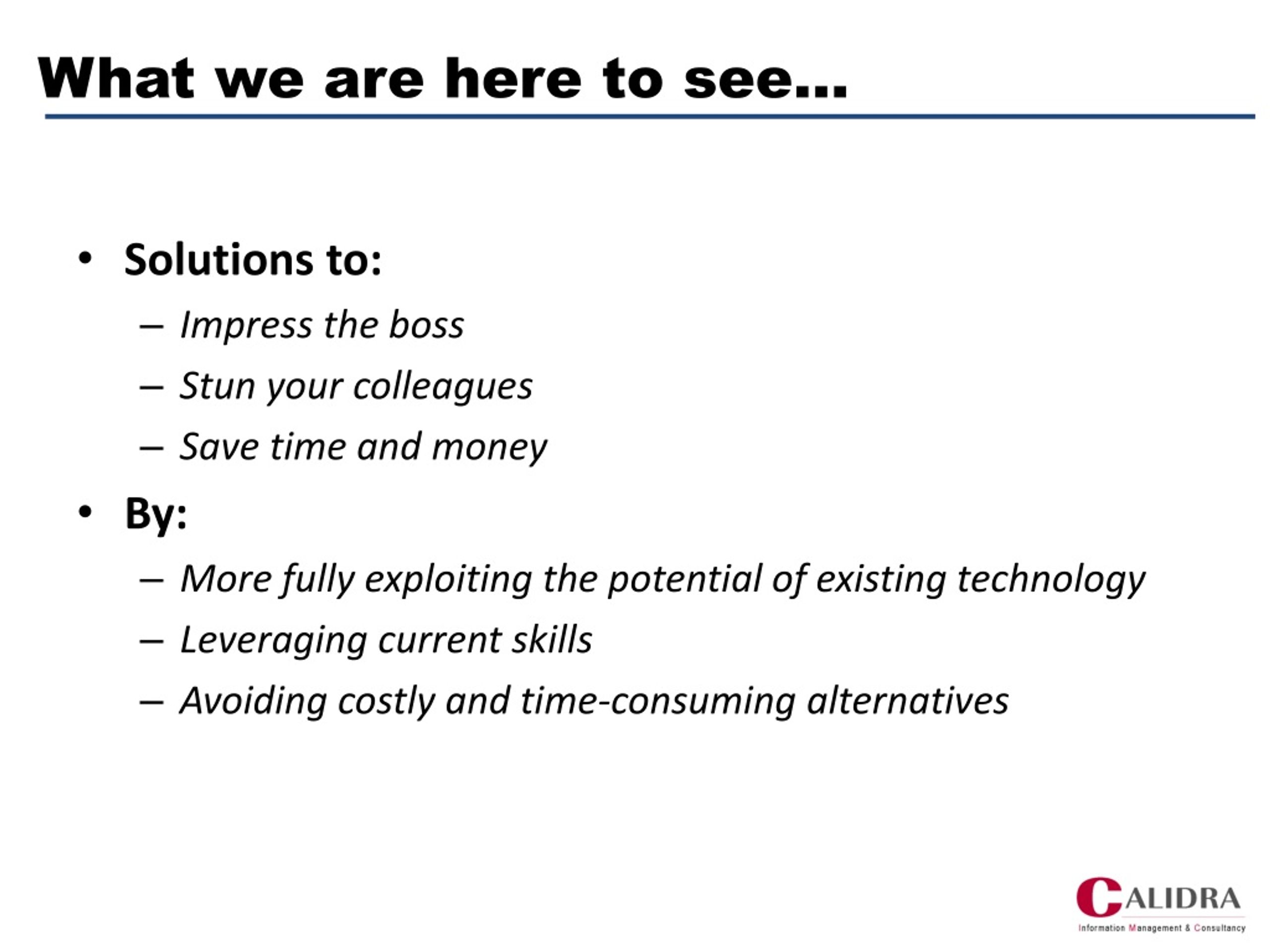

  2. What we are here to see… • Solutions to: • Impress the boss • Stun your colleagues • Save time and money • By: • More fully exploiting the potential of existing technology • Leveraging current skills • Avoiding costly and time-consuming alternatives

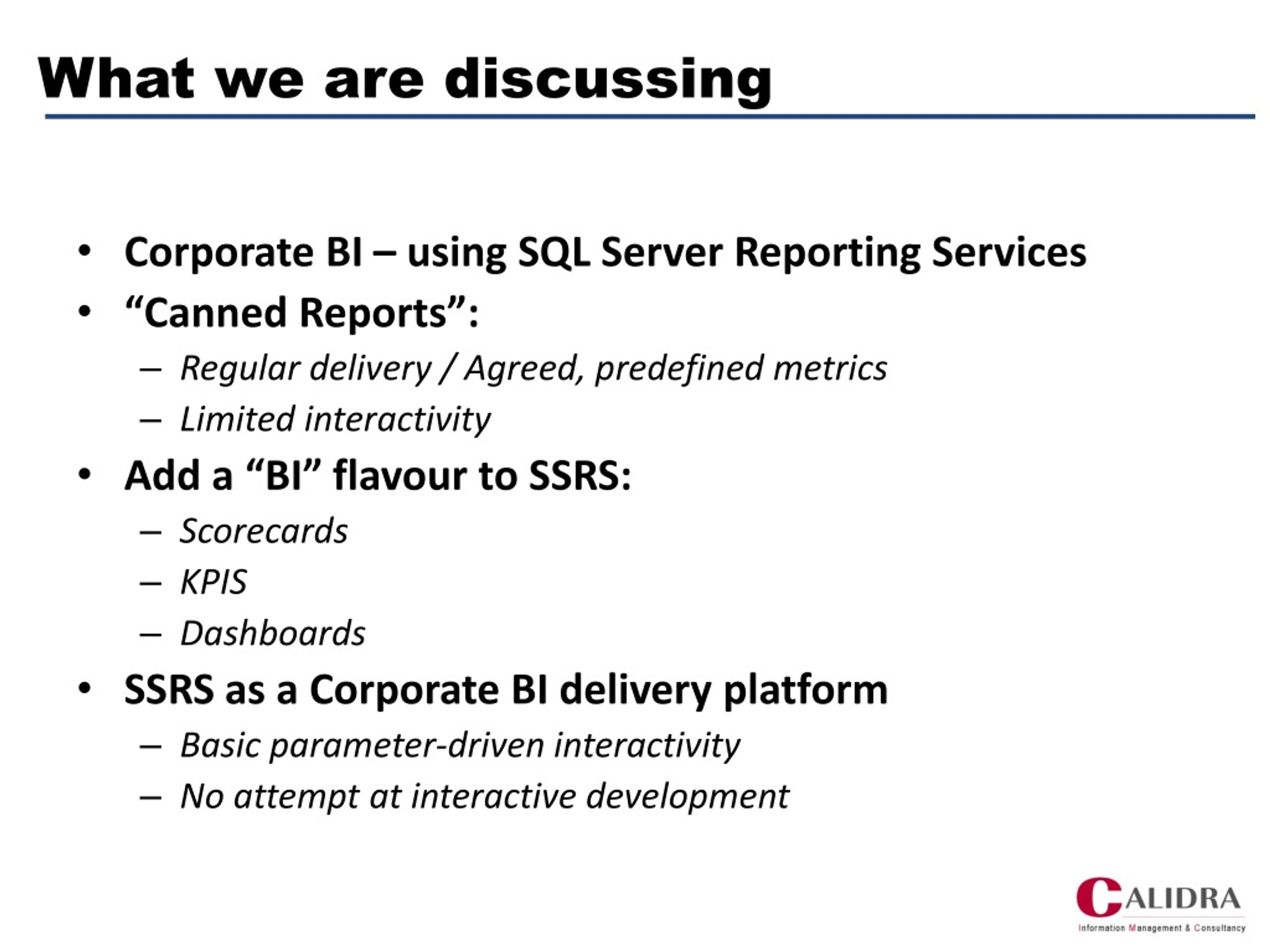

  3. What we are discussing • Corporate BI – using SQL Server Reporting Services • “Canned Reports”: • Regular delivery / Agreed, predefined metrics • Limited interactivity • Add a “BI” flavour to SSRS: • Scorecards • KPIS • Dashboards • SSRS as a Corporate BI delivery platform • Basic parameter-driven interactivity • No attempt at interactive development

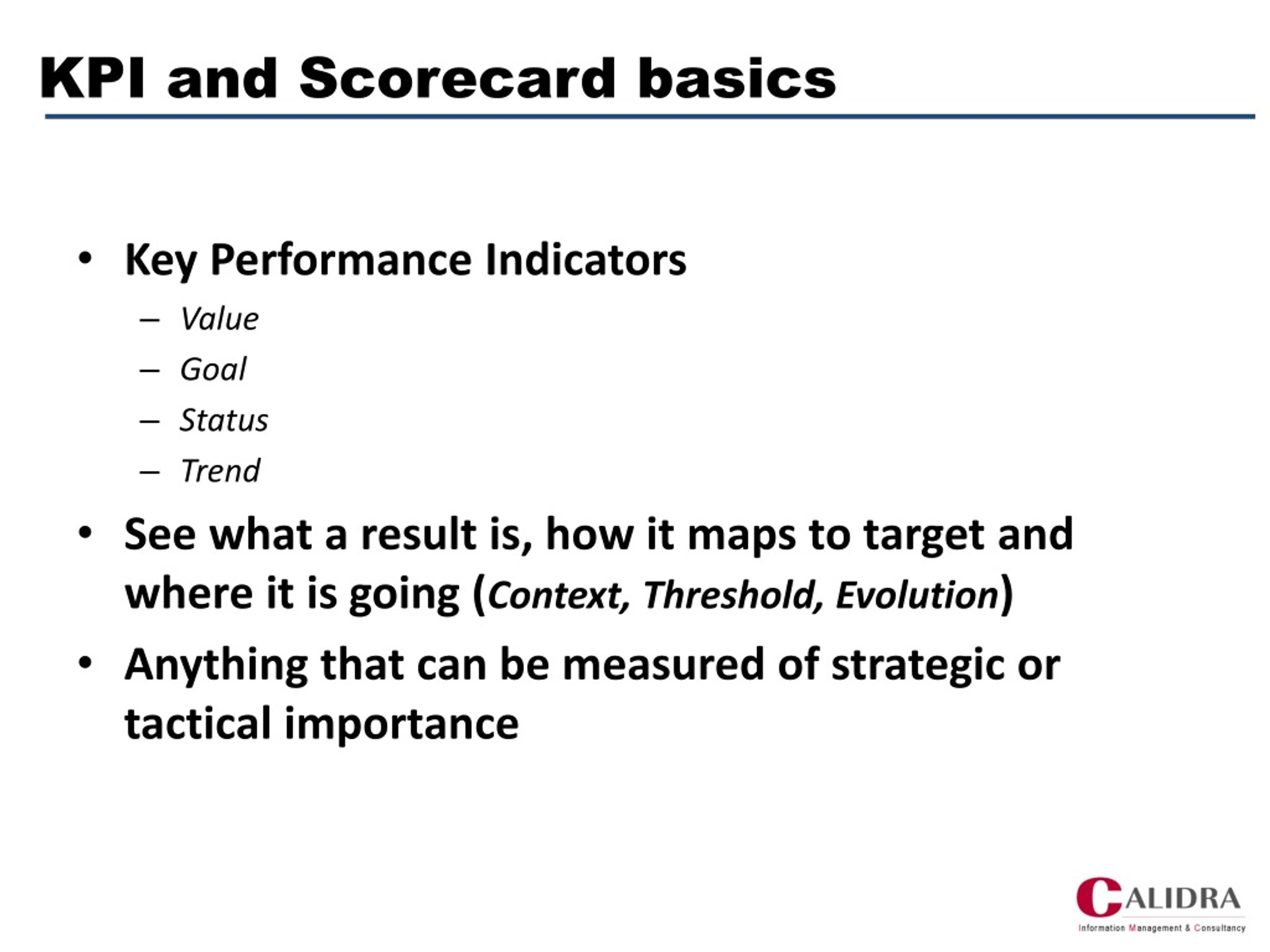

  4. KPI and Scorecard basics • Key Performance Indicators • Value • Goal • Status • Trend • See what a result is, how it maps to target and where it is going (Context, Threshold, Evolution) • Anything that can be measured of strategic or tactical importance

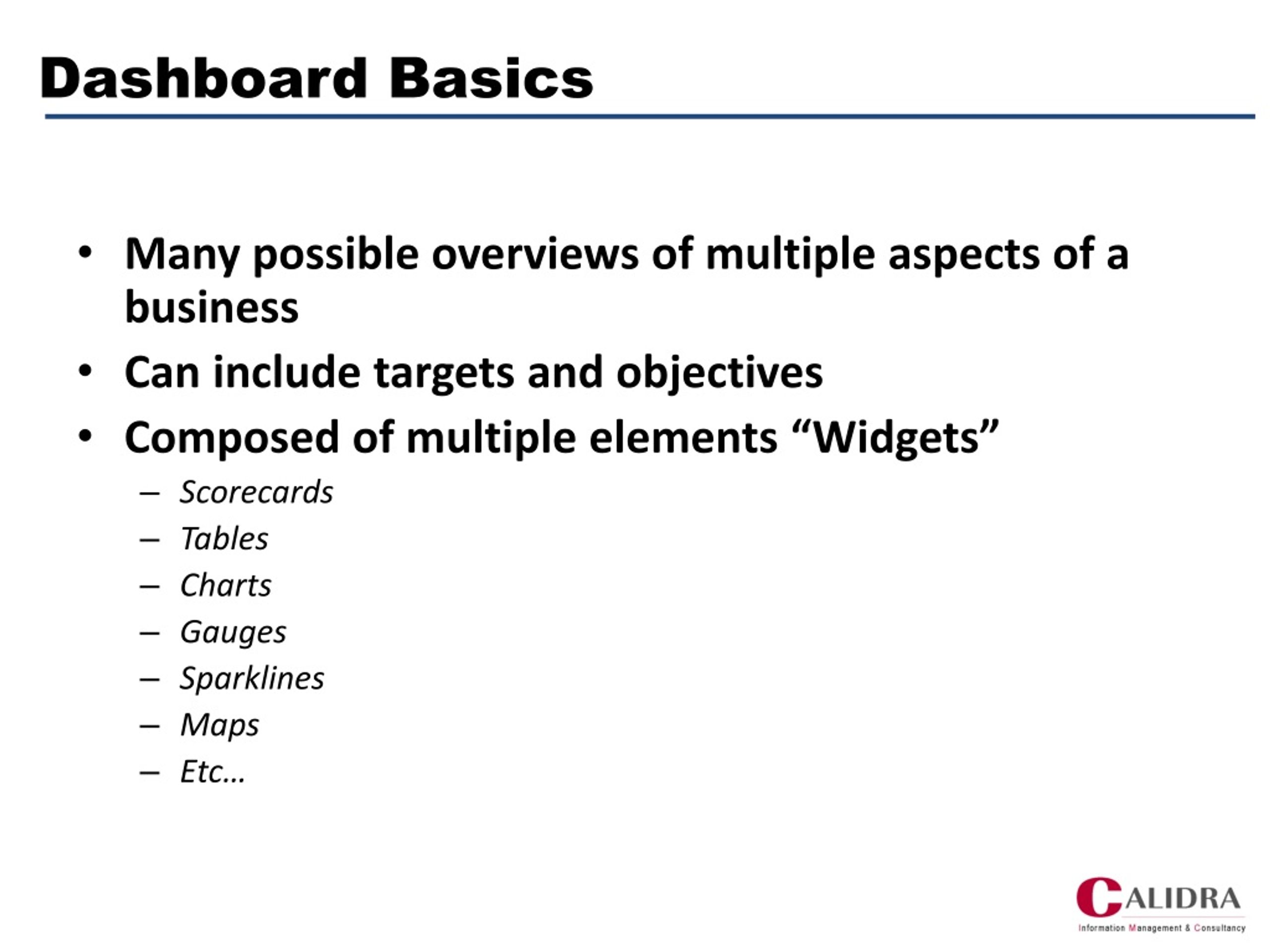

  5. Dashboard Basics • Many possible overviews of multiple aspects of a business • Can include targets and objectives • Composed of multiple elements “Widgets” • Scorecards • Tables • Charts • Gauges • Sparklines • Maps • Etc…

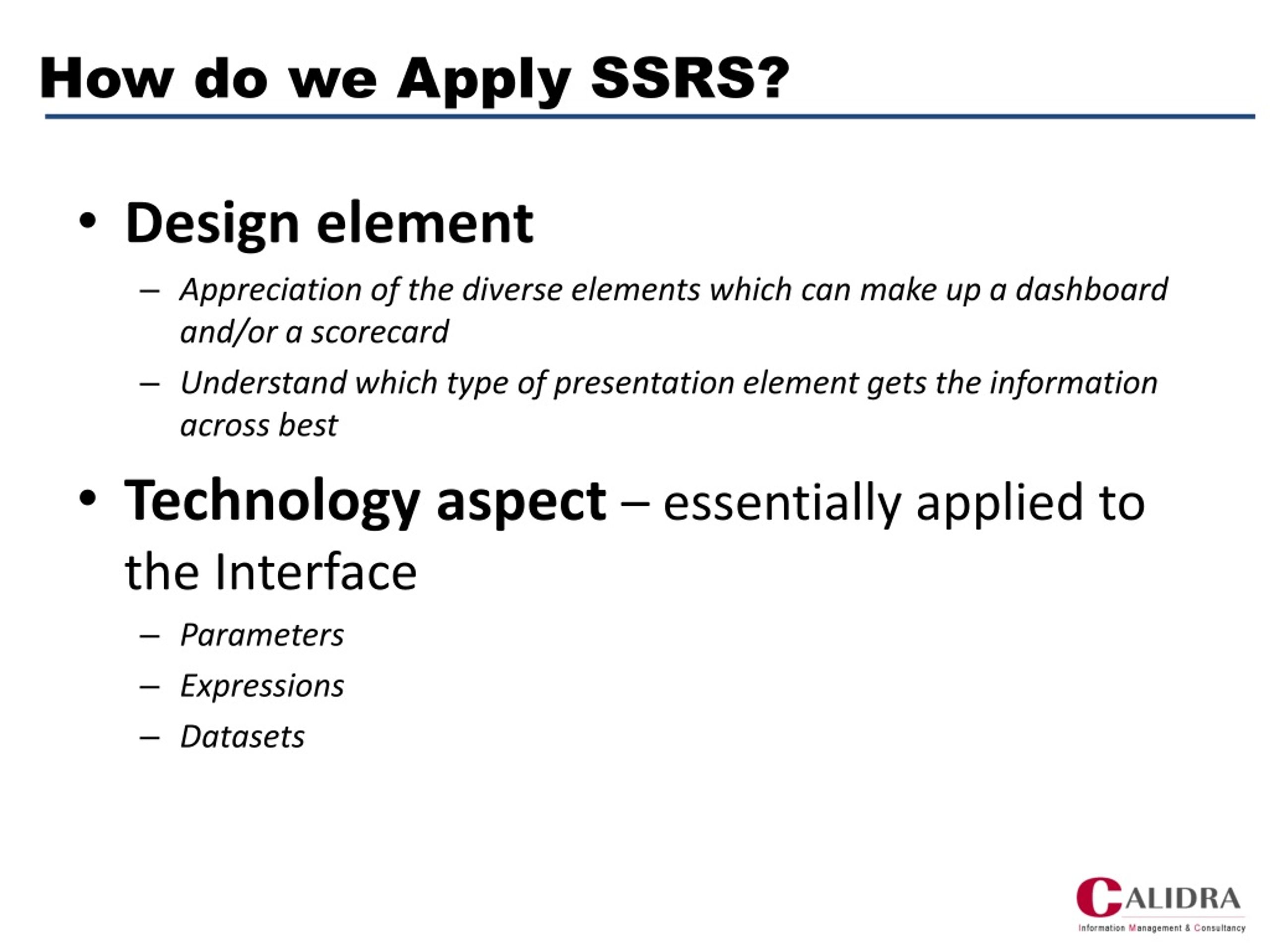

  6. How do we Apply SSRS? • Design element • Appreciation of the diverse elements which can make up a dashboard and/or a scorecard • Understand which type of presentation element gets the information across best • Technology aspect – essentially applied to the Interface • Parameters • Expressions • Datasets

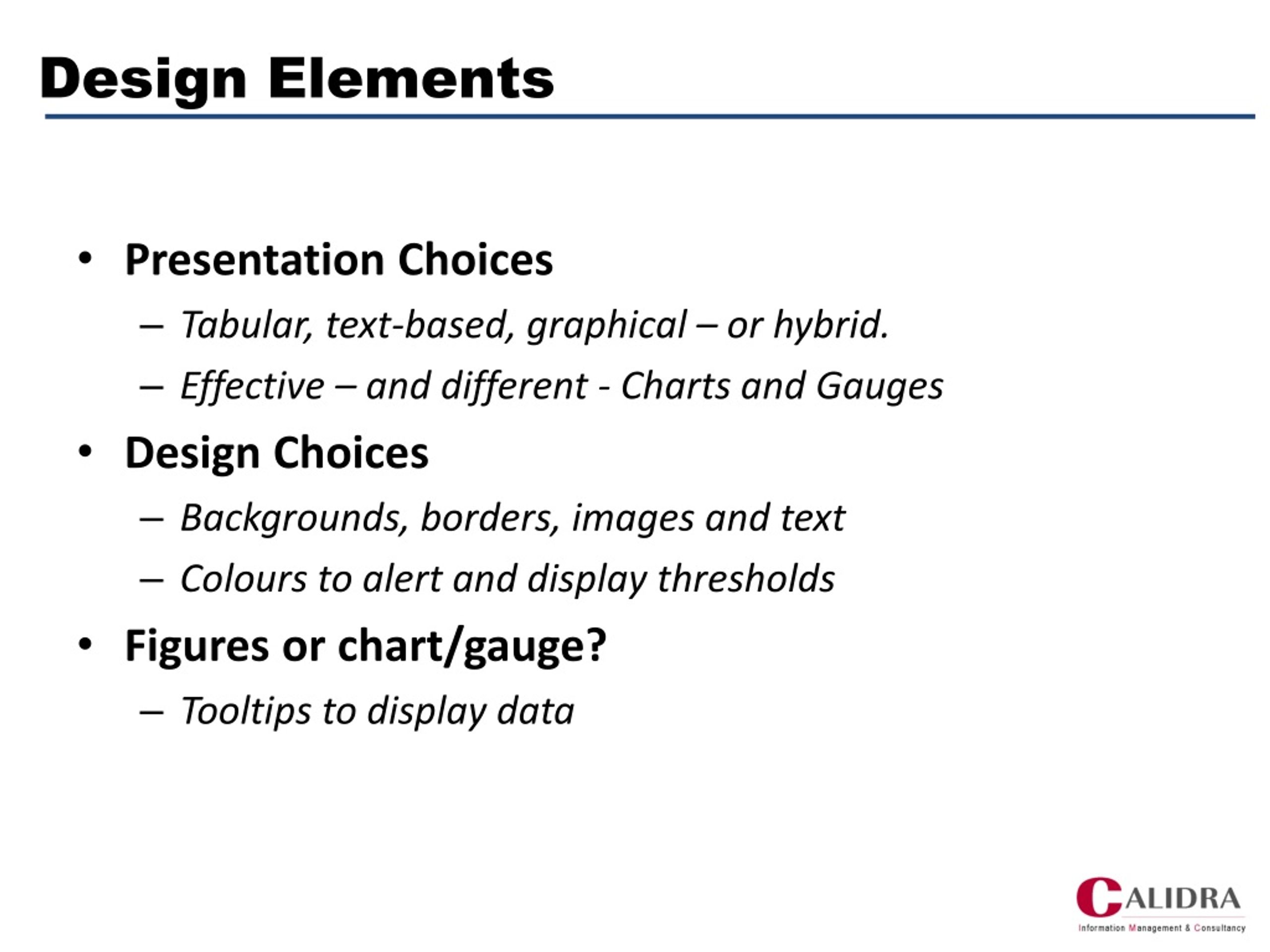

  7. Design Elements • Presentation Choices • Tabular, text-based, graphical – or hybrid. • Effective – and different - Charts and Gauges • Design Choices • Backgrounds, borders, images and text • Colours to alert and display thresholds • Figures or chart/gauge? • Tooltips to display data

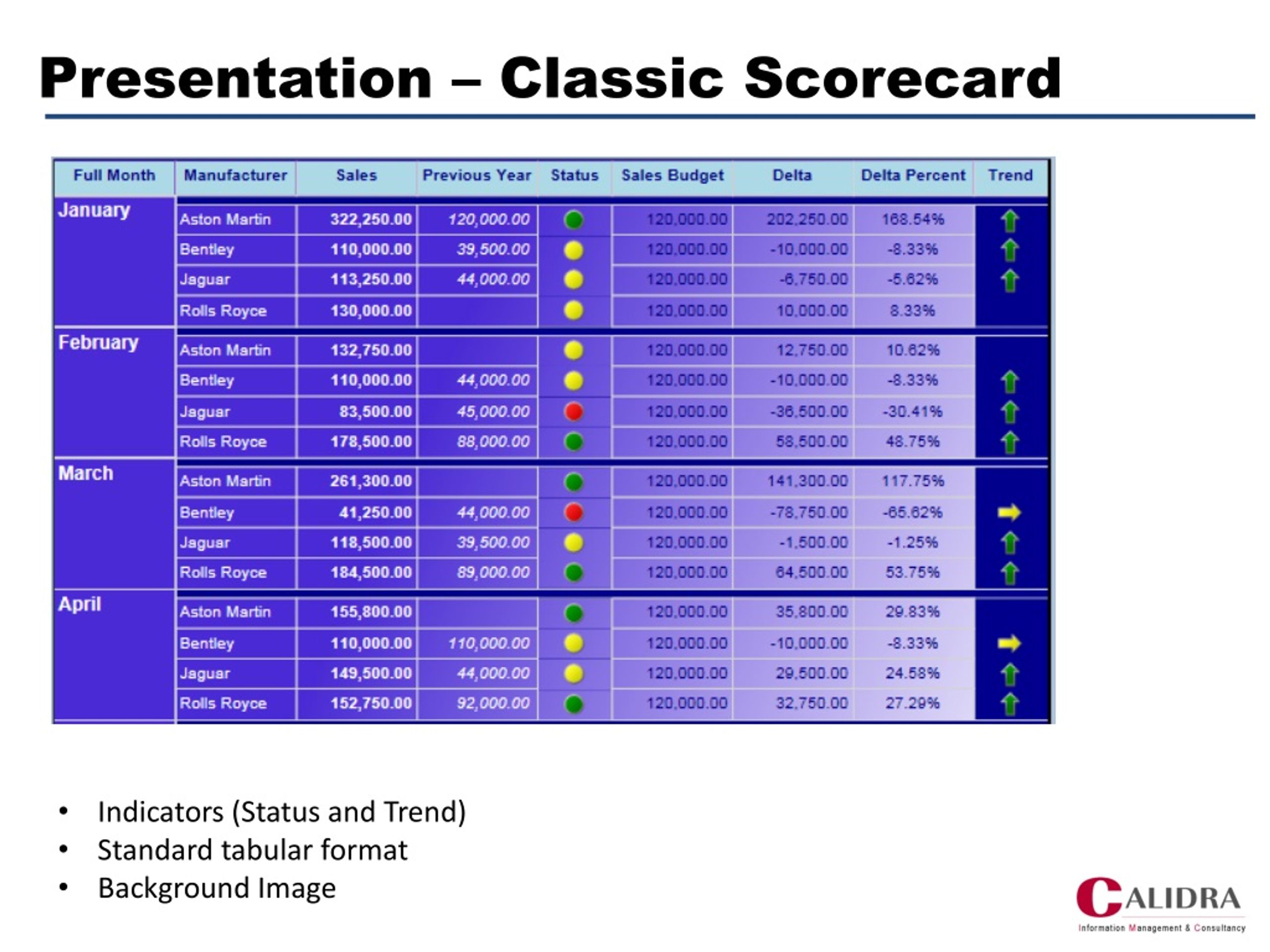

  8. Presentation – Classic Scorecard • Indicators (Status and Trend) • Standard tabular format • Background Image

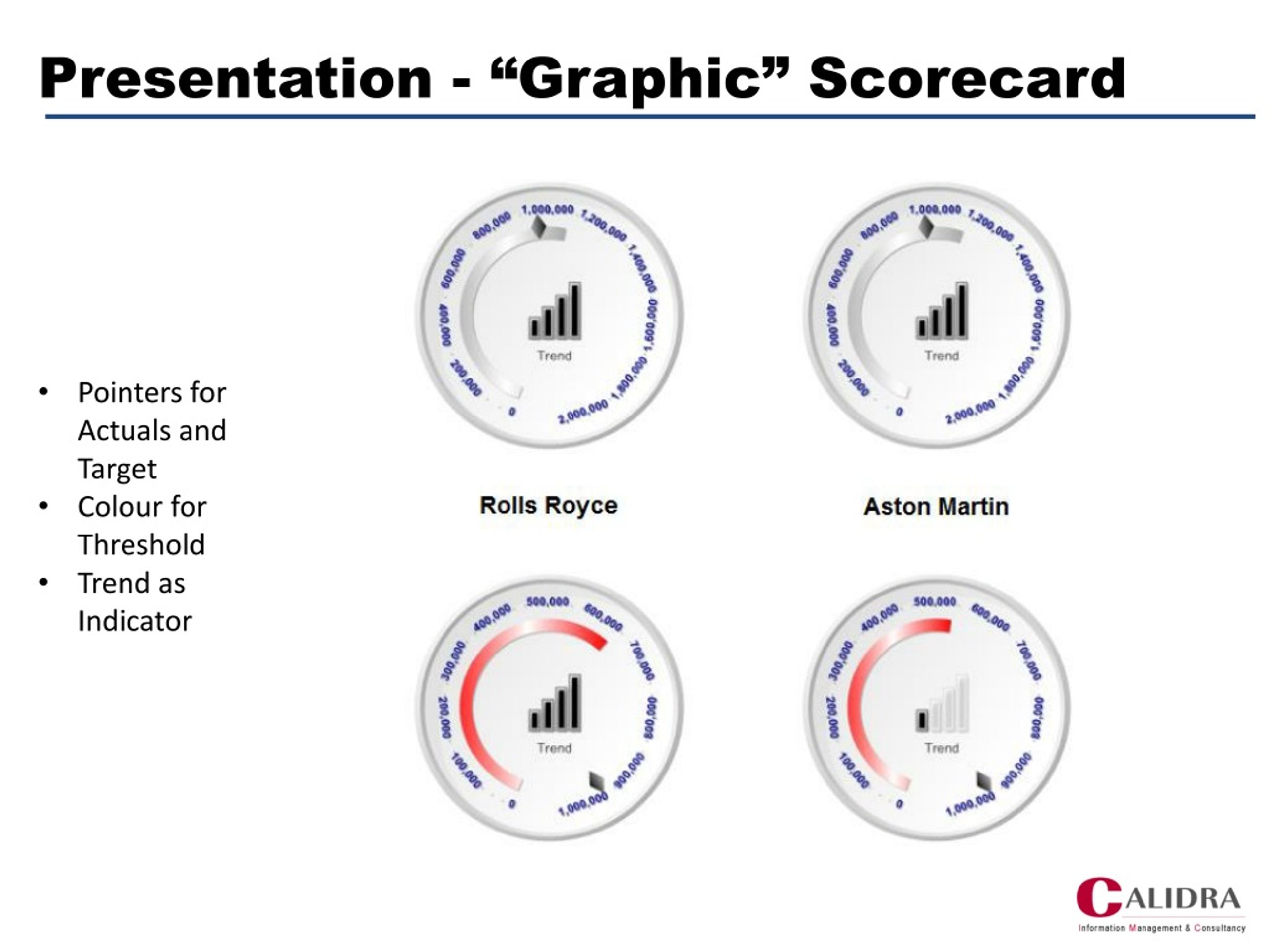

  9. Presentation - “Graphic” Scorecard • Pointers for Actuals and Target • Colour for Threshold • Trend as Indicator

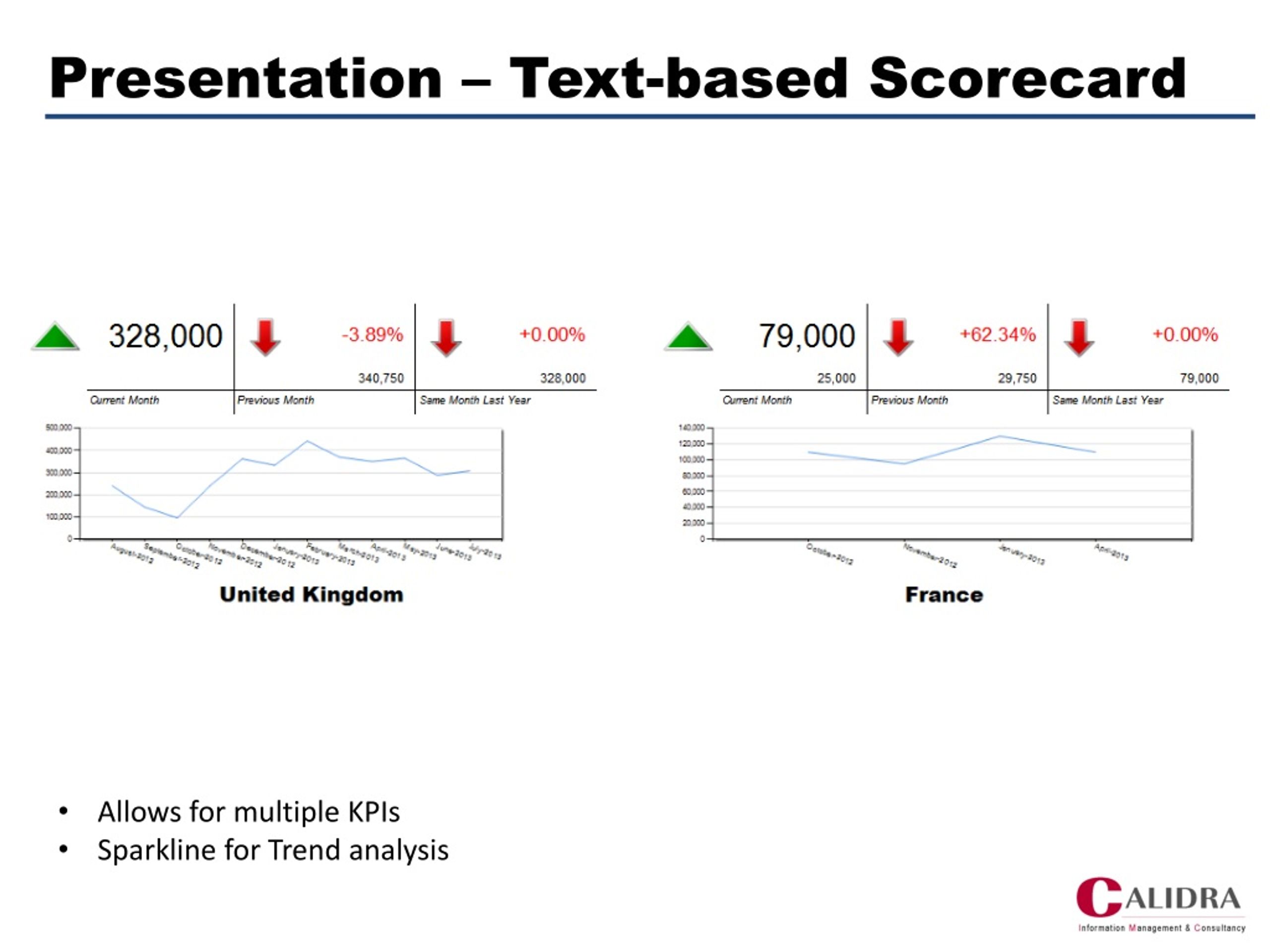

  10. Presentation – Text-based Scorecard • Allows for multiple KPIs • Sparkline for Trend analysis

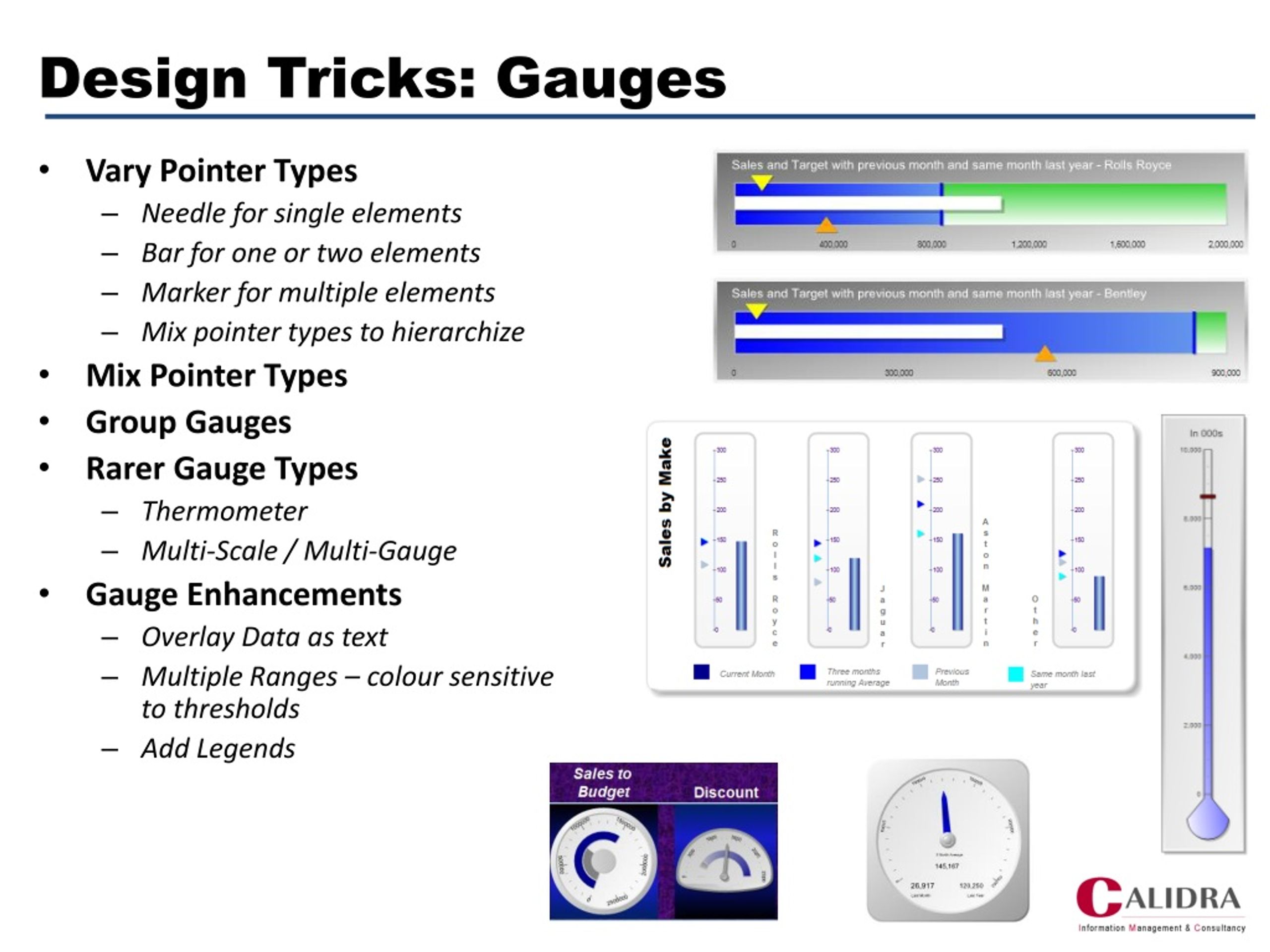

  11. Design Tricks: Gauges • Vary Pointer Types • Needle for single elements • Bar for one or two elements • Marker for multiple elements • Mix pointer types to hierarchize • Mix Pointer Types • Group Gauges • Rarer Gauge Types • Thermometer • Multi-Scale / Multi-Gauge • Gauge Enhancements • Overlay Data as text • Multiple Ranges – colour sensitive to thresholds • Add Legends

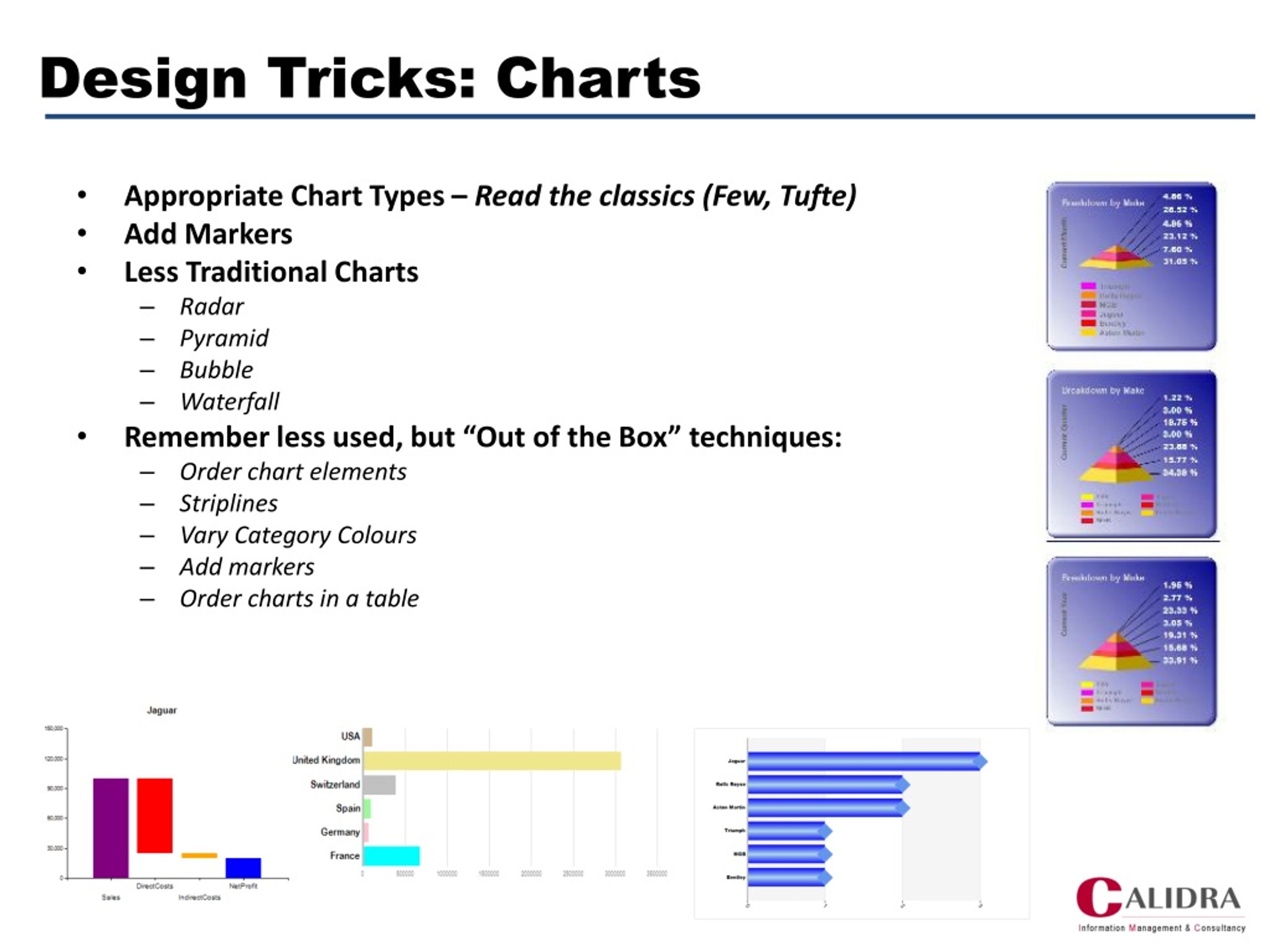

  12. Design Tricks: Charts • Appropriate Chart Types – Read the classics (Few, Tufte) • Add Markers • Less Traditional Charts • Radar • Pyramid • Bubble • Waterfall • Remember less used, but “Out of the Box” techniques: • Order chart elements • Striplines • Vary Category Colours • Add markers • Order charts in a table

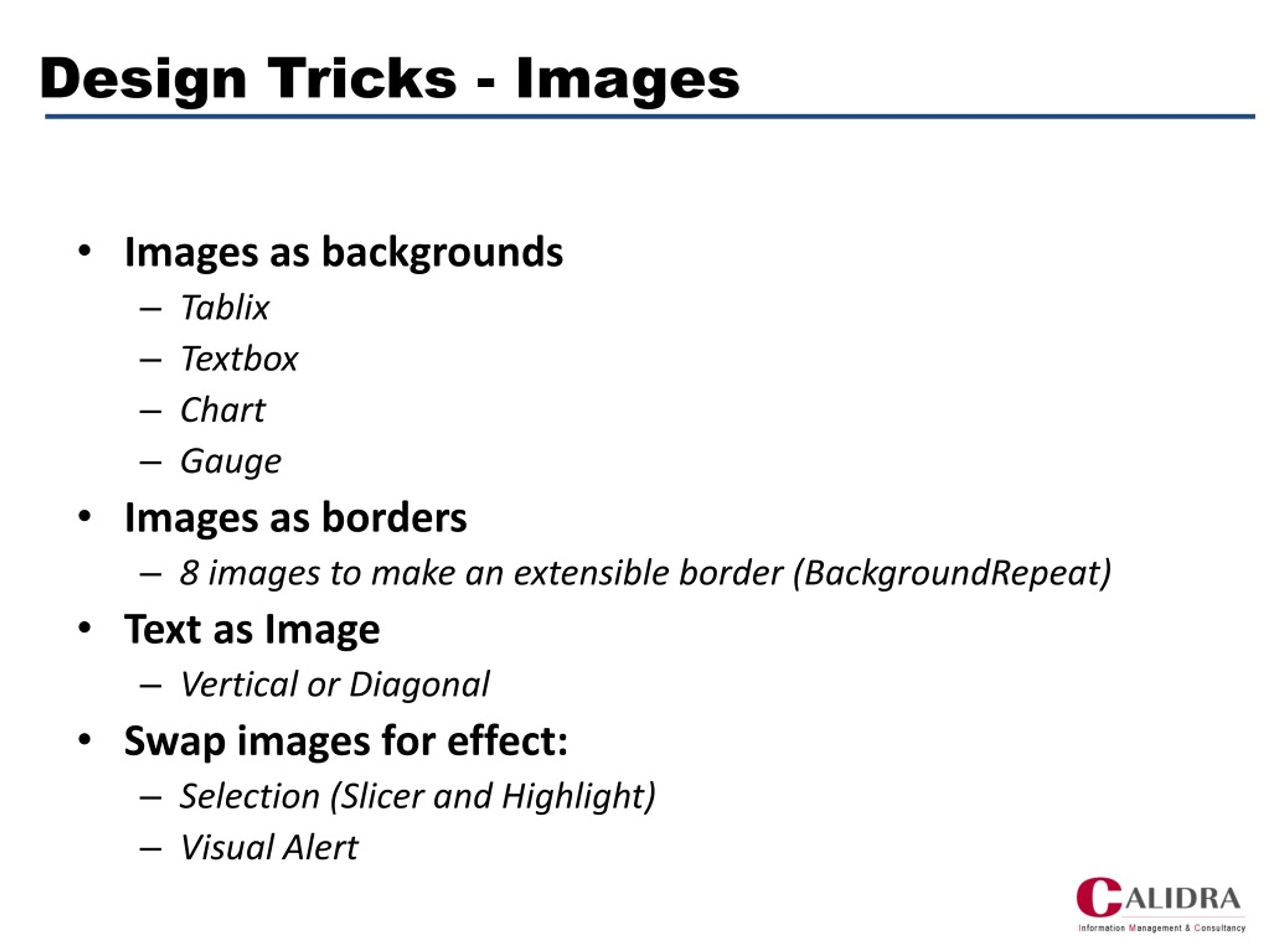

  13. Design Tricks - Images • Images as backgrounds • Tablix • Textbox • Chart • Gauge • Images as borders • 8 images to make an extensible border (BackgroundRepeat) • Text as Image • Vertical or Diagonal • Swap images for effect: • Selection (Slicer and Highlight) • Visual Alert

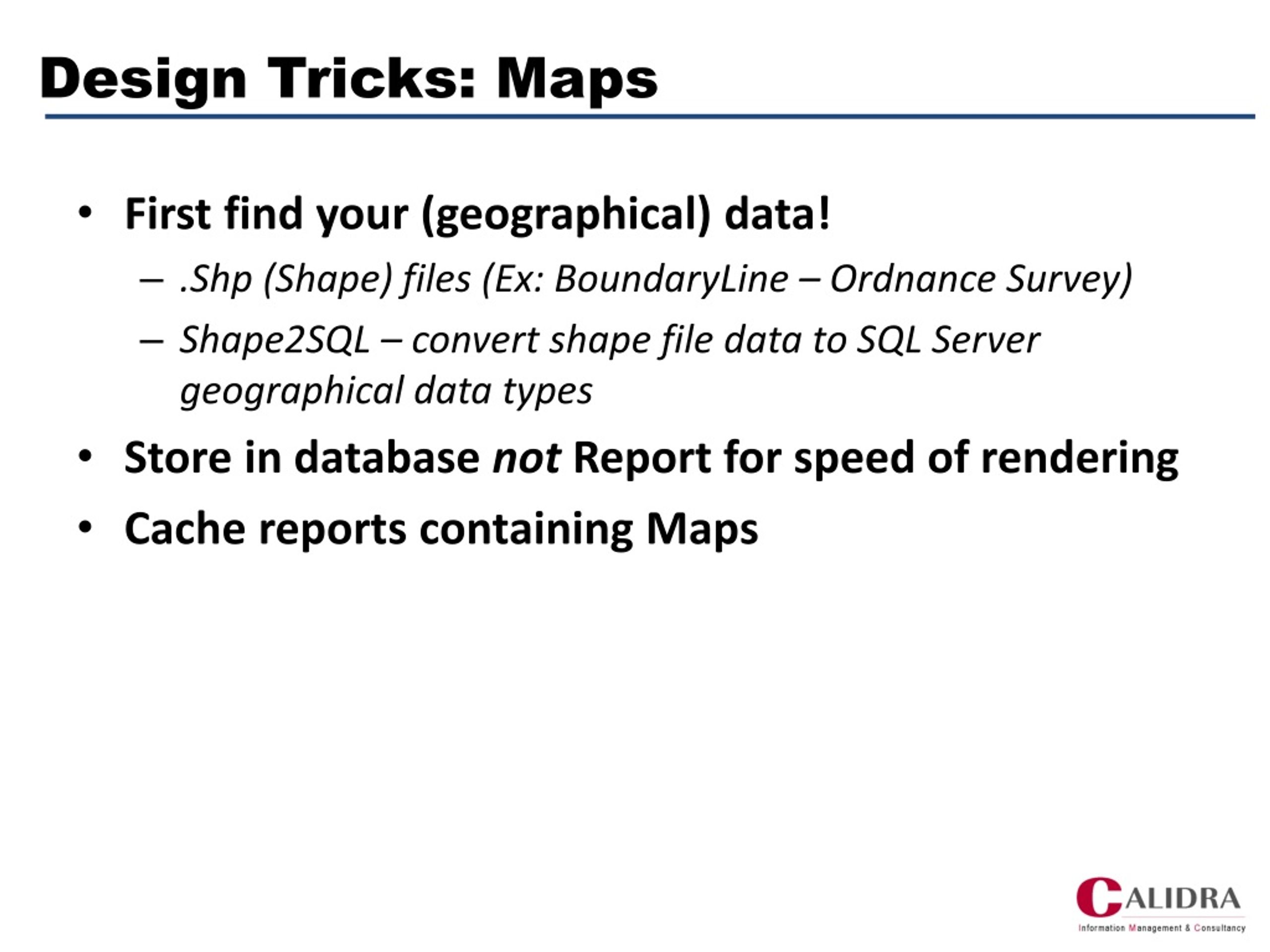

  14. Design Tricks: Maps • First find your (geographical) data! • .Shp (Shape) files (Ex: BoundaryLine – Ordnance Survey) • Shape2SQL – convert shape file data to SQL Server geographical data types • Store in database not Report for speed of rendering • Cache reports containing Maps

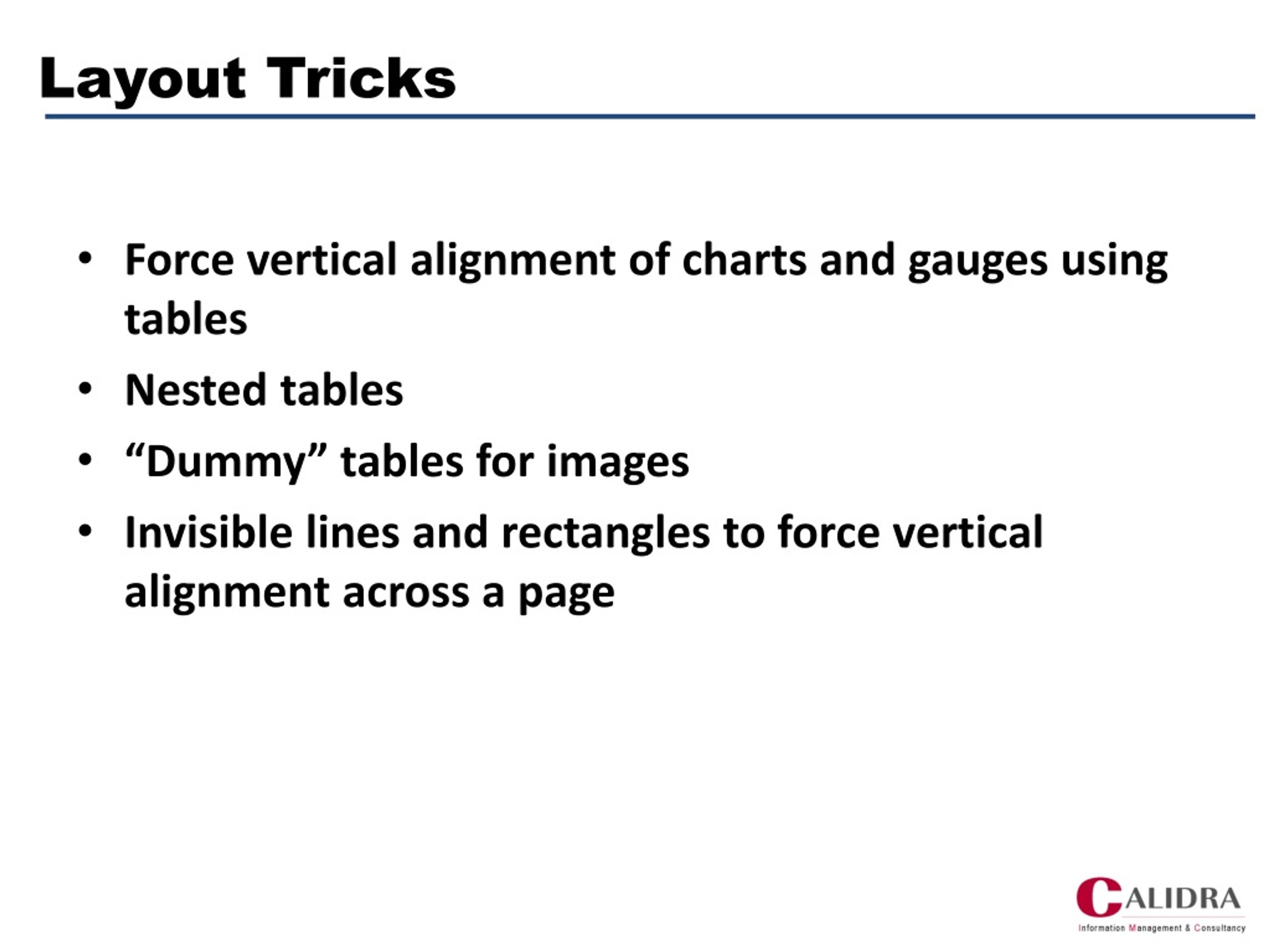

  15. Layout Tricks • Force vertical alignment of charts and gauges using tables • Nested tables • “Dummy” tables for images • Invisible lines and rectangles to force vertical alignment across a page

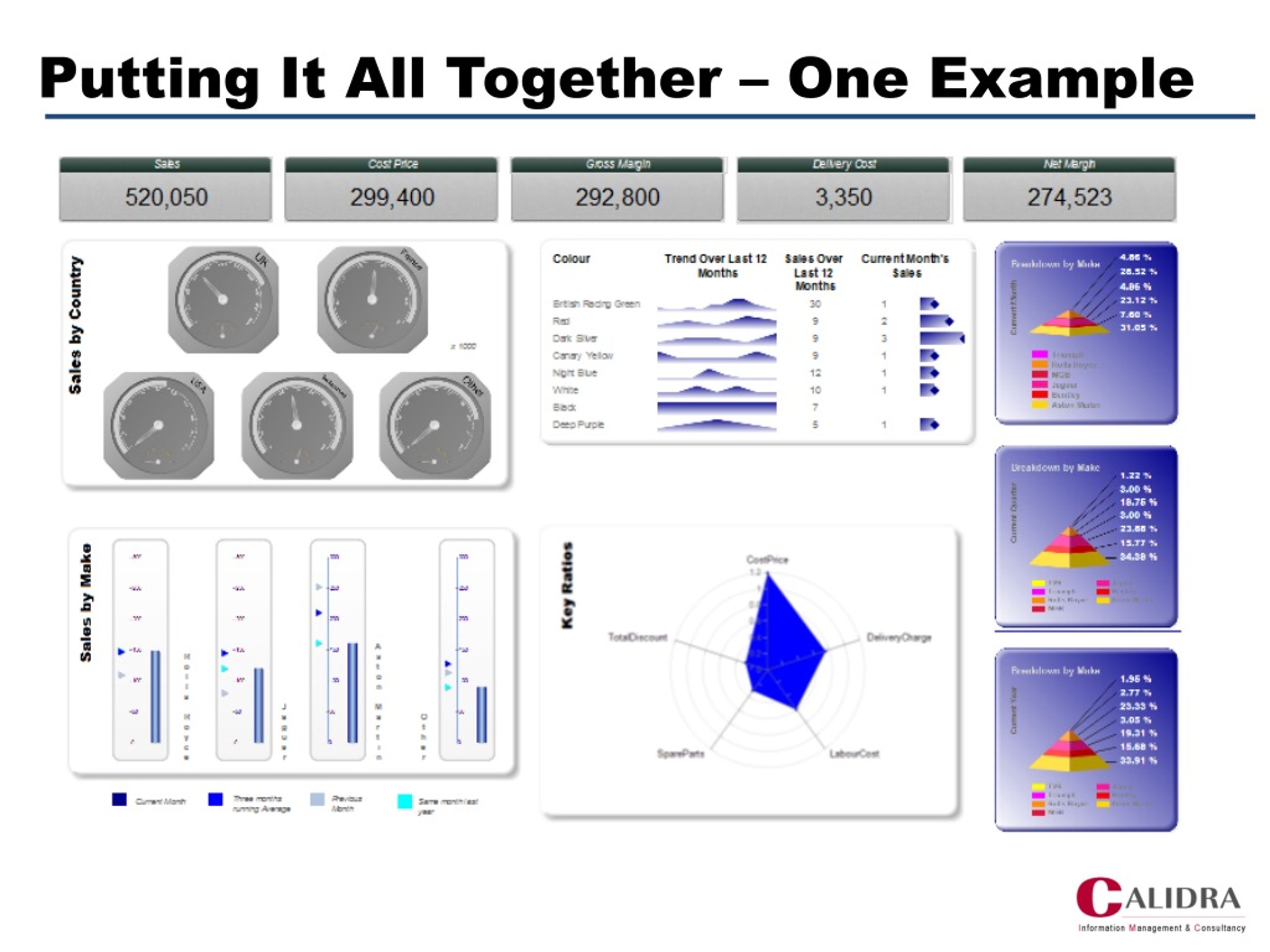

  16. Putting It All Together – One Example

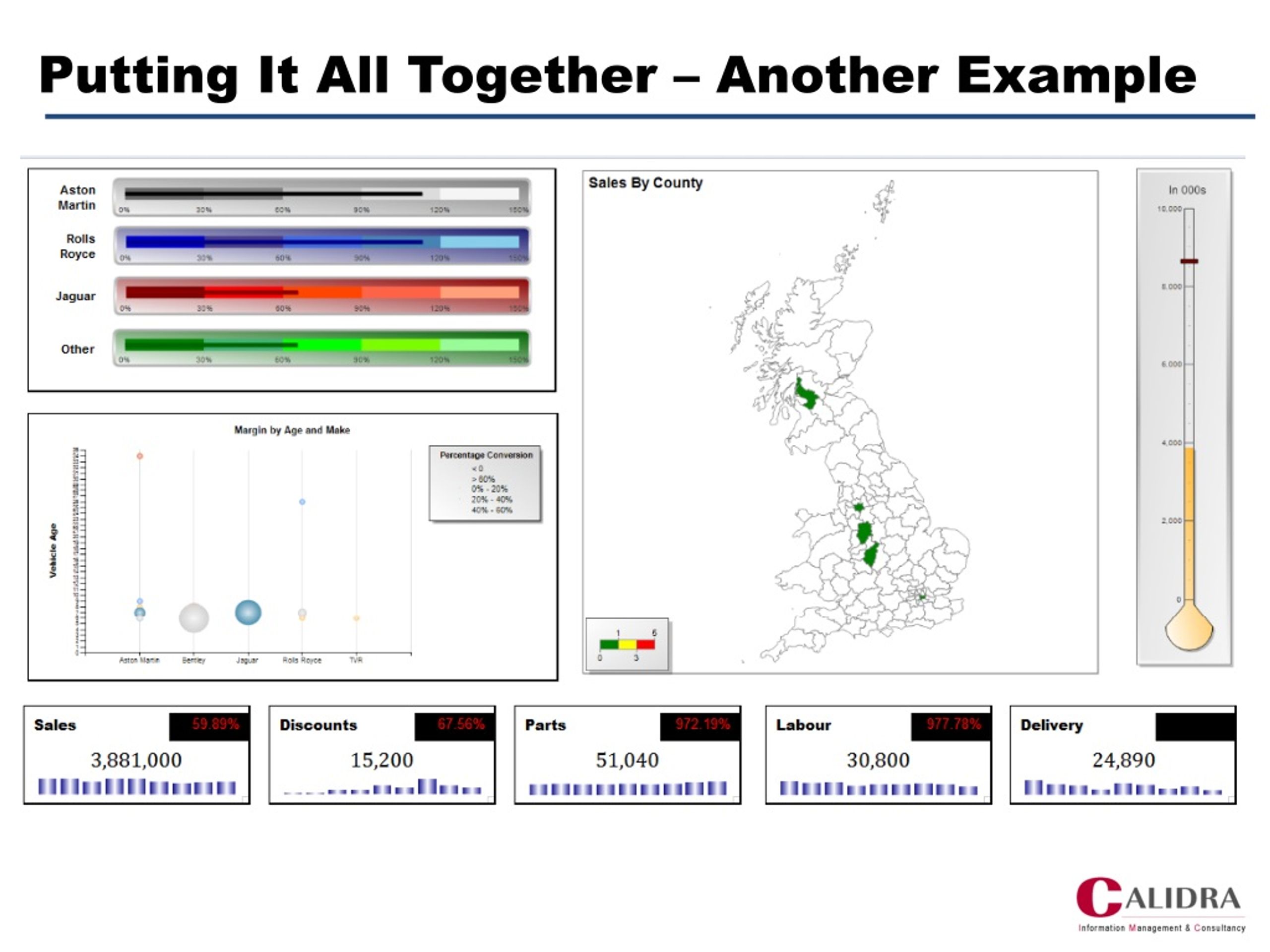

  17. Putting It All Together – Another Example

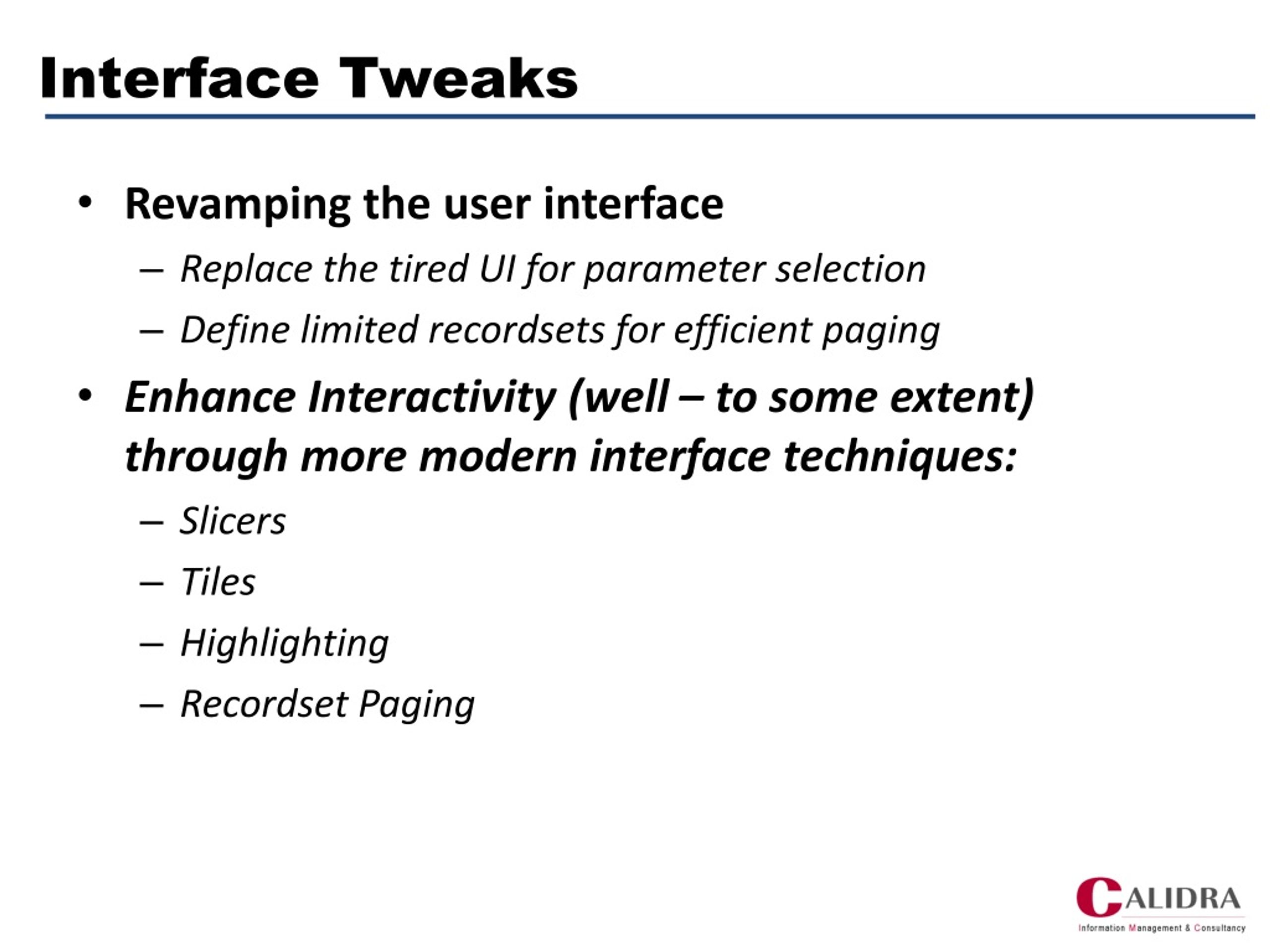

  18. Interface Tweaks • Revamping the user interface • Replace the tired UI for parameter selection • Define limited recordsets for efficient paging • Enhance Interactivity (well – to some extent) through more modern interface techniques: • Slicers • Tiles • Highlighting • Recordset Paging

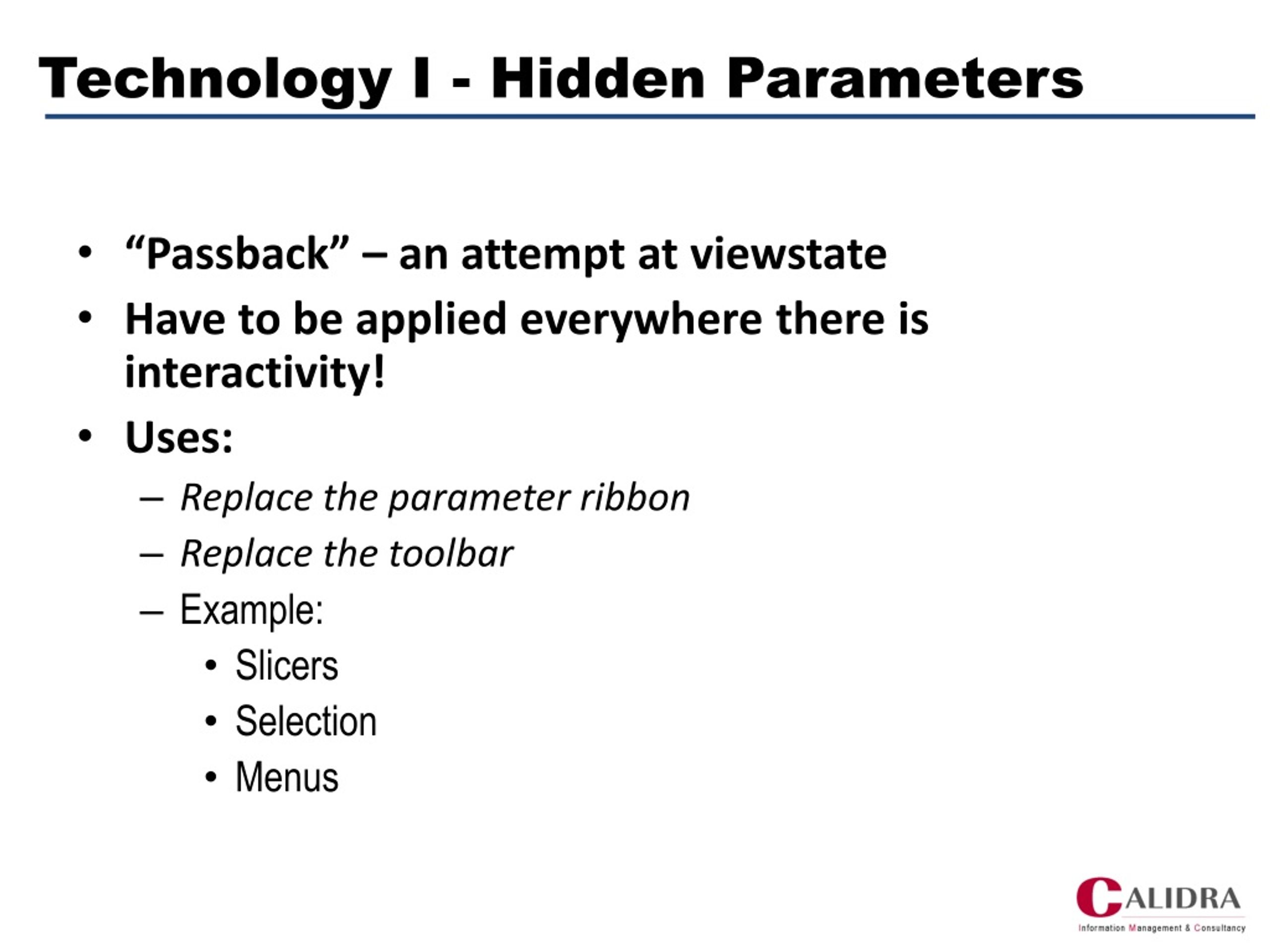

  19. Technology I - Hidden Parameters • “Passback” – an attempt at viewstate • Have to be applied everywhere there is interactivity! • Uses: • Replace the parameter ribbon • Replace the toolbar • Example: • Slicers • Selection • Menus

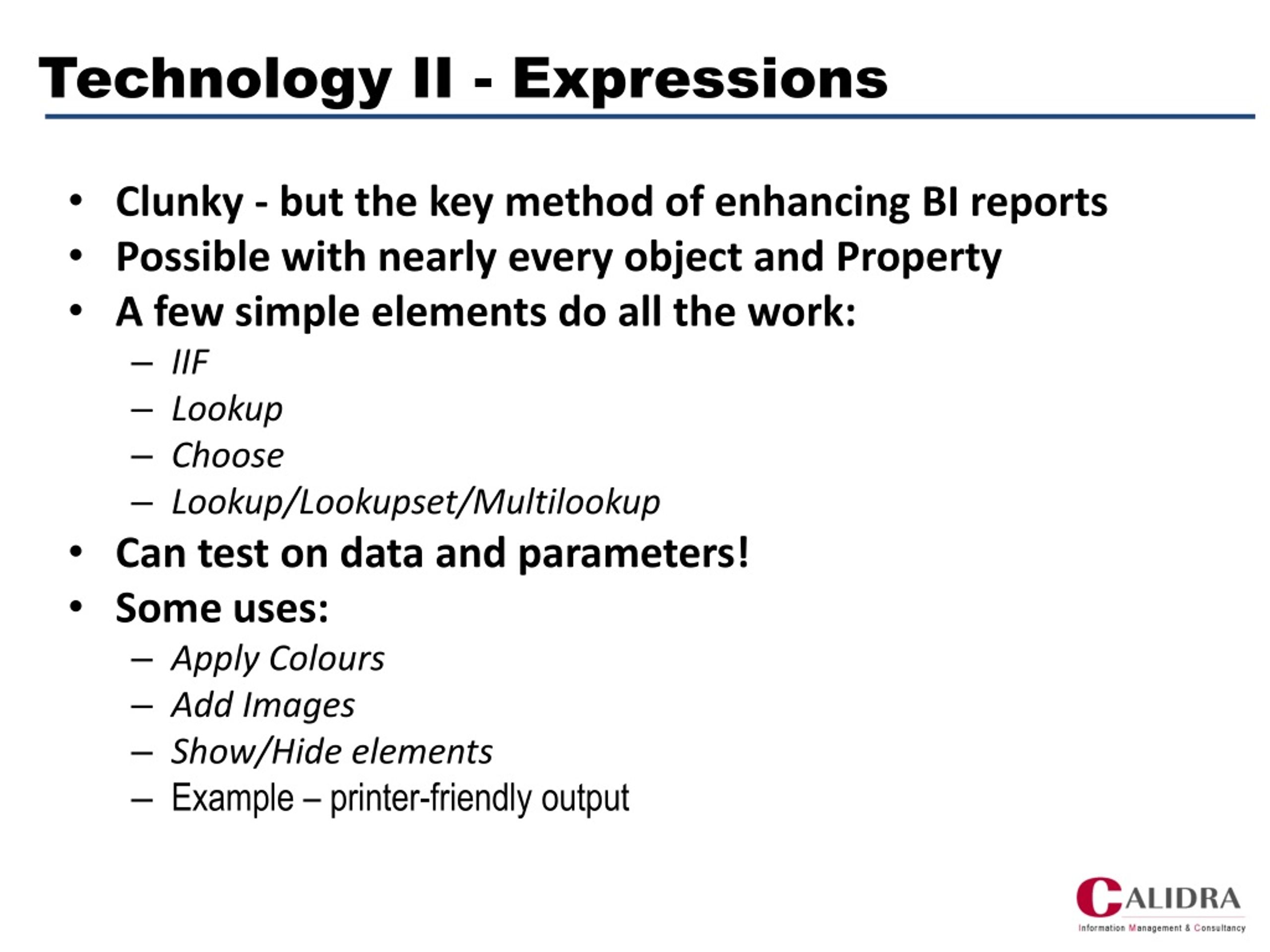

  20. Technology II - Expressions • Clunky - but the key method of enhancing BI reports • Possible with nearly every object and Property • A few simple elements do all the work: • IIF • Lookup • Choose • Lookup/Lookupset/Multilookup • Can test on data and parameters! • Some uses: • Apply Colours • Add Images • Show/Hide elements • Example – printer-friendly output

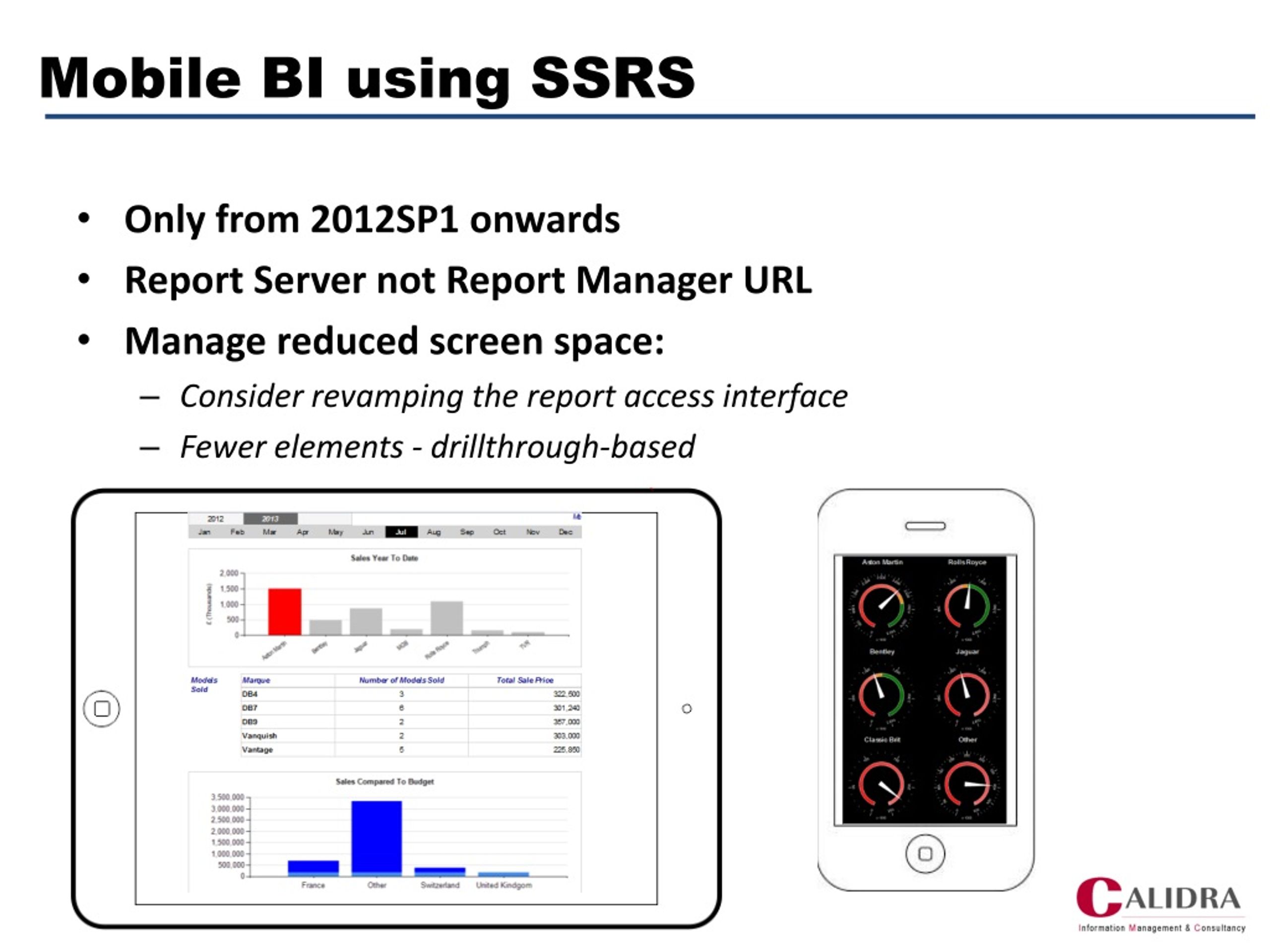

  21. Mobile BI using SSRS • Only from 2012SP1 onwards • Report Server not Report Manager URL • Manage reduced screen space: • Consider revamping the report access interface • Fewer elements - drillthrough-based

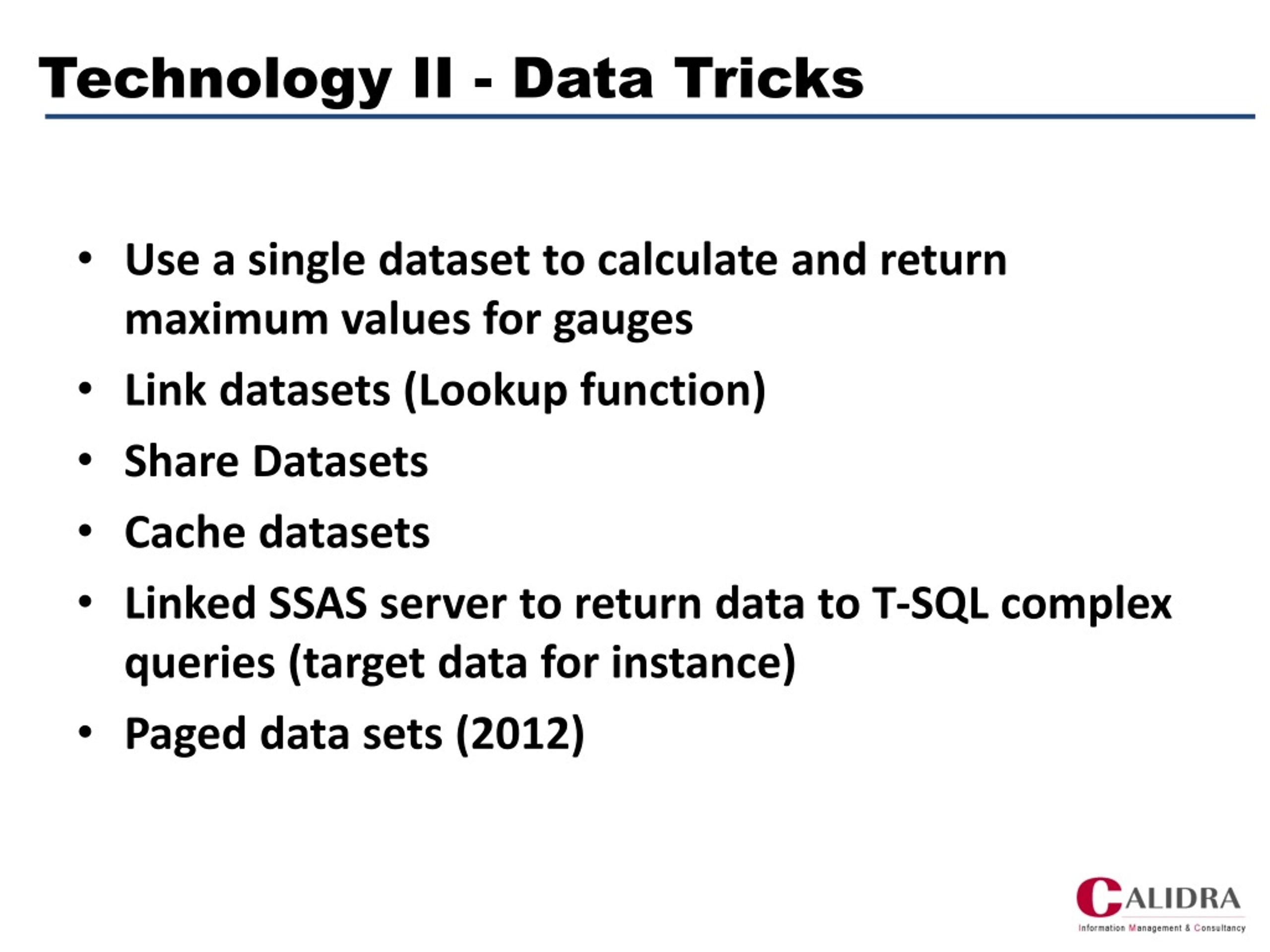

  22. Technology II - Data Tricks • Use a single dataset to calculate and return maximum values for gauges • Link datasets (Lookup function) • Share Datasets • Cache datasets • Linked SSAS server to return data to T-SQL complex queries (target data for instance) • Paged data sets (2012)

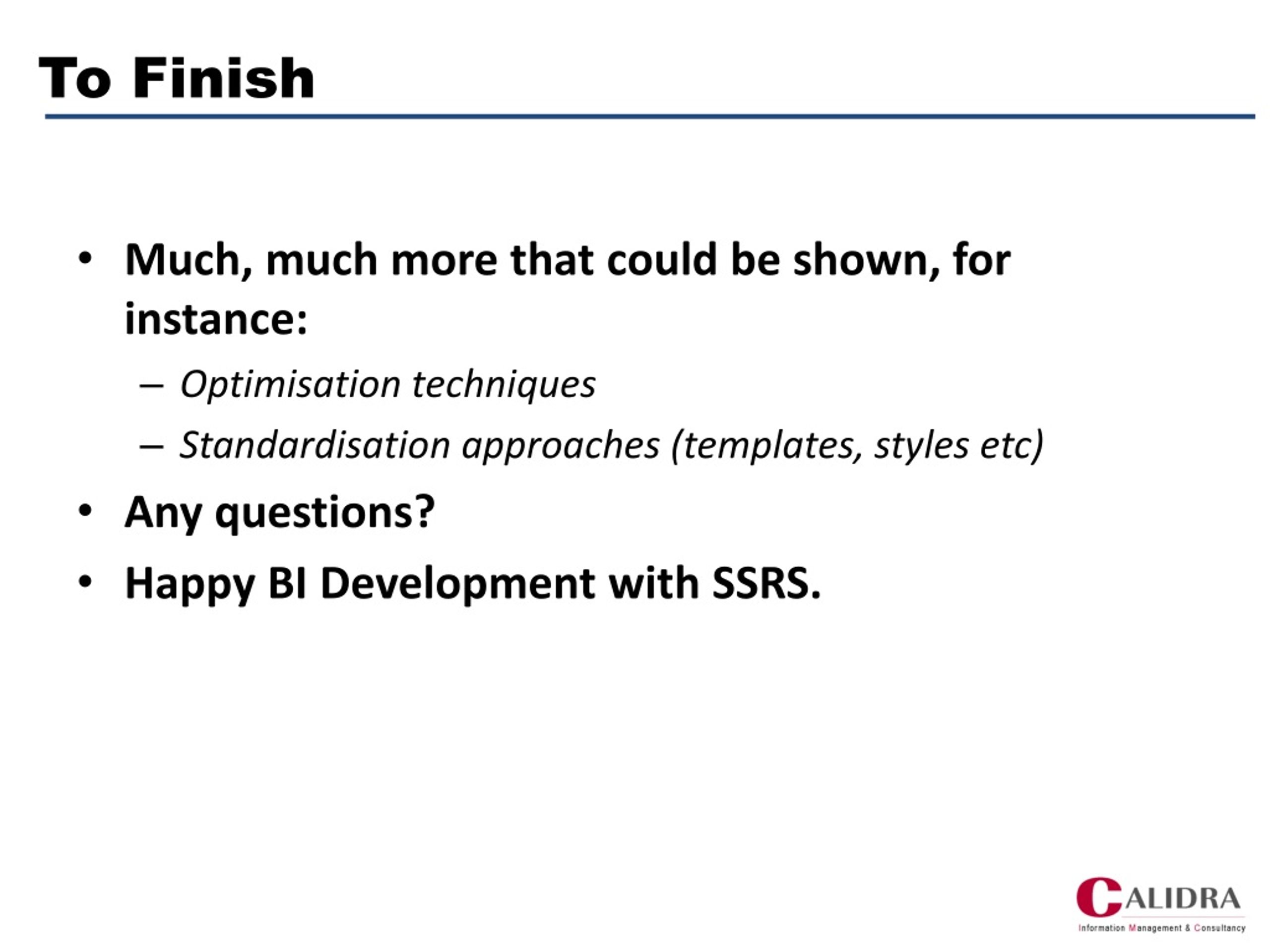

  23. To Finish • Much, much more that could be shown, for instance: • Optimisation techniques • Standardisation approaches (templates, styles etc) • Any questions? • Happy BI Development with SSRS.

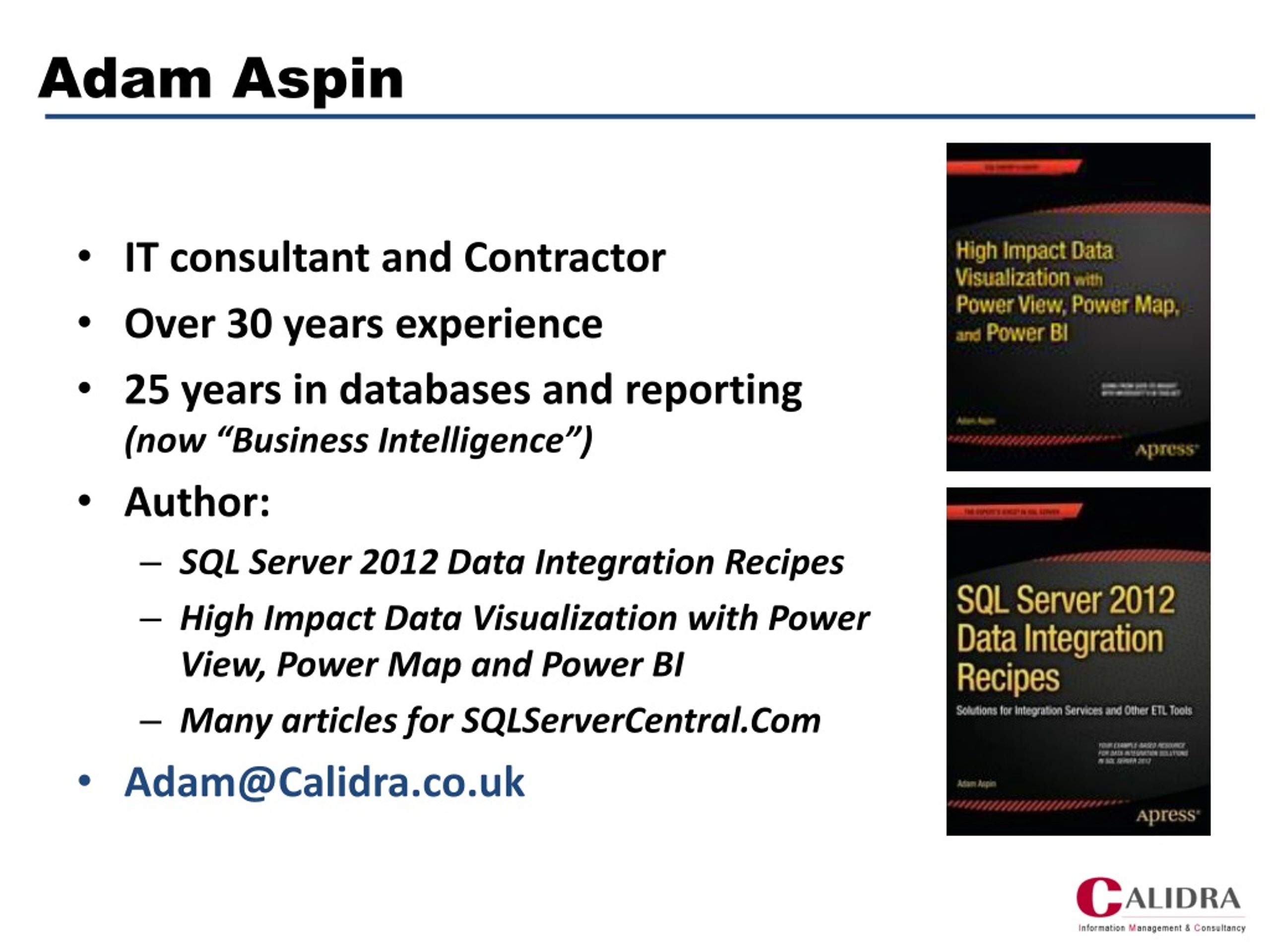

  24. Adam Aspin • IT consultant and Contractor • Over 30 years experience • 25 years in databases and reporting (now “Business Intelligence”) • Author: • SQL Server 2012 Data Integration Recipes • High Impact Data Visualization with Power View, Power Map and Power BI • Many articles for SQLServerCentral.Com • Adam@Calidra.co.uk
