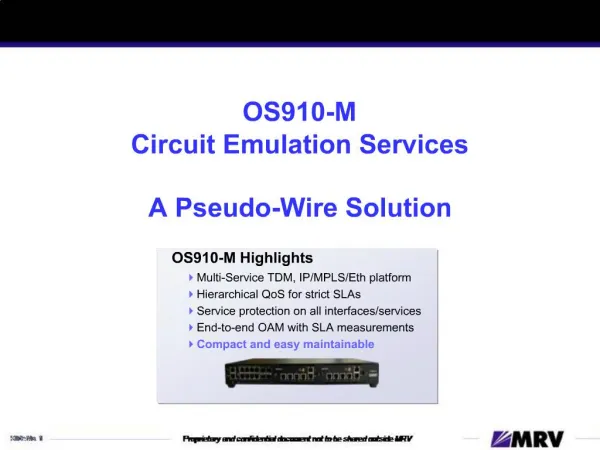

OS910-M Circuit Emulation Services A Pseudo-Wire Solution

. . . . . Enables migration of traditional services over packet networkCombines TDM legacy and packet services over unified tunnel Comply to latest industry CES standards to assure interoperability Full MEF NID/UNI functionality on all interfaces at wire-speed Dynamic bandwidth optimization with enhanced Hierarchical QoSReal-time voice TDM traffic assured with the highest QoS allocation Bandwidth reuse technique to fill the rate SLAsServices monitored to SLA via extensive OAM .

patch
Download Presentation

OS910-M Circuit Emulation Services A Pseudo-Wire Solution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

    2. Enables migration of traditional services over packet network Combines TDM legacy and packet services over unified tunnel Comply to latest industry CES standards to assure interoperability Full MEF NID/UNI functionality on all interfaces at wire-speed Dynamic bandwidth optimization with enhanced Hierarchical QoS Real-time voice TDM traffic assured with the highest QoS allocation Bandwidth reuse technique to fill the rate SLAs Services monitored to SLA via extensive OAM OS910-M: A Pseudowire – Solution Highlights

    3. OS910-M - Supported CES Standards OS910-M supports TDM traffic via the following CES standards: IETF RFC 4553 structure-Agnostic TDM over packet (SAToP) IETF pwe3-CESoPSN structure-aware CES over packet switched network MEF 8 CESoEth – PDH over Metro Ethernet networks (Layer 2 ) Fully supported CESoMPLS tunneling and traffic engineering IEEE1588 (HW ready) – Clock synchronization protocol for Ethernet networks Framed & unframed G.703 & G.704 compliance Jitter/wander G.823 & G824 compliance

    4. CES Packet Format and Standards The all standards are intentionally similar

    5. CES Technology Supported in OS9 Models Supported Chassis: CES Line cards: 4 x E1/T1 CES ports Internal high-precision clock Single & Multiple clock domains Any physical port can get the clock from a different session Any physical port can be configured with primary/secondary clock for protection Single E1/T1 CES port

    7. OptiSwitch OS9024M-210Gx Model for CES

    8. EM9-CES-4E1/T1c & EM9K-CES-4E1/T1c EM9K-CES-4E1/T1c card for OS9024M-210G platform Future EM9-CES-STM1* 1-port OC-3/STM-1 - 1:1 protected Circuit Emulation Service aggregation module

    9. OS910-M - TDM Clock Synchronization modes The Circuit Emulation Service enables convergence and transport of TDM circuits (E1/T1) over packet-switched networks. To do so, it must feature a mechanism capable of maintaining and keeping the TDM clock synchronized between peers of a pseudowire, in order to maintain E1/T1 circuit clock continuity across the packet network, and to meet the standards of ITU G.823 and G.824. Supported CES timing modes Adaptive Differential Line Loopback Internal * High-precision clock CES modules (EM9-CES-4E1/T1c) enable synchronous timing capability for wireless backhaul applications Supported CES timing modes Adaptive Differential Line Loopback Internal * High-precision clock CES modules (EM9-CES-4E1/T1c) enable synchronous timing capability for wireless backhaul applications

    10. High-precision clock CES modules High-precision clock CES modules (EM9-CES-4E1/T1c) enable synchronous timing capability for wireless backhaul applications The on-board internal precision clock used as a transmit clock to the TDM gear A fallback external clock can be used for high protection External primary and internal fallback can be configured

    11. CES services can be delivered over: Ring, star and mesh topologies S-VLAN provider bridged, PWE3 VC and H-VPLS transport QoS enabled packet network to deliver real-time CES requirements Circuit Emulation Services – Topology & Transport Latency Jitter Loss A = 30 ms = 10 ms = 1x10-6 B = 50 ms = 12 ms = 1x10-4 C = 100 ms = 10 ms = 1x10-4 Latency Jitter Loss A = 30 ms = 10 ms = 1x10-6 B = 50 ms = 12 ms = 1x10-4 C = 100 ms = 10 ms = 1x10-4

    12. CES and Ethernet over MPLS Supported CESoMPLS tunneling and traffic engineering Bi-directional connection based on transport LSP CIR rates for CES traffic and E-LSP Signaling and provisioning based on standard protocols LDP, CR-LDP, RSVP-TE, OSPF-TE MPLS OAM - LSP ping and traceroute Service OAM - IEEE802.1ag CFM & ITU-T Y.1731 PM Continuity Check Protocol – pro-active/periodic Loopback Protocol – on-demand Linktrace Protocol – on-demand Performance measurement - pro-active/periodic

    13. Potential Markets & Applications Wireless Backhaul Cellular TDM over Packet Switched Networks & fiber infrastructure Metro Ethernet Networks Offering voice TDM E1/T1 over fiber infrastructure to PSTN Utilities Offering traditional E1/T1 leased lines & TDM over fiber infrastructure

    14. Cellular Backhaul Application Cell-Site backhaul – Market size - $2.4B (Infonetics Research 2007) 3G base station deployed in dense configurations More bandwidth required for voice & data OS910-M CES technology reduce OPEX and leased lines costs

    16. Connectivity of an E1/T1 trunks and PBXs over Metro Network Offering voice TDM E1/T1 over fiber infrastructure to PSTN Preserves native TDM functionality, signaling and clocking Structured & unstructured G.703 & G.704 compliance Voice PBX over Metro Ethernet Application

    17. Offering traditional E1/T1 leased lines & TDM over fiber infrastructure Enables private line service to legacy SDH/SONET network Preserves native TDM functionality, signaling and clocking Structured & unstructured G.703 & G.704 compliance Utility – Leased lines & data Application

    18. Structured emulation mode – CESoPSN / CESoETH DS1 Robbed Bit Signaling or E1 CAS supported Multiple lower-rate (n x 64kbps) transparent services are multiplexed Virtual concatenation: DS0s (or E1s/T1s timeslots) to different destinations Bandwidth allocation to low-rate CES sessions can be at >100kbps Multipoint-2-Point CES fractional Multiplexed Service Nx64 Service is intended to emulate a point-to-point Fractional DS1 or E1 circuit. The service is typically accessed via either 1.544 Mbit/s DSX-1 [T1.102] interfaces or a 2.048 Mbit/s E1 [G.703] interfaces Nx64 Service is intended to emulate a point-to-point Fractional DS1 or E1 circuit. The service is typically accessed via either 1.544 Mbit/s DSX-1 [T1.102] interfaces or a 2.048 Mbit/s E1 [G.703] interfaces

    19. Configuration Examples

    20. Clock Configuration ------------------------------------------------------------------------- OS9024M-210GX(config-tdm2)# show clock Parameter : Slot-2 Slot-3 ----------------------------- : ------ ------ Clock mode : LINE_1 RECOVERY Input External : NONE NONE Input Reference : OWN_OCXO OWN_OCXO Output : NONE NONE OS9024M-210GX(config-tdm2)# -------------------------------------------------------------------------

    21. CES Session Configuration ----------------------------------------------------------------------------------- OS9024M-210GX(config-tdm2)# show session detail s02 Item : Value ------------------------------: --------- Session mode : Enable Header type : CESoETH Local ECID : 34 Target ECID : 34 Target MAC : 00:12:72:00:5e:54 Layer 2 support mode : VLAN Payload length (frames) : 8 Jitter maximum level (ms) : 5 VLAN enable : Disable MPLS enable : Disable RTP enable : Disable Transport emulation type : Unstructured Session bandwidth (in Kbps) : 2256 Payload suppression : Disable Port : 1 Time Slots : 1-32 -------------------------------------------------------------------------------------------------

    22. CES Session Configuration Statistics --------------------------------------------------------------------- Time Slots : 1-32 STATUS/STATISTICS Item : Status/Value -----------------------------------: --------- Clocking mode : LINE1 Eth to TDM direction : UP TDM to Eth direction : UP Current jitter buffer delay (ms) : 4492 Jitter maximum level (ms) : 4996 Jitter minimum level (ms) : 3996 Valid Eth packets per sec : 100 Handled Eth packets : 229302 Late Eth packets : 0 Lost Eth packets : 0 Packets per seconds : 1000 Underrun Eth packets : 406 Overrun Eth packets : 0 Malformed packets counter : 0 Duplicate Eth packets : 0 OS9024M-210GX(config-tdm2)# -----------------------------------------------------------------------

    23. TDM Ports Configuration ------------------------------------------------------------------------------------------------- OS9024M-210GX(config-tdm2)# sh tdm-ports config Clocking_mode : LINE_1 LIU line format: E1 Modified Running_config : Port1 Port2 Port3 Port4 ----------------------------- : ----- ----- ----- ----- Port state : Enabled Enabled Enabled Enabled LIU framer type : DS26524 DS26524 DS26524 DS26524 LIU line code : HDB3 HDB3 HDB3 HDB3 LIU line build out : 120NORM 120NORM 120NORM 120NORM LIU monitor gain : NORMAL NORMAL NORMAL NORMAL LIU Rx equalizer gain limit : Short Short Short Short LIU jitter attenuation : Disabled Disabled Disabled Disabled LIU loopback : Disabled Disabled Disabled Disabled Framed mode : Unframed Unframed Unframed Framed Frame format : - - - PCM31 Channel bandwidth : - - - Fram_64K TDM signaling type : - - - CCC OS9024M-210GX(config-tdm2)# -------------------------------------------------------------------------------------------------

    24. TDM Ports Status ------------------------------------------------------------------------------------------- OS9024M-210GX(config-tdm2)# show tdm-ports status Status : Port1 Port2 Port3 Port4 ---------------: ----- ----- ----- ----- Port status : ACTIVE ACTIVE ACTIVE ACTIVE Link : UP DOWN DOWN DOWN LIU loopback : DISABLE DISABLE DISABLE DISABLE NoAlarm : no alarm - - - RcvFarEndLOF : - - - - XmtFarEndLOF : - - - - RcvAIS : - - - - XmtAIS : - ais (tx) ais (tx) - LossOfFrame : - - - - LossOfSignal : - los los los LoopbackState : - - - - T16AIS : - - - - RcvFarEndLOMF : - - - - XmtFarEndLOMF : - - - - Others : - - - - OS9024M-210GX(config-tdm2)# -------------------------------------------------------------------------------------------

    25. TDM Ports Configuration ---------------------------------------------------------------------------------------------- OS9024M-210GX(config-tdm2)# sh tdm-ports Clocking_mode : LINE_1 LIU line format: E1 Configuration Modified Running_config : Port1 Port2 Port3 Port4 ----------------------------- : ----- ----- ----- ----- Port state : Enabled Enabled Enabled Enabled LIU framer type : DS26524 DS26524 DS26524 DS26524 LIU line code : HDB3 HDB3 HDB3 HDB3 LIU line build out : 120NORM 120NORM 120NORM 120NORM LIU monitor gain : NORMAL NORMAL NORMAL NORMAL LIU Rx equalizer gain limit : Short Short Short Short LIU jitter attenuation : Disabled Disabled Disabled Disabled LIU loopback : Disabled Disabled Disabled Disabled Framed mode : Unframed Unframed Unframed Framed Frame format : - - - PCM31 Channel bandwidth : - - - Fram_64K TDM signaling type : - - - CCC Status ----------------------------------------------------------------------------------------------

    26. TDM Ports Configuration (cont’) ------------------------------------------------------------------------------------------- Status : Port1 Port2 Port3 Port4 ---------------: ----- ----- ----- ----- Port status : ACTIVE ACTIVE ACTIVE ACTIVE Link : UP DOWN DOWN DOWN LIU loopback : DISABLE DISABLE DISABLE DISABLE NoAlarm : no alarm - - - RcvFarEndLOF : - - - - XmtFarEndLOF : - - - - RcvAIS : - - - - XmtAIS : - ais (tx) ais (tx) - LossOfFrame : - - - - LossOfSignal : - los los los LoopbackState : - - - - T16AIS : - - - - RcvFarEndLOMF : - - - - XmtFarEndLOMF : - - - - -------------------------------------------------------------------------------------------

    28. Network proven, OS910 architecture & Master-OS feature-set Industry leading feature set for Metro Ethernet Used by multiple customers in Metro segment Class leading traffic management Hierarchical QoS Per flow traffic CIR/EIR conforming with MEF 14 (certified) CoS-aware rate limit for bandwidth reuse profiles Metro Ethernet UNI services E-LAN, E-Line and EPL MEF 9 UNI certified Highly reslient 50ms protection SLA provisioning and enforcement Modular Carrier-class design Dual redundant hot-swap power supplies Fan redundancy N+1 Temperture controled automated Front-to-back cooling High MTBF (220,000hr Telcordia/Bellcore SR-332) Monitoring of fans, power and temperature for SNMP alarms OS910-M Key Features

    29. OS910-M - Circuit Emulation Services Circuit Emulation over Ethernet/IP/MPLS networks P2P and point-to-multipoint topologies over wired & wireless Preserves native TDM functionality, signaling and clocking Connectivity of an E1/T1 trunks and PBXs Complies with IETF PWE3, CESoPSN/SAToP & CESoETH (MEF3/8) Framed & unframed G.703 & G.704 compliance Virtual concatenation: DS0s (or E1s/T1s timeslots) to different destinations Jitter/wander compliance G.823 & G824 Precise Clock synchronization – timing recovery over PSN

    30. CES Line Card Specifications Summary
