Matlab Training Session 14: Improving Program Efficiency

Matlab Training Session 14: Improving Program Efficiency. Course Website: http://www.queensu.ca/neurosci/Matlab Training Sessions.htm. Course Outline Term 1 Introduction to Matlab and its Interface Fundamentals (Operators) Fundamentals (Flow) Importing Data Functions and M-Files

patch
Download Presentation

Matlab Training Session 14: Improving Program Efficiency

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

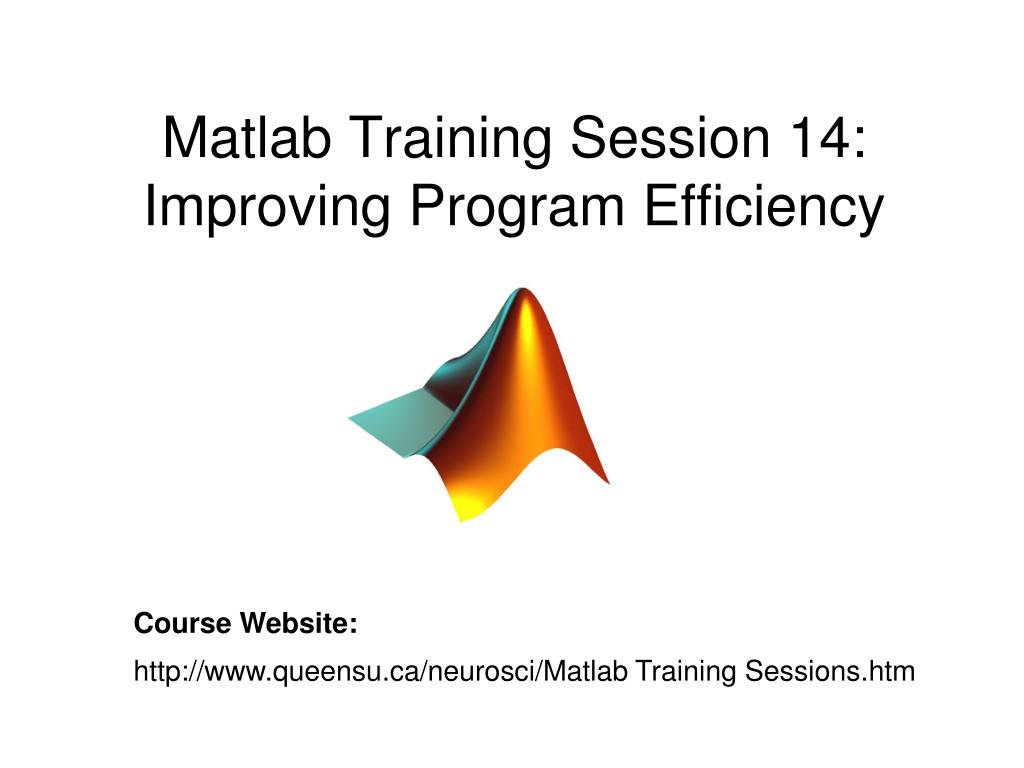

  1. Matlab Training Session 14:Improving Program Efficiency • Course Website: • http://www.queensu.ca/neurosci/Matlab Training Sessions.htm

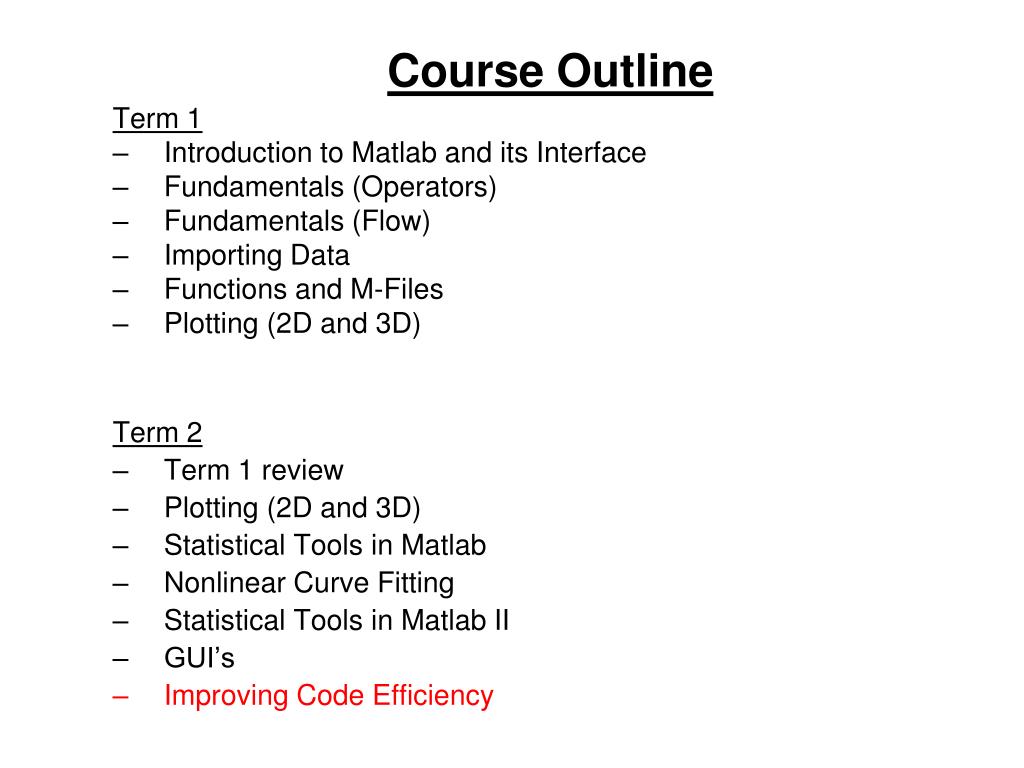

  2. Course Outline Term 1 • Introduction to Matlab and its Interface • Fundamentals (Operators) • Fundamentals (Flow) • Importing Data • Functions and M-Files • Plotting (2D and 3D) Term 2 • Term 1 review • Plotting (2D and 3D) • Statistical Tools in Matlab • Nonlinear Curve Fitting • Statistical Tools in Matlab II • GUI’s • Improving Code Efficiency

  3. Week 14 Lecture Outline Programming Efficiency • Data types in Matlab B. Assigning Appropriate Data Resolution • Downsampling from 64 bit data structures B. Assessing Execution Time • tic, toc functions • Eliminating/Minimizing Loops • Compiling Code

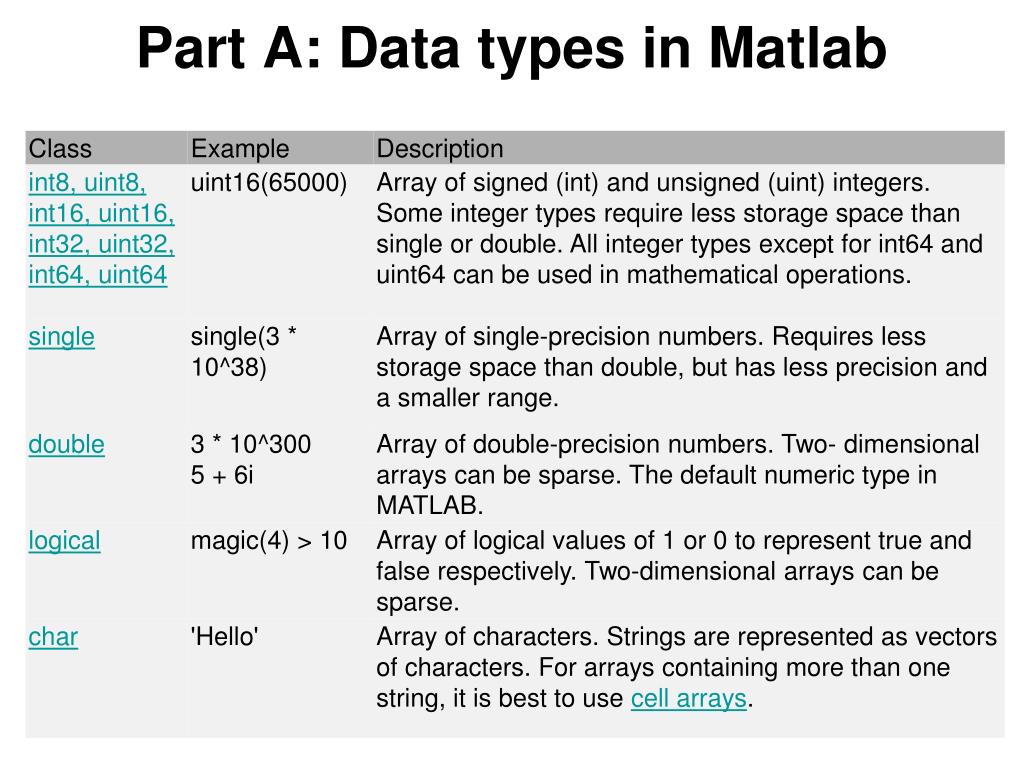

  4. Part A: Data types in Matlab

  5. Part A: Data types in Matlab

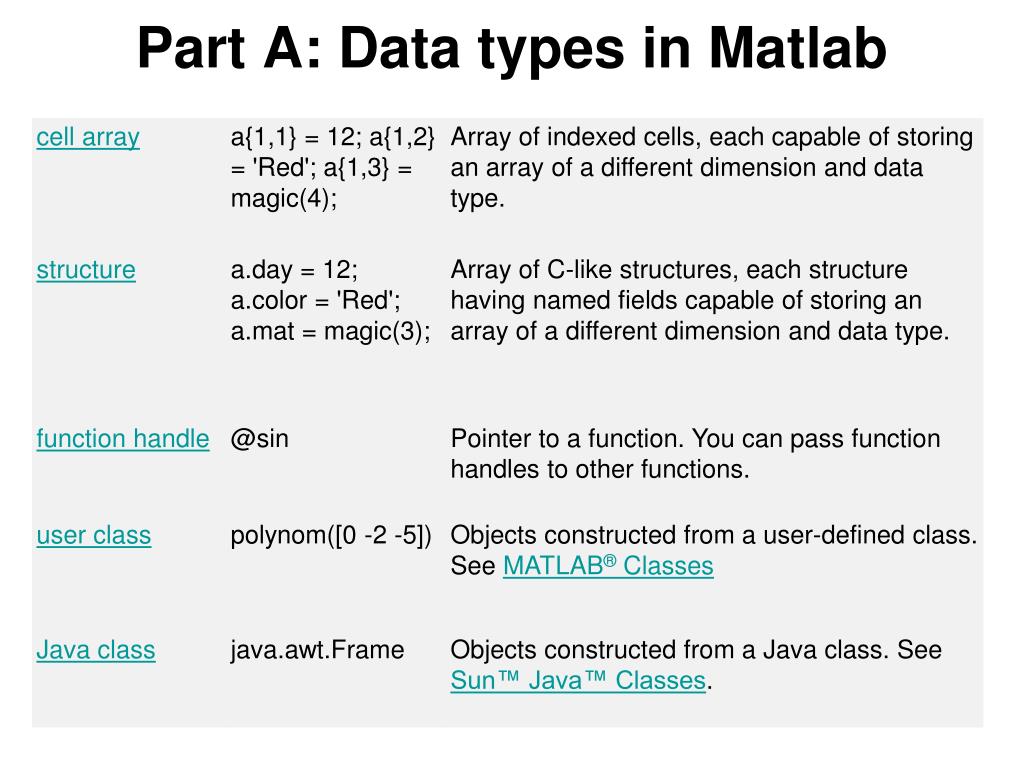

  6. Part A: Data types in Matlab

  7. Part A: Assigning Appropriate Data Resolution • By default, numeric values are saved in matlab as 64 bit floating point values • Large data sets recorded experimentally generally utilizes smaller or more specific data resolution • Down-sampling large datasets can significantly save on memory and dramatically improve execution time

  8. Binary Precision • The number of bits used to represent a value determines how large or small that value can be • 8 bits 0 to 256 • 16 bits 0 to 65536 • 32 bits 0 to 4.2950e+009 • 64 bits 1.8447e+019! • Precision also determines how many decimal places can be represented

  9. Numeric Formats: Integers and Characters 'schar' Signed character; 8 bits 'uchar' Unsigned character; 8 bits 'int8' Integer; 8 bits 'int16' Integer; 16 bits 'int32' Integer; 32 bits 'int64' Integer; 64 bits 'uint8' Unsigned integer; 8 bits 'uint16' Unsigned integer; 16 bits 'uint32' Unsigned integer; 32 bits 'uint64' Unsigned integer; 64 bits * The first bit denotes the sign if the integer or character is signed.

  10. Readable Binary Data Formats Floating Point Representation • By default matlab stores all values with double precision • The functions realmax and realmin return max and min value representations • 'float32‘, ‘single’ Floating-point; 32 bits • 'float64', 'double' Floating-point; 64 bits

  11. Part B: Assigning Appropriate Data Resolution • The following functions can be used to convert between numeric formats in matlab: single, double, uint8, uint16, int8, int16, int32 eg. single(x) will convert matrix x to 32 bit IEEE floating point representation • Operations on numeric formats are defined for matlab version 7 and later • BE CARFUL, EXCESSIVE DOWNSAMPLING CAN LEAD TO ROUNDING ERRORS

  12. Part B: Assigning Appropriate Data Resolution • Lets look at an example: testmatrix = magic(1000); testmatrix = single(testmatrix); [rowdim, coldim] = size(testmatrix); tic for rowloop = 1:rowdim for colloop = 1:coldim testmatrix(rowloop,colloop) = testmatrix(rowloop,colloop) * 50; end end toc

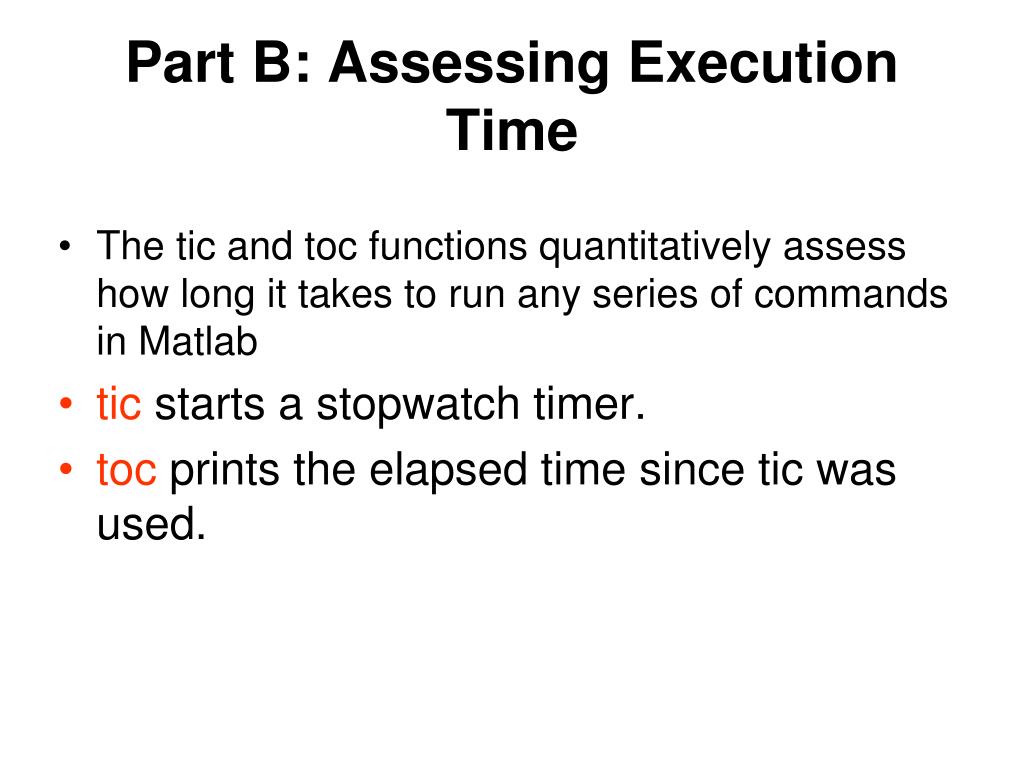

  13. Part B: Assessing Execution Time • The tic and toc functions quantitatively assess how long it takes to run any series of commands in Matlab • tic starts a stopwatch timer. • toc prints the elapsed time since tic was used.

  14. Part C: Assessing Execution Time • The tic and toc functions work together to measure elapsed time. tic saves the current time that toc uses later to measure the elapsed time. • The sequence of commands: tic operations toc • measures the amount of time MATLAB takes to complete one or more operations, and displays the time in seconds.

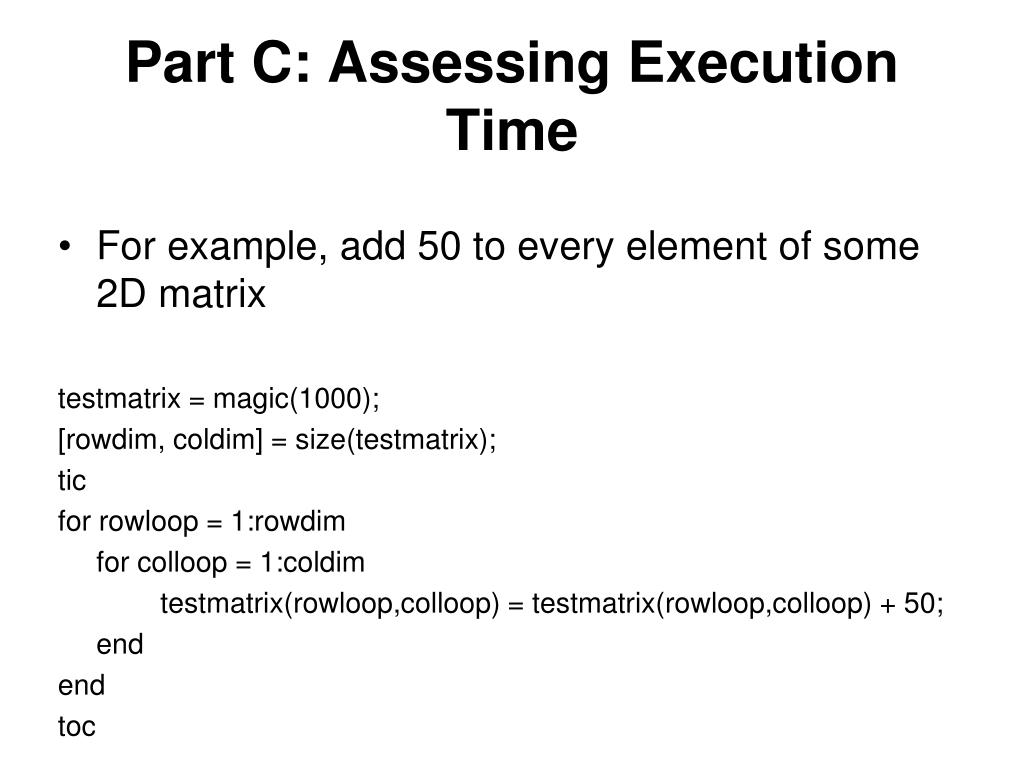

  15. Part C: Assessing Execution Time • For example, add 50 to every element of some 2D matrix testmatrix = magic(1000); [rowdim, coldim] = size(testmatrix); tic for rowloop = 1:rowdim for colloop = 1:coldim testmatrix(rowloop,colloop) = testmatrix(rowloop,colloop) + 50; end end toc

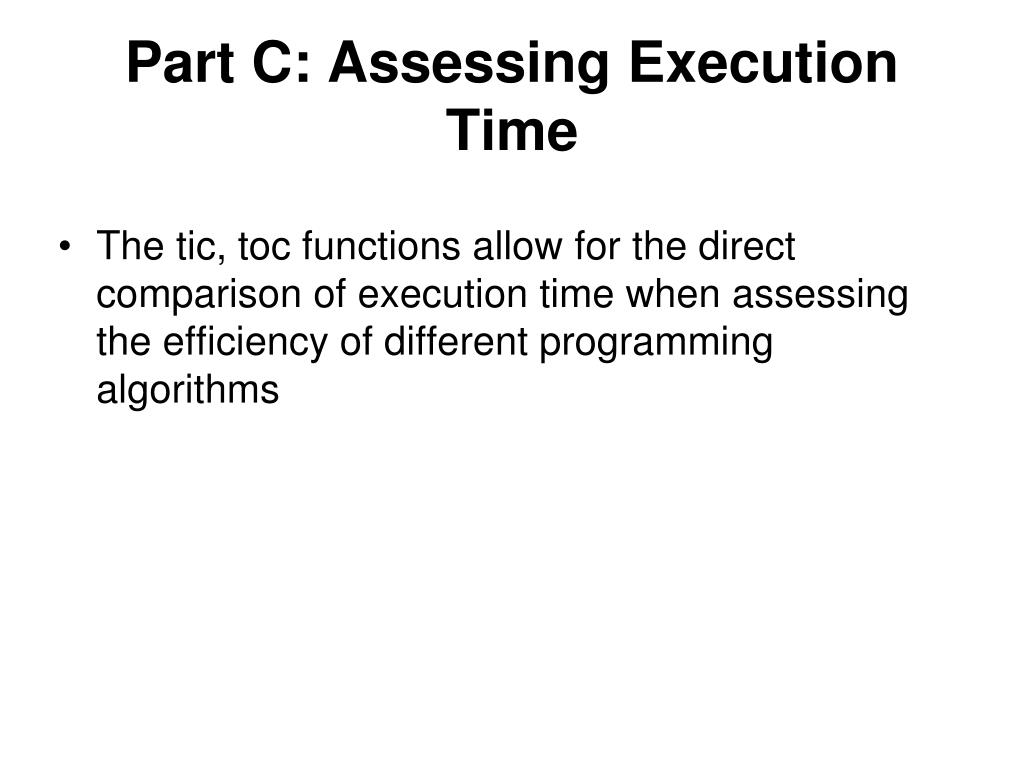

  16. Part C: Assessing Execution Time • The tic, toc functions allow for the direct comparison of execution time when assessing the efficiency of different programming algorithms

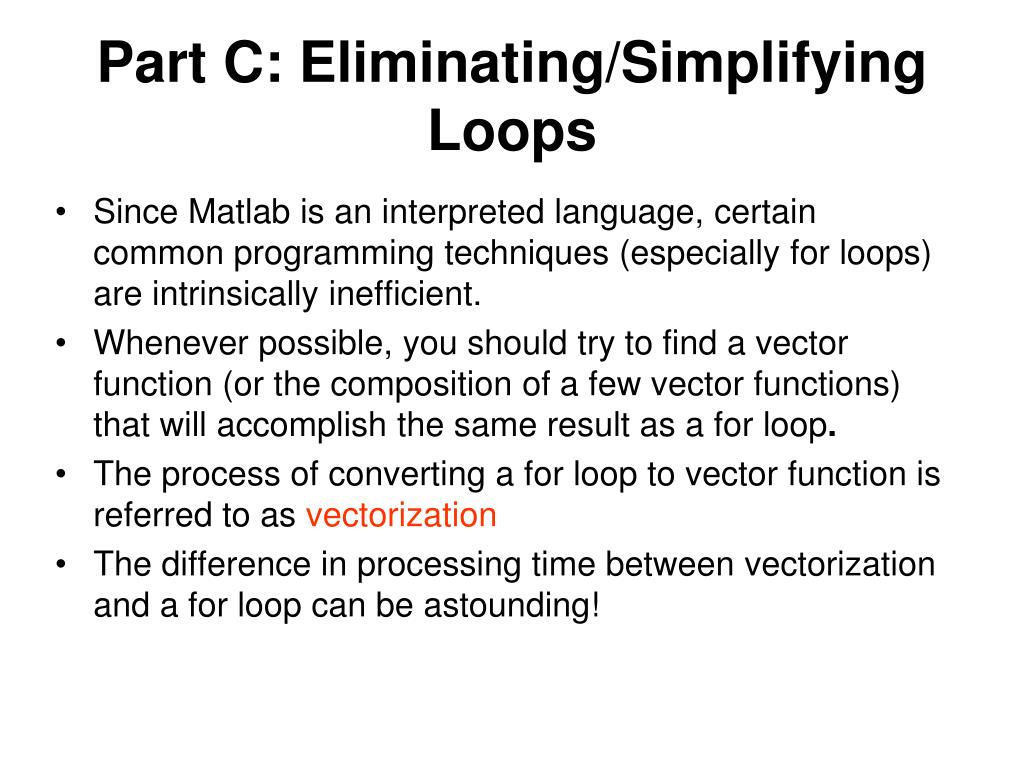

  17. Part C: Eliminating/Simplifying Loops • Since Matlab is an interpreted language, certain common programming techniques (especially for loops) are intrinsically inefficient. • Whenever possible, you should try to find a vector function (or the composition of a few vector functions) that will accomplish the same result as a for loop. • The process of converting a for loop to vector function is referred to as vectorization • The difference in processing time between vectorization and a for loop can be astounding!

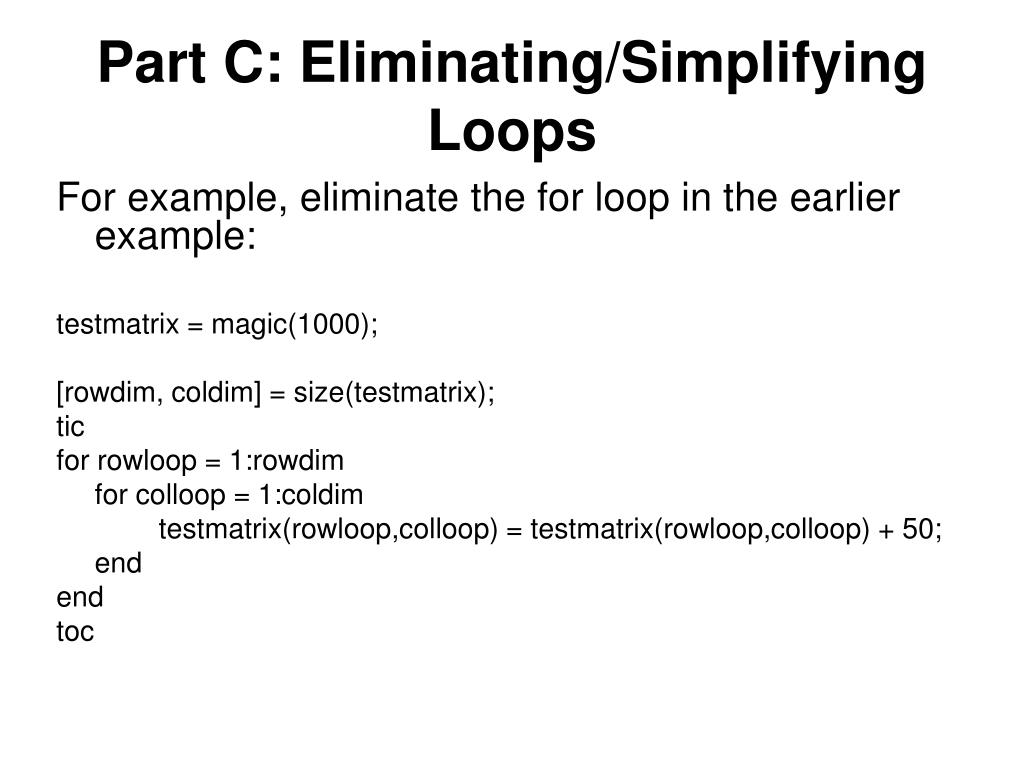

  18. Part C: Eliminating/Simplifying Loops For example, eliminate the for loop in the earlier example: testmatrix = magic(1000); [rowdim, coldim] = size(testmatrix); tic for rowloop = 1:rowdim for colloop = 1:coldim testmatrix(rowloop,colloop) = testmatrix(rowloop,colloop) + 50; end end toc

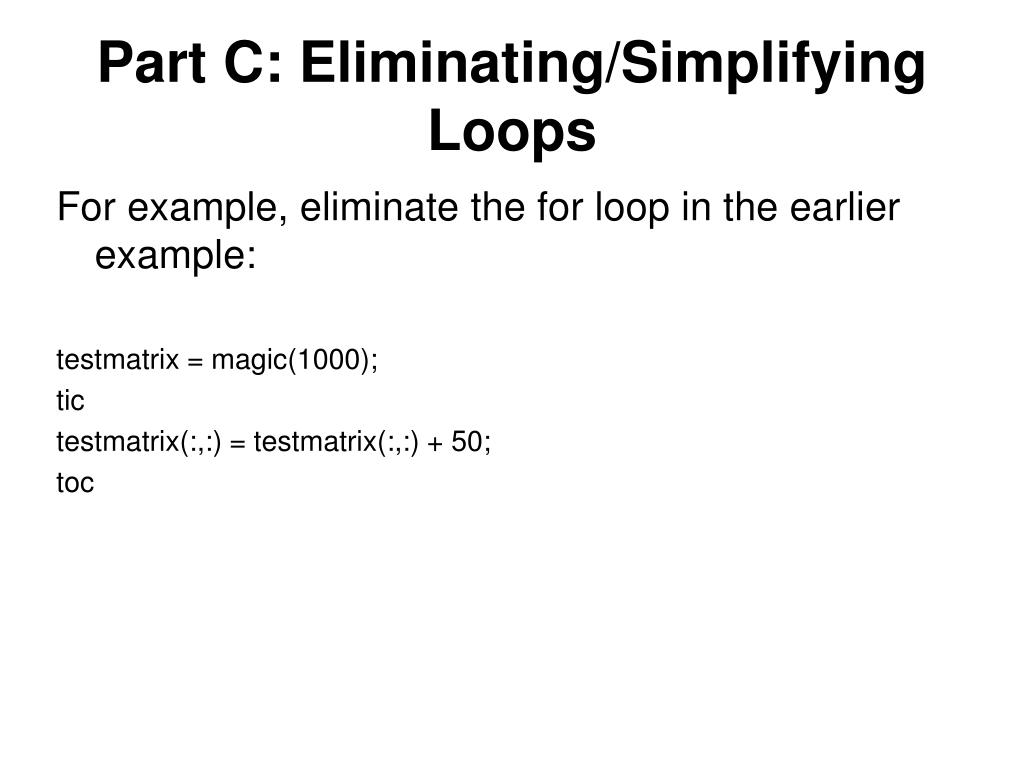

  19. Part C: Eliminating/Simplifying Loops For example, eliminate the for loop in the earlier example: testmatrix = magic(1000); tic testmatrix(:,:) = testmatrix(:,:) + 50; toc

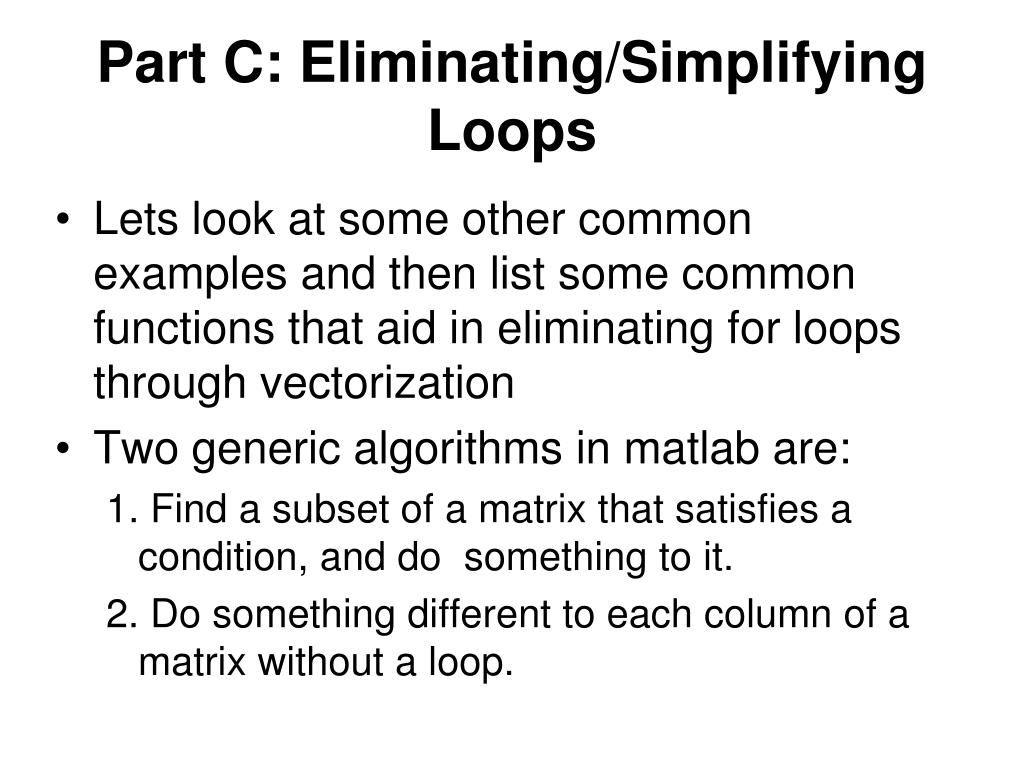

  20. Part C: Eliminating/Simplifying Loops • Lets look at some other common examples and then list some common functions that aid in eliminating for loops through vectorization • Two generic algorithms in matlab are: 1. Find a subset of a matrix that satisfies a condition, and do something to it. 2. Do something different to each column of a matrix without a loop.

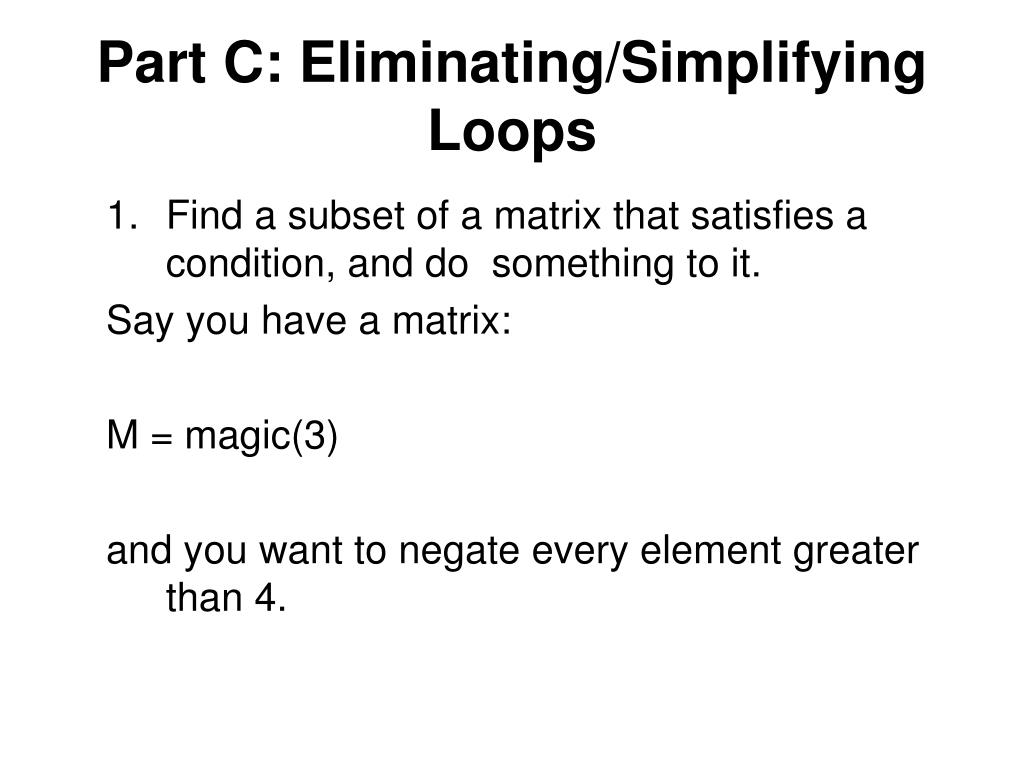

  21. Part C: Eliminating/Simplifying Loops • Find a subset of a matrix that satisfies a condition, and do something to it. Say you have a matrix: M = magic(3) and you want to negate every element greater than 4.

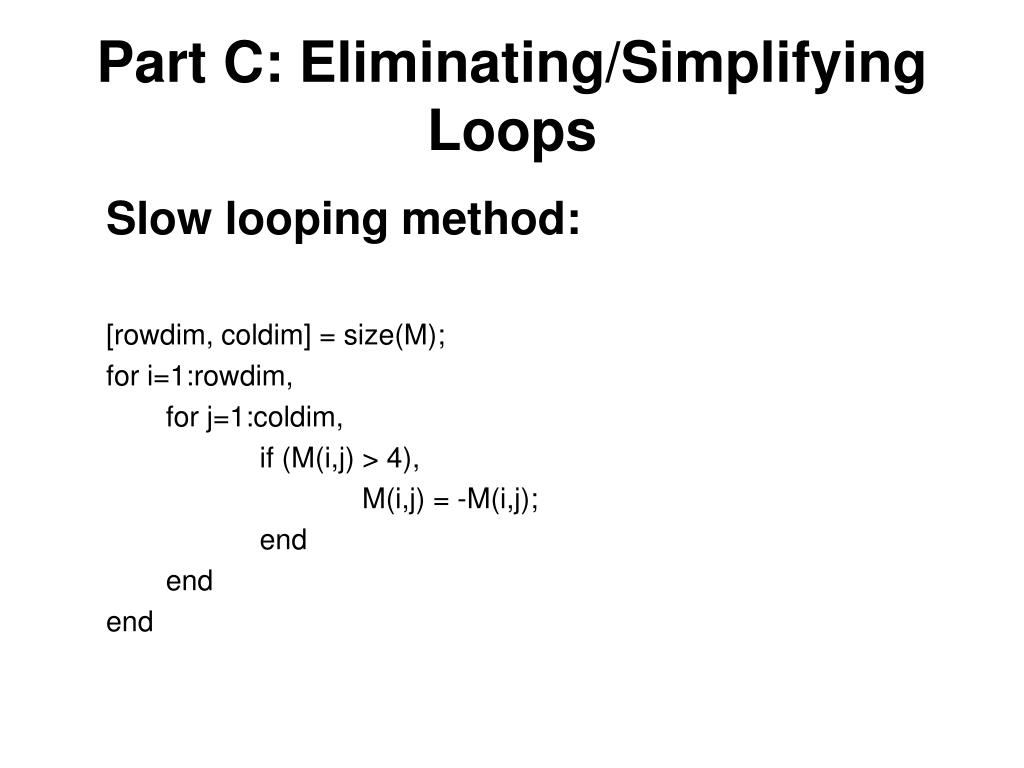

  22. Part C: Eliminating/Simplifying Loops Slow looping method: [rowdim, coldim] = size(M); for i=1:rowdim, for j=1:coldim, if (M(i,j) > 4), M(i,j) = -M(i,j); end end end

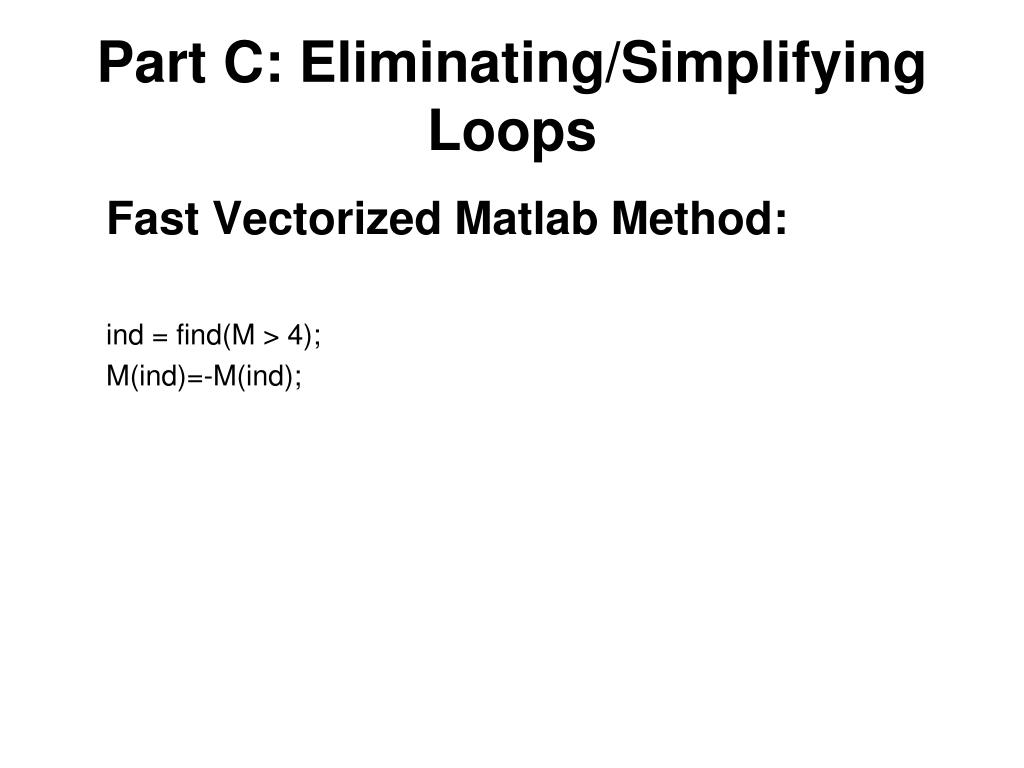

  23. Part C: Eliminating/Simplifying Loops Fast Vectorized Matlab Method: ind = find(M > 4); M(ind)=-M(ind);

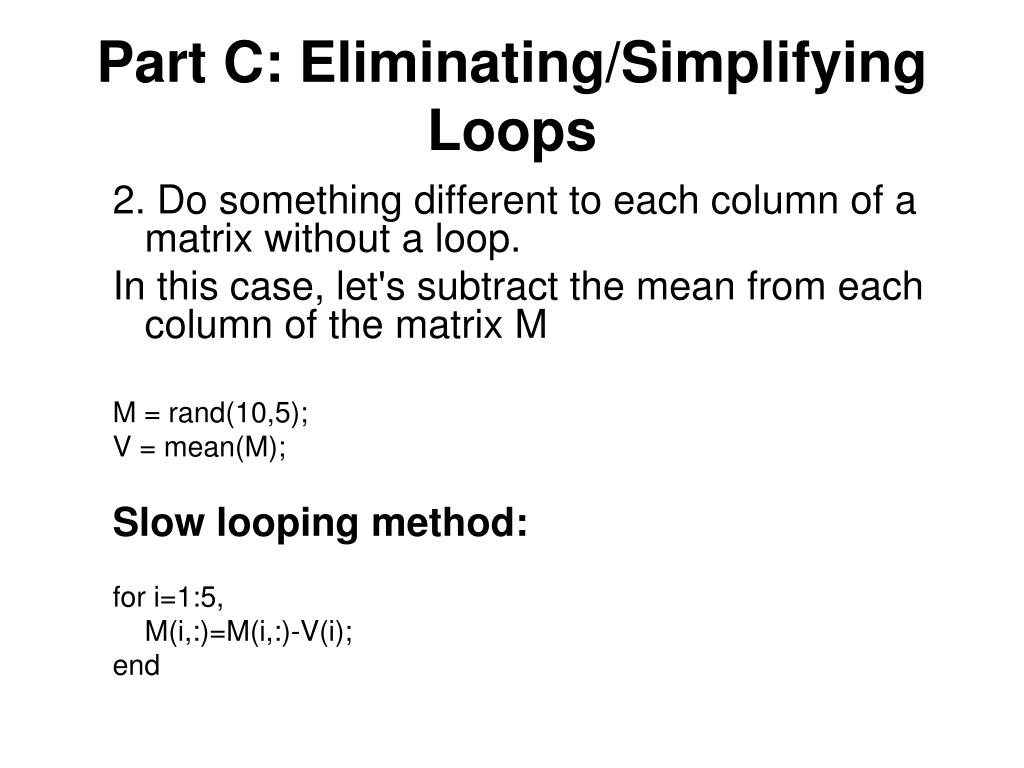

  24. Part C: Eliminating/Simplifying Loops 2. Do something different to each column of a matrix without a loop. In this case, let's subtract the mean from each column of the matrix M M = rand(10,5); V = mean(M); Slow looping method: for i=1:5, M(i,:)=M(i,:)-V(i); end

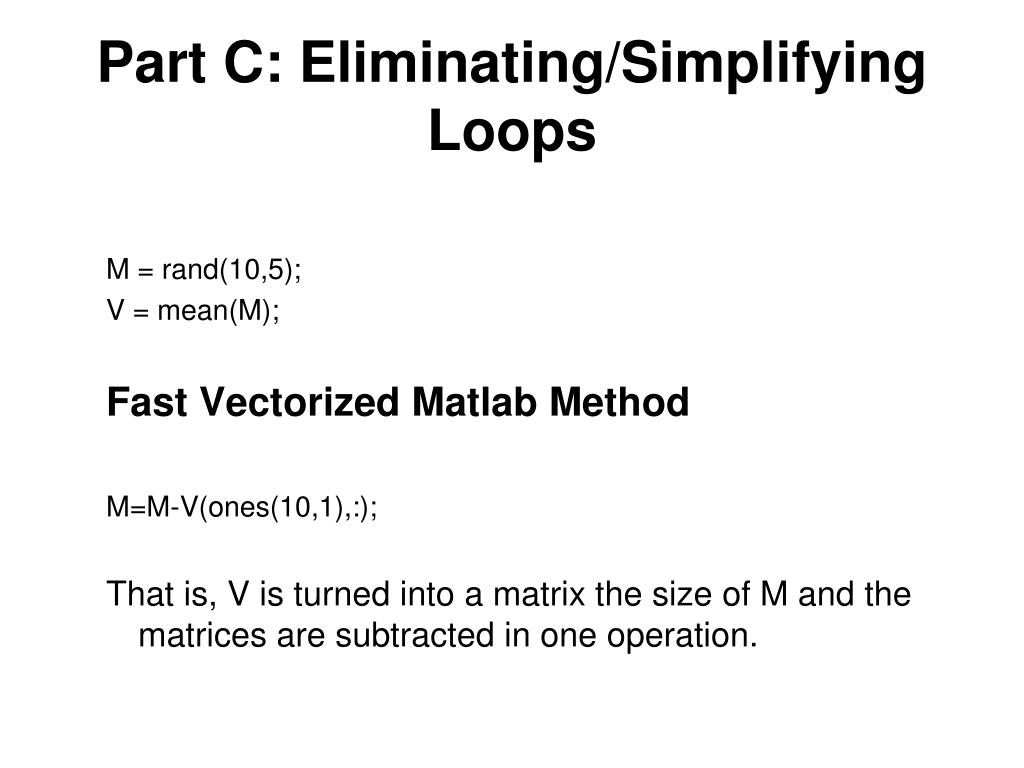

  25. Part C: Eliminating/Simplifying Loops M = rand(10,5); V = mean(M); Fast Vectorized Matlab Method M=M-V(ones(10,1),:); That is, V is turned into a matrix the size of M and the matrices are subtracted in one operation.

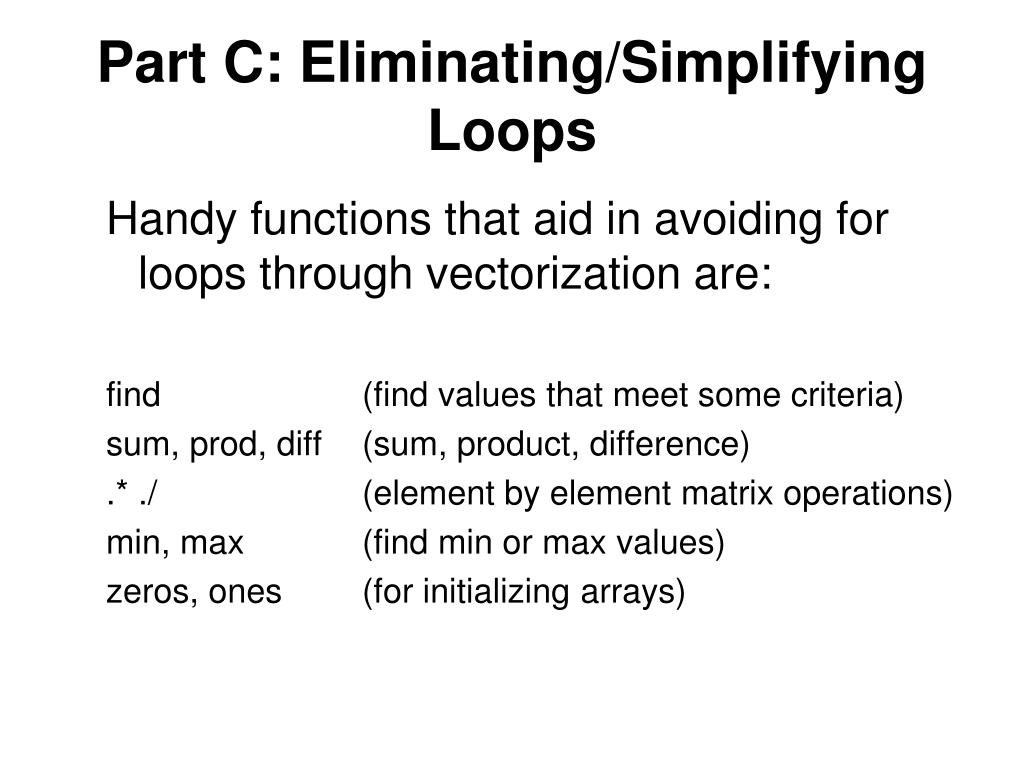

  26. Part C: Eliminating/Simplifying Loops Handy functions that aid in avoiding for loops through vectorization are: find (find values that meet some criteria) sum, prod, diff (sum, product, difference) .* ./ (element by element matrix operations) min, max (find min or max values) zeros, ones (for initializing arrays)

  27. Part C: Eliminating/Simplifying Loops • One other little tidbit: Avoid using []'s when they aren't necessary. • MATLAB has to create temporary storage for the results of what it believes to be concatenation. • Eg: • tic; tic • for i=1:1000 for i=1:1000 • a=[17]; a=17; • end end • toc toc • elapsed_time = 0.1987 elapsed_time = 0.0435

  28. Part D: Compiling Code • MATLAB programs can be compiled has to create temporary storage for the results of what it believes to be concatenation. • Eg: • tic; tic • for i=1:1000 for i=1:1000 • a=[17]; a=17; • end end • toc toc • elapsed_time = 0.1987 elapsed_time = 0.0435
