  1. LMSLearning management SystemSistem za e-izobraževanje Gregor Lenart Gregor.Lenart@fov.uni-mb.si

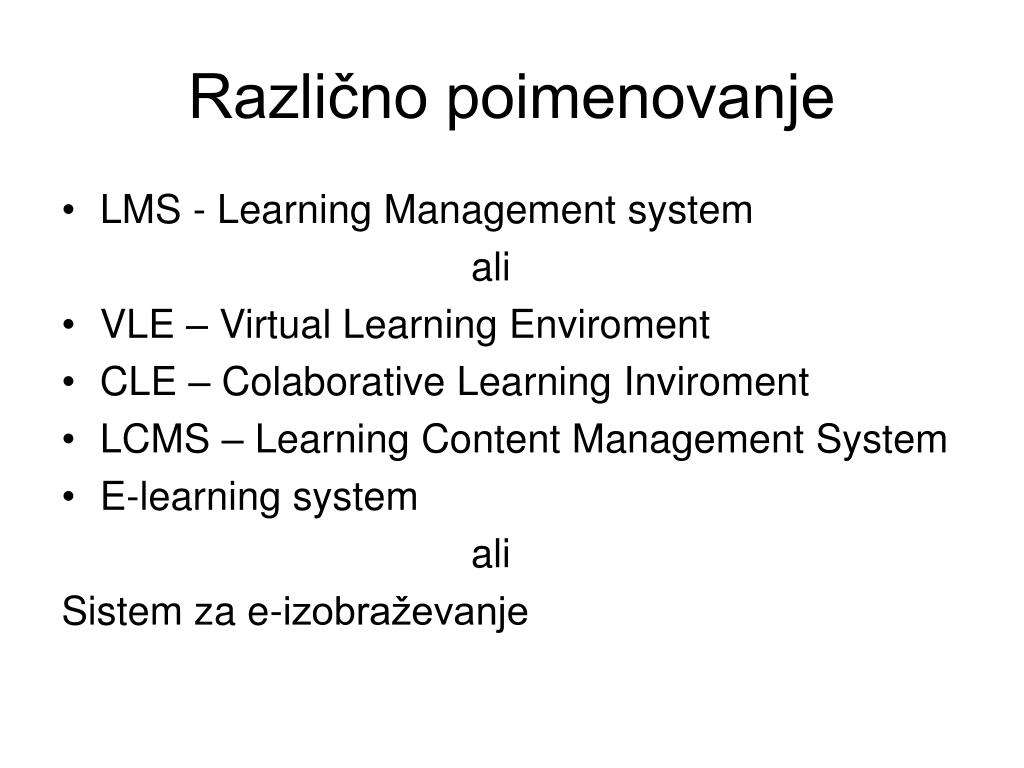

  2. Različno poimenovanje • LMS - Learning Management system ali • VLE – Virtual Learning Enviroment • CLE – Colaborative Learning Inviroment • LCMS – Learning Content Management System • E-learning system ali Sistem za e-izobraževanje

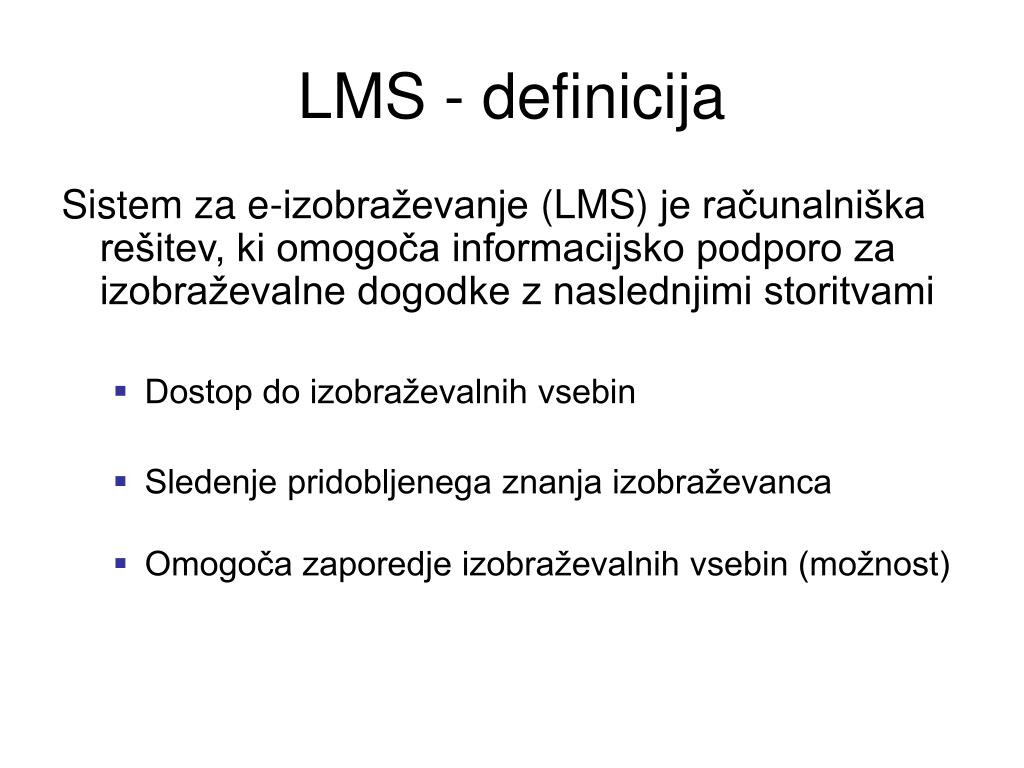

  3. LMS - definicija Sistem za e-izobraževanje (LMS) je računalniška rešitev, ki omogoča informacijsko podporo za izobraževalne dogodke z naslednjimi storitvami • Dostop do izobraževalnih vsebin • Sledenje pridobljenega znanja izobraževanca • Omogoča zaporedje izobraževalnih vsebin (možnost)

  4. Arhitektura LMS - ADL Sequencing Service Local Content Repository Testing/ Assessment Service SCORM Content Packages Remote Content Repositories Selection Content Management Service Delivery Service Course Administration Service Launch SCORM Content (SCOs & Assets) Tracking Service Learner Profiles Service Browser (Presentation) SCORM Tracking Data SCORM API API Adapter Generalized Learning Management System Model SCORM MODEL

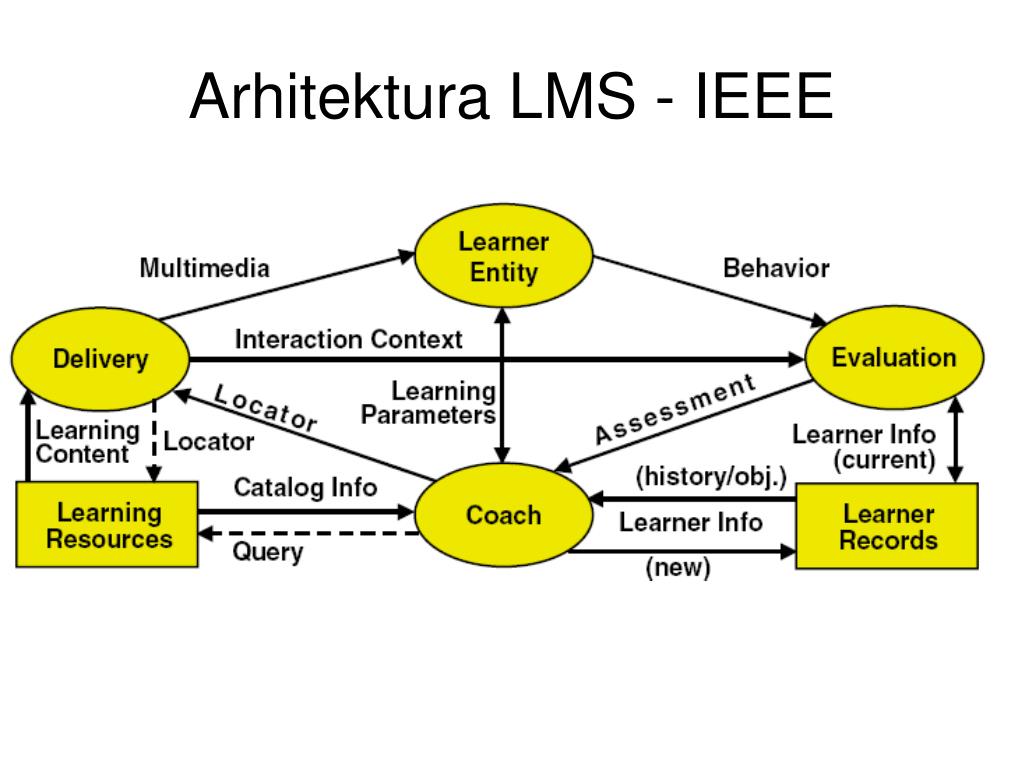

  5. Arhitektura LMS - IEEE

  6. S harable C ontent O bject R eference M odel SCORM

  7. SCORM interoperabilnost Vsaka vsebina ki ustreza SCORM standardu ustreza vsakemu LMS, ki podpira SCORM SCORM standard ne omejuje vsebine

  8. Content packages contain two components Manifest Describe the content Describes the organization Enumerates the resources contained Physical files The actual content

  9. Course Module 1 Lesson 1 Lesson 2 Module 2 Lesson 1 Part A Part B Lesson 2 Glossary Assessment Zaporedje: Drevesna struktura • Aktivnosti so urejene v dvesno strukturo. • Določena je pot prehoda s strani oblikovalca vsebije. • Prehod je določen sekvenco. • Prehod je sprožen s strani uporabnika ali sistema. • Pravila za zaporedje so preverjena v casu izvajanja. • Aktivnosti se izvaja eno po eno.

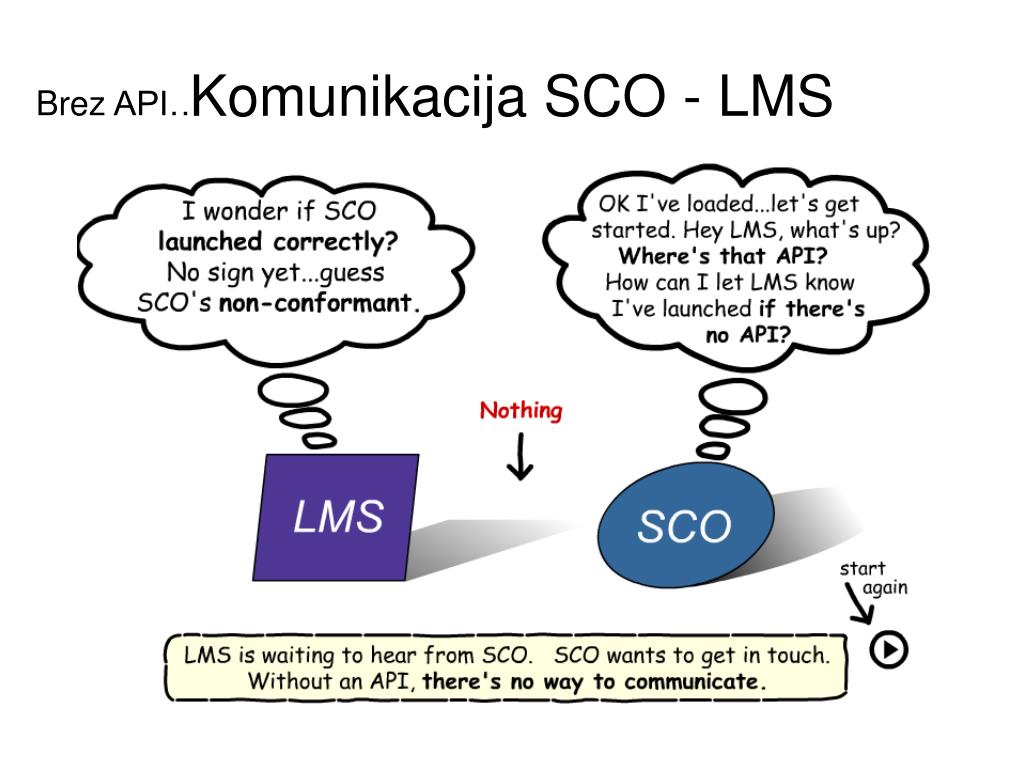

  10. Komunikacija SCO - LMS Brez API…

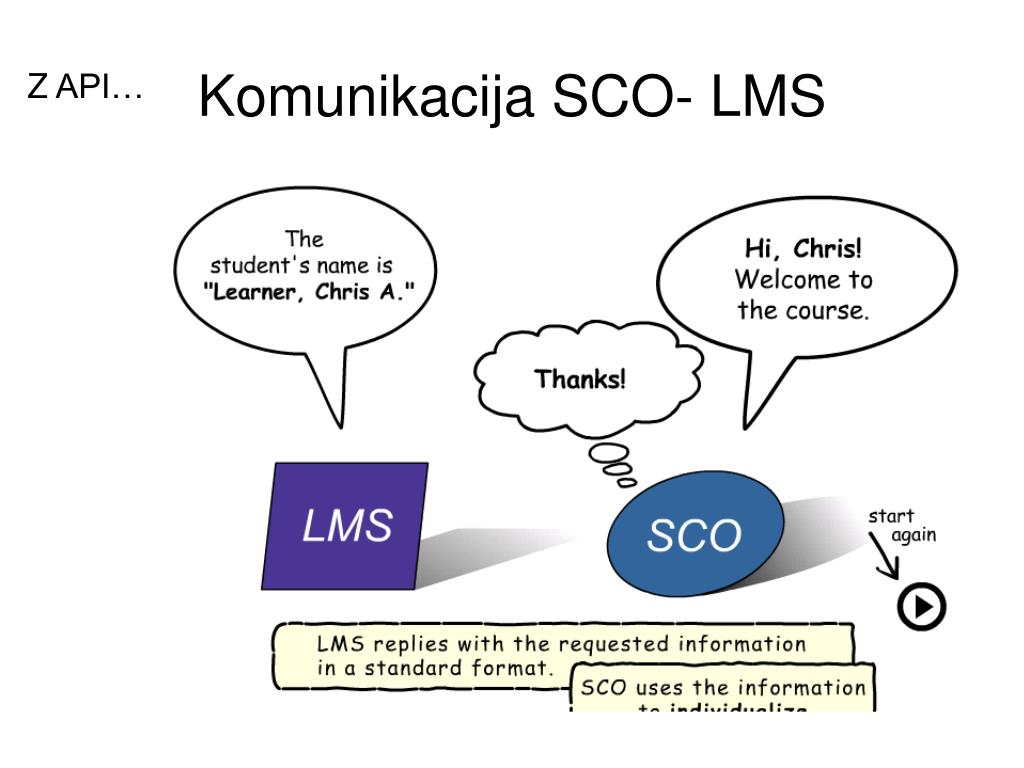

  11. Komunikacija SCO- LMS Z API…

  12. Zaporedje (Sequencing) SCORM omogoča določanje zaporedja izobraževalnih vsebin. • Avtor izobraževalne vsebine lahko določi zaporedje prikaza izobraževalnih vsebin • Zaporedje je lahko določeno tudi na podlagi odgovorov, ki jih je daj izobraževanec • Zaporedje se določa izven vsebine zato se lahko ista vsebina večkrat uporabi

  13. Pravila za zaporedje (Sequencing Rules) Pravila za zaporedje določajo katere izbira se bo izvedla po določenimi pogoji Na primer: IF IF {Attempt Limit Exceeded} {Satisfied} THEN {Skip} THEN {disabled}

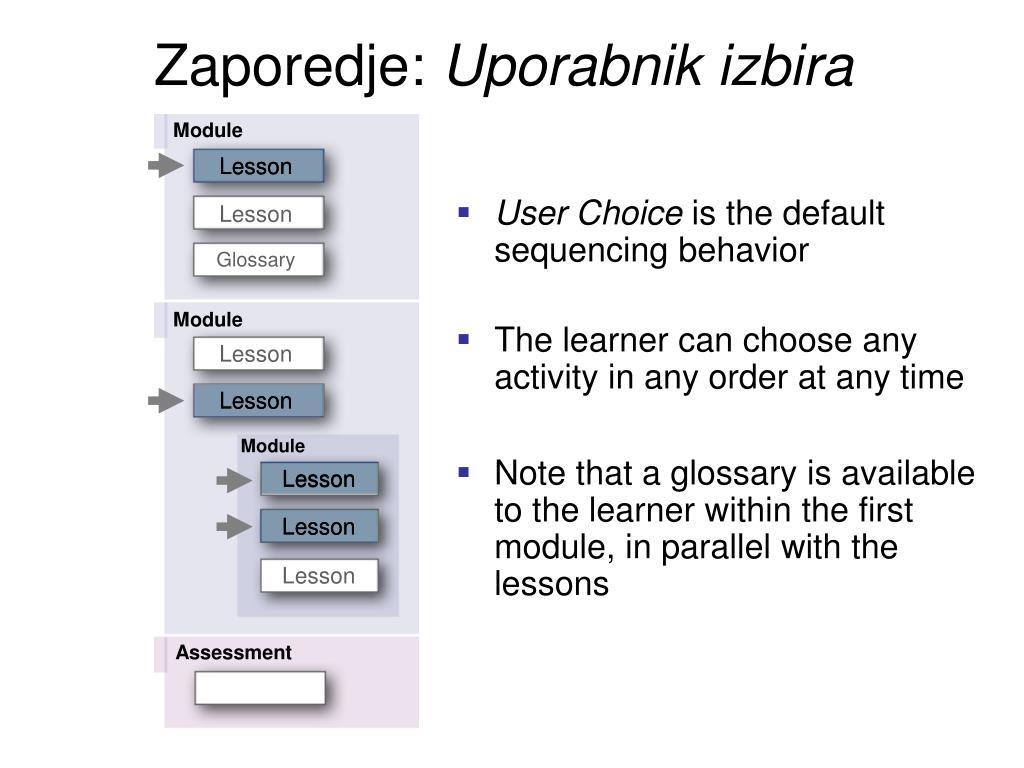

  14. Lesson Lesson Glossary Lesson Lesson Lesson Lesson Lesson Zaporedje: Uporabnik izbira Module Lesson Lesson • User Choice is the default sequencing behavior • The learner can choose any activity in any order at any time Module Lesson Lesson Module • Note that a glossary is available to the learner within the first module, in parallel with the lessons Lesson Lesson Lesson Lesson Assessment

  15. Lesson Lesson Glossary Lesson Lesson Lesson Lesson Lesson Zaporedje: določeno Module Lesson • Izobraževanec lahko izbere le izbiro naprej in nazaj v učni vsebini Lesson Module Lesson Lesson Module • Pojmovnik je dostopen v okiru prvega modula. Lesson Lesson Lesson Assessment

  16. Arhitektura LMS - ADL Sequencing Service Local Content Repository Testing/ Assessment Service SCORM Content Packages Remote Content Repositories Selection Content Management Service Delivery Service Course Administration Service Launch SCORM Content (SCOs & Assets) Tracking Service Learner Profiles Service Browser (Presentation) SCORM Tracking Data SCORM API API Adapter Generalized Learning Management System Model SCORM MODEL

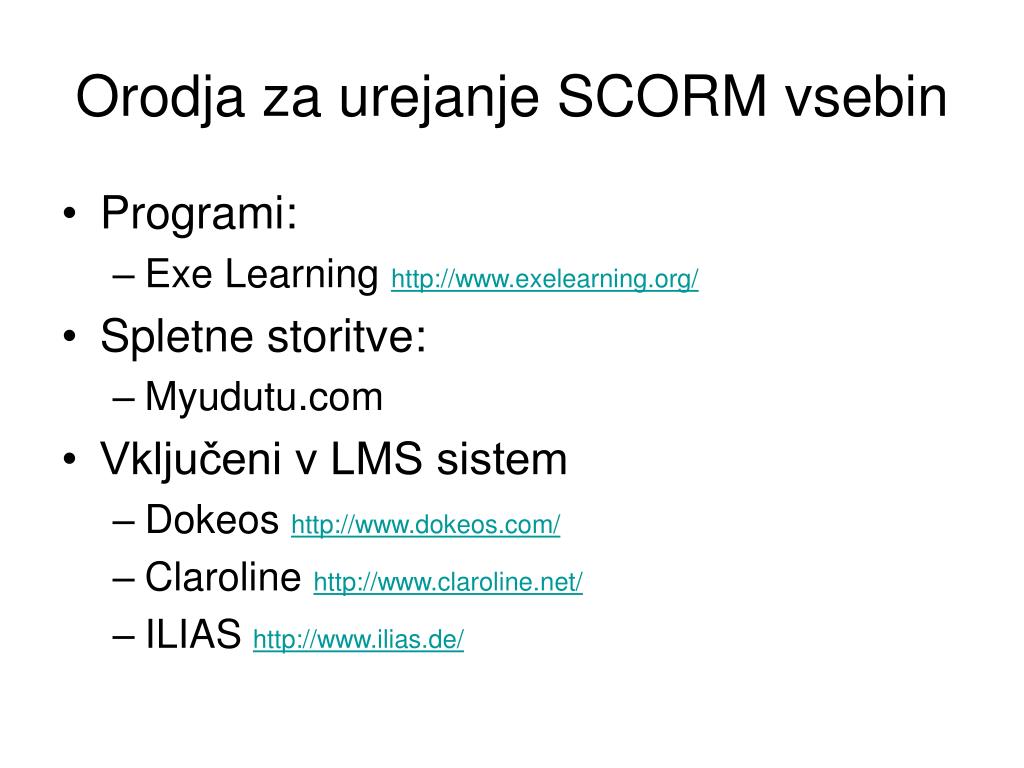

  17. Orodja za urejanje SCORM vsebin • Programi: • Exe Learning http://www.exelearning.org/ • Spletne storitve: • Myudutu.com • Vključeni v LMS sistem • Dokeos http://www.dokeos.com/ • Claroline http://www.claroline.net/ • ILIAS http://www.ilias.de/

  18. Orodja za urejanje vsebin (OS) • Snemanje vsebine • CamStudio • Camtasia Studio • Obdelava zvoka • Audiocity • Obdelava slik • GIMP • Urejanje vsebin: Open Office

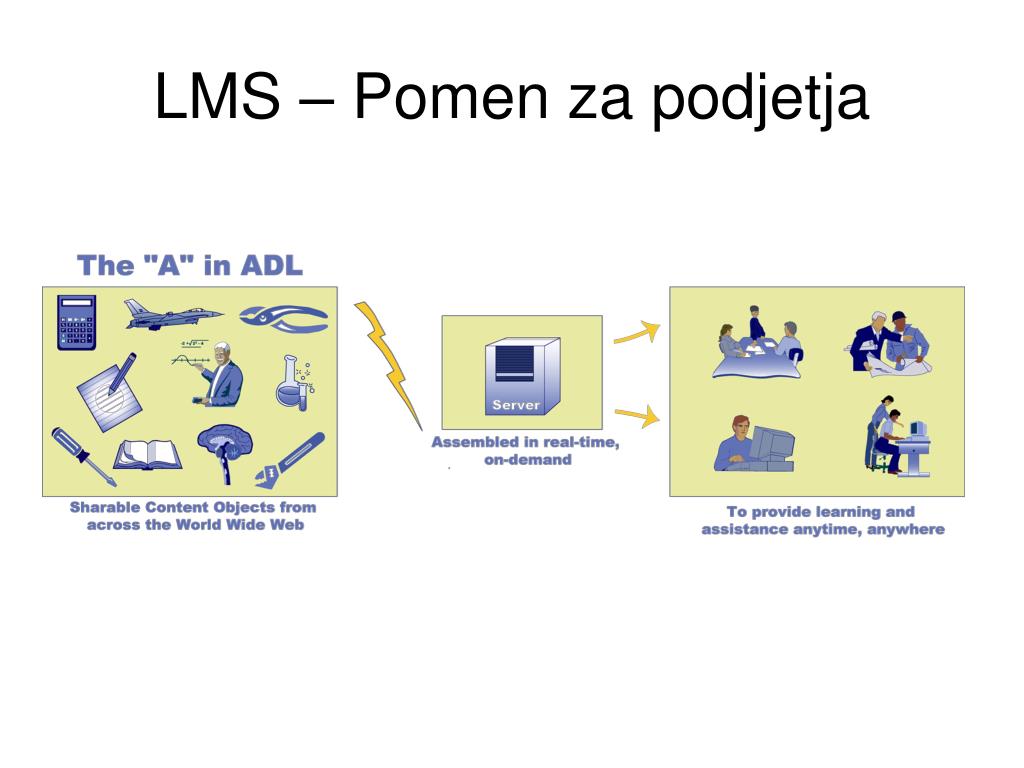

  19. LMS – Pomen za podjetja

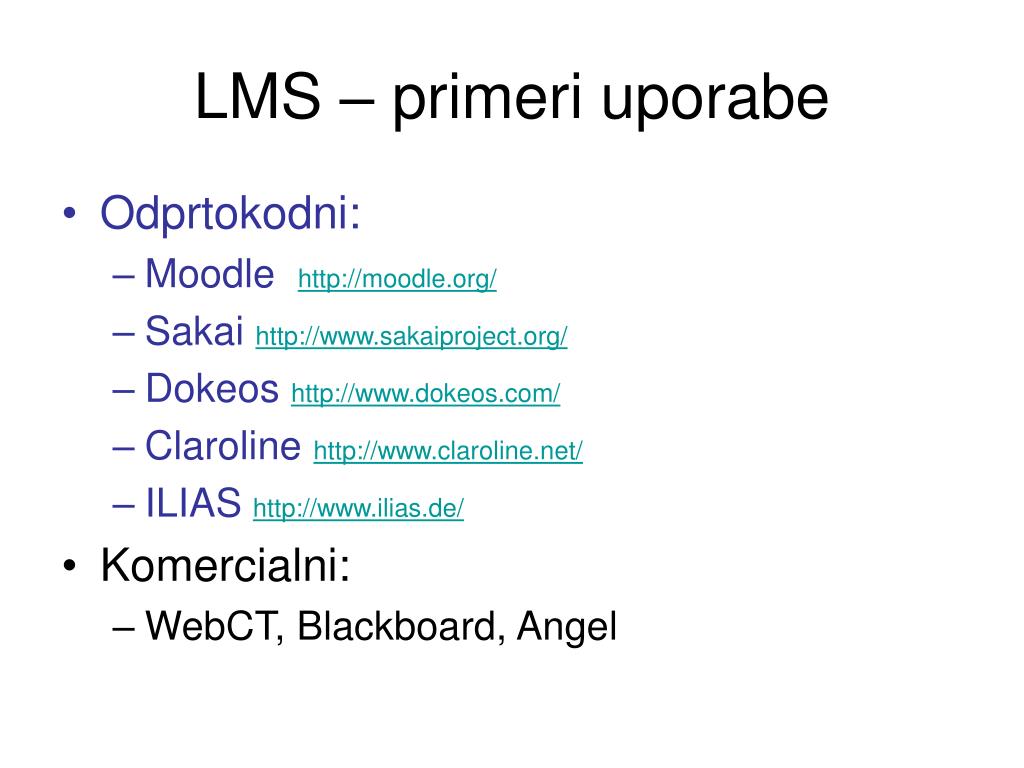

  20. LMS – primeri uporabe • Odprtokodni: • Moodle http://moodle.org/ • Sakai http://www.sakaiproject.org/ • Dokeos http://www.dokeos.com/ • Claroline http://www.claroline.net/ • ILIAS http://www.ilias.de/ • Komercialni: • WebCT, Blackboard, Angel

  21. Literatura • Achieving Learning Impact 2007- IMS Global(http://www.imsglobal.org/) • Introduction to SCORM and the ADL Initiative, David Wirth and John Toews (http://www.adlnet.gov/downloads/downloadpage.aspx?ID=91) • Learning Management Systems – Wikipedia (http://en.wikipedia.org/wiki/Learning_Management_System)
