Chapter 7

Chapter 7

Relations


Contents

Contents

1. Relations and their properties

2. n-ary relations and their applications

3. Representing relations

4. Closure of relations

5. Equivalence relations

6. Partial orderings


6 1 relations and their properties

6.1 Relations and their properties

Def. 1: A, B: two sets.

A (binary) relation from A to B is a subset of AxB.

(i.e., any subset of {(x,y) | x Î A and y Î B} )

Notes:

  • If R Í AxB, we usually use a R b (or not aRb) to denote that (a,b) Î R (or (a,b) Ï R).

  • Binary relations can be generalized to n-ary ( n > 0) relations

    Ex1: A = the set of all students; B = the set of all courses

    let R = {(a,b) | student a is enrolled in course b} Í AxB

    is a binary relation from A to B.

    Ex2: A = the set of all cities; B = the set of all nations.

    Let R = {(x,y) | city x is located in nation y}.

    ==> (New York, USA) Î R and Tokyo R Japan, ...


Relations on a set

Relations on a set

Ex3: A = {1,2,3,4}; B={a,b}

==> {(0,a),(0,b),(1,a),(2,b)} is a relation from A to B.

==> Graphical representation = ?

==> table (or matrix) representation = ?

Def. 2: A relation R on (or over) a set A is a subset of AxA (= A2).

Ex4: A={1,2,3,4};

Let R = {(a,b) Î A2 | a divides b}

==> R= ? ; graphical and table representation = ?

Ex 5: Let R1,R2,...,R6 be relations on integers Z defined as

R1= {(a,b) | a £ b); R2 = {(a,b) | a > b };

R3 = {(a,b) | a = b or a = -b}; R4={(a,b) | a = b};

R5={(a,b) | a = b+1};R6={(A,B) | A + B < 4}

==> Which relations contain the pairs:

(1,1), (1,2),(2,1),(1,-1),(2,2)?


Examples of relations

Examples of relations

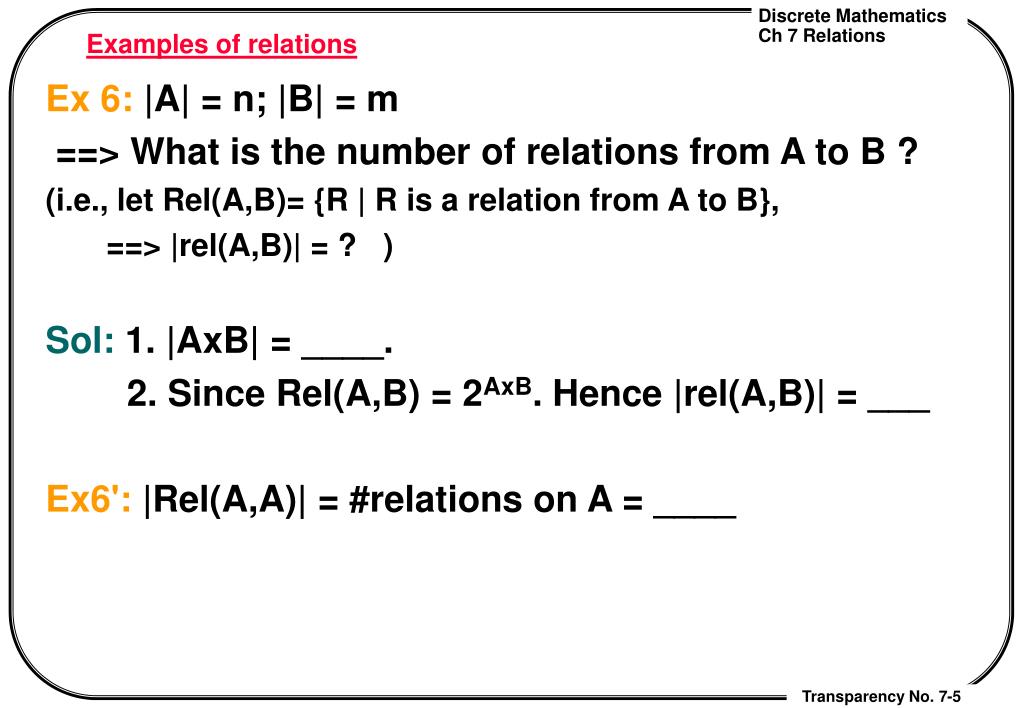

Ex 6: |A| = n; |B| = m

==> What is the number of relations from A to B ?

(i.e., let Rel(A,B)= {R | R is a relation from A to B},

==> |rel(A,B)| = ? )

Sol: 1. |AxB| = ____.

2. Since Rel(A,B) = 2AxB. Hence |rel(A,B)| = ___

Ex6': |Rel(A,A)| = #relations on A = ____


Properties of binary relations on a set

Properties of (binary) relations on a set

Def 3,4,5: R: a binary relation on a set A;

  • R is reflexive if aRa for every a Î A.

  • R is irrelexive if (a,a) Ï R for each a Î A.

  • R is symmetric if for every a,b ÎA, (a,b) Î R => (b,a) ÎR.

  • R is asymmetric if for every a,b Î A, (a,b) Î R => (b,a) Ï R.

  • R is antisymmetric if for every a,b Î A, if (a,b) Î R and (b,a) Î R, then a = b.

  • R is transitive if for every a,b,c Î A, if aRb and bRc then aRc.

    Def:

  • R is a partial ordering(p.o.) iff it is ref. sym. and transitive.

  • R is a strict partial ordering(s.p.o) if it is irref. and trans.

  • R is a preordering iff it is ref. and transitive.

  • R is an equivalence relation iff it is ref. sym. and transitive.


Example

Example:

  • Let B = {1,2,3,4};

    • R1= {(1,1),(1,2),(2,1),(2,2),(3,4),(4,1),(4,4)}

    • R2={(1,1),(1,2),(2,1)}

    • R3={(1,1),(1,2),(1,4),(2,1),(2,2),(3,3),(4,1),(4,4)}

    • R4={(2,1),(3,1),(3,2),(4,1),(4,2),(4,3)}

    • R5={((1,1),(1,2),(1,3),(1,4),(2,2),(2,3),(2,4),(3,3),(3,4),(4,4)}

    • R6={(3,4)}

      Ex 7: Which of these relations are ref. ?

      Ex 7': Which of these relations are irref. ?

      Note: 1. using graphical representations may help determining properties of relations.

      2. There are relations which is neither ref. nor irref.

      Ex 8: Is the "divides" relation on integers reflexive ?

      Ex 9: which of the relations on Ex5 are ref. ?


Examples

Examples

Ex10. Which of these relations are symmetric, antisymmetric ?

Ex10': Which are asymmetric ?

  • What is the graphical characteristic of sym., asym. and antisym. relations ?

  • What is the relation among symmetric, antisymmetric and asymmetric properties ?

    Ex 12: Is the "divides" relation on integers sym. ? Is it antisym. or asym. ?

    Ex13: Which of these relations in Ex 7 are transitive. ?

    Ex13': Which of the relations inEx 7 are preordering, p.o., s.p.o.

    or equivalence?

    Ex15: is the "divides" relation transitive ?


Counting the number of relations

Counting the number of relations

  • |A| = n.

    1. # relations on A = ? (2^(n^2))

    2. # reflexive relations on A = ? (2 ^ (n^2 - n))

    3. # irreflexive relation on A = ? (= sol of 2, why?)

    4. #irref and symmetric relation on A = ? (2^(n(n-1)/2) )

    5. #symmetric relation on A = ? (2^(n(n+1)/2))

    6. #asymmetric relations on A = ? (3^(n(n-1)/2))

    7. #antisymmetric relations on A = ? (3^(n(n-1)/2) x 2^n)

    8. #transitive relations on A = ? (hard!)

    9. #equivalence relations on A = ? (hard!)

    10. #strict partial ordering on A = ? (hard!)

    11. #preordering on A = ? (hard!)

    12. #partial ordering on A = ? (hard!)


Combining relations

Combining relations

  • Relations are sets:

    • ==> All set operations can be applied to relations

    • Ex: R1; R2: relations on A;

    • ==> R1 U R2; R1 ⋂ R2; R1 \ R2 and ~R are defined as usual.

  • [Binary ] relation compositions:

    R Í AxB ; S Í BxC;

    ==> R·S (the composition of R and S) Í AXC is the set:

    {(x,z) | $y Î B s.t. xRy ∧ ySz}

    Note: The textbook use S·R (less popular) instead of R·S to denote the composition.


Examples of relation compositions

1

0

1

2

2

1

3

2

3

4

R

S

C

A

B

Examples of relation compositions

Ex19: A={1,2,3}; B={1,2,3,4}; C={0,1,2}

R ÍAXB = {(1,1),(1,4),(2,3),(3,1),(3,4)}

S Í BXC = {(1,0),(2,0),(3,1),(3,2),(4,1)} => R·S= ?

Fact: Relation composition is associative (i.e., R·(S·T) = (R·S)·T )

Hence we can write RST w/t parentheses.


The power of relations

The power of relations

Def.7 : R: a relation on A (i.e., a subset of AxA); n : nonnegative integers. The relation Rn is defined inductively as follows:

  • 1. R0 = IA =def {(x,x) | x ∈ A}.

  • 2. Rk+1 = RRk = {(x,z) | $y Î R s.t. (x,y) ÎR /\ (y,z) ÎRk }.

  • Hence R2 = RR; R3=RR2 = R(RR) = (RR)R = R2 R = RRR .

  • in general we have Rn = RRRR...R. (n R’s)

    Ex: show that If a, b  0 then RaRb = Ra+b.

    Pf : by induction on a.

    • basis: a = 0: => RaRb = IARb =

    • {(x,z) | $y (x,y) Î IA /\ (y,z) Î Rb } =

    • {(x, z) | (x,x) Î IA /\ (x,z) Î Rb} = {(x,z) | (x,z) Î Rb } = Rb.

    • Ind. step : assume RaRb= Ra+b =>

    • Ra+1Rb = (RRa)Rb = R(RaRb) = RRa+b = Ra+1+b.

      Corollary: RRk = Rk R.


  • Example1

    Example

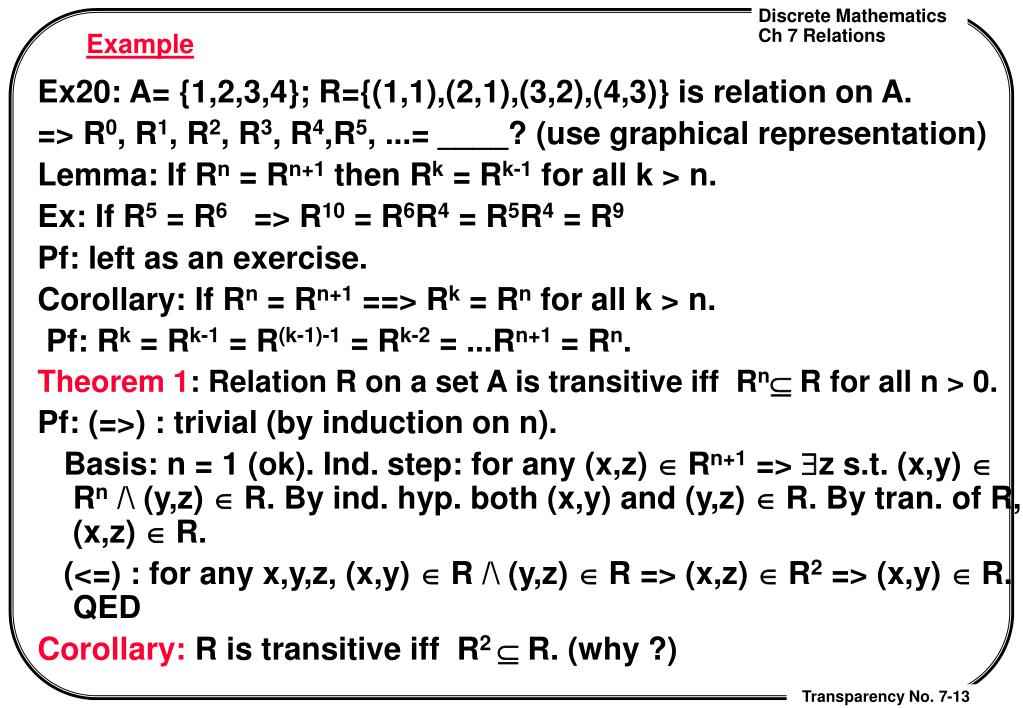

    Ex20: A= {1,2,3,4}; R={(1,1),(2,1),(3,2),(4,3)} is relation on A.

    => R0, R1, R2, R3, R4,R5, ...= ____? (use graphical representation)

    Lemma: If Rn = Rn+1 then Rk = Rk-1 for all k > n.

    Ex: If R5 = R6 => R10 = R6R4 = R5R4 = R9

    Pf: left as an exercise.

    Corollary: If Rn = Rn+1 ==> Rk = Rn for all k > n.

    Pf: Rk = Rk-1 = R(k-1)-1 = Rk-2 = ...Rn+1 = Rn.

    Theorem 1: Relation R on a set A is transitive iff RnÍ R for all n > 0.

    Pf: (=>) : trivial (by induction on n).

    Basis: n = 1 (ok). Ind. step: for any (x,z) Î Rn+1 => $z s.t. (x,y) Î Rn /\ (y,z) Î R. By ind. hyp. both (x,y) and (y,z) Î R. By tran. of R, (x,z) Î R.

    (<=) : for any x,y,z, (x,y) Î R /\ (y,z) Î R => (x,z) Î R2 => (x,y) Î R. QED

    Corollary: R is transitive iff R2 Í R. (why ?)


    6 2 n ary relations

    6.2 n-ary relations

    Def. 1: A1,A2,...,An : n sets.

    1. An n-ary relation R on A1,A2,...,An is any subset of A1xA2x...xAn = {(x1,...,xn) | x1Î A1,...,xnÎ An }.

    2. A1,..., An are the domains of R

    3. n: the degree (or arity) of R.

    4. 1-ary (0-ary, 2-ary, 3-ary) relations are called unary (nullary, binary, ternary) relations.

    Ex: If R Í Z3 (= ZxZxZ) =def {(x,y,z) | x < y < z, x,y,z ∈Z}.

    Then (1,2,3) Î R but (2,4,3) Ï R.


    Relations and databases

    Relations and databases

    • Database:

      • In a database, lots of information about the real world are extracted and stored.

      • Since the database is a "representation" of the world, if the real world changes, the database should change over time accordingly

    • Issues in database theory (data model):

      • How to represent various information (or data) in a database?

      • (i.e., can we have a unifying method by which we can always (or in most cases) easily organize or arrange all data to be stored in the database ).

      • Any such method is called a data model.


    The relational data model

    The relational data model

    • A database DB (at a time instant, say, time t) consists of a pair <Dom,Rel> where

      • Dom = {A1,...,An} is a set of sets, each Ai is called a domain of the database.

      • Rel = {R1,...,Rm} where each Ri Aj1xAj2x...xAjki is a ki-ary relations on domain Aj1,Aj2,...,Ajki.

      • Each Ki-tuple (a1,a2,...,aki) Ri is called a record (or row) of Ri.

      • Each Ajs ( 1 <= s < = ki) is called a field (or a column) of the relation Ri (and the record).

      • Each relation Ri can be represented by a table (w/t duplicate rows) with |Ri| rows and Ki columns.


    Example relations

    Example relations

    Ex: Student records S in a school may be represented by 4-tuples of the form: (student-name, register-id, major, GPA )

    Let A = the set of all student [names]

    B = the set of all student identifier numbers.

    C = the set of all departments [names]

    D = the set of all possible GPA numbers ([0,5]).

    => DB = <{A,B,C,D}, {S}> where S must be a subset of AxBxCxD.

    A possible value of S may be represented by the table:

    NAME ID MAJOR GPA

    -------------------------------------------------------

    Allen 23 CS 3

    Bob 15 math 4.1

    Chen 34 CS 4.0

    ...


    Operations on n ary relations

    Operations on n-ary relations

    • A domain Bj of an n-ary relation R (in database) is called a primary key iff it can be used to uniquely identify records in R at all time.

      • (in other words, If R is an n-ary relation on domain B1,B2,...,Bn, then for any time t, R(t) must be a subset of B1xB2...xBn.

      • Bj is a primary key iff for any time t and for any (a1,a2,...,an) and (b1,..,bn) Î R(t), if aj = bj then (a1,...an) = (b1,...,bn).

      • Note: R(t) changes over time.

    • Operations on n-ary relations

      • Selection (or restriction) --- find subset of R with a certain

        property.

      • Projections.

      • Joins --- generalization of binary composition

      • and other usual set operations (U, /, intersection,...)


    Relation operations

    relation operations

    • Restriction (selection):

      P(x1,...,xn): a statement (or property) on n-tuples

      (x1,...,xn).

      R: a relation on A1xA2...,xAn.

      ==> R|P ( find tuples of R with property P) is the set

      {(a1,...,an) | (a1,...,an) Î R and P(a1,...,an) is true }.

      Ex: Let P(x1,x2,x3) = " x1 < x2 < x3 or x3 = 2 " and

      R = { (1,2,3),

      (1,3,2),

      (2,1,3), ==> R|p = {(1,2,3), (1,3,2), (3,1,2) }.

      (2,3,1),

      (3,1,2), (3,2,1) }


    Projections

    Projections

    R : a relation on A1,A2,...,An

    w= j1j2...jm is a sequence with 0< js< n+1 for all s = 1,..,m.

    ==> Pw(R) : the projection of R on Aj1Aj2...Ajm is a m-ary relation on Aj1Aj2...Ajm with value:

    {(xj1,...,xjm) | (x1,...,xn) Î R }.

    Ex: R= {(1,2,3), (1,3,3), (2,3,1), (2,2,2)}

    => P1(R) = {1,1,2,2} = {1,2}

    P2(R) = {2,3}

    P31(R) = {(3,1),(3,1),(1,2),(2,2)} = {(3,1),(1,2),(2,2)}

    P313(R) = {(3,1,1), (1,2,1),(2,2,2)}


    Joins combining two relations into one

    Joins (combining two relations into one)

    • R : A1xA2x...xAm-pxAm-p+1x...xAm;

      S : B1 xB2x..Bpx Bp+1x ..xBm;

      p ≤ min(m,n).

      ==> Jp(R,S) = {(a1,...,am-p, c1,c2,...,cp, bp+1,..., bn) |

      $ (a1,...,am-p, c1,c2,...,cp ) Î R /\

      (c1,c2,...,cp, bp+1,..., bn) Î S }

      Ex: R={(1,2,3), (2,2,3), (3,3,3) (6,1,2)}; S={(2,3,4), (3,3,3), (2,2,2)}

      ==> J2(R,S) = ?

      J1(R,S) = ?

      J3(S,R) = ?


    6 3 relation representation

    A

    B

    A->B

    1

    1

    a

    a

    2

    2

    b

    b

    3

    3

    6.3 Relation representation

    • Three possible ways to represent a finite relation

      • a list (or array) of ordered pairs.

      • (0-1) matrix

      • digraph (directed graph)

        Ex: A={1,2,3}, B={a,b},

        R = {(2,a),(3,a),(3,b)}.

        1. list representation:

        ((2,1),(3,1),(3,2)) possibly ordered by fields.

        2. Matrix (table): 3. Digraph:

        A\B a b

        1 0 0 or

        2 1 0

        3 1 1


    Formalization of relation representation

    Formalization of relation representation

    • A={a1,a2,..,am}; B = {b1,...,bn}; R: a binary relation from A to B.

      MR (the matrix representation of R) = (mij) mxn where

      mij = 1 if (ai,bj) ∈ R and

      = 0 if (ai,bj) ∉ R.

      Ex: A={a1,a2,a3}; B = {b1,b2,...,b5}

      If R1={(a1,b1),(a1,b2),(a3,b2),(a3,b5)}

      ==> MR1 = ?

      01000

      If MR2= 10110 ==> R2 = ?

      10101

      Note: 1. If R ∈ AxA with |A| = n, ==> MR is a nxn 0-1 matrix.

      2. R is ref. (resp. irref. ) iff mii = 1 (0) for every 1i  n.

      3. R is symmetric (asym) iff for all i, j mij = mji (mij /\ mji ≠ 1)

      4. R is tansitive iff for all i,j,k if mij=mjk=1 => mik = 1.


    0 1 matrix operation

    0-1 matrix operation

    • Boolean operation on {0,1}

      • x ∨ y = max(x,y)

      • x ∧ y = min(x,y)

      • ~x = 1-x

    • Boolean operation on 0-1 matrices:

      • (M1 \/ M2) ij = M1ij \/ M2ij for all i,j. --- pairwise or

      • (M1 /\ M2) ij = M1ij /\ M2ij for all i,j. --- pairwise and

      • (~M1) ij = 1- M1ij for all i,j. -- complement.

      • (M1x M2)ij = \/k=1,n M1ik /\ M2kj. --- product

      • M0 = I; Mn+1 = Mn x M. --- power of 0-1 matrix.


    Matrix representation for relation operations

    Matrix representation for relation operations

    • R1, R2: two relations from A to B.

      1. MR1 UR2 = MR1 ∨ MR2.

      2. MR1ÇR2 = MR1 ∧ MR2

      3. M~R1 = ~MR1.

    • R: AXB; S: BxC with

      A = {a1,...,am}, B = {b1,...,bn} and C= {c1,..,cp}.

      ==> RS = {(ai,ck) | $bj ∈ B s.t. (ai,bj)  R and (bj,ck)  S }

      Hence (MRS)ik = 1 iff

      there is 1  j  n s.t. (aj,bj)  R and (bj,ck)  S iff

      there is 1  j  n s.t. (MR)ij = 1 /\ (MS)jk = 1 iff

      \/j=1,n (MR)ij /\ (MS)jk = 1

    • Hence MRS = MR x MS. ==> MRk = (MR)k for any k  0.


    Examples1

    Examples:

    Ex3: MR = [110; 111; 011]

    ==> Is R ref, symmetric or antisymmetric ?

    Ex4: R1,R2: two relation on A.

    MR1= [101;100;010]; MR2 = [101;011;100].

    ==> MR1UR2 = ? MR1Ç R2 = ? M~R1 = ?

    Ex5: MR = [101;110;000]; MS = [010; 001;101]

    => MRS = ?

    Ex6: MR = [010;011;100]

    ==> MR2 = (MR)2 = ?


    Representing relations using digraphs

    b

    a

    d

    c

    Representing relations using digraphs

    • Def 1. A diagraph (or directed graph) is a pair (V,E) where

      • V is a set, each member is called a node or a vertex.

      • E is a set of ordered pairs of nodes. (i.e. E Í V2), each member of which is called an edge.

      • If (a,b)  E is an edge, we say a is the initial (or starting) vertex and b the terminal (or ending) vertex of the edge.

      • If (a,a) is an edge, we say it is a loop.

        Ex7: In Fig 3, we have G=(V,E) where

        V= {a,b,c,d} and

        E={ (a,b),(a,d),(b,b)(b,d),

        (c,a),(c,b),(d,b)}.

        Note: E in fact is a relation on V.

    Fig 3: (p 377)


    Representing relations by digraphs cont d

    Representing relations by digraphs (cont'd)

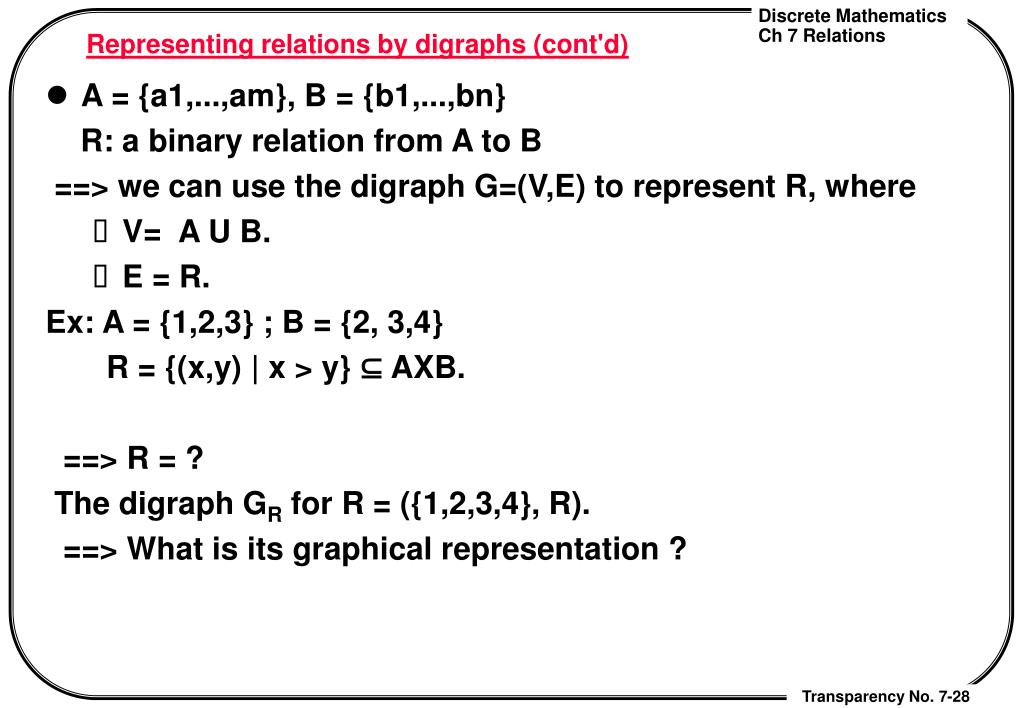

    • A = {a1,...,am}, B = {b1,...,bn}

      R: a binary relation from A to B

      ==> we can use the digraph G=(V,E) to represent R, where

      • V= A U B.

      • E = R.

        Ex: A = {1,2,3} ; B = {2, 3,4}

        R = {(x,y) | x > y} ⊆ AXB.

        ==> R = ?

        The digraph GR for R = ({1,2,3,4}, R).

        ==> What is its graphical representation ?


    6 4 closure of relations

    6.4 closure of relations

    • R: a relation on A

    • P(-): a property (or statement or predicate) about relations.

      eg: 1. P(R) = " R is reflexive" or

      2. P(R) = " R is symmetric and transitive" or

      3. P(R) = " |R| is not finite" etc.

      Def: P: a property about relations on A;

      The operation CLp: 2AxA -> 2AxA is defined to be the function s.t. for each each relation R on A, CLP(R) is the smallest of all relations on A which includes R and satisfies the property P. (i.e., CLp(R) is the relation on A s.t.

      • 1. R Í CLP(R) --- including R

      • 2. P(CLP(R)) is true --- satisfying P

      • 3. For any relation S on A, if it satisfies (1) and (2),

      • then CLP(R) Í S. --- smallest

    • CLp(R) is called the P closure of R.


    Properties about closure

    Properties about closure

    Ex: A = {1,2,3}; R={(1,1),(1,2),(2,1),(3,2)}

    Let P(S) means " S is reflexive"

    ==> CLp(R) (reflexive closure of R) = ? (exist ? unique ?)

    1. Let TT = { T | T ÍA2 /\ T is ref. and R Í T}.

    Note: by def. every T ∈ TT satisfies item (1) and(2) of the def. of P-closure.

    ==> TT = ?

    2. Which is the smallest in TT ? (= R U IA !)

    • Theorem: CLP(R), if existing, is unique.

      pf: Let S and T be any two P-closures of R.

      ==> By (3) S ÍT and T Í S, hence S = T.

      3. Problem: Does CLP(R) always exist ? (no!)

      Does the irreflexive closure of R exist in the example ?


    Closure properties

    closure properties

    Def: P: a property about relations

    P is said to be increasing if for each relation R, there exists a relation S satisfying P and including R.

    P is said to be closed under intersection(or conjunctive) if for any set TT of relations, if all R Î TT satisfies P, then so is their intersection Ç TT.

    Ex: The following properties are increasing and closed under intersection:

    • 1. reflexivity; 2. symmetry; 3. transitivity.

    • Since A2 (the largest relation on A) includes R

    • and satisfies 1,2,3.

  • Theorem: If P is increasing and closed under intersection, then CLp(R) always exist for all relations R (on a universe set A).


  • Example2

    Example:

    • Ex: property increasing closed under intersection

    • ref. yes yes

    • symmetric yesyes

    • transitivity yesyes

    • irref. no(why?) yes(why?)

    • asymmetric ??

    • antisymmetric ??

    • equivalence ??

    • partial order ??

    • total ordering ??

    • ref or symmetric yes no (why?)

      Fact: If P is not increasing, then CLp may not exist.

      If P is not conjunctive,then CLp may not exist.


    Reflexive and symmetric closures of relations

    reflexive and symmetric closures of relations

    Theorem 1': R: a binary relation on A, then

    1. reflexive closure of R (Rref) = R U IA.

    2. symmetric closure of R (Rsym) = R U R-1.

    Ex: if MR = [100,101,000], then

    1. IA = ?

    2. MRref = ?

    3. MR-1 = ?

    4. MRsym = ?.

    pf: Let Tref = {S| S is a relation on A and is ref and R Í S. }

    ==> 1. (1) RUIAÎ Tref (2) S Î T ref ==> R U IAÍ S.

    Hence R U IA = CLref(R).

    2. Similar to 1.


    Transitive closure of relations

    6

    2

    1

    3

    5

    4

    Transitive closure of relations

    • R: a binary relation on A

      ==> What is the transitive closure of R (i.e., the smallest transitive relation S on A including R (i.e., if (a,b) and (b,c) Î S, then (a,c) is also Î S)).

      Ex: If R = {(1,2)(2,6)(6,1)(1,3)(3,4)(4,5)}

      ==> GR = Fig 1.

      ==> MR = ?

      ==> GS = ?

      ==> MS = ?

      ==> S = ?

    • The reflexive and transitive closure of R is the smallest reflexive and transitive relation on A including R.


    Chapter 7

    Path

    Def. 1: G = (A,R): a digraph; a, b : two vertices in A.

    1. A path of length n (n  0) from a to b is a sequence

    x0,x1,...,xn of vertices s.t.

    • x0 = a (starting point) and xn = b (ending point) and

    • (xi, xi+1) Î R for all i = 0,..,n-1.

      2. If x0 = xn and n > 0 ==> the path is called a cycle ( or circuit).

      Ex: If R = {(1,2),(2,1),(2,3)(3,4)(4,2)(4,5)}

      ==> "1,2,3,4,5" is a path of length ? from ? to ?.


    Correspondence b t relation and digraph

    Correspondence b/t relation and digraph

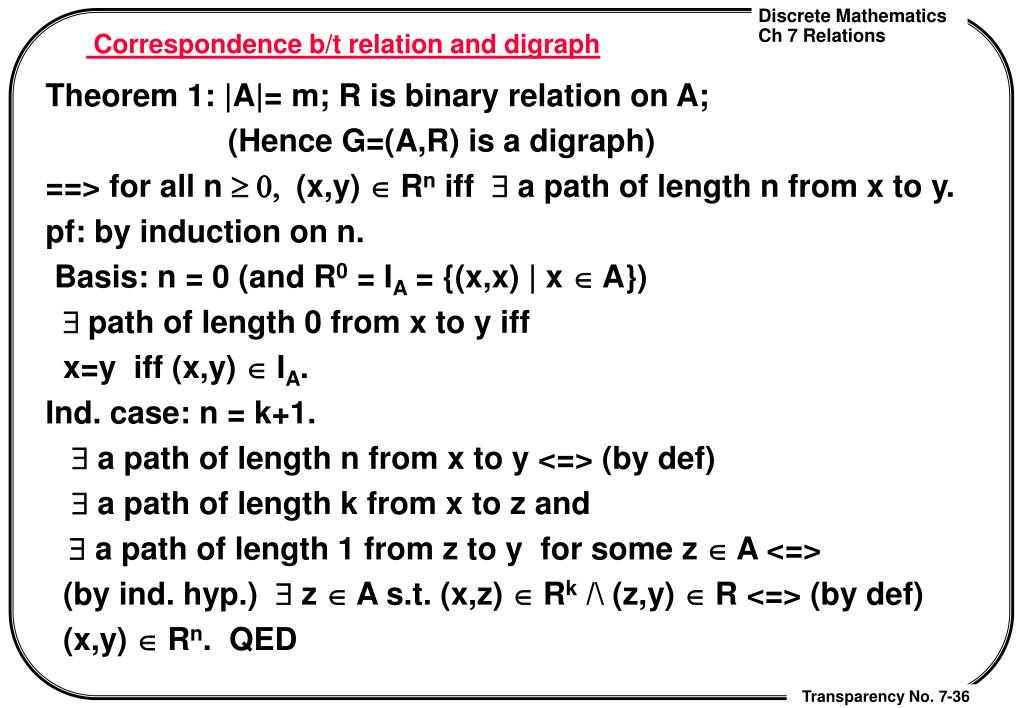

    Theorem 1: |A|= m; R is binary relation on A;

    (Hence G=(A,R) is a digraph)

    ==> for all n ³ 0, (x,y) Î Rn iff $ a path of length n from x to y.

    pf: by induction on n.

    Basis: n = 0 (and R0 = IA = {(x,x) | x Î A})

    $ path of length 0 from x to y iff

    x=y iff (x,y) Î IA.

    Ind. case: n = k+1.

    $ a path of length n from x to y <=> (by def)

    $ a path of length k from x to z and

    $ a path of length 1 from z to y for some z  A <=>

    (by ind. hyp.) $ z Î A s.t. (x,z) Î Rk /\ (z,y) Î R <=> (by def)

    (x,y)  Rn. QED


    Correspondence b t relation and digrqph

    correspondence b/t relation and digrqph

    Def. 2: R: a binary relation on A (hence (A,R) is a digraph).

    R+ =def {(x,y) $ a path of length > 0 from x to y in (A,R)}

    (i.e., R+ = Uk=1,¥ Rk)

    R* =def {(x,y) | there is a path of length ³ 0 from x to y}

    =Uk=0,¥ Rk = R+ U {(x,x) | x in A} = R+ U IA.

    Theorem 2:

    1. R+ is the transitive closure of R.

    2. R* is the reflexive and transitive closure of R.

    Note: If R encodes the property that " (a,b)  R iff b can be reached from a by 1 step" then

    1. (a,b) ∈ Rk means "b can be reached from a by k steps."

    2. (a,b) ∈ R* means " b is reachable from a" or

    means " b is connected to a".


    Proof of theorem 2

    Proof of Theorem 2:

    pf: (1) left to the students.

    (2). 1. R ÍR* ; 2. R* is ref. and transitive.

    3. If T is another relation with property 1 & 2, then R* Í T.

    1. R Í R* and R* is ref.: trivial, since R* = IA U R U R2 U ...

    2. R* is transitive:

    (x,y) Î R* and (y,z) Î R* => $m and n ³ 0 s.t. (x,y) Î Rm and (y,z) Î Rn => (x,z)Î Rm+n => (x,z) Î R*.

    3. Let T be any ref. and tran. relation including R.

    we show by induction on n that Rn ÍT for all n  0.

    Hence R* = R0 U R UR2U... Í T.

    case 1: n = 0 : R0 = IA Í T (since T is reflexive).

    case 2 : n = 1 : R Í T (since T includes R)

    case 3: n = k+1 > 1: by ind.hyp., RJ Í T for all J < n.

    ==> if (x,y) Î Rn => $z s.t. (x,z) Î Rk and (z,y) Î R

    => (by ind. hyp.) (x,z)Î T and (z,y)Î T => (by tran. of T) (x,y)Î T.


    Some lemmas

    Some lemmas

    Lem 1: |A|= n > 0, R: a relation on A.

    1. If there is a path of length m > n from a to b, then there is a path of length 0 < p < m from a to b.

    2. If there is a path of length > 0 from a to b then there is a path of length 0 < p  n from a to b.

    pf: 1. Let a=x0, x1,x2,..., xm-1,xm=b be the path of length m from a to b. Since m > n, by pigeonhole principle, there is

    1 i<j  m s.t. xi = xj.

    ==> The path x0,x1,..,xi, xj+1,...,xm is a path from a to b with length m + (j-i) < m.

    2. Let a0 be any path from a to b. if | a0 | ≤ n, we are done.

    O/w, by 1. we can construct a path a1 with length | a1 | <| a0 |.

    if | a1| ≤ n, then we are done.

    O/w, repeat the same process, we can obtain a sequence of path a0, a1, a2,... from a to b with | a0 | > | a1 | > ...

    But since | a0 | is finite, we will eventually find a path ak with length  n . QED


    Corollaries

    Corollaries

    lemma: If a ¹ b and there is a path of length m  n, then there is a path of length 0 < p < n from a to b.

    pf: similar to previous Lemma with the note that during Lem 1.1, m  n, x0 xm, and by pigeonhole principle,

    there is 0 i<j  m s.t. xi = xj and (i,j)  (0,m).

    Hence 0< (j-i) < m and the resulting path has size

    0< m –(j-i) < m

    Corollary: |A| = n.

    1. R+ = Uk= 1, n Rk. 2. R* = Uk=0,n Rk.

    Pf: (1.) Since ∀m > n, RmÍ RUR2U...URn.

    (x,y) Î Rm <=> $ a path from x to y of length m > n

    => $ a path from x to y of length 0 < p  n

    <=> (x,y) Î Rp <=> (x,y) Î RUR2U...URn. (2.) Similar to 1.


    Chapter 7

    Corollary: R* = Uk=0,n-1 Rk.

    Pf: Left as an exercise. Hint: RnÍ IA U Uk=1,n-1 Rk.

    (x,y) ∈ Rn ==> (x=y /\ (x,y) Î IA) or (xy /\ (x,y) Î Uk=1,n-1 Rk).

    Theorem:

    1. MR+ = MR \/ MR2 \/...\/MRn.

    2. MR* = MR0 \/ MR \/ MR2 \/...\/MRn-1.


    Algorithm for transitive closure

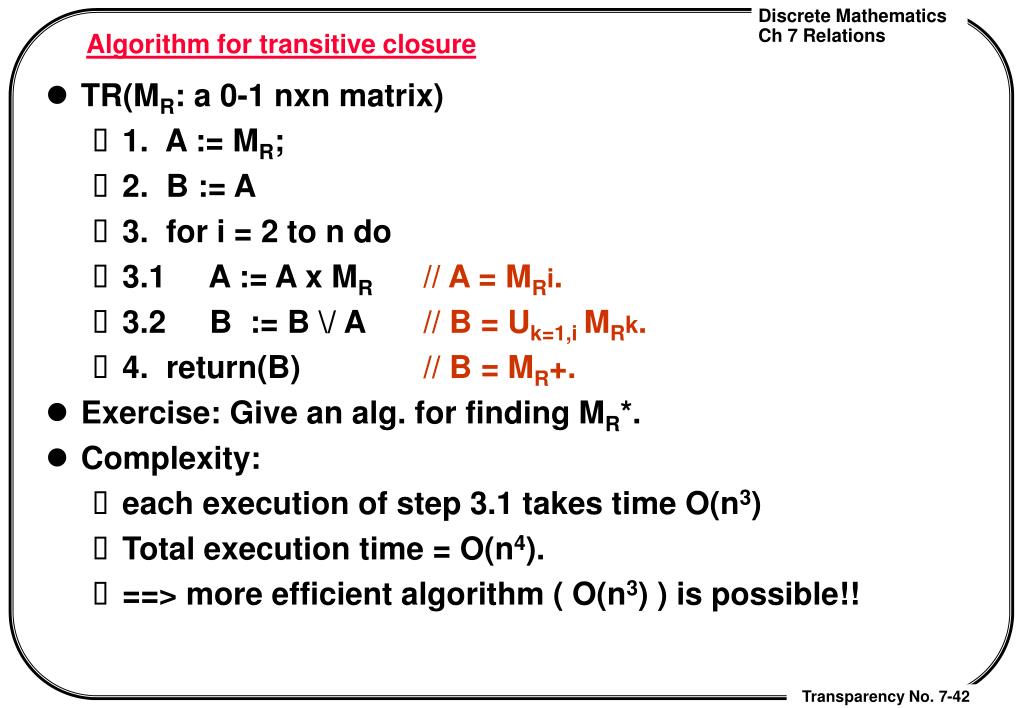

    Algorithm for transitive closure

    • TR(MR: a 0-1 nxn matrix)

      • 1. A := MR;

      • 2. B := A

      • 3. for i = 2 to n do

      • 3.1 A := A x MR// A = MRi.

      • 3.2 B := B \/ A // B = Uk=1,i MRk.

      • 4. return(B) // B = MR+.

    • Exercise: Give an alg. for finding MR*.

    • Complexity:

      • each execution of step 3.1 takes time O(n3)

      • Total execution time = O(n4).

      • ==> more efficient algorithm ( O(n3) ) is possible!!


    Warshall s algorithm

    Warshall's algorithm

    • Applying dynamic programming technique

    • running time O(n3).

    • R: a relation on A = {v1,v2,...,vn}.

      • note: (MR)ij = 1 iff (vi,vj)  R.

    • W0,W1,...,Wn: a sequence of nxn 0-1 matrices, where

      • (WK)ij = 1 ( 0 £ k £ n ) iff there is a path of length >0 from vi to vj s.t. all interior vertices of this path are in the set {v1,...,vk}.

      • (i.e., $ a path vi,u1,u2,...,us,vj (s³ 0) s.t.{u1,...,us}Í {v1,...,vk}.

        Facts:

        1. W0 = MR. [ since (vi,vj) Î R <=> $ a path of length 1 from vi to vj

        (w/o interior vertex) <=> (i,j) Î W0. ]

        2. Wn = MR+. [ Since (vi,vj) Î R+ <=> $ a path of length > 0 from vi

        to vj <=> $ a path of length > 0 from vi to vj with interior vertices among the set {v1,v2,...,vn} <=> (i,j)Î Wn. ]


    Warshall s algorithm cont d

    Warshall's algorithm (cont'd)

    Fafct 3: Wk+1 can be defined in terms of Wk.

    Lem 2: (Wk+1)ij = (Wk)ij \/ ((Wk)i(k+1) /\ (Wk)(k+1)j )

    pf: (Wk+1)ij = 1 <=> (by def.)

    $ a path a=vi,u1,...,us, vj from vi to vj

    with {u1,...,us} Í{v1,...,vk+1}.

    <=> two possible cases:

    case 1: no ui (i= 1,..,s) is vk+1 (i.e., vk+1Ï {u1,...,us}).

    ==> a is also a path from vi to vj with interior vertices from {v1, ...,vk} ==> (Wk)ij = 1.


    Warshall s algorithm cont d1

    Warshall's algorithm (cont'd)

    case 2:$ a path a = vi,u1,...,us, vj from vi to vj

    with some ui = vk+1. (i.e., vk+1 ∈ {u1,...,us}).

    Now let IDX = {i | ui = vk+1} and let

    p = min(IDX); q = max(IDX).

    Note that p will equal to q iff |IDX| = 1. Now the path

    b = v1,u1,...,up-1,up,uq+1,...,us,vj

    is a path from vi to vjcontaining only one vk+1 = up.

    ==> v1,u1,..,up ia a path from v1 to vk+1 and

    up,u q+1,..,vj is a path from vk+1 to vj

    ==> (Wk)i(k+1) = (Wk)(k+1)j = 1.

    <=> (Wk)ij \/ ( (Wk)i(k+1) /\ (Wk)(k+1)j )= 1. QED


    Warshall s algorithm cont d2

    Warshall's algorithm (cont'd)

    EX: Let MR = [0001,1010,1001,0010]. find W0,W1,W2,W3,W4.

    The Warshall's algorithm:

    Procedure WS1(MR: nxn 0-1 matrix)

    1. W0 := MR;

    2. for k := 1 to n do // compute Wk

    3. for i := 1 to n do

    4. for j = 1 to n do // compute (Wk)ij

    5. Wk[i,j] := Wk-1[i,j] \/ (Wk-1[i,k]/\Wk-1[k,j] );

    6. Return(Wn) // Wn = MR+.

    analysis: 1. The algorithm takes time O(n3).

    2. The algorithm require memory space O(n3).

    ==> can be reduced to O(n2) by collapsing all Wk into one W.

    (and become the final Warshall's algorithm shown in the book). (why?)


    Why may all w j s be collapsed into one

    Note that Wk[i,j] := Wk-1[i,j] \/ (Wk-1[i,k]/\Wk-1[k,j] ) ---(*). Hence the value of cell (i,j) at time k depends on cells (i,j), (i,k) and (k,j) at time k-1.

    But for Wk[i,k] or Wk[k,j], we have

    Wk[i,k] = Wk-1[i,k] \/ (Wk-1[i,k]/\Wk-1[k,k] )

    = Wk-1[i,k] , and

    Wk[k,j] =

    Wk-1[k,j] \/ (Wk-1[k,k]/\Wk-1[k,j] )

    = Wk[k,j] .

    i.e, The cells [i,k] and [k,j]

    do not change value during

    the computation of Wk.

    Hence Wk[i,j] can be correctly

    computed no matter the

    content of [i,k] and [k,j]

    come from Wk or Wk-1.

    j

    k

    (k,j)

    k

    (i,k)

    (i,j)

    i

    Why may all Wjs be collapsed into one?


    6 5 equivalence relations

    6.5 Equivalence relations

    Def. 1: R: a relation on a set A.

    • R is an equivalence relation on A iff it is ref. symmetric and transitive.

    • x and y in A are said to be equivalent (or R-equivalent) if (x,y)  R.

      Ex1: R: a relation on the set of all bit strings {0,1}* defined by

      xRy iff |x| = |y|.

      ==> 1. R is an equivalence relation on {0,1}* ?.

      2. 00110 and 11100 are R-equivalent since both have the

      same length.

      Ex 2: R: a relation on integers s.t. xRy iff x=y or x = -y.

      ==> R is an equivalence relation ?

      Ex3: R: a relation on real numbers s.t. xRy iff x-y is an integer.

      ==> R is an equivalence relation ?


    More equivalence relations

    More equivalence relations

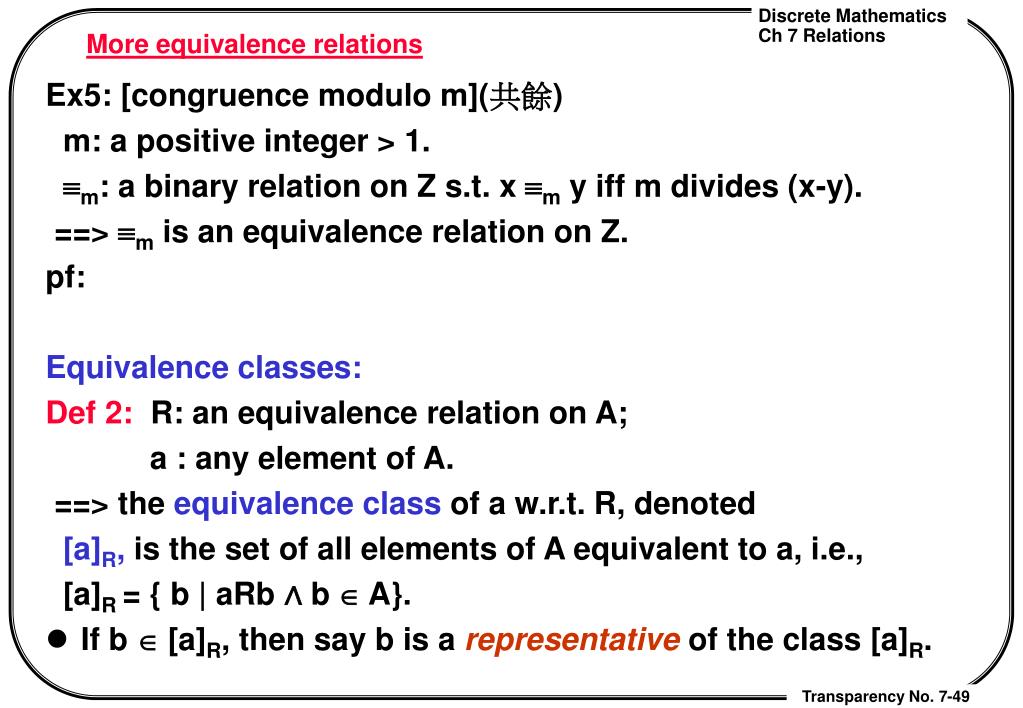

    Ex5: [congruence modulo m](共餘)

    m: a positive integer > 1.

    ºm: a binary relation on Z s.t. x ºm y iff m divides (x-y).

    ==> ºm is an equivalence relation on Z.

    pf:

    Equivalence classes:

    Def 2: R: an equivalence relation on A;

    a : any element of A.

    ==> the equivalence class of a w.r.t. R, denoted

    [a]R, is the set of all elements of A equivalent to a, i.e.,

    [a]R = { b | aRb ∧ b Î A}.

    • If b  [a]R, then say b is a representative of the class [a]R.


    Equivalence classes

    Equivalence classes

    Ex 5: R: a binary relation on Z s.t. xRy iff x = y or x = -y.

    => 1. R is an equivalence relation.

    2. For each x in Z, [x]R = {x, -x}.

    3. e.g., [3]R = { y Î Z | 3 = y or 3 = -y} = {3, -3}.

    Ex6: R Z2 s.t. xRy iff x º y (mod 4).

    => [0]R = {y ÎZ: 4 | (0-y) } = {..., -8, -4, 0, 4, 8 ,...}

    [1]R = {y ÎZ: 4 | (1-y) } = {..., -7, -3, 1, 5, 9 ,...},

    [2]R = {y ÎZ: 4 | (2-y) } = {..., -6, -2, 2, 6, 10 ,...},

    [3]R ={y ÎZ: 4 | (3-y) } = {..., -5, -1, 3, 7,11,...}

    [4]R = {y ÎZ: 4 | (0-4) } = {..., -8, -4, 0, 4, 8 ,...}= [0]R.

    [5]R = [1]R, [6]R = [2]R,...

    => 1. [i]R = [i+4k]R, where i and k are any integers.

    2. There are only 4 equivalence classes w.r.t. R. i.e.,

    {[a]R | a Î Z} = {[0]R, [1]R, [2]R, [3]R}=

    { {...,-4,0,4,..}, {...,-3,1,5,..}, {...,-2,2,6,...}, {...,-1,3,7,...}}.


    Congruence relation

    Congruence relation

    3. the class [a]R is called a congruence class (modulo m).

    4. For any integer x, xÎ [y]R iff xRy.

    Quotient set:

    A: a set; R: an equivalence relation on A.

    The quotient of A w.r.t R, denoted A/R, is the set of all R-equivalence classes of A. (i.e., A/R = {[x]R | x Î A} ).

    Ex: The set Z/º4 = {[0]4,[1]4,[2]4,[3]4}.

    in general we have Z/ºn = {[0]n,[1]n,...,[n-1]n}.

    Ex: |A| = n; R: an equivalence relation on A s.t. |[a]R| = k for all

    a Î A. ==> | A/R | = ___


    Equivalence classes and partitions

    x

    x1

    y

    y1

    Equivalence classes and partitions

    Lemma 1: R: an equivalence relation on A.

    Then for any x,y Î A,

    1. x R y iff [x]R = [y]R iff [x]RÇ [y]R ¹Æ.

    2. not x R y iff [x]R ¹ [y]R iff [x]RÇ [y]R = Æ.

    3. Every class [x] is not empty and every x belongs to exactly one class.

    pf: 1. (=>:) x R y =>

    [x] = {b | xRb} = {b | yRb} = [y]

    => since [x]=[y] and x Î [x],

    [x]RÇ [y]R ¹Æ .

    1. (<=:) let z in [x]RÇ [y]R ¹Æ.

    => [x] = {b | xRb} = {b | zRb}

    = {b |yRb} = [y].

    => y Î [x] => xRy.

    2,3: direct from 1.

    not x1Ry1

    xRy

    A


    Partitions

    A2

    A1

    A3

    A5

    A4

    A6

    Partitions

    • A: a set. P 2A : a set of subsets of A.

      P is said to be a partition of A iff

      1. Every Ai in P is not empty.

      2. For all Ai, AjÎ P, if Ai¹ Aj then AiÇ Aj = {}.

      3. U{Ai | AiÎ P} (i.e., the union of all members of P) = A.

      Note: Every member of P is called a block.

      Ex: Let A = N be the set of all nonnegative integers.

      P={ODD, EVEN}, where ODD = {1,3,5,7,9,..}

      EVEN = {0,2,4,6,...}

      ==> P is a partition of A.

      Note: Every element of A

      belongs to exactly one member

      Aj in P.


    Equivalence of partition and quotient set

    Equivalence of partition and quotient set

    • A: a set.

      For each partition P of A, define a relation ÂP as follows:

      for all x, y Î A, x ÂP y iff x and y belong to the same

      block of P (i.e., $ AjÎ P s.t. {x,y} Í Aj).

      Lem 1: Âp is an equivalence relation.ÂP is called the equivalence relation induced by P.

      pf: left to you.

      Theorem: R: an equivalence relation on A; P: a partition on A. Then

      1. A/R is a partition of A Ex: P = {ODD,EVEN}

      2. ÂA/R = R. ==> ÂP = {(x,y) | x º y mod 2}

      3. A/ Âp = P. ==> N /Âp = { {1,3,5,...}, {0,2,4,...}} = P


    Proof

    Proof

    1. A/R is a partition: Note: A/R = {[x] | x Î A}.

    1. A/R contains no empty set since every [x] is not empty.

    2. for any Ai=[x], Aj=[y] Î A/R, if Ai ¹ Aj => [x] ¹ [y]

    => [x]Ç [y] = {}.

    3. U{ B | B in A/R} = U {[x] | x Î A} = A.

    2. xRy <=> [x] = [y]

    <=> x and y are in the same block [class] of A/R

    <=> x ÂA/R y.

    3. By definition :

    x Âp y iff x and y are in the same block of P. Hence,

    for all x Î A (= U P) ,

    [x]Âp = {y | x Âp y} is the block containing x and Î P.

    and A/ÂP = {[x]Âp | x Î A } is the set of all blocks of P.


    6 6 partial orderings

    6.6 partial orderings (偏序)

    Def 1: R: a binary relation on a set S.

    1. R is a partial ordering (or called partial order, (po)) iff it is reflexive, antisymmetric and transitive.

    2. If R is a po on S ==> (S,R) is called a partial ordered set (poset).

    Ex1: (Z, ³) is a poset.

    Ex2: (Z+, |) is a poset.

    pf: ref: x | x; trans: x | y /\ y | z => x | z;

    antisym: x | y /\ y | x ==> x = y.

    Ex3: (2S, Í ) is a poset.

    pf: ref: A Í A ; trans: AÍ B and BÍC ==> A ÍC;

    antisym: AÍ B and BÍ A => A = B. QED


    Strict partial ordering

    Strict partial ordering

    Def: R: a binary relation on A.

    If R is irreflexive and transitive, then we say R is a strict partial ordering (spo) on A.

    EX: The less than relation < on Z is a spo.

    pf: irref: for all x, not x < x.

    trans: x < y and y < z ==> x < z.

    Lemma: Every strict partial ordering is asymmetric.

    pf: Proof by contradiction. Assume there are x, y s.t.

    xRy and yRx. Then by transitivity of R, we must have xRx, a

    contradiction!. QED


    Relationship between po and spo

    Relationship between po and spo:

    • S: a set; R: a relation on S

      1. Define a new relation <·R as follows:

      ∀ x, y ∈S, x <·R y iff xRy ∧ x ¹ y.

      2. Define a new relation £·R as follows:

      ∀ x,y ∈ S, x £·R y iff xRy ∨ x = y.

      Theorem:

      1. If R is a po => <· R is a spo.

      2. If R is a spo => £·R is a po.

      3. If R is a po => £·(<·R) = R.

      4. If R is a spo ==> <·(£·R)= R.

      pf: 1. irref: x<·R x => xRx and x ¹ x => contrdiction!

      2. trans: 2.1: x <·R y /\ y <·R z => x R z.

      2.2: assume x = z => xRy /\ yRz => xRy /\ yRx

      => x=y, a contradiction with x <·R y !

      ==> (xRz and x ¹ z ) and hence x <·R z.


    Notations

    Notations

    • (S,R) is a poset

      ==> use the symbol £ (less than or equal to) to stand for the relation R,

      [and its "less than" version <·R are written by <. ]

    • If (S,R) is a sposet,

      ==> use the symbol < (less than) to stand for the relation R and use £ to stand for its "less than or equal to" version£·R.

    • Note:

      • By previous theorem, < and £ can be uniquely defined by each other. Hence we can choose either one as the basic definition; once one ordering is defined, the other can be obtained too.

      • Mathematicians usually use £ as official definition of ordering while some computer scientists may choose < as official definition.


    Total ordering

    Total ordering

    Def 2: (S, £): a poset; x, y in S;

    • x and y are said to be comparable iff either x £ y or y £ x.

    • If x and y are not comparable, they are said to be incomparable.

      Def 3: (S,£ ): a poset;

    • If every two elements of S are comparable, S is said to be a totally ordered set or linearly ordered set and £ is called a total order or linear order.

    • A totally ordered set is also called a chain.

      Def 4: (S, £ ): a totally ordered set;

      (S,£) is called a well-ordered set if every nonempty subset of S has a least element.

      Ex5: (Z, £) is a totally ordered set but not well-ordered.

      Ex6: (N, |) is not a chain, Since neither 5 | 7 nor 7 | 5.

      Ex7: (N, £) is well-ordered ; (N, ³) is totally ordered but not well-ordered.


    Lexicographical ordering

    Lexicographical ordering

    • Let (S ,£ )be a poset and S* be the set of all finite strings over S. Define a relation £Son S* as follows:

      For any string x, y :

      x £S y iff

      • 1. x is a prefix of y or

      • 2. there are strings z, u, v and symbol a, b in S s.t.

        x = z a u and y = z b v with a < b.

        Some facts:

        1. If (S,£) is a poset then so is (S*,£S).

        2. If (S,£) is a total ordered set, then so is (S*,£S).


    Maximal and minimal elements

    Maximal and minimal elements:

    • (S,£ ) : a poset; X: a subset of S;

      1. x  X is the least (smallest, minimum) element of X iff

       y  X x£ y.

      2. x  X is the greatest (largest, maximum) element of X iff ?

       y  X y£ x.

      3. x  X is a minimal element of X iff

      ~ y X y< x (or equivalently,  y  X y£ x=>y=x)

      4. x  X is a maximal element of X iff ?

      ~ y X x < y (or equivalently,  y  X x£ y=>y=x)

      Notes:

      1. Least and greatest element, if existing, must be unique,

      2. There may exist multiple minimal (and maximal) elements for some subset of a poset.


    Glb and lub

    glb and lub

    5. x  S is a lower bound of X iff  y  X x£ y.

    6. x  S is an upper bound of X iff  y  X y£ x.

    definition:

    lb(X) = { x  S | x is an lower bound of X}

    ub(X) = { x  S | x is an upper bound of X}

    7. x  S is the greatest lower bound of X (glb(X) ) iff

    x is the greatest element of lb(X).

    8. x is the least upper bound of X ( lub(X) ) iff

    x is an upper bound of X and x £ y for all upper bounds y of X.

    Lemma: glb and lub, if existing, must be unique.

    pf: if both x and y are lub of X, then both are least elements of ub(X), then x £ y and y £ x and by antisymetric property of poset, x = y.


    Lattices

    Lattices

    Def: (S,£) is a lattice if

    1. (S,£) is a poset

    2. Every pair (x,y) of elements of S has both lub and glb.

    where lub(x,y) (written x \/ y ) = the join of x and y

    glb(x,y) (wriiten x /\ y ) = the meet of x and y.

    Ex: 1. (N+, |) is a lattice

    with x\/y = lcm(x,y) and x /\ y = gcd(x,y).

    2. (2S,Í ) is a lattice

    with x \/ y = x U y and x /\ y = xÇ y.

    Def: (S,£): a lattice

    ==> (S,£ ) is bounded iff it has a least and a greatest element.

    (S,£) is a complete lattice iff every subset(including empty set) of S has both lub and glb.


    Topological sorting

    Topological sorting

    • (S,R): a poset.

    • a total ordering £ on S is said to be compatible with R if a £ b implies aRb (i.e., ≤ is an extension of R; R Í £).

    • Topological sorting:

      Given a finite poset, construct a total ordering compatible with it.

      Lem 1:Every finite nonempty poset has a minimal element.

      pf: choose a0 from S, if a0 is not minimal

      => $ a1 < a0, if a1 is not minimal

      => $ a2 < a1,...

      ...

      => The process must end with a minimal element an (since S is finite). QED


    Topological sorting cont d

    Topological sorting (cont'd)

    • The algorithm:

      procedure topological-sort(S: a poset)

      1. { k = 1;

      2. while( S ¹ {} ){

      3. a[k] = any minimal element of S;

      4. S = S - {a[k]};

      5. k = k + 1}

      6. } /* a[1],a[2],...a[n] is a compatible total ordering. */

      Ex: The poset is ({1,2,4,5,12,20}, |)

      ==> 1. Draw a graphical representation for (S, |).

      ==> 2. find a total ordering compatible with |.


  • Login
