  1. Product Overview

  2. Contents • >INTRODUCTION • >SALES POINTS • >PRODUCT COMPONENTS

  3. Introduction

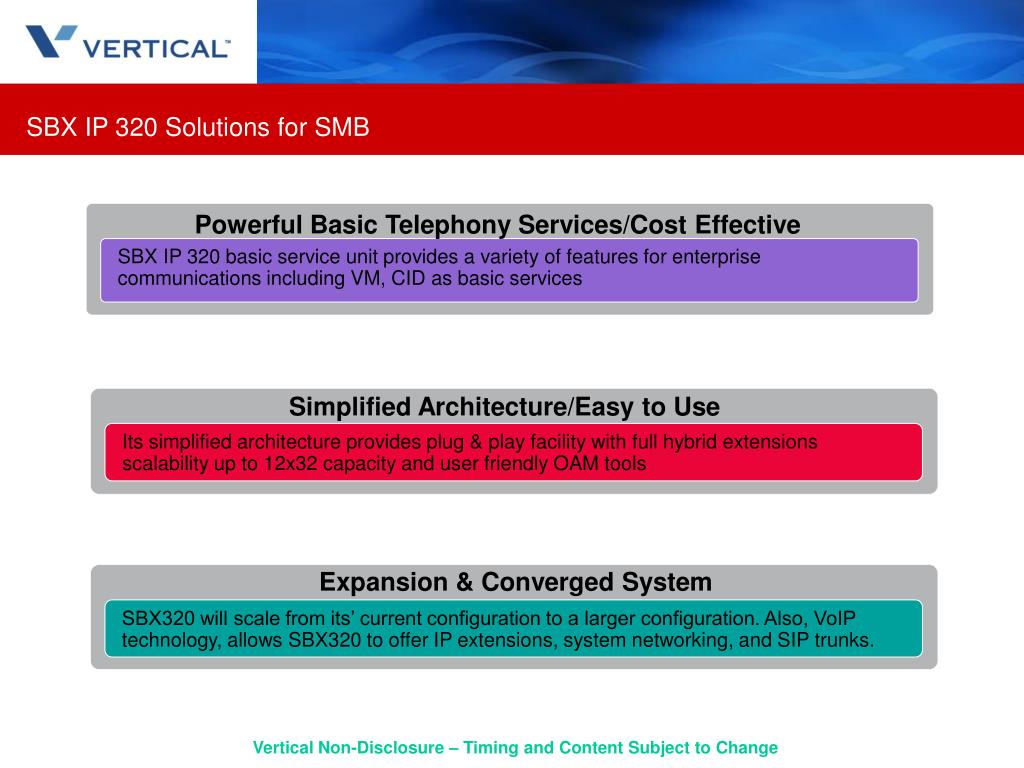

  4. SBX IP 320 Solutions for SMB Powerful Basic Telephony Services/Cost Effective SBX IP 320 basic service unit provides a variety of features for enterprise communications including VM, CID as basic services Simplified Architecture/Easy to Use Its simplified architecture provides plug & play facility with full hybrid extensions scalability up to 12x32 capacity and user friendly OAM tools Expansion & Converged System SBX320 will scale from its’ current configuration to a larger configuration. Also, VoIP technology, allows SBX320 to offer IP extensions, system networking, and SIP trunks.

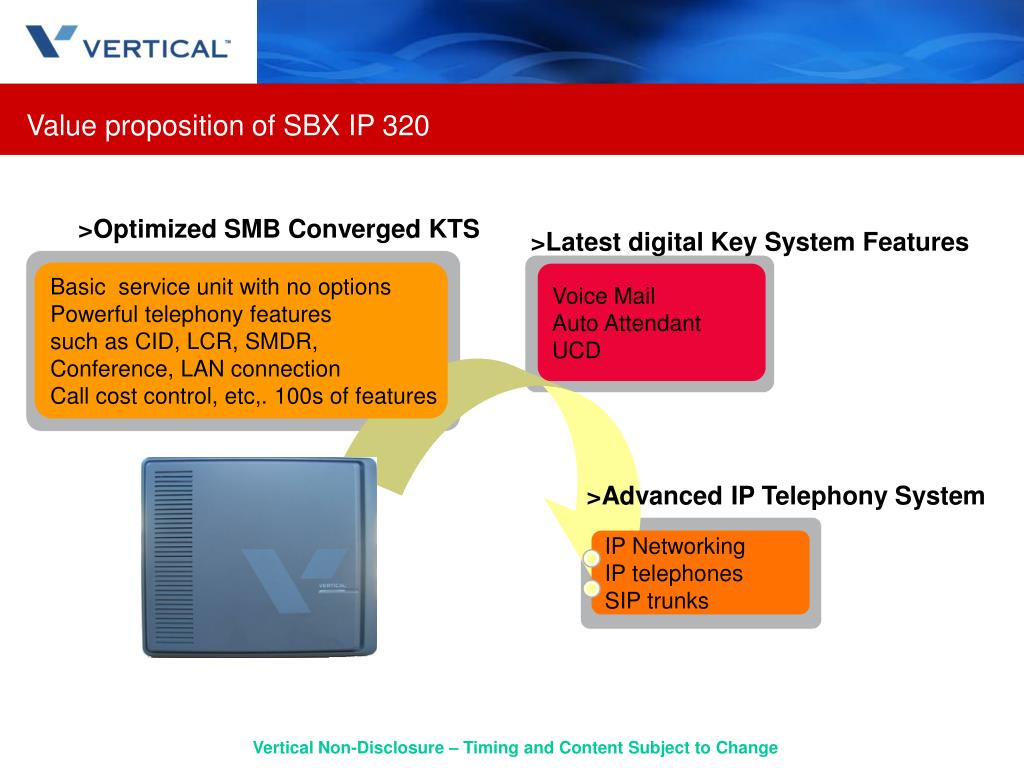

  5. Value proposition of SBX IP 320 >Optimized SMB Converged KTS >Latest digital Key System Features Basic service unit with no options Powerful telephony features such as CID, LCR, SMDR, Conference, LAN connection Call cost control, etc,. 100s of features Voice Mail Auto Attendant UCD >Advanced IP Telephony System IP Networking IP telephones SIP trunks

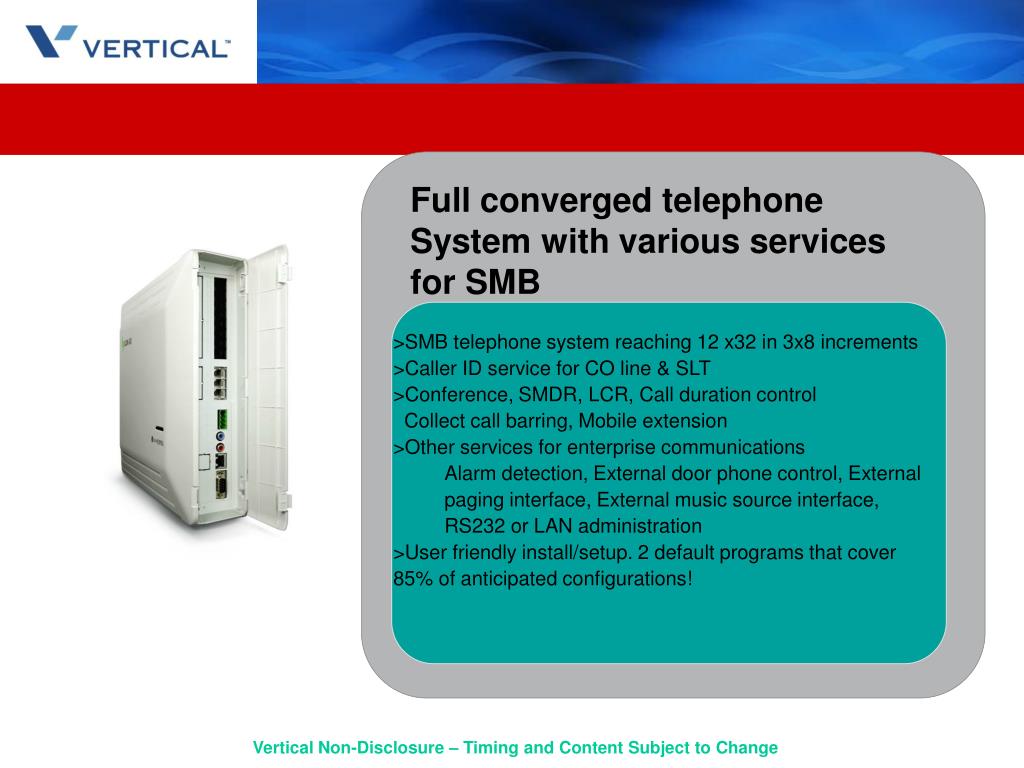

  6. Full converged telephone System with various services for SMB • >SMB telephone system reaching 12 x32 in 3x8 increments • >Caller ID service for CO line & SLT • >Conference, SMDR, LCR, Call duration control • Collect call barring, Mobile extension • >Other services for enterprise communications • Alarm detection, External door phone control, External paging interface, External music source interface, RS232 or LAN administration • >User friendly install/setup. 2 default programs that cover 85% of anticipated configurations!

  7. Latest digital key system providing advanced optional features • >Built-in type auto attendant/voice mail service • >4 ports / 2 hours • On touch record, call screen, notification • >Remote system access (LAN, Modem) for maintenance with GUI interface program • > Hybrid ports can be wired either as digital or analog extension

  8. IP enabled telephone system >IP Endpoint support (teleworker) >IP Networking for multiple office connectivity >SIP trunk capability

  9. Sales Points

  10. Optimized SMB Hybrid KTSFlexible configuration Digital Extension 32 Ext. Analog Extension - SLT, FAX PSTN Max. 12 Analog CO Simplified Configuration for Operation & Expansion • Full hybrid extension, station ports can be configured as digital OR SLT • Automatic fax tone detection for PSTN • Card expansion in each cabinet (3/08>6/16>9/24>12>32)

  11. Optimized SMB Hybrid KTSAdvanced built-in services – CID display • Caller ID display on digital & analog extensions • CID detection (DTMF, FSK) from PSTN line • CID distribution by ring assignment, follows call transfer • CID for single line extensions 123-4567 CID SLT Call Transfer PSTN 123-4567 Digital Keyset 123-4567

  12. Optimized SMB Hybrid KTSAdvanced built-in services – Conference • Simplified Collaboration • Conference room – 15 users/9 conference rooms • Optional password entry • Attendant station can view # of parties in room, cancel • Conference – multi-line conference, add-on conference Mobile Network Ext. 108 DISA PSTN Ext. 101 Conference Room #1~#9 Ext. 100

  13. Optimized SMB Hybrid KTSUser friendly administration Digital Terminal Admin • On-site & off-site Maintenance – RS-232c, Modem, Ethernet • Telephone programming • Off line, on line programming (client program) • diagnostics, s/w upgrade, PC admin • User Tools! • Speed editor for speed dial • User-level admin program – adjustable level program Data Network Maintenance Console Off-site (Remote) Maintenance PSTN On-site maintenance Dial-up Connection

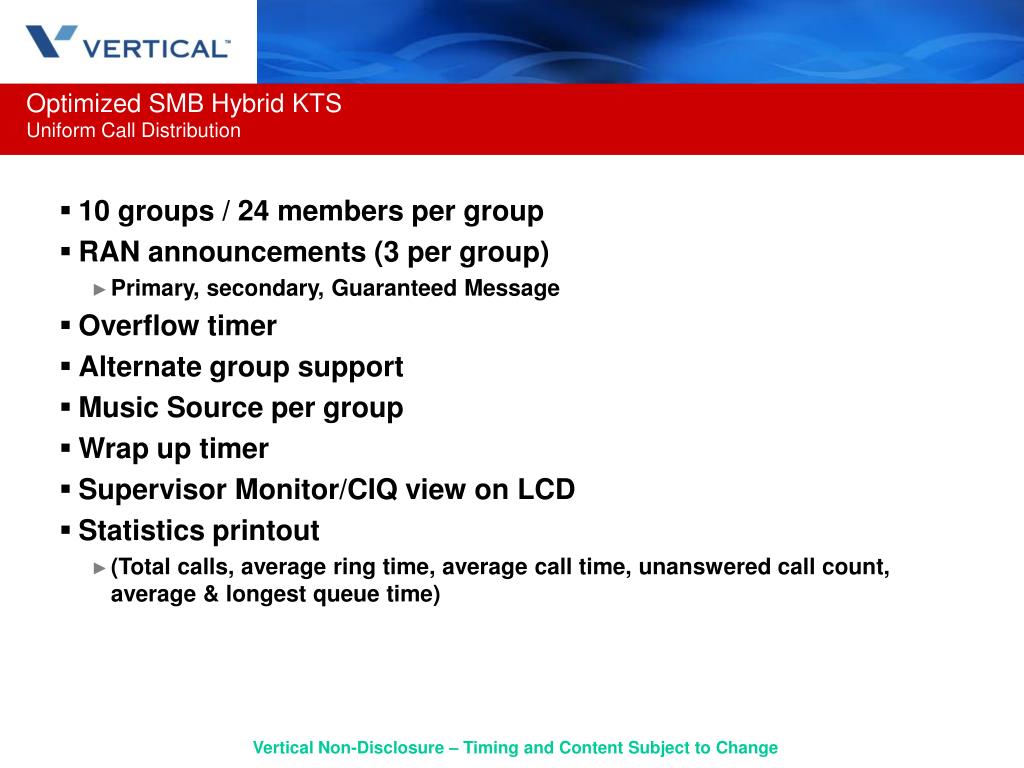

  14. Optimized SMB Hybrid KTSUniform Call Distribution • 10 groups / 24 members per group • RAN announcements (3 per group) • Primary, secondary, Guaranteed Message • Overflow timer • Alternate group support • Music Source per group • Wrap up timer • Supervisor Monitor/CIQ view on LCD • Statistics printout • (Total calls, average ring time, average call time, unanswered call count, average & longest queue time)

  15. Optimized SMB Hybrid KTSVoice Mail / Auto Attendant • 4 port / 2 hour capacity • VMIB can be used as RAN announcement • CCR routing, 3 levels route to station or hunt group • Day/Night/Weekend greeting types • Auto schedule • One-touch record, call screen, outbound notification, Caller ID callback • Integrated administration • Greetings and setup • TUI and GUI

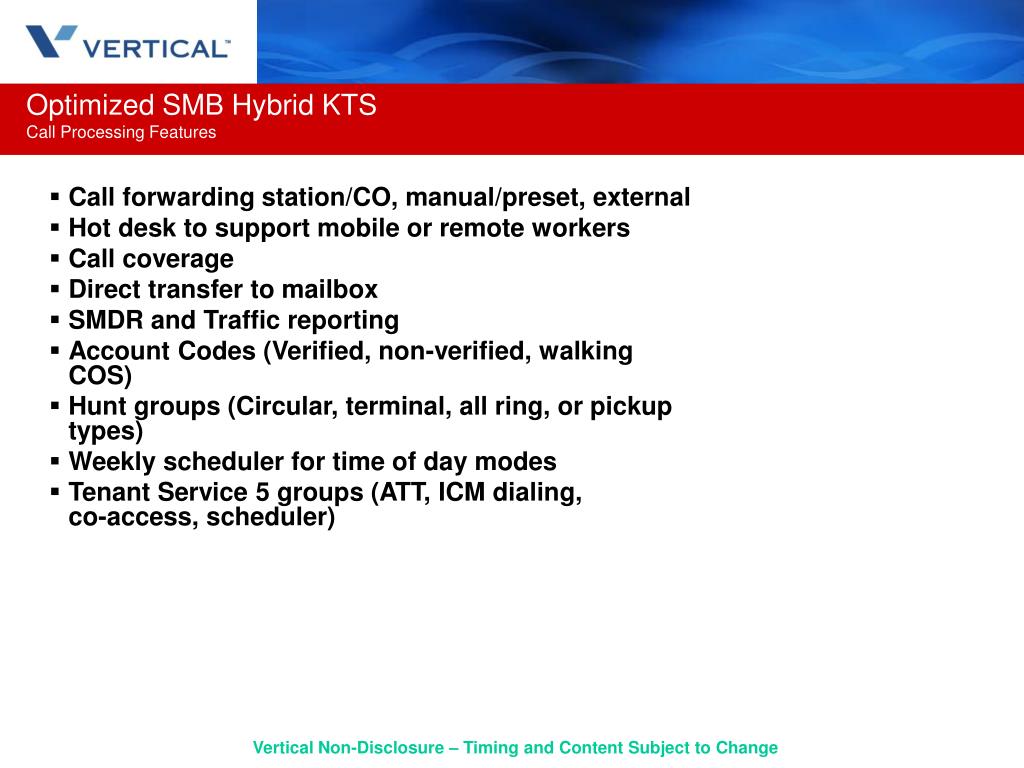

  16. Optimized SMB Hybrid KTSCall Processing Features • Call forwarding station/CO, manual/preset, external • Hot desk to support mobile or remote workers • Call coverage • Direct transfer to mailbox • SMDR and Traffic reporting • Account Codes (Verified, non-verified, walking COS) • Hunt groups (Circular, terminal, all ring, or pickup types) • Weekly scheduler for time of day modes • Tenant Service 5 groups (ATT, ICM dialing, co-access, scheduler)

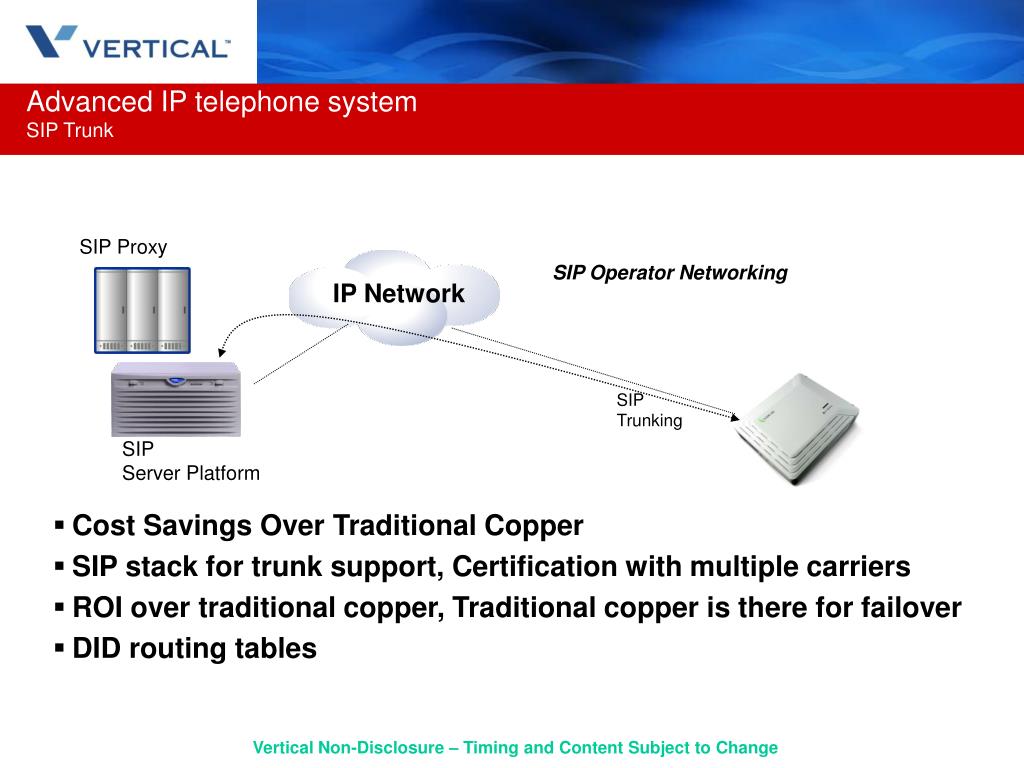

  17. Advanced IP telephone systemSIP Trunk • Cost Savings Over Traditional Copper • SIP stack for trunk support, Certification with multiple carriers • ROI over traditional copper, Traditional copper is there for failover • DID routing tables SIP Proxy SIP Operator Networking IP Network SIP Trunking SIP Server Platform

  18. Advanced IP telephone systemIP Switch for IP Extensions IP Phone • Max. 8 Channels IP Switch (4 channel VOIP card + 4 ch. VOIP exp. Card) • QoS (Diffserv), G.711, G.723.1, G.729,G.729A , NAT traversal • IP Soft phone – PC version • Remote IP extension – Max. 16 (does not decrement from digital station count) • Utilizes 3808/3824 IP telephones IP Phone LAN IP Network Remote Extension IP Phone IP Soft-phone PC IP Soft-phone Lap TOP PC

  19. Advanced IP telephone systemIP Networking • IP Networking • Net Call • Identification Service • Transfer • Call Forward • Conference • Do-Not-Disturb (DND) • CO Transit – In / Out • Message Waiting Indication • Absent Text Message • Centralized VM / Attendant • Centralized SMDR for Transit Call • Busy Lamp Field (BLF) • Net Follow-Me Forward Branch #1 Branch #N (Max. 72 branches) IP Networking Centralized ATD BLF Manager Headquarters

  20. Product Components

  21. Product Components Key Service Unit (BKSU, EKSU) >Basic configuration - BKSU >Line/Ext. interface : 3 Analog PSTN & 1 digital+7 Hybrid Ext. >PSU with ring generator >Other service units .1 Power failure back-up .Battery Back-up circuit .1 External Paging, 1 MOH interface .1 RS-232C .1 Alarm, 1 relay .RJ-45 for Ethernet connection! Basic KSU >Basic configuration- EKSU >Line/Ext. interface : 3 Analog PSTN & 8 Hybrid Ext. >PSU with ring generator >Other service units .1 Power failure back-up .Battery Back-up circuit Expansion KSU

  22. Product Components CO Line and Hybrid Board (3 CO + 8 HYB) External. • Provides 3 circuits Loop start CO line interface. • DTMF or pulse signaling to line • Loop current detection • FSK & DTMF CID detection. • Call progress tone detections. • PFT circuit [CO1  the last SLT port (STA8)] Internal. • Provides 8 digital Stations or 8 SLT station circuits. • FSK & DTMF CID detection and Generator. • +36V Power Circuit for SLT feeding • SLT feeding Current is 20mA at 600ohm loop impedance.

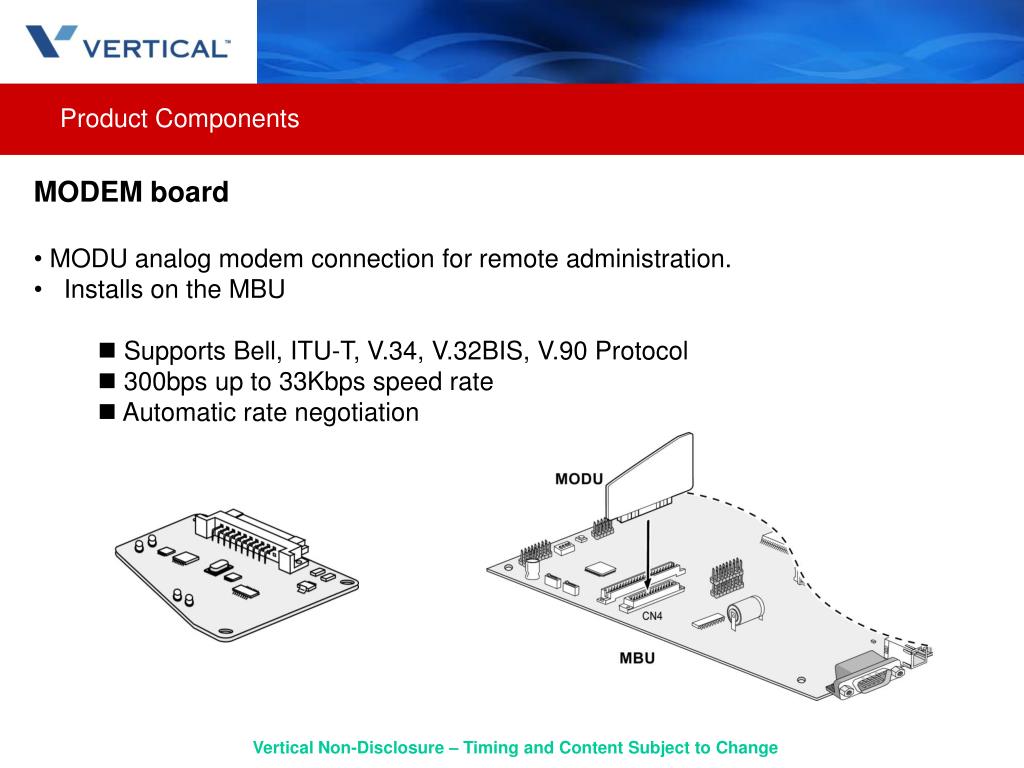

  23. Product Components • MODEM board • MODU analog modem connection for remote administration. • Installs on the MBU •  Supports Bell, ITU-T, V.34, V.32BIS, V.90 Protocol •  300bps up to 33Kbps speed rate •  Automatic rate negotiation

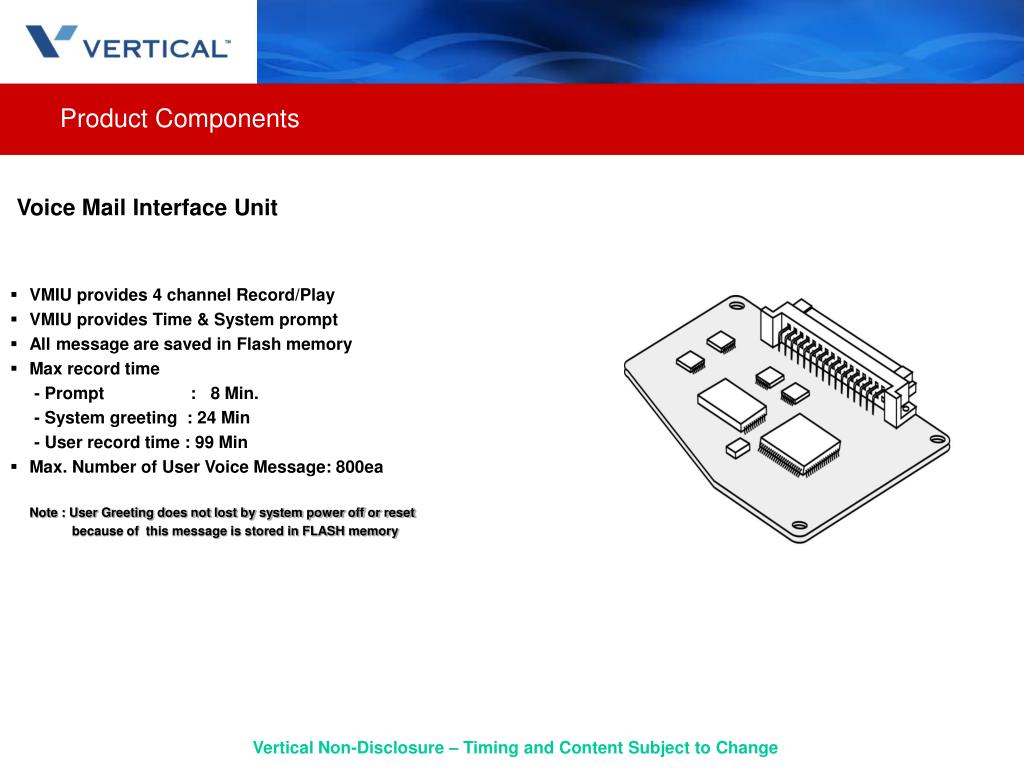

  24. Product Components Voice Mail Interface Unit • VMIU provides 4 channel Record/Play • VMIU provides Time & System prompt • All message are saved in Flash memory • Max record time - Prompt : 8 Min. • - System greeting : 24 Min • - User record time : 99 Min • Max. Number of User Voice Message: 800ea • Note : User Greeting does not lost by system power off or reset • because of this message is stored in FLASH memory

  25. Product Components Voice over Internet Protocol Interface Board • VOIB can be installed on the basic MBU • Provides the Ethernet interface for S/W applications and VoIP features . • Optional VoIP daughter board.(VOIU) • Maximum Capacity: 8 channels • -VOIB provides four(4) VoIP channels. • -VOIU provides four(4) VoIP channels.

  26. Product Capacities

  27. Product Capacities

  28. Product Description and Part Numbers

  29. Product Components Digital Keysets 8-button entry level 24-button executive LDP-DPB Door phone

  30. Summary • Packaged & priced competitively for small businesses • Cost-effective feature-rich converged platform • Feature Rich • Creates a professional image for smaller organizations with Voicemail, Auto Attendant • Future-Ready with IP Built-in • Provides advanced functionality to support workplace or growth requirements • 5 Year Warranty! • All components • Coming Soon! • Q1/2008
