Multiplexor Prepared by: Careene McCallum-Rodney
Introduction • A multiplexeror mux is a device that performs multiplexing. • It selects one of many analog or digital input signals and outputs that into a single line. • An electronic multiplexer makes it possible for several signals to share one expensive device or other resource, • for example, one A/D converter or one communication line, instead of having one device per input signal.
Introduction • A multiplexor is a selector. The purpose of the multiplexor is to select one of the inputs and output the value stored at its location.
Multiplexor’s inputs • It has more than one inputs. • The number inputs should amount to a power of two. • Hence, you can have 2 inputs, 4 inputs, 8 inputs, 16 inputs, 32 inputs, and so on.

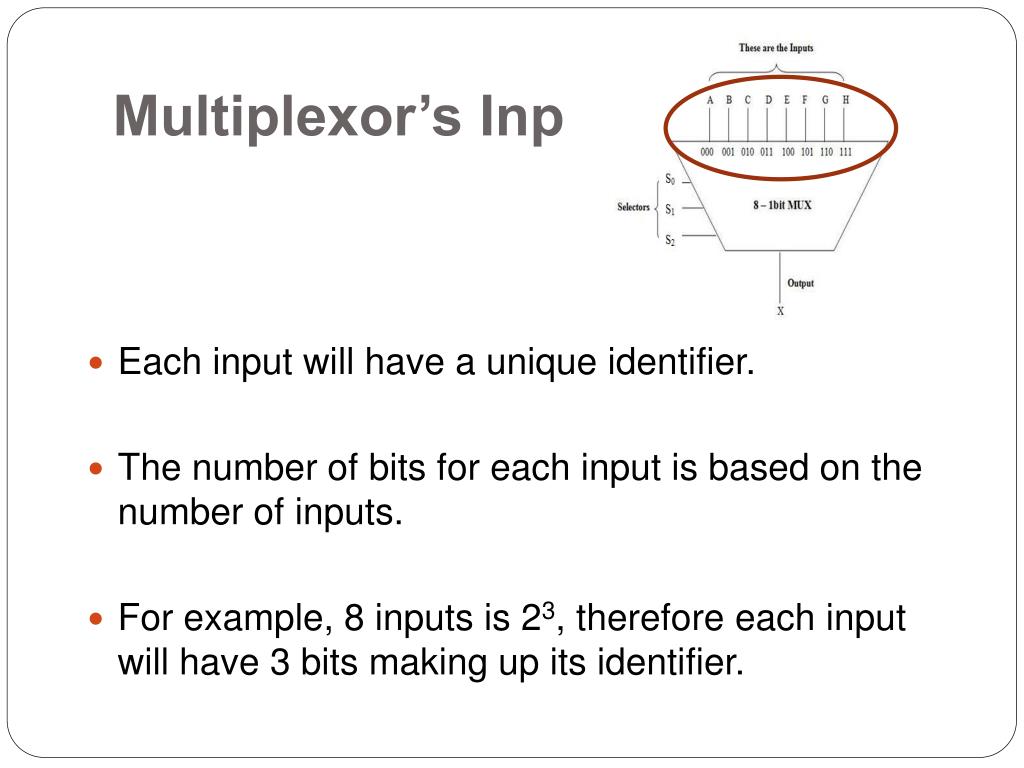

Multiplexor’s Input • Each input will have a unique identifier. • The number of bits for each input is based on the number of inputs. • For example, 8 inputs is 23, therefore each input will have 3 bits making up its identifier.
Multiplexor’s Output • Therefore, a multiplexor will have ONLY ONE OUTPUT.

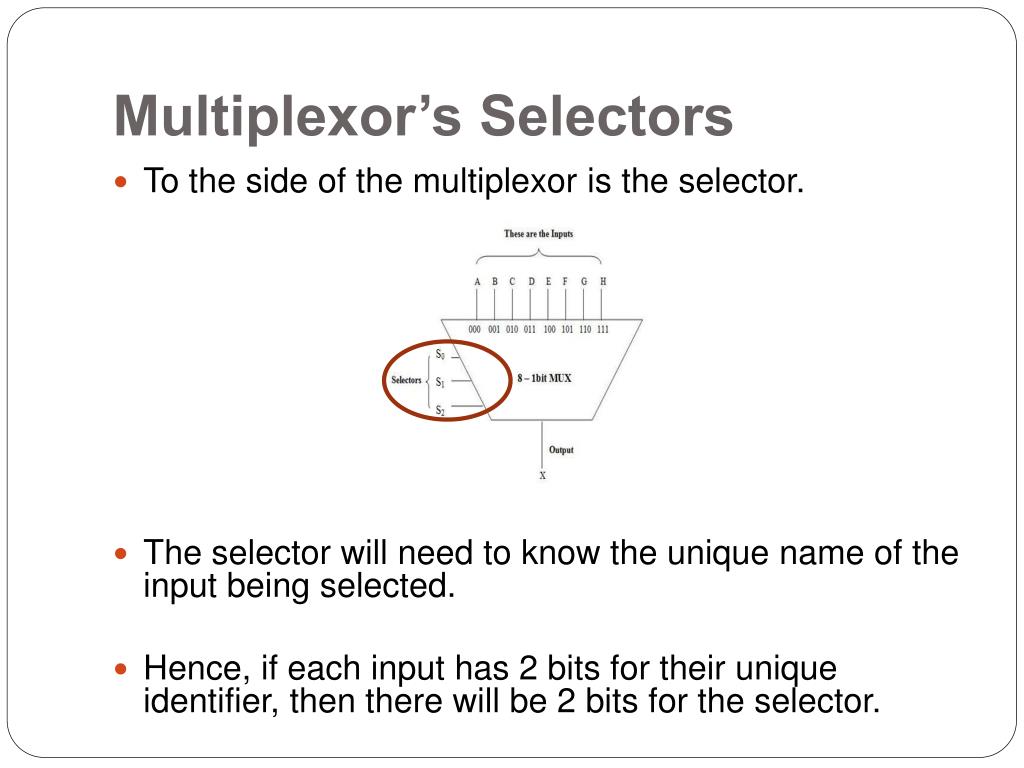

Multiplexor’s Selectors • To the side of the multiplexor is the selector. • The selector will need to know the unique name of the input being selected. • Hence, if each input has 2 bits for their unique identifier, then there will be 2 bits for the selector.

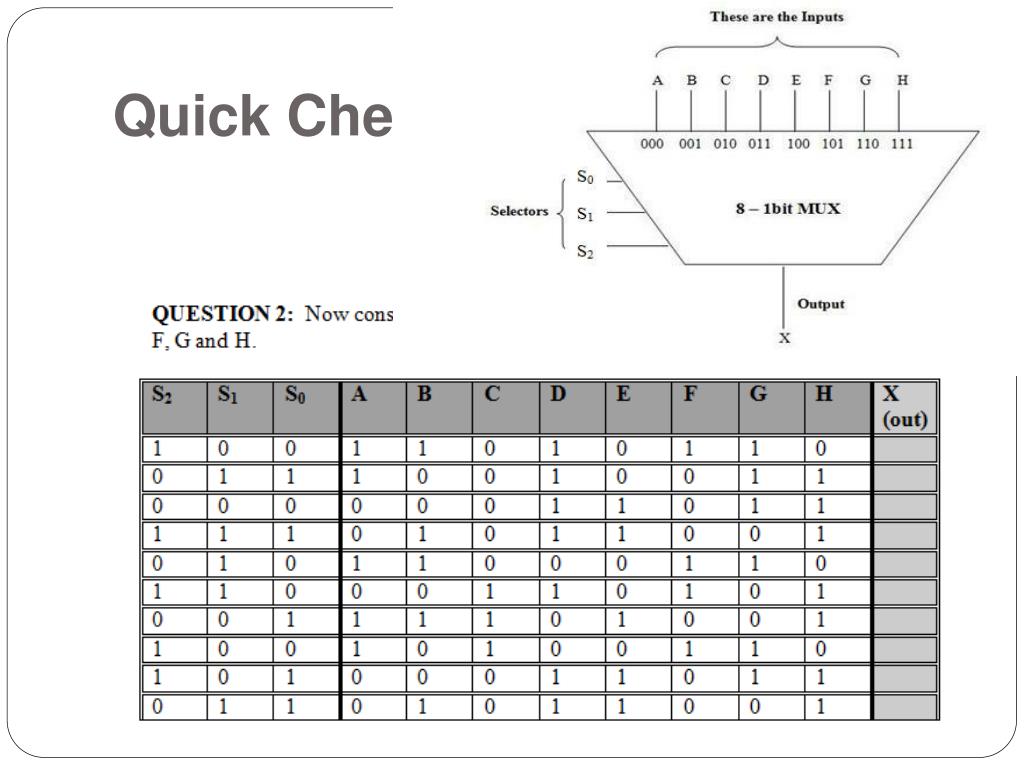

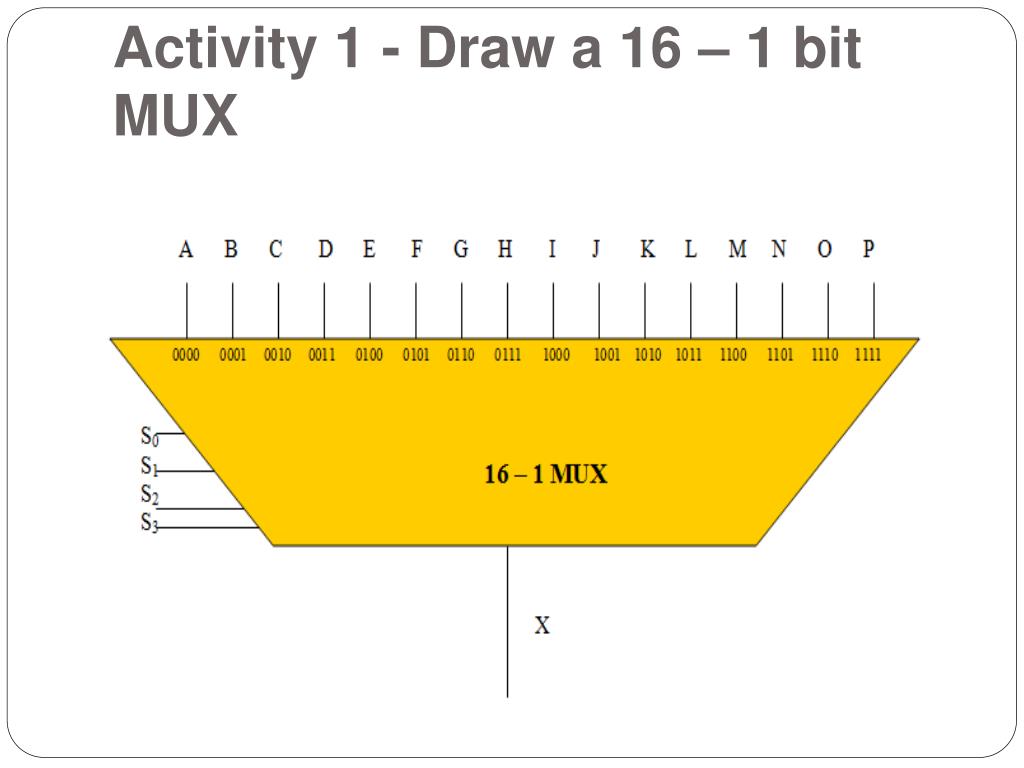

Quick Check G B F A
