Presentation Transcript


I vsepr valence shell electron pair repulsion electron pairs repel each other

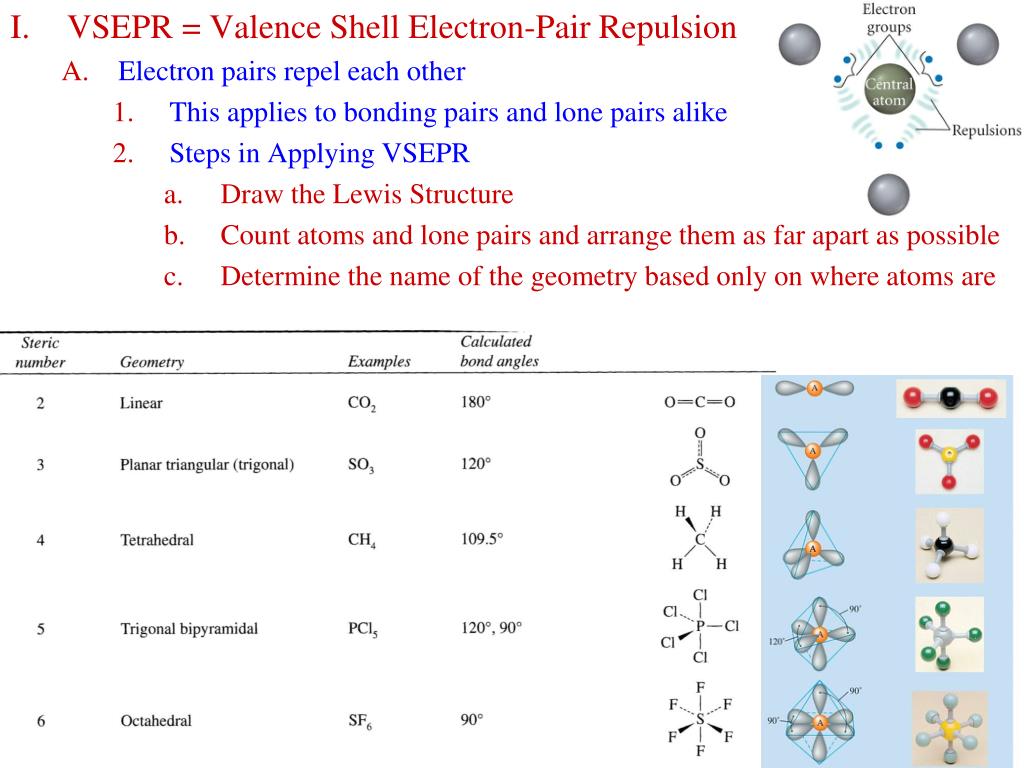

  • I.VSEPR = Valence Shell Electron-Pair Repulsion

    • Electron pairs repel each other

      • This applies to bonding pairs and lone pairs alike

      • Steps in Applying VSEPR

        • Draw the Lewis Structure

        • Count atoms and lone pairs and arrange them as far apart as possible

        • Determine the name of the geometry based only on where atoms are


I vsepr valence shell electron pair repulsion electron pairs repel each other

  • B.Complications to VSEPR

    • Lone pairs count for arranging electrons, but not for naming geometry

    • Example: NH3 (ammonia)

    • Lone pairs are larger than bonding pairs, resulting in adjusted geometries

      • Bond angles are “squeezed” to accommodate lone pairs

Trigonal pyramidal

Tetrahedral


I vsepr valence shell electron pair repulsion electron pairs repel each other

  • b.Lone pairs must be as far from each other as possible

  • 4.Double and triple bonds are treated as only 1 pair of electrons


  • I vsepr valence shell electron pair repulsion electron pairs repel each other

    • 5.Names for and examples of complicated VSEPR Geometries

    linear

    trigonalplanar

    bent

    trigonal pyramidal

    tetrahedral

    bent

    trigonalbipyramidal.

    T-shaped

    linear

    see-saw

    octahedral

    square pyramidal

    square planar


    Ii hybridization

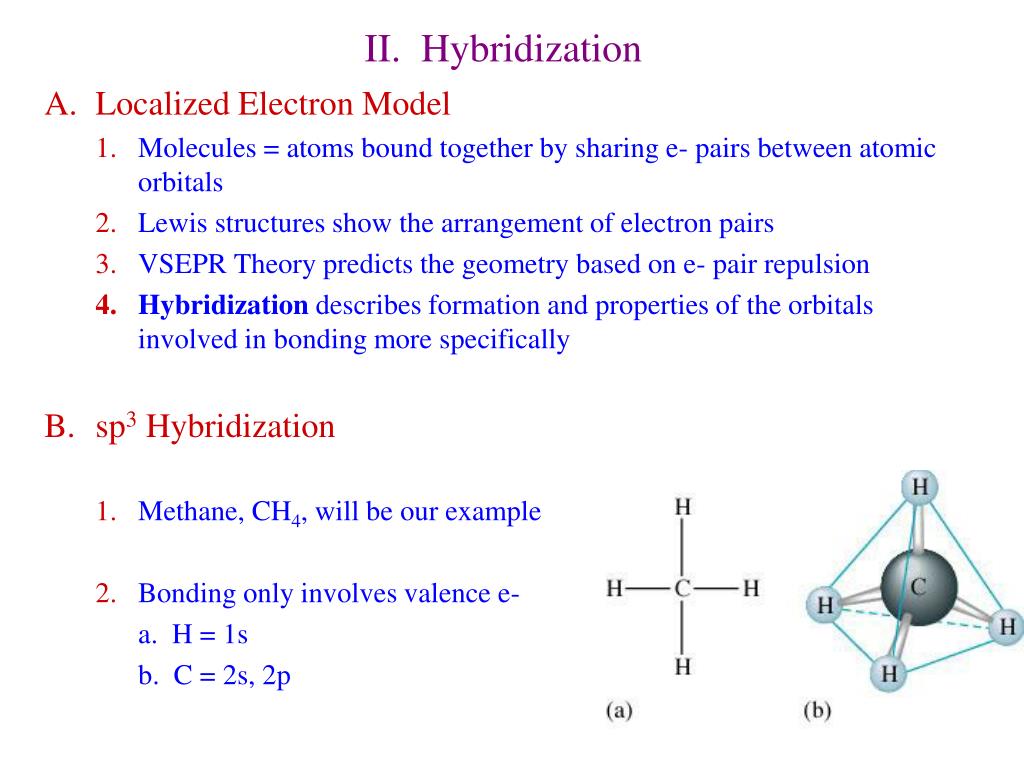

    II. Hybridization

    • Localized Electron Model

      • Molecules = atoms bound together by sharing e- pairs between atomic orbitals

      • Lewis structures show the arrangement of electron pairs

      • VSEPR Theory predicts the geometry based on e- pair repulsion

      • Hybridization describes formation and properties of the orbitals involved in bonding more specifically

    • sp3 Hybridization

      • Methane, CH4, will be our example

      • Bonding only involves valence e-

      • a. H = 1s

      • b. C = 2s, 2p


    I vsepr valence shell electron pair repulsion electron pairs repel each other

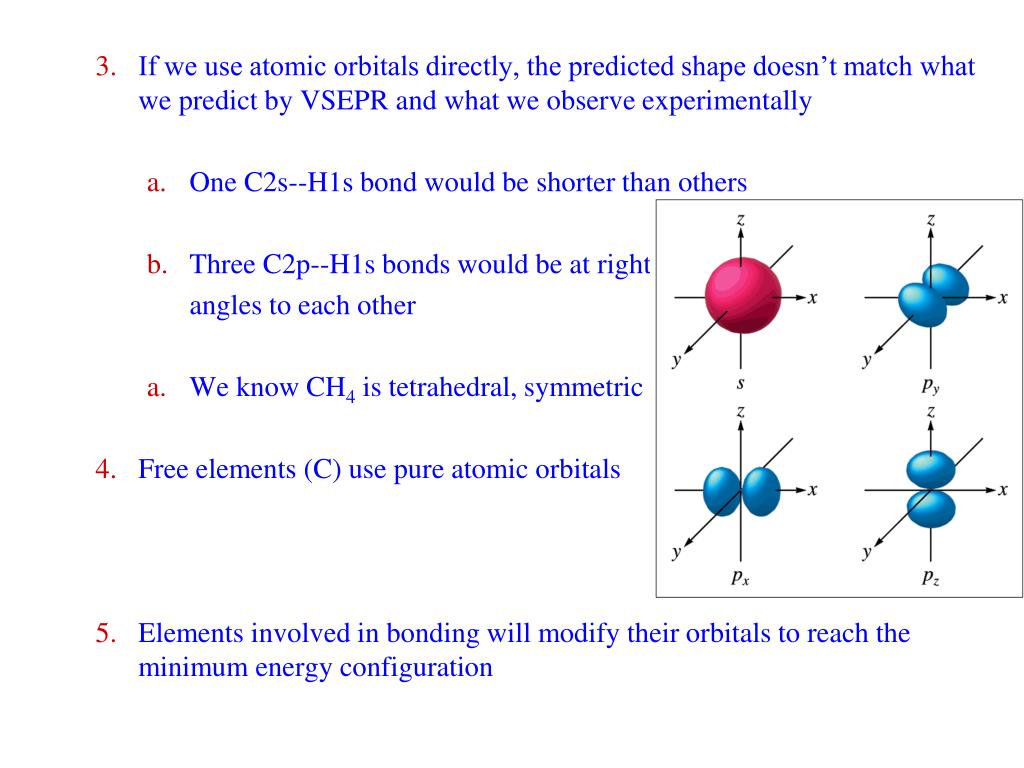

    • If we use atomic orbitals directly, the predicted shape doesn’t match what we predict by VSEPR and what we observe experimentally

      • One C2s--H1s bond would be shorter than others

      • Three C2p--H1s bonds would be at right

      • angles to each other

      • We know CH4 is tetrahedral, symmetric

    • Free elements (C) use pure atomic orbitals

    • Elements involved in bonding will modify their orbitals to reach the minimum energy configuration


    I vsepr valence shell electron pair repulsion electron pairs repel each other

    • When C bonds to four other atoms, it hybridized its 2s and 2p atomic orbitals to form 4 new sp3 hybrid orbitals

      • The sp3 orbital shape is between 2s/2p; one large lobe dominates

      • When you hybridize atomic orbitals, you always get an equal number of new orbitals


    I vsepr valence shell electron pair repulsion electron pairs repel each other

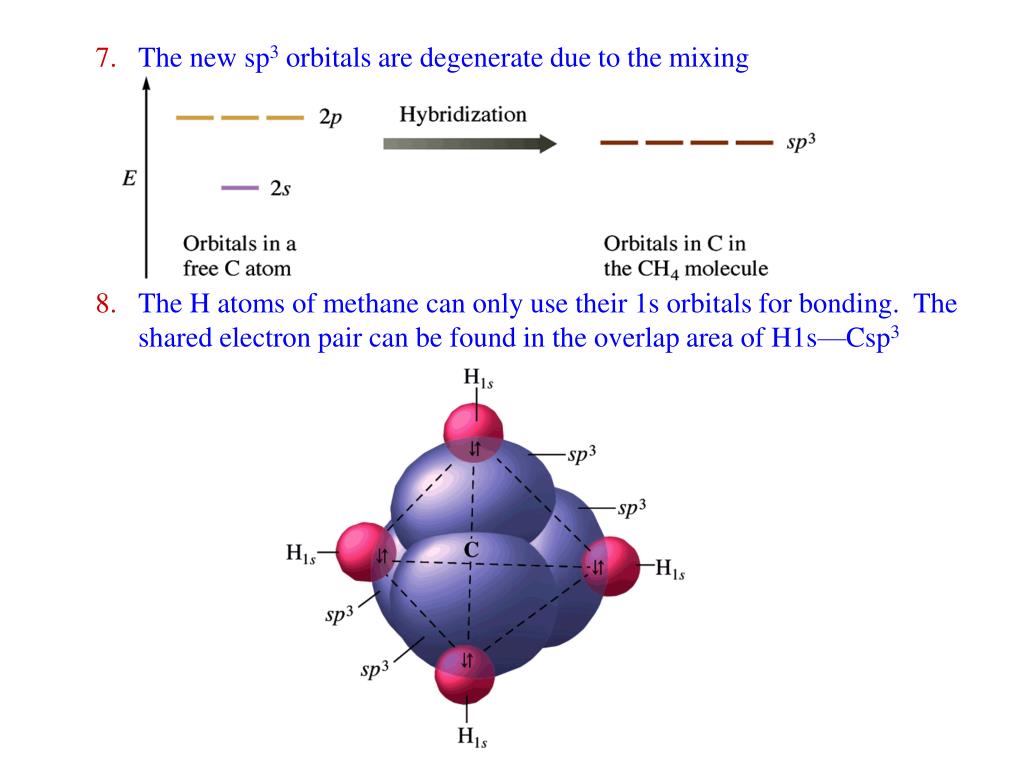

    • The new sp3 orbitals are degenerate due to the mixing

    • The H atoms of methane can only use their 1s orbitals for bonding. The shared electron pair can be found in the overlap area of H1s—Csp3


    I vsepr valence shell electron pair repulsion electron pairs repel each other

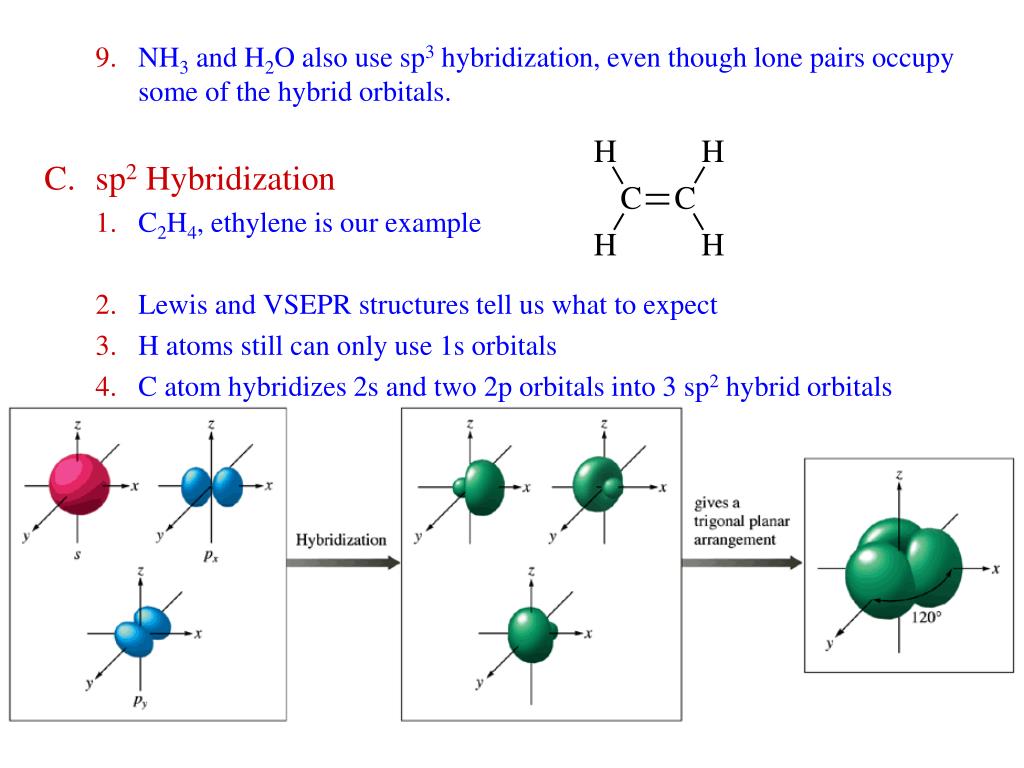

    • NH3 and H2O also use sp3 hybridization, even though lone pairs occupy some of the hybrid orbitals.

  • sp2 Hybridization

    • C2H4, ethylene is our example

    • Lewis and VSEPR structures tell us what to expect

    • H atoms still can only use 1s orbitals

    • C atom hybridizes 2s and two 2p orbitals into 3 sp2 hybrid orbitals


  • I vsepr valence shell electron pair repulsion electron pairs repel each other

    • The new sp2 orbitals are degenerate and in the same plane

    • One 2p orbital is left unchanged and is perpendicular to that plane

    • One C—C bond of ethylene forms by overlap of an sp2 orbital from each of the two sp2 hybridized C atoms. This is a sigma (s) bond because the overlap is along the internuclear axis.

    • The second C—C bond forms by overlap of the remaining single 2p orbital on each of the carbon atoms. This is a pi (p) bond because the overlap is perpendicular to the internuclear axis.


    I vsepr valence shell electron pair repulsion electron pairs repel each other

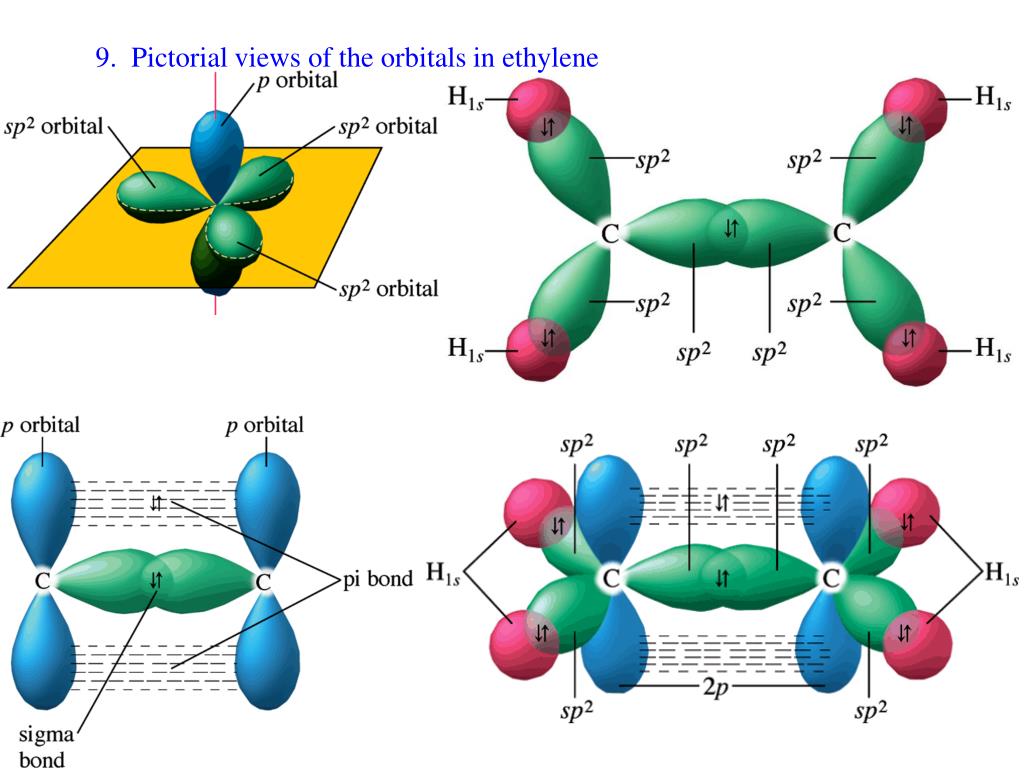

    • 9. Pictorial views of the orbitals in ethylene


    I vsepr valence shell electron pair repulsion electron pairs repel each other

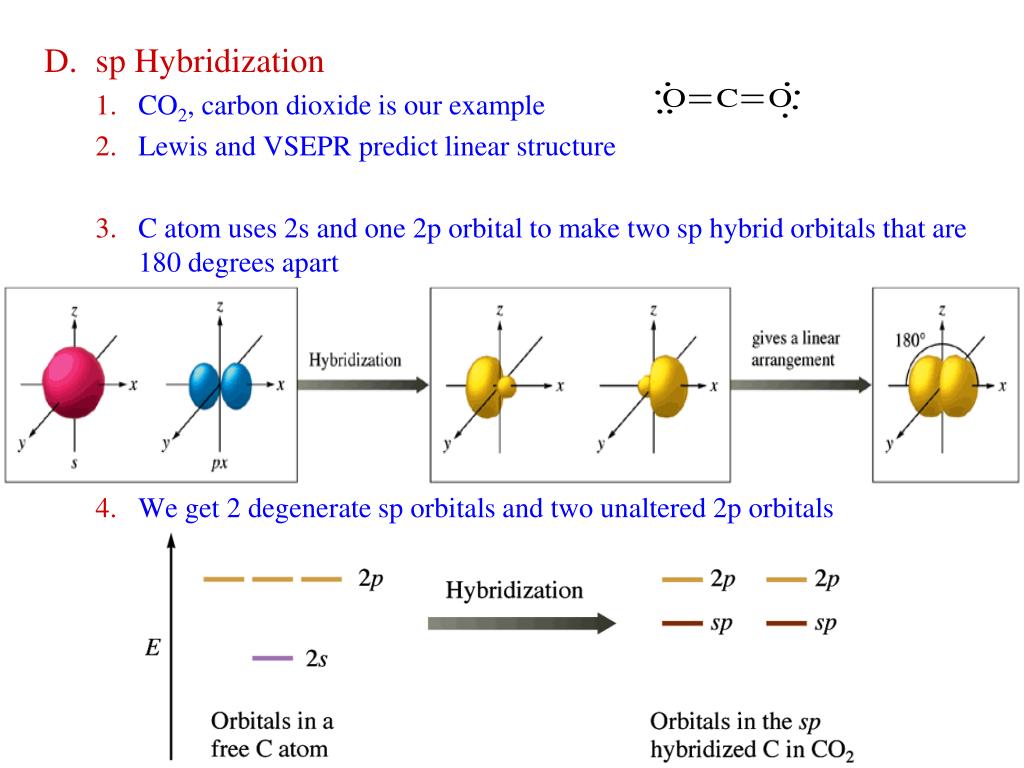

    • sp Hybridization

      • CO2, carbon dioxide is our example

      • Lewis and VSEPR predict linear structure

      • C atom uses 2s and one 2p orbital to make two sp hybrid orbitals that are 180 degrees apart

      • We get 2 degenerate sp orbitals and two unaltered 2p orbitals


    I vsepr valence shell electron pair repulsion electron pairs repel each other

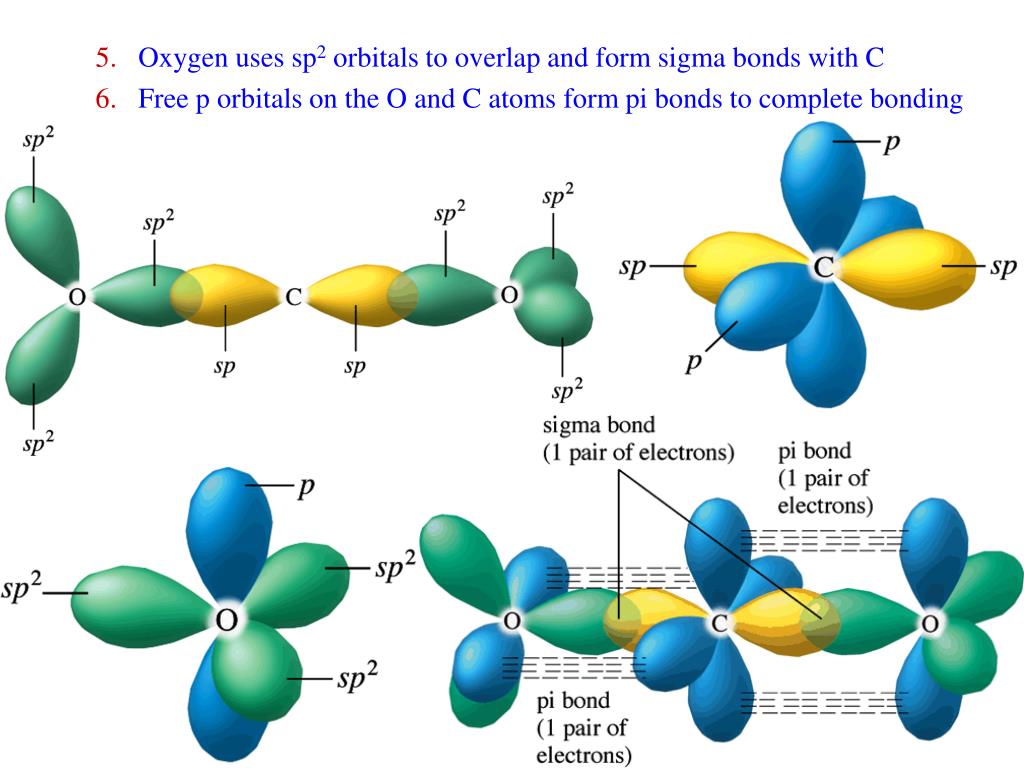

    • Oxygen uses sp2 orbitals to overlap and form sigma bonds with C

    • Free p orbitals on the O and C atoms form pi bonds to complete bonding


    I vsepr valence shell electron pair repulsion electron pairs repel each other

    • d-orbitals can also be involved in hybridization

      • dsp3 hybridization in PCl5

      • d2sp3 hybridization in SF6


    I vsepr valence shell electron pair repulsion electron pairs repel each other

    F. The Localized Electron Model

    1.Draw the Lewis structure(s)

    2.Determine the arrangement of electron pairs (VSEPR model).

    3.Specify the necessary hybrid orbitals.


    I vsepr valence shell electron pair repulsion electron pairs repel each other

    • Polar Bonds

      • A.Any bond between atoms of different electronegativities is polar

        • Electrons concentrate on one side of the bond

        • One end of the molecule is (+) and one end is (-)

      • B.Complex molecules: vector addition of all bond dipoles


    I vsepr valence shell electron pair repulsion electron pairs repel each other

    • Examples:

    • Polarity greatly effects molecular properties

    Oppositely charged ends of polar molecules

    Attract each other like opposite poles of magnets
