Laboratories and Materials Teaching Hardware-Software Co-Design

D.G. Beetner and H.J. Pottinger

Electrical and Computer Engineering

University of Missouri-Rolla


Outline

Outline

  • Background and Motivation

  • Overview

  • Introductory Example

  • Laboratory Exercises

  • Detailed Example

  • Evaluation


Background

Background

  • Hardware and software developed separately in past

  • Increasingly risky

    • Systems on a Chip

    • Short market windows

    • Difficult to partition hardware and software

  • Co-Design reduces number of prototypes and time-to-market

  • Rapidly growing demand


Background1

Background

  • Hardware-Software Co-design fundamental to digital systems design

  • Undergraduates in CpE, EE, and CS should be introduced to this concept

  • Developed software and laboratories which introduce Co-design at the junior level


Laboratory objective

Laboratory Objective

  • Teach concepts of microcontrollers and hardware-software co-design

    • Hardware-Software partitioning

    • Re-use of intellectual property (IP)

    • Hardware-Software co-simulation

    • Embedded software in C and ASM

    • Communication with external devices

    • Real-time systems


Course design

Course Design

  • Associated course

    • Junior level

    • Focused on 8051 microcontroller

    • Mix of CpE, EE, and CS students

    • Lab is not required

  • Student background

    • C++

    • Electronic design automation tools

    • Rapid prototyping with FPGAs


Experiment outline

Experiment Outline

  • Develop and simulate software

  • Develop and simulate hardware

  • Co-simulate hardware and software

  • Verify design in hardware


Laboratory equipment

Laboratory Equipment

  • Keil Software Development Tools

    • C and ASM

    • 8051 software simulation

    • Free evaluation software


Laboratory equipment1

Laboratory Equipment

  • Mentor Graphics design automation tools

  • 8051 simulation model

    • Clock-cycle accurate

    • Executes compiler-generated code

    • Complete functionality


Laboratory equipment2

Laboratory Equipment

  • Mentor Graphics design automation tools

  • 8051 simulation model

    • Clock-cycle accurate

    • Executes compiler-generated code

    • Complete functionality


Laboratory equipment3

Laboratory Equipment

  • XS40 board by Xess corporation

    • 8031 microcontroller

    • Xilinx FPGA

    • VGA port

    • 7-segment LED

    • Generous pin-probe points


Experiments

Experiments

  • Several labs developed

    • Introduction to Hardware-Software Co-Simulation

    • Hardware-Software Co-Verification

    • Extending the 8051 with External Hardware

    • Design with intellectual property: Creating a VGA display

    • Bi-directional serial communication with interrupts


Projects

Projects

  • Digital LCD alarm clock

  • Virtual pet

  • MP3 player controller

  • “Pong” game

  • Automatic pet feeder

  • Simon game


Introductory example 7segdisp

Introductory Example: 7SegDisp

  • Objectives:

    • Instructor’s overview of:

      • 8051 model usage

      • Co-verification methodology

    • Extension to exclusive VHDL approach

  • Implement:

    • 8051 address latch

    • Seven segment display output port


7segdisp overview

7SegDisp Overview

  • Similar to UMR Lab Exercise #4

    • A collage of labs 1, 4, and 5

    • Construct an eight bit latch for use as:

      • Address latch for 8051 expanded mode

      • Output port for seven segment display on XS40

    • Construct an address decoder for output port at 0x7F55

    • Interface to XS40 starting frame model

    • Write and test C program to display message

    • Simulate entire system and test on XS40 hardware


Block diagram of 7segdisp

A(15:0)

P2

A

D

A15

CS

P0

D

OE

PSEN

Q

Sram

ALE

G

P0

D

Latch8

Q

PSEN

=7F55H

G

WRn

Display

Latch8

Decoder

8051

FPGA

Block Diagram of 7SegDisp


7segdisp specifications

7SegDisp Specifications

  • Must execute 8051 code from XS40 Sram

  • Sram is 32k bytes from 0x0000 to 0x7FFF

  • Latch data for seven segment display

  • Display port in xdata at address 0x7F55

  • Software to display “0123456789” continuously at one second intervals


Lab sequence overview

Lab Sequence Overview

  • Eight bit latch design

  • Intro to H/W S/W Co-simulation

  • Hardware verification of Gnome S/W

  • Extending the 8051

  • Single chip memory spaces for 8051

  • Design with IP – a VGA controller

  • Bidirectional Serial I/O using interrupts


Ex 1 eight bit latch design

Ex 1: Eight Bit Latch Design

  • 8-bit parallel port using an FPGA

  • Re-familiarize with Design Architect

  • Simulate hardware with Quicksim

  • Familiarization with XS40 board

  • Use a PC to provide stimulus to hardware

  • Compare hardware and simulation model response


Ex 2 intro to co simulation

Ex 2: Intro to Co-simulation

  • Write assembly program to multiply two 4-bit numbers

  • Hand assemble and create Intel hex file

  • Verify using a hardware model

  • Illustrate importance of simulation

  • Currently using Xess’ GNOME processor


Ex 3 hardware verification

Ex 3: Hardware Verification

  • Familiarization with XS40 Board

  • Tradeoffs between simulation and hardware testing

  • Use of oscilloscope and logic analyzer

  • ‘Fix’ unexpected change in hardware

  • Infer internal behavior by observing external signals


Ex 4 extending the 8051

Ex 4: Extending the 8051

  • Add address latch and external output port

  • Improve hardware-software design skills

  • Demultiplex 8051 address/data bus

  • Observe timing of 8051 bus signals

  • Introduce 8051 simulation model

  • More familiarization with XS40 board


Ex 5 single chip memory spaces

Ex 5: Single Chip Memory Spaces

  • Implement xdata and code space in SRAM

    • Xdata at 0x5000

    • Code at 0x0000

  • Write message display program in assembly language

  • Use of software development tools

  • Illustrate importance of hardware/software co-verification

  • Students write software and make small modification to previous hardware design

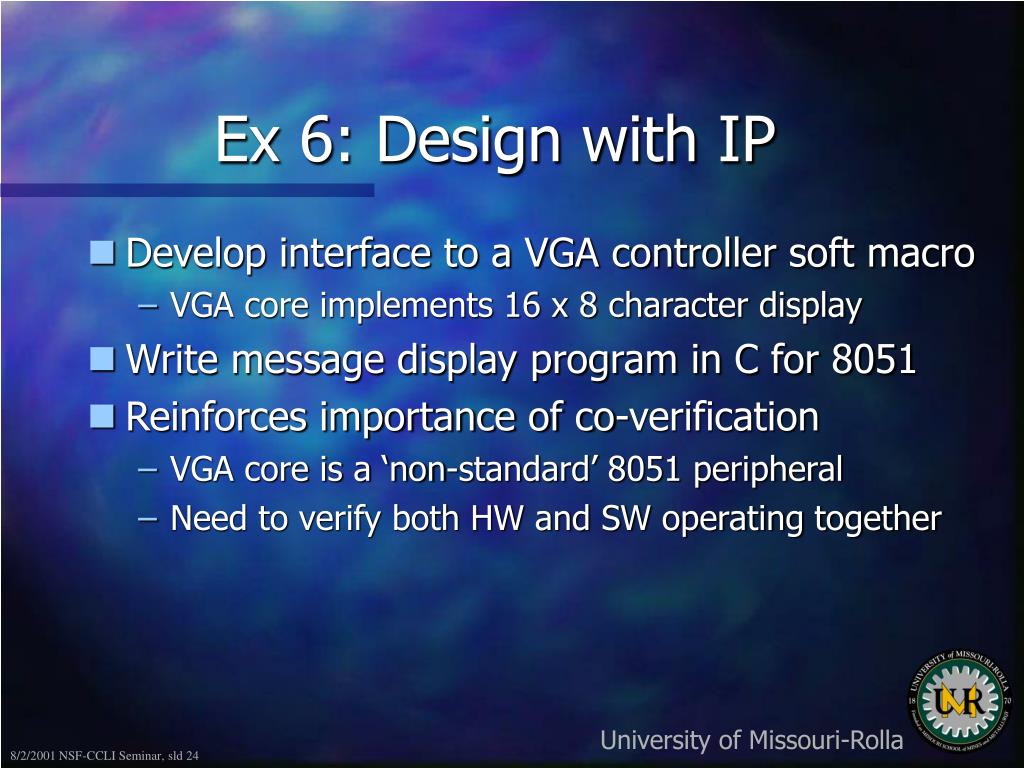

Ex 6 design with ip

Ex 6: Design with IP

  • Develop interface to a VGA controller soft macro

    • VGA core implements 16 x 8 character display

  • Write message display program in C for 8051

  • Reinforces importance of co-verification

    • VGA core is a ‘non-standard’ 8051 peripheral

    • Need to verify both HW and SW operating together


Ex 7 serial communication

Ex 7: Serial Communication

  • Bi-directional comm with two serial ports

  • Design system that can communicate with another group’s XS40 board

  • Use interrupts to service serial port

  • Design re-use (modification of lab 6)

  • Re-inforce co-verification techniques

  • Improve C programming skills


Hw sw co design process

Specification

Edit

Compile

Debug

Capture

Simulate

Integrate Hardware and Software

Place and Route

HW-SW Co-design Process

Hardware Verification


Hw sw co design process1

Keil vision:

  • IDE

  • C51

  • dScope

Specification

Edit

Compile

Debug

Capture

Simulate

Integrate Hardware and Software

Place and Route

HW-SW Co-design Process

Hardware Verification


Hw sw co design process2

Mentor:

  • Design Arch

  • Quicksim

Specification

Edit

Compile

Debug

Capture

Simulate

Integrate Hardware and Software

Place and Route

HW-SW Co-design Process

Hardware Verification


Hw sw co design process3

Specification

Edit

Compile

Debug

Capture

Simulate

Integrate Hardware and Software

Place and Route

HW-SW Co-design Process

Hardware Verification

QuicksimPro:

  • Quicksim &

  • Modeltech


Hw sw co design process4

Specification

Edit

Compile

Debug

Capture

Simulate

Integrate Hardware and Software

Place and Route

HW-SW Co-design Process

Hardware Verification

Xilinx

Alliance


Hello world program

Hello World Program

Specification:

Display each char of message for two seconds

With a one second pause in between

Seven segment display port at 0x7f55

Bit 0 is segment a, bit 6 is segment g

#define SEG7 XBYTE[0x7F55]

void main (){

static code char msgtxt[]= "0123456789";

char code *cptr;

TMOD=0x01; /* 16bit timer mode */

while (1) {

cptr= msgtxt;

while(*cptr){

SEG7= decode(*cptr++);

// pause between characters

#ifndef SIMULATION

delay(2);

SEG7= 0;

delay(1);

#endif

} /* while (*cptr) */

} /* while(1) */

}

Get next char

Lookup segment values

Pause if not simulating

no

Done?


Keil vision ide

Keil vision IDE


Keil vision debugger

Keil vision Debugger


Lab 4 starting frame

Lab 4 Starting Frame

  • Archive file with simulation model etc.

    • XS40 schematic model

      • 8051 model

      • 32k sram model

      • Clock, seven segment display, etc models

    • XC4005 FPGA starting frame

  • Hello world hex object file: hello.hex

  • Results of previous lab: eight bit latch


Xs40 schematic model

XS40 Schematic model


8051 model

8051 Model

  • 8051 Schematic symbol is linked to an underlying VHDL behavioral model


Sram model 1

Sram model (1)

Sram wrapper

Address map

Sram symbol


Sram model 2

Sram model (2)

  • SRAM model is a modified version of Andre Klindworth’s VHDL model


Xc4005 starting frame

XC4005 Starting Frame


Address latch sample solutions

Address latch sample solutions

Typical student solution

The answer book!


Sample solution for mydecoder

Sample solution for mydecoder


Finished fpga schematic model

Finished FPGA schematic model

  • Screen shot of finished xc4005


Closeup of finished schematic

Closeup of finished schematic


Linking program file to model

Linking program file to model

  • Closeup of file property, hello.hex, and dir listing


Qspro simulator

QSPro Simulator

  • Mixed Schematic and VHDL models

  • Gate level plus VHDL simulator

  • QSPro startup 


Qspro simulation environment

QSPro Simulation Environment

  • Screenshot of A typical simulation setup


8051 startup timing

8051 Startup Timing


7segdisp write cycle

7SegDisp Write Cycle

  • Screen shot of cycle showing a write to 7f55


Lab equipment

Lab Equipment

  • A picture of a typical lab setup


Comparison of hardware and simulation results

Comparison of Hardware and Simulation Results

Simulation trace

Scope trace


A vhdl based hw sw co design process

Specification

Edit

Compile

Debug

Edit

vsim

Integrate Hardware and Software

Place and Route

vcom

Logic

Synthesis

A VHDL-basedHW-SW Co-design Process

software

hardware

Hardware Verification


Evaluation

Evaluation

  • Technical accuracy of models

  • Educational effectiveness of labs


Evaluation of models

Evaluation of Models

  • Standard software-testing methodologies

    • White-box testing

    • ASM and VHDL testbenches

    • Code coverage (line coverage, decision coverage, etc)

  • Evaluation in lab by students and instructors

  • Bugs found and eliminated


Evaluation of labs

Evaluation of Labs

  • Compared students who took the lab VS those who did not

  • Students who took the lab:

    • Performed 33% better on evaluation exam

    • Received 20-30% higher final grade in lecture course

      • About 1 letter grades higher on tests

  • Little difference between students in other CpE courses


Acknowledgements

Acknowledgements

  • National Science Foundation Course Curriculum and Laboratory Improvement program, DUE-9952540

  • Mentor Graphics

  • Keil Software

  • Jim Frenzel, University of Idaho

  • Dave Van Den Bout, XESS Corp.

  • Xilinx


Mentor graphics higher education program hep

Mentor Graphics Higher Education Program (HEP)

  • Includes all of Mentor Graphics’ EDA tools

  • $2100 per year for 10 seats

  • Free training classes

  • Very active university support group

  • Contact: [email protected] post to [email protected]


Xilinx university program xup

Xilinx University Program (XUP)

Contact:

[email protected] http://www.xilinx.com/univ/


Questions comments

Questions/Comments ?

  • Submit questions/comments

    • Using “chat” screen

    • Via email:

      • [email protected]

      • [email protected]


  • Login
