  1. Campbell Biology CH 7 Cell Membranes & Transport

  2. Homeostasis • What is homeostasis? • How is homeostasis maintained in living cells? • Why is homeostasis needed in living cells? • What cell components are involved in maintaining homeostasis? U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  3. Cell Membrane Function • What does a cell membrane do for the cell? • How does the cell membrane allow the cell to maintain homeostasis? • What does it mean to be selectively permeable? • How does the cell membrane regulate the passage of materials in and out of the cell? U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  4. Cell Membrane: Lipid Bilayer U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  5. Cell Membrane: Embedded Proteins U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  6. Fluid Mosaic Model of CM U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  7. Cell Membrane Fluidity • How is the cell membrane fluid? • What factors affect membrane fluidity? • What evolutionary adaptations do we see in membrane lipid composition? • Cold Water Fish • Thermophiles • Wheat • Human U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  8. Cell Membrane Fluidity U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  9. Cell Membrane Fluidity & Adaptation U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  10. Cell Membrane: Proteins Types of Membrane Proteins Transmembrane Structure • Integral (Transmembrane) are found embedded in the lipid bilayer. • Peripheral are found on the surface of the lipid bilayer. U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  11. Cell Membrane: Membrane Proteins U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  12. 6 Main Functions Membrane Protein U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  13. 6 Functions of Membrane Proteins U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  14. Receptor Proteins & Cell Recognition Cell-Cell Recognition HIV Tricking Cell Receptors • Short carbohydrate chains covalently bonded to: • Lipids - Glycolipid • Proteins – Glycoprotein • Example: A, B, & O Blood Type Proteins U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  15. Synthesis of Membrane Components U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  16. Bozeman Science Cell Membrane • http://www.bozemanscience.com/015-cell-membrane U2-3 Describe the structure and function of cells, including organelles and cell membrane.

  17. Transport: How Molecules Move Across the Cell Membrane U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  18. Passive Transport = Diffusion Across Cell Membrane without Energy (ATP) • Diffusion of Molecules: • How do molecules diffuse? • From an area of high molecule concentration to an area of low molecule concentration. • Down the concentration gradient • Must be molecules that can pass through the lipid bilayer: Gases, Lipids, Small Molecules, Water • Paper Wad Diffusion Model U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

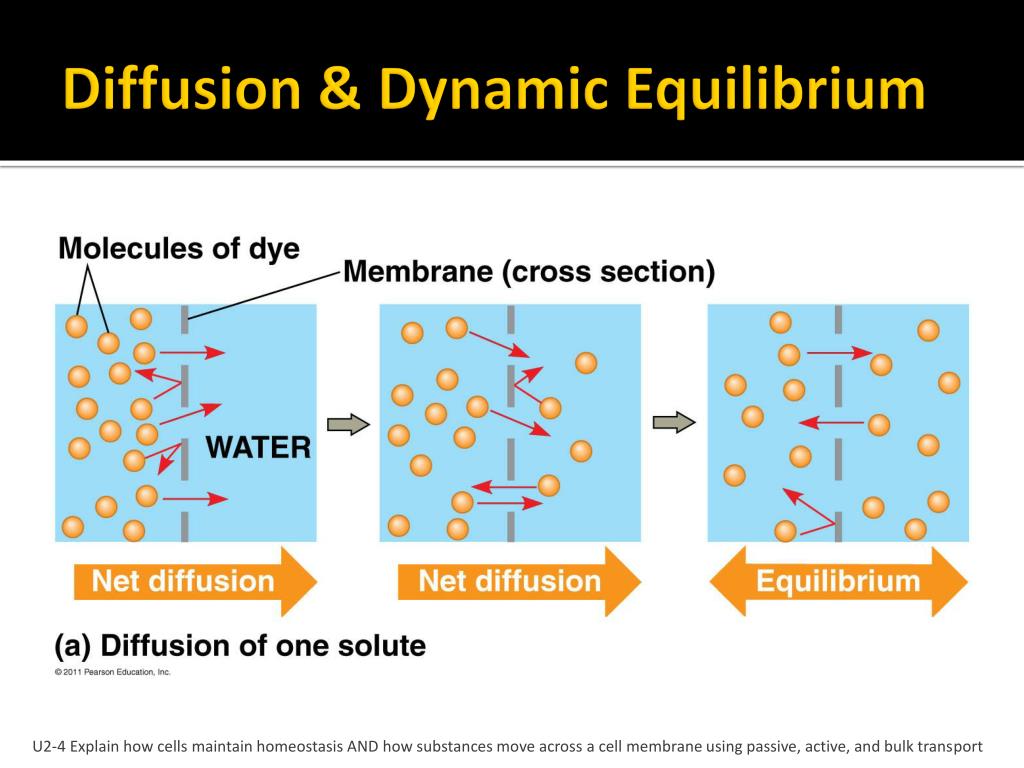

  19. Diffusion & Dynamic Equilibrium U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

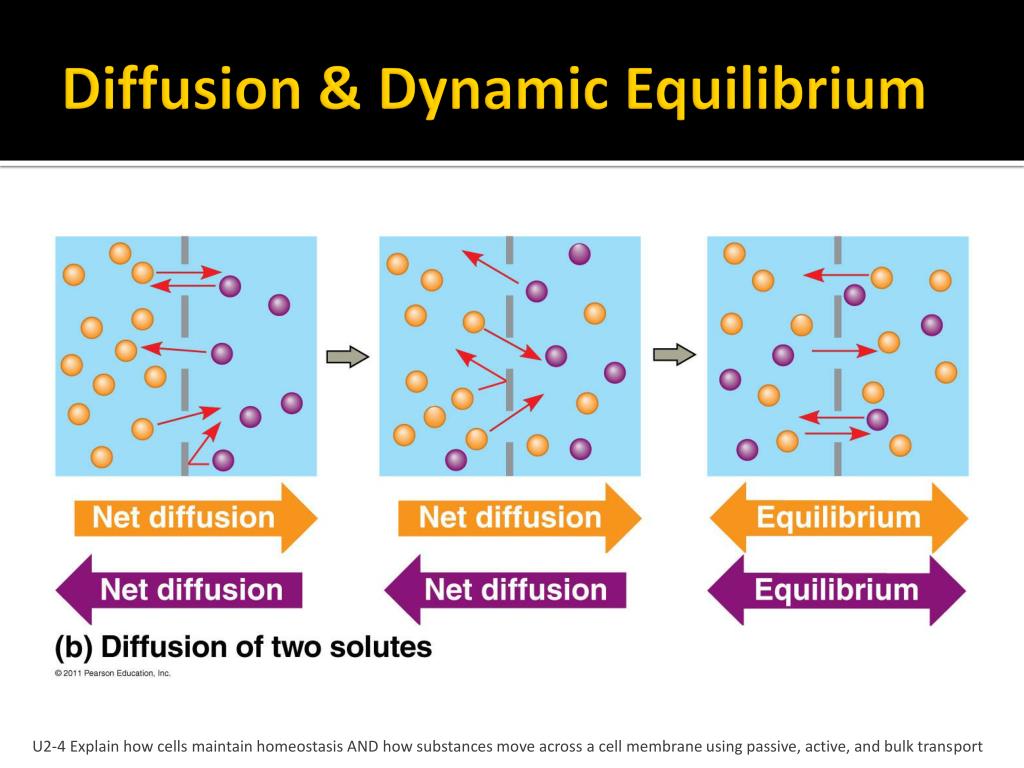

  20. Diffusion & Dynamic Equilibrium U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  21. Osmosis: Passive Diffusion of Water U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  22. Water Balance In cells U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  23. A passive transport protein that changes shape to allow passage. • Carrier Protein • Channel Protein • Cotransporter • Ion Pump • Receptor Protein

  24. A passive transport protein that with a pore for a molecule/ions to pass. • Carrier Protein • Channel Protein • Cotransporter • Ion Pump • Receptor Protein

  25. The channel protein that regulates when molecules/ions pass. • Aquaporins • Ion Channels • Gated Channels

  26. The channel protein that allows water to pass more rapidly. • Aquaporins • Ion Channels • Gated Channels

  27. Facilitated Diffusion: Passive Transport with the Help of Proteins • Membrane proteins are specific to mlqs or ions & hydrophilic center • Channel Proteins: channel to pass through • Aquaporins (water) • Ion Channels • Gated Channels • Carrier Proteins: mlq binds, protein change shape, mlq moved to other side U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  28. Active Transport require which of the following? • ATP • Membrane Proteins • Cellular Respiration • Photosynthesis • All of the above

  29. The inside of a cell has a net positive charge. • True • False

  30. A cation would need to be actively transported across the membrane to • Inside Cell • Outside Cell • Both • Neither

  31. You can live when your cells reach electrical equilibrium. • True • False

  32. Active Transport • Moving molecules/ions against the concentration gradient. • REQUIRES ATP!!! • Maintains Electrochemical Gradient • Moves other molecules using coupled transport U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  33. Maintaining Electrical Potential Across the Cell Membrane • All cells MUST have a difference in charge across the cell membrane. • Inside Cell = Net Negative Charge • Outside Cell = Net Positive Charge • What would happen if charge was allowed to reach equilibrium? • There would be no charge difference. • YOU WOULD DIE!!! • Active transport maintains electrical potential. U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  34. Proton Pump U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  35. With the sodium potassium ion • 2 Na+ pumped out & 3 K+ pumped in • 2 Na+ pumped in & 3 K+ pumped out • 3 Na+ pumped out & 2 K+ pumped in • 3 Na+ pumped in & 2 K+ pumped out

  36. Sodium Potassium Pump U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  37. Coupled Transport: Helping Other Molecules Move Across the Membrane U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  38. Exocytosis = Exporting Larger Molecules/Waste U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  39. Endocytosis: Importing Food U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  40. Endocytosis: Importing Water U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport

  41. Receptor-Mediated Endocytosis: Importing Specific Molecules U2-4 Explain how cells maintain homeostasis AND how substances move across a cell membrane using passive, active, and bulk transport
