Presentation Transcript

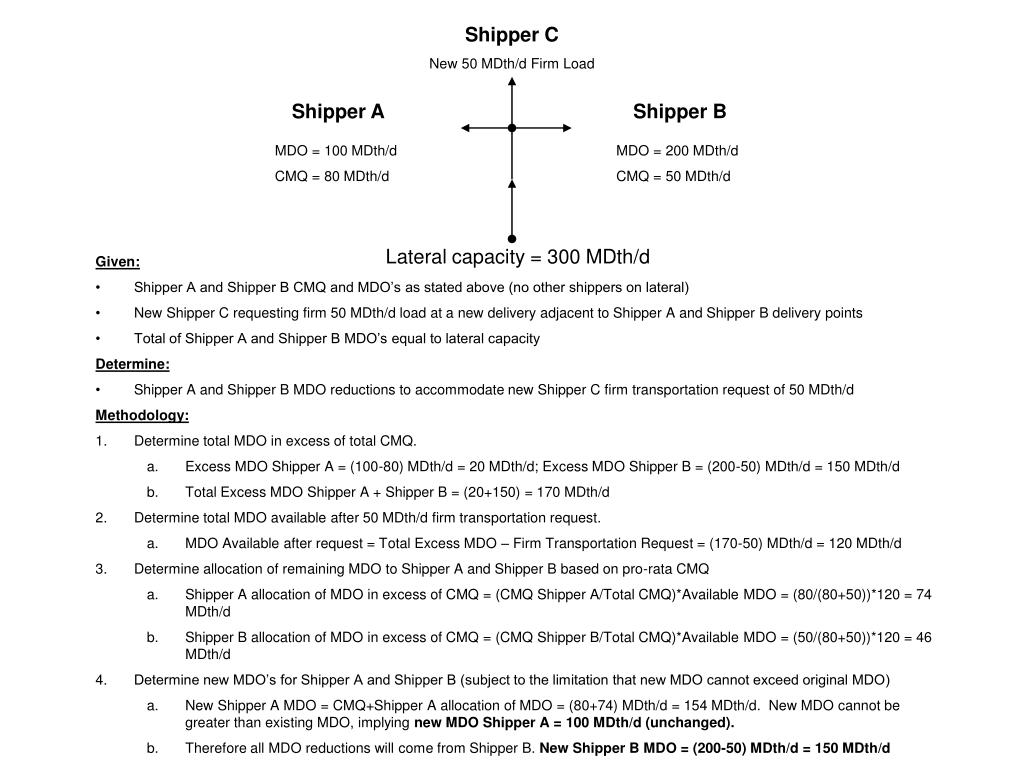

Shipper C

New 50 MDth/d Firm Load

Shipper A

Shipper B

MDO = 100 MDth/d

CMQ = 80 MDth/d

MDO = 200 MDth/d

CMQ = 50 MDth/d

Lateral capacity = 300 MDth/d

  • Given:

  • Shipper A and Shipper B CMQ and MDO’s as stated above (no other shippers on lateral)

  • New Shipper C requesting firm 50 MDth/d load at a new delivery adjacent to Shipper A and Shipper B delivery points

  • Total of Shipper A and Shipper B MDO’s equal to lateral capacity

  • Determine:

  • Shipper A and Shipper B MDO reductions to accommodate new Shipper C firm transportation request of 50 MDth/d

  • Methodology:

  • Determine total MDO in excess of total CMQ.

    • Excess MDO Shipper A = (100-80) MDth/d = 20 MDth/d; Excess MDO Shipper B = (200-50) MDth/d = 150 MDth/d

    • Total Excess MDO Shipper A + Shipper B = (20+150) = 170 MDth/d

  • Determine total MDO available after 50 MDth/d firm transportation request.

    • MDO Available after request = Total Excess MDO – Firm Transportation Request = (170-50) MDth/d = 120 MDth/d

  • Determine allocation of remaining MDO to Shipper A and Shipper B based on pro-rata CMQ

    • Shipper A allocation of MDO in excess of CMQ = (CMQ Shipper A/Total CMQ)*Available MDO = (80/(80+50))*120 = 74 MDth/d

    • Shipper B allocation of MDO in excess of CMQ = (CMQ Shipper B/Total CMQ)*Available MDO = (50/(80+50))*120 = 46 MDth/d

  • Determine new MDO’s for Shipper A and Shipper B (subject to the limitation that new MDO cannot exceed original MDO)

    • New Shipper A MDO = CMQ+Shipper A allocation of MDO = (80+74) MDth/d = 154 MDth/d. New MDO cannot be greater than existing MDO, implying new MDO Shipper A = 100 MDth/d (unchanged).

    • Therefore all MDO reductions will come from Shipper B. NewShipper B MDO = (200-50) MDth/d = 150 MDth/d


Shipper C

New 50 MDth/d Firm Load

Shipper A

Shipper B

MDO = 100 MDth/d

CMQ = 80 MDth/d

MDO = 200 MDth/d

CMQ = 150 MDth/d

Lateral capacity = 300 MDth/d

  • Given:

  • Shipper A and Shipper B CMQ and MDO’s as stated above (no other shippers on lateral)

  • New Shipper C requesting firm 50 MDth/d load at a new delivery adjacent to Shipper A and Shipper B delivery points

  • Total of Shipper A and Shipper B MDO’s equal to lateral capacity

  • Determine:

  • Shipper A and Shipper B MDO reductions to accommodate new Shipper C firm transportation request of 50 MDth/d

  • Methodology:

  • Determine total MDO in excess of total CMQ.

    • Excess MDO Shipper A = (100-80) MDth/d = 20 MDth/d; Excess MDO Shipper B = (200-150) MDth/d = 50 MDth/d

    • Total Excess MDO Shipper A + Shipper B = (20+50) = 70 MDth/d

  • Determine total MDO available after 50 MDth/d firm transportation request.

    • MDO Available after request = Total Excess MDO – Firm Transportation Request = (70-50) MDth/d = 20 MDth/d

  • Determine allocation of remaining MDO to Shipper A and Shipper B based on pro-rata CMQ

    • Shipper A allocation of MDO in excess of CMQ = (CMQ Shipper A/Total CMQ)*Available MDO = (80/(80+150))*20 = 7 MDth/d

    • Shipper B allocation of MDO in excess of CMQ = (CMQ Shipper B/Total CMQ)*Available MDO = (150/(80+150))*20 = 13 MDth/d

  • Determine new MDO’s for Shipper A and Shipper B

    • New Shipper A MDO = CMQ+Shipper A allocation of MDO = (80+7) MDth/d = 87 MDth/d.

    • NewShipper B MDO = CMQ+Shipper B allocation of MDO = (150+13) MDth/d = 163 MDth/d
