Wheel and Axle. Mechanical Advantage. Mechanical Advantage. You can calculate mechanical advantage by comparing the diameters of the two wheels. Mechanical Advantage. MA = LF EF. Calculate MA.

palma
Download Presentation

Wheel and Axle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wheel and Axle MechanicalAdvantage

  2. Mechanical Advantage You can calculate mechanical advantage by comparing the diameters of the two wheels.

  3. Mechanical Advantage MA = LF EF

  4. Calculate MA 38 640 N 2340 N

  5. Examples

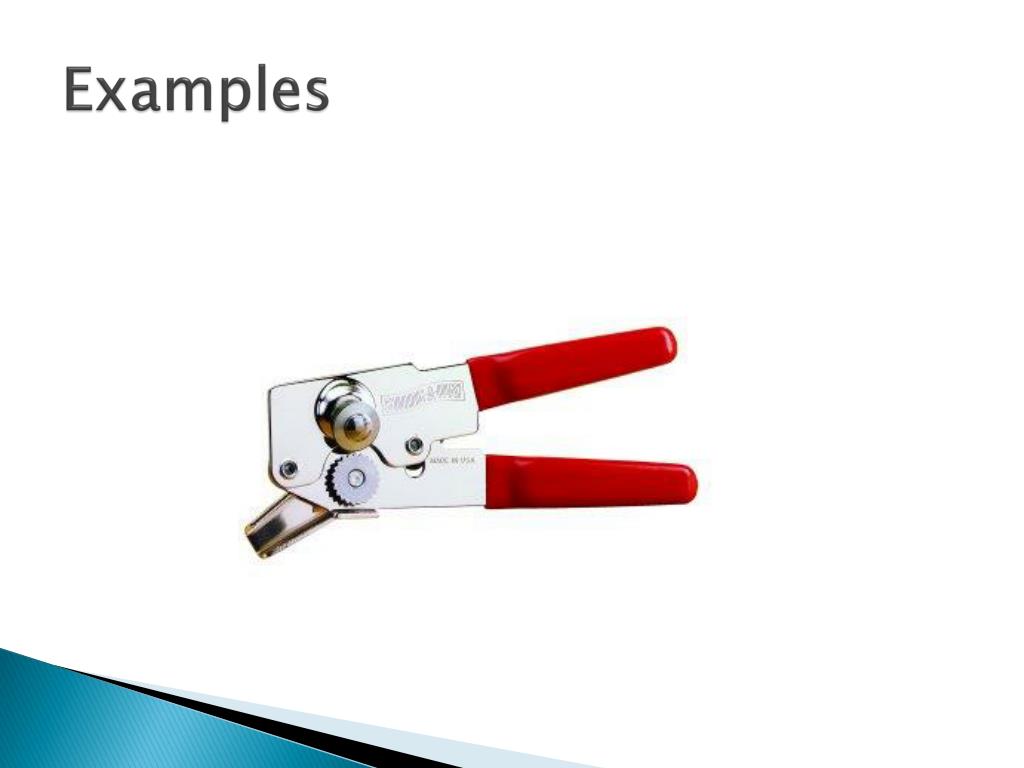

  6. Examples

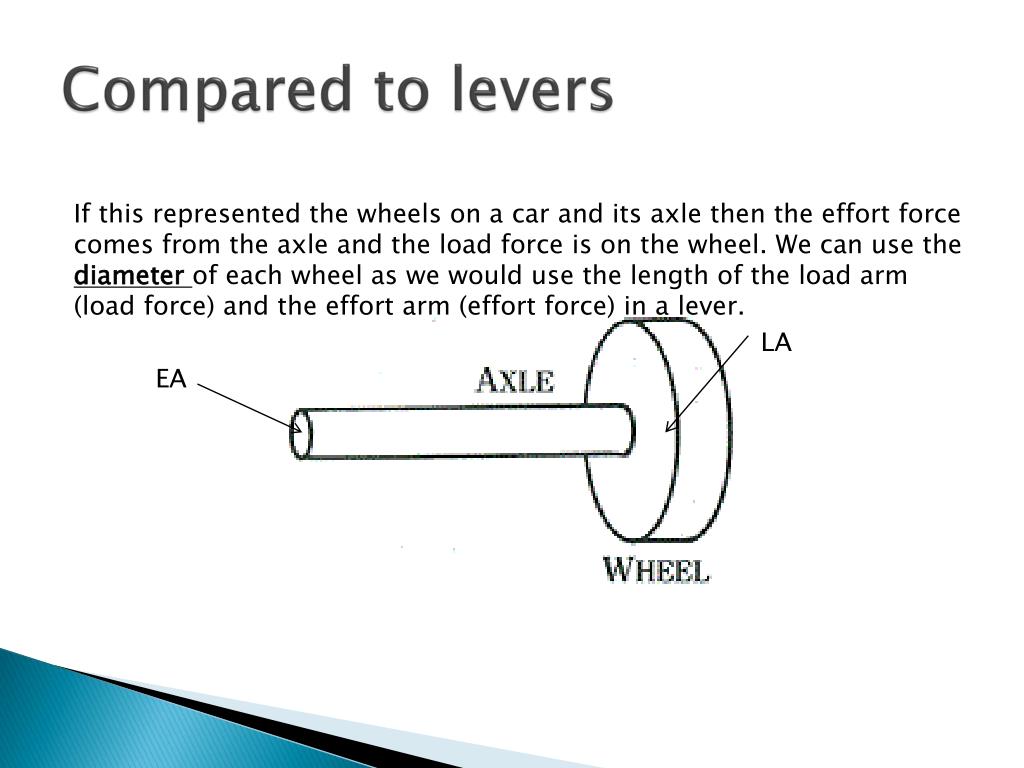

  7. Compared to levers If this represented the wheels on a car and its axle then the effort force comes from the axle and the load force is on the wheel. We can use the diameter of each wheel as we would use the length of the load arm (load force) and the effort arm (effort force) in a lever. LA EA

  8. Mechanical Advantage MA = dE dL

  9. How mechanical advantage affects distance covered by the wheel

  10. A MA greater than 1 offers a FORCE advantage. • A MA less than 1 offers a SPEED advantage
