Nih login

NIH Login

Technical Overview: Installation, Configuration, and Basic Functionality

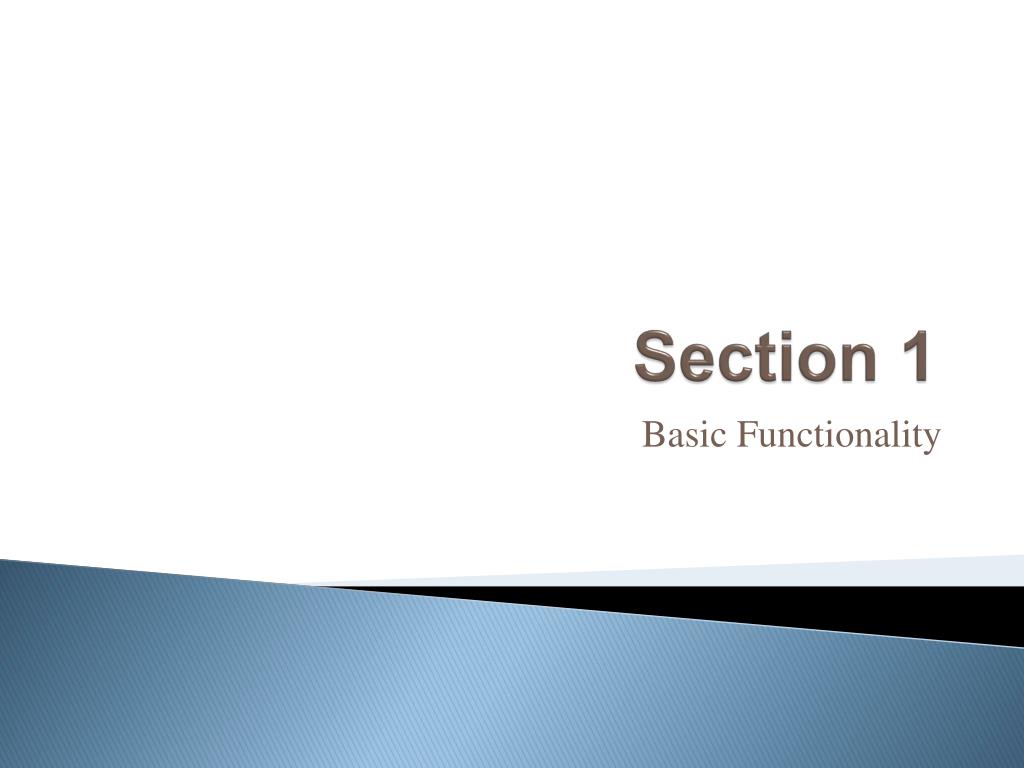

Section 1

Section 1

Basic Functionality

How siteminder works a simplified example

How SiteMinder WorksA simplified example

  • Client makes request to Web Application with installed Web Agent

  • Web Agent checks with Policy Server to see if the requested resource is protected by SiteMinder.

    • If client presented a cookie*, the cookie information is sent to the policy server, which determines whether it is current.

  • If the resource is protected and no cookie is present, client is redirected to NIH Login.

  • Upon successful login, NIH Login returns a cookie to the client and the client is returned to the application.

    * - This is a session cookie, valid in the current browser and any child windows. Closing the browser destroys the cookie and ends the session.

Contact: [email protected]

Firewall considerations

Firewall Considerations

  • The Web Agent, by default, interacts with the Policy Server on ports 44441, 44442 and 44443

  • If your firewall blocks all unspecified ports you will be required to open these ports for communication between your Web Agent and the Policy Server

Contact: [email protected]

User attributes

User Attributes

  • Overview of user attributes for NIH applications such as NIH Login and NIH Federated Identity Service. User attributes information on authentication user directories, authorization user directories, core user attributes, NIH Active Directory attributes, NIH External Active Directory attributes, eRA Commons OID, federation attributes, IMPACII, and special attributes.

Contact: [email protected]

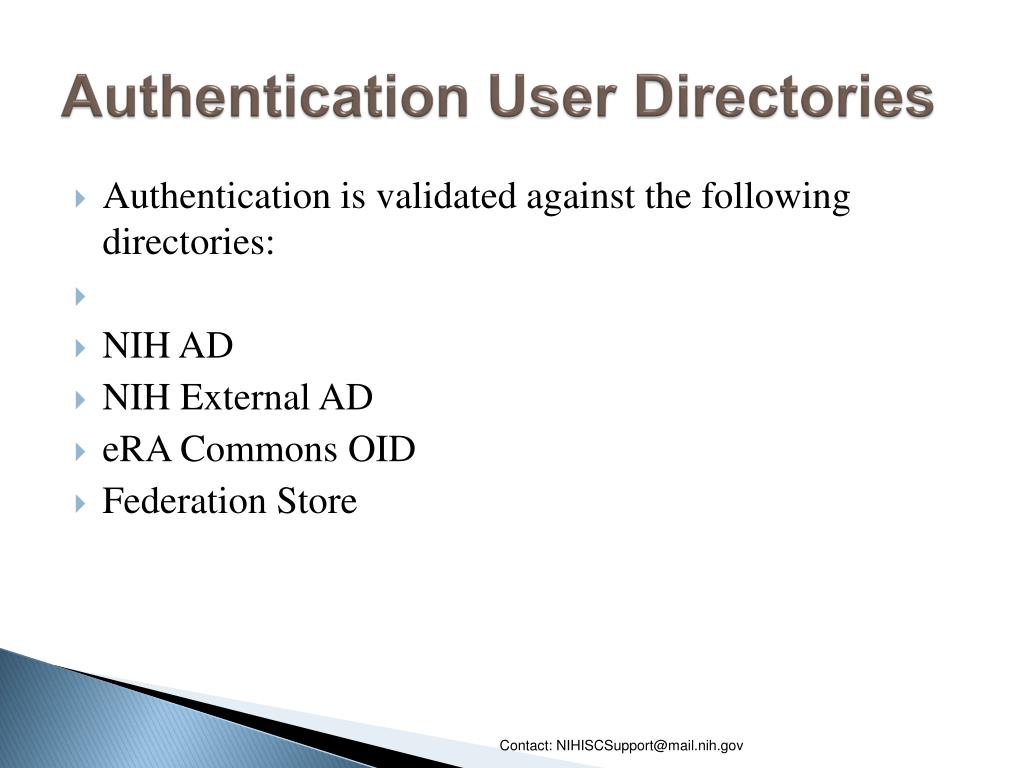

Authentication user directories

Authentication User Directories

  • Authentication is validated against the following directories:

  • NIH AD

  • NIH External AD

  • eRA Commons OID

  • Federation Store

Contact: [email protected]

Authorization user directories

Authorization User Directories

  • Authorization is validated against the following directories:



Contact: [email protected]

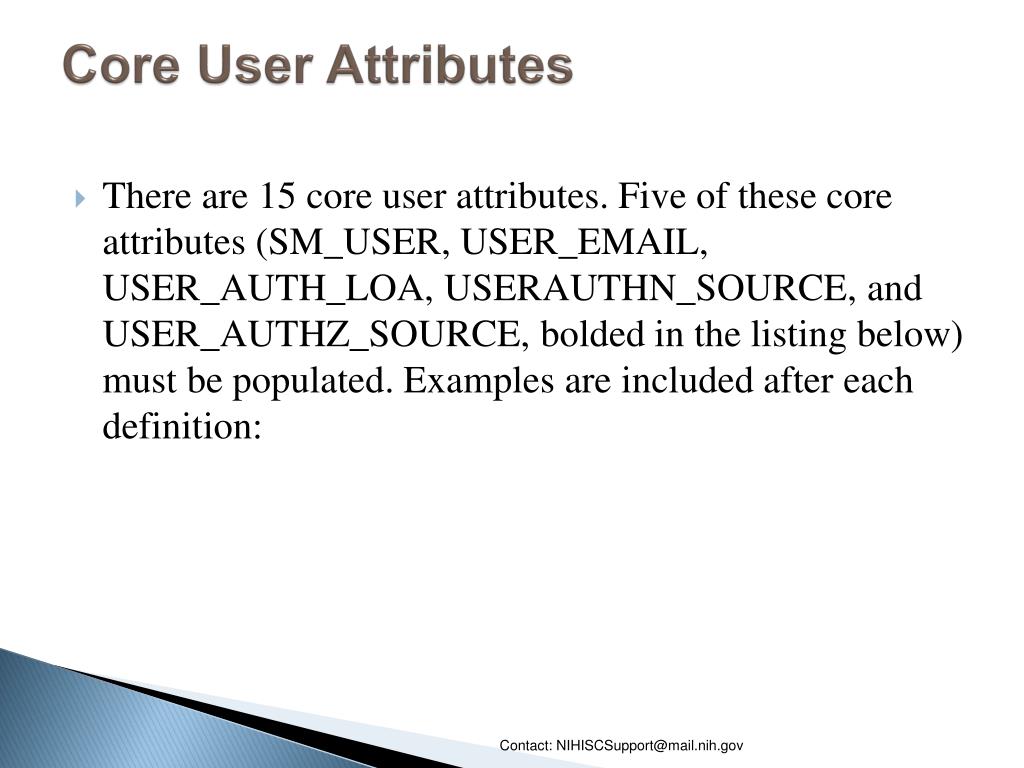

Core user attributes

Core User Attributes

  • There are 15 core user attributes. Five of these core attributes (SM_USER, USER_EMAIL, USER_AUTH_LOA, USERAUTHN_SOURCE, and USER_AUTHZ_SOURCE, bolded in the listing below) must be populated. Examples are included after each definition:

Contact: [email protected]



  • SM_USER = the user's authentication login ID for NIH Login

  • SM_USER = smithjd

  • USER_EMAIL = user's email address

  • USER_EMAIL = [email protected]

  • USER_AUTHN_LOA = authentication loa

  • USER_AUTHN_LOA = 230

  • USER_AUTHN_SOURCE = authentication source user authenticated against


  • USER_AUTHZ_SOURCE = authorization source the user is mapped against


Contact: [email protected]

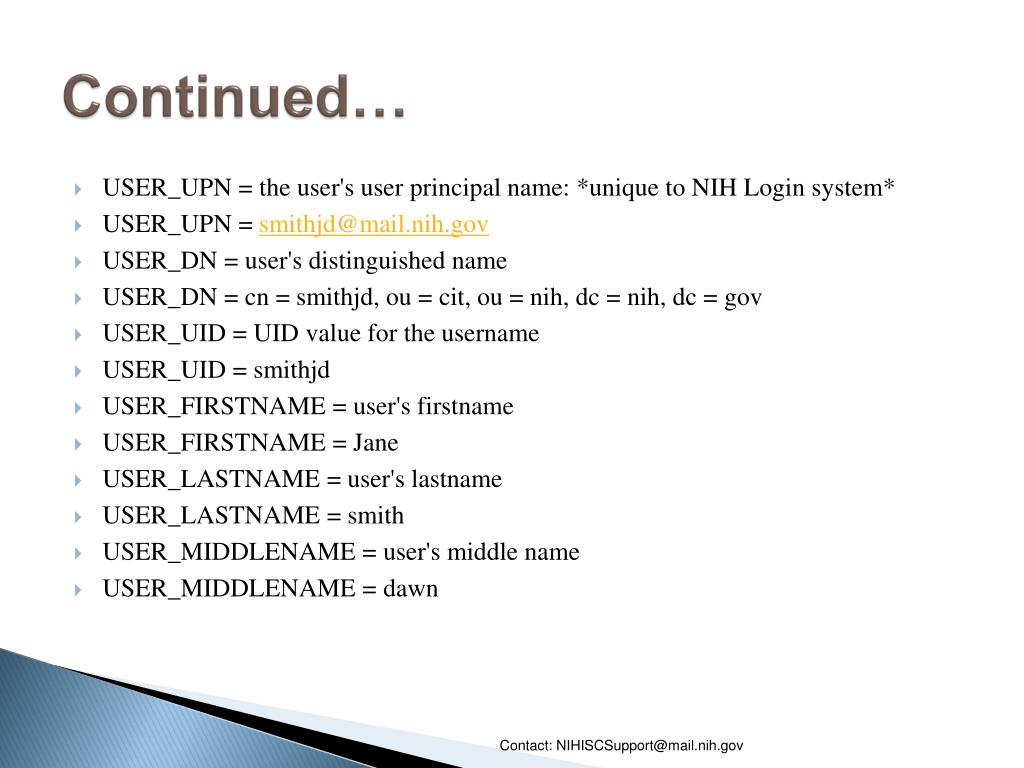

  • USER_UPN = the user's user principal name: *unique to NIH Login system*

  • USER_UPN = [email protected]

  • USER_DN = user's distinguished name

  • USER_DN = cn = smithjd, ou = cit, ou = nih, dc = nih, dc = gov

  • USER_UID = UID value for the username

  • USER_UID = smithjd

  • USER_FIRSTNAME = user's firstname


  • USER_LASTNAME = user's lastname

  • USER_LASTNAME = smith

  • USER_MIDDLENAME = user's middle name


Contact: [email protected]



  • USER_ADDRESS = user's address

  • USER_ADDRESS = 123 NIH Boulevard Suite 500 Bethesda MD 20817

  •  USER_ORG = users parent organization


  •  USER_TELEPHONE = user's telephone number

  • USER_TELEPHONE = 3018721000

  •  USER_GROUPS = user's groups


  • The link to the Headers document

Contact: [email protected]

Nih login specific attributes

NIH Login Specific Attributes

  • There are several HTTP headers that are sent to the application that should be used by NIH Login internally. These attributes have the “HTTP_SM” prefix. However, there is one attribute, SM_USER, that the application can utilize. This attribute is populated by the log-in value the user used during successful authentication against a particular user directory.

Contact: [email protected]

Http headers the following http headers are passed from siteminder to your application

HTTP HeadersThe following HTTP headers are passed from SiteMinder to your application:






























  • These headers provide information including login name and domain. Headers can also be customized for your application.

Contact: [email protected]

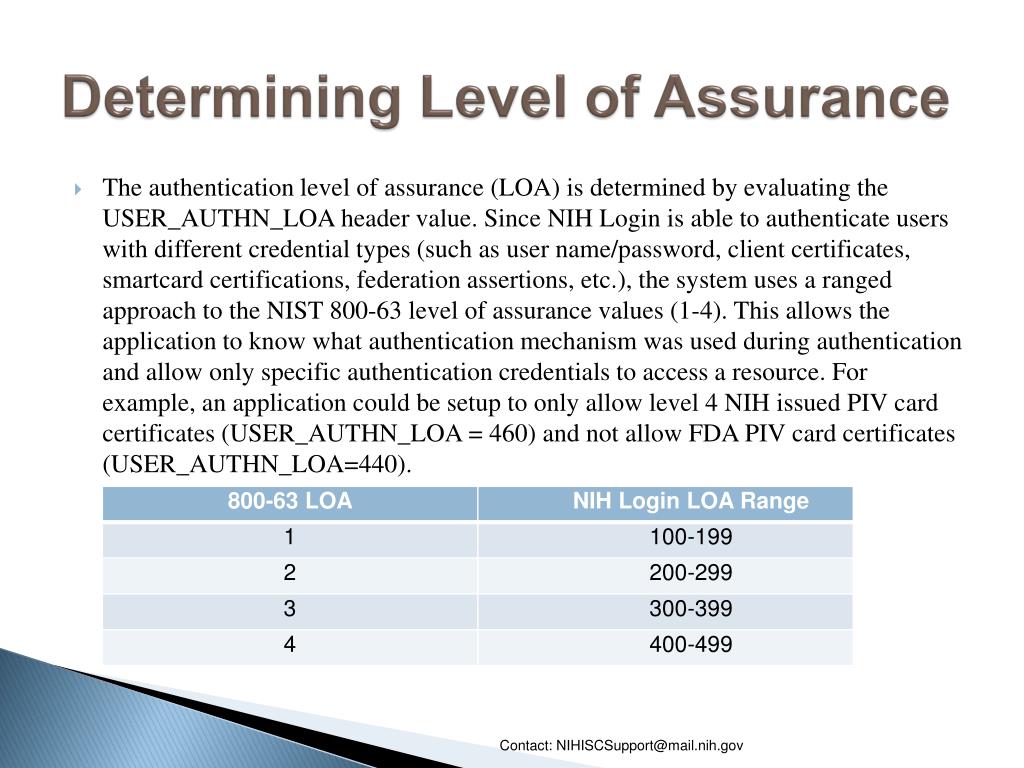

Determining level of assurance

Determining Level of Assurance

  • The authentication level of assurance (LOA) is determined by evaluating the USER_AUTHN_LOA header value. Since NIH Login is able to authenticate users with different credential types (such as user name/password, client certificates, smartcard certifications, federation assertions, etc.), the system uses a ranged approach to the NIST 800-63 level of assurance values (1-4). This allows the application to know what authentication mechanism was used during authentication and allow only specific authentication credentials to access a resource. For example, an application could be setup to only allow level 4 NIH issued PIV card certificates (USER_AUTHN_LOA = 460) and not allow FDA PIV card certificates (USER_AUTHN_LOA=440).

Contact: [email protected]

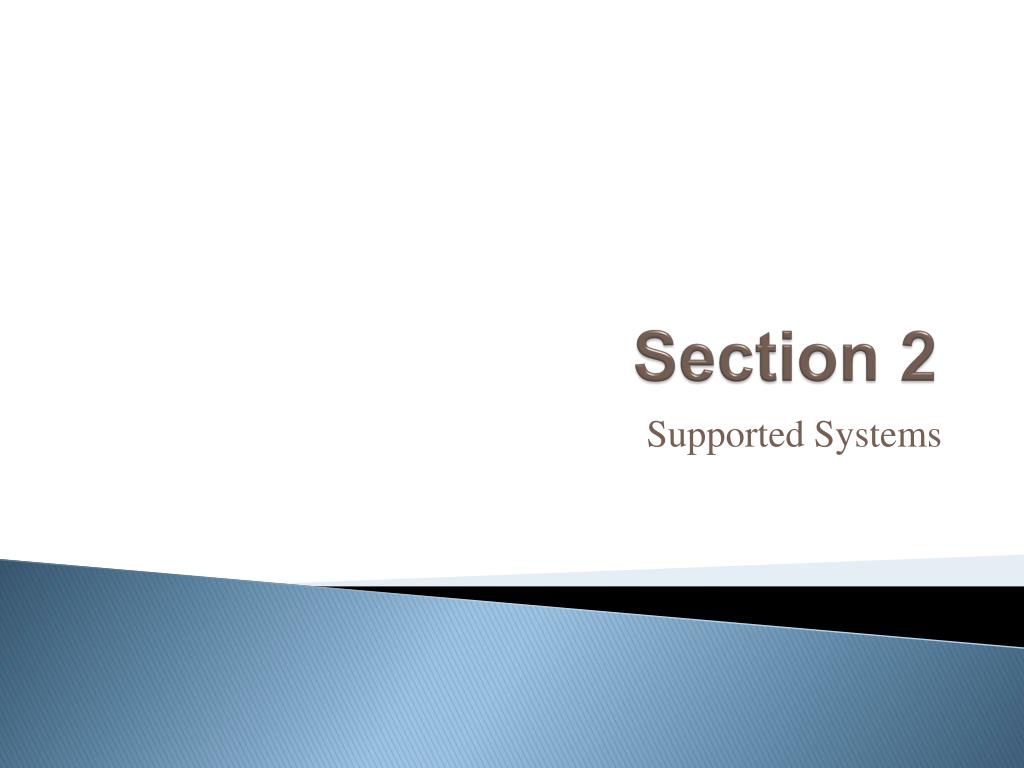

Section 2

Section 2

Supported Systems

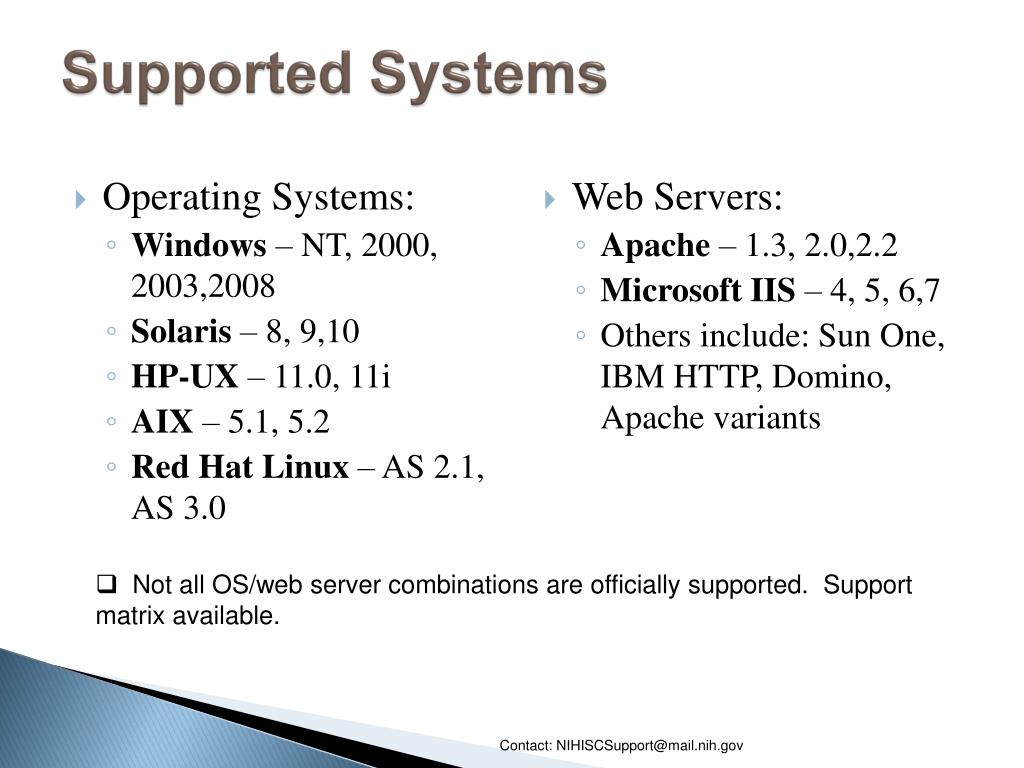

Supported systems

Supported Systems

  • Operating Systems:

    • Windows – NT, 2000, 2003,2008

    • Solaris – 8, 9,10

    • HP-UX – 11.0, 11i

    • AIX – 5.1, 5.2

    • Red HatLinux – AS 2.1, AS 3.0

  • Web Servers:

    • Apache – 1.3, 2.0,2.2

    • Microsoft IIS – 4, 5, 6,7

    • Others include: Sun One, IBM HTTP, Domino, Apache variants

  • Not all OS/web server combinations are officially supported. Support matrix available.

Contact: [email protected]

Application servers tomcat jboss etc

Application ServersTomcat, JBoss, etc.

  • Many NIH Login clients are using application servers such as Tomcat or JBoss. These – and most open source utilities – are not officially supported by Netegrity.

  • The simplest way to use NIH Login to protect these resources is to install Apache andthe mod_jk module – Netegrity-supported resources - on the web server.

  • More information is available by contacting the NIH Login team (see contact information below).

Contact: [email protected]

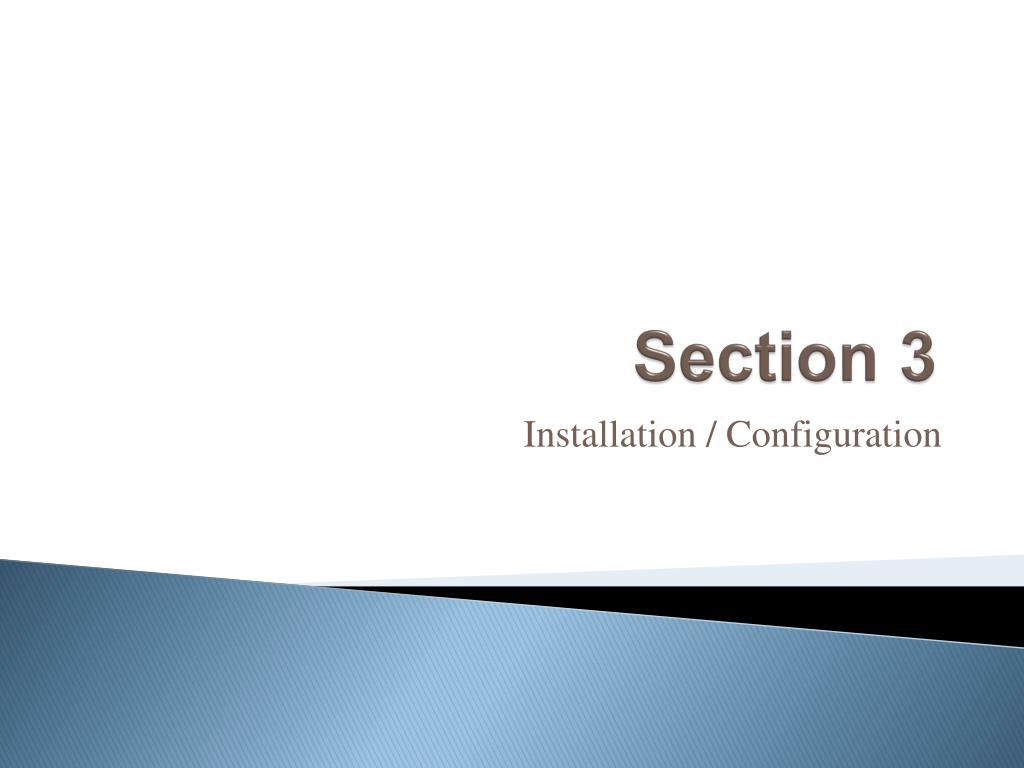

Section 3

Section 3

Installation / Configuration

Installing the web agent windows before you begin

Installing The Web AgentWindows – Before You Begin

  • Installation on Windows requires the creation of a local user with Administrator privileges

    • Systems Administrators should coordinate with the NIH Login team in creating a username and password since these credentials must be known by the Policy Server

  • A web server should be installed prior to configuration of the Web Agent

Contact: [email protected]

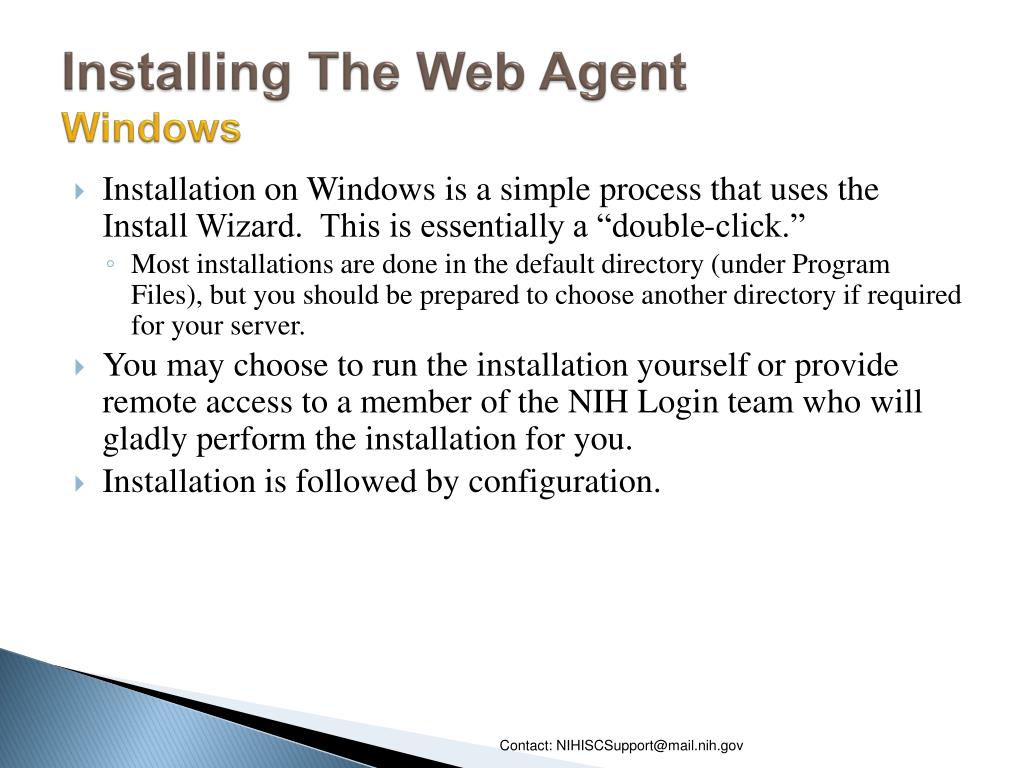

Installing the web agent windows

Installing The Web AgentWindows

  • Installation on Windows is a simple process that uses the Install Wizard. This is essentially a “double-click.”

    • Most installations are done in the default directory (under Program Files), but you should be prepared to choose another directory if required for your server.

  • You may choose to run the installation yourself or provide remote access to a member of the NIH Login team who will gladly perform the installation for you.

  • Installation is followed by configuration.

Contact: [email protected]

Configuring the web agent windows

Configuring The Web AgentWindows

  • When you are ready to install your web agent, the NIH Login team will provide you with:

    • Agent Configuration Object name

    • Host Configuration Object name

    • IP Address of Policy Server

    • Administrator username and password

  • The simple Web Agent Configuration Wizard will allow you to enter this information. It will:

    • Register your host with the Policy Server

    • Create the SMHost.conf and WebAgent.conf files

  • Note: Configuration for Apache on Windows is a slightly different process. Information is available upon request.

Contact: [email protected]

Configuring the web agent windows 2003 iis 6 special considerations

Configuring The Web AgentWindows 2003/IIS 6 – Special Considerations

  • IIS 6 on Windows 2003 requires additional configuration if you are employing its capabilities for virtual servers running in isolation mode

  • A Netegrity “tech note” is available to support configuration for IIS 6 and can be provided by the NIH Login Team

  • Basic steps:

    • Remove Web Agent ISAPI filter from default web site and place it under appropriate virtual server

    • Configure “Wildcard Application Maps” to load ISAPI DLL

    • Enable Web Agent DLL as a “Web Service Extension”

    • Map extensions to SmPWServicesCGI.exe in both /pw/ and /pw_default/ directories

Contact: [email protected]

Installing the web agent unix

Installing The Web AgentUnix

  • Installation on Solaris begins by unpacking the .tar file that the NIH Login team will send you

  • The Web Agent is installed by running the nete-wa-install utility from the directory where the .tar file was unpacked

    • ./nete-wa-install

  • Installation is followed by host registration and configuration of the Web Agent.

Contact: [email protected]

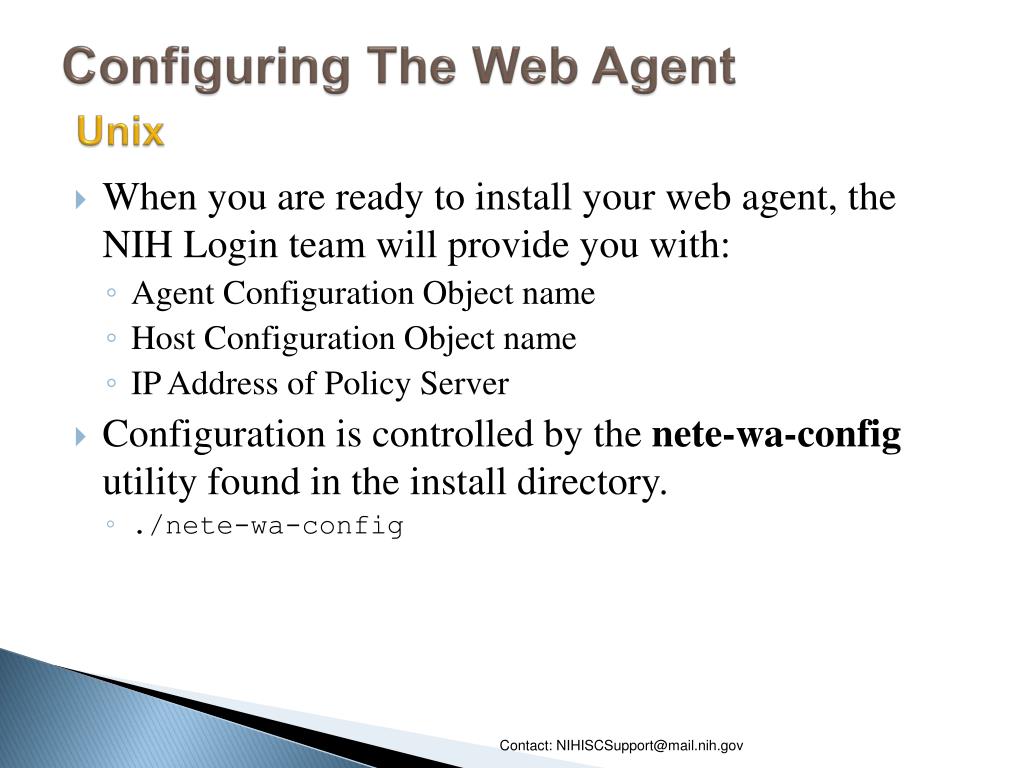

Configuring the web agent unix

Configuring The Web AgentUnix

  • When you are ready to install your web agent, the NIH Login team will provide you with:

    • Agent Configuration Object name

    • Host Configuration Object name

    • IP Address of Policy Server

  • Configuration is controlled by the nete-wa-config utility found in the install directory.

    • ./nete-wa-config

Contact: [email protected]

Configuring the web agent unix continued

Configuring The Web AgentUnix – Continued

  • The configuration script will ask you a series of questions including the names of agent and host configuration objects

    • Note: Configuration for Apache is an explicit option. Answer “N” when prompted to install for Netscape or iPlanet

  • The httpd.conf must be modified to load the SiteMinder Apache module. The following line must be added:

    • LoadModule sm_module <path>/

    • Note: The module name in the previous line may vary among operating systems and Web Agent versions. Please see the provided Web Agent Installation Guide.

  • The Web Agent Installation Guide Provides detailed instructions for configuring your Web Agent

Contact: [email protected]

Can i point to a different tier smreghost utility

Can I Point to a Different Tier? Smreghost utility

  • As your application moves from Development to Staging to Production, it is preferable to have separate machines for each. At times however, there are good reasons for simply pointing your machine to a different Policy Server.

    • Example: You have a new application that exists only on one machine (or set of machines). You have completed configuration and development and wish to promote this machine up the line to Staging and/or Production with the intention of later adding boxes for the lower tiers.

  • SiteMinder provides a utility called smreghost. This allows you to:

    • Change the Policy Server to which your Web Agent points

    • Generate a new SMHost.conf file

    • Register your host with the Policy Server to which you are moving

  • You will:

    • Run smreghost

    • Backup or delete your old SMHost.conf file

    • Place your new SMHost.conf file in the proper location

    • Restart your web server

  • Smreghost is documented in the Web Agent Installation Guide. Values will be provided to you by the NIH Login team for the following syntax:

    • smreghost -i <policy_server_IP_address:[port]> -u <administrator_username> -p <Administrator_password> -hn <hostname_for_registration> -hc <host_configuration_object>

Contact: [email protected]

Section 4

Section 4

Sample Code

Putting it all together

Putting It All Together

  • When the user is returned to the application from NIH Login, the HTTP headers are populated with appropriate information from the Active Directory.

  • This information may be accessed by adding code to the application.

  • The following slides contain samples in several scripting languages.

Contact: [email protected]

Nih login


  • The following string variable will contain all SiteMinder and UI variables

    CompleteHeaderString = Request.ServerVariables("ALL_RAW");

  • A function to retrieve the username

    Function GetSMUserName()on error resume nextDim arrAllRaw, tmpUser_Name, iarrAllRaw = split(replace(Request.ServerVariables("ALL_RAW"),VBCRLF,":"),":")for i=0 to Ubound(arrAllRaw)-1  if Right(Trim(arrAllRaw(i)),7)="SM_USER" then   tmpUser_Name = UCase(Trim(arrAllRaw(i+1)))   exit for  end if next

Contact: [email protected]

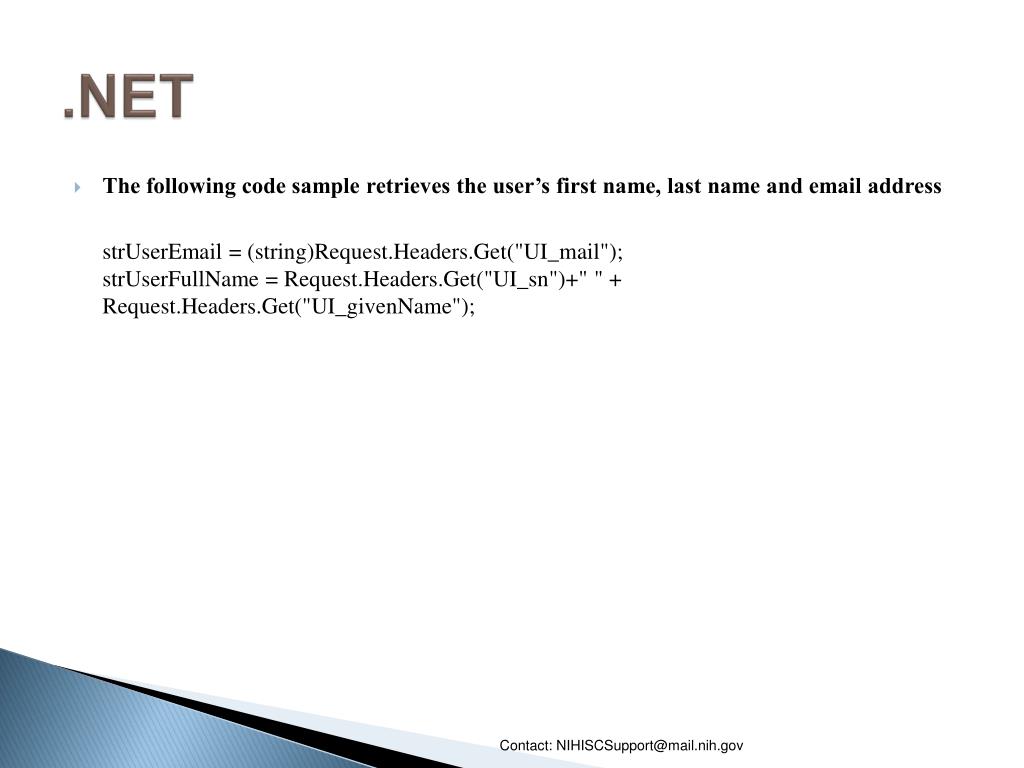

Nih login


  • The following code sample retrieves the user’s first name, last name and email address

    strUserEmail = (string)Request.Headers.Get("UI_mail");strUserFullName = Request.Headers.Get("UI_sn")+" " + Request.Headers.Get("UI_givenName");

Contact: [email protected]

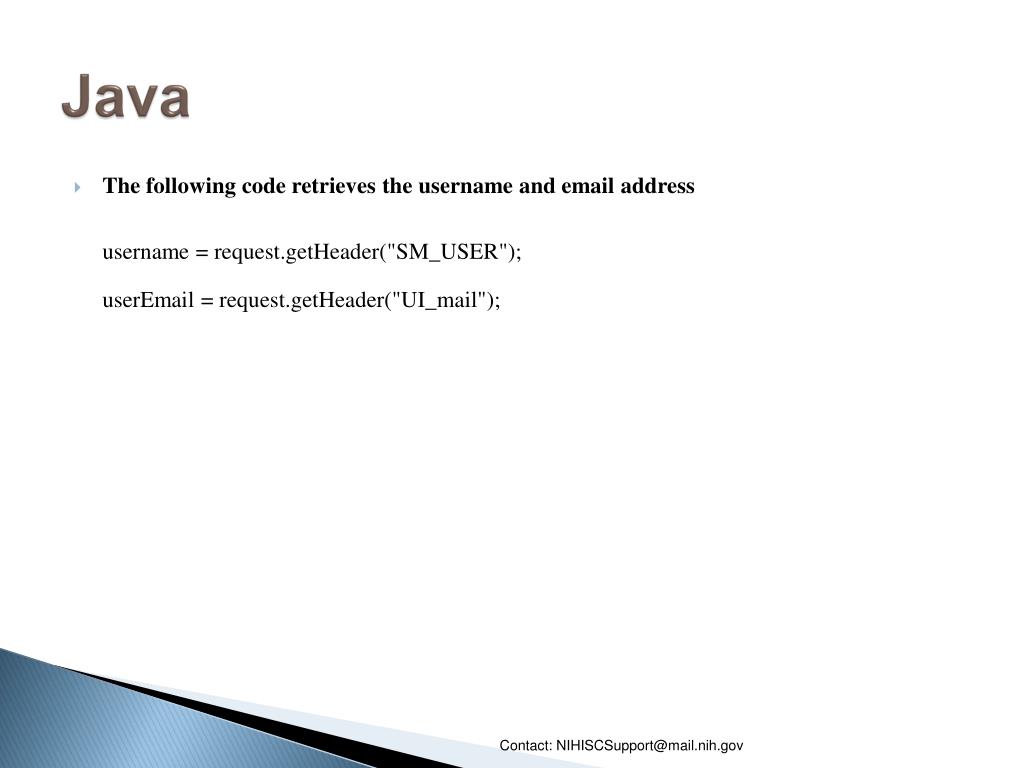

Nih login


  • The following code retrieves the username and email address

    username = request.getHeader("SM_USER");

    userEmail = request.getHeader("UI_mail");

Contact: [email protected]

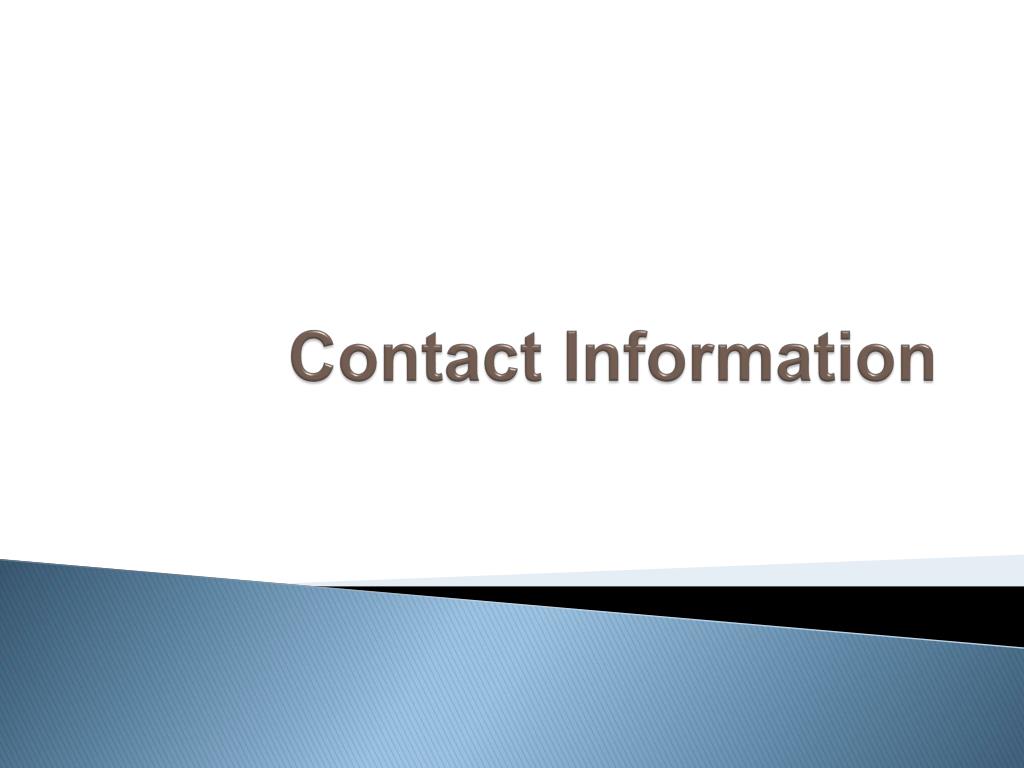

Contact information

Contact Information

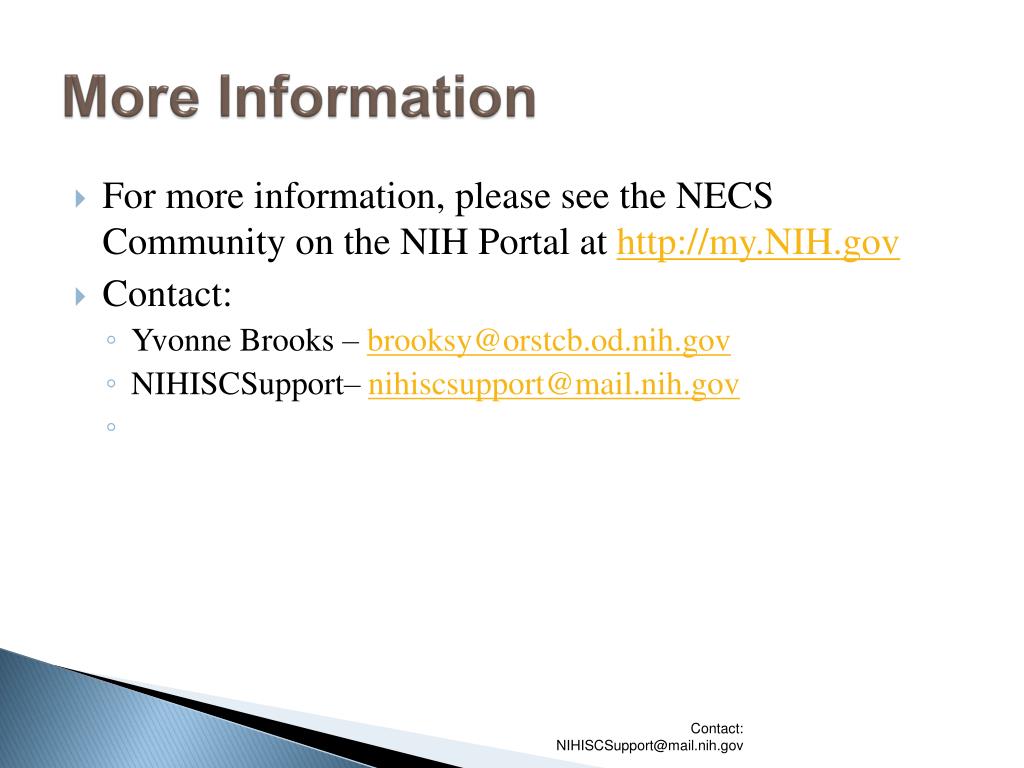

More information

More Information

  • For more information, please see the NECS Community on the NIH Portal at

  • Contact:

    • Yvonne Brooks – [email protected]

    • NIHISCSupport– [email protected]

Contact: [email protected]
