  1. Agenda 08:30 - 09:00am State of OpenFlow and SDN -- Nick McKeown, Stanford University 09:00 - 09:30amOpenFlow/SDN Deployments -- Guru Parulkar, Stanford University 09:30 - 09:45amOpenFlow as a Networking Substrate for GENI -- Chip Elliott, GPO 09:45 - 10:00amOpenFlow Interest in China -- Jianping Wu, Tsinghua University/CERNET 10:00 - 10:30amBreak 10:30 - 11:00amScalability & Reliability of Logically Centralized Controller -- Martin Casado, Nicira 11:00 - 11:30amOpenFlow/SDN Solutions for Campus Networking -- Guido Appenzeller, BigSwitch 11:30 - 12:00pmGoogle's Perspective on OpenFlow/SDN -- Stephen Stuart, Google   12:00 - 01:00pm Lunch

  2. Agenda 01:00 - 01:30pmExperience with OpenFlow on Campus and Future Plans -- Matt Davy, Indiana Univ 01:30 - 02:30pmOpenFlow/SDN on University Campuses -- Panel Chair - Matt Davy  02:30 - 03:00pmBreak   03:00 - 05:00pmClosed Vendor Talks on Their OpenFlow Products/Solutions and Roadmaps 05:00 - 06:00pmStrategy session among CIOs, NLR, I2, CENIC, GPO and Stanford

  3. Stanford University OpenFlow Trials and DeploymentsSDN CIO Summit 2010Srini Seetharaman, Masa Kobayashi, Paul Weissmann, Johan van Reijendam & Guru Parulkar In collaboration with Martin Casado and Scott Shenker And contributions by many others

  4. Highlights • Stanford deployment • Within the group for a year: production and experiments • Transitioning to OpenFlow 1.0 • To scale later this year • Nation-wide trials and deployments • 7 other universities and BBN/GPO deploying now • Internet 2 and NLR to deploy soon • GEC9 in Nov, 2010 will show case nation-wide OF and applications • Global trials • EU funded three large projects related to OpenFlow • Japan demonstrated 17 node network and video distribution • Over 60 organizations experimenting 2010 likely to be a big year for OpenFlow

  5. Stanford Deployment

  6. Focus of Our Deployment • OpenFlow network thus far • Enable experiments alongside production • Achieve as good performance as non-OpenFlow • Going forward • Achieve better control, manageability and performance than non-OpenFlow network

  7. “OpenFlow-ready” Gates Building McKeown group network in 3A wing of William Gates building HP switches loaded with OpenFlow firmware

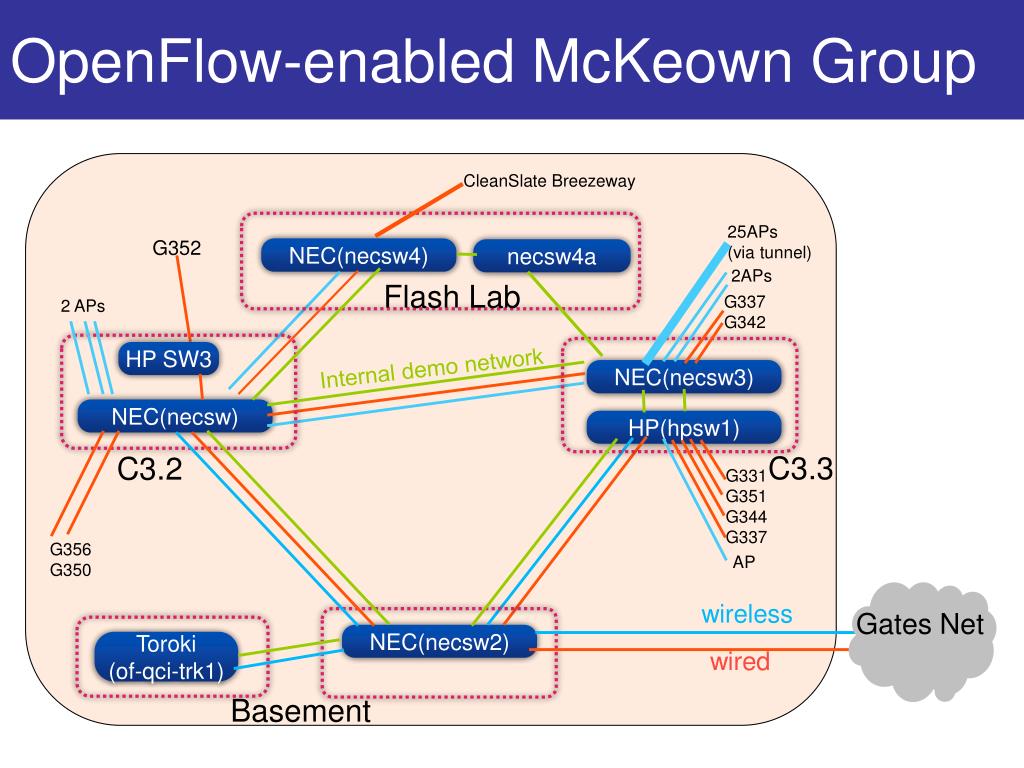

  8. OpenFlow-enabled McKeown Group CleanSlate Breezeway 25APs (via tunnel) G352 NEC(necsw4) necsw4a 2APs Flash Lab G337G342 2 APs HP SW3 Internal demo network NEC(necsw3) NEC(necsw) HP(hpsw1) C3.3 C3.2 G331 G351 G344 G337 G356 G350 AP wireless Gates Net NEC(necsw2) Toroki(of-qci-trk1) wired Basement

  9. Demo Infrastructure with Slicing WiMax WiFi APs OpenFlow switches Flows Packet processors

  10. Two Closets + FlashLab + Basement

  11. OpenFlow Production Use • Wired network • 18 users across 7 rooms in Gates 3A wing • Wireless network (last week) • 77 unique users opted-in to open wireless net: ofwifi

  12. Network Availability/Stability on the Rise April 2009 Aug 2009

  13. Next Steps for Stanford Deployment • McKeown Group • Complete OpenFlow 1.0 transition • Continue experiments to demonstrate SDN potential • Interoperability of new devices and software in production setting • Gates building • Test VLAN across entire building • Enable OpenFlow for systems’ group • Opt-in users • Extend to other groups • CIS/CISX building • Deploy OpenFlow in computer lab switches • Deploy OpenFlow wireless APs • Interconnect with island in Gates building using 10G links

  14. Nation-wide Trials and Deployment

  15. OpenFlow as GENI Networking Substrate Eight universities, GPO/BBN and two national research backbones

  16. GEC9: Big Show and Tell • Special GENI Engineering Conference in Washington DC • November 2010 • Invitees to include leaders from • Government agencies, companies, and universities • Plenary session to feature 3-6 demos over GENI • Exercising and building on the OpenFlow substrate

  17. GEC9 – Demo Infrastructure • Apha GENI2.0 • A nation-wide integrated sliceable computing and networking infrastructure • Networking substrate • OpenFlow based • 9 campus networks interconnected by NLR and I2 • Extensible to Japan • Computing substrate • PlanetLab and Emulab based • Many clusters at 8 campuses and backbone POPs

  18. GEC6 Demo Highlight • Dynamically created a slice for running a distributed web hosting service • Computingslice providedby PlanetLab • Network sliceprovided byOpenFlow

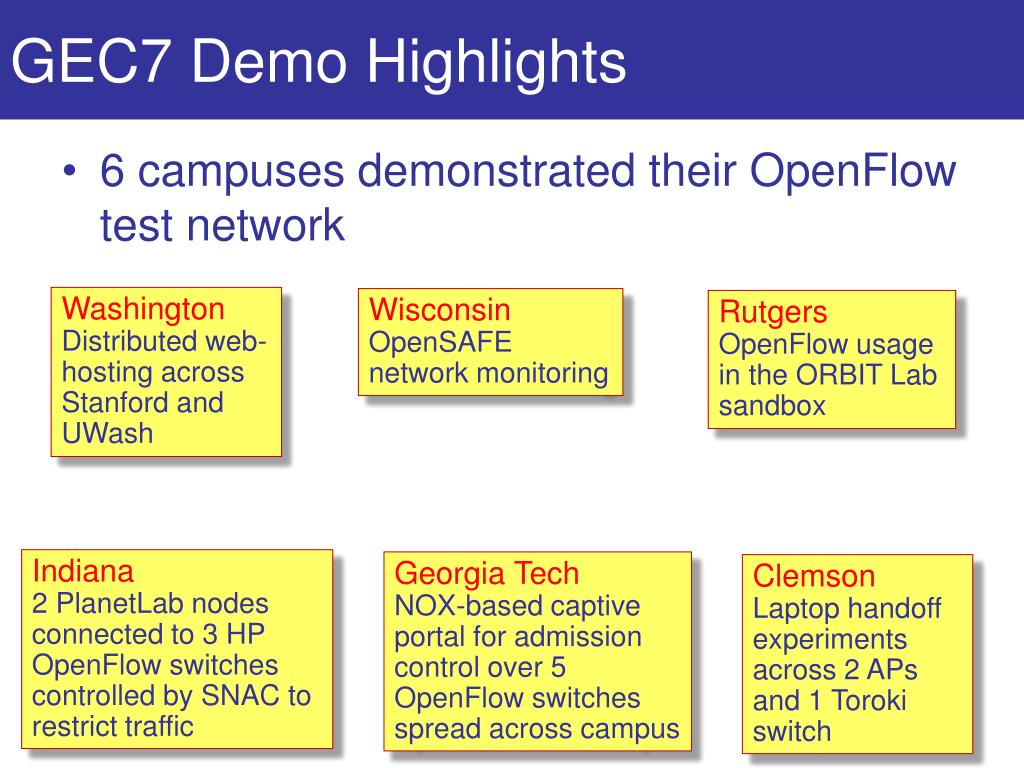

  19. GEC7 Demo Highlights • 6 campuses demonstrated their OpenFlow test network WashingtonDistributed web-hosting across Stanford and UWash Wisconsin OpenSAFE network monitoring RutgersOpenFlow usage in the ORBIT Lab sandbox Indiana2 PlanetLab nodes connected to 3 HP OpenFlow switches controlled by SNAC to restrict traffic Georgia TechNOX-based captive portal for admission control over 5 OpenFlow switches spread across campus Clemson Laptop handoff experiments across 2 APs and 1 Toroki switch

  20. Global OpenFlow Trials

  21. Three New EU Projects:Ophelia, SPARC, CHANGE Pan-European experimental facility • L2 Packet • Emulation • Wireless • Content delivery • L2 L3Packet • Optics • Content delivery • L2 Packet • Wireless • Routing • L2 Packet • Optics • Content delivery • L2 Packet • Shadow networks

  22. EU Project Participants • Germany • Deutsche Telekom Laboratories • Technische Universität Berlin • European Center for ICT • ADVA AG Optical Networking • NEC Europe Ltd. • Eurescom • United Kingdom • University of Essex • Lancaster University • University College London • Spain • i2CAT Foundation • University of the Basque Country, Bilbao • Romania • Universitatea Politehnica Bucuresti • Sweden • ACREO AB (Sweden) • Ericsson AB Sweden (Sweden) • Hungary • Ericsson Magyarorszag Kommunikacios Rendszerek KFT • Switzerland • Dreamlab Technologies • Eidgenössische Technische Hochschule Zürich • Italy • Nextworks • Universita` di Pisa • Belgium • Interdisciplinary Institute for Broadband Technology • Université catholique de Louvain

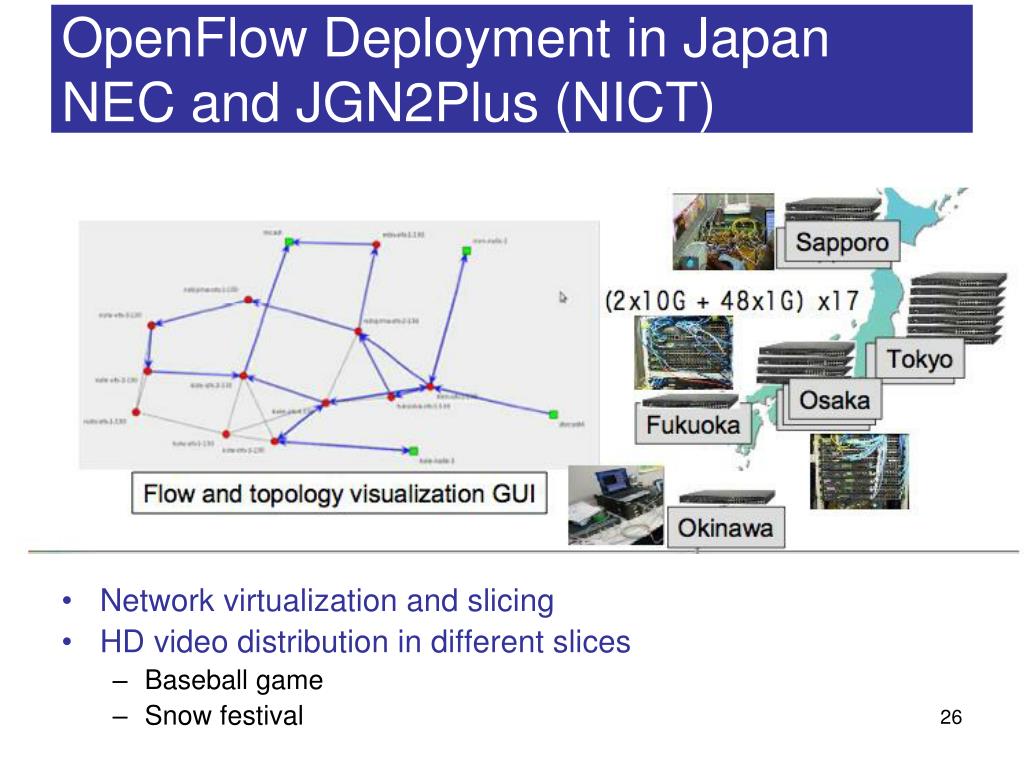

  23. OpenFlow Deployment in JapanNEC and JGN2Plus (NICT) • Network virtualization and slicing • HD video distribution in different slices • Baseball game • Snow festival

  24. Global InterestNon-Scientific Survey

  25. Interest in OpenFlow

  26. Current Trials • 68 trials/deployments spanning 13 countries

  27. Current Trials and Deployments USA-Academia Stanford University, CA University of Washington, WA Rutgers University, NJ Princeton University, NJ Clemson University, SC Georgia Tech, GA University of Wisconsin at Madison, WI University of Indiana, Bloomington ICSI Berkeley, CA University of Massachusetts at Lowell Clarkston University Columbia University (course offered) University of Kentucky UC San Diego UC Davis iCAIR/Northwestern Rice University Purdue University Northern Arizona University USA-Industry Internet2 Cisco Juniper HP Ciena Deutsche Telekom R&D Lab Marvell Broadcom Google Unnamed Data Center Company Toroki Nicira Big switch networks Orange Labs USA-Government BBN Unnamed Federal Agency

  28. Current Trials and Deployments Brazil University of Campinas Federal University of Rio de Janeiro Federal University of Amazonas Foundation Center of R&D in Telecomm. Canada University of Toronto Germany T-Labs Berlin Leibniz Universität Hannover France ENS Lyon/INRIA India VNIT Mahindra Satyam Italy Politecnico di Torino United Kingdom University College London Lancaster University University of Essex Taiwan National Center for High-Performance Computing Chunghwa Telecom Co Japan NEC JGN Plus NICT University of Tokyo Tokyo Institute of Technology Kyushu Institute of Technology NTT Network Innovation Laboratories KDDI R&D Laboratories Unnamed University South Korea KOREN Seoul National University Gwangju Institute of Science & Tech Pohang University of Science & Tech Korea Institute of Science & Tech ETRI Chungnam National University Kyung Hee University Spain University of Granada Switzerland CERN

  29. More Upcoming Deployments: China • China • CERNET • CSTNET …..and many others!

  30. Highlights • Stanford deployment • Within the group for a year: production and experiments • Transitioning to OpenFlow 1.0 • To scale later this year • Nation-wide trials and deployments • 7 other universities and BBN/GPO deploying now • Internet 2 and NLR to deploy soon • GEC9 in Nov, 2010 will show case nation-wide OF and applications • Global trials • EU funded three large projects related to OpenFlow • Japan demonstrated 17 node network and video distribution • Over 60 organizations experimenting 2010 likely to be a big year for OpenFlow
