Tsim l1ft update

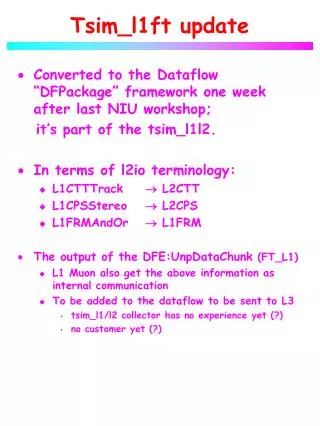

Tsim_l1ft update

  • Converted to the Dataflow “DFPackage” framework one week after last NIU workshop;

    it’s part of the tsim_l1l2.

  • In terms of l2io terminology:

    • L1CTTTrack  L2CTT

    • L1CPSStereo  L2CPS

    • L1FRMAndOr  L1FRM

  • The output of the DFE:UnpDataChunk (FT_L1)

    • L1 Muon also get the above information as internal communication

    • To be added to the dataflow to be sent to L3

      • tsim_l1/l2 collector has no experience yet (?)

      • no customer yet (?)



Tsim l1ft update1
Tsim_l1ft update

  • L2CTT and L2CPS packages have made use of the L1CTTTrack and L1CPSStereo data and give feedback;

  • 24 more popular trigger AndOR terms implemented but L1FRM has not made use of it;

  • A few things implemented are ahead of the actual hardware/firmware, such as the L1TM, L1CPS stereo clustering;

  • Ntuples : made all along when sending the information to the next level of the trigger chain for analysis / debugging;


Tsim l1ft update2
Tsim_l1ft update

  • jobSummary : now printing out the number of events processed but more information can be easily added …

  • SFTDigiChunk 

    UnpDataChunk  RawDaTaChunk

    interchanges are done in MC, effort from R. Illingworth, K. Papageorgiou and myself

  • Things to do : to run with COOR, passing information to L3 thru’ the collector, more flexibility to accommodate changes in the future, adding a separate analysis package to read back all the outputs we send (though already in the present ntuples) …
