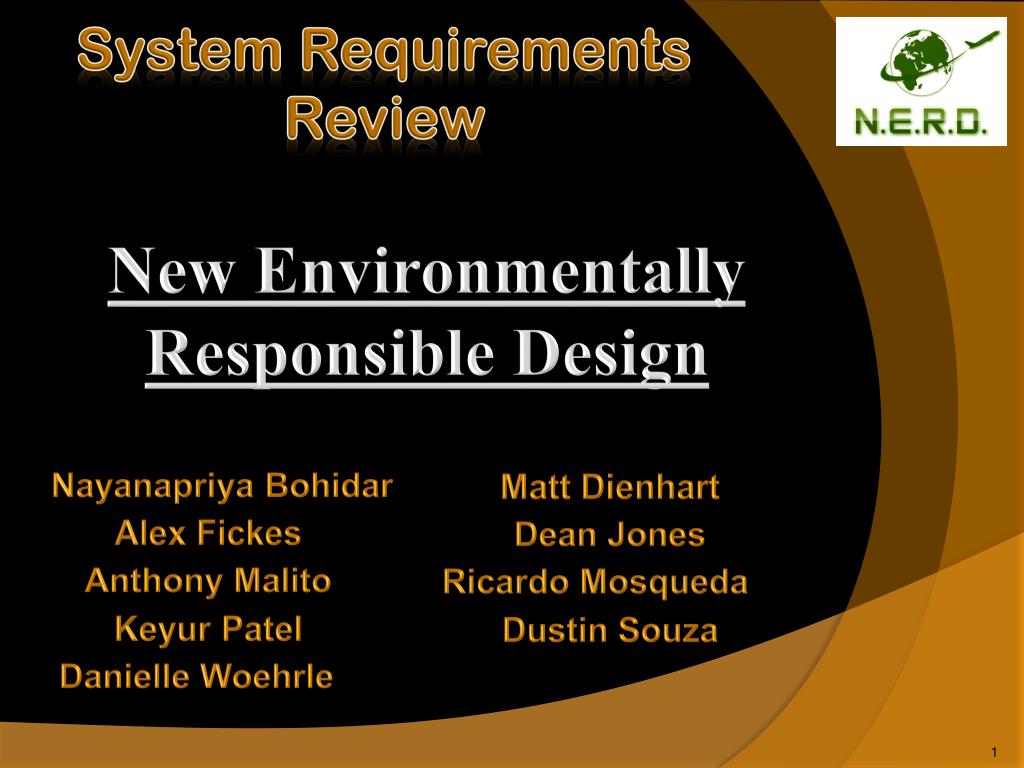

System requirements review

New Environmentally Responsible Design

System Requirements Review

NayanapriyaBohidar

Matt Dienhart

Alex Fickes

Dean Jones

Anthony Malito

Ricardo Mosqueda

Keyur Patel

Dustin Souza

Danielle Woehrle


Outline
Outline

Mission Statement

Market

Competition

Concept of Operations

Design Requirements

Design Comparison

New Technologies and Advanced Concepts

Sizing Code

Summary


Mission statement
Mission Statement

To design an environmentally responsible aircraft for the twin aisle commercial transport market with a capacity of 300+ passengers, NASA’s N+2 capabilities, and an entry date of 2020-2025.

  • NASA’s N+2 technology benefits include:

    • Reducing cumulative noise by 42dB below Stage 4

    • Reducing take-off and landing NOx emissions to 75% below CAEP6 levels

    • Reducing fuel burn by 50% relative to “large twin-aisle performance” (777-200LR)

    • Reducing field length by 50% relative to the

    • large twin-aisle


Market

  • Twin-aisle aircraft represent the fastest-growing market segment

  • Growth fueled by emerging economies (Asia-Pacific, Latin America, Middle East, etc.)

Image Source:

Boeing Market Forecast


Customers
Customers

  • Asia-Pacific, Middle East, Latin America

  • Low Cost Carriers (LCC’s)

  • Passengers looking for cheap hub-to-hub and nonstop flights

  • Airliners looking for high capacity aircraft to meet increasing market demand


Competition
Competition

  • High-Speed Rail Systems

  • Boeing 737, Airbus A319

Map of proposed high-speed rail systems in China, along with estimated travel times from Beijing

Image Source:

www.hasea.com


Concept of operations
Concept of Operations

  • Operational City Pairs

Reference: Centre for Asia Pacific Aviation


Concept of operations1
Concept of Operations

  • Design Mission

    • 400 Passengers (Max Payload)

    • 4,000 nmi Range

      (Tokyo-NHD to New Delhi-DEL: 3,200nmi)

    • Runway Length

      • 8,300 ft (Takeoff)

200 nmi

4000 nmi


Design requirements

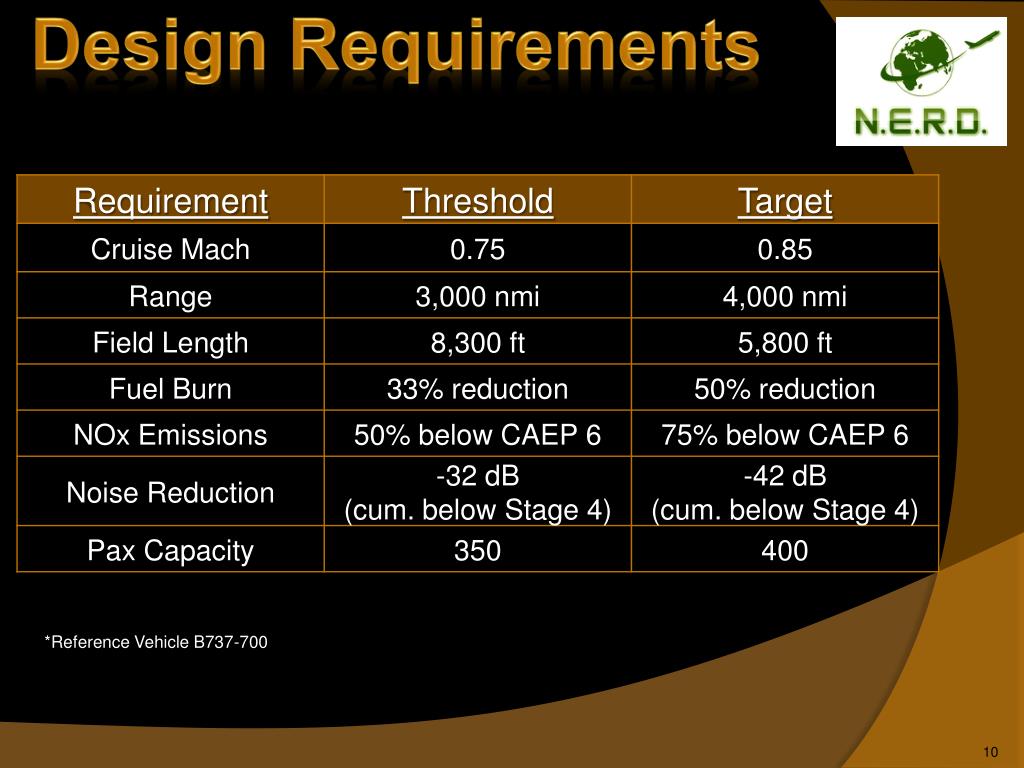

Design Requirements

*Reference Vehicle B737-700


Design comparison

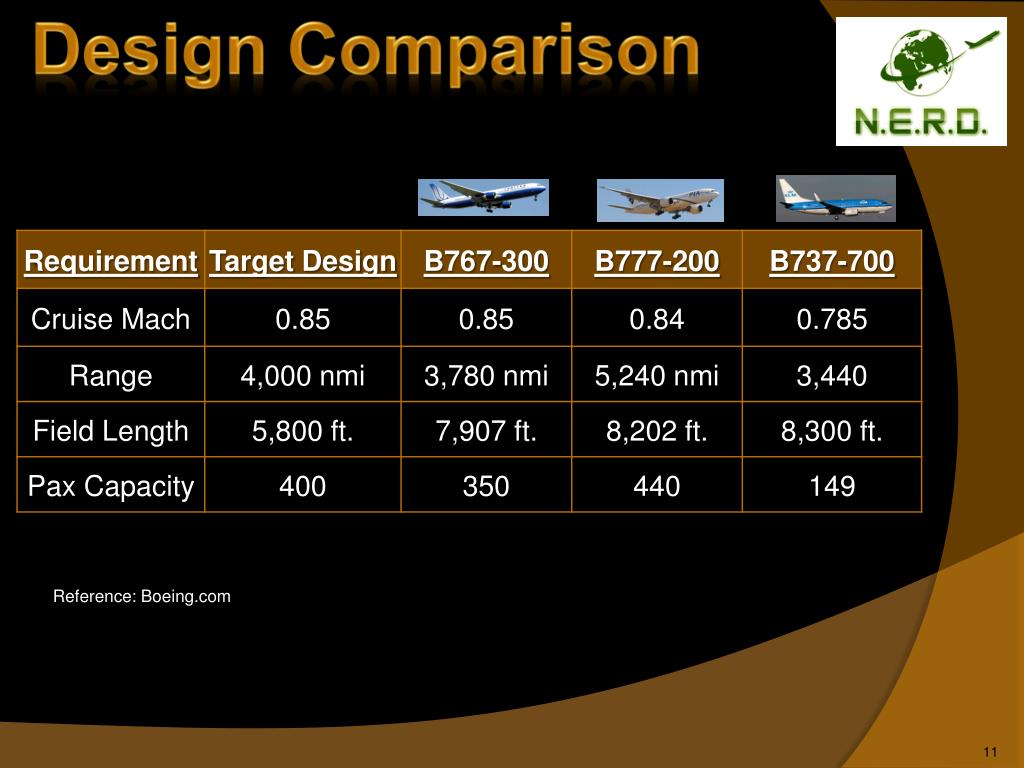

Design Comparison

Reference: Boeing.com


New technologies and advanced concepts

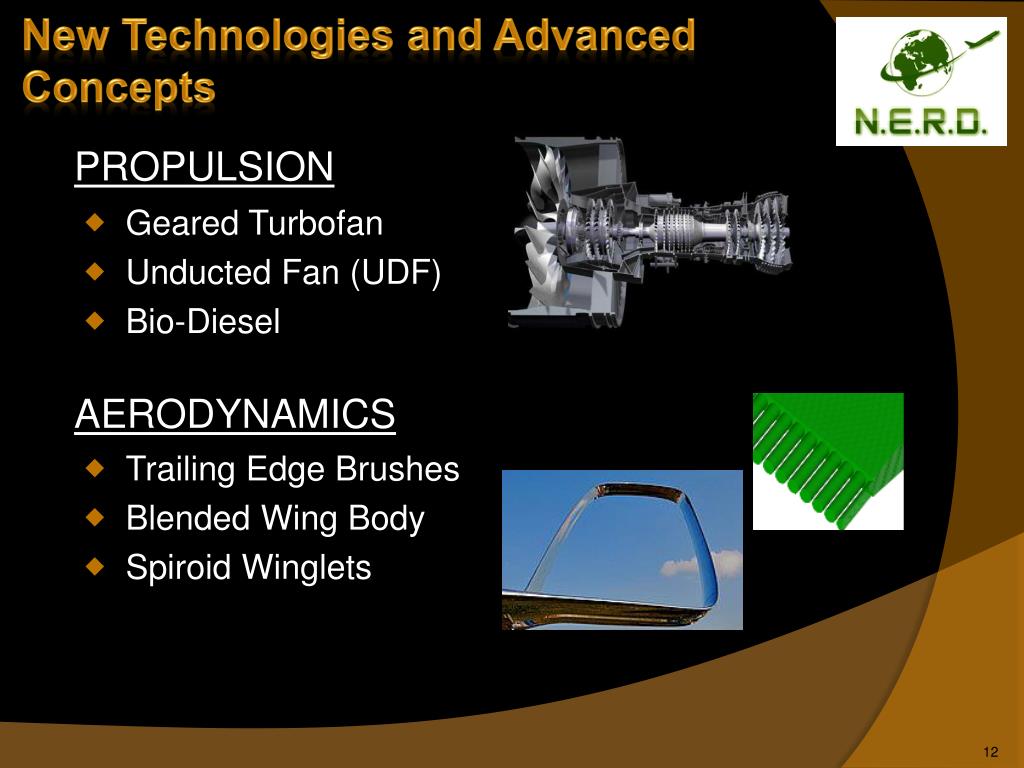

New Technologies and Advanced Concepts

PROPULSION

  • Geared Turbofan

  • Unducted Fan (UDF)

  • Bio-Diesel

  • Trailing Edge Brushes

  • Blended Wing Body

  • Spiroid Winglets

AERODYNAMICS


New Technologies and Advanced Concepts

Dynamics & Controls

  • Fly By Wireless

  • Morphing Trailing Edge

  • Composites

  • Bonded Skin Panels

Structures


Sizing code progress
Sizing Code Progress

  • We used three sizing codes:

    • Simple – Incorporates design mission range, (L/D)max and number of passengers

    • Initial – Incorporates all of the above in addition to T/W and W0/S ratios.

    • MATLAB – Incorporates all of the above and the entire design mission (i.e. loiter time, emergency landing etc.)


Summary

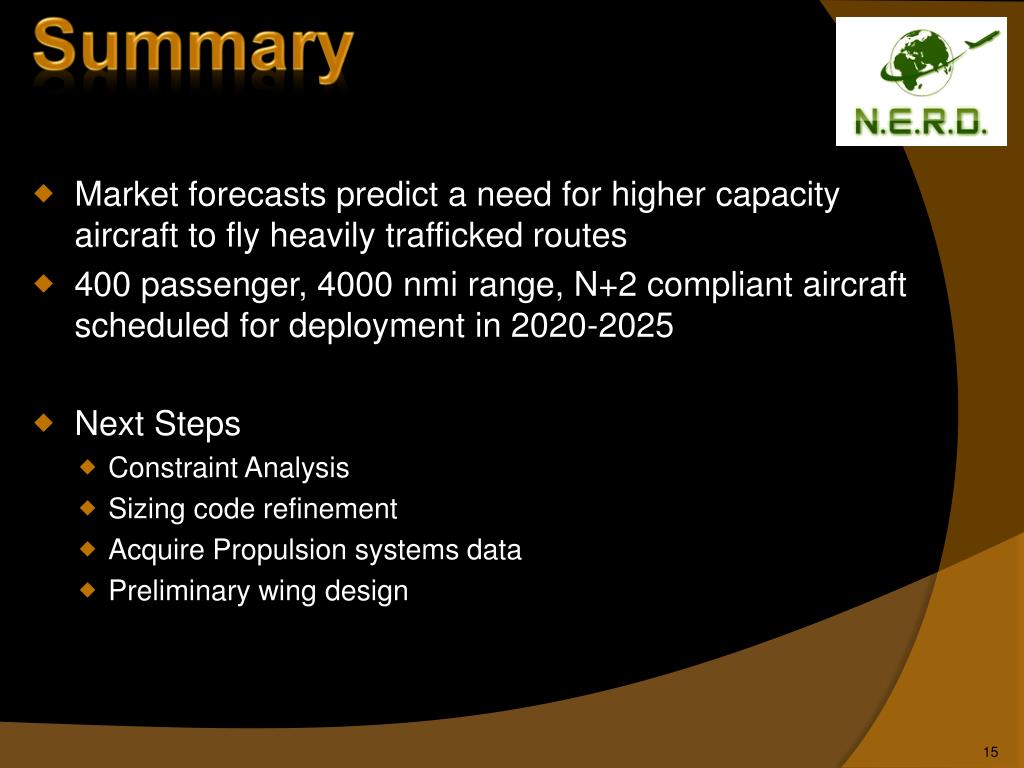

Summary

  • Market forecasts predict a need for higher capacity aircraft to fly heavily trafficked routes

  • 400 passenger, 4000 nmi range, N+2 compliant aircraft scheduled for deployment in 2020-2025

  • Next Steps

    • Constraint Analysis

    • Sizing code refinement

    • Acquire Propulsion systems data

    • Preliminary wing design
