  1. Getting to Know Boro

  2. History of Borosilicate • Developed by FreidrichOtto Schott • German chemist and glass technologist • Migrated to U.S. by Schott employees who joined Corning which led to making Pyrex in 1915 • Comprised mainly of 80% silica and 13% boron • Melts at a higher temperature and has a shorter working time • Less dense than soda lime which makes it more durable • Primarily used for lab ware or applications where resistance to acids and heat are important • Glass of choice for pipe-making industry

  3. History (cont’d) • John Burton (johnburtonglass.com) • Developed formulas for hand- mixed striking colors - Glass - Hand Blown, Sculptured And Colored: Philosophy and Method • Bob Snodgrass (snodgrass.net) • Father of Fuming • Color adoption through fuming techniques • Preforms (Borostix) • Used as semi-conductors (cathode gunmounts in color TVs) • By 1997 there were 2 dozen colors

  4. History (cont’d) • Glass Alchemy introduced “crayon” series in 2000 • Required outside-of-the-box thinking to develop • Glass is produced in small pots or crucibles that hold 50 pounds of color • 200-400 pounds per year • Beginning of the 33 COE Glass Revolution

  5. BoroManufactuers • Glass Alchemy (glassalchemy.com) • Family business started in 2000 • Rod, frit, and tubing • Momka (momkasglass.com) • 37 years • Sofia Bulgaria • Rod • Trautman Art Glass (taglass.com) • Mid-1980s by Paul Trautman • World’s first commercial operation (Northstar) • Sold Northstar in 2002 • Rod (also manufactures reactive soft glass) • Northstar (northstarglass.com) • Founded in 1980 • Rod, frit, and tubing • Users manual on Wale Apparatus available for download

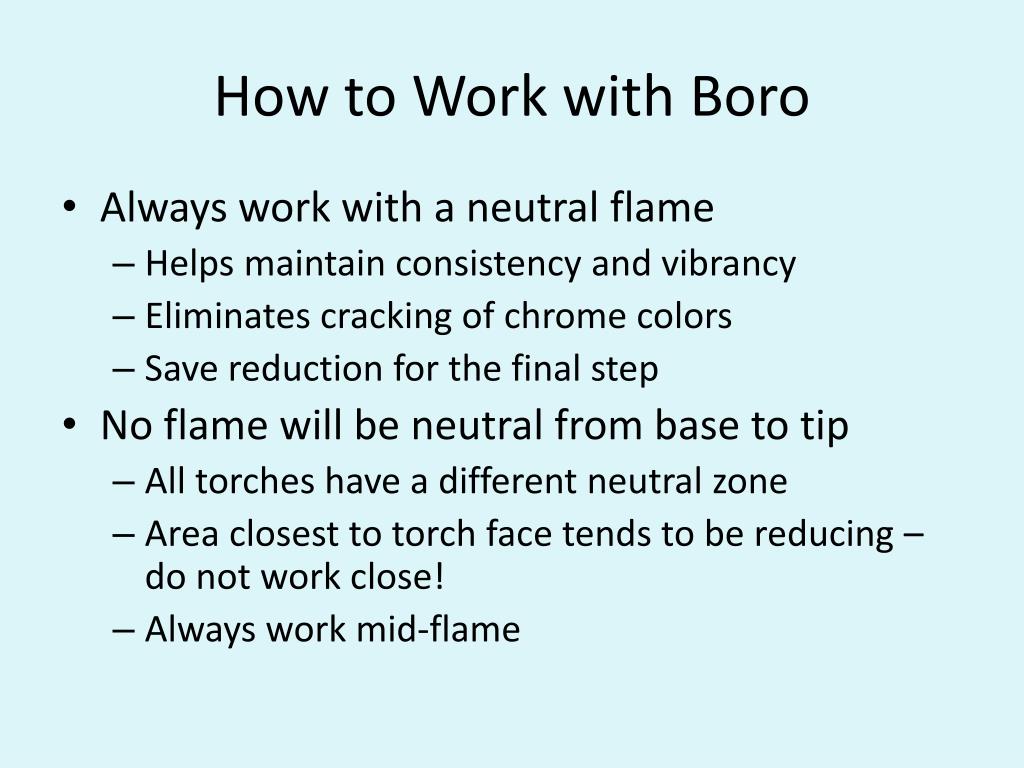

  6. How to Work with Boro • Always work with a neutral flame • Helps maintain consistency and vibrancy • Eliminates cracking of chrome colors • Save reduction for the final step • No flame will be neutral from base to tip • All torches have a different neutral zone • Area closest to torch face tends to be reducing – do not work close! • Always work mid-flame

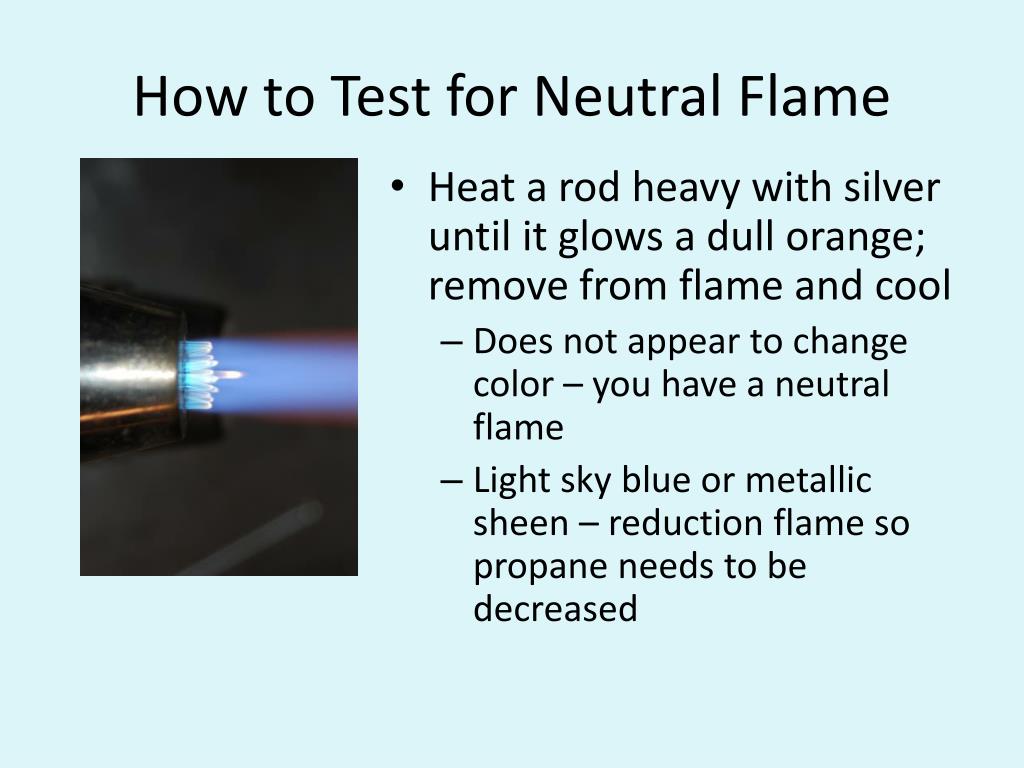

  7. How to Test for Neutral Flame • Heat a rod heavy with silver until it glows a dull orange; remove from flame and cool • Does not appear to change color – you have a neutral flame • Light sky blue or metallic sheen – reduction flame so propane needs to be decreased

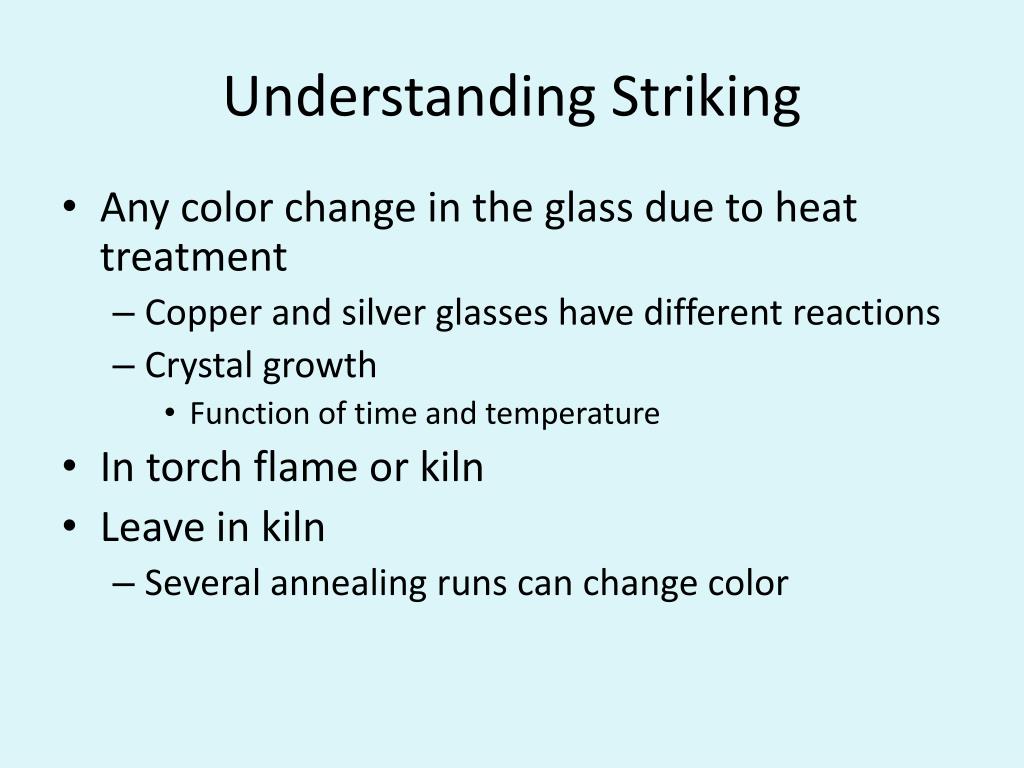

  8. Understanding Striking • Any color change in the glass due to heat treatment • Copper and silver glasses have different reactions • Crystal growth • Function of time and temperature • In torch flame or kiln • Leave in kiln • Several annealing runs can change color

  9. Polychromatic Colors • Silver-based formulations • Worked at hot temps to create, form and assemble the elements • Anneal at 1075 to 1125 degrees F • Allows growth of crystals • Growth process • Orange, ruby red, red-purple, purple, blue then green

  10. Polychromatic Colors (cont’d) • Core temp drop and reheat only surface • Silver crystals grow faster in the top layer • Uneven heat • Creates a “veil” of color (or haze) • Haze needs to be removed because it will mask beauty of the color • Create different patterns • Twisting rod • Cool paddle • Pinch with pliers • Clear frit

  11. Polychromatic Colors (cont’d) • Luster to surface • Heat to 1200-1250 for 20 seconds • Neutral – luster will be silver • Bushy – luster will be multi-colored • Polish to enhance brightness • Not all colors are created equal

  12. Torch Size and Type for Boro • Factors to consider • Size of torch • Surface-mix* (gases mix outside of torch) or pre-mix (gases mix inside of torch) • What you are making • Cost and Long term needs • 10 psi propane, 10psi - 20psi oxygen • Smaller torches run at half • Concentrator or Tank • 5 LPM (liters per minute) for boro • Desired results will affect decision

  13. Pro and Cons • Pro’s • Not as susceptible to cracking problems even when cooled quickly without kilning • Rod of glass can be directly inserted into heat without having to be slowly warmed • Can be used for large sculptures in which a small section can be worked without the entire piece being hot • Can be reheated and reworked • Better for blown work • Con’s • Very few “crayon” or WYSIWYG colors like soft glass • Individual colors can be expensive • Torch and oxygen may need to be upgraded

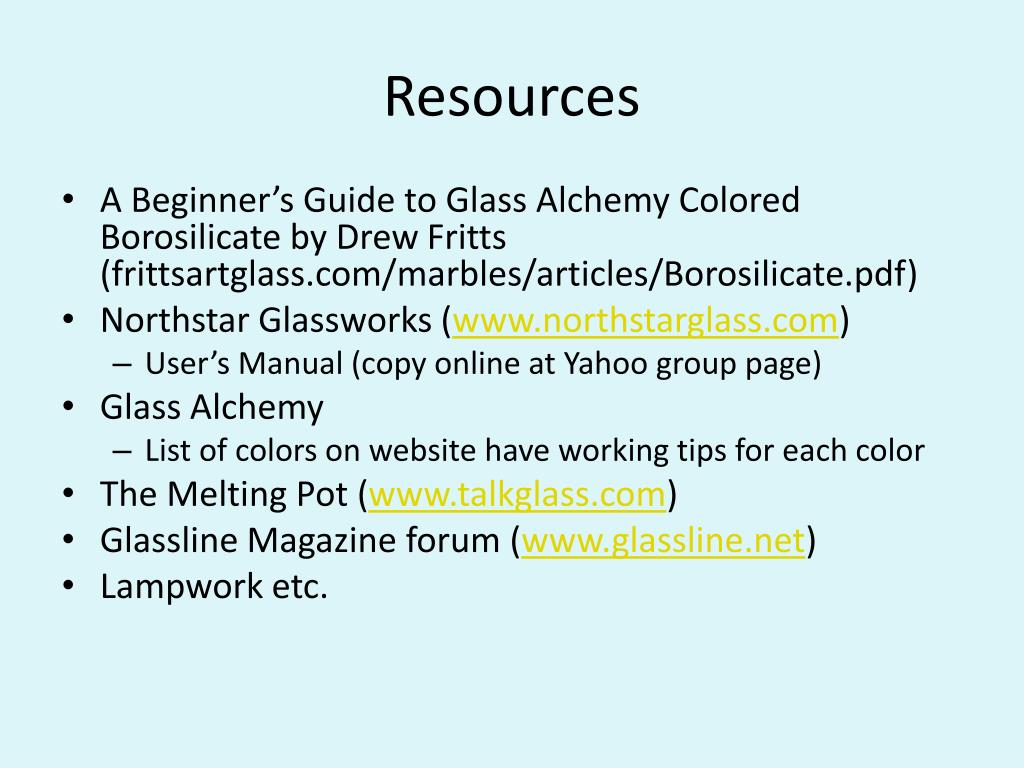

  14. Resources • A Beginner’s Guide to Glass Alchemy Colored Borosilicate by Drew Fritts (frittsartglass.com/marbles/articles/Borosilicate.pdf) • Northstar Glassworks (www.northstarglass.com) • User’s Manual (copy online at Yahoo group page) • Glass Alchemy • List of colors on website have working tips for each color • The Melting Pot (www.talkglass.com) • Glassline Magazine forum (www.glassline.net) • Lampwork etc.

  15. Boro is Glass!
