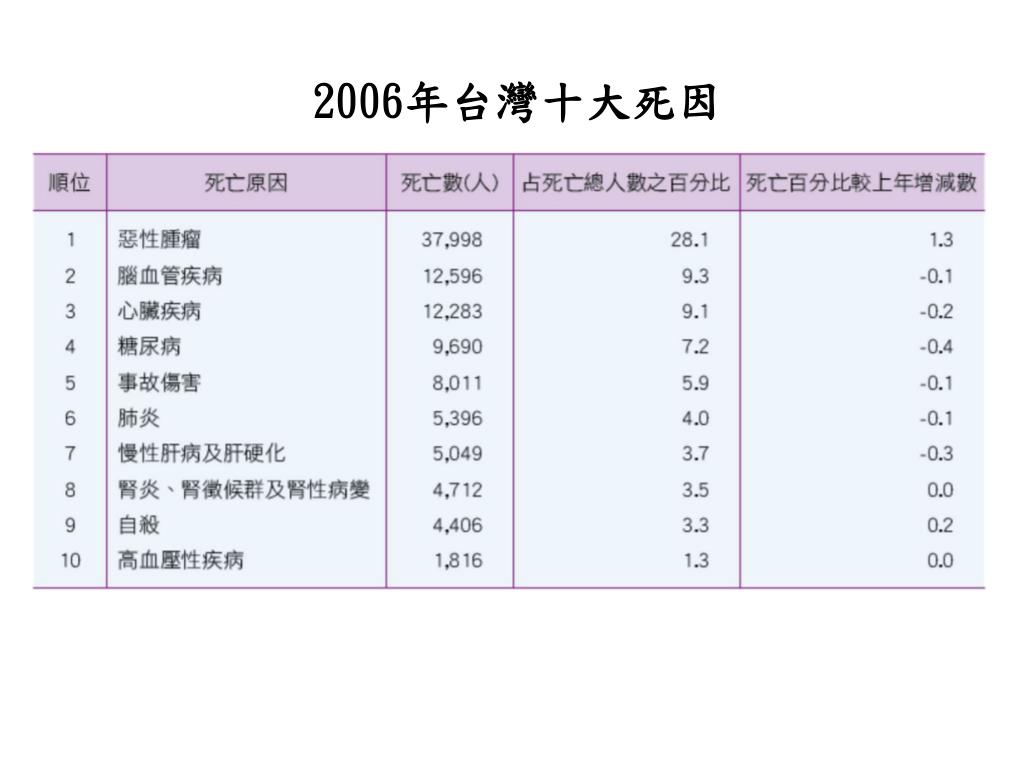

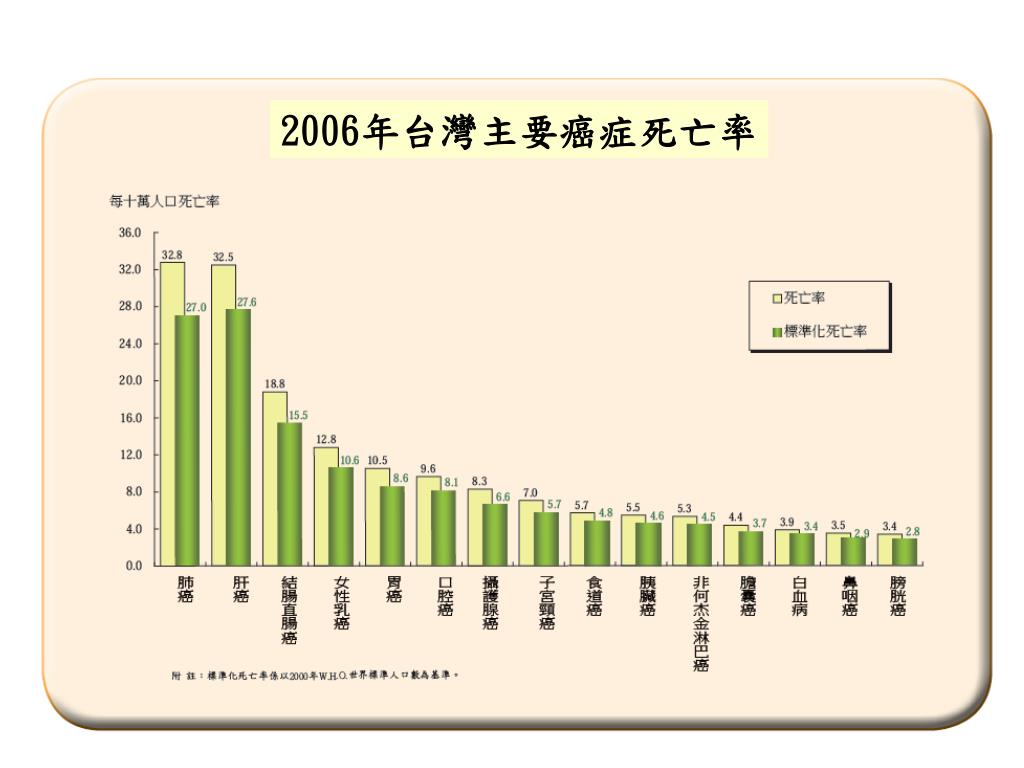

Chapter 2 G enetics and Cancer. Figure 24.1 Estimated number of new cases and deaths from specific types of cancer in the United States in 1997. 2006 年台灣十大死因. 2006 年台灣主要癌症死亡率. 2006 年台灣地區主要癌症死亡原因. 男性. 女性. 資料來源 : 行政院衛生署.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about ' Chapter 2 G enetics and Cancer' - padma

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Chapter 2 Genetics and Cancer

Figure 24.1 Estimated number of new cases and deaths from specific types of cancer in the United States in 1997.

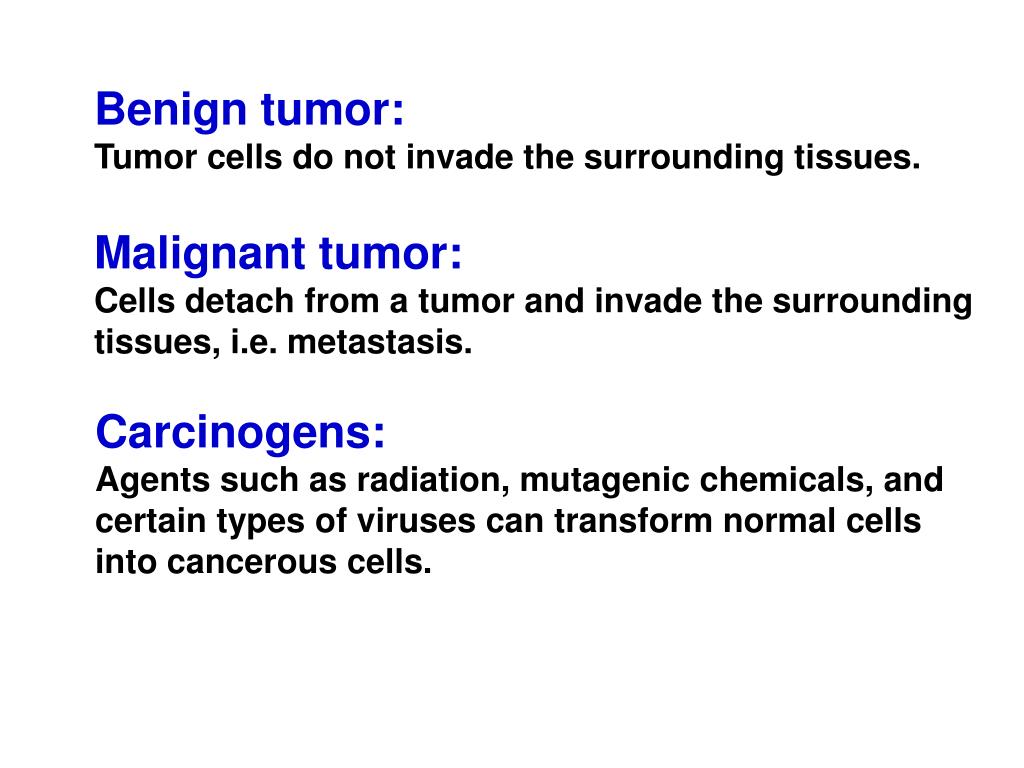

Benign tumor: Tumor cells do not invade the surrounding tissues.

Malignant tumor: Cells detach from a tumor and invade the surrounding tissues, i.e. metastasis.

Carcinogens: Agents such as radiation, mutagenic chemicals, and certain types of viruses can transform normal cells into cancerous cells.

Checkpoint: A mechanism that halts progression through the cycle until a critical process such as DNA synthesis is completed, or until damaged DNA is repaired.

Mid-G1 phase

CDK: cyclin-dependent kinase

In tumor cells, checkpoints in the cell cycle are typically deregulated.

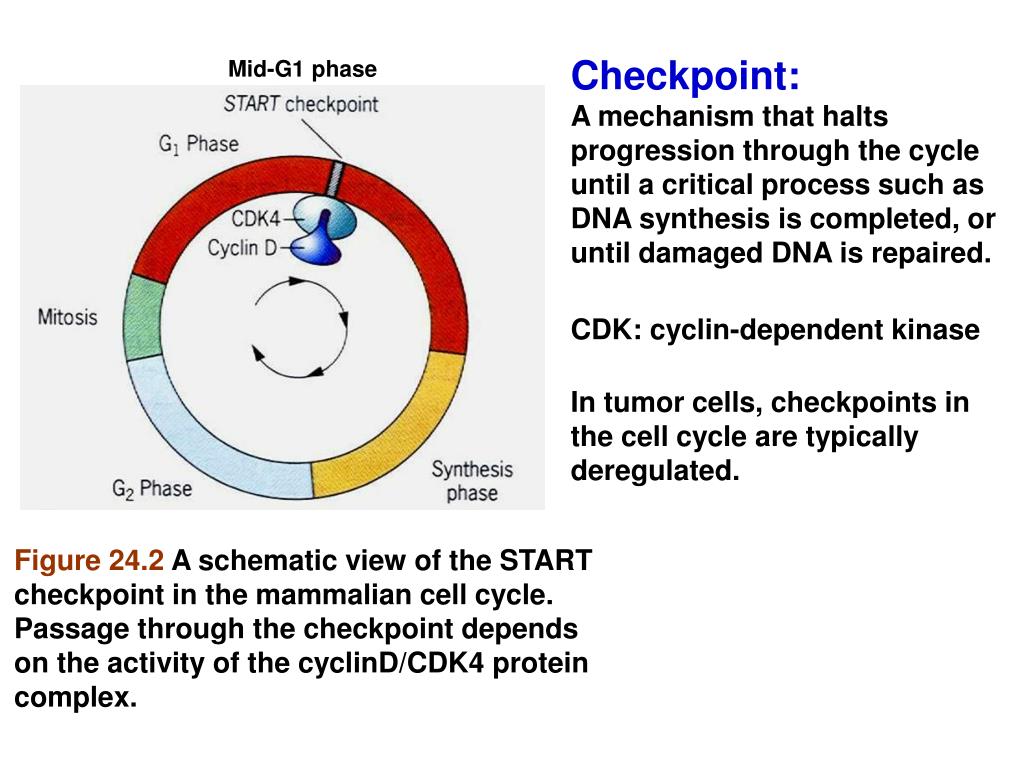

Figure 24.2 A schematic view of the START checkpoint in the mammalian cell cycle. Passage through the checkpoint depends on the activity of the cyclinD/CDK4 protein complex.

Cancer is caused by genetic malfunctions

  • The cancerous state is clonally inherited. The cancerous condition is transmitted from each cell to its daughters at the time of cell division.

  • Certain types of viruses can induce the formation of tumors in experimental animal, indicating that viral genes are involved in the transformation process.

  • Cancers can be induced by mutagenic agents that cause mutations of genes.

  • Certain types of cancer tend to run in families, e.g. retinoblastoma and colon cancers.

  • Certain type of leukemias and lymphomas are associated with particular chromosomal aberrations.

Tumor-Inducing Retroviruses and Viral Oncogenes

  • Rous sarcoma virus

  • The first tumor-Inducing retroviruses

  • Discovered in 1910 by Dr. Peyton Rous

  • Caused sarcoma in the connective tissue of chicken

  • Encode four gene, gag (capsid protein), pol (reverse transcriptase), env (envelope), and v-src (protein kinase)

  • V-src is a oncogene that responsible for the virus’s ability to form tumors

Oncogene:Gene that causes cancer is called oncogene

Single exon

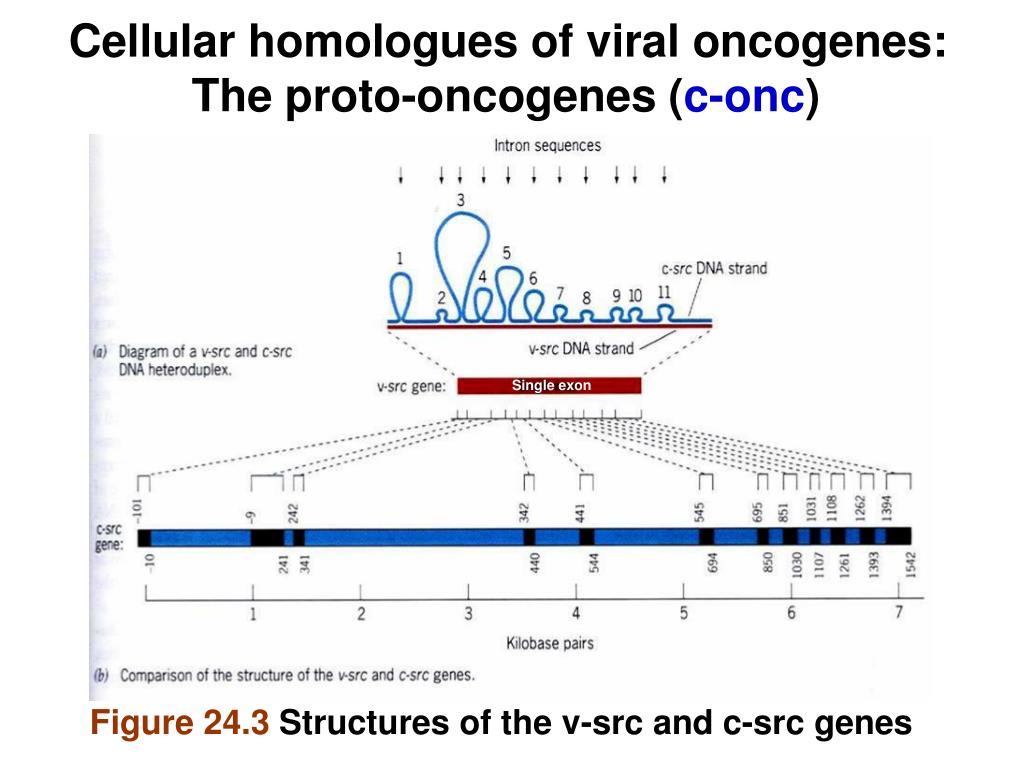

Cellular homologues of viral oncogenes: The proto-oncogenes (c-onc)

Figure 24.3 Structures of the v-src and c-src genes

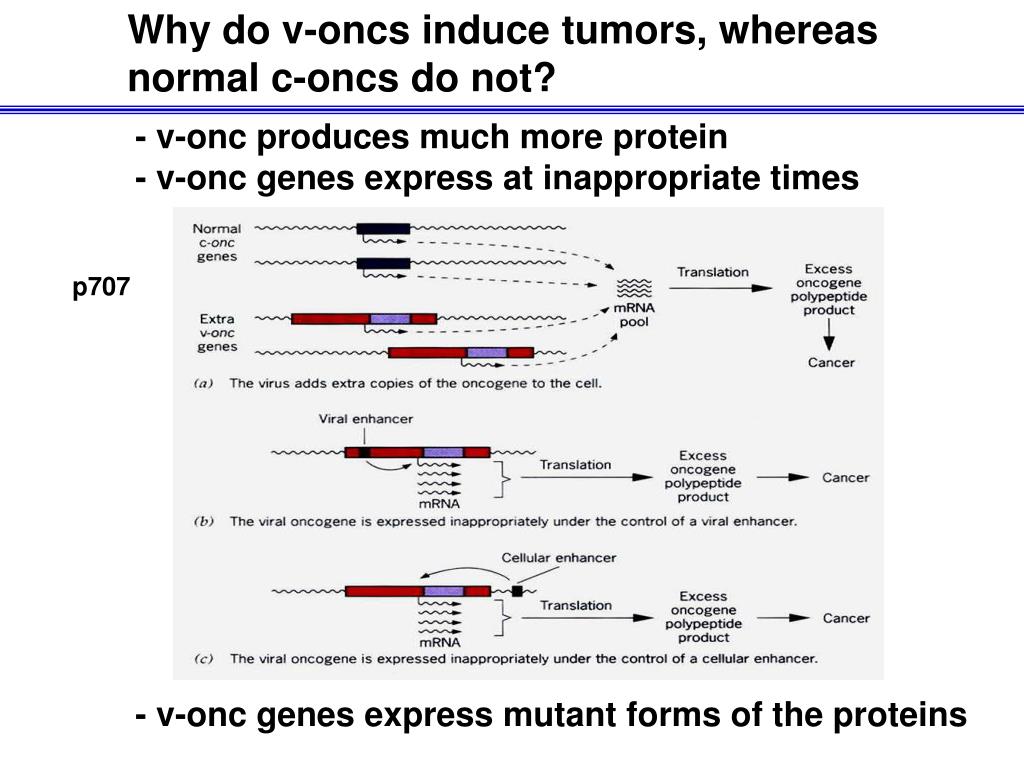

Why do v-oncs induce tumors, whereas normal c-oncs do not?

- v-onc produces much more protein - v-onc genes express at inappropriate times


- v-onc genes express mutant forms of the proteins

Figure 24.4 The transfection test to identify DNA sequences capable of transforming normal cells into cancer cells.

Dr. Robert Weinberg

c-H-ras oncogene

(a) Normal Ras protein signaling

Dominant activator

(b) Oncogenic Ras protein signaling

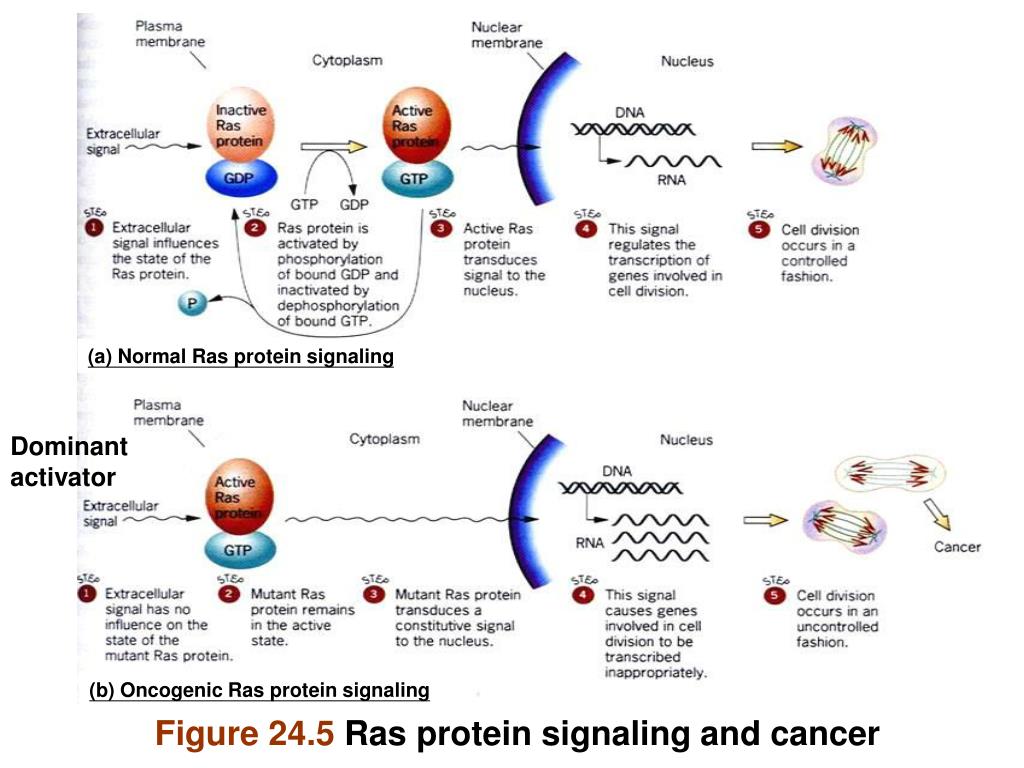

Figure 24.5 Ras protein signaling and cancer

bcr/c-abl fusion protein: constitutively activated c-abl tyrosine kinase function

Figure 24.6 The reciprocal translocation involved in the Philadelphia chromosome associated with chronic myelogenous leukemia (CML).

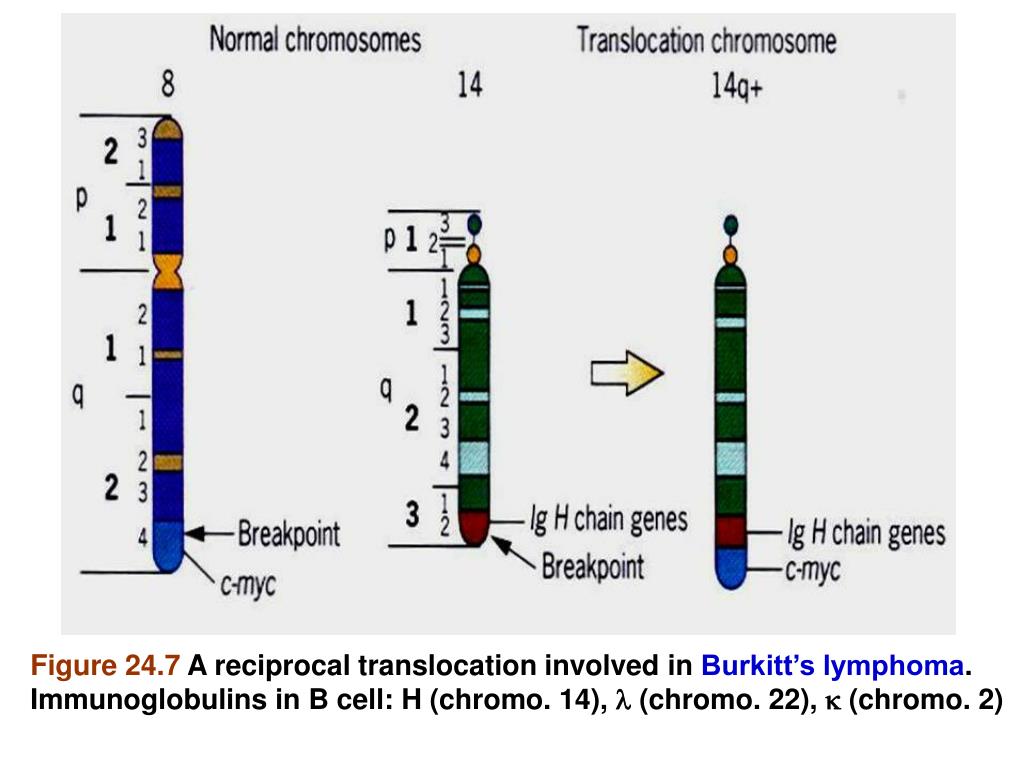

Figure 24.7 A reciprocal translocation involved in Burkitt’s lymphoma. Immunoglobulins in B cell: H (chromo. 14), l (chromo. 22), k (chromo. 2)

Knudson’s Two-Hit Hypothesis


Figure 24.8 Knudson’s two-hit hypothesis to explain the occurrence of inherited and sporadic cases of retinoblastoma. Two inactivating mutations are required to eliminate the function of the RB gene.

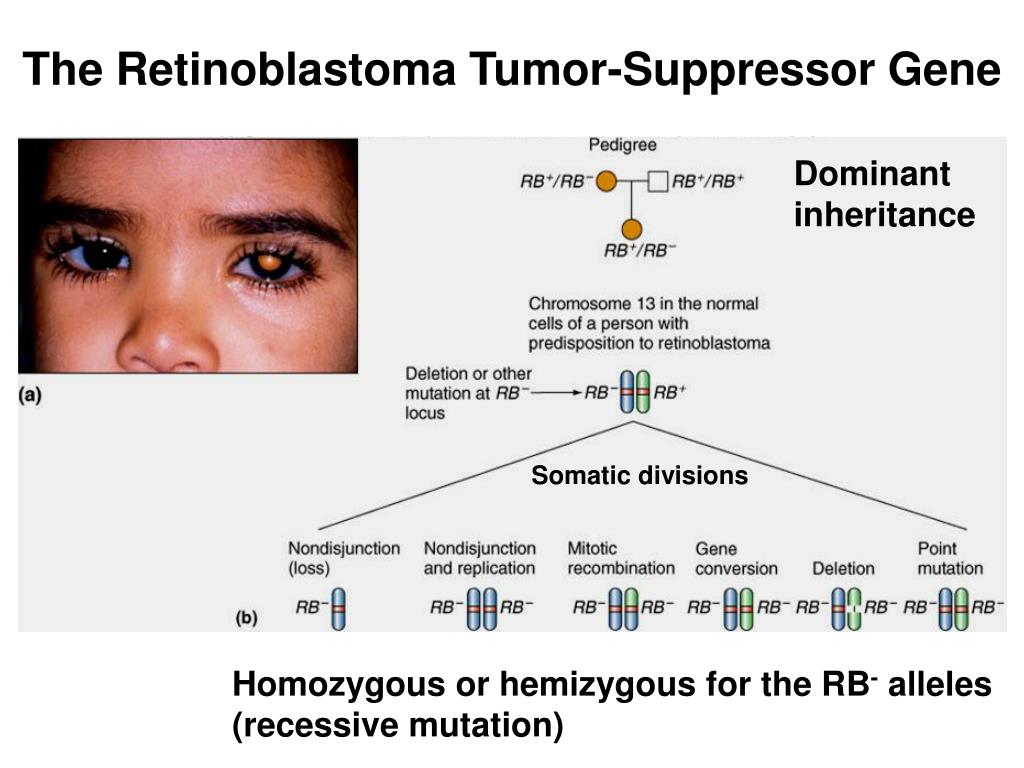

The Retinoblastoma Tumor-Suppressor Gene



Somatic divisions

Homozygous or hemizygous for the RB- alleles (recessive mutation)

Early G1

Late G1



Figure 24.9 Role of pRB in progression of the cell cycle.






Damage to the DNA induces an increase in the abundance of p53

Cell-cycle Arrest Pathway

Apoptotic Pathway

Cell death

Cell-cycle arrest

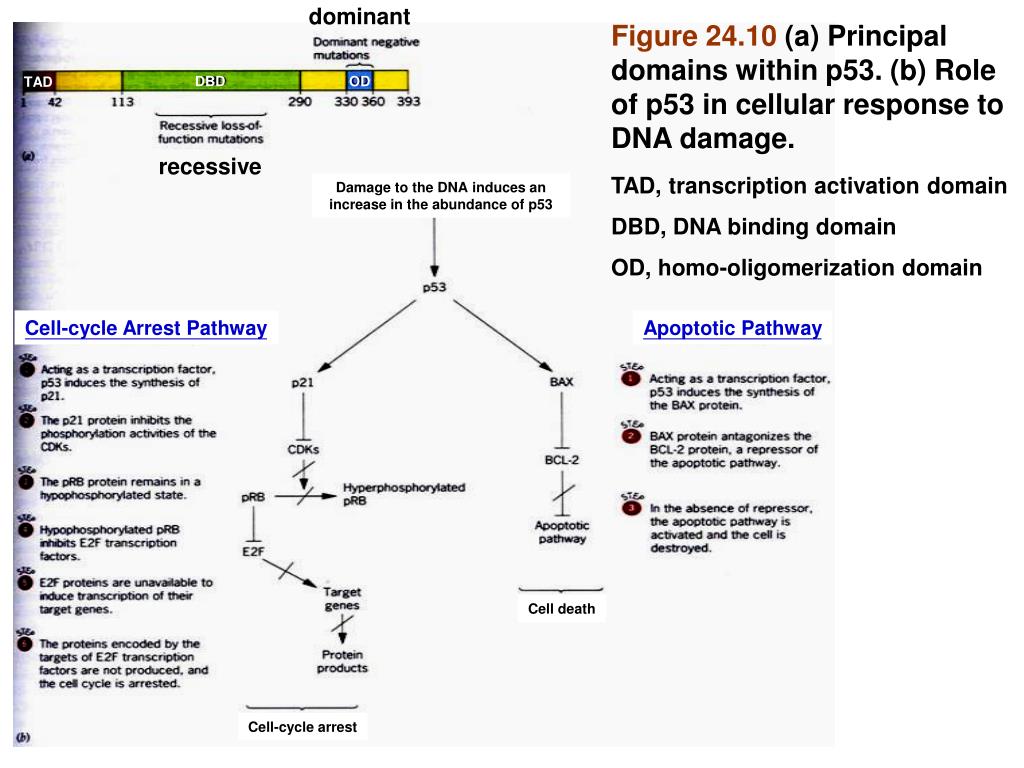

Figure 24.10 (a) Principal domains within p53. (b) Role of p53 in cellular response to DNA damage.

TAD, transcription activation domain

DBD, DNA binding domain

OD, homo-oligomerization domain

Figure 24.11 (a) Principal domains within pAPC. (b) Role of pAPC in cell-cycle control.

Autosomal dominant disease, familial adenomatous polyposis (FAP)

APC adenomatous polyposis coli

Metastatic colorectal cancer

Androgen- independent prostate cancer

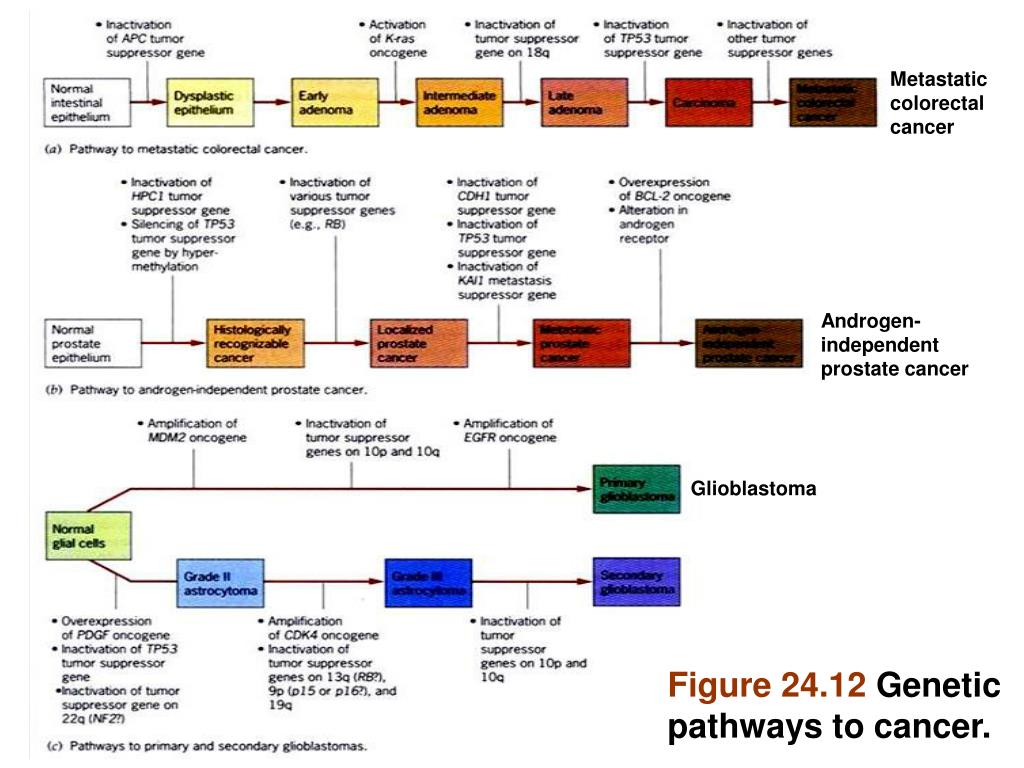

Figure 24.12 Genetic pathways to cancer.

Six hallmarks of the pathways leading to malignant cancer

  • Cancer cells acquire self-sufficiency in the signaling processes that stimulate division and growth.

  • Cancer cells are abnormally insensitive to signals that inhibit growth.

  • 3. Cancer cells can evade programmed cell death.

  • 4. Cancer cells acquire limitless replicative potential.

  • 5. Cancer cells develop ways to nourish themselves.

  • 6. Cancer cells acquire the ability to invade other tissues and colonize them.

Pages 704-705
