Wireless HummerECE 791 – Oral Project ProposalECE Faculty Advisor: Dr. Richard A. MessnerNovember 1, 2010

Presented By: Justin Audley, Blake Brown, Christopher Dean, Andrew Russell, and Andrew Saunders


Contents

Contents

  • What do we want to Accomplish?

  • Problem Statement

  • Background

  • Design Specifications

  • Goals

  • Testing/Implementation

  • Estimated Budget

  • Project Timeline


What do we want to accomplish

What do we want to Accomplish?

  • Use Kingsbury as a testing ground

  • Remote control car into UGV

  • Control UGV over WIFI

  • UGV Sense Environment

  • Video Streaming


Problem statement

Problem Statement

  • First Response

  • Personnel Safety

  • Rescue attempts

  • Enter and Exit Strategies


Background

Background

  • Remote Controlled Toy Hummer

  • UGV – Unmanned Ground Vehicle

    • Military operations

    • Gather information about environment

    • User can control/observe situations from a distance

    • User can analyze the data from the UGV to create a well planned entry and exit strategy


Background1

Background

  • Disable RF Connection

  • Internet is Everywhere

  • Why WiFi Connection?

    • More Accessible

    • Longer Range

    • Simpler implementation scheme for video transmission


Design objectives

Design Objectives

Ideas to maintain throughout project

  • Power Management

  • Transmission and Receiving

  • Migration Issues

  • Bandwidth Usage

Why won’t you

connect?!


Goals

Goals

There are two tiers of goals for this project:

  • Deliverable Goals

  • Reach Goals


Goals deliverables

Goals - Deliverables

  • Control with WiFi

  • Adding on-board sensors for obstacle and relative motion detection

  • Implement video streaming capabilities


Goals reach

Goals - Reach

  • Autonomous movement

  • Elevator Accessibility

  • Audio Streaming

  • Laptop Power

  • Storage (Client and On-Device)


Testing implementation implementation problems

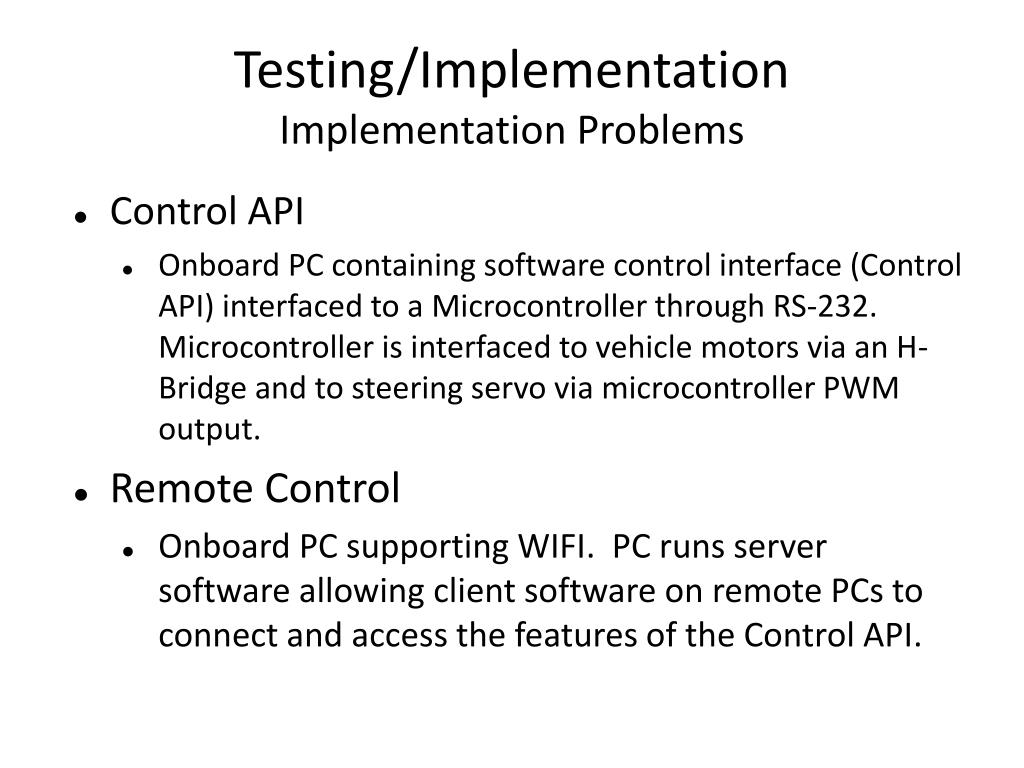

Testing/ImplementationImplementation Problems

  • Control API

    • Onboard PC containing software control interface (Control API) interfaced to a Microcontroller through RS-232. Microcontroller is interfaced to vehicle motors via an H-Bridge and to steering servo via microcontroller PWM output.

  • Remote Control

    • Onboard PC supporting WIFI. PC runs server software allowing client software on remote PCs to connect and access the features of the Control API.


Testing implementation implementation problems1

Testing/ImplementationImplementation Problems

  • Odometry

    • Optical Mouse

  • Mapping Physical Environment

    • Sonic Rangefinders

  • Automation

    • Onboard PC server software with added automation wrapper for the Control API with features accessible to connected client software.


Testing implementation high level block diagram

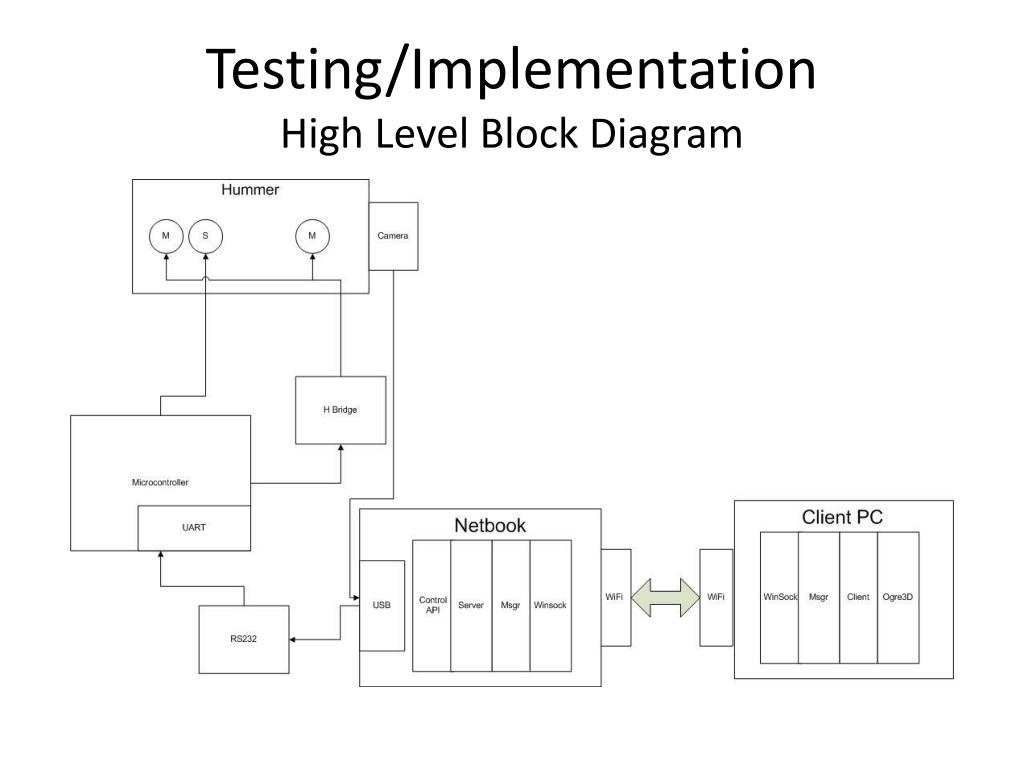

Testing/ImplementationHigh Level Block Diagram


Budget

Budget


Project timeline

Project Timeline

Semester 1


Project timeline1

Project Timeline

Semester 2


  • Login
