Chris morgan math g160 csmorgan@purdue edu april 13 2012 lecture 30

Chris Morgan, MATH G160

[email protected]

April 13, 2012

Lecture 30

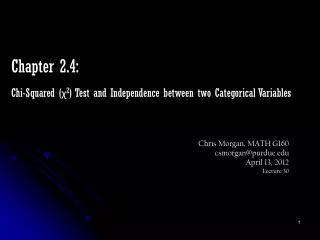

Chapter 2.4:

Chi-Squared (χ2) Test and Independence between two Categorical Variables


Two way tables

Two-Way Tables

  • Any table which allows you to observe multiple pieces of information to help find conditional, joint, and marginal probabilities

  • Expected Counts: the expected count in any cell of a two-way table when the null hypothesis is true

  • The null hypothesis is what you think to be true given previous research, outside readings, or personal opinion based on an educated guess


Example 1a

Example 1a:

  • Above is a sample of students in the College of Business. They were asked their chosen major and their sex.

    • What is the probability that a student is a Finance Major?

    • What is the probability that a student is Female?


Example 1b

Example 1b:

  • Above is a sample of students in the College of Business. They were asked their chosen major and their sex.

    • 3. What is the probability that a student is female given that the person is in Administration?


Example 1c

Example 1c:

  • Above is a sample of students in the College of Business. They were asked their chosen major and their sex.

    • 4. What is the probability that a student is an Administration major given that the student is female?


Hypothesis testing

Hypothesis Testing

  • Our null hypothesis is what we expect to see given no interaction between variables

  • Our alternative hypothesis is some improvement or change on the null hypothesis

    • Never accept the Ha

    • Always “reject the Ho” or “fail to reject the Ho”

    • Why?

  • For the chi-square test:

    • Ho: there is no association between two categorical variables, and we conclude they’re independent

    • Ha: there is an association between two categorical variables, and we conclude there is a relationship


Calculating a chi squared statistic

Calculating a Chi-Squared Statistic

  • Denoted χ2

  • The observed count is whatever value we see in the table

  • The expected count for each cell in the table can be found by taking:

Note: We can safely use the χ² test under two important conditions:

1. when no more than 20% of the expected counts are less than five

2. when all individual expected counts are one or greater


Interpreting a chi squared test

Interpreting a Chi-Squared Test

  • I can compare the calculated chi-square test-statistic to a critical value to see if my variables do in fact have a relationship

  • We will denote the test statistic as χ²* and the critical value as χ²α, (r-1)(c-1) where r is the number of rows, c is the number of columns, and the degrees of freedom is found by: df = (r-1)*(c-1). I can then look up the critical value in the table (see next slide) using the alpha level and df

  • If: | χ²*| > χ²α, (r-1)(c-1)

    …then we will reject the null hypothesis and conclude the alternative hypothesis, that the observed values were sufficiently far away from the expected value, meaning it is a significant result and there exists a relationship between the two variables

  • If: | χ²*| ≤ χ²α, (r-1)(c-1)

    …then we fail to reject the null hypothesis and the two variables are independent (meaning no relationship exists)


Chris morgan math g160 csmorgan purdue april 13 2012 lecture 30

Chi-Square (χ²) Distribution Critical Values

The first row is the alpha level

The first column is the number of df


Example 2a

Example 2a:

  • Returning to example one, is there a relationship between gender and major?

  • Find expected counts

  • Compare expected counts to observed counts

  • Calculate χ²

  • Compare chi-squaretest statistic (χ²*) to chi-square critical value (χ²α, (r-1)(c-1) )


Example 2b fill in expected counts

Example 2b: Fill in expected counts

Recall the equation for expected counts:


Example 2c calculate

Example 2c: Calculate χ²

Recall the equation for chi-square:


Example 2d calculate

Example 2d: Calculate χ²

Recall the equation for chi-square:

Now we just have to add them all together:

and compare the chi-square value to the critical value…


Example 2e is significant

Example 2e: Is χ² significant?

To compare the chi-square value to the critical value I look up in the table the value for the chi-squared critical value when alpha = 0.05 and df = 3:

Therefore, since the absolute value of the test statistic is less than or equal to the critical value we (circle one):

reject the Ho fail to reject the Hoaccept the Ho accept the Ha

And conclude….what?:


Example 3a

Example 3a:

  • Is there a relationship between favorite soda and favorite ice cream?

  • Find expected counts

  • Compare expected counts to observed counts

  • Calculate χ²

  • Compare chi-squaretest statistic (χ²*) to chi-square critical value (χ²α, (r-1)(c-1) )


Example 3b fill in expected counts

Example 3b: Fill in expected counts

Recall the equation for expected counts:


Example 3c calculate

Example 3c: Calculate χ²

Recall the equation for chi-square:


Example 3d calculate

Example 3d: Calculate χ²

Recall the equation for chi-square:

Now we just have to add them all together:

and compare the chi-square value to the critical value…


Example 3e is significant

Example 3e: Is χ² significant?

To compare the chi-square value to the critical value I look up in the table the value for the chi-squared critical value when alpha = 0.05 and df = ____:

Therefore, since the absolute value of the test statistic is less than or equal to the critical value we (circle one):

reject the Ho fail to reject the Hoaccept the Ho accept the Ha

And conclude….what?:


To review

To review:

When calculating a chi-squared value:

1. Find expected counts

2. Compare expected counts to observed counts

3. Calculate a χ² test statistic

4. Compare test statistic to critical value using table

5. Make a conclusion

If | χ²*| > χ²α, (r-1)(c-1) REJECT THE NULL: relationship exists

If | χ²*| ≤ χ²α, (r-1)(c-1) FAIL TO REJECT THE NULL: independent, no relationships exists

NEVER SAY ACCEPT THE NULL!!!!
