  1. Flowcode USB Pack USB Serial – Legacy RS232 COM Port Replacement USB Slave – Direct PC access to Flowcode Components USB HID – Human Interfaces: Mice, Keyboards, Joysticks, Monitors, Speakers etc

  2. Supported Devices Matrix Supported Products Formula Flowcode, ECIO28, ECIO40, MIAC Microchip Supported Products PICDEM FS USB, 18F2450, 18F2550, 18F4450, 18F4455, 18F4550

  3. Included In The USB Pack • Installation files to get the components into your Flowcode V3 • Flowcode example files for each component • Detailed help files for each component • Ready to run Visual Basic and Labview PC software examples • HID descriptor generation tool • All drivers that are required are generated directly from Flowcode

  4. Flowcode USB Serial Component USB Serial Component Generic USB Properties

  5. Sending and Receiving Data Basic Data Echoing Program

  6. Using Hyperterminal 1. Configuring COM Port 3. Echoed Data Appearing On Screen 2. Configuring Port Attributes

  7. Flowcode USB Slave Component USB Slave Component Generic USB Properties Flowcode Slave Device Properties

  8. Slave Service Macro USB Slave Macro Definition Slave Service Macro Details

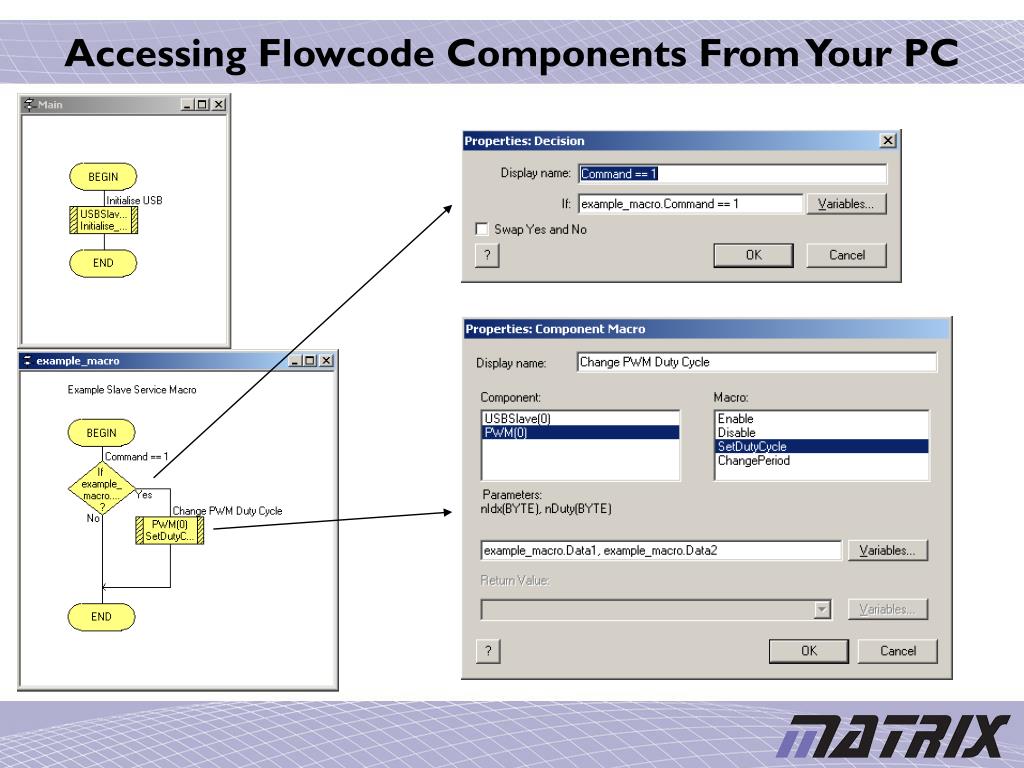

  9. Accessing Flowcode Components From Your PC

  10. Using Visual Basic or Labview VB Example Slave Interface Labview Example Slave Interface

  11. Flowcode HID Component USB HID Component Generic USB Properties USB HID Properties HID Descriptor

  12. Using the HID Descriptor Tool Available Pre-made HID descriptors Entering the descriptor into the HID component

  13. Sending HID Packets

  14. Receiving HID Packets
