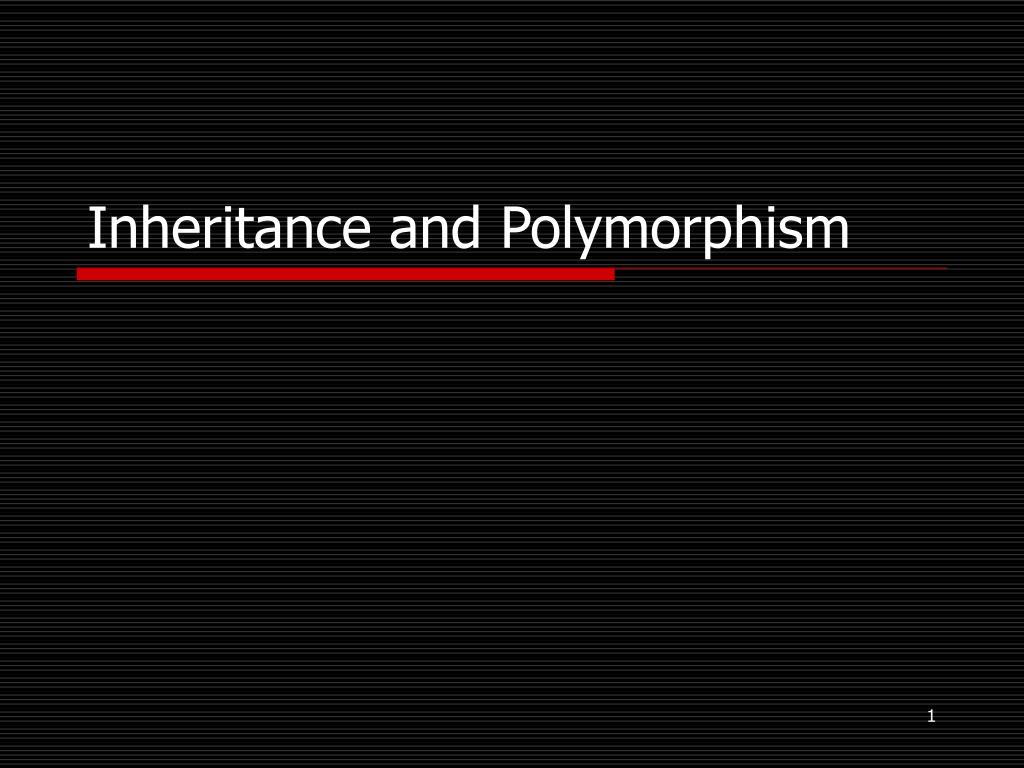

Inheritance and polymorphism

Inheritance and Polymorphism


This section is not required material

This section is not required material!!!!

  • A note about inheritance…

    • It’s not normally covered in 101

    • It will be gone over in more detail in CS 201

  • Ask questions if you are confused about inheritance

    • You aren’t the only one!


Motivation

Motivation

  • Consider a transportation computer game

    • Different types of vehicles:

      • Planes

        • Jets, helicopters, space shuttle

      • Automobiles

        • Cars, trucks, motorcycles

      • Trains

        • Diesel, electric, monorail

      • Ships

  • Let’s assume a class is written for each type of vehicle


More on classes vs objects

More on classes vs. objects

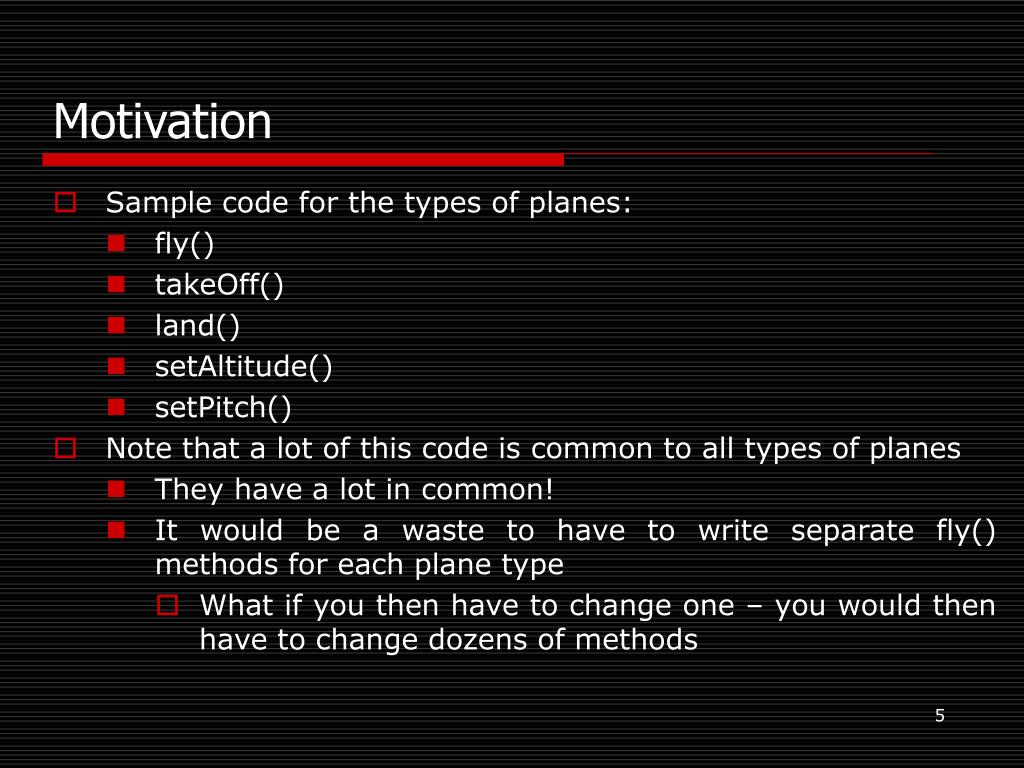

Motivation1

Motivation

  • Sample code for the types of planes:

    • fly()

    • takeOff()

    • land()

    • setAltitude()

    • setPitch()

  • Note that a lot of this code is common to all types of planes

    • They have a lot in common!

    • It would be a waste to have to write separate fly() methods for each plane type

      • What if you then have to change one – you would then have to change dozens of methods


Motivation2

Motivation

  • Indeed, all vehicles will have similar methods:

    • move()

    • getLocation()

    • setSpeed()

    • isBroken()

  • Again, a lot of this code is common to all types of vehicles

    • It would be a waste to have to write separate move() methods for each vehicle type

      • What if you then have to change one – you would then have to change dozens of methods

  • What we want is a means to specify one move() method, and have each vehicle type inherit that code

    • Then, if we have to change it, we only have to change one copy


Motivation3

Motivation

  • Provides:

    • move()

    • getLocation()

    • setSpeed()

    • isBroken()

  • Provides:

    • fly()

    • takeOff()

    • land()

    • setAltitude()

    • setPitch()

  • Provides:

    • oilChange()

    • isInTraffic()

  • Provides:

    • derail()

    • getStation()


Motivation4

Motivation

  • What we will do is create a “parent” class and a “child” class

  • The “child” class (or subclass) will inherit the methods (etc.) from the “parent” class (or superclass)

  • Note that some classes (such as Train) are both subclasses and superclasses


Inheritance code

Inheritance code

class Vehicle {

...

}

class Train extends Vehicles {

...

}

class Monorail extends Train {

...

}


About extends

About extends

  • If class A extends class B

    • Then class A is the subclass of B

    • Class B is the superclass of class A

    • A “is a” B

    • A has (almost) all the methods and variables that B has

  • If class Train extends class Vehicle

    • Then class Train is the subclass of Vehicle

    • Class Vehicle is the superclass of class Train

    • Train “is a” Vehicle

    • Train has (almost) all the methods and variables that Vehicle has


Object oriented terminology

Monorail

Train

Vehicle

Object-oriented terminology

  • In object-oriented programming languages, a class created by extending another class is called a subclass

  • The class used for the basis is called the superclass

  • Alternative terminology

    • The superclass is also referred to as the base class

    • The subclass is also referred to as the derived class


Another example

Another example

  • Consider shapes in a graphics program

    • Shape class

      • Circle class

      • Cube class

      • Dodecahedron class

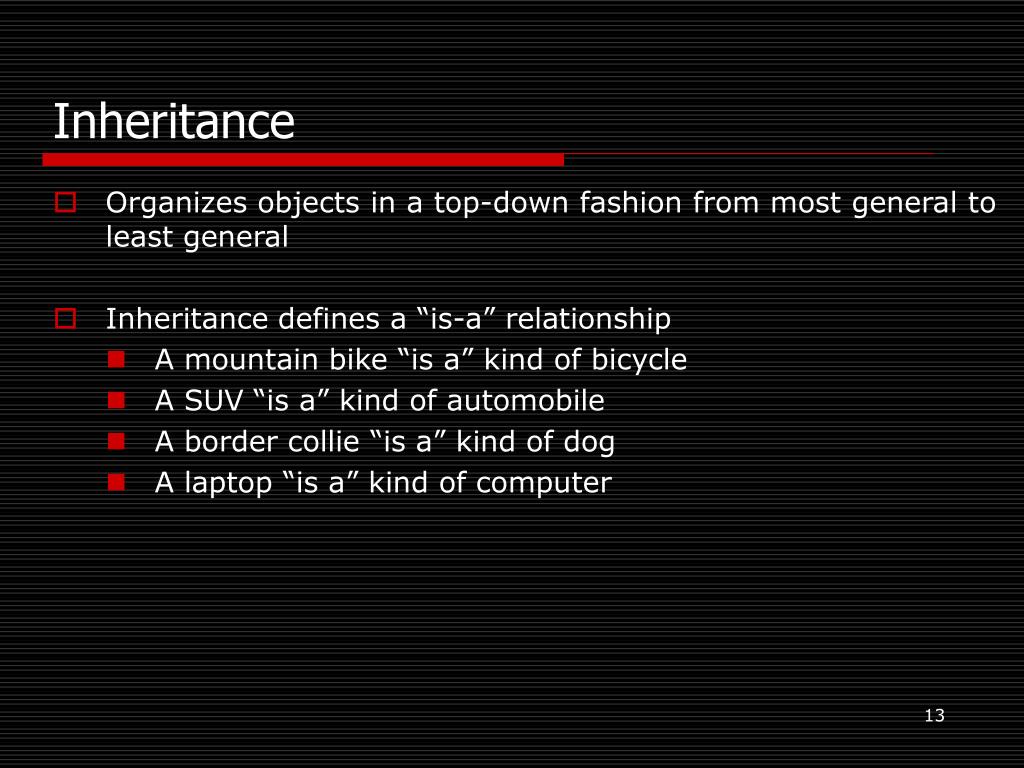

Inheritance

Inheritance

  • Organizes objects in a top-down fashion from most general to least general

  • Inheritance defines a “is-a” relationship

    • A mountain bike “is a” kind of bicycle

    • A SUV “is a” kind of automobile

    • A border collie “is a” kind of dog

    • A laptop “is a” kind of computer

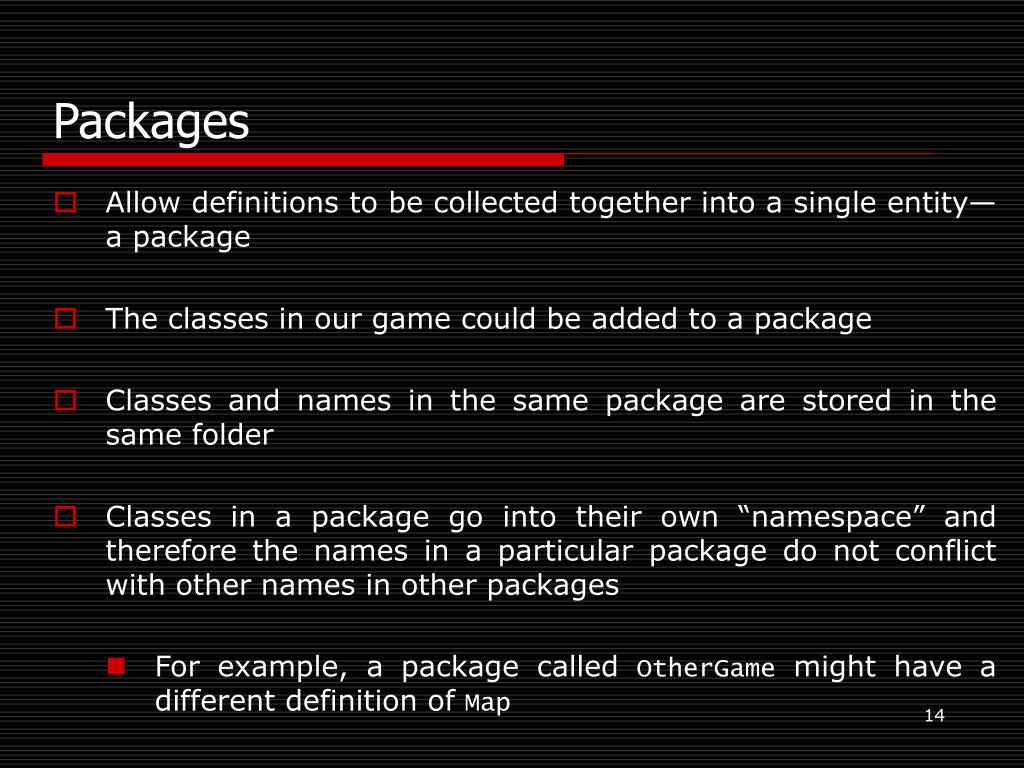

Packages

Packages

  • Allow definitions to be collected together into a single entity—a package

  • The classes in our game could be added to a package

  • Classes and names in the same package are stored in the same folder

  • Classes in a package go into their own “namespace” and therefore the names in a particular package do not conflict with other names in other packages

    • For example, a package called OtherGame might have a different definition of Map


Controlling access

Controlling access

  • Class access rights


Java s mother of all objects class object

Java’s Mother-of-all-objects—Class Object

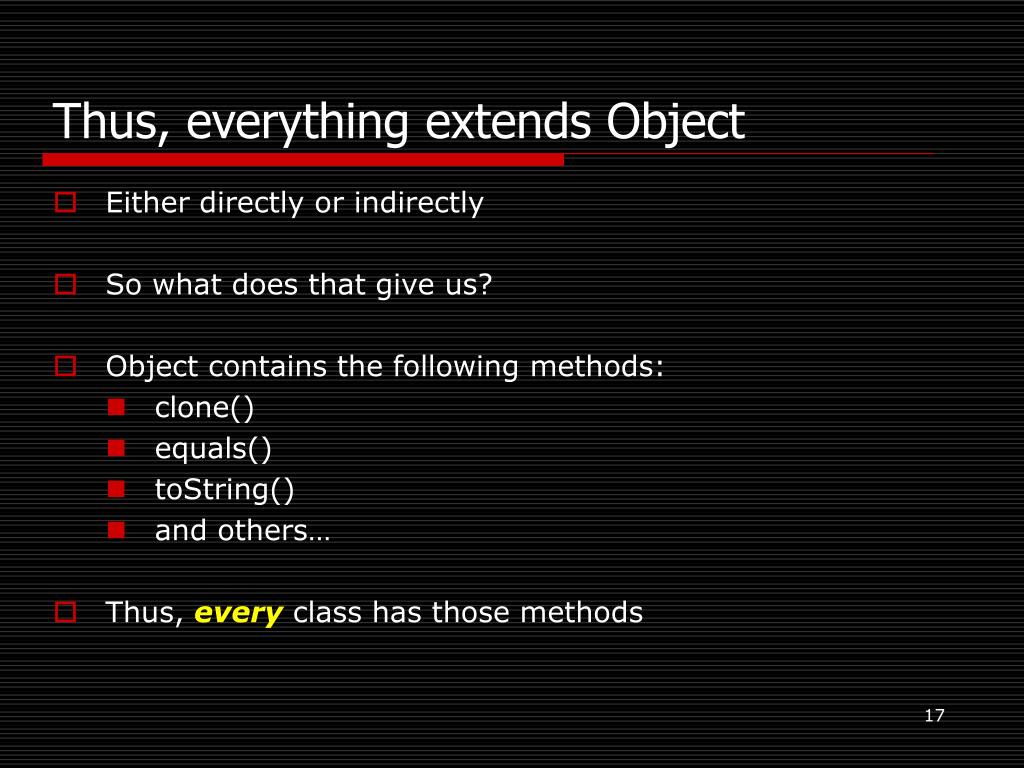

Thus everything extends object

Thus, everything extends Object

  • Either directly or indirectly

  • So what does that give us?

  • Object contains the following methods:

    • clone()

    • equals()

    • toString()

    • and others…

  • Thus, every class has those methods

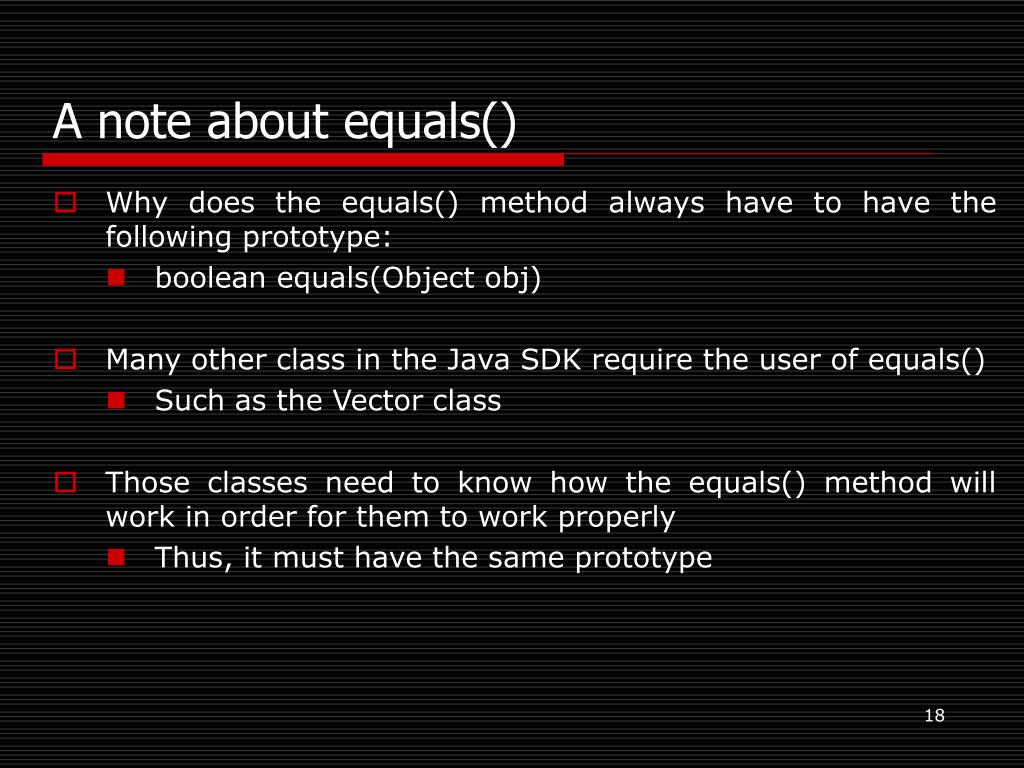

A note about equals

A note about equals()

  • Why does the equals() method always have to have the following prototype:

    • boolean equals(Object obj)

  • Many other class in the Java SDK require the user of equals()

    • Such as the Vector class

  • Those classes need to know how the equals() method will work in order for them to work properly

    • Thus, it must have the same prototype


Overriding

Overriding

  • Consider the following code:

    class Foo { // automatically extends Object

    public String toString () {

    return “Foo”;

    }

    }

    ...

    Foo f = new Foo();

    System.out.println (f);

  • Now there are two toString() method defined

    • One inherited from class Object

    • One defined in class Foo

  • And they both have the same prototype!

  • Which one does Java call?


Overriding1

Overriding

  • Java will call the most specific overriden method it can

    • toString() in Foo is more specific than toString() in Object

  • Consider our transportation hierarchy:

    • Assume each class has its own toString() method

    • Car extends Automobile extends Vehicle (extends Object)

    • Assume each defines a toString() methods

  • The toString() method in Vehicle is more specific (to vehicles) than the one in Object

  • The toString() method in Automobiles is more specific than the ones in Vehicle or Object

  • The toString() method in Car is more specific than the ones in Automobile, Vehicle, or Object

  • Thus, for a Car object, the Car toString() will be called

    • There are ways to call the other toString() methods

      • This has to be specifically requested


Overriding2

Overriding

  • This is called overriding, because the toString() in Foo “overrides” the toString() in Object

  • Note that the prototype must be EXACTLY the same

    • With overloading, the parameter list must be DIFFERENT

  • Overriding only works with inheritance

    • In particular, you can only override a method already defined in a parent (or grandparent, etc.) class
