Chapter 5 electrons in atoms

Chapter 5Electrons in Atoms

Different colors of light are

associated with the movement of

electrons


5 1 models of the atom

5.1 Models of the Atom

  • Key Concepts

    • What was inadequate about Rutherford’s atomic model?

    • What was the new assumption in the Bohr model of the atom?

    • What does the quantum mechanical model determine about the electrons in an atom?

    • How do sublevels of principal energy levels differ?


Chapter 5 electrons in atoms

  • Rutherford (1897)

    • Electrons move around a

      nucleus made of protons and neutrons

    • Could not explain the _______________ properties of elements

      • Ex: why do metals change colors when

        heated?

chemical


Chapter 5 electrons in atoms

  • Bohr (1913) proposed that

    electrons are found in specific

    paths, or _________, around a nucleus

    • Each orbit has a __________ energy level

      • Ex: rungs of a ladder

        The higher an electron is on the

        ladder, the farther it is away from

        the nucleus

orbitals

fixed


Chapter 5 electrons in atoms

  • Quantum  the amount of energy needed to move an electron from one energy level to another

    • Moving up energy levels = ____________ energy

    • Moving down energy levels = _______ energy (light)

    • Energy levels are not equally spaced

      • It takes less energy to

        move between higher rungs

        or energy levels than lower

        ones

absorb

emit


Chapter 5 electrons in atoms

  • Bohr’s model only worked for hydrogen

  • De Broglie (1923) proposed that small particles, like electrons, have _____________ properties

  • Schrodinger (1926) devised a mathematical calculation to describe the wave-like movement of electrons

  • _________________________

    • Determines the allowed energies an electron can have and how _________ it is to find the electron at various locations around the nucleus

wave-like

Quantum Mechanical Model

likely


Chapter 5 electrons in atoms

Electron may be found

anywhere within the

electron cloud

Movement of electron is similar

to movement of a propeller blade

Blade may be anywhere in the

blurry region


Chapter 5 electrons in atoms

principle quantum numbers

  • The energy levels in the quantum mechanical model are labeled by _____________________________ (n)

    • n = 1, 2, 3, 4, 5, 6…

  • Each principle energy level has sublevels that correspond to different cloud shapes, called _______________________

Name: Principle Quantum Number

Symbol: n

Represents: energy levels

Values: any integer ≥ 1

atomic orbitals


Chapter 5 electrons in atoms

spherical

4 Different Atomic Orbitals

  • S orbital = _____________ (1)

  • P orbitals = __________________ (3)

    3. D orbitals = ____________________ (5)

    4. F orbitals = ___________________ (7)

dumbbells

four leaf clovers

Complex shapes


Chapter 5 electrons in atoms

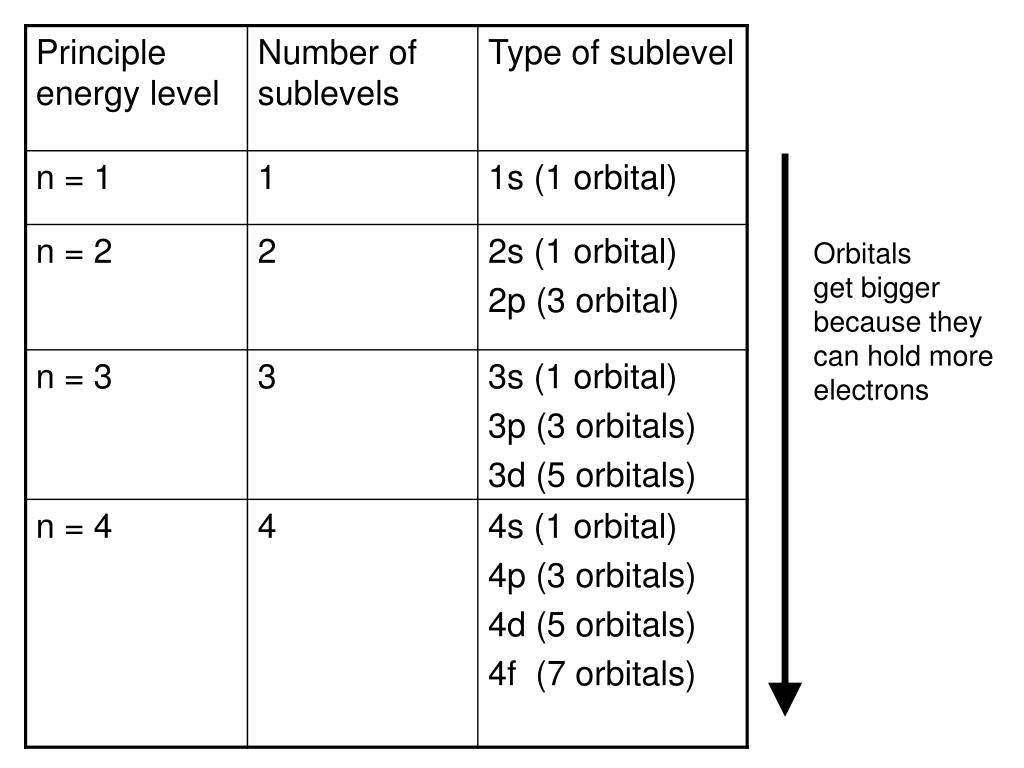

Orbitals

get bigger

because they

can hold more

electrons


Chapter 5 electrons in atoms

  • Notice that n = # of sublevels and # of different shapes

    • The order of the shapes moves from lowest energy to highest energy (s, p, d, f…)

  • Example: n = 2; sublevel shapes = s & p

  • Name the shape(s) be for the following:

    • n = 1

    • n = 3

    • n = 4

s

s, p, d

s, p , d, f


Chapter 5 electrons in atoms

  • Notice the number of orbitals per shape

    • s = 1- d = 5

    • p = 3- f = 7

  • If n = 3, then we will have 3 different shapes (s, p & d)

  • The s shape has 1 orbital available

  • The p shape has 3 orbitals available

  • And, the d shape has 5 orbitals available

  • How many orbitals does the 3rd energy level have?

It has 9 orbitals


Chapter 5 electrons in atoms

  • What is the relationship between n = 3 and 9 available orbitals?

    • 9 = 32

    • So, we can say that n2 = # of orbitals available

  • We represent each orbital by listing the energy level followed by the orbital shape

    1s

    n = 1, orbital shape = sphere

    3d

    n = 3, orbital shape = clover


Chapter 5 electrons in atoms

  • How many orbitals are in the 3s sublevel?

    • Well, we know that n = 3 and that the orbital shape = s

      • The 3rd energy level can have 9 total orbitals between s, p, & d…but we are only looking the s orbital

         There is only 1 orbital in the 3s sublevel

  • Each orbital available can hold 2 electrons

    • s = 1 orbital = 2 electrons

    • p = 3 orbitals = 6 electrons

    • d = 5 orbitals = 10 electrons

    • f = 7 orbitals = 14 electrons


Chapter 5 electrons in atoms

  • So, when n = 4, we can have…

    • s = 1 orbital = 2 electrons

    • p = 3 orbitals = 6 electrons

    • d = 5 orbitals = 10 electrons

    • f = 7 orbitals = 14 electrons

      32 total electrons = 2n2


Chapter 5 electrons in atoms

  • # of electrons at each main level = 2n2

    n = 1_____ electrons

    n = 2_____ electrons

    n = 3_____ electrons

    n = 4_____ electrons

2

8

18

32


Key answer 1

Key Answer #1

  • What was inadequate about Rutherford’s atomic model?

It did not explain the chemical properties of elements


Key answer 2

Key Answer #2

  • What was the new assumption in the Bohr model of the atom?

An electron is found only in specific orbits


Key answer 3

Key Answer #3

  • What does the quantum mechanical model determine about the electrons in an atom?

The likelihood or probability of finding electrons in

various locations around the nucleus


Key answer 4

Key Answer #4

  • How do sublevels of principal energy levels differ?

The sublevels are the different shapes of the electron clouds


5 2 electron arrangement in atoms

5.2 Electron Arrangement in Atoms

  • Key Concepts

    • What are the three rules for writing the electron configurations of the elements?

    • Why do actual electron configurations for some elements differ from those assigned using the aufbau principle?


Chapter 5 electrons in atoms

  • Unstable arrangements become more stable by ____________ energy

  • Does the rock formation in the picture look stable? _______

  • What will it eventually do to become more stable?

losing

No

It will fall or rearrange


Chapter 5 electrons in atoms

  • In an atom, _________ and the ___________ interact to make the most stable arrangement possible

  • The ways in which electrons are arranged around the nuclei of atoms are called __________ ____________________

electrons

nucleus

electron

configurations


Chapter 5 electrons in atoms

Three rules tell you how to find the electron

configurations of atoms

1. ______________________

2. ______________________

3. ______________________

Aufbau Principle

Pauli Exclusion Principle

Hund’s Rule


Chapter 5 electrons in atoms

lowest

  • Aufbau Principle – electrons occupy the orbitals of __________ energy first

Each box represents

an orbital

Will electrons occupy the 2s orbital or the 2p orbital

first? __________

2s


Chapter 5 electrons in atoms

  • What do the three boxes by 2p represent?

  • Which is higher, 3d or 4s?

The three dumbbell orbitals = px, py, pz

3d


Chapter 5 electrons in atoms

hold

  • Pauli Exclusion Principle – an atomic orbital may ________ at most two electrons that have ____________ spins

opposite

Counterclockwise

Clockwise

= ________________________

= ___________________


Chapter 5 electrons in atoms

same

  • Hund’s Rule – electrons occupy orbitals of the same energy in a way that makes the number of electrons with the ______ spin direction as large as possible

    • Orbitals in the same sublevel have ________ energy levels

      • They all must have electrons with the same spin first

      • Practice – Put three electrons into the 2p sublevel

equal

2p

x

y

z


Chapter 5 electrons in atoms

  • Practice – put four electrons into the 2p sublevel

  • Put five electrons into the 2p sublevel

2p

x

y

z

2p

x

y

z


Chapter 5 electrons in atoms

unpaired

  • If an orbital only has one electron in its box, it is called ______________

    Ex: How many unpaired electrons are in the following sublevel?

4

3d

xy

xz

yz

x2-y2

z2


Chapter 5 electrons in atoms

  • We use all three rules to write a shorthand method for showing the electron configurations of an atom

    • It consists of…

      • The _____________ of the main energy levels

      • The ____________ of the atomic orbital

      • _____________ indicating the # of electrons

Number (n)

letter

Superscript


Chapter 5 electrons in atoms

1

  • Practice: Hydrogen

    • How many electrons does hydrogen have? ___

1s1

_______________


Chapter 5 electrons in atoms

2

  • Practice: Helium

    • How many electrons does helium have? ____

1s2

_______________


Chapter 5 electrons in atoms

3

  • Practice: Lithium

    • How many electrons does lithium have? ____

1s22s1


Chapter 5 electrons in atoms

6

  • Practice: Carbon

    • How many electrons does carbon have? ____

1s22s22p2


Chapter 5 electrons in atoms

16

  • Practice: Sulfur

    • How many electrons does sulfur have? ____

1s22s22p63s23p4


Chapter 5 electrons in atoms

22

  • Practice: Titanium

    • How many electrons does titanium have? ____

1s22s22p63s23p64s23d2


Chapter 5 electrons in atoms

LETS COLOR!!!


Chapter 5 electrons in atoms

--- s block


Chapter 5 electrons in atoms

--- s block

--- p block


Chapter 5 electrons in atoms

--- s block

--- p block

--- d block


Chapter 5 electrons in atoms

  • Exceptional Electron Configurations

    • Some atoms do not follow the aufbau principle

      Ex: Copper – 29 electrons _________________

      Actually is __________________

      Ex: Chromium – 24 electrons_______________

      Actually is ________________

1s22s22p63s23p64s23d9

1s22s22p63s23p64s13d10

1s22s22p63s23p64s23d4

1s22s22p63s23p64s13d5


Chapter 5 electrons in atoms

  • These atoms are trying to become more ______________ by having sublevels that are least ______ full.

  • Filled and half-filled energy sublevels are more stable than partially-filled energy sublevels.

stable

half


Key answer 11

Key Answer #1

  • What are the three rules for writing the electron configuration of elements?

Aufbau Principle

Pauli Exclusion Principle

Hund’s Rule


Key answer 21

Key Answer #2

  • Why do the actual electron configurations for some elements differ from those assigned using the aufbau principle?

They are trying to become more stable


Chapter 5 electrons in atoms

  • What is the basis for exceptions to the aufbau diagram?

    Filled and half-filled orbitals are more stable than partially filled orbitals


5 3 physics and the quantum mechanical model

5.3 Physics and the Quantum Mechanical Model

  • Key Concepts

    • How does quantum mechanics differ from classical mechanics?

    • How are the wavelengths and frequency of light related?

    • What causes atomic emission spectra?


Chapter 5 electrons in atoms

light

waves

  • The quantum mechanical model grew out of the study of ___________, which also moves in ___________

  • If all objects have a wavelike motion, why can’t we see this for ordinary objects like baseballs or trains?

  • Classical Mechanics – describes the motion of __________ objects

  • Quantum Mechanics – describes the motion of ________________ particles and __________

Mass has to be very small in order to detect wavelength

large

subatomic

atoms


Chapter 5 electrons in atoms

  • Complete Wave Cycle

    • Starts at _________

    • Moves to its ___________ point and __________ point

    • Returns to ___________

zero

highest

lowest

zero


Chapter 5 electrons in atoms

zero

height

crest

  • Amplitude

    • a wave’s _________ from ______ to the __________

  • Wavelength (λ)

    • Distances between the _____________

crests


Chapter 5 electrons in atoms

time

  • Frequency (v)

    • Number of wave cycles to pass a certain point per unit of _________

    • Unit = ______________________

      • (SI) = ____________ or ______

Cycles per second

Hertz (Hz)

S-1 (1/s)


Chapter 5 electrons in atoms

Speed of light

  • The product of wavelength (λ) and frequency (v) always equals a constant (c), the ____________________

    c = 2.998 x 108 m/s

λ x v = c


Chapter 5 electrons in atoms

inversely

  • Wavelength (λ) and frequency are ____________ proportional

  • What happens to frequency when wavelength decreases?

Frequency increases


Chapter 5 electrons in atoms

  • Sample Problem 5.1

    • Calculate the wavelength (λ) of the yellow light emitted by the sodium lamp shown above if the frequency of the radiation is 5.10 x 1014 Hz.

      c = λv

      c = λ

      v

      2.998 x 108 m/s

      5.10 x 1014/s

= 5.88 x 10-7 m


Chapter 5 electrons in atoms

electromagnetic

  • According to the wave model, light consists of ___________________ waves

  • Electromagnetic radiation includes…

    • _____________________

    • _____________________

    • _____________________

    • _____________________

    • _____________________

    • _____________________

    • _____________________

    • ______________________

Radio waves

Radar

Microwaves

Infared

Visible light

Ultraviolet light

X - Rays

G amma rays


Chapter 5 electrons in atoms

Radio waves

  • Which type of electromagnetic radiation has the lowest frequency?


Chapter 5 electrons in atoms

  • The different frequencies of visible light can be seen when sunlight is passed through a ________

prism

ROYGBIV


Chapter 5 electrons in atoms

Red

  • What color in the visible spectrum has the highest wavelength?


Chapter 5 electrons in atoms

higher

  • Atoms emit light when their electrons move from a __________ energy level to a _________ energy level

    • Higher energy levels = ________ state

      • n = 2, 3, 4, 5, …

    • Lowest energy level = _________ state

      • n = 1

lower

excited

ground


Chapter 5 electrons in atoms

  • The frequencies of light emitted by each element that separate into distinct lines is called its ____________________________

    • Unique to each element – like a ______________

Atomic emission spectra

fingerprint

Each gas glows a

different color


Key answer 12

Key Answer #1

  • How are wavelength and frequency of light related?

They are inversely proportional


Key answer 22

Key Answer #2

  • What causes atomic emission spectra?

Electrons of atoms moving from an

excited state to a lower state


Key answer 31

Key Answer #3

  • How does quantum mechanics differ from classical mechanics?

Quantum mechanics – small objects

Classical mechanics – large objects


  • Login
