  2. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Today we will cover . . . • Technology behind our products • Features of the No-Slack II Fifth Wheel • TechLock System Options

  3. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Our goal is to provide the best fifth wheel value on the market, to accomplish this … • Fontaine fifth wheels are designed and produced using advanced technology

  4. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance DESIGN TECHNOLOGY • Product quality and performance begin with sophisticated design technology such as Finite Element Analysis

  5. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance Features of the No-Slack II Fifth Wheel • Safety Trigger Prevents High-Hitch • Automatic Slack Adjusting Lock • Positive Secondary Lock • Low Opening Pull Force • Large Load Bearing Surface • Light Weight

  6. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Kingpin has to trip the safety trigger to close the lock • Cannot be high-hitched

  7. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Patented No-Slack II jaw and wedge locking system elim- inates slack automatically to save time, cut labor cost and reduce wear

  8. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • For added safety, the positive secondary lock can only be released by pulling the handle

  9. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Patented Automatic Secondary Lock - Closed

  10. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Patented Automatic Secondary Lock - Normal Opening

  11. The Fontaine No-Slack II Lock Click to operate the lock

  12. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • The pull force required to open the No-Slack II wheel is lower than any other fifth wheel on the market 65 lbs

  13. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Increased surface contact with the trailer plate provides increased stability and durability

  14. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • The No-Slack II has 13% more surface area than the Fleetmaster! Fleetmaster 625.8 sq. in. No-Slack II 709.8 sq. in. Increased Surface Area = Increased Stability

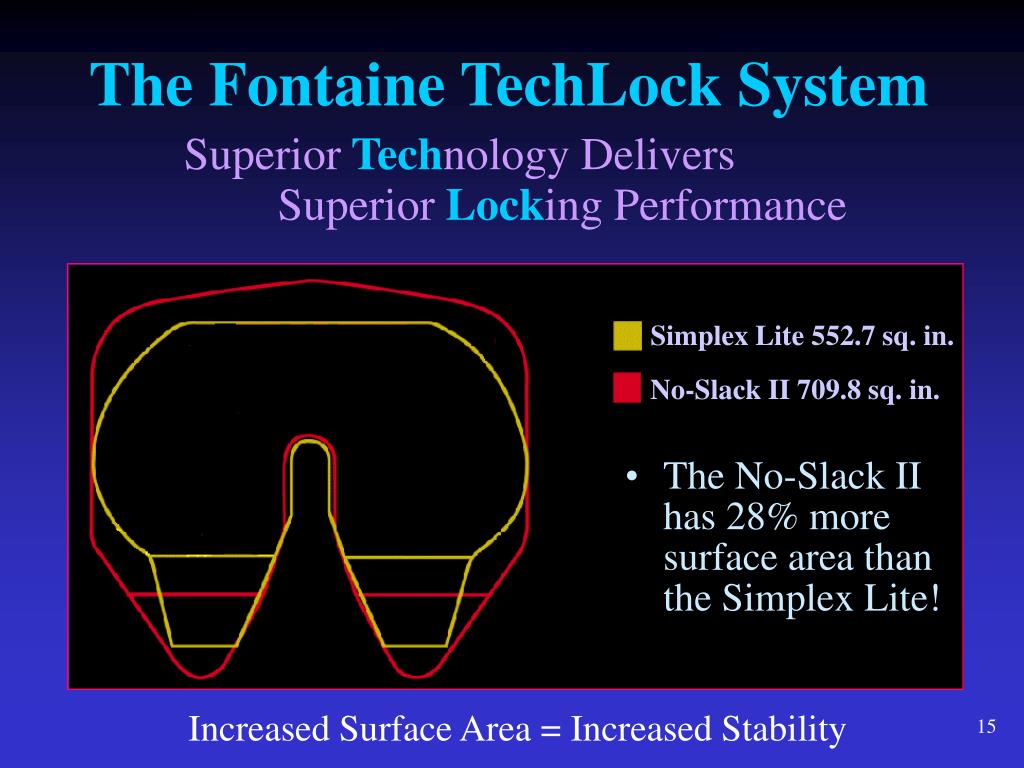

  15. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • The No-Slack II has 28% more surface area than the Simplex Lite! Simplex Lite 552.7 sq. in. No-Slack II 709.8 sq. in. Increased Surface Area = Increased Stability

  16. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • No-Slack II’s light weight (218 lbs) gives larger payloads for greater freight revenue

  17. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Advanced design, engineering and construction improves durability and reduces maintenance for the lowest cost per mile

  18. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance TechLock System Options

  19. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • Top Plates No-Slack II 6000 Series - Standard Duty 50,000 lbs Vertical Load 150,000 lbs Drawbar Pull No-Slack H5092 Series - Heavy Duty 55,000 lbs Vertical Load 150,000 lbs Drawbar Pull No-Slack X5092 Series - Extra Heavy Duty 75,000 lbs Vertical Load 200,000 lbs Drawbar Pull

  20. New Cast Top Plate • 7000 Series • No-Slack II Lock • Automatically Adjusts Slack Standard Duty 55,000 lbs Vertical Load 150,000 lbs Drawbar Pull

  21. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • 6000 Series Standard Duty • 50,000 lbs Vertical Load • 150,000 lbs Drawbar Pull

  22. The Fontaine TechLock SystemSuperiorTechnology DeliversSuperior Locking Performance • 5092 Series Heavy and Extra Heavy Duty • H5092 Series Heavy Duty 55,000 lbs Vertical Load 150,000 lbs Drawbar Pull • X5092 Series Extra Heavy Duty 75,000 lbs Vertical Load 200,000 lbs Drawbar Pull
