DANIEL TSUI LECTUREBEIJING 2005SANKAR DAS SARMAUNIVERSITY OF MARYLANDCONDENSED MATTER THEORY CENTERWWW.PHYSICS.UMD.EDU/CMTC

“My connection to Dan”

1976

1987-88

1995-2005

2004


Slide2 l.jpg

My connection to China

Lai WY 1983-85 Beijing

Xie XC 1983-87; 88-91 USTC

Zhang FC 1984-86 Fudan

He S 1988-92 USTC

Li Q 1989-93 USTC

Lai ZW 1990-92 USTC(?);Chicago

Liu DZ 1990-94 USTC

Zheng L (1995-98); Hu J (1997-99) Indiana

Hu XD 1998-2003 Beijing;Michigan

Zhang Y 2002- USTC; Yale

Wang DW Taiwan 1996-2002

Tse GW Hong Kong 2004-

Also B.Y.K Hu; K.E. Khor, …

SC Zhang (Stanford); R. Zia (Virginia Tech.);

DC Tsui (Princeton)….

More than 100 publications with these collaborators!

I was in China (Beijing, Shanghai)

in 1986 as a guest of the Chinese

Academy of Sciences with the Institute of Physics being my host!


Tidbits about qubits sankar das sarma l.jpg

TIDBITS ABOUT QUBITSSankar Das Sarma

  • QUBITS = TWO-LEVEL QUANTUM SYSTEM

  • LINEAR SUPERPOSITION

  • QUANTUM ENTANGLEMENT

  • QUANTUM PARALLELISM

TOPOLOGICAL QUANTUM COMPUTATION

www.physics.umd.edu/cmtc


A very brief history of computation l.jpg

A (VERY) BRIEF HISTORY OF COMPUTATION

  • UNARY: 10,000 YEARS AGO

  • BINARY: 1,000 YEARS AGO; BITS

  • ANALOG COMPUTERS: ~ 1000 years

  • BOOLEAN ALGEBRA: BITS

  • DIGITAL COMPUTERS: ~ 100 years

  • QUANTUM MECH.: 100 YEARS AGO

  • QUBITS: NOW (PERHAPS)

  • QUANTUM COMPUTERS: ??


Slide5 l.jpg

Spin Quantum Computation in Semiconductor NanostructuresLocalized Spin 1\2 qubits in Semiconductor Nanostructures(Heisenberg Coupling)X. Hu;R. de Sousa;B. Koiller;V. Scarola; W.Witzel ARDA, ARO, UMD, LPS, NSA


Spintronics l.jpg

SPINTRONICS

  • SPIN MATERIALS

    Diluted magnetic semiconductors (DMS): ferromagnetic

  • SPIN DEVICES

    Active control of (nonequilibrium) spin AND charge

  • SPIN QUBITS

    Scalable solid state spin quantum computation


Slide7 l.jpg

SPINTRONICS

SPIN + ELECTRONICS

“Killer” app. : SPIN QUANTUM COMPUTATION!


Quantum computers how to build a qc physics of qc architecture l.jpg

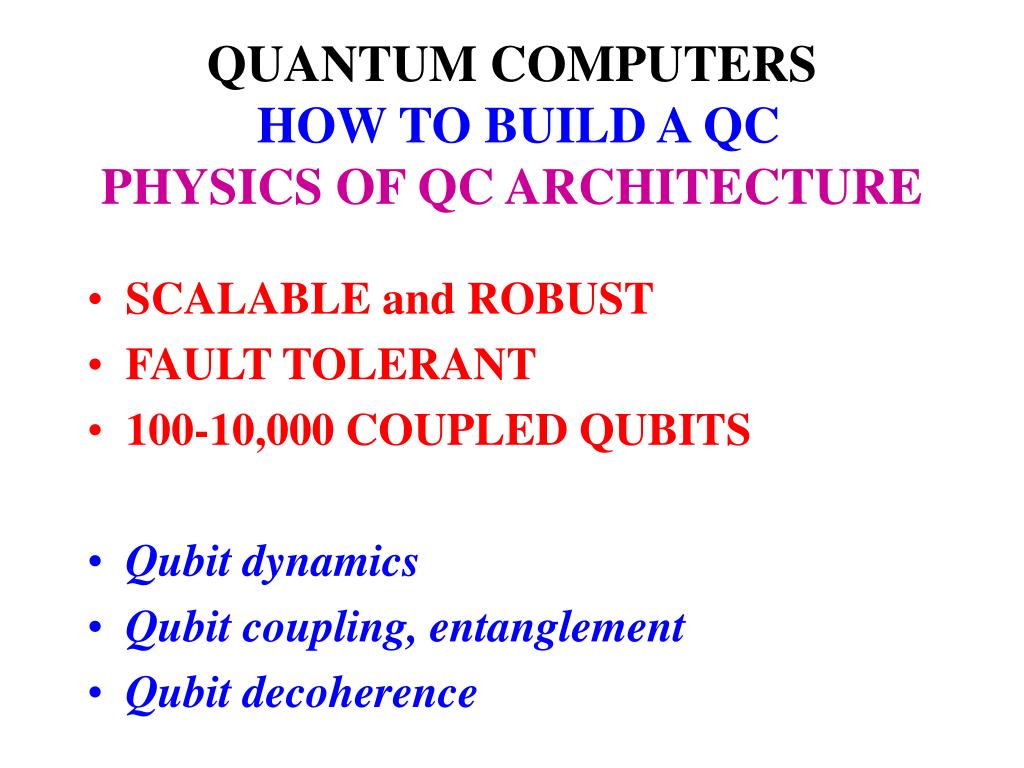

QUANTUM COMPUTERSHOW TO BUILD A QCPHYSICS OF QC ARCHITECTURE

  • SCALABLE and ROBUST

  • FAULT TOLERANT

  • 100-10,000 COUPLED QUBITS

  • Qubit dynamics

  • Qubit coupling, entanglement

  • Qubit decoherence


What can a qc do why build a qc l.jpg

Prime factorization

Shor algorithm

Exponential speedup

Database search

Grover algorithm

Algebraic speedup

Quantum simulation

Feynman’s dream

Quantum parallelism Entanglement

Universal one and two-qubit gates

Quantum error correction

Boolean vs. Quantum

P/NP some day??

Topological QC

What can a QC do?Why build a QC?


Minimal qc requirements l.jpg

Minimal QC Requirements

Qubits: 2-level quantum systems

Initialization of qubits

Control and manipulation of qubits

Quantum coupling of 2-qubits

1- and 2-qubit gates

Quantum error correction

High fidelity

Qubit specific measurement

Long quantum coherence

Scalability


Proposed qc architectures far too many l.jpg

PROPOSED QC ARCHITECTURES (far too many)

  • ION TRAPS

  • LIQUID STATE NMR

  • NEUTRAL ATOM OPTICAL LATTICE

  • CAVITY QED

  • SQUIDS, JOSEPHSON JUNCTIONS

  • COOPER PAIR BOXES

  • ELECTRON SPINS IN SOLIDS (GaAs, Si)

  • SOLID STATE NMR

  • ELECTRON STATES ON HE-4 SURFACE

  • QUANTUM HALL STATES


Quantum computing with spins l.jpg

Quantum computing with spins

Electron/nuclear spin: An ideal qubit?

Quantum algorithms: Factoring, searching...

  • 1-qubit: Spin rotation

  • 2-qubit: Exchange interaction

Quantum gates:


Slide13 l.jpg

Spin relaxation and manipulation of localized states in semiconductors:Considerations for solid state quantum computer architectures

Si Donor Nuclear Spin

QC Architecture

Quantum Dot

QC Architecture


Semiconductor implementations l.jpg

Semiconductor implementations

GaAs quantum dots

D. Loss and D.P. DiVincenzo, PRA 1998

Silicon donors (P)

B. Kane, Nature 1998

R. Vrijen et al., PRA 2000

Fault tolerant if coherence time


Slide15 l.jpg

Experiments

GaAs

  • Neighboring quantum dots

  • Single electron in each dot

  • Does a model of this system reproduce the Heisenberg

  • model?


Slide16 l.jpg

Spin Transitions in Few Electron Quantum Dots

Exact Diagonalization Theory

Going beyond perturbative/Heitler-London

exchange gate calculations in coupled dot

QC architectures ATOM to MOLECULE

Vito Scarola

WHEN IS THE 2-ELECTRON QUNTUM DOT A ‘MOLECULE’ WITH TUNABLE EXCHANGE COUPLING?

WHEN IS IT JUST AN ARTIFICIAL 2-ATOM SYSTEM?


Slide17 l.jpg

Model


Slide18 l.jpg

Electron Mitosis

HOMOPOLAR BINDING IN AN

ARTIFICIAL MOLECULE


Slide19 l.jpg

Schematic Parameter Space

Dot separation

Modified magnetic length

1

0

Cyclotron energy

Parabolic confinement

Small Exchange

Spin

Hamiltonian

Vortex

Mixing

Level

Crossings

1

(magnetic field)


Slide20 l.jpg

Three electrons-Three Dots

B=5T

R=20nm

ħw0=3meV


Slide21 l.jpg

Conclusion

  • Exact diagonalization allows accurate

  • treatment of strongly interacting regime

  • Exchange splitting (J) oscillates with

  • magnetic field

  • Trial state analysis implies singlet-triplet

  • transitions of Composite Fermions

  • Artificial Atom to Artificial Molecule


Two spins in two quantum dots quantum gates l.jpg

Two Spins in Two Quantum Dots:Quantum Gates

S1

S2

B

Single spin qubits

Qubit #1

Qubit #2

  • Heisenberg

  • Hamiltonian:

  • Quantum gates:

  • Heisenberg interaction + local magnetic field gives

  • universal set of quantum gates


Slide23 l.jpg

Validity of Heisenberg Exchange Hamiltonian

For Spin-Based Quantum Dot Quantum Computers

Our system

Energy spectrum

Exchange splitting


Slide24 l.jpg

Six electron double dot

Energy spectrum

Exchange splitting

Validity of Heisenberg Exchange Hamiltonian For Six-Electron Double Quantum Dot


Slide25 l.jpg

Adiabatic Condition

  • When the system Hamiltonian is changed adiabatically, the system wavefunction can be expanded on the instantaneous eigenstates:

  • System evolution is governed by the

  • Schroedinger equation:

  • Instantaneous eigenvalues and eigenstates are needed to integrate the Schroedinger equation.


Slide26 l.jpg

Loss due to non-adiabaticity

In an exchange gate for a double dot


Slide27 l.jpg

Exchange in silicon-based quantum computer architecture

MOTIVATION

Kane’s proposal for a silicon-based quantum computer

B.E.Kane,

Nature (1998)

P donors in Si

Concern with donor positioning:

Each31P in the array must be

exactly under the A-gate.

From the website of SNF at the

University of New South Walws

Sydney, Australia


Slide28 l.jpg

1-qubit operations

2-qubit operations

R =

EXCHANGE

  • BUILDING BLOCKS OF KANE’S PROPOSAL

  • qubits are the 31P nuclear spins (I=½)

  • Spin interactions in Si:31P


Slide29 l.jpg

Hydrogenic model for P donors in Si

~

+

_

P (V) 15 e – 15 p+

Si (IV) 14 e –

14 p+

Asymptotic exchange coupling of two hydrogen atoms

(Herring&Flicker, 1964)


Slide30 l.jpg

a

Electrons in Si(beyond m* and …)

CONDUCTION

BAND MINIMUM:

Anisotropic and

six-fold degenerate

REAL SPACE:

Diamond

structure

RECIPROCAL SPACE: Brillouin zone


Slide31 l.jpg

Ground state

Envelope functions:

Bloch wave

functions:

Heitler-London triplet-singlet splitting

Exchange between 31P donors in Si


Slide32 l.jpg

*

Exchange calculated for two donors along [100]


Slide33 l.jpg

2nd neigh.

(12)

*

1stneigh.

PRL 88, 027903 (2002).

(4)

3rd neigh.

(6)

*

Exchange versus donor displacements

within the Si unit cell


Slide35 l.jpg

The extreme sensitivity of the

exchange coupling to the relative

positioning of the substitutional donor

pair in Si is entirely due to the

six-fold degeneracy of the Si

conduction band minimum.

Dipolar spin coupling ? Dipolar gates?


Qubits are dipolar coupled single electron spins l.jpg

Qubits are dipolar coupled single electron spins

B

R. de Sousa et al., cond-mat/031140, PRA 70, 052304 (2003)

Si:P SPIN DIPOLAR GATE QC ARCHITECTURE


Gate imperfection in the presence of exchange l.jpg

Gate imperfection in the presence of exchange

  • Long-range dipolar ~1/R3 is much stronger than short-range exchange for large inter-donor separation; How large should be the separation so that J can be neglected?

  • J0 leads to error of the order of (J/D)2; Hence the criterium for gate error to be within p is:


Gate times and donor separation l.jpg

Gate times and donor separation

  • Separations of the order of 300 Å allows easier lithography;

  • Gates are 106 times slower than exchange coupling; however there is no need for exchange control and donor positioning with atomic precision.

Using 28Si we expect T2~T1~ seconds for B~1T


Si dipolar qc l.jpg

Si Dipolar QC

  • Long range couplings are corrected with no overhead in gate time (ability to -pulse within 5s is required).

  • Dipolar implementation is reliable, its advantages/disadvantages should be compared with other proposals without exchange (for example, Skinner, Davenport, Kane, PRL 2003, which requires electron shuttling between donors);

  • Dipolar coupling insensitive to electronic structure: No inter-valley interference, interstitial defects are also good qubits;

  • “Top-down” construction schemes based on ion implantation can be used even though they lack atomic precision in donor positioning.

  • Can be scaled up


Slide40 l.jpg

Electron spin coherence in

semiconductor QC’s

Bound orbital states T1 ~ 1ms (GaAs Quantum dot)

(B=1T, T<<1K) 10 s (Si:P)

Decoherence is dominated by spin-spin interactions:

SPECTRAL DIFFUSION

Electron’s Zeeman frequency

fluctuates due to

nuclear dipolar flip-flops

B

RESULTS:

T2 ~ 50 ms GaAs-QD

>1000 ms Si:P


Bloch s equation l.jpg

  • Spin-orbit + phonons

  • Hyperfine + phonons

  • Spin-orbit + photons

Bloch’s equation

  • Spectral diffusion(nuclear spins, time dependent magnetic fields)

  • Dipolar / exchange coupling between “like” spins

  • Unresolved hyperfine structure

  • Different g-factors

  • Inhomogeneous fields

  • Dipolar / exchange between “unlike” spins.


Spectral diffusion of a si p spin l.jpg

Spectral diffusion of a Si:P spin

B


Nuclear induced spectral diffusion l.jpg

Nuclear induced spectral diffusion

  • Nuclear spins flip-flop due to their dipolar interaction;

  • Electron’s Zeeman frequency fluctuates in time due to nuclear hyperfine field.

Theory

  • Nuclear pairs are described by Poisson random variables;

  • Flip-flop rates are calculated using the method of moments, a high temperature expansion.


The hamiltonian l.jpg

The Hamiltonian


Dependency with 29 si density sample orientation l.jpg

Dependency with 29Si density, sample orientation

TM increases very fast when we remove 29Si !


Spin 1 2 theory of nuclear spectral diffusion comparison with experiment l.jpg

Spin-1/2 theory of nuclear spectral diffusion: Comparison with experiment


Gaas quantum dots l.jpg

GaAs quantum dots

Spectral diffusion is very important: Ga and As do not have I=0 isotopes !


Slide48 l.jpg

DYNAMIC NUCLEAR POLARIZATION ?


Quantum theory of spectral diffusion cluster expansion results l.jpg

Quantum theory of spectral diffusion: Cluster expansion results

[W.M. Witzel, R. de Sousa, S. Das Sarma, cond-mat/0501503]


Conclusions l.jpg

Conclusions

  • Electrical control of single spin dynamics is promising for III-V quantum dots because of spin-orbit coupling;

  • The spin of localized states interact weakly with the phonons at low T: Nuclear induced spectral diffusion if the dominant decoherence mechanism;

  • Isotopically purified Si:P donor spins can be coherent for ~1000 s (B = 0.3 Tesla); 60 ms already measured ! (S.A. Lyon, 2003)

  • GaAs quantum dots (or donors) coherent for only 1 – 100 s, but TM /J > 106 !


Making a quantum computer what is the right analogy l.jpg

Making a quantum computerWhat is the right analogy?

Aviation?

Manhattan project?

Controlled fusion?

Integrated circuits (“chips”)?

Toy paper airplane to 747 jumbo aircrafts

10-15 YEARS FOR <100 QUBITS RESEARCH QC

PERHAPS 50 YEARS FOR A ‘COMMERCIAL’ QC

BASED ON LINEAR EXTRAPOLATION


Solid state spin quantum computation in semiconductors l.jpg

Solid state spin quantum computation in semiconductors

CMTC/UMD Spin Quantum Computation Group

  • Sankar Das Sarma

  • Vito Scarola

  • Kwon Park

  • Belita Koiller

  • Xuedong Hu

  • Rogerio De Sousa, Wayne Witzel

  • Juan Delgado, Magdalena Constantin

    Supported by NSA, LPS, ARO, ARDA, UMD

SDS, Michael Freedman, Chetan Nayak

cond-mat/0412343 (PRL 2005)


Quantum theory of spectral diffusion two possible series expansions l.jpg

with

Expansion in t:

Expansion in l:

Quantum theory of spectral diffusion: Two possible series expansions

[W.M. Witzel, R. de Sousa, S. Das Sarma, cond-mat/0501503]

Exact expression:


Quantum theory of spectral diffusion non perturbative cluster expansion l.jpg

Large sets D are mainly composed of disconnected clusters Si; If clusters are far enough, neglect inter-cluster coupling to get

Quantum theory of spectral diffusion: non-perturbative cluster expansion

Define “set D” contribution recursively:

Additive version of cluster exp.:

Examples of |D|=10:

Need 10-site exact solution

Need 2-site solution only!


Lowest order cluster expansion product of pairs l.jpg

 configurations

Lowest order cluster expansion: Product of pairs

Exact solution for pair nm

Cluster expansion interpolates between t and l expansions at the lowest order!


Spin orbit coupling in semiconductor heterojunctions l.jpg

Spin-orbit coupling in semiconductor heterojunctions

Spin-orbit coupling

Dresselhaus:

Rashba:


Spin flip phonon l.jpg

Spin-flip + phonon

ħZ

Coupling energy

T1~ 10 ms for GaAs (=30 nm, B=1 T)


Spin relaxation in iii v quantum dots l.jpg

Spin relaxation in III-V quantum dots


Electrical control of g factor l.jpg

Electrical control of g-factor

D.D. Awschalom, Nature 2001

E. Yablonovitch, PRB 2001

Electron penetration into AlGaAs barrier

But even without barrier penetration:

Dresselhaus!

Rashba!

for E~105 Volt/cm !


Electrical manipulation of g factor in gaas l.jpg

Electrical manipulation of g-factor in GaAs

E=104 V/cm

Dresselhaus dominated!

105 V/cm


Electrical manipulation of g factor in inas l.jpg

Electrical manipulation of g-factor in InAs

Rashba dominated!

E=104 V/cm


G factor control t 1 control l.jpg

g-factor control  T1 control !!


  • Login
