Presentation Transcript

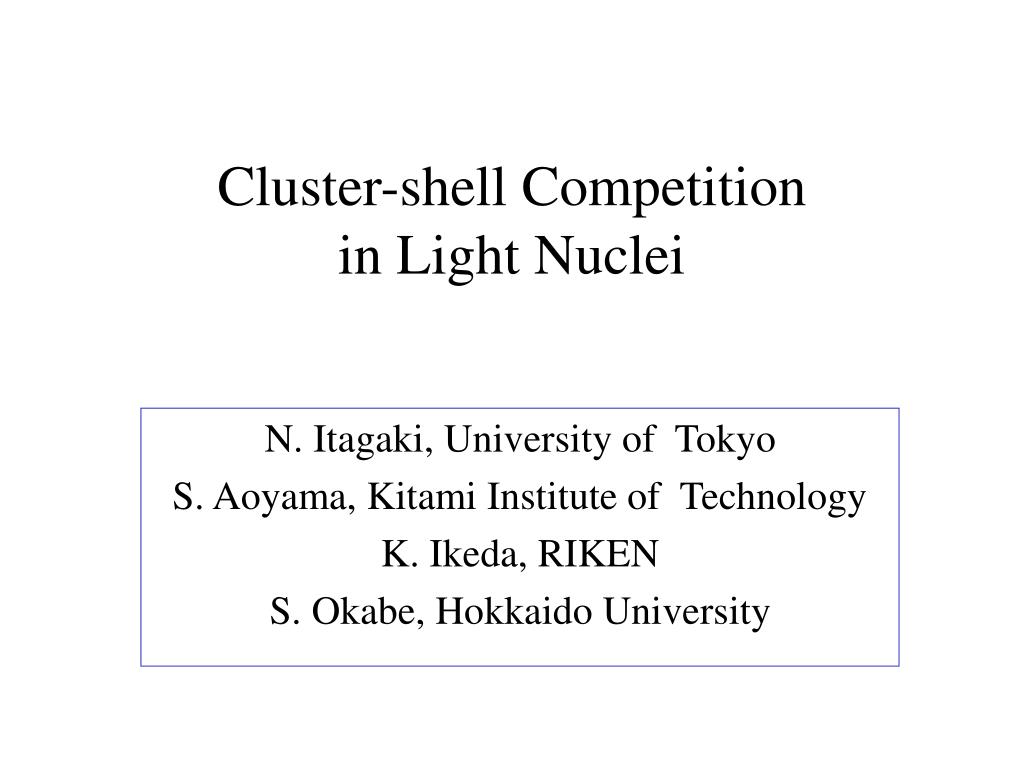

  1. Cluster-shell Competition in Light Nuclei N. Itagaki, University of Tokyo S. Aoyama, Kitami Institute of Technology K. Ikeda, RIKEN S. Okabe, Hokkaido University

  2. Purpose of the present study • Construction of an unified model which can express both shell and cluster structures • To show that the cluster structure becomes more important in neutron-rich nuclei （weakly bound systems）

  3. The first step of the construction of the Unified model isto establish the description of excess nucleons around clusters Molecular-Orbit is a bridge from Cluster model to Unified model 8Be（α-α) - core case α α We can make a connection from the cluster physics to the physics of Neutron-rich nuclei

  4. The MO approach in nuclear physics “Molecular Viewpoints in Nuclear Structure” J.A. Wheeler, Physical Review 52 (1937) Applied to 9Be in 1973 Y. Abe, J. Hiura, and H. Tanaka, P.T.P. 49 (application of LCAO-SCF method to nuclear systems) Systematic Analyses of the Be isotopes M. Seya, M. Kohno, and S. Nagata, P.T.P. 65 (1981) π- and σ-orbits are described as linear combination of p-orbits (Gaussian around each α-cluster with zero distance)

  5. Hamiltonian 2-body effective interaction

  6. N. Itagaki, S. Okabe, K. Ikeda, PRC62 (2000) 034301 α＋α＋4N model for 12Be

  7. The significance of present analysis on Be isotopes • The application of MO to nuclear systems has been done on a large-scale (the idea itself has existed for a long time). • It is shown once again that cluster physics is closely related to the physics of unstable nuclei （importance of cluster structure in neutron-rich nuclei） • Now the research is extended to more exotic clusters with excess neutrons

  8. Significance of the present analysis on C isotopes • We have re-realized the difference between atomic physics and nuclear physics. In general, it is difficult to stabilize the linear-chain configuration of 3α  But there is possibilities when excess neutrons rotate around the core • Experiments have been done, and some candidates are already observed.

  9. Equilateral triangular shape of 3α • D3h symmetry • Kπ=0+, 3- rotational bands • are possible • 12C 3- at 9.6 MeV • 4-, 5- have not been observed • （above theα-threshold） • How about in neutron-rich nuclei?

  10. N. Itagaki, T. Otsuka, K. Ikeda, and S. Okabe, Physical Review Letters, in Press Alpha threshold Energy level of 14C

  11. N. Itagaki, T. Otsuka, K. Ikeda, and S. Okabe, Physical Review Letters, in Press Alpha threshold Energy level of 14C

  12. Ikeda’s diagram Cluster structure should appear around the corresponding threshold energy of the cluster emission Threshold rule

  13. Appearance of the cluster structure Cluster structure with αcondensation αthreshold Excitation energy Cluster structure with definite shape? Mean-field-like

  14. Further extension of the MO approach MO is a good tool to describe the wave nature of valence neutrons around the cluster core But… Number of Slater determinant is huge Ex. 84 = 4096 Even if the core-degree of freedom is fixed

  15. Antisymmetrized Molecular Dynamics (AMD) (H. Horiuchi et al.) Single-particle wave function Slater determinant Φ　＝　A [(ψ1χ1)(ψ2χ2)(ψ3χ3)・・・] Projection of parity and angular momentum Ψ　＝　PJPπΦ

  16. AMD – Superposition of Selected Snapshots (AMD triple S) • We superpose many AMD wave functions • They are randomly generated, and cooling equation is applied only for the imaginary part (spin-orbit contribution is incorporated) • We use the idea of Stochastic Variation Method （Suzuki, Varga …）for the selection of the basis N. Itagaki and S. Aoyama, PRC68 (2003) 054302

  17. AMD cooling equation AMD triple-S cooling equation

  18. AMD triple-S for 12Be α-α 3 fm • 0+1 -62.14 MeV, 0+2 -58.33 MeV • 1- -57.43 MeV 0- -54.24 MeV • <N> value for the 4n is 5.43  higher shell mixing • 0- is much higher than second 0+ and 1-, and it is considered that the observed state at 2.24 MeV must be the second 0+ state.

  19. Results of linear-chain states using AMD SSS (α-α 3 fm) 14C 0+ (MeV) <N> ( valence neutrons) -84.1 2.7 -70.8 4.1 -68.4 5.4 16C 0+ (MeV) <N> ( valence neutrons) -86.5 5.2 -77.9 6.8 -76.2 7.7

  20. Energy of the α-α system Volkov No.2 M=0.6 It is difficult to shrink α-α system If α-cluster structure disappears  dissolution of α

  21. α+α+N+N model ・・・ have dominantly (σ)2 component N. Itagaki and S. Okabe, Physical Review C61 (2000) 013456

  22. Cluster-shell competition RANK I  Spin-orbit interaction

  23. We prepare α-α(3.5 fm) and add α+p+p+n+n model space • The squared overlap • between the first state • (cluster state) and • the final state is 0.91 • Cluster structure survives 8Be 0+ state

  24. 10Be case α+4n+2p is added α+α+2n model α+α+n+n

  25. 12C 0+ state by single AMD wave function Volkov No.2 M=0.62 without spin-orbit with spin-orbit

  26. 12C case (α+α+4N and α+8N) α+α+2p+2n (α-α 3.5 fm) α+4p+4n model space is added

  27. 12C case (3α and α+8N model space)

  28. Nuclear chart of cluster-shell competition P 12C Δ=3.8 MeV (Δ3=8.8 MeV) 10B Δ=3.6 MeV 8Be Δ=2.7 MeV 10Be Δ=2.9 MeV N Δ= energy of the final solution - energy of the α+α+nucleon model space

  29. Cluster-shell competition RANK II  Tensor Tensor interaction is renormalized in the central part and the spin orbit part  This should be explicitly treated in weakly bound systems Alreadystartedby A. Dote, T. Myo, S. Sugimoto….

  30. Present status of the Tensor • Furutani force is included in our AMD SSS approach (V2+G3RS+Furutani) VT = Σ (Wn - MnPm) Vn r2 exp[–μr2]Sij Sij =3(σi・r)(σｊ・r) / r2 – (σi・σj) μ(fm-2) Vn (MeV) W M 3E (MeV) 3O (MeV) 0.53 -15.0 0.3277 0.6723 -15.0 5.17 1.92 -369.5 0.4102 0.5898 -369.5 66.36 8.95 1688.0 0.5000 05000 1688.0 0.0

  31. Furutani force is included in our AMD SSS approach (V2+G3RS+Furutani) For α, we generate 400 basis states and Sz = 0, 1 for the neutrons and Sz = 0, 1 for the protons are prepared. (Virtual Jacobi coordinate is introduced) Total (0s)4 Total (MeV) -37.7 -27.6 T (MeV) 53.5 43.8 V (MeV) -74.6 -71.3 LS (MeV) 0.4 0.0 Tenser (MeV) -17.0 0.0 N 0.35 0.0

  32. Simple description of α • We keep the spatial part as (s1/2)4 -35.57 MeV by 30 Slater determinants • We use this simple description of α-cluster to 4N nuclei

  33. α-α model double (triple) projection is necessary?

  34. 12C α-α 2.5 fm • Without Tensor -85.7 MeV • With Tensor -90.6 MeV Double (triple) projection is necessary?

  35. Conclusion • Molecular-orbit is a good tool to describe the cluster structure of neutron-rich nuclei. • To investigate heavier nuclei, we have introduced new AMD method (AMD triple-S), and the previous MO results are justified using large model space. • The spin-orbit interaction plays a crucial role for the cluster-shell competiton. • Tensor term is incorporated but we really need to fix the interaction.
