Translations reflections and rotations

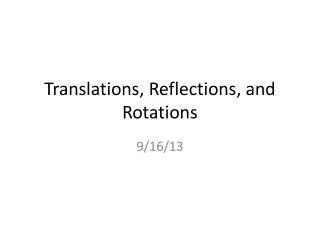

Translations, Reflections, and Rotations

9/16/13


Warm up 9 16 13

Warm-up 9/16/13

Write and answer the following questions:

  • What do a translation, a rotation, and a reflection have in common? They are transformations.

  • What is the difference between a translation, a rotation, and a reflection? Translations are slides, rotations are turns, and reflections are flips.

    Note: Warm-up Check today! – Be ready

  • 3 questions about rotation (9/11/13)

  • How many degrees was the rotation? (9/12/13)

  • Rotations (D) WS (9/13/13)


Translations

Translations

  • What action is associated with translating? Slide

  • Is the image in the same direction as the preimage, opposite directions, or different directions? Same direction

  • What are the rules for translations? For example if I want to move 5 units horizontally and -6 units vertically how would I write the rule? (x + 5, y – 6)


Example of translation

Example of Translation


Reflections

Reflections

  • What action is associated with reflecting? Flipping

  • Is the image in the same direction as the preimage, opposite directions, or different directions? Opposite directions

  • What are the rules for reflecting over the x-axis? y-axis? y=x? y=-x? x-axis: (x, -y), y-axis: (-x, y), y=x: (y, x), y=-x: (-y, x)


Example of reflection

Example of Reflection


Rotations

Rotations

  • What action is associated with rotating? Turning

  • Is the image in the same direction as the preimage, opposite directions, or different directions? Different directions

  • What are the rules for rotating 90 degrees clockwise? 90 degrees counterclockwise? 180 degrees? 90⁰ CW: (y, -x), 90⁰ CCW: (-y, x), 180 ⁰ rotation: (-x, -y)


Example of rotation

Example of rotation


Work session

Work Session

  • Work on the Transformations WS

  • Put the worksheet in the your class’s box at the end of the period


Closing 9 16 13

Closing 9/16/13

  • You will receive a post-it note. On the post-it, write what confuses you about the three transformations we’ve talked about.

  • When instructed, post the note on the board for your class period.

    Note: Be specific! – For example, write I don’t understand how to reflect over diagonal lines instead of I don’t know how to reflect.


Homework

Homework

  • Review Transformations notes and bring books to class tomorrow
