Spiral Inductor

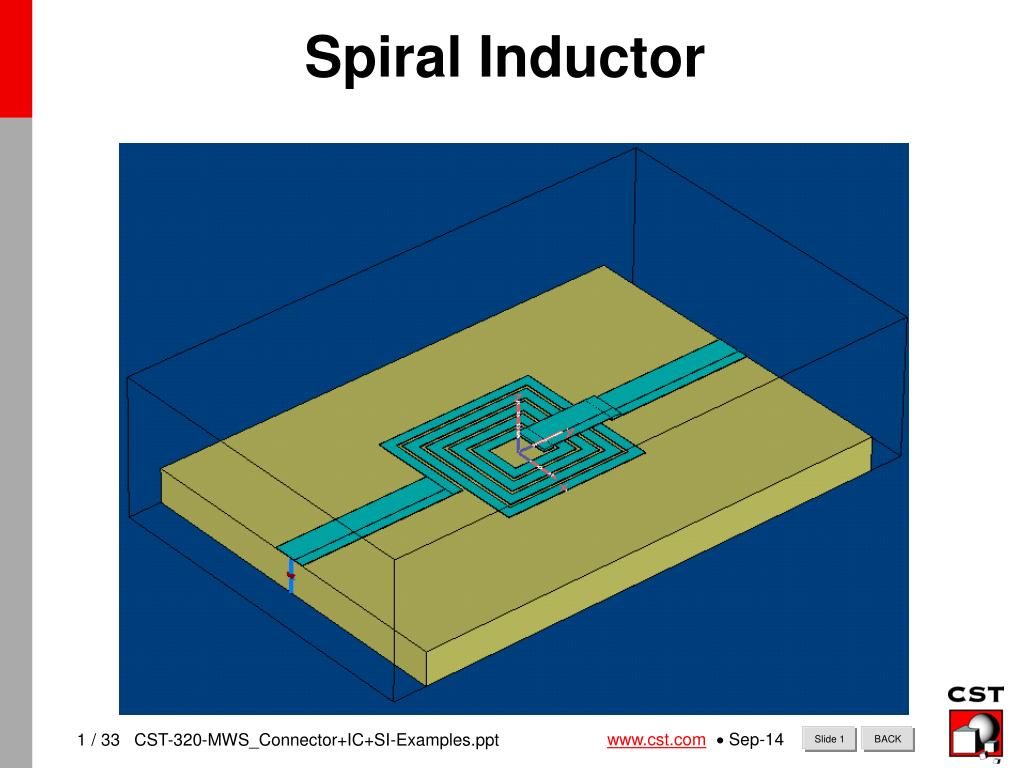

Spiral Inductor. Spiral Inductor. L,R. L,R. Z T. C. SPICE Parameter Extraction around 10 kHz. SPICE Circuit generated by CST MWS .ac LIN 999 200000000 200000000000 L11 11 10 1.5817e-009 L12 10 12 1.5817e-009 C1 10 0 1.12919e-012 R11 11 13 52,93 VV 13 0 DC 0V AC 1

otto
Download Presentation

Spiral Inductor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Spiral Inductor

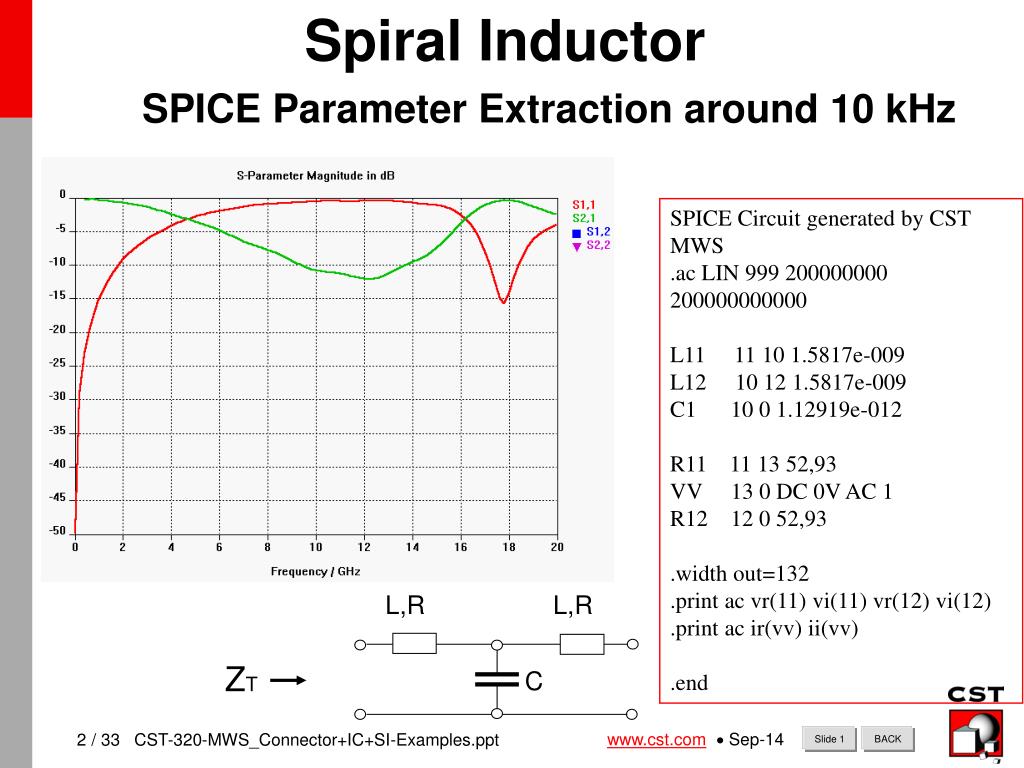

  2. Spiral Inductor L,R L,R ZT C SPICE Parameter Extraction around 10 kHz SPICE Circuit generated by CST MWS .ac LIN 999 200000000 200000000000 L11 11 10 1.5817e-009 L12 10 12 1.5817e-009 C1 10 0 1.12919e-012 R11 11 13 52,93 VV 13 0 DC 0V AC 1 R12 12 0 52,93 .width out=132 .print ac vr(11) vi(11) vr(12) vi(12) .print ac ir(vv) ii(vv) .end
