Ch. 8: Rotational Equilibrium and Dynamics

1. Ch. 8: Rotational Equilibrium and Dynamics

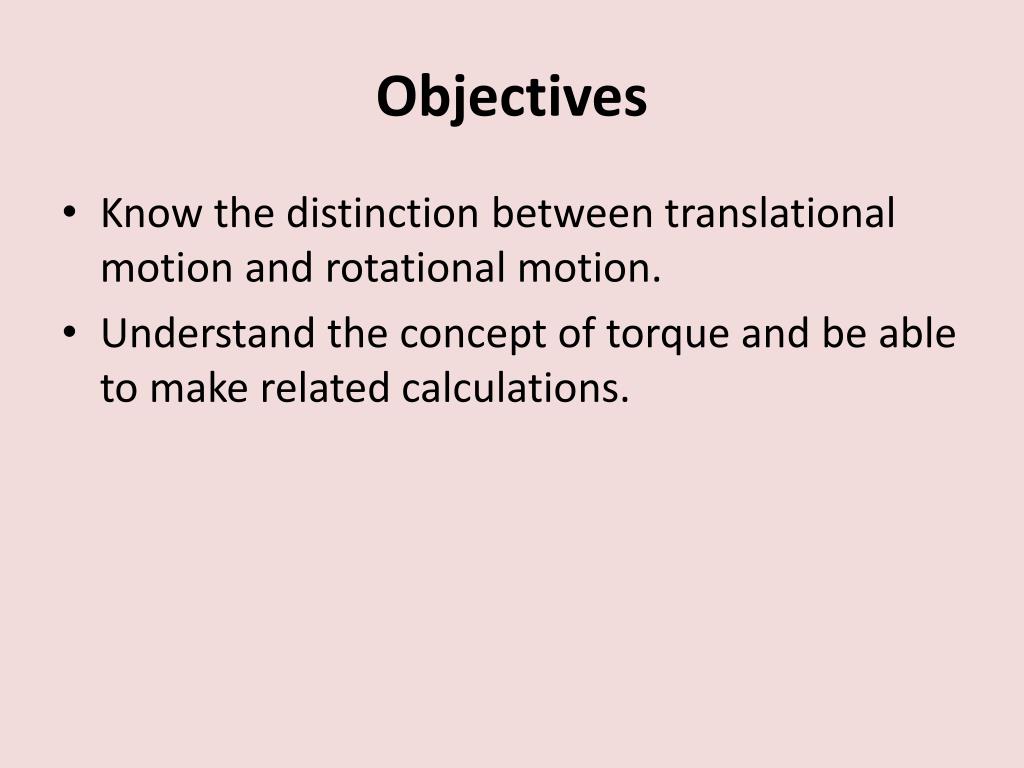

2. Objectives • Know the distinction between translational motion and rotational motion. • Understand the concept of torque and be able to make related calculations.

3. Rolling Race Roll various objects down a ramp: spheres, solid cylinders, hollow cylinders, and washers. Compare which objects are the fastest. Develop a hypothesis regarding what factor(s) affect the relative speeds of the different objects.

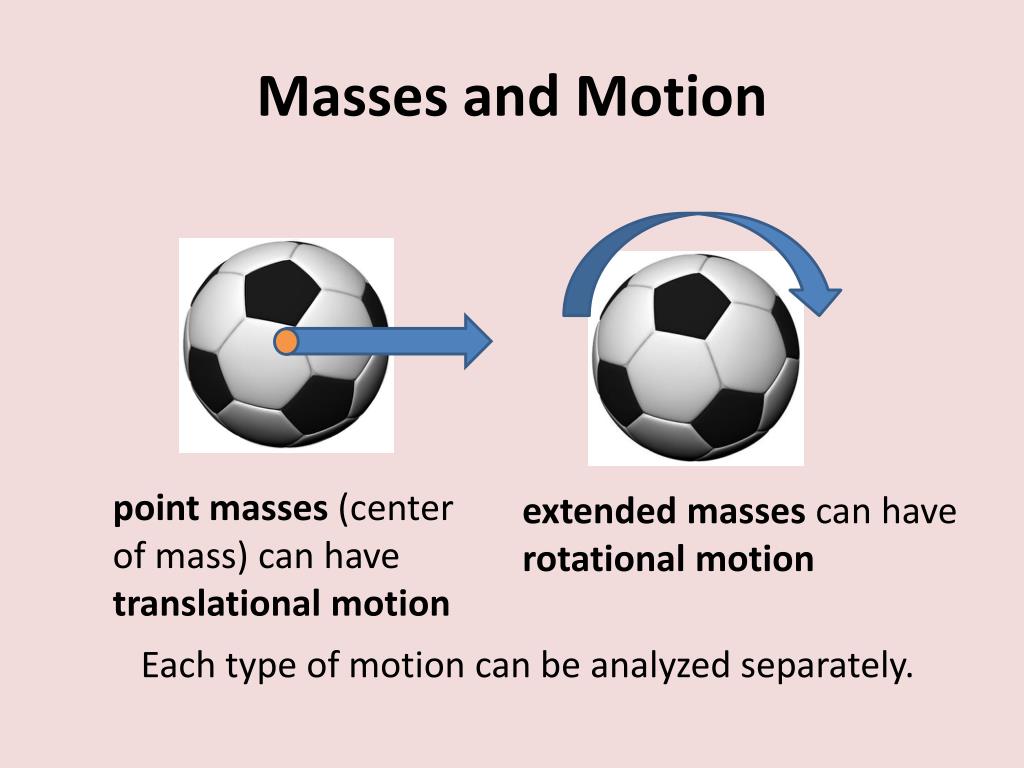

4. Masses and Motion point masses (center of mass)can have translational motion extended masses can have rotational motion Each type of motion can be analyzed separately.

5. Torque • torque: the ability of a force to rotate an object around an axis (t) • t = F·d·sinq • vector quantity • clockwise (─) • counterclockwise (+) • St = t1 + t2 + t3 + … F q d

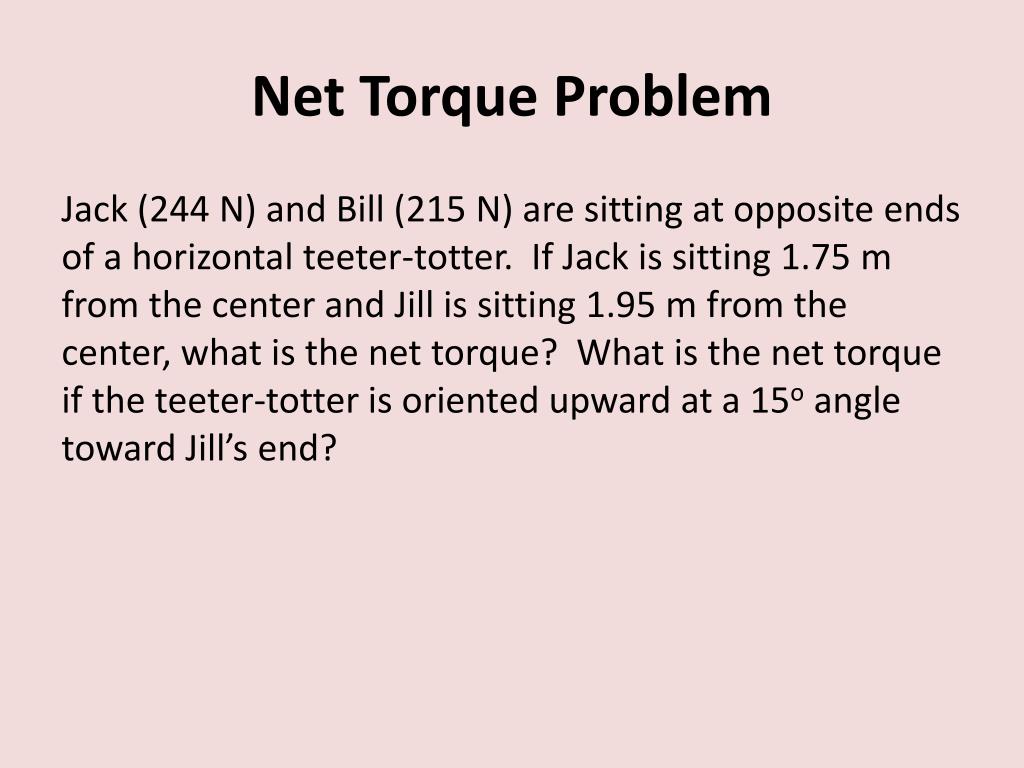

6. Net Torque Problem Jack (244 N) and Bill (215 N) are sitting at opposite ends of a horizontal teeter-totter. If Jack is sitting 1.75 m from the center and Jill is sitting 1.95 m from the center, what is the net torque? What is the net torque if the teeter-totter is oriented upward at a 15o angle toward Jill’s end?

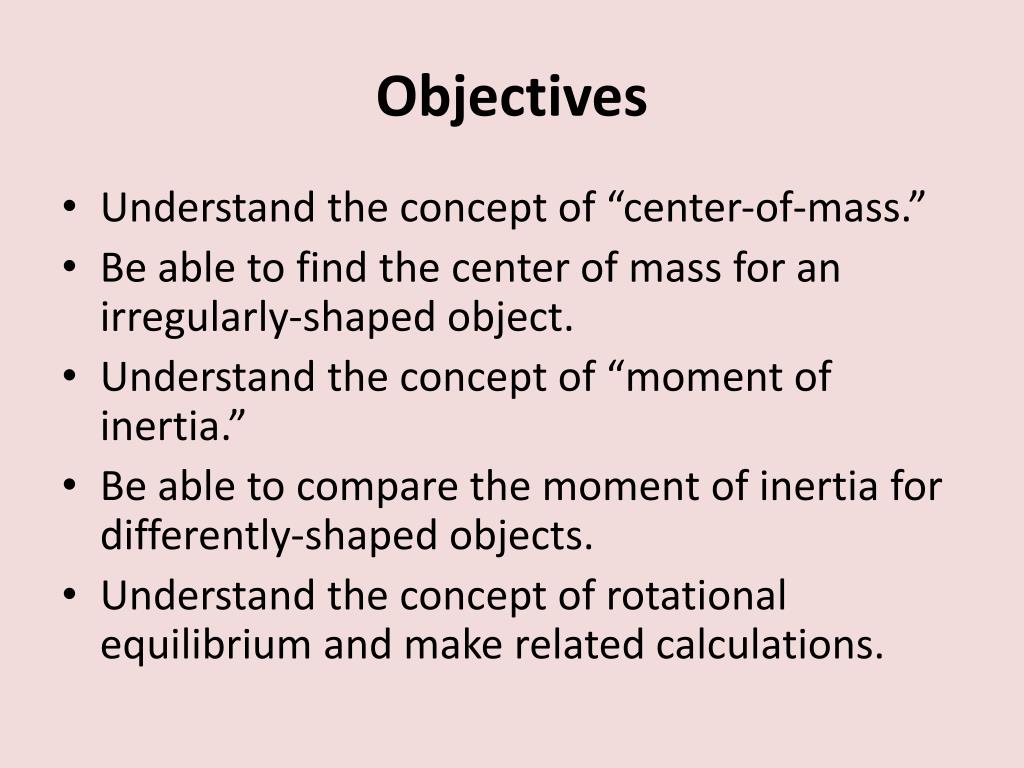

7. Objectives • Understand the concept of “center-of-mass.” • Be able to find the center of mass for an irregularly-shaped object. • Understand the concept of “moment of inertia.” • Be able to compare the moment of inertia for differently-shaped objects. • Understand the concept of rotational equilibrium and make related calculations.

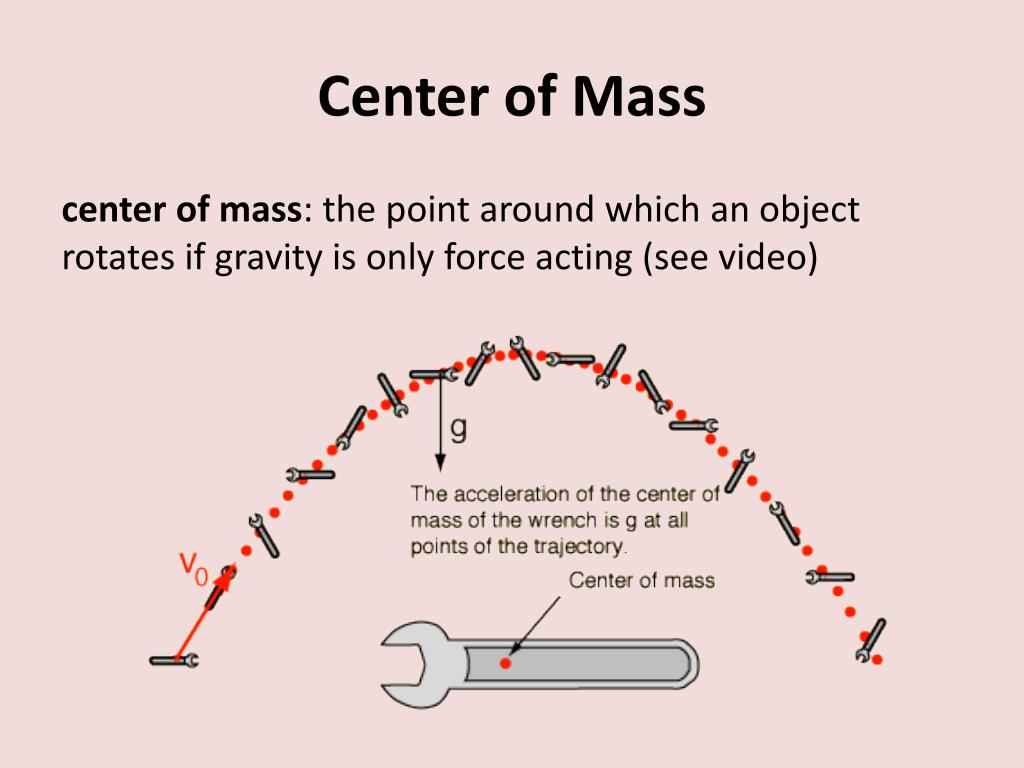

8. Center of Mass center of mass: the point around which an object rotates if gravity is only force acting (see video)

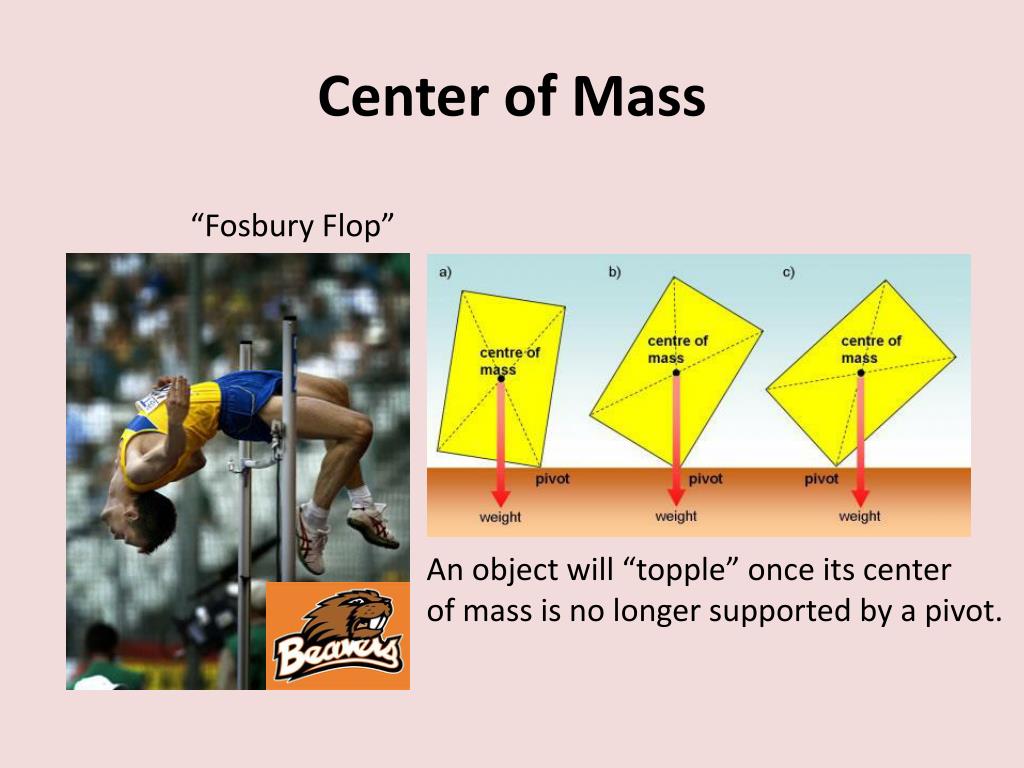

9. Center of Mass “Fosbury Flop” An object will “topple” once its center of mass is no longer supported by a pivot.

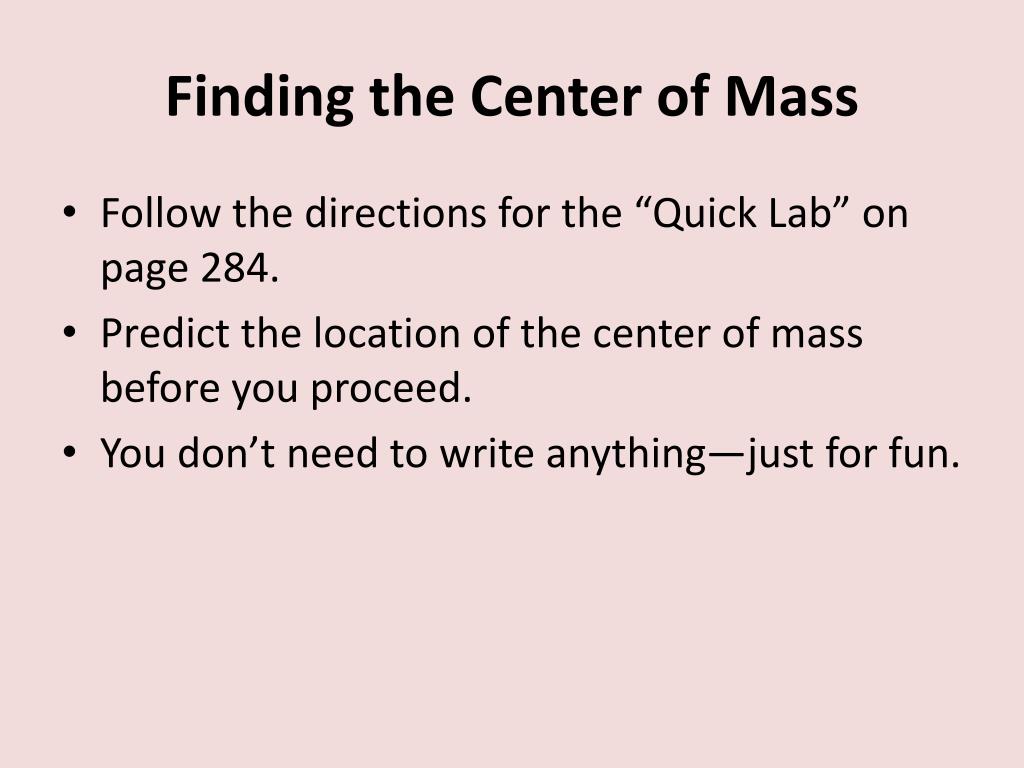

10. Finding the Center of Mass • Follow the directions for the “Quick Lab” on page 284. • Predict the location of the center of mass before you proceed. • You don’t need to write anything—just for fun.

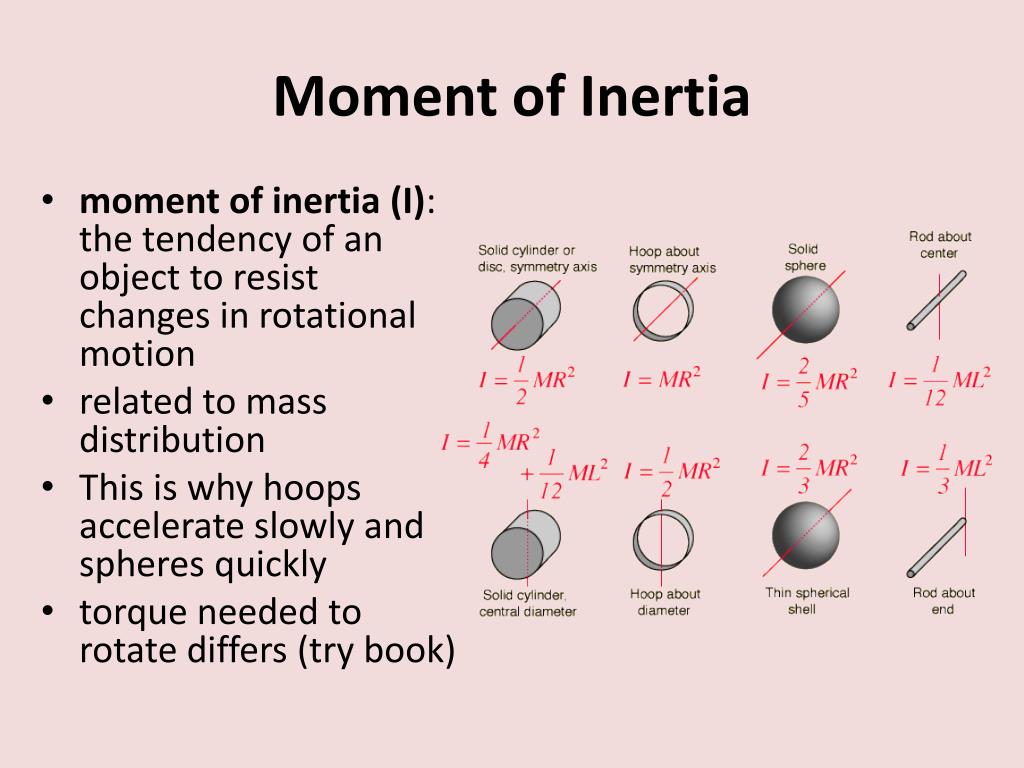

11. Moment of Inertia • moment of inertia (I): the tendency of an object to resist changes in rotational motion • related to mass distribution • This is why hoops accelerate slowly and spheres quickly • torque needed to rotate differs (try book)

12. Moment of Inertia

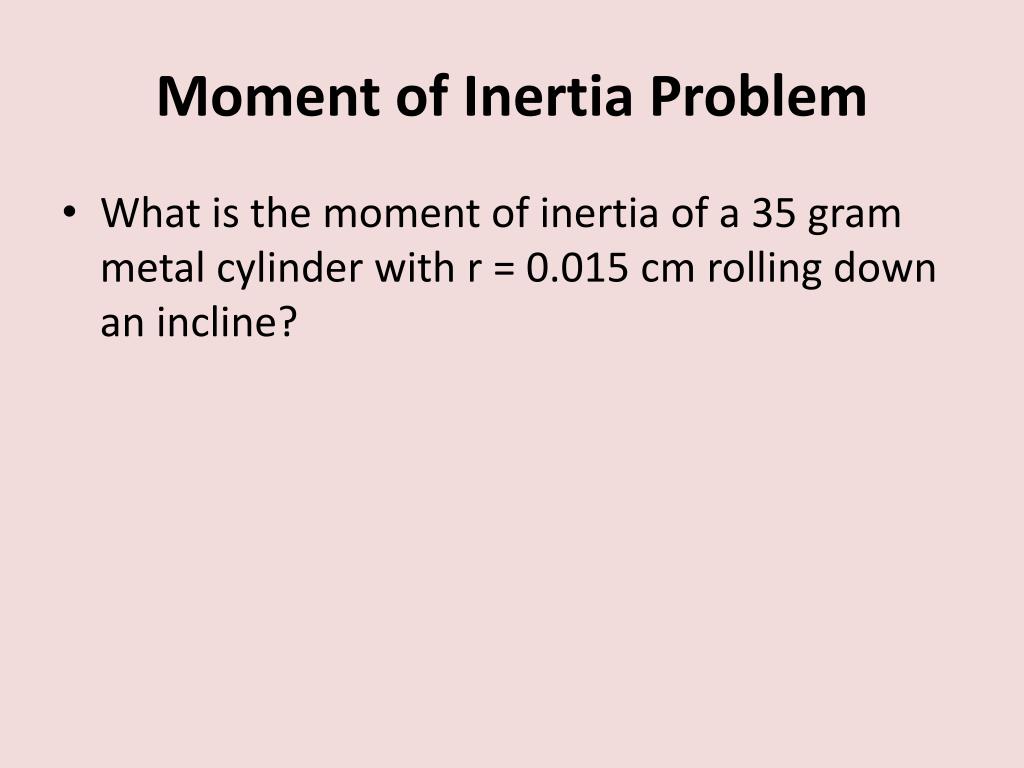

13. Moment of Inertia Problem • What is the moment of inertia of a 35 gram metal cylinder with r = 0.015 cm rolling down an incline?

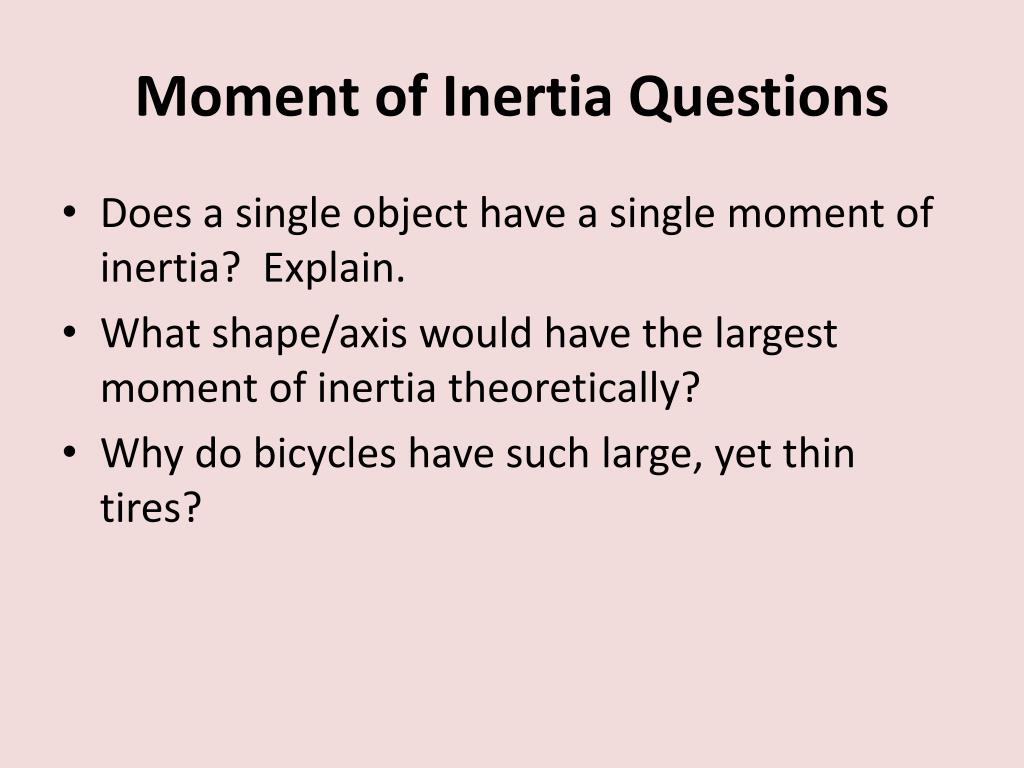

14. Moment of Inertia Questions • Does a single object have a singlemoment of inertia? Explain. • What shape/axis would have the largest moment of inertia theoretically? • Why do bicycles have such large, yet thin tires?

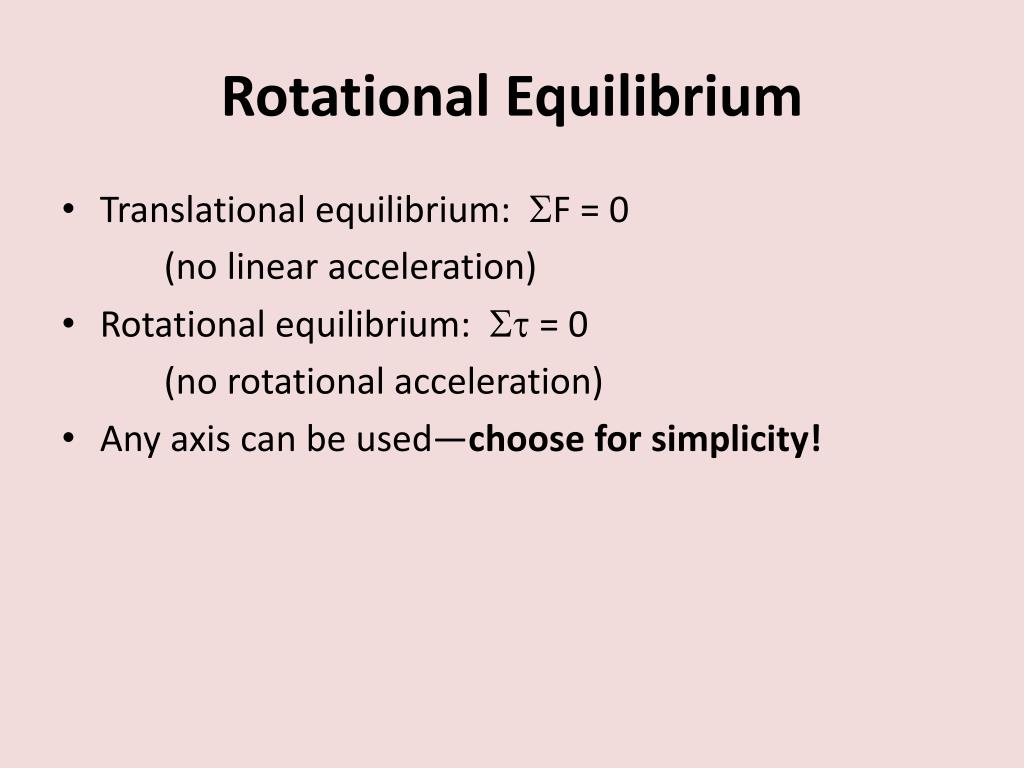

15. Rotational Equilibrium • Translational equilibrium: SF = 0 (no linear acceleration) • Rotational equilibrium: St = 0 (no rotational acceleration) • Any axis can be used—choose for simplicity!

16. Rotational Equilibrium A 5.55 N meter stick is suspended from two spring scales (one at each end). A 9.05 N mass is hung at the 65.0-cm mark. How much force is applied by each spring scale (scale A, scale B)?

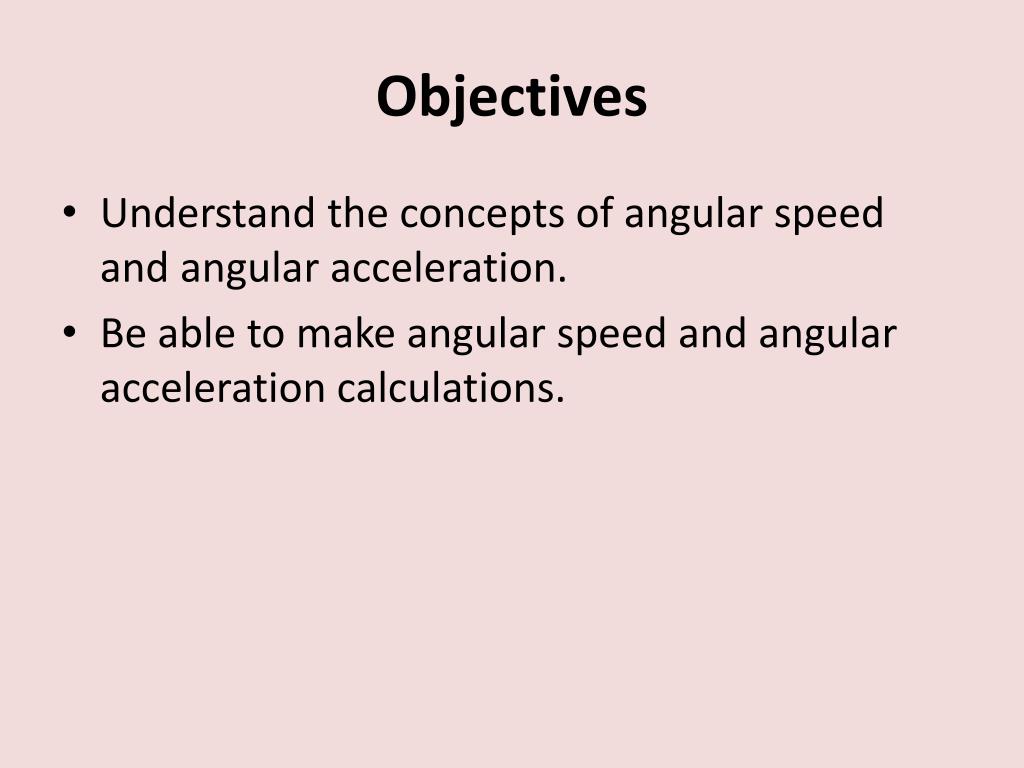

17. Objectives • Understand the concepts of angular speed and angular acceleration. • Be able to make angular speed and angular acceleration calculations.

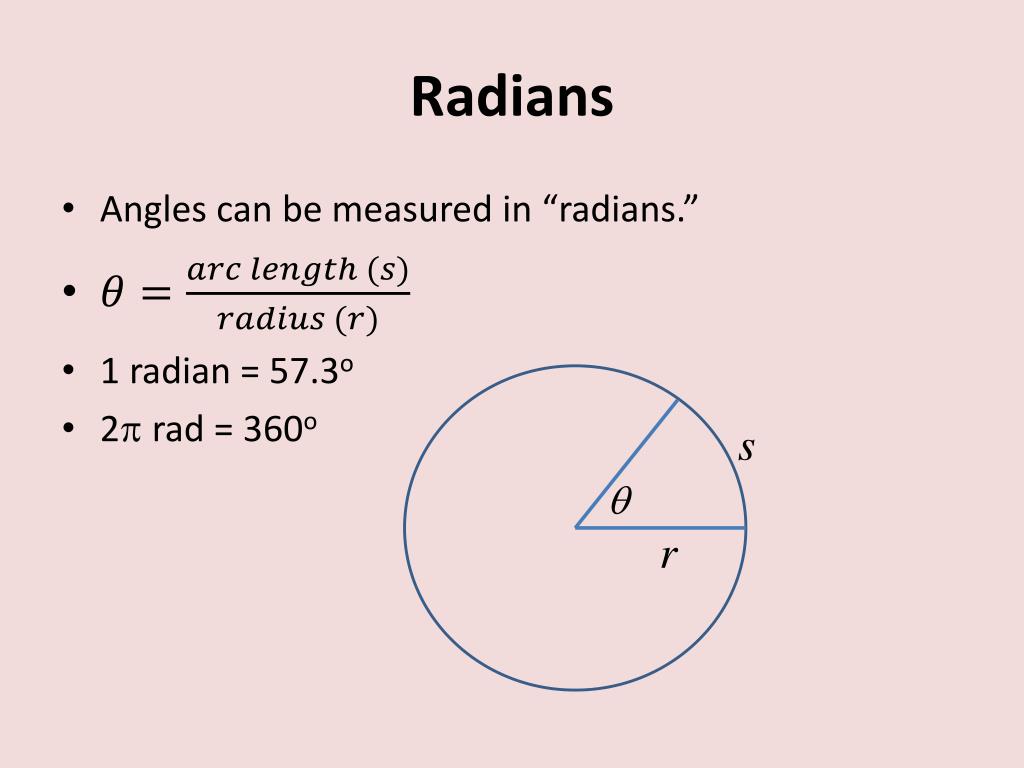

18. Radians • Angles can be measured in “radians.” • 1 radian = 57.3o • 2p rad = 360o s q r

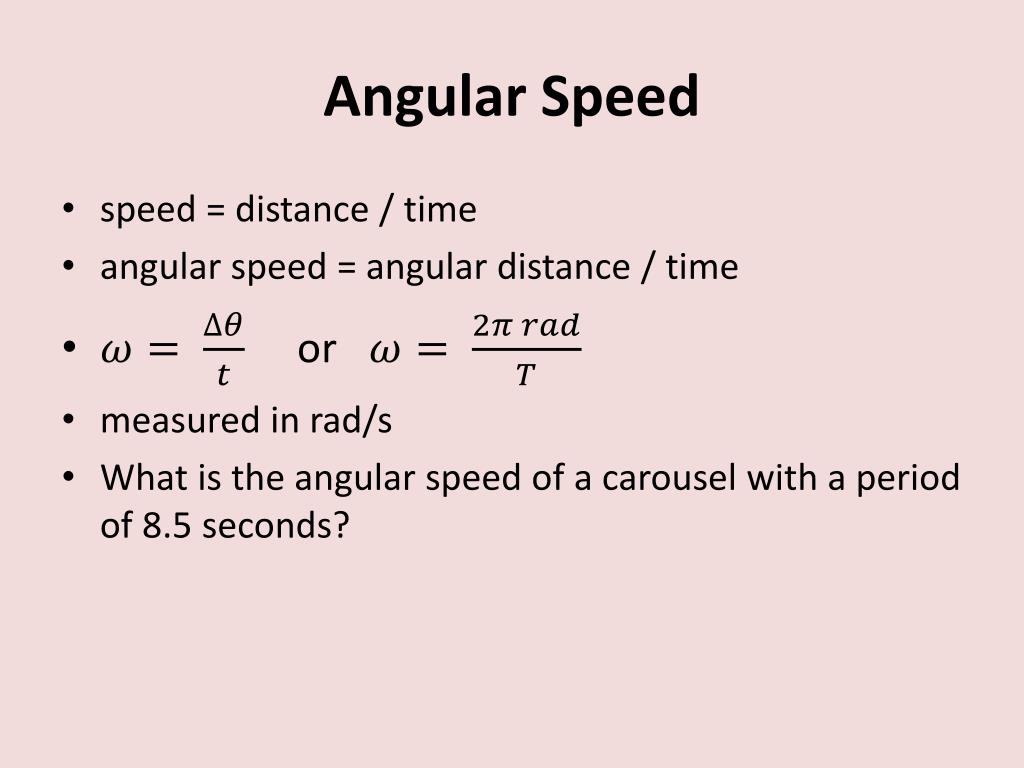

19. Angular Speed • speed = distance / time • angular speed = angular distance / time • or • measured in rad/s • What is the angular speed of a carousel with a period of 8.5 seconds?

20. Angular to Tangential Speed • tangential speed: • What is the tangential speed a child sitting 3.5 m from the center of the carousel in the previous problem?

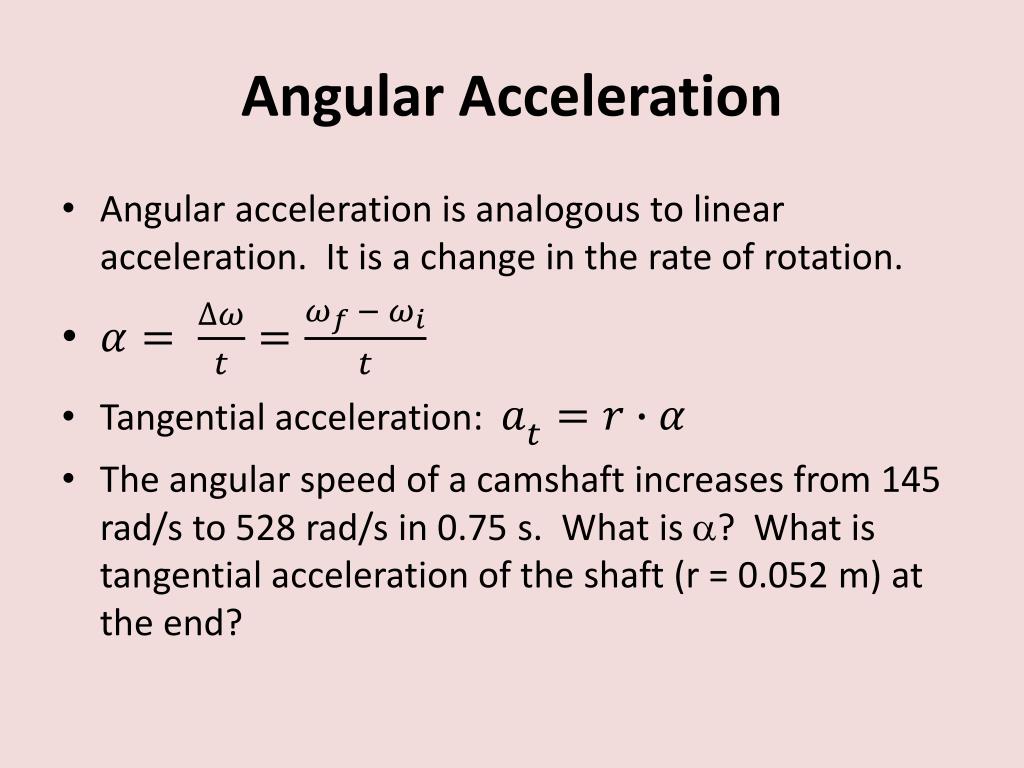

21. Angular Acceleration • Angular acceleration is analogous to linear acceleration. It is a change in the rate of rotation. • Tangential acceleration: • The angular speed of a camshaft increases from 145 rad/s to 528 rad/s in 0.75 s. What is a? What is tangential acceleration of the shaft (r = 0.052 m) at the end?

22. Objectives • Understand and use Newton’s second law for rotation. • Understand and apply the concept of angular momentum. • Understand and apply the concept of rotational KE.

23. Second Law for Rotation • Translational 2nd Law: • Rotational 2nd Law: • What is the angular acceleration of a 0.35 kg solid sphere with radius 0.27 m if a 4.2 N net force is applied tangential to the surface?

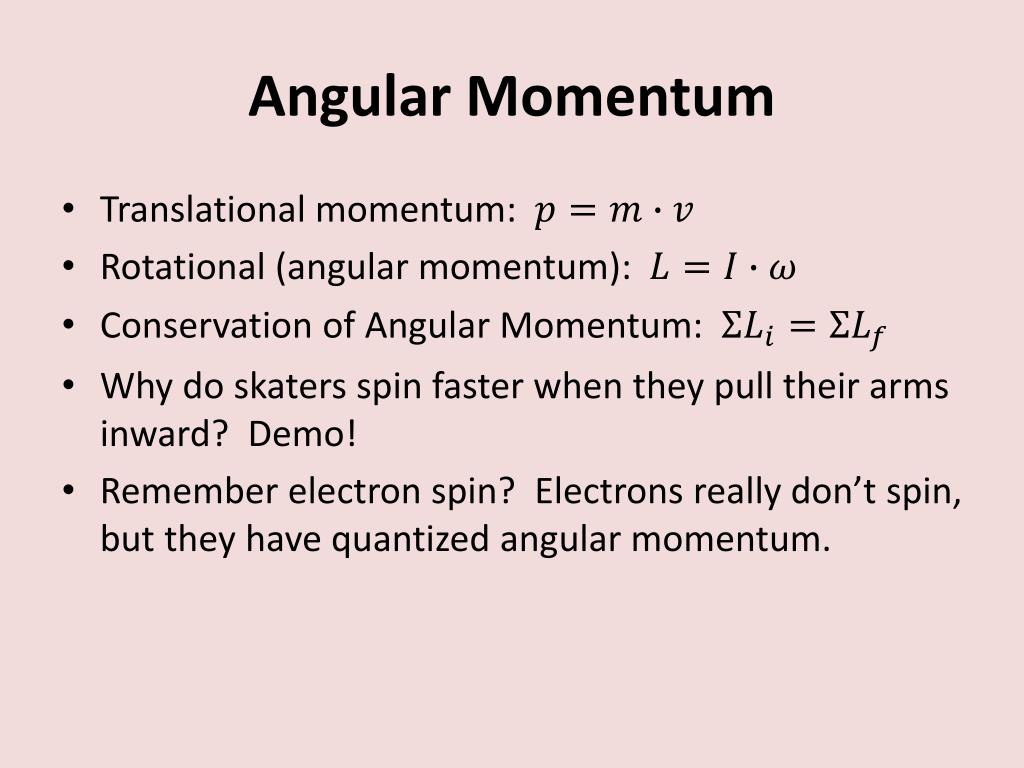

24. Angular Momentum • Translational momentum: • Rotational (angular momentum): • Conservation of Angular Momentum: • Why do skaters spin faster when they pull their arms inward? Demo! • Remember electron spin? Electrons really don’t spin, but they have quantized angular momentum.

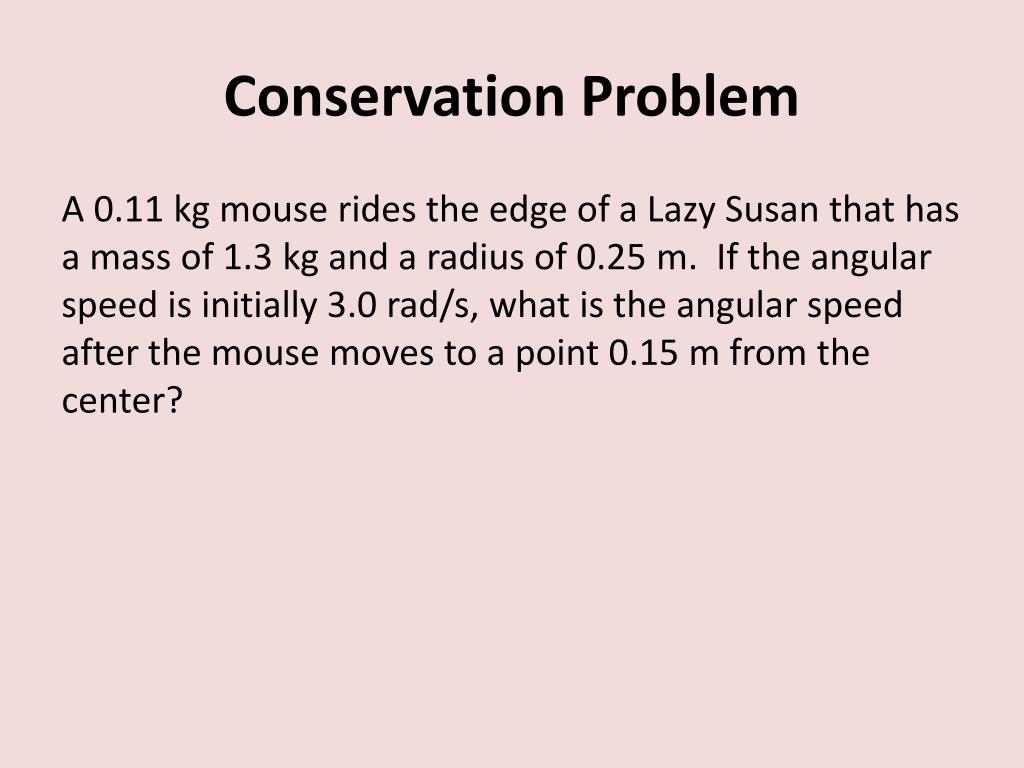

25. Conservation Problem A 0.11 kg mouse rides the edge of a Lazy Susan that has a mass of 1.3 kg and a radius of 0.25 m. If the angular speed is initially 3.0 rad/s, what is the angular speed after the mouse moves to a point 0.15 m from the center?

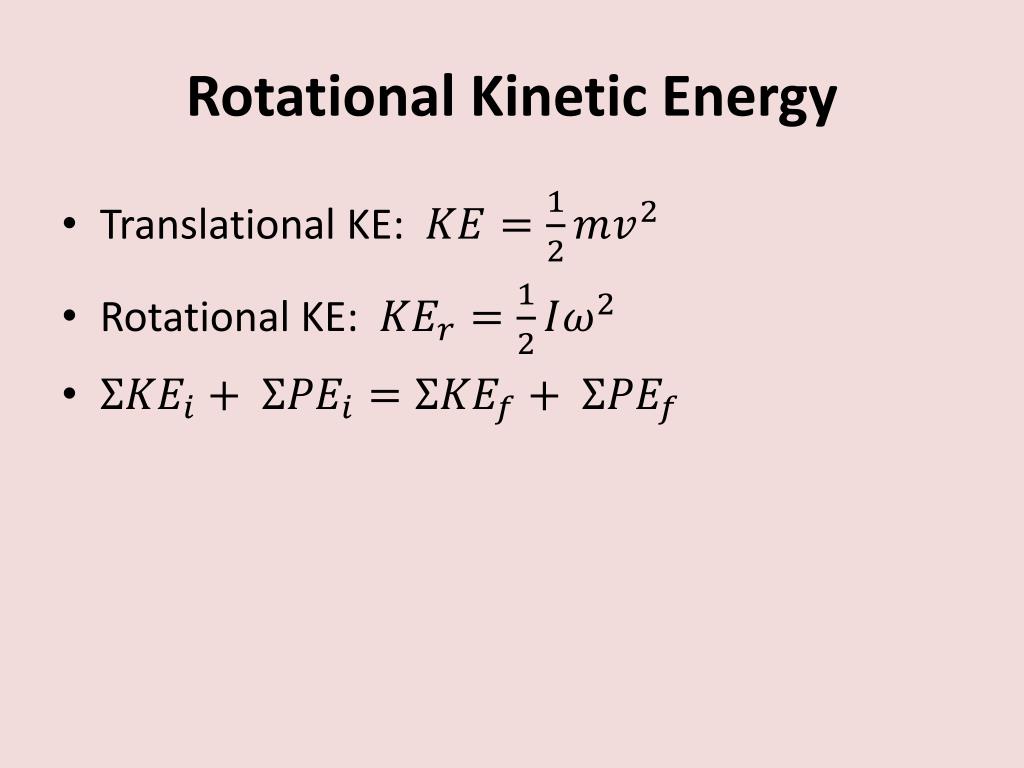

26. Rotational Kinetic Energy • Translational KE: • Rotational KE:

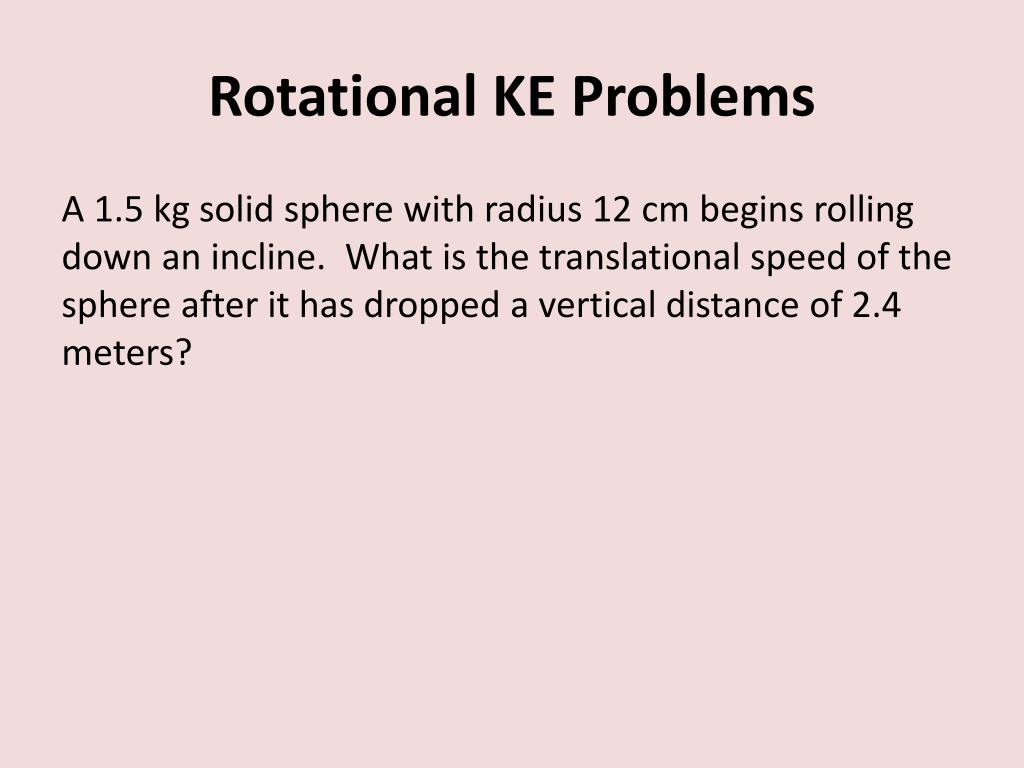

27. Rotational KE Problems A 1.5 kg solid sphere with radius 12 cm begins rolling down an incline. What is the translational speed of the sphere after it has dropped a vertical distance of 2.4 meters?

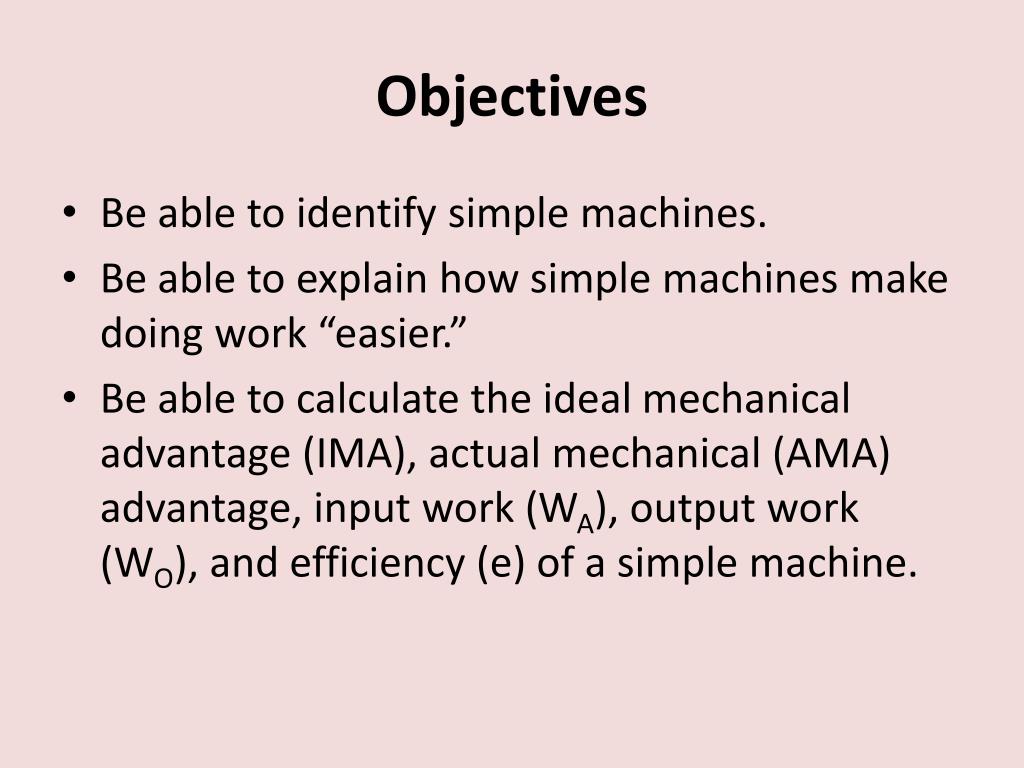

28. Objectives • Be able to identify simple machines. • Be able to explain how simple machines make doing work “easier.” • Be able to calculate the ideal mechanical advantage (IMA), actual mechanical (AMA) advantage, input work (WA), output work (WO), and efficiency (e) of a simple machine.

29. Simple Machines 4 kinds: lever, inclined plane, pulley, wheel and axle Simple machines generally make doing work easier by reducing applied force (but distance is increased). input work: WA = FA·dA output work: WO = FO·dO If no friction: WA = WO If friction is present: WA > WO

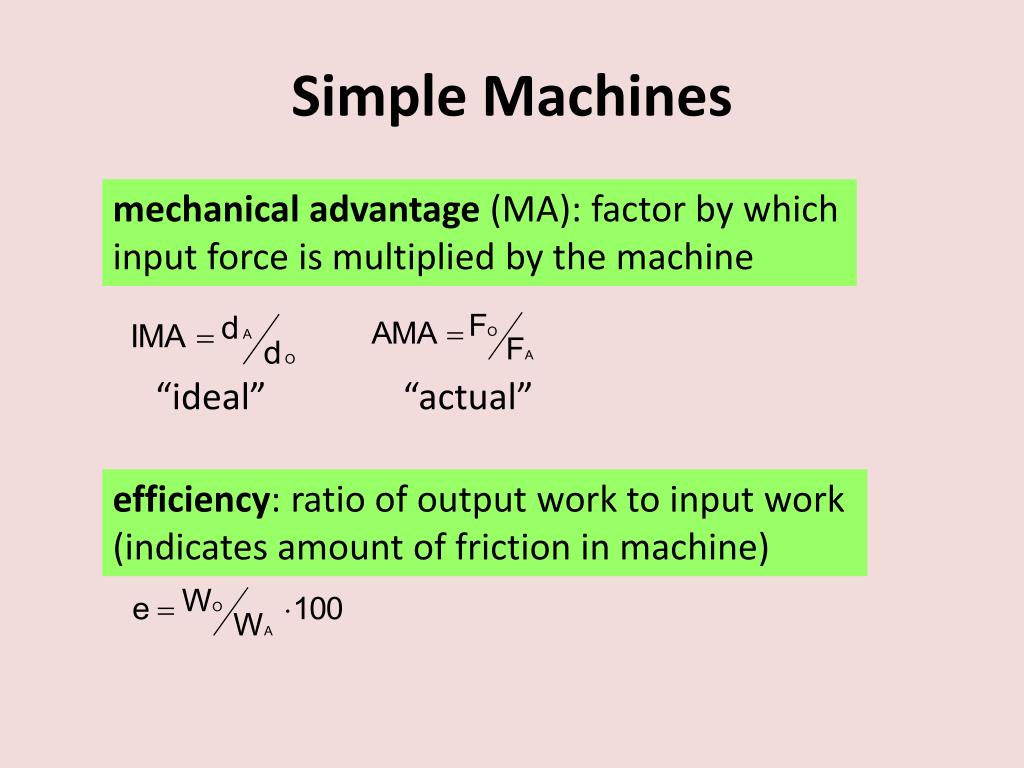

30. Simple Machines mechanical advantage (MA): factor by which input force is multiplied by the machine “ideal” “actual” efficiency: ratio of output work to input work (indicates amount of friction in machine)
