  1. Linear system Lesson 2 Classification of the System response

  2. Linear system Homogenous solution Particular solution Natural response Forced response Zero-input response Zero-state response System response:Output signals due to inputs and ICs. 1. The point of view of Mathematic: + 2. The point of view of Engineer: + 3. The point of view of control engineer: + Transient response Steady state response

  3. Linear system (1) Particular solution: Example: solve the following O.D.E

  4. Linear system (2) Homogenous solution: has to satisfy I.C.

  5. Linear system (3) zero-input response: consider the original differential equation with no input. zero-input response

  6. Linear system (4) zero-state response: consider the original differential equation but set all I.C.=0. zero-state response

  7. Linear system (5) Laplace Method:

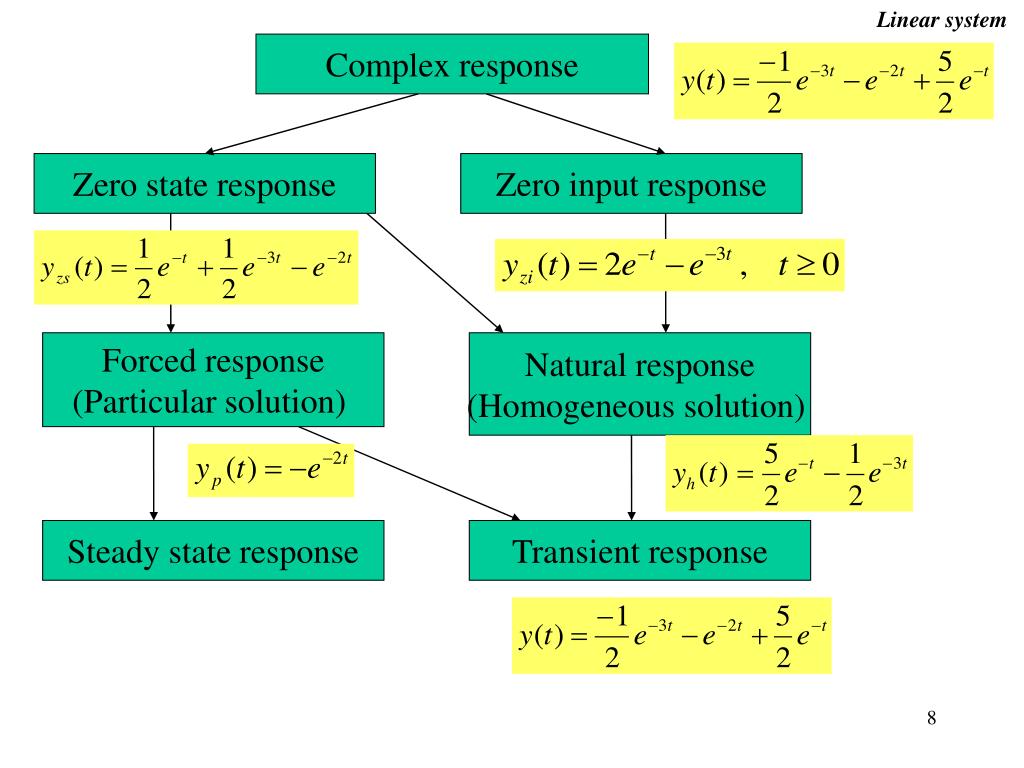

  8. Linear system Complex response Zero state response Zero input response Forced response (Particular solution) Natural response (Homogeneous solution) Steady state response Transient response
