Transactions
Transactions

  • A transaction is a complete and consistent series of database operations to perform some logical task that is part of a database application.

    • a database application usually consists of many such transactions

  • A transactions starts with the first SELECT, INSERT, UPDATE and DELETE statement and ends with either:

    • “commit work” – save the work done by the transaction

    • “rollback work” – undo the work done by the transaction

Database Systems


Properties of a transaction
Properties of a Transaction

  • Transaction management in a DBMS allows a large number of transactions to execute concurrently while maintaining:

    • Atomicity:a transaction either finishes all operations successfully or has no effect on the database

    • Consistency:when a transaction completes successfully, it leaves the database in a consistent state

    • Isolation:transactions run as if no other process is accessing the database while they execute

    • Durability:when a transaction completes successfully, its effects are written to disk and are never lost!

Database Systems


Transactions1

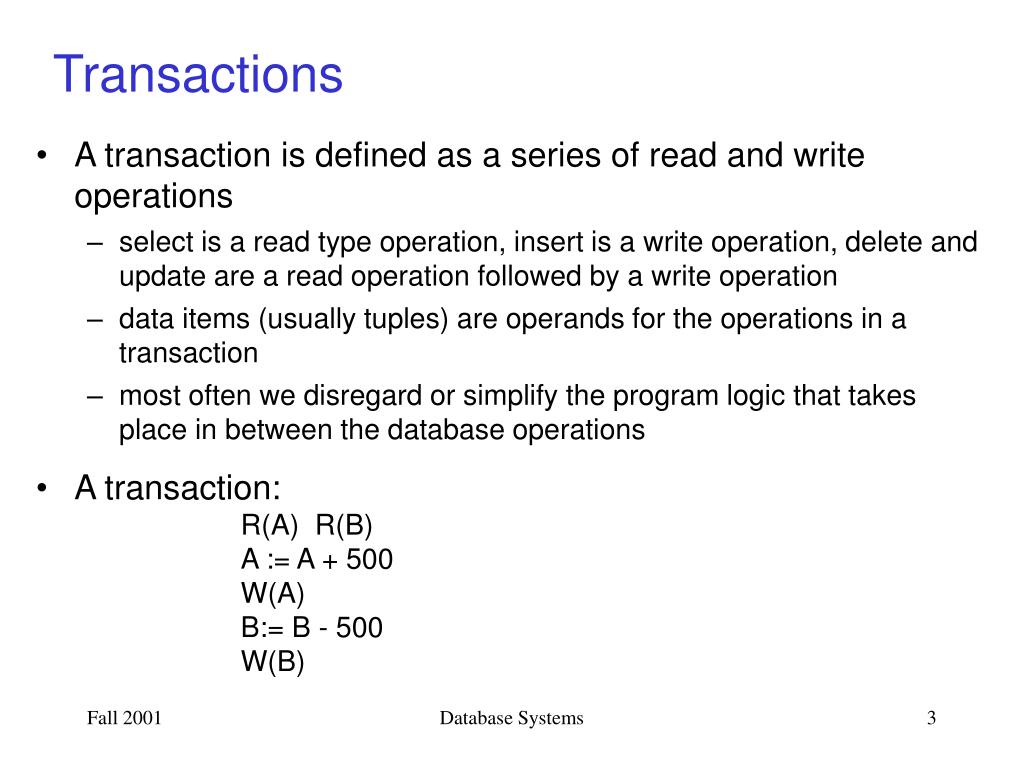

Transactions

  • A transaction is defined as a series of read and write operations

    • select is a read type operation, insert is a write operation, delete and update are a read operation followed by a write operation

    • data items (usually tuples) are operands for the operations in a transaction

    • most often we disregard or simplify the program logic that takes place in between the database operations

  • A transaction:

    R(A) R(B)

    A := A + 500

    W(A)

    B:= B - 500

    W(B)

Database Systems


Transaction management

T1 is overwriting a

change T2 made

T2 is reading something

T1 changed (DIRTY READ)

As a result, T2 used a value

for A that should have never

been in the database

Transaction Management

T1 T2

R(A)

R(B)

R(B)

A := A + 500

W(A)

B := B+200

W(B)

R(A)

B:= B - 500

W(B)

A:= A-200

W(A)

ABORT

Time

Database Systems


Transaction management1
Transaction Management

  • What does it mean to correctly execute a series of transactions? When are interleaved read/write operations from transactions valid?

    • a schedule is a global sequence of database operations from multiple transactions

    • serializable schedules are equivalent to executing all transactions one by one in some order T1,T2,…,Tk (i.e. T1 first, then T2, etc.)

    • serializable schedules guarantee isolation and consistency

Database Systems


Achieving the acid properties

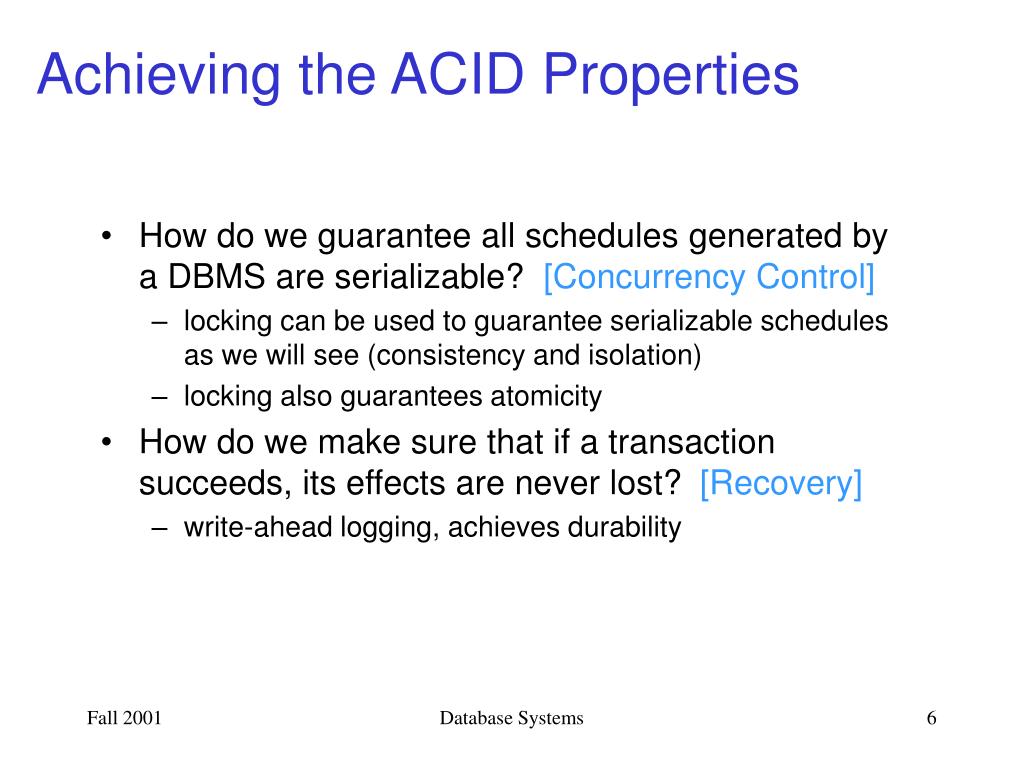

Achieving the ACID Properties

  • How do we guarantee all schedules generated by a DBMS are serializable? [Concurrency Control]

    • locking can be used to guarantee serializable schedules as we will see (consistency and isolation)

    • locking also guarantees atomicity

  • How do we make sure that if a transaction succeeds, its effects are never lost? [Recovery]

    • write-ahead logging, achieves durability

Database Systems


Concurrency control
Concurrency Control

  • Concurrency control – activity of coordinating the actions of transactions that operate in parallel and access shared data.

  • The operations of multiple transactions must be interleaved in such a way that the transactions do not interfere with one another.

  • The results of the execution of the transactions must be the same as if they were run one after the other in a serial fashion – serializability.

  • A database system must find serializable executions of the transactions it receives.

  • For simplicity, we will assume transactions are composed of the operations: read(x), write(x), commit and abort.

Database Systems


Concurrency control problems
Concurrency Control Problems

T1

T2

  • Lost update problem:

  • Dirty read problem:

read(x)

x = x + 1

read(x)

The final value of x is

incremented by one rather

than by two, as it should be.

time

x = x + 1

write(x)

write(x)

T1

T2

read(x)

T2 reads a value for x

that should not have been

part of the database.

x = x + 1

write(x)

time

read(x)

abort

Database Systems


More problems

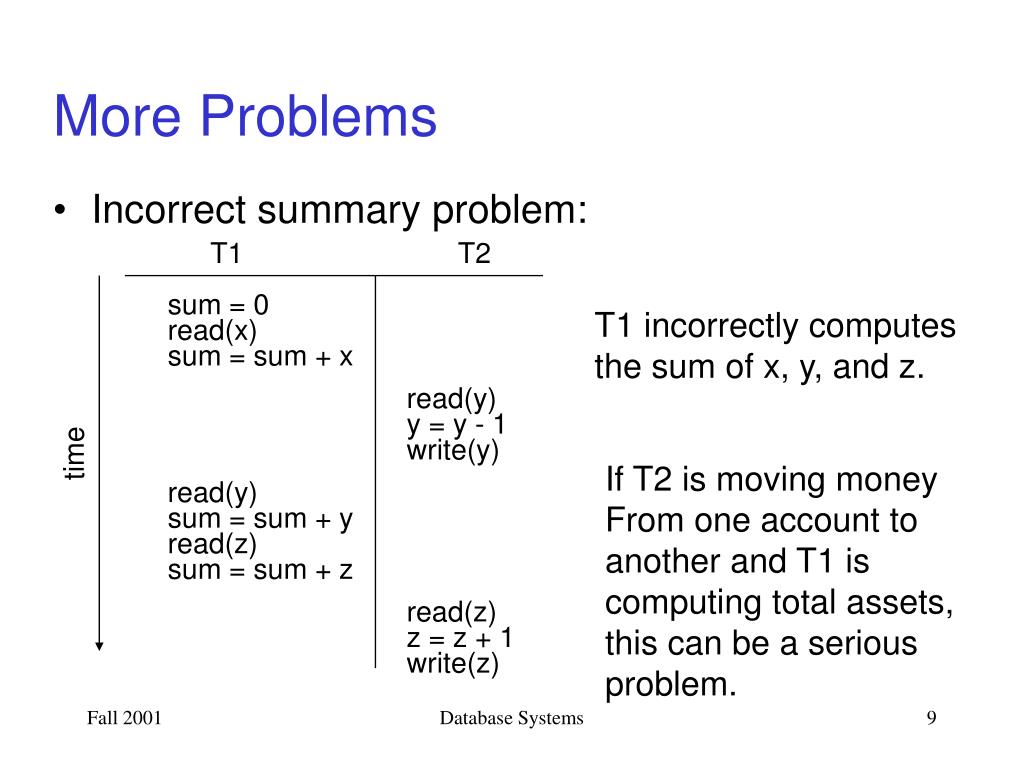

More Problems

  • Incorrect summary problem:

T1

T2

sum = 0

T1 incorrectly computes

the sum of x, y, and z.

read(x)

sum = sum + x

read(y)

y = y - 1

write(y)

time

If T2 is moving money

From one account to

another and T1 is

computing total assets,

this can be a serious

problem.

read(y)

sum = sum + y

read(z)

sum = sum + z

read(z)

z = z + 1

write(z)

Database Systems


Transaction histories
Transaction Histories

  • A history is a partial ordering of the operations in a set of transactions recording how the transactions executed.

  • Two operations conflict if they operate on the same data item and at least one of them is a write.

    • in this case it is important to know which of the two operations went first

  • Let T = {T1, T2, ..., Tn}. A history H over T is a partial order <H that includes all the operations in the {Ti } and that preserves the order of the operations in each Ti. It must also order all pairs of conflicting operations.

Database Systems


History example

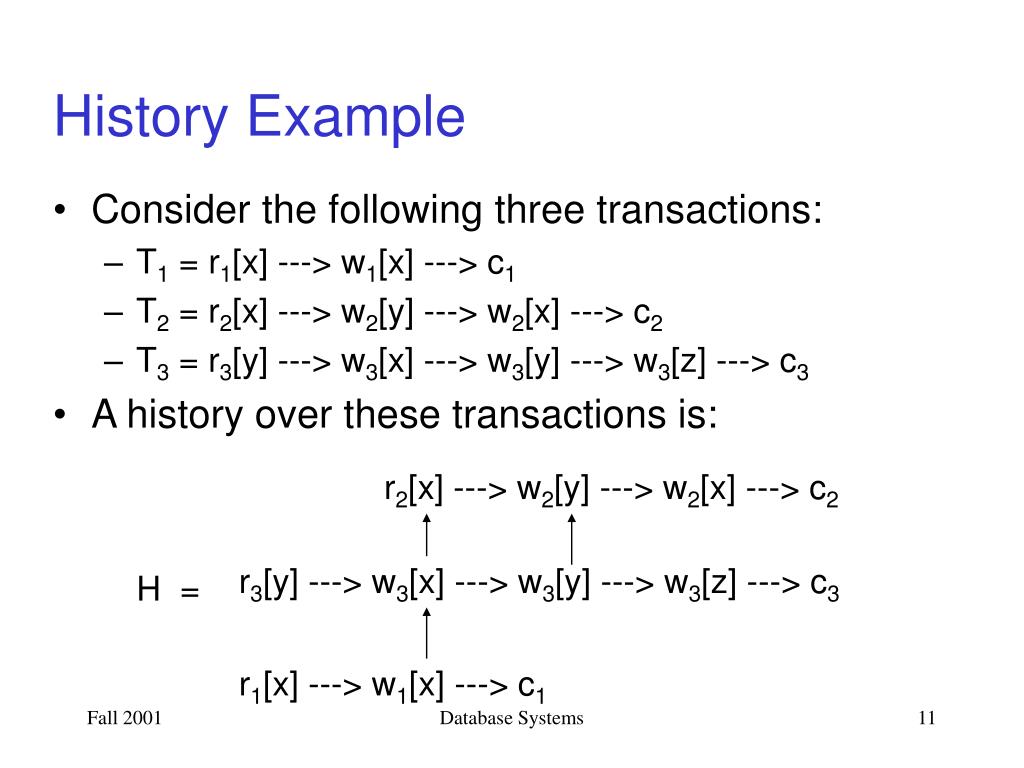

History Example

  • Consider the following three transactions:

    • T1 = r1[x] ---> w1[x] ---> c1

    • T2 = r2[x] ---> w2[y] ---> w2[x] ---> c2

    • T3 = r3[y] ---> w3[x] ---> w3[y] ---> w3[z] ---> c3

  • A history over these transactions is:

  • r2[x] ---> w2[y] ---> w2[x] ---> c2

  • r3[y] ---> w3[x] ---> w3[y] ---> w3[z] ---> c3

H =

  • r1[x] ---> w1[x] ---> c1

Database Systems


Serialization graph
Serialization Graph

  • A serialization graph of a history H is a directed graph whose nodes are the transactions in H and whose edges are all of the form Ti ---> Tj such that an operation in Ti precedes and conflicts with an operation in Tj.

  • Example

  • The serialization graph for this example is:

  • r3[x] ---> w3[x] ---> c3

  • r1[x] ---> w1[x] ---> w1[y] ---> c1

H =

  • r2[x] ---> w2[y] ---> c2

T2 T1 T3

Database Systems


Serializability theory

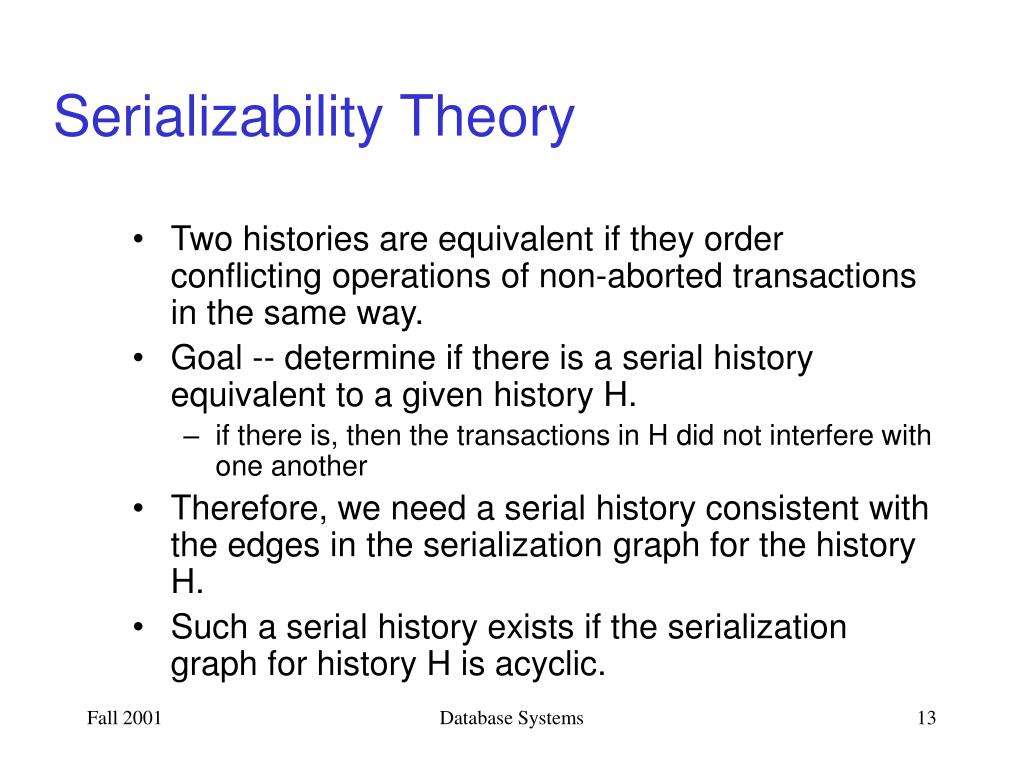

Serializability Theory

  • Two histories are equivalent if they order conflicting operations of non-aborted transactions in the same way.

  • Goal -- determine if there is a serial history equivalent to a given history H.

    • if there is, then the transactions in H did not interfere with one another

  • Therefore, we need a serial history consistent with the edges in the serialization graph for the history H.

  • Such a serial history exists if the serialization graph for history H is acyclic.

Database Systems


Example a serializable history
Example - A Serializable History

  • Example:

  • The serialization graph for this example is:

  • An equivalent serial history is:

  • r3[x] ---> w3[x] ---> c3

  • r1[x] ---> w1[x] ---> w1[y] ---> c1

H =

  • r2[x] ---> w2[y] ---> c2

T2 T1 T3

T2 T1 T3

Database Systems


Example non serializable history
Example: Non-Serializable History

  • r2[x] ---> w2[y] ---> w2[x] ---> c2

  • Example:

  • The serialization graph for this history is:

  • There are no equivalent serial histories because the serialization graph has a cycle.

    • these transactions interfere with one another

  • r3[y] ---> w3[x] ---> w3[y] ---> w3[z] ---> c3

H =

  • r1[x] ---> w1[x] ---> c1

T1 T2 T3

Database Systems


Serialization graphs

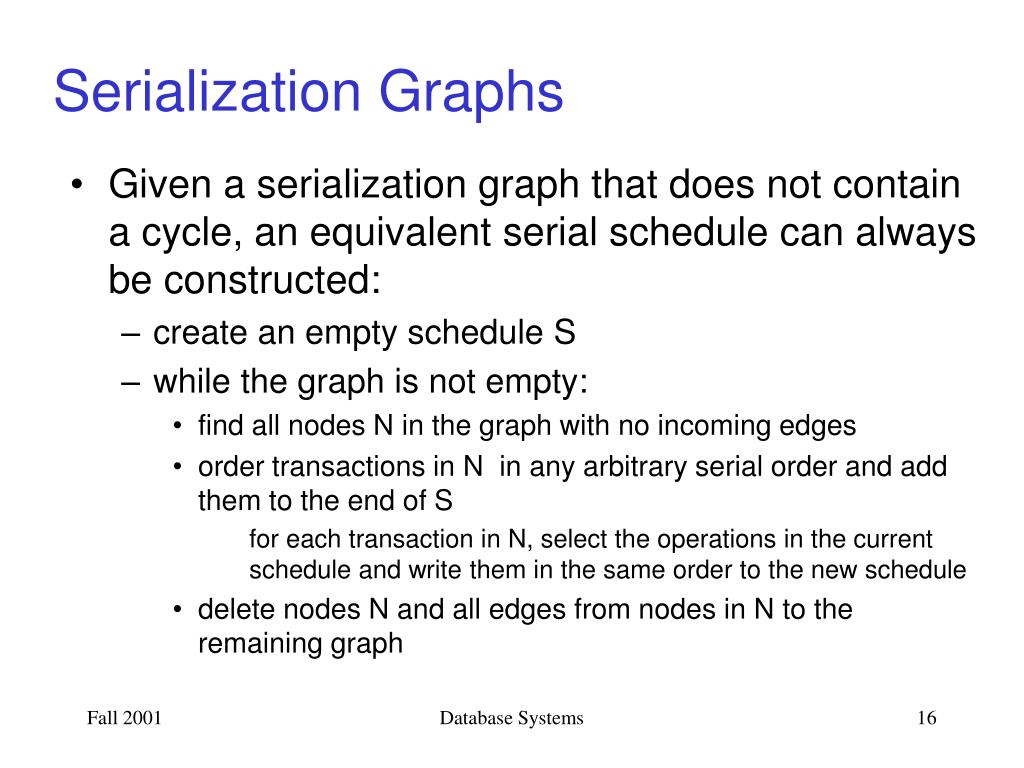

Serialization Graphs

  • Given a serialization graph that does not contain a cycle, an equivalent serial schedule can always be constructed:

    • create an empty schedule S

    • while the graph is not empty:

      • find all nodes N in the graph with no incoming edges

      • order transactions in N in any arbitrary serial order and add them to the end of S

        for each transaction in N, select the operations in the current schedule and write them in the same order to the new schedule

      • delete nodes N and all edges from nodes in N to the remaining graph

Database Systems


Schedulers

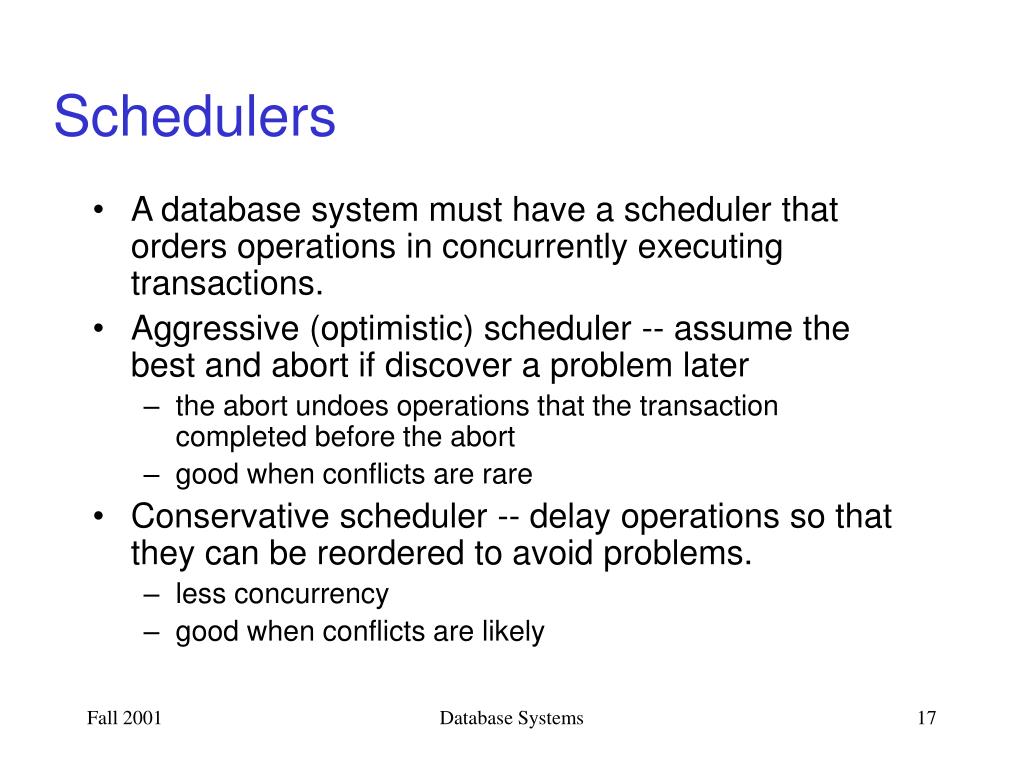

Schedulers

  • A database system must have a scheduler that orders operations in concurrently executing transactions.

  • Aggressive (optimistic) scheduler -- assume the best and abort if discover a problem later

    • the abort undoes operations that the transaction completed before the abort

    • good when conflicts are rare

  • Conservative scheduler -- delay operations so that they can be reordered to avoid problems.

    • less concurrency

    • good when conflicts are likely

Database Systems


Locking to ensure serializability
Locking to Ensure Serializability

  • A transaction should have a lock in its possession for any data objects it accesses.

    • read/shared lock is required to read an item

    • write/exclusive lock is required to write an item

  • Many transactions may have read locks on the same data item.

  • If a transaction holds a write lock on an item, no other transaction may obtain a lock of any kind for this item.

Database Systems


Two phase locking 2pl

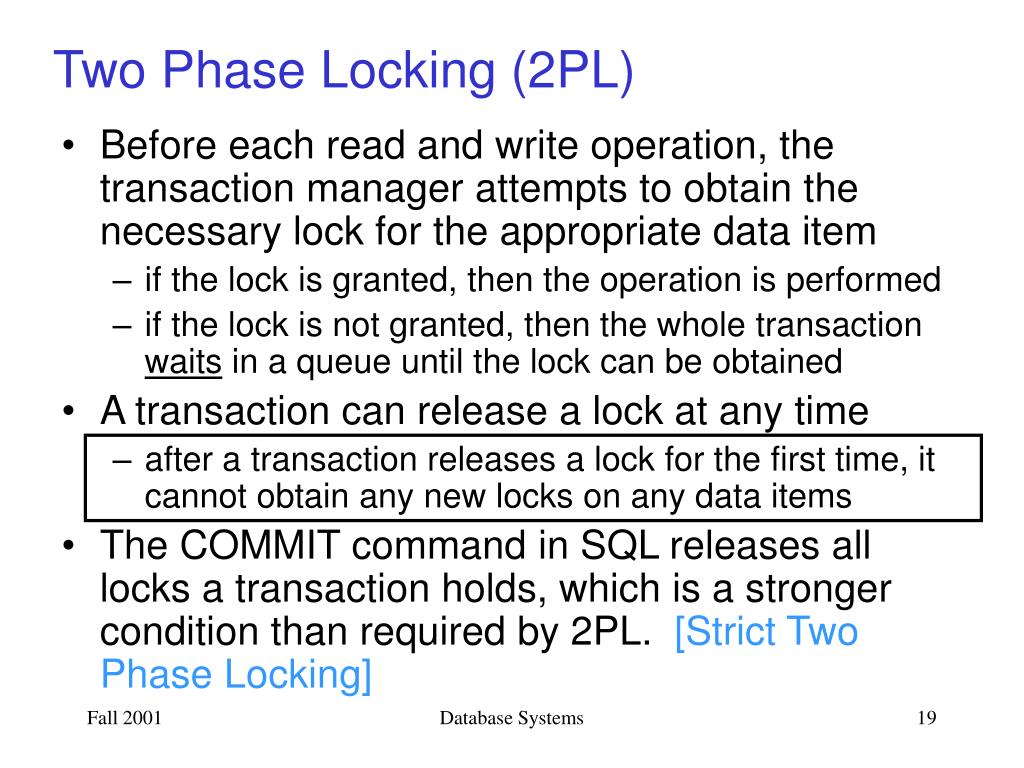

Two Phase Locking (2PL)

  • Before each read and write operation, the transaction manager attempts to obtain the necessary lock for the appropriate data item

    • if the lock is granted, then the operation is performed

    • if the lock is not granted, then the whole transaction waits in a queue until the lock can be obtained

  • A transaction can release a lock at any time

    • after a transaction releases a lock for the first time, it cannot obtain any new locks on any data items

  • The COMMIT command in SQL releases all locks a transaction holds, which is a stronger condition than required by 2PL. [Strict Two Phase Locking]

Database Systems


2PL

THEOREM: All schedules generated by enforcing the 2PL protocol are serializable. The actual read/write events that take place in the database correspond to some serial execution of transactions.

PROOF: The conflict graph induced by 2PL compliant schedulers are acyclic. By contradiction, assume the serialization graph has a cycle of the form:

Then there must be at least two conflicts.

A sample scenario for conflicts 1 and 2:

R1(A)…W2(A)...R2(B)…W1(B)

conflict1

T1

T2

conflict2

Database Systems

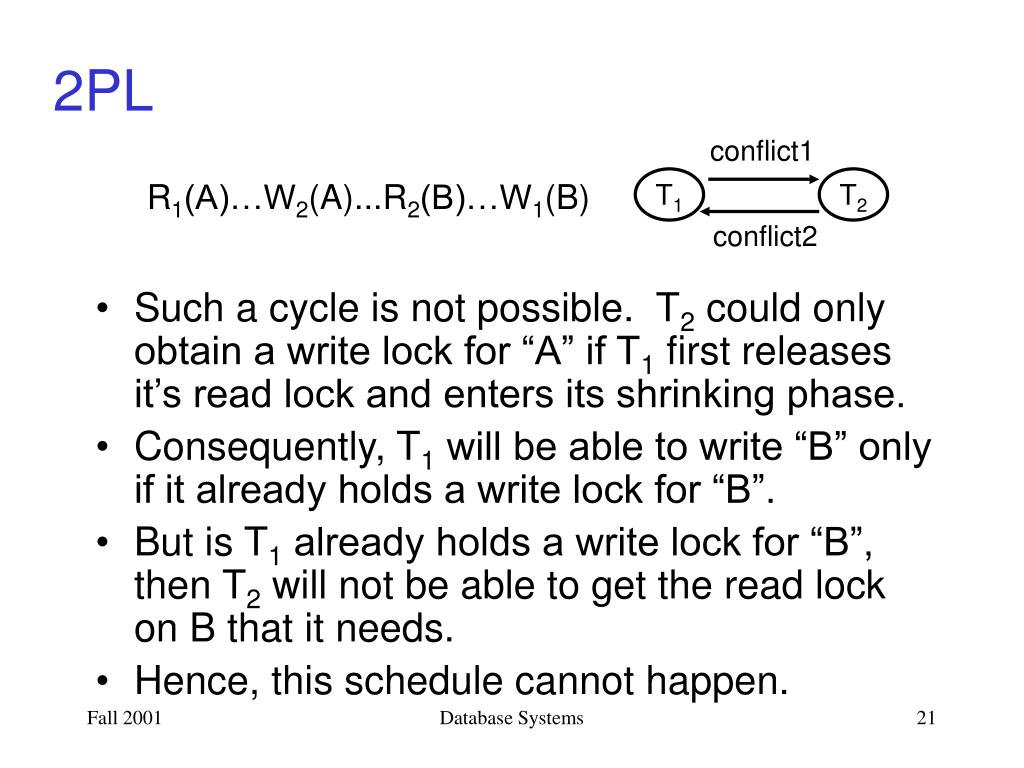

2PL

conflict1

T1

T2

R1(A)…W2(A)...R2(B)…W1(B)

  • Such a cycle is not possible. T2 could only obtain a write lock for “A” if T1 first releases it’s read lock and enters its shrinking phase.

  • Consequently, T1 will be able to write “B” only if it already holds a write lock for “B”.

  • But is T1 already holds a write lock for “B”, then T2 will not be able to get the read lock on B that it needs.

  • Hence, this schedule cannot happen.

conflict2

Database Systems


But there is a problem

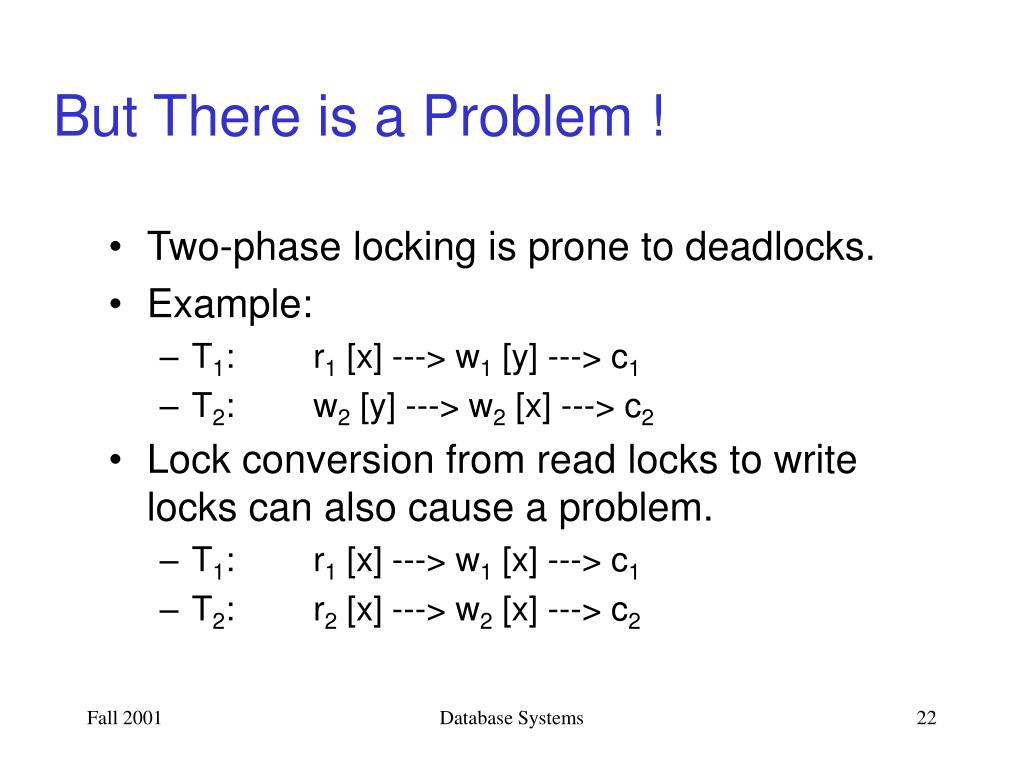

But There is a Problem !

  • Two-phase locking is prone to deadlocks.

  • Example:

    • T1: r1 [x] ---> w1 [y] ---> c1

    • T2: w2 [y] ---> w2 [x] ---> c2

  • Lock conversion from read locks to write locks can also cause a problem.

    • T1: r1 [x] ---> w1 [x] ---> c1

    • T2: r2 [x] ---> w2 [x] ---> c2

Database Systems


Deadlocks in 2pl

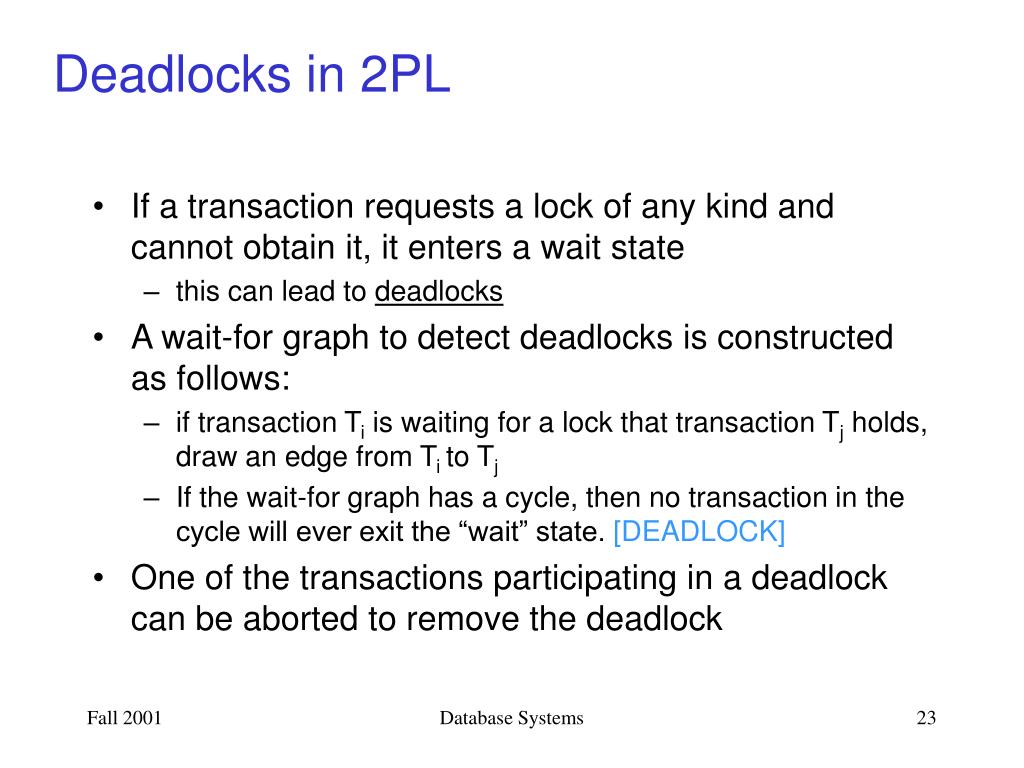

Deadlocks in 2PL

  • If a transaction requests a lock of any kind and cannot obtain it, it enters a wait state

    • this can lead to deadlocks

  • A wait-for graph to detect deadlocks is constructed as follows:

    • if transaction Ti is waiting for a lock that transaction Tj holds, draw an edge from Ti to Tj

    • If the wait-for graph has a cycle, then no transaction in the cycle will ever exit the “wait” state. [DEADLOCK]

  • One of the transactions participating in a deadlock can be aborted to remove the deadlock

Database Systems


Example

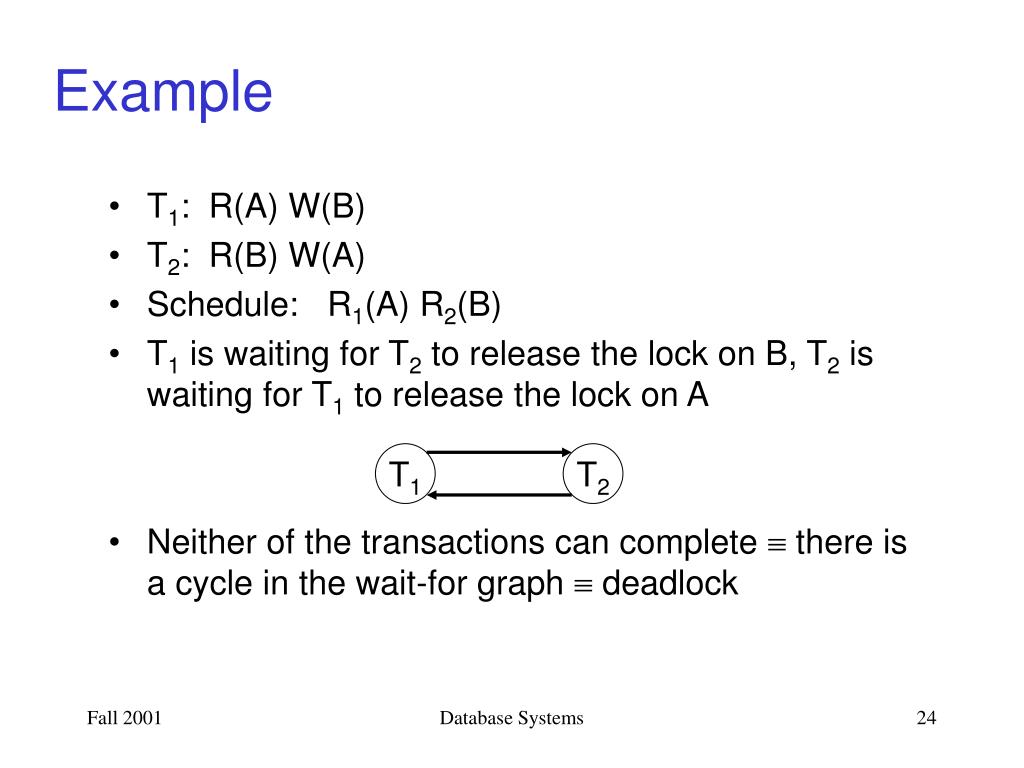

Example

  • T1: R(A) W(B)

  • T2: R(B) W(A)

  • Schedule: R1(A) R2(B)

  • T1 is waiting for T2 to release the lock on B, T2 is waiting for T1 to release the lock on A

  • Neither of the transactions can complete  there is a cycle in the wait-for graph  deadlock

T1

T2

Database Systems


Deadlocks
Deadlocks

  • Time-outs -- if a transaction has waited too long for a lock, the scheduler “guesses” that it is deadlocked and aborts it

  • Maintain wait-for graphs

    • things to consider when aborting transactions:

      • effort already invested

      • cost to abort

      • other potential deadlocks

      • work remaining

      • priority and locks already held

Database Systems


Implementation issues
Implementation Issues

  • The scheduler in a database system is usually implemented as a combination of a lock manager and a transaction manager.

  • The lock manager maintains a table of locks and supports the following operations:

    • lock (transaction id, data item, mode)

    • unlock (transaction id, data item)

    • these must be atomic operations

  • The lock manager also maintains a queue for each data item of transactions waiting for locks on that item.

Database Systems


Locking granularity
Locking Granularity

  • Possible lock granularities:

    • attribute value in a tuple

    • tuple

    • disk block

    • file

    • whole database

  • Larger granularities allow less concurrency

  • Smaller granularities require more overhead

  • Many database systems provide a small set of choices to pick from.

  • Row (tuple level) locking only in Oracle.

Database Systems


Timestamp ordering
Timestamp Ordering

  • A unique timestamp ts(Ti) is given to each transaction.

  • If operations oi[x] from Ti and oj[x] from Tj conflict, then the system processes oi[x] before oj[x] iff ts(Ti) < ts(Tj).

  • Basic Timestamp Ordering: (aggressive)

    • operations executed in first come first serve order

    • if an operation arrives to late, its transaction is aborted

    • the scheduler must maintain the maximum timestamp of previous reads and writes for each data item to do this

  • Timestamp Ordering establishes an ordering on the transactions so that the serialization graph will be acyclic.

Database Systems


Cascading abort
Cascading Abort

  • By definition, if a transaction aborts, its effects must be completely erased from the database

  • Example:

  • if T1 aborts, since T2 has seen the changes caused by T1, then T2 has to be aborted as well -> cascading abort

  • schedules generated by 2PL may require cascading abort

Database Systems

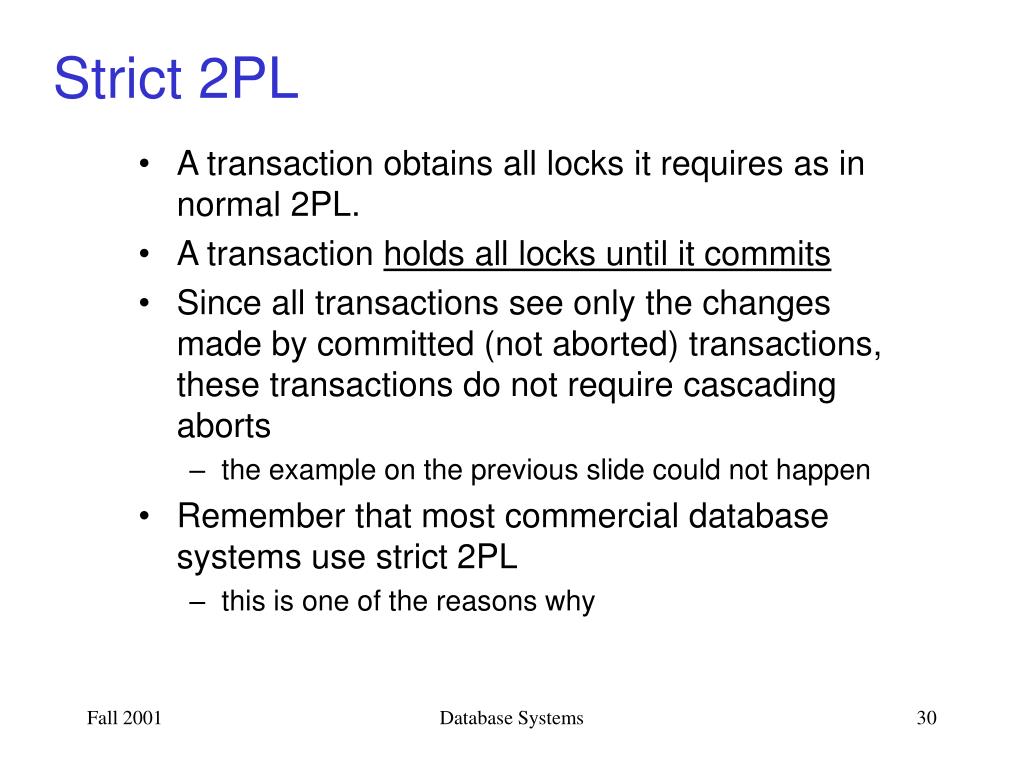

Strict 2pl
Strict 2PL

  • A transaction obtains all locks it requires as in normal 2PL.

  • A transaction holds all locks until it commits

  • Since all transactions see only the changes made by committed (not aborted) transactions, these transactions do not require cascading aborts

    • the example on the previous slide could not happen

  • Remember that most commercial database systems use strict 2PL

    • this is one of the reasons why

Database Systems


Levels of isolation
Levels of Isolation

  • 2PL ensures serializability, but at the expense of lower concurrency

  • “Consistency” may not be vital to some types of transactions

  • In all the isolations levels, all locks are kept until commit time!

Database Systems


Read uncommitted
Read Uncommitted

  • Read all tuples regardless of the locks that are on them.

  • When reading, a short lock (latch) is used to ensure atomicity.

  • Transactions that are set to be “read uncommitted” are read only and cannot make database updates

  • Results of such transactions are not guaranteed to be correct!

    SET TRANSACTION READ UNCOMMITTED ;

    SELECT count(F.reserved_seats) FROM Flights F

    WHERE F.flight_id = “AA112” ;

Database Systems

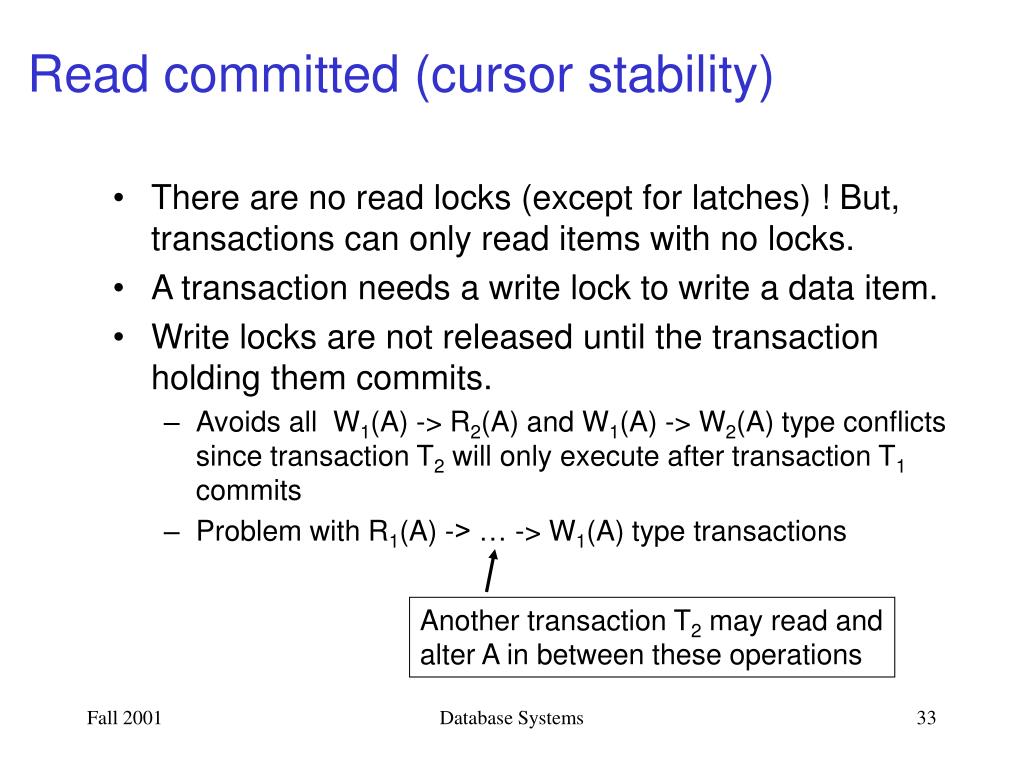

Read committed cursor stability
Read committed (cursor stability)

  • There are no read locks (except for latches) ! But, transactions can only read items with no locks.

  • A transaction needs a write lock to write a data item.

  • Write locks are not released until the transaction holding them commits.

    • Avoids all W1(A) -> R2(A) and W1(A) -> W2(A) type conflicts since transaction T2 will only execute after transaction T1 commits

    • Problem with R1(A) -> … -> W1(A) type transactions

Another transaction T2 may read and

alter A in between these operations

Database Systems


Cursor stability
Cursor Stability

  • Cursor Stability

    • declare a cursor for update when using “read committed”

    • a read lock is held on each row the cursor points to until the cursor is moved from that location

      exec sql set transaction read committed ;

      exec sql declare cursor deposit for select balance from accounts where branch_id = ‘Alb’ for update of balance ;

      exec sql open deposit ;

      (loop through rows in cursor)

      exec sql fetch deposit into :balance ;

      balance = balance + 10 ;

      exec sql update account set balance = :balance

      where current of deposit ;

      (end of loop)

      exec sql close deposit ;

      exec sql commit work ;

Database Systems

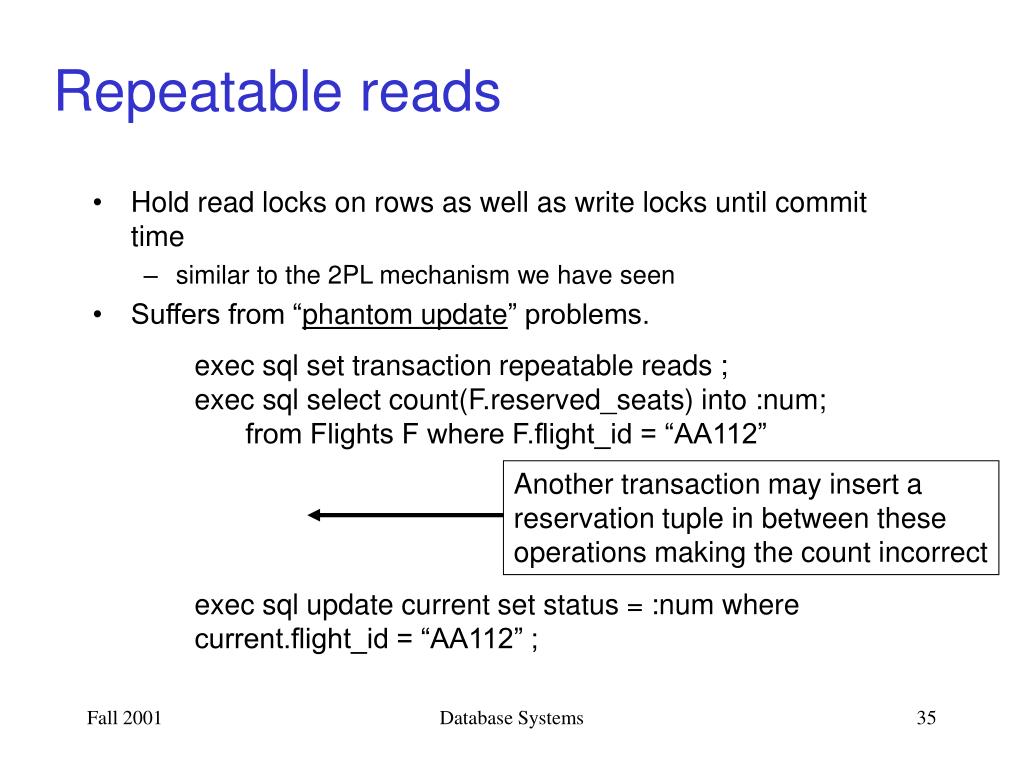

Repeatable reads
Repeatable reads

  • Hold read locks on rows as well as write locks until commit time

    • similar to the 2PL mechanism we have seen

  • Suffers from “phantom update” problems.

    exec sql set transaction repeatable reads ;

    exec sql select count(F.reserved_seats) into :num;

    from Flights F where F.flight_id = “AA112”

    exec sql update current set status = :num where current.flight_id = “AA112” ;

Another transaction may insert a

reservation tuple in between these

operations making the count incorrect

Database Systems


Serializable
Serializable

  • Serializable transactions do not have the phantom update problem.

  • Serializable transactions lock a “predicate”, limiting all read/write access to operations that would satisfy a predicate such as F.flight_id = “AA112”

  • In Oracle

Database Systems


ad
