Straumann bone level implant prosthetic product portfolio

Straumann® Bone Level ImplantProsthetic ProductPortfolio


Straumann

Portfolio Concept SummaryProduct hierarchy

Ø 4.8 mm

Ø 4.1 mm

Ø 3.3 mm

Narrow CrossFit = NC

Regular CrossFit = RC


Straumann

Ø 3.3 mm

Ø 4.1 mm

Ø 4.8 mm

Ø 3.3 mm

Ø 4.1 mm

Ø 4.8 mm

yellow

red

green

incisors lower jaw, 2nd incisors upper jaw, edentulous

incisors upper jaw, pre molars, canines, edentulous

pre molars, molars

Bone Level Implant - Three implant diameters

coronal Ø

apical Ø

color code

usage examples


Straumann

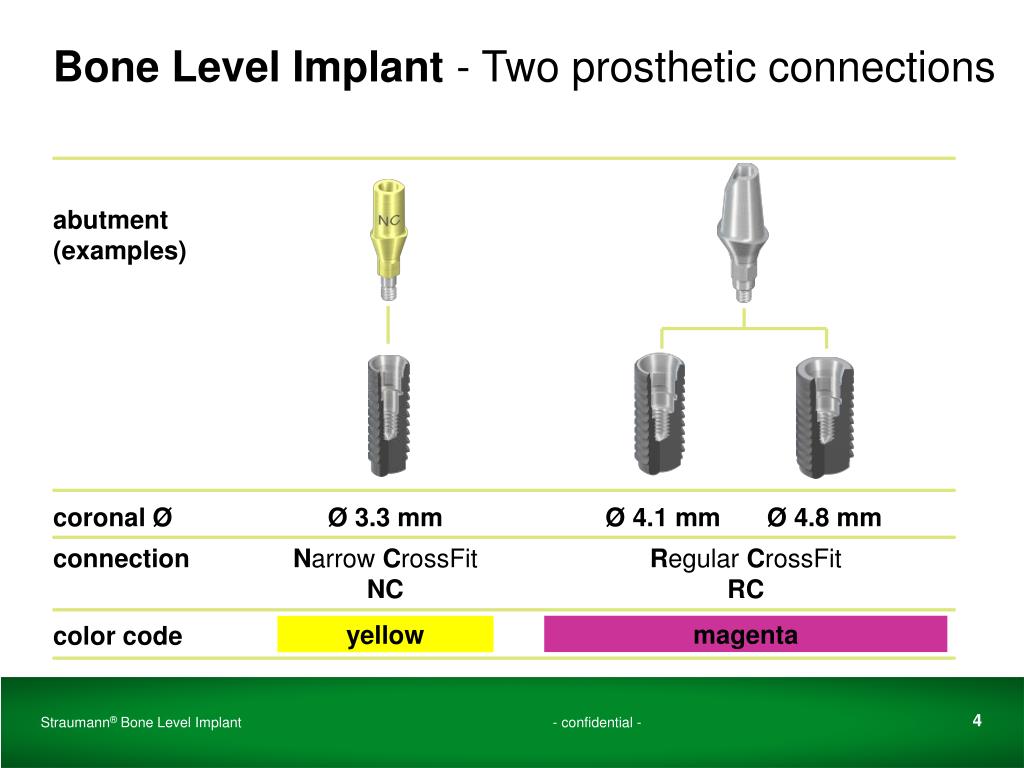

Bone Level Implant - Two prosthetic connections

abutment

(examples)

coronal Ø

Ø 3.3 mm

Ø 4.1 mm

Ø 4.8 mm

connection

Narrow CrossFit

NC

Regular CrossFit

RC

color code

magenta

yellow


Straumann

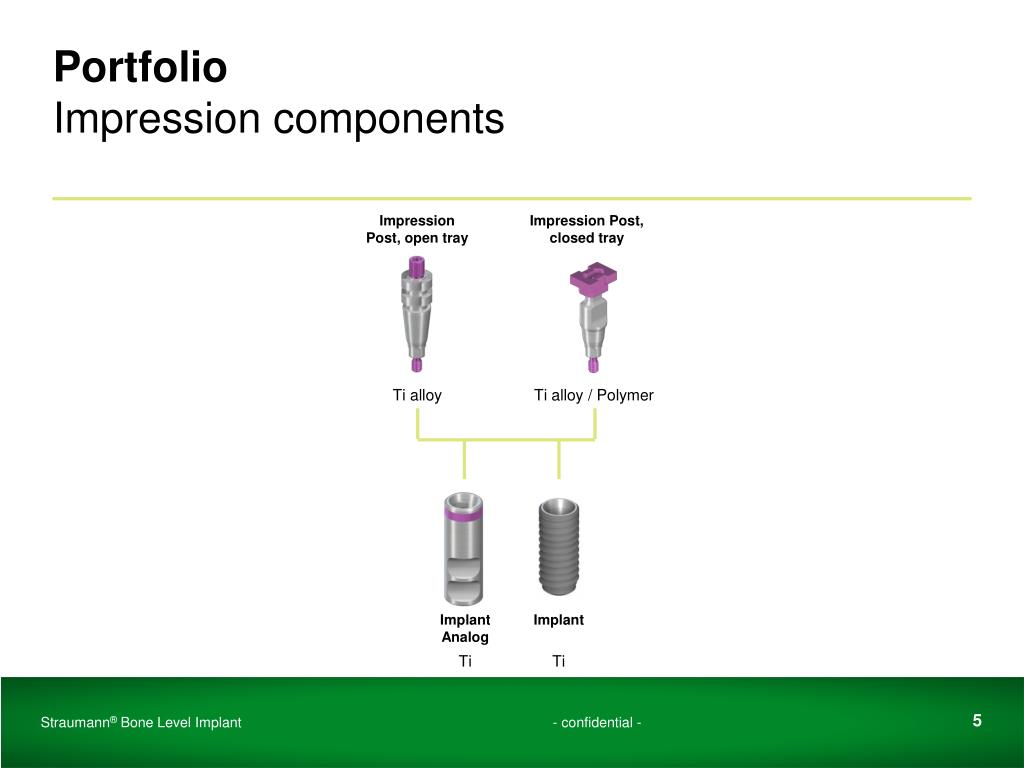

PortfolioImpression components

Impression Post, open tray

Impression Post, closed tray

Ti alloy

Ti alloy / Polymer

Implant Analog

Implant

Ti

Ti


Straumann

Prosthetic options for cement-retained C&B

Crown & bridge – cement-retained

CAD/CAM1

Bar

CAD/CAM1

Meso

Cementable

Anatomic

Gold,

for

crown

Gold,

for

bridge

LOCATOR®2

Temporary

ZrO2

Ti

Ti

Ti

Ti

Au

Au

Ti

Polymer/Ti

Ti/Au

1. CAD/CAM options will be available in the near future.

2. LOCATOR® is pending FDA clearance.


Straumann

Prosthetic options for screw-retained C&B

Crown

screw-retained

Crown screw-retained

Bridge screw-retained

CAD/CAM1

Bar

CAD/CAM1

Meso

Cementable

Anatomic

Gold,

for

crown

Gold,

for

bridge

LOCATOR®2

Temporary

ZrO2

Ti

Ti

Ti

Ti

Au

Au

Ti

Polymer/Ti

Ti/Au

1. CAD/CAM options will be available in the near future.

2. LOCATOR® is pending FDA clearance.


Straumann

Prosthetic options for edentulous treatment

Tele-scope

Custom. bar

Direct bar

Retentive element

Tele-scope

CAD/CAM1

Bar

Gold,

for

crown

CAD/CAM1

Meso

Cementable

Anatomic

Gold,

for

bridge

LOCATOR®2

Temporary

ZrO2

Ti

Ti

Ti

Ti

Au

Au

Ti

Polymer/Ti

Ti/Au

1. CAD/CAM options will be available in the near future.

2. LOCATOR® is pending FDA clearance.


Straumann

Prosthetic Portfolio - Regular CrossFit™ Connection

Tap

Profile

Drill

Closure

Screw

Healing

Abutment

Customizable Healing

Abutment

Implant Analog

Impression Post, closed tray

Impression Post, open tray

CAD/CAM1

ZrO2

CAD/CAM1

Ti

Meso

Ti

Cementable

Ti

Anatomic

Ti

Gold,

for crown

Au

Gold,

for bridge

Au

LOCATOR®2

Ti

Temporary

Polymer/Ti

Bar

Ti/Au

PLAN Set

1. CAD/CAM options will be available in the near future.

2. LOCATOR® is pending FDA clearance.


Straumann

Portfolio Concept V Narrow CrossFit

Tap

Profile

Drill

Closure

Screw

Healing

Abutment

Customizable Healing

Abutment

Implant Analog

Impression Post, closed tray

Impression Post, open tray

will be introduced later

will be introduced later

CAD/CAM1

ZrO2

CAD/CAM1

Ti

Meso

Ti

Cementable

Ti

Anatomic

Ti

Gold,

for crown

Au

LOCATOR®2

Ti

Temporary

Polymer/Ti

Bar

Ti/Au

PLAN Set

1. CAD/CAM options will be available in the near future.

2. LOCATOR® is pending FDA clearance.


Plan abutment

PLAN Abutment


Plan abutment rationale

PLAN AbutmentRationale

  • efficient planning of prosthetic restoration

  • comprehensive range of PLAN abutments available

  • reduces need for a large inventory of actual abutments in clinician’s office

  • available as a package set (PLAN Set) or as a package of 4


Straumann

PLAN AbutmentProsthetic planning – simple and efficient

  • SCS configuration

  • user-friendly handling

  • Color-coding

  • user-friendly

  • Polymer

  • intraoral use

  • Snap mechanism

  • quick placement on implant or analog


Anatomic abutment

Anatomic Abutment


Anatomic abutment rationale

Anatomic AbutmentRationale

  • cement-retained restorations

  • solution for highly demanding esthetic cases (prepared tissue margin)

  • adaptations by dental technician possible

  • ease of handling, less grinding as compared with Meso Abutment

  • Meso Abutment as back-up solution (large dimensions)


Anatomic abutment individual esthetics easy to achieve

Anatomic AbutmentIndividual esthetics – easy to achieve

  • Prefabricated chamfer

  • reliable fit for casted copings

  • Prepared anatomic margin

  • Consistent Emergence Profiles™

Streamlined portfolio:

  • Two gingiva heights

    (2 and 3.5 mm) and two

    angles (0° and 15°)

Oval shaped abutment

  • resembles the natural shape of the tooth


Gold abutment for crown

Gold Abutment,for crown


Straumann

Gold Abutment, for crownRationale

  • cast-to solution

  • excellent adaptation to the soft tissue


Straumann

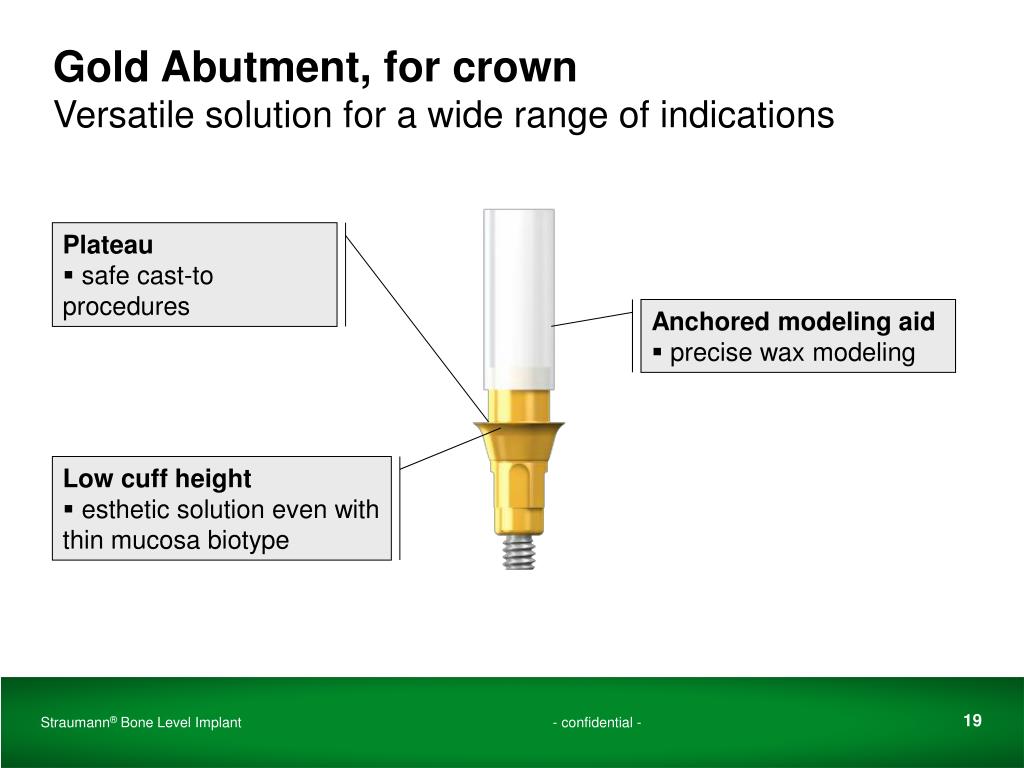

Gold Abutment, for crownVersatile solution for a wide range of indications

  • Plateau

  • safe cast-to procedures

Anchored modeling aid

  • precise wax modeling

  • Low cuff height

  • esthetic solution even with thin mucosa biotype


Gold abutment for bridge

Gold Abutment,for bridge


Straumann

Gold Abutment, for bridgeRationale

  • screw-retained bridges

  • screw-retained customized bars

  • excellent adaptation to the soft tissue


Straumann

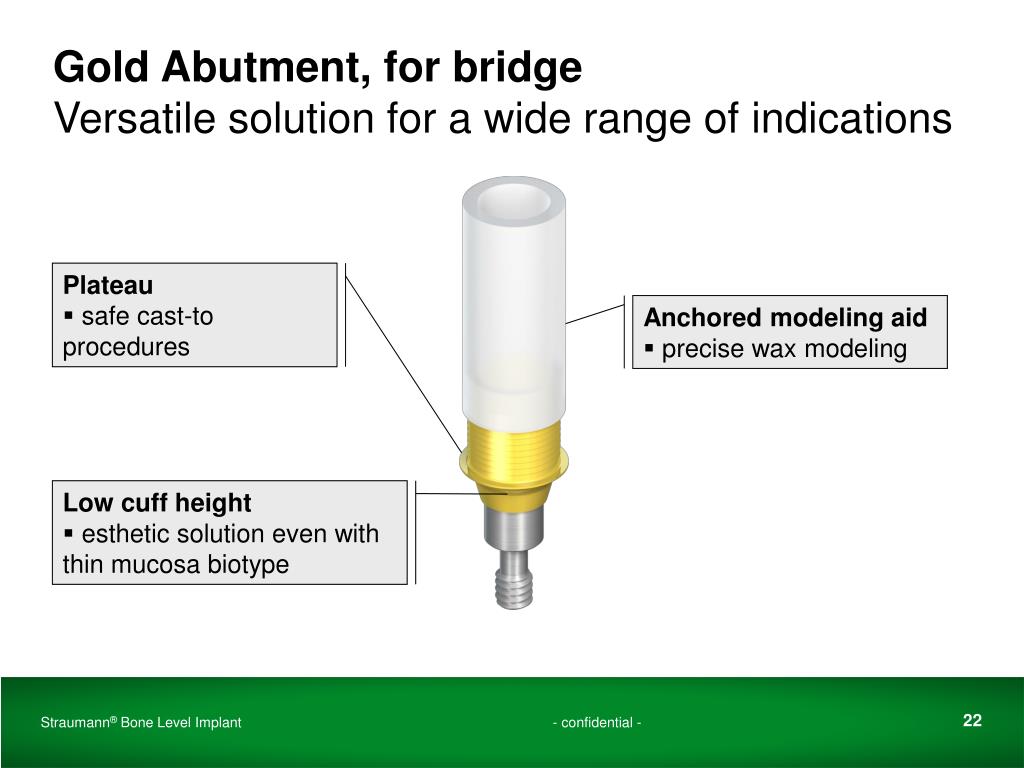

Gold Abutment, for bridgeVersatile solution for a wide range of indications

  • Plateau

  • safe cast-to procedures

Anchored modeling aid

  • precise wax modeling

  • Low cuff height

  • esthetic solution even with thin mucosa biotype


Cementable abutment

Cementable Abutment


Cementable abutment rationale

Cementable AbutmentRationale

  • cement-retained crowns and bridges

  • similar handling to traditional crown and bridge on natural teeth

  • simple and efficient procedures for the dental technician


Straumann

Cementable AbutmentProsthetics similar to natural teeth

  • Color-coding and laser markings

  • avoids confusion

Option of abutment or implant level impression taking

  • simply more choice

  • Convenient lab components

  • simple and efficient procedures for dental technicians

Chamfer

  • reliable fit for casted copings

  • Easy to use prefabricated abutments and components

  • minimal adaptations needed


Abutment for bars

Abutment for Bars


Abutment for bars rationale

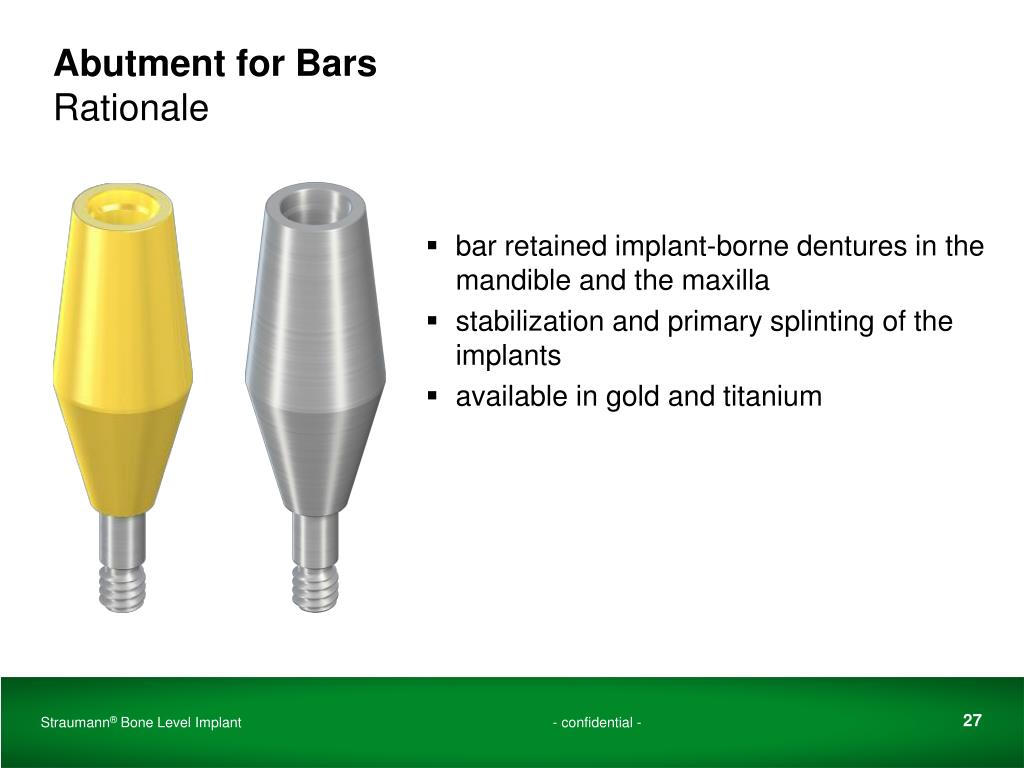

Abutment for BarsRationale

  • bar retained implant-borne dentures in the mandible and the maxilla

  • stabilization and primary splinting of the implants

  • available in gold and titanium


Abutment for bars us er friendly solution for bar retained dentures

Abutment for BarsUser-friendly solution for bar retained dentures

  • Abutment height

  • can easily be shortened due to the 7 mm distance from the soft tissue level

  • Flexible design

  • soldered and laser-welded bar constructions with prefabricated components

  • 15° cone

  • implant divergence flexibility up to 30°

  • One-piece solution

  • effective bar-retained restorations for standard situations


Straumann
