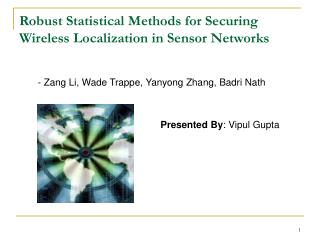

Zang li wade trappe yanyong zhang badri nath presented by vipul gupta l.jpg

- Zang Li, Wade Trappe, Yanyong Zhang, Badri Nath

Presented By: Vipul Gupta

Robust Statistical Methods for Securing Wireless Localization in Sensor Networks


Outline l.jpg
Outline

  • Introduction and Motivation

  • Related Work

  • Robust Triangulation

    • Robust Fitting: Least Median of Squares

    • Robust Localization with LMS

    • Simulation and Results

  • Switched LS-LMS Localization Scheme

  • Robust RF-Based Fingerprinting

  • Conclusions

  • Future Work


  • Introduction l.jpg
    Introduction

    • What is Localization (w.r.t. sensor networks)?

      • Is the process of estimating the location of a sensor node w.r.t. a known location (also called anchor node)

  • Why Localization?

    • Enforcing location aware security policies (e.g. this entity should remain in this building only - laptop), emergencies (e.g. where did the fire alarm go off?)

  • Localization Schemes

    • Methods of obtaining estimate location information about a sensor node (e.g. DV – Hop, APIT, Cricket)

  • Anchor Node

    d

    Sensor Node


    Introduction4 l.jpg
    Introduction

    Anchor Node

    • Threat to Localization Infrastructure

      • Purpose of the attacks

        • To give false location information.

  • Types of attacks

    • May be intentional

      • Non – cryptographic attacks

      • Classical security threats (e.g. Sybil attack)

  • Or unintentional

    • Presence of passerby, opening doors of hallway

  • Sensor Node (True)

    Sensor Node


    Motivation behind statistical robustness of localization l.jpg
    Motivation behind Statistical Robustness of Localization

    • Single defense mechanism will not work!

    • Unforeseen and non-filterable attacks

    • Localization should function properly at all times!

    • Living with the bad guys!


    Related work l.jpg
    Related Work

    • Two main localization techniques:

      • Range – based localization (more accurate)

        • Measurement of absolute point to point distance estimate (or angle)

    • Range – free localization (no special hardware)

  • Range – based localization:

    • Time of Flight (e.g. Cricket)

    • Angle of Arrival (e.g. APS)

  • Range – free localization:

    • Hop Count (e.g. DV-Hop)

    • Region Inclusion (e.g. APIT)

  • Anchor Node

    d

    Sensor Node

    Anchor Node

    Sensor Node

    Anchor Node

    Anchor Node


    Related work7 l.jpg
    Related Work

    • Cricket

      • Time of Flight (Time difference of Arrival)

        • Using RF and Ultrasonic Waves

        • Utilizes the difference in propagation speeds

    • Pure RF – based system not used! (Why?)

    • Difference between the receipt of first bit of RF and ultrasound signals

    • Distance = Speed * Time

      • For constant speeds, greater the distance, longer the signal takes

    Signal 1: T seconds

    Signal 2: >T seconds


    Cricket l.jpg
    Cricket

    TRF TUS

    • WhereTRF is the time at which the RF signal is received

    • TUS is the time at which the Ultrasonic signal is received

    • Δ =TRF – TUS ; is the time difference

      • Speed * Time = Distance

  • Speeds are known, time is known, distance can be calculated


  • Attack threats l.jpg
    Attack Threats

    • Remove direct path & force radio transmission to employ multipath

    • Exploit difference in propagation speeds

    RF Signal reaches sensor node, nearby adversary hears it

    True Ultrasonic signal on its way

    Sends ultrasonic signal

    Adversary


    Attack threats10 l.jpg
    Attack Threats

    • Make the signal to pass through another medium

      • Speed gets affected and hence the distance estimate

    Signal

    Sensor node

    Another medium


    Related work11 l.jpg
    Related Work

    • Ad Hoc Positioning System (APS)

      • Uses Angle of Arrival

      • Use of directional antennas


    Attack threats12 l.jpg
    Attack Threats

    Reflective Object

    • Use of reflective objects to change the signal arrival angle

    • Remove direct path & force radio transmission to employ multipath

    Signal

    Angle of arrival changes

    Reflective Object


    Related work13 l.jpg
    Related Work

    • DV – Hop

      • Three stages –

        • Calculate distance in hops to anchor nodes (using beacons)

        • An anchor node calculates distance to other anchor nodes

        • Correction (average per hop distance) is calculated for each anchor node and deployed to the nodes

          i ≠ j – for all anchor nodes j


    Dv hop l.jpg
    DV Hop

    • Example


    Attack threats15 l.jpg
    Attack Threats

    • Vary hop count:

      • Wormhole

      • Jamming

      • Varying the radio range

    • Vary the per-hop distance


    Attack threats16 l.jpg
    Attack Threats

    Wormhole and Jamming


    Related work17 l.jpg
    Related Work

    • APIT (Approximate Point-in-Triangulation Test)

      • Uses area-based (Region Inclusion) estimation

      • Environment divided into triangular regions

      • PIT test narrows the location of the node

      • Calculated the Center of Gravity of the narrowed region


    Attack threats18 l.jpg
    Attack Threats

    • Alter neighborhood

      • Wormholes

      • Jamming

      • Changing the shape of the received radio region

        • Placing an absorbing barrier

  • Alter the per-hop measurement


  • Least squares l.jpg
    Least Squares

    • According to Wikipedia, is used to model the numerical data obtained from observations by adjusting the parameters of the model so as to get an optimal fit for the data.

    • Optimal fit – Sumof squared residuals having least value

    • Residue – Difference between the observed value and the value given by the model

    • Has its own shortcomings, which we will see soon


    Localization schemes l.jpg
    Localization Schemes

    (Xa, ya)

    da

    • Triangulation & Trilateration

      • Collecting (x, y, d) values for each node

      • (x, y) coordinates of the anchor node

      • d is the distance to the anchor node

      • Using sufficient (xi, yi, di) solving for (x0, y0) is a simple least squares problem

    (x0, y0)

    db

    dc

    (Xc, yc)

    (Xb, yb)


    Shortcomings of least squares l.jpg
    Shortcomings of Least Squares

    • Non-robustness to outliers

      • A single incorrect (x, y, d) value may deviate the location estimate significantly away from the true value in spite of other correct values being present

      • e.g. altering hop count using wormhole or jamming attacks may deviate d significantly from its original value

      • Let 10 samples values of ‘d’ be – 8, 9, 10, 11, 8, 9, 10, 11, 9, 10;

        However if an attacker changes one ’10’ to ‘100’, it will significantly affect the location measurement


    Robust fitting least median of squares l.jpg
    Robust Fitting: Least Median of Squares

    • Fitting: Finding the best fitting curve for a given set of points

    • Cost Function for LS algorithm (in this case) is given by:

    • where d is the parameter to be estimated (distance), is the i-th measured distance, xi and yi are the coordinates of the i-th location and x0 and y0 are the coordinates of the true location

    • A single outlier may ruin the estimation due to the summation in the cost function


    Robust localization with least median of squares l.jpg
    Robust Localization with Least Median of Squares

    • Under ideal conditions (no attacks), the device location can be estimated by …..(A)

      • value of the argument for which the value of the expression attains its minimum value

  • In presence of adversaries, we get outliers. Instead of trying to identify the outliers, we want to live with the bad nodes. This is achieved using LMS instead of LS

    ….(B)


  • Non linear and linear least squares l.jpg
    Non-linear and Linear Least Squares

    • Equation A is a nonlinear least squares problem and is equivalent to solving:

    • Averaging the left and right sides:


    Non linear and linear least squares25 l.jpg
    Non-linear and Linear Least Squares

    • Subtracting the last two equations …

    • which is a linear LS problem


    Non linear and linear least squares26 l.jpg
    Non-linear and Linear Least Squares

    • Linear LS has less computational complexity

    • Starting with a linear estimate can avoid local minimum

      Linear LS and nonlinear LS starting from the linear estimate


    Simulation threat model l.jpg
    Simulation – Threat Model

    • Contamination Ratio Є< 50%, the fraction of distance measurements compromised

    • Coordinated corruption of data rather than random perturbations

    • Adversary tries to modify NЄ values so that they all “vote” for (xa, ya)

      (xa, ya)

      (x0,y0)

      Greater the da, stronger is the attack

    da


    Simulation l.jpg
    Simulation

    • Linear LS used

    • mean square error of an estimator (quantity to be measured), according to wikipedia is:

    • In simple words, it is the estimation error, i.e. how much the experimental value differs from the mathematical value

    • Experiments conducted with different contamination ratio Є and measurement noise level

    • Implemented system robust to 30 percent contamination


    Results l.jpg
    Results

    • Each point represents average over 2000 trials


    Results30 l.jpg
    Results

    • Impacts of Є and :

      • Severe performance degradation observed at Є = .35


    Switched ls lms localization scheme l.jpg
    Switched LS-LMS Localization Scheme

    For 50 samples: x = 31… 50 represents outliers

    y represents values


    Switched ls lms localization scheme32 l.jpg
    Switched LS-LMS Localization Scheme

    • Inliers and outliers well separated – LMS performs good

    • Inliers and outliers pretty close, LMS cannot differentiate and messes up – fits partly inlier and partly outlier data giving a worse estimate

    • A threshold T is selected and is compared with where is the observed noise level and normal measurement noise level is known

    • If T < LMS is used, else LS



    Rf based fingerprinting l.jpg
    RF-Based Fingerprinting

    • Multiple anchor points deployed

    • Signal strengths at each anchor point recorded as {x, y, ss1,…ssN} where ss are the corresponding signal strengths; x,y is the position, N is number of anchor nodes (at least 3)

    • Beacons are broadcasted and signal strengths measured at each anchor node

    • The signal strengths ss’ (observed) are compared with the ones recorded by the central anchor node

    • The closest match is selected as the estimated location (minimum value of )


    Robust methods for rf based fingerprinting l.jpg
    Robust Methods for RF-Based Fingerprinting

    • A single corrupted signal strength at an anchor node will affect the location. This can be easily done by:

      • Using an absorbing barrier between the node and anchor node

      • Turning a microwave on

  • Instead of finding minimized Euclidean distance we can find the minimized median - to find the location


  • Conclusions l.jpg
    Conclusions

    • Finding a correct estimate of the location is important

    • Adversaries will always be there, so live in harmony – rather than trying to eliminate all the attacks, tolerate them

    • Both LS and LMS have their pros and cons

    • Switched LS-LMS does the trick!

    • Median based distance metric is good for RF based fingerprinting


    Limitations l.jpg
    Limitations

    • LS-LMS scheme fails when the contamination ratio increases more than 50%

    • For large number of compromised nodes, median may be far different from the average value


    Future work l.jpg
    Future Work

    • Limited attacker capabilities considered. That is, the attacker can compromise only a limited number of percentage of nodes.

    • Errors caused by malicious users considered. They have not considered errors caused due to limitations of ranging methods like signal attenuation, multipath signals, etc.
