International partnerships

International Partnerships

Internet2 International Program Overview

Last updated: 30 June 2003


NOTE

  • We are in the process of updating our international overview materials.

  • If you find out of date items or have suggested changes, please let us know!

  • For up to date information, please contact Ana Preston [email protected]

  • Thank you for your patience!


Internet2 partnerships
Internet2: Partnerships

  • Partnerships are key to Internet2

  • International partners are of strategic importance to Internet2

    • Ensure global interoperability

      • of the next generation of Internet technologies and applications

    • Enable global collaboration

      • in research and education providing/promoting the development of an advanced networking environment internationally


International partnerships1
International Partnerships

  • Build effective partnerships in other countries

  • With organizations of similar goals/objectives and similar constituencies

  • Mechanism: Memoranda of Understanding

    • Provide/promote interconnectivity between communities

    • Collaborate on technology development and deployment

    • Facilitate collaboration between members on applications

  • Engagement to:

    • Establish leading, high-performance network infrastructures in support of science, teaching and learning

    • Ensure global coordination and end-to-end performance in support of our communities


International partnerships2
International Partnerships

Current MoU Partners

Developing Partnerships

Related Efforts in Formation


Current international partners

Europe-Middle East

ARNES (Slovenia)

BELNET (Belgium)

CARNET (Croatia)

CESnet (Czech Republic)

DANTE (Europe)

DFN-Verein (Germany)

GIP RENATER (France)

GRNET (Greece)

HEAnet (Ireland)

HUNGARNET (Hungary)

INFN-GARR (Italy)

Israel-IUCC (Israel)

NORDUnet (Nordic Countries)

POL-34 (Poland)

FCCN (Portugal)

RedIRIS (Spain)

RESTENA (Luxembourg)

RIPN (Russia)

SANET (Slovakia)

Stichting SURF (Netherlands)

SWITCH (Switzerland)

TERENA (Europe)

JISC, UKERNA (United Kingdom)

Americas

CANARIE (Canada)

CEDIA (Ecuador)

CUDI (Mexico)

CNTI (Venezuela)

CR2NET (Costa Rica)

REUNA (Chile)

RETINA (Argentina)

RNP (Brazil)

SENACYT (Panama)

Asia-Pacific

AAIREP (Australia)

APAN (Asia-Pacific)

APAN-KR (Korea)

APRU (Asia-Pacific)

CERNET/CSTNE/NSFCNET (China)

JAIRC (Japan)

JUCC (Hong Kong)

NECTEC/UNINET (Thailand)

SingAREN (Singapore)

TANet2 (Taiwan)

Last updated: 30 June 2003

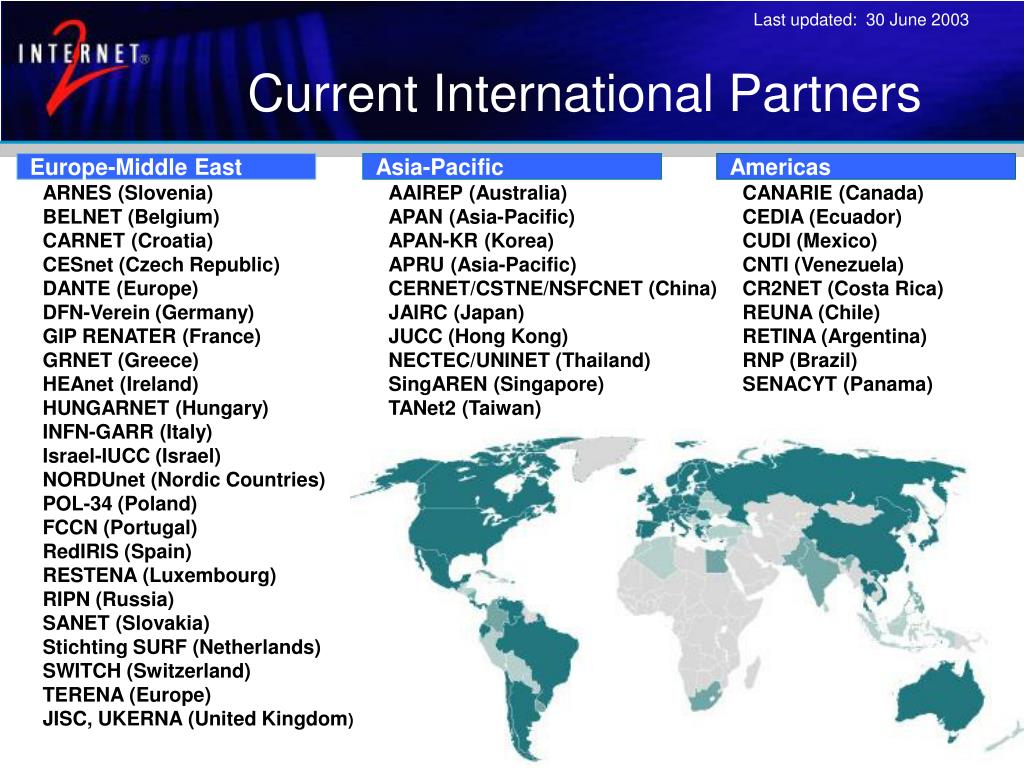

Current International Partners


Networks reachable via abilene by country

Last updated: 30 June 2003

Networks reachable via Abilene - by country

Europe-Middle East

Asia-Pacific

Americas

Austria (ACOnet)

Belgium (BELNET)

Croatia (CARNet)

Czech Rep. (CESNET)

Cyprus (CYNET)

Denmark (Forskningsnettet)

Estonia (EENet)

Finland (Funet)

France (Renater)

Germany (G-WIN)

Greece (GRNET)

Hungary (HUNGARNET)

Iceland (RHnet)

Ireland (HEAnet)

Israel (IUCC)

Italy (GARR)

Latvia (LANET)

Lithuania (LITNET)

Luxembourg (RESTENA)

Malta (Univ. Malta)

Netherlands (SURFnet) Norway (UNINETT)

Poland (POL34)

Portugal (RCTS2)

Romania (RoEduNet)Russia (RBnet)

Slovakia (SANET)

Slovenia (ARNES)

Spain (RedIRIS)

Sweden (SUNET)

Switzerland (SWITCH)

United Kingdom

(JANET)

Turkey (ULAKBYM)

*CERN

Australia (AARNET)

China (CERNET, CSTNET, NSFCNET)

Hong Kong (HARNET)

Japan (SINET, WIDE, IMNET, JGN)

Korea (KOREN, KREONET2)

Singapore (SingAREN)

Philippines (PREGINET)

Taiwan (TANet2, ASNet)

Thailand (UNINET, ThaiSARN)

Argentina (RETINA)

Brazil (RNP2/ANSP)

Canada (CA*net)

Chile (REUNA)

Mexico (Red-CUDI)

United States

(Abilene, vBNS)

Venezuela

(REACCIUN-2)

More information at http://abilene.internet2.edu/peernetworks/international.html


International connectivity
International connectivity

  • Internet2 backbone networks are primarily in the United States

  • Primarily, our partners’ networks pay to get to the US

  • NSF provides some funding for 3 international links and a couple of interconnection points

    • TransPAC (Asia/Pacific Rim)

    • EuroLink (Europe)

    • NAUKAnet (Russia)

    • STAR TAP/Star Light (Chicago)

    • AMPATH

  • Other international exchange points/transit facilitated by Internet2 members


International peering
International Peering

  • How?

    • Through an interconnection point such as PacWave, Starlight, MANLAN, AMPATH

    • Through an international link such as TransPAC or via another network, e.g., CALREN-2, GEANT

    • Other options are reviewed case by case


U s based international interconnection points

STAR TAP/Star Light

•Chicago

•NSF-funded project

•ATM-based STAR TAP

•STAR LIGHT: GigE/10GE switch-based

Pacific Wave

•Seattle

•Gigabit Ethernet-based

•Pacific Northwest Gigapop

MAN LAN

•New York City

•Internet2 project

•Sited at NYSERNET colo space

•GigE/10GE-switch based

LALALAN

•Los Angeles

•Under development by CENIC

AmPATH

•Miami

•Includes Global Crossing links to South America

U.S.-based International interconnection points

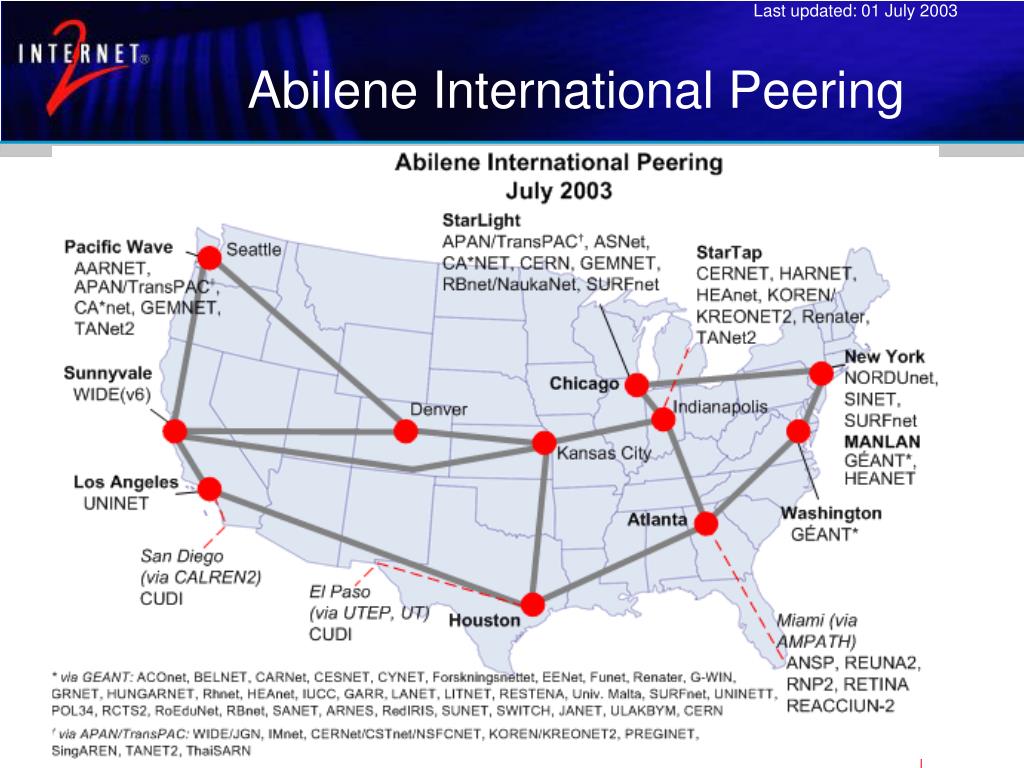

Abilene international peering

Last updated: 01 July 2003

Abilene International Peering


Points of contact
Points of Contact



Europe to us connectivity june 2003
Europe to US connectivity June 2003

* EUROPE via GEANT: Austria, Belgium, Croatia, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Russia, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom, Turkey, CERN


Europe highlights
Europe - highlights

  • TERENA (Trans European Research and Education Network Association)

    • Membership association of National Research and Education Networks (NRNs)

    • No network, but technology and applications working groups

  • Individual countries: NRENs

    • Generally connect higher ed and research centers

    • Connect to GEANT backbone network

  • “Lambda” connectivity between NRENs emerging

  • European-wide technology, grid and science projects using high performance networks

    • DataGrid; European vLBI network (EVN); 6NET

  • Compendium of European NRENs (2002) www.terena.nl/compendium


Geant http www dante net geant
GEANThttp://www.dante.net/geant/

  • 31 countries connecting

  • Operated by DANTE

  • 10 Gbps core backbone

    • Connectors at 2.5Gbps and below

  • 3x2.5 Gbps across Atlantic


Europe international connectivity
Europe – International connectivity

Report on present status of international connectivity in Europe and to other continentsFrom SERENATE – Study into European Research and Education Networking As Targeted by eEurope, http://www.serenate.org/publications/d6-serenate.pdf


Asia to us connectivity june 2003
Asia to US connectivityJune 2003

* APAN/TransPAC: WIDE-JGN, IMNet, CERNET/CSTNET/NSFCNET, PREGINET, ThaiSARN, SingAREN, TANet2, KOREN/KREONET2


Asia pacific highlights
Asia-Pacific - highlights

  • APAN: Asia-Pacific Advanced Network

    • Partner in TransPAC link

    • Several national networks moving to 10Gbps

    • APAN network made up of country-owned p2p links contributed to APAN

    • Trans Eurasia and Trans Pacific connectivity increasing

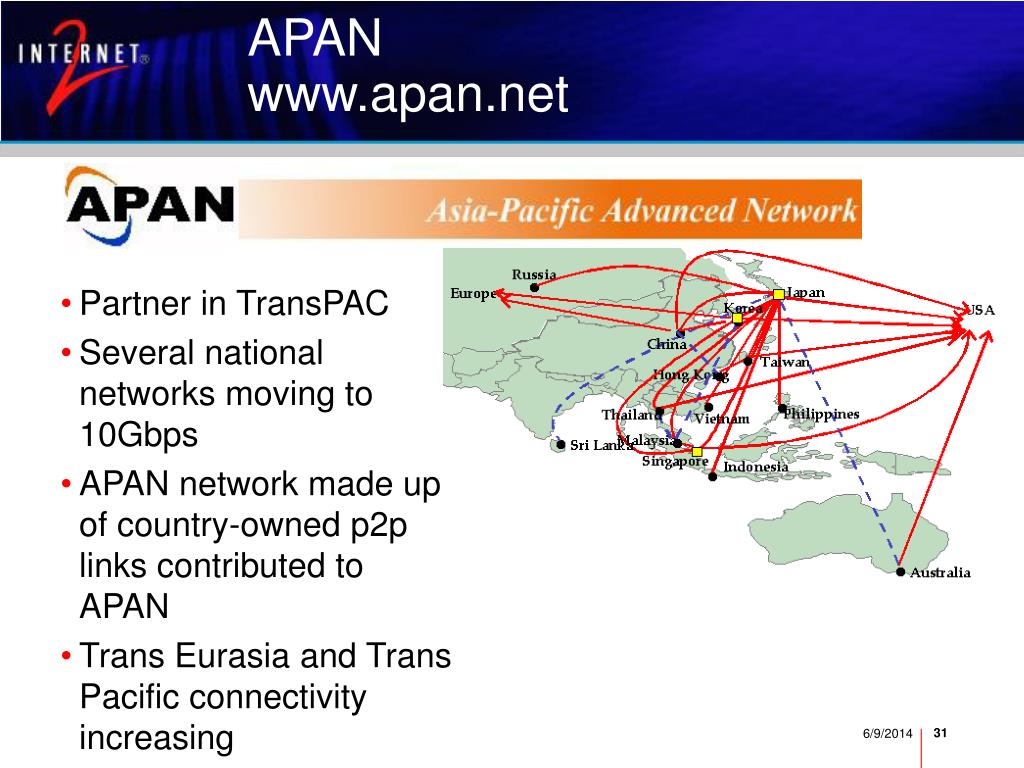

Apan interconnections current and upcoming

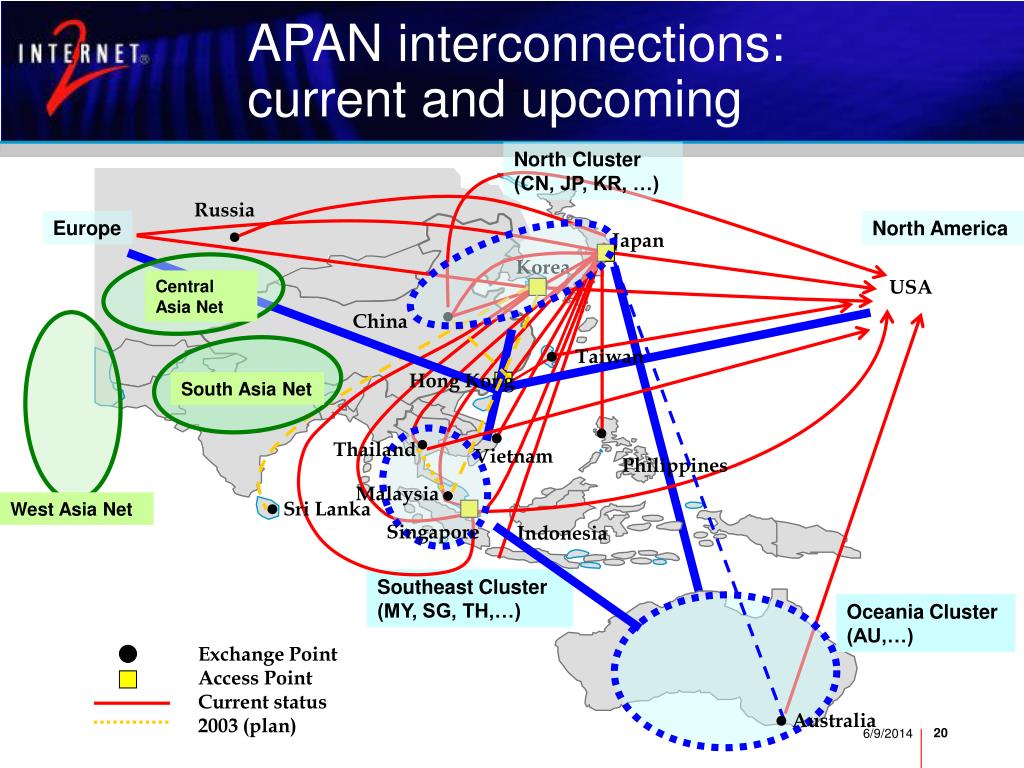

APAN interconnections: current and upcoming

North Cluster

(CN, JP, KR, …)

Russia

Europe

North America

Japan

Korea

USA

Central Asia Net

China

  • Taiwan

Hong Kong

South Asia Net

Thailand

Vietnam

Philippines

Malaysia

  • Sri Lanka

West Asia Net

Singapore

Indonesia

Southeast Cluster

(MY, SG, TH,…)

Oceania Cluster

(AU,…)

Exchange Point

Access Point

Current status

2003 (plan)

  • Australia


Transpac http www transpac org
TransPAChttp://www.transpac.org

  • Connections APAN to US

    • OC-12 POS Seattle (Pacific Wave) to Tokyo

    • OC-12 ATM Chicago (StarLight) to Tokyo

    • Together 1.244 Gbps Tokyo to the US

    • Funded by NSF and Japanese government


Africa highlights

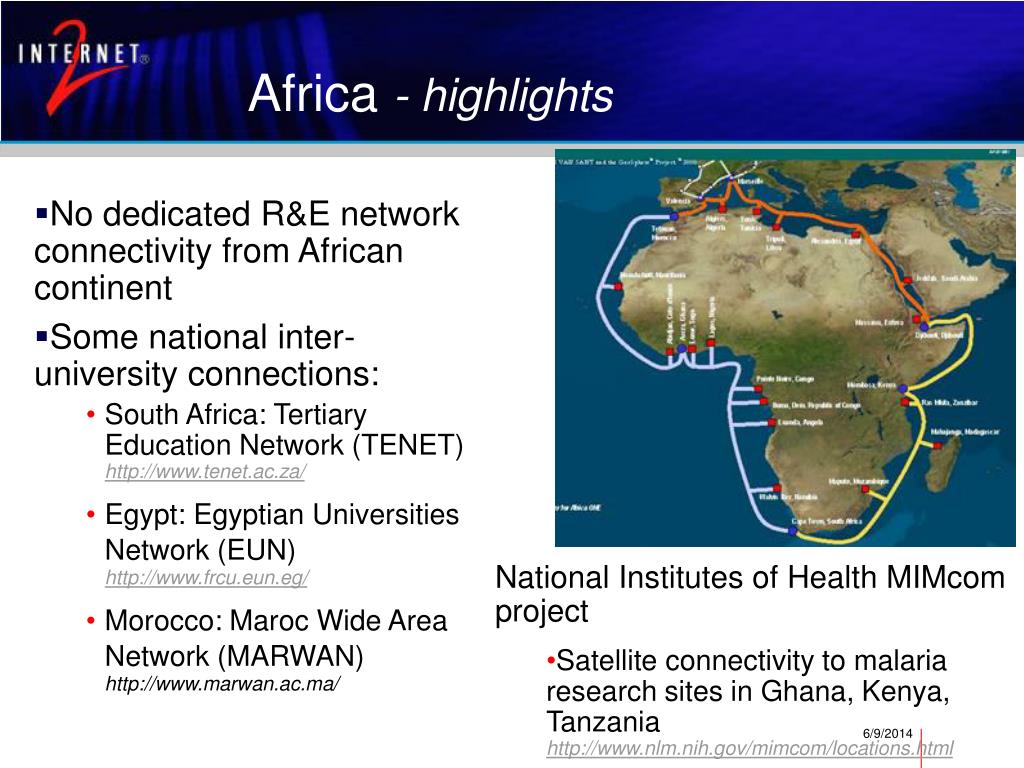

Africa - highlights

  • No dedicated R&E network connectivity from African continent

  • Some national inter-university connections:

    • South Africa: Tertiary Education Network (TENET)http://www.tenet.ac.za/

    • Egypt: Egyptian Universities Network (EUN)http://www.frcu.eun.eg/

    • Morocco: Maroc Wide Area Network (MARWAN)http://www.marwan.ac.ma/

  • National Institutes of Health MIMcom project

    • Satellite connectivity to malaria research sites in Ghana, Kenya, Tanzaniahttp://www.nlm.nih.gov/mimcom/locations.html


Africa highlights 2

SAT3/WASC/SAFE cable system

36 nations, landings on African states

4 fibers (27,850 kms)

Telkom, May 2002

Africa-Asia connections?

www.safe-sat3.co.za

EUMEDconnect

EUMEDIS (Mediterranean Information Society)

To GEANT (includes some countries in northern Africa)

Africa – highlights [2]



Partners in the americas
Partners in the Americas

  • Discussions in progress:

  • Peru

  • Colombia

  • Uruguay

  • Guatemala

  • Cuba


Americas highlights

Canada:

CANARIE: 1st Internet2 MoU partner

CA*Net: 18,000 km OC192 wavelength network

Customer controlled wavelengths

Mexico, Brazil, Chile, Argentina and Venezuela all peering with Internet2 networks

AMPATH: Florida International University (Global Crossing)

currently AR, BR (2), CL -> 45 Mbps

point to point from Miami

Initial boost for Advanced Networking in LA

Stimulus for advanced connectivity inside each country

Americas - highlights


Latin america highlights
Latin America - highlights

  • During last 3 years, several firms have been building optical fiber rings in LA&C

  • Significant projects underway

  • Opening exciting and new possibilities for cooperation in advanced technological and scientific applications

PanamericanGlobal Crossing & EmergiaImpSatTransandinoUniSurGlobal Crossing


Clara cooperacion latino americana de redes avanzadas
CLARA: Cooperacion Latino Americana de Redes Avanzadas

  • Association of NRENs in LA open to all LA Countries

  • Background:

    • @LIS: Alliance for the Information Society (2003-2005)

    • CAESAR: promote EU-LA connectivity

  • Project ALICE - América Latina Interconecta Con Europa

    • September/October 2003: Phase I connection to Europe at 155 Mpbs)

  • Major connectivity between AR, BR, CL, MX (<= 45 Mbps); other countries connect to major nodes (between 10 and 45 Mbps)


International partners
International Partners

  • The following slides contain more information on some of our Internet2 International Partners around the globe.

  • We start with Asia, follow with Europe and then with the Americas.



Apan www apan net
APANwww.apan.net

  • Partner in TransPAC

  • Several national networks moving to 10Gbps

  • APAN network made up of country-owned p2p links contributed to APAN

  • Trans Eurasia and Trans Pacific connectivity increasing


Aarnet www aarnet edu au
AARNETwww.aarnet.edu.au/

  • 2 x 155Mbps at PacWave

  • Supports academic and research community in Australia

  • GRANGEnet

Source: George McLaughlin, AARNET


Cernet www edu cn
CERNETwww.edu.cn/

  • 10Mbps to Japan (APAN)

  • Within China:

    • 16x2.5G DWDM system (two lambda’s are currently running)

    • OC48 POS links to 8 cities

    • OC3 POS SDH links to all provincial capitals (except Lhasa)

    • unicast and multicast

Source: Xing Li, CERNET


Koren kreonet2 www koren21 net www kreonet2 net
KOREN/KREONET2www.koren21.net www.kreonet2.net

  • Sharing 45mbps link across Pacific to STAR TAP

    • KREONET2 is led by KISTI and funded by Ministry of Sci & Tech

    • KOREN is funded by Ministry of Info and Comm and operated by Korea Telecom


Sinet www nii ac jp network e html

SuperSINET Sites

Jan. 2002

Oct. 2002

Oct. 2003

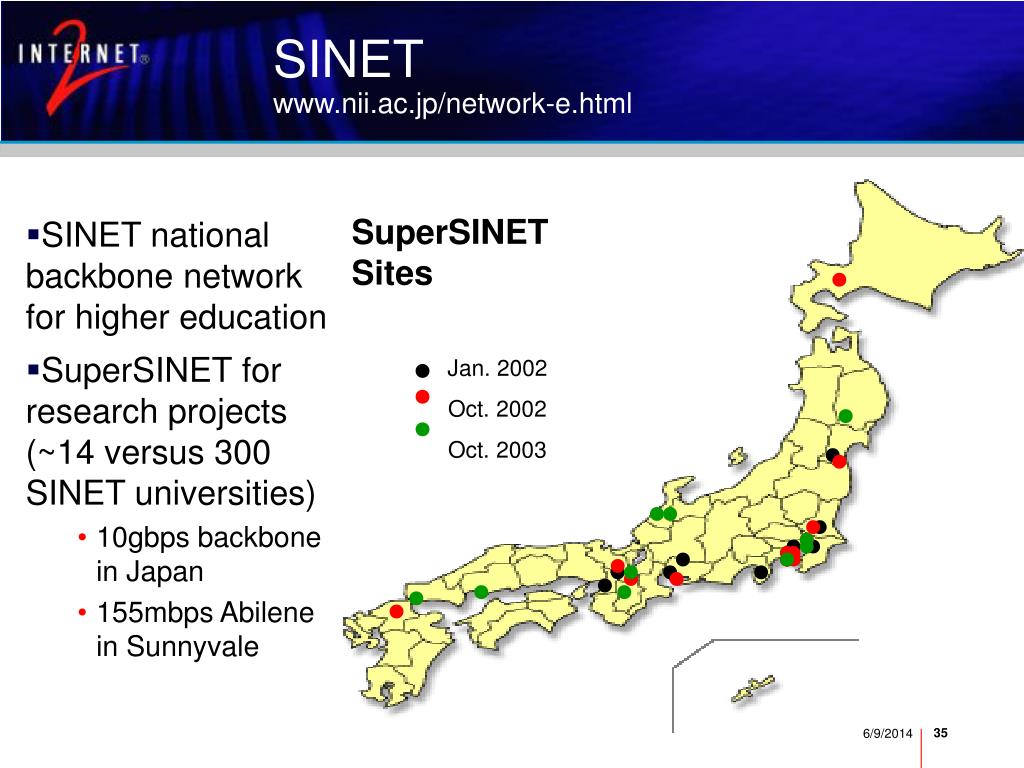

SINETwww.nii.ac.jp/network-e.html

  • SINET national backbone network for higher education

  • SuperSINET for research projects (~14 versus 300 SINET universities)

    • 10gbps backbone in Japan

    • 155mbps Abilene in Sunnyvale


Wide ipv6 connection www wide ad jp
WIDE IPv6 Connectionwww.wide.ad.jp/

  • First international, native IPv6 connection

    • 45mbps Tokyo to Sunnyvale

    • Connects to Abilene IPv6 router in Sunnyvale

    • DV over IP applications development

      • Fujitsu at University of Maryland


Gemnet

Radio Frequency Signals from Space

KSP Kashima Station

Usuda Deep Space Center (ISAS)

Kashima Space Research Center (CRL)

Nobeyama Radio Observatory (NAO)

2.4Gb/s ATM Network

NTT Musashino R&D Center

KSP Tateyama Station (CRL)

KSP Miura Station (CRL)

KSP Koganei Station

National Astronomical Observatory

Communications Research Laboratory

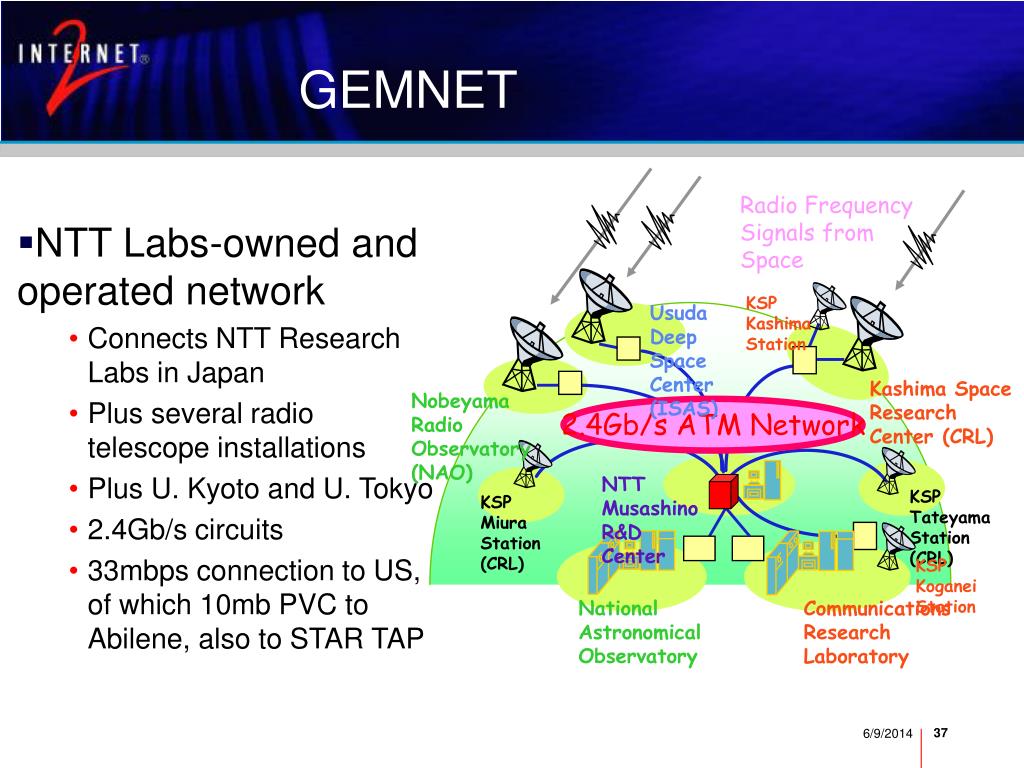

GEMNET

  • NTT Labs-owned and operated network

    • Connects NTT Research Labs in Japan

    • Plus several radio telescope installations

    • Plus U. Kyoto and U. Tokyo

    • 2.4Gb/s circuits

    • 33mbps connection to US, of which 10mb PVC to Abilene, also to STAR TAP


Singaren www singaren net sg

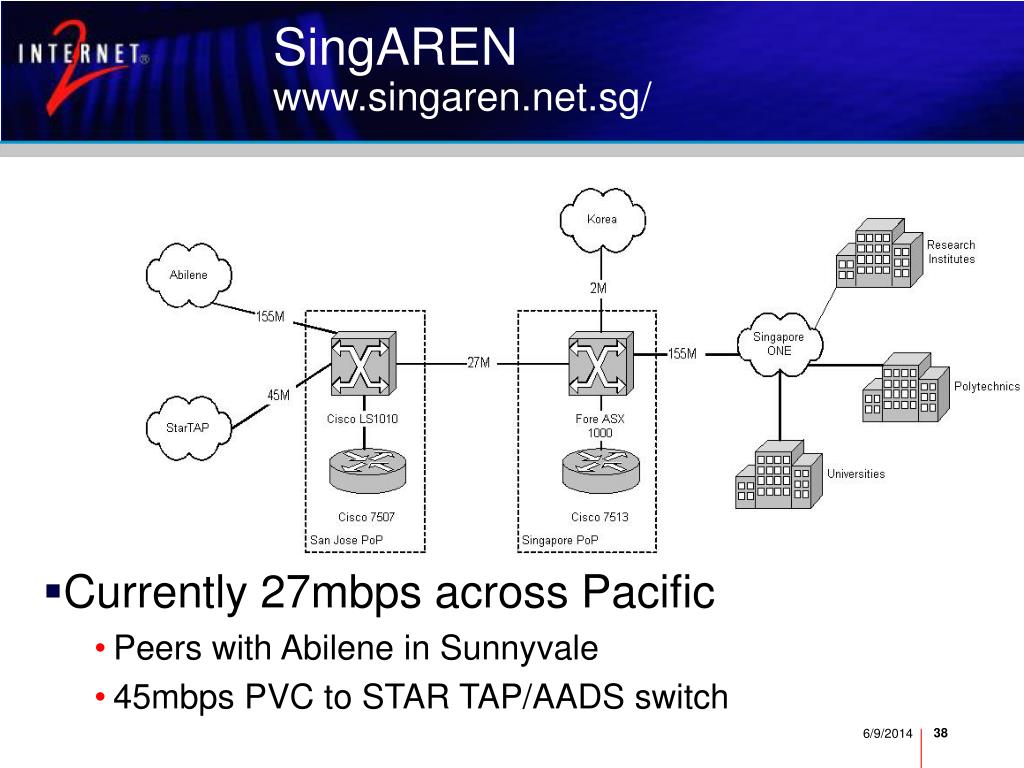

SingARENwww.singaren.net.sg/

  • Currently 27mbps across Pacific

    • Peers with Abilene in Sunnyvale

    • 45mbps PVC to STAR TAP/AADS switch


Tanet2 www tanet2 net tw
TANET2www.tanet2.net.tw/

  • Recently upgraded to 90Mbps connection to Pacific Wave, Seattle

    • Connects select few, high-end research institutions in Taiwan

    • Peers with several nets at Pacific Wave


Uninnet www uni net th index e html
UNINNETwww.uni.net.th/index_e.html

  • Funded by Ministry of University Affairs in Thailand

    • Connects most universities in Thailand

    • Via 155mbps links

    • Currently has 10mbps PVC to Los Angeles

    • Peers with Abilene in L.A.

    • Other major net in Thailand is run by NECTEC (Ministry of Science & Tech funding)



Janet www ja net
JANETwww.ja.net

  • 2.5gbps backbone in UK

  • Connects MANs – connecting universities

    • Supporting UK gov’t funded e-Science projects

  • Utilizing GEANT connection to peer with Abilene currently


Surfnet www surfnet nl
SURFnetwww.surfnet.nl/

  • 2x622mbps to StarLight (production)

  • Lambda for research (2.5gbps)

  • StarLight counterpart in Amsterdam

Source: Erik-Jan Bos


Cern www cern ch

KPNQWEST

T3 (21 Mb)

CERN - North America, today

STARTAP

T3 ATM

CERN PoP Chicago

STM-1 ATM

STM-1 POS

STM-1 ATM

TEN-155 ATM

ESNET

CERN

CIXP

CERNwww.cern.ch

  • Currently behind GEANT

  • Sept 2002: DataTag OC48 (2.4gbps) to StarLight

Source: Paolo Moroni, CERN


Heanet www heanet ie

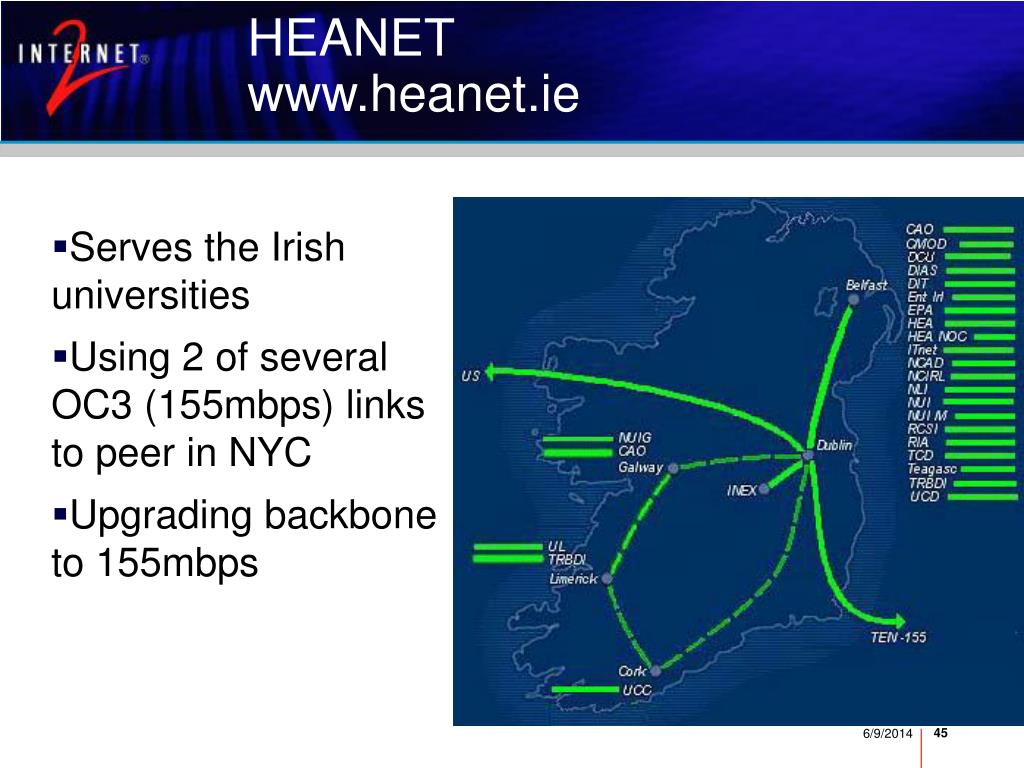

HEANETwww.heanet.ie

  • Serves the Irish universities

  • Using 2 of several OC3 (155mbps) links to peer in NYC

  • Upgrading backbone to 155mbps

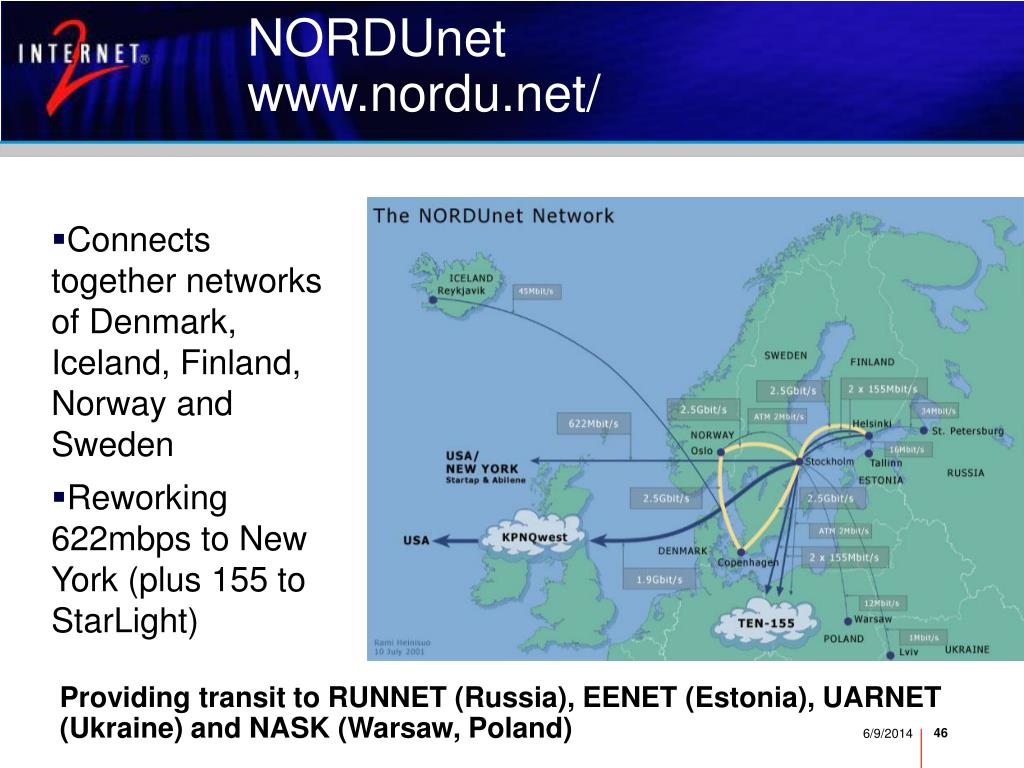

Nordunet www nordu net
NORDUnetwww.nordu.net/

  • Connects together networks of Denmark, Iceland, Finland, Norway and Sweden

  • Reworking 622mbps to New York (plus 155 to StarLight)

Providing transit to RUNNET (Russia), EENET (Estonia), UARNET (Ukraine) and NASK (Warsaw, Poland)



Canada -- CA*netwww.canarie.ca

CA*net 4

  • 1st Mou Partner

Edmonton

Saskatoon

Winnipeg

Vancouver

Calgary

Regina

Halifax

Thunder Bay

Kamloops

St. John's

Victoria

Quebec City

Charlottetown

Sudbury

Seattle

Montreal

Ottawa

Fredericton

Halifax

Minneapolis

Toronto

Kingston

CA*net 4 Node

Buffalo

London

Boston

Possible Future Breakout

Hamilton

Albany

Windsor

Possible Future link or Option

Chicago

New York

  • Wavelength-based

  • regional networks

CA*net 4 OC192

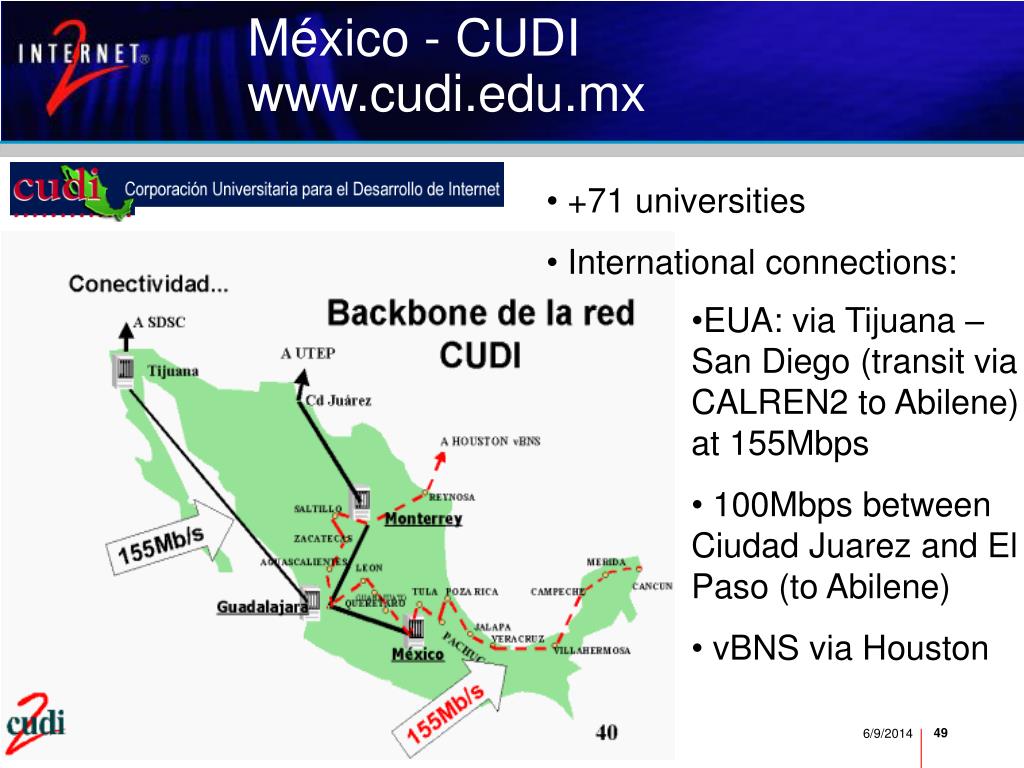

M xico cudi www cudi edu mx
México - CUDI www.cudi.edu.mx

  • +71 universities

  • International connections:

  • EUA: via Tijuana – San Diego (transit via CALREN2 to Abilene) at 155Mbps

  • 100Mbps between Ciudad Juarez and El Paso (to Abilene)

  • vBNS via Houston


Costa rica cr2net www crnet cr

CRNET: National Research Network

Designed project of Ministry of S&T (MICIT) and ICE to provide broadband connectivity

DWDM ring (metro) & xDSL access

IP core – Gigarouters

Aggregate BW to 30 Gbps, 5,200 km of fiber

CR2Net:

initially 7 universities

currently exploring international connection options to Internet2 via Los Arcos Cable and/or involvement via CLARA

Costa Rica – CR2Netwww.crnet.cr

CRNet


Panam senacyt redcyt www senacyt org pa

Universities and research centers connected to Internet (own connections via ISPs)

INTERED:

6 universities, 3 research institutes, 1 hospital, 1 library and 1 government ministry

ATM over SONET

In process of formation: RedCYT: Red Científica y Tecnológica de Centros de Investigación y Universidades

Exploring Internet2 connectivity via AMPATH

Panamá – SENACYT/RedCYTwww.senacyt.org.pa


Venezuela cnti www reacciun ve

CNTI: Centro Nacional de Tecnolog connections via ISPs)ías de Información

Part of the Science and Tecnology Ministry

REACCIUN – already connects many universities and research centers

REACCIUN2: connect 7 universities and research centers initially and establish connection to Internet2 via AMPATH

Asia

Europa

USA

REN´s

Topology

INTERNET

COMERCIAL

CNTI

University

15 Mbps

16 Mbps

National Center of

Information Technology

University

20 Mbps

DS3

www.cnti.gov.ve

G. Crossing

Miami

DS3

FIU

AMPATH

45 Mbps

University

G. Crossing

Caracas

OC3

Research Centre

Research Centre

Venezuela - CNTI www.reacciun.ve


Ecuador cedia www internet2 edu ec

CEDIA: Consorcio Ecuatoriano para el Desarrollo de Internet connections via ISPs)

September 2002: launch ceremony

Anticipate +8 universities, research centers and government

Exploring options for international connectivity

Ecuador - CEDIA www.internet2.edu.ec

Backbone Node

155 MBPS

Aggregation Point

32 MBPS

16 MBPS

Participant Institution

International Network


Chile reuna www reuna cl

Red Universitaria Nacional – REUNA connections via ISPs)

10 POP’s from Arica to Valdivia

155 Mbps ATM/SDH Network

over 30 universities

Internet - Internet2 services

45 Mpbs to AMPATH

G-REUNA:

backbone proyect

Gigabit and application test-bed

140 kim dark fiber, Santiago to Valaparaiso

Iquique

Antofagasta

Copiapó

La Serena

Valparaíso

Santiago

Talca

Concepción

Temuco

Valdivia

Chile - REUNA www.reuna.cl

Geographical Distribution of REUNA2 POP’s


Argentina retina www retina ar
Argentina - RETINA connections via ISPs)www.retina.ar

  • Red Teleinformática Académica

  • Red RETINA:

  • ~25 institutions

  • International connection: 45 Mbps to AMPATH

  • Abundance of fiber in main cities but challenge is expanding reachability into rest of country, plus other issues


Brazil rnp www rnp br

Rede Nacional de connections via ISPs)Ensino e Pesquisa - RNP

~27 states; +300 institutions & research ctrs

Backbone: 155-310 Mbps

International connections: 400 Mbps (incl. 90 Mbps a AMPATH – ANSP Sao Paulo)

ReMAVs:metropolitan advanced networks

GIGA Project – Optical networking proyect and application test-bed

Brazil - RNPwww.rnp.br


Brazil sao paulo http www ansp br

Funded by FAPESP connections via ISPs)

Sao Paulo’s university networks and research centers

Connect at 45 Mbps to AMPATH

RNP PoP in Sao Paulo peers with ANSP

Brazil – Sao Paulohttp://www.ansp.br

Sao Paulo

Source: http://www.ansp.br


ad
