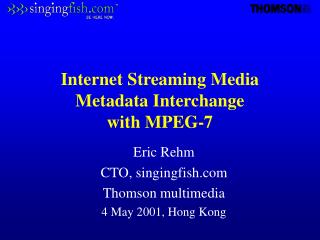

Internet Streaming Media Metadata Interchange with MPEG-7

Eric Rehm

CTO, singingfish.com

Thomson multimedia

4 May 2001, Hong Kong


Overview l.jpg
Overview

  • Brief look at Singingfish

  • Indexing Internet streaming media

  • Automating metadata delivery and processing

  • Case Study: Using XSL to transform MSNBC schema to MPEG-7


Singingfish com l.jpg
singingfish.com

  • Wholly-owned subsidiary of Thomson Multimedia

  • B2B Streaming Media Search Service

  • Pay per query business model

  • Over 15 M streams indexed

  • Live with customers since Jan 2000

    • InfoSpace: Metacrawler, Dogpile

    • Inside Internet AG: Swiss-Search, Austria-Search

  • Involved with MPEG-7 standards development since Sept 1999



Indexing streaming media l.jpg
Indexing Streaming Media

  • High quality metadata improves relevancy of multimedia search results

  • Crawl….or…work directly with multimedia “Content Producers” to acquire quality metadata

  • Solution: Implement FTP push/pull of metadata

    • Automated processing upon FTP close

    • Support bulk or incremental operations: add, update, delete, reset

    • Future: SOAP or other W3C XML protocol


Design l.jpg
Design

Content Producer Program Metadata Engine


Development goals l.jpg
Development Goals

  • Single metadata schema interface to a database

    • Control development costs

    • Partition engineering and content development

  • Adapt to any “content partner” metadata

    • XML, CSV, Excel, Virage VDF, ….

    • Transform “content partner” metadata to MPEG-7 via:

      • Custom applications (CSV, Excel)  MPEG-7

      • Proprietary XML schemas  XSL  MPEG-7


Case study l.jpg
Case Study

Create XSL transformation

  • From:

    • MSNBC "Partner XML Format"

  • To:

    • MPEG-7 Description


Experimental results l.jpg

File

lines

chars

elemnts

attrs

MSNBC Partner XML Example

73

1199

58

16

MPEG-7 Result

263

4471

151

74

Experimental Results

  • XSL Stylesheet: 370 lines of lightly commented code


Discussion l.jpg
Discussion

  • Basic MPEG-7 Tools

  • Semantic Encoding of MSNBC Keywords into MPEG-7 Structured Annotation DS (Who, What, Where, When, Why, How)

  • Encoding Controlled Terms using namespaces

  • Encoding Streaming Media Validity with the Availability DS

  • Extending an MPEG-7 DS


Msnbc video distribution entry l.jpg

tdy_fletcher_mideast_001023Keywords: Israel, palestinian, Yasser ArafatTop News Order: 12Peace hopes slip fartherThe slim hopes for peace in the Mideast are rapidly fading, NBC’s Martin Fletcher reports Monday from the outskirts of Jerusalem.

  • Today’s show

    • Barak, Sharon talk coalition

    • What’s on Today

    • What’s on Weekend Today

    • What’s on Today

MSNBC Video Distribution Entry


Msnbc article l.jpg
MSNBC <article>

<article storyorder="12" pubdate="10/23/2000 8:02:00 AM" source="Today show" topnews="12">

<filename>tdy_fletcher_mideast_001023</filename>

<duration>00:01:09</duration>

<headline>Peace hopes slip farther</headline>

<description>The slim hopes for peace in the Mideast are rapidly fading, NBC&amp;#146;s Martin Fletcher reports Monday from the outskirts of Jerusalem.</description>

<keywords>Israel, palestinian, Yasser Arafat</keywords>

...</article>


Mpeg 7 link to stream l.jpg
MPEG-7 link to stream

<MediaInformation>

<MediaProfile>

<MediaInstance>

<MediaLocator>

<MediaUri>

http://www.msnbc.com/news/asx/video/28/tdy_fletcher_mideast_001023.asx

</MediaUri>

</MediaLocator>

</MediaInstance>

<MediaProfile>

<MediaInformation>


Headline l.jpg
<headline>

<headline>Peace hopes slip farther</headline>

<CreationInformation>

<Creation>

<Title>

<xsl:value-of select="headline"/>

</Title>

</Creation>

</CreationInformation>


Description keywords l.jpg
< description>, <keywords>

<description>The slim hopes for peace in the Mideast ...</description>

<keywords>Israel, palestinian, Yasser Arafat</keywords>

<Abstract>

<FreeTextAnnotation>

<xsl:value-of select="description"/>

</FreeTextAnnotation>

<KeywordAnnotation>

<Keyword>Israel</Keyword>

<Keyword>Yasser Arafat</Keyword

</KeywordAnnotation>

</Abstract>


Enhanced keywords l.jpg
Enhanced <keywords>

<keywords>Israel, palestinian, Yasser Arafat</keywords>

<Abstract>

<Who>

<Name>Yasser Arafat</Name>

</Who>

<WhatObject>

<Name>palestinian</Name>

</WhatObject>

<Where>

<Name>Israel</Name>

</Where>

</Abstract>


Encoding controlled terms l.jpg
Encoding Controlled Terms

  • Singingfish.com Genres are described in one namespace (urn:sf:genre).

  • MSNBC Genres are described in another namespace (urn:msnbc:category)


Encoding controlled terms19 l.jpg

<xsl:variable name=“sfCategory"

select="singingfish:mapper.map(string(category[1][email protected]))">

<Genre href=“urn:sf:{$sfCategory}“ />

Encoding Controlled Terms

<categories>

<category id="News">

<topics>

<topic>International</topic>

</topics>

</category>

</categories>

<Genre href="urn:msnbc:category:{category[1][email protected]}">

<Term type="NT" termId="{category[1]/topics/topic[1]}"/>

</Genre>



Extending an mpeg 7 ds21 l.jpg
Extending an MPEG-7 DS

<complexType name="PublicationType">

<complexContent>

<extension base="mpeg7:DSType">

<sequence>

<element name="Publisher"

type="mpeg7:AgentType" minOccurs="0"/>

<element name="PublicationLocation" type="mpeg7:PlaceType" minOccurs="0"/>

<element name="PublicationDate" type="mpeg7:TimeType" minOccurs="0"/>

<element name="Rights" type="mpeg7:RightsType" minOccurs="0"/>

</sequence>

</extension>

</complexContent>

</complexType>

<complexType name="PublicationType">

<complexContent>

<extension base="mpeg7:DSType">

<sequence>

<element name="Publisher"

type="mpeg7:AgentType" minOccurs="0"/>

<element name="PublicationLocation" type="mpeg7:PlaceType" minOccurs="0"/>

<element name="PublicationDate" type="mpeg7:TimeType" minOccurs="0"/>

<element name="Rights" type="mpeg7:RightsType" minOccurs="0"/>

</sequence>

</extension>

</complexContent>

</complexType>


Extending an mpeg 7 ds22 l.jpg
Extending an MPEG-7 DS

<complexType name="UsageInformationType">

<complexContent>

<extension base="mpeg7:UsageInformationType">

<sequence>

<element name="Publication“ type="sf:PublicationType" minOccurs="0"/>

</sequence>

</extension>

</complexContent>

</complexType>

<complexType name="UsageInformationType">

<complexContent>

<extension base="mpeg7:UsageInformationType">

<sequence>

<element name="Publication“ type="sf:PublicationType" minOccurs="0"/>

</sequence>

</extension>

</complexContent>

</complexType>


Extending an mpeg 7 ds23 l.jpg
Extending an MPEG-7 DS

<UsageInformation xsi:type="sf:UsageInformationType">

...

<Publication>

<Publisher xsi:type="mpeg7:OrganizationType">

<NameTerm href=“urn:sf:publisher:MSNBC”/>

</Publisher>

<PublicationLocation>

<Country>us</Country>

<Region>wa</Region>

</PublicationLocation>

<PublicationDate>

<TimePoint>2000-10-23T14:20:00</TimePoint>

</PublicationDate>

</Publication>

</UsageInformation>


Summary l.jpg
Summary

  • Quality search depends on quality metadata

    • MPEG-7 standards ease development costs

    • Controlled vocabularies

  • MPEG-7 MDS can be used to interoperate

  • XML Schema allows controlled extensions


Thank you l.jpg

Thank you

singingfish.com



Mpeg 7 basics l.jpg
MPEG-7 Basics

  • ISO/IEC 15928 Multimedia Content Description Interface

  • Comprehensive set of audiovisual description tools.

  • Enabled by key Internet standards:

    • W3C: XML, XML Schema

    • IETF standards: URI, URN, URL for resource naming and location

  • Harmonized with other emerging metadata standards:

    • Dublin Core, MPEG-21, NewsML, SMPTE Metadata Dictionary, TV-Anytime, and more.

  • Text and compressed binary encodings

    • Both encodings have streaming add, delete, update features for delivery over real-time transports: MPEG-2, MPEG-4, IP, etc.

  • International Standard in October 2001

    • Ballot period begins 14 March 2001


Basic elements l.jpg

Schema

Datatype &

Link & media

Basic DSs

tools

structures

localization

Basic elements

  • Textual Annotation (free text, structured annotation, syntactic dependency, etc.)

  • Controlled vocabularies,

    • Agent, Place, Graph, etc.

Time, Duration,

Medialocators

Basic elements


Content management description l.jpg

Creation &

production

Media

Content

Usage

Content management

Content description

Structural

Conceptual

aspects

aspects

Datatype &

Link & media

Basic DSs

Schema

structures

localization

tools

Content Management & Description

Title, Creator, Creation

location & date, Purpose,

Classification, Genre, etc.

(Author generated)

Format, Coding, Instances,

Identification, Transcoding Hint, etc.

(Several instances)

Rights holder, Access rights,

Usage Record, Financial aspects, etc. (Evolution)

  • Viewpoint of the structure: Segments

  • Spatial / temporal structure

  • Audio, video low-level Ds

  • Elementary semantic information.


Content management description conceptual aspects l.jpg

Creation &

production

Media

Content

Usage

Content management

Content description

Structural

Conceptual

aspects

aspects

Datatype &

Link & media

Basic DSs

Schema

structures

localization

tools

Content Management & Description (Conceptual aspects)

  • Viewpoint of conceptual notions

  • Events, objects, abstract concepts, and their relation


Navigation and access l.jpg

Navigation &

Creation &

Access

production

Media

Content

Usage

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Datatype &

Link & media

Basic DSs

Schema

structures

localization

tools

Navigation and Access

Efficient support of : discovery,browsing, navigation, visualization / sonification


Navigation and access32 l.jpg

Navigation &

Creation &

Access

production

Media

Content

Usage

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Datatype &

Link & media

Basic DSs

Schema

structures

localization

tools

Navigation and Access

Substitution of the original content

Adaptation to terminal, network, or

user preferences


Content organization l.jpg

Model

Content organization

Navigation &

Creation &

Access

production

Media

Content

Usage

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Datatype &

Link & media

Basic DSs

Schema

structures

localization

tools

Content Organization

Collection &

Classification

Description and organization of

collection of documents

Probability Model

Statistical functions and structures to describe sample of AV content and classes of descriptors.

Analytic model:

Definition of cluster, classes and models

to associate a semantic label to a set of data.


User interaction l.jpg

Analytic

Model

Content organization

Navigation &

Creation &

Access

production

Media

Content

Usage

User

preferences

User

preferences

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Datatype &

Link & media

Basic DSs

Schema

structures

localization

tools

User Interaction

Collection &

Classification

User identification and preferences:

Filtering, search and browsing

User

Interaction

Usage History


Mpeg 7 ddl l.jpg
MPEG-7 DDL

  • XML Schema

  • Data type extensions

    • MIME type, ISO country, region, currency codes

    • ISO Character set codes

    • Revised time data types to support arbitrary fractional seconds denominator for per-frame positioning

      • 2001-05-01T15:23:46N11F30(11th frame @ 30 FPS)

  • Type-centric approach using root abstract types

    • Control available global elements

    • Allow extension via name spaces and <extension> mechanism


Basic derivation of mpeg 7 types l.jpg
Basic Derivation of MPEG-7 Types

<complexType name="Mpeg7RootType" abstract="true">

<complexContent>

<restriction base="anyType"/>

</complexContent>

</complexType>

<complexType name="DSType" abstract="true">

<complexContent>

<extension base="mpeg7:Mpeg7RootType">

<sequence>

<element name="Header" type="mpeg7:HeaderType"

minOccurs="0" maxOccurs="unbounded"/>

</sequence>

<attribute name="id" type="ID" use="optional"/>

</extension>

</complexContent>

</complexType>


Creation description scheme l.jpg
Creation Description Scheme

<complexType name="CreationType">

<complexContent>

<extension base="mpeg7:DSType">

<sequence>

<element name="Title" type="mpeg7:TitleType

maxOccurs="unbounded"/>

<element name="Creator“ type="mpeg7:CreatorType“

minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>

</complexType>


ad
