Presentation Transcript
Hurricanes l.jpg
Hurricanes

  • Hurricanes are large, tropical storm systems that form and develop over the warm waters near the equator.

  • They are responsible for weather that can devastate entire communities:

    • Heavy rain -- Flooding

    • Strong Winds

    • Very Large Waves and Storm Surge

    • Possibly Tornadoes


Hurricanes2 l.jpg

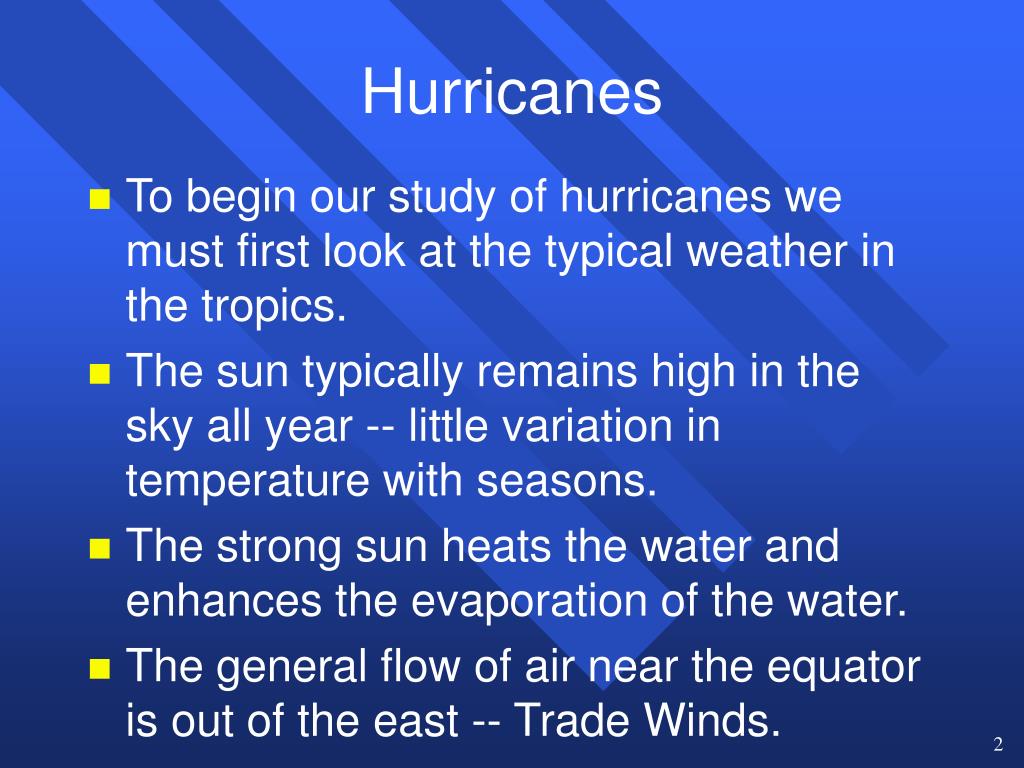

Hurricanes

  • To begin our study of hurricanes we must first look at the typical weather in the tropics.

  • The sun typically remains high in the sky all year -- little variation in temperature with seasons.

  • The strong sun heats the water and enhances the evaporation of the water.

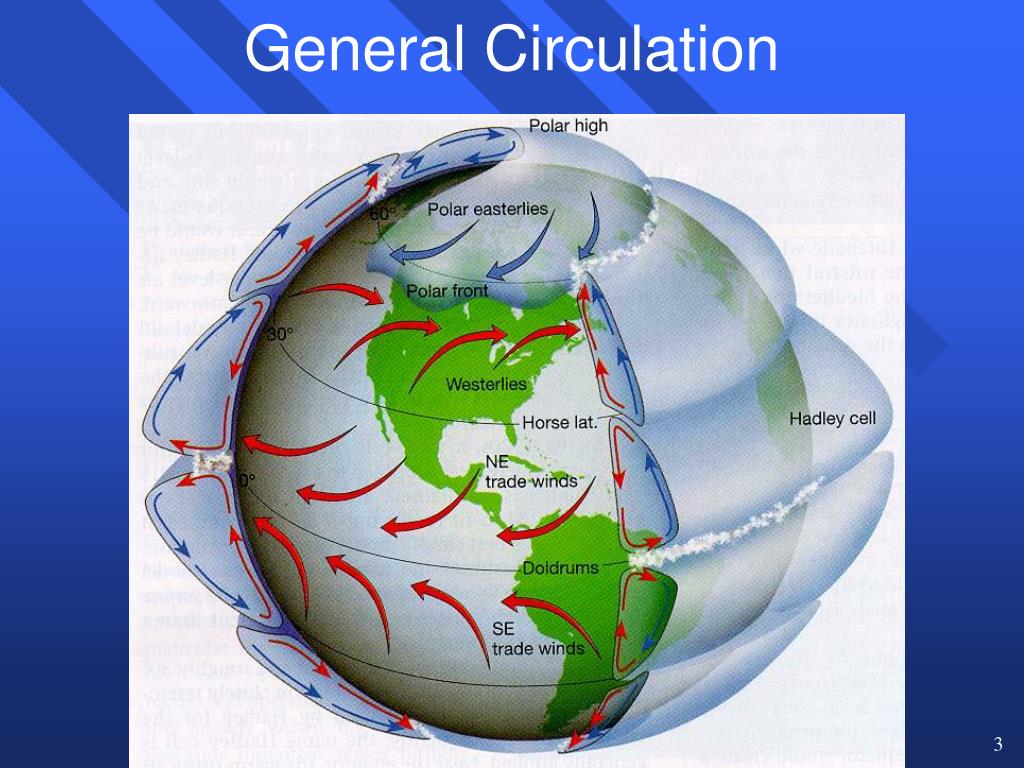

  • The general flow of air near the equator is out of the east -- Trade Winds.



Hurricanes4 l.jpg
Hurricanes

  • The trade winds blow from the northeast in the Northern Hemisphere and from the southeast in the Southern Hemisphere.

  • A region of convergence (Intertropical Convergence Zone -- ITCZ) creates a band of thunderstorms near the equator.



Hurricanes6 l.jpg
Hurricanes

  • Since pressure gradients are small near the equator, we look at the flow of wind to find trough regions.

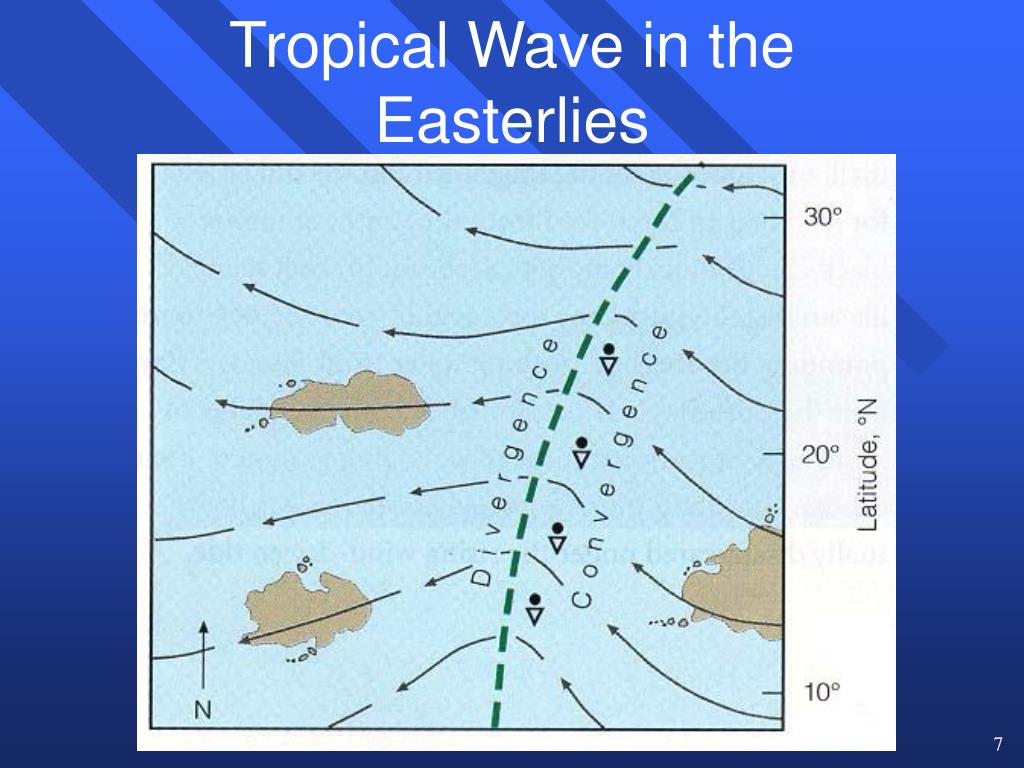

  • A trough or ripple in the easterly flow is known as a “tropical wave.”

  • Surface convergence occurs on the east side of this wave and surface divergence occurs on the west side.

  • Thunderstorms tend to form on the east side of the tropical wave.



Conditions for tropical wave development l.jpg

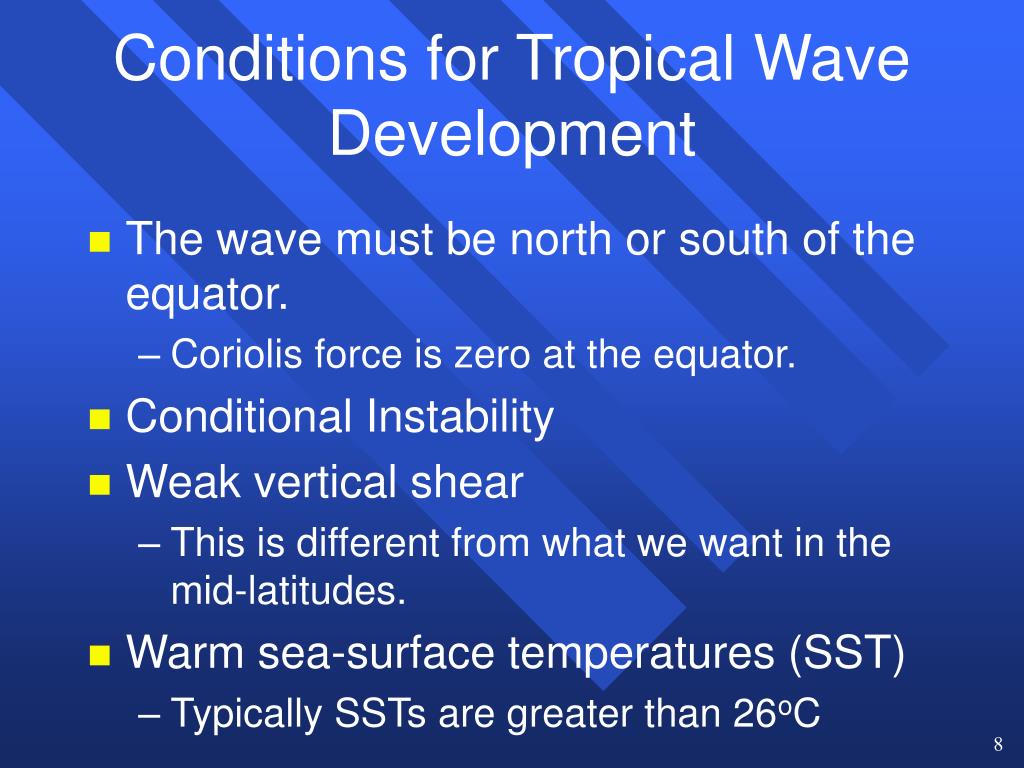

Conditions for Tropical Wave Development

  • The wave must be north or south of the equator.

    • Coriolis force is zero at the equator.

  • Conditional Instability

  • Weak vertical shear

    • This is different from what we want in the mid-latitudes.

  • Warm sea-surface temperatures (SST)

    • Typically SSTs are greater than 26oC


Hurricane development l.jpg
Hurricane Development

  • Convergence at the surface leads to convergence of moisture.

  • The convection or thunderstorms that form release latent heat which intensifies the surface low.

  • The warm core column of air will create an upper level high pressure center.

  • The weak shear allows the storm to remain vertical and allows for the latent heat release to enhance the surface low.


Hurricane development10 l.jpg
Hurricane Development

H

The energy for the growth

of the storm comes from

the ocean (evaporation).

Low shear will keep the

heating in the core to remain

above the surface convergence.

Strong shear would rip the

storm apart.

Heating

L


Hurricane development11 l.jpg
Hurricane Development

H

L

Strong

Heating

As the winds increase, the ocean

surface becomes “rougher” and

friction is added to the balance

of forces.

This friction enhances surface

convergence.

Strong

Convergence

L


Hurricane structure l.jpg
Hurricane Structure

This feedback mechanism continues as long as the favorable conditions for

hurricane growth continue to exist.


Hurricane development13 l.jpg
Hurricane Development

  • This feedback mechanism is called CISK:

    • Conditional Instability of the Second Kind

  • The Eye is the central region of the hurricane.

    • It is often cloud free and has relatively calm winds.

    • The eye is associated with subsidence that, in the strongest storms, keeps the eye cloud-free.



Birthplaces of hurricanes l.jpg
Birthplaces of Hurricanes

Hurricane birthplaces are near the equator but between 5-15 degrees

latitude away from the equator. The paths tend to be easterly as the

hurricanes develop and grow.


Tropical wave development l.jpg

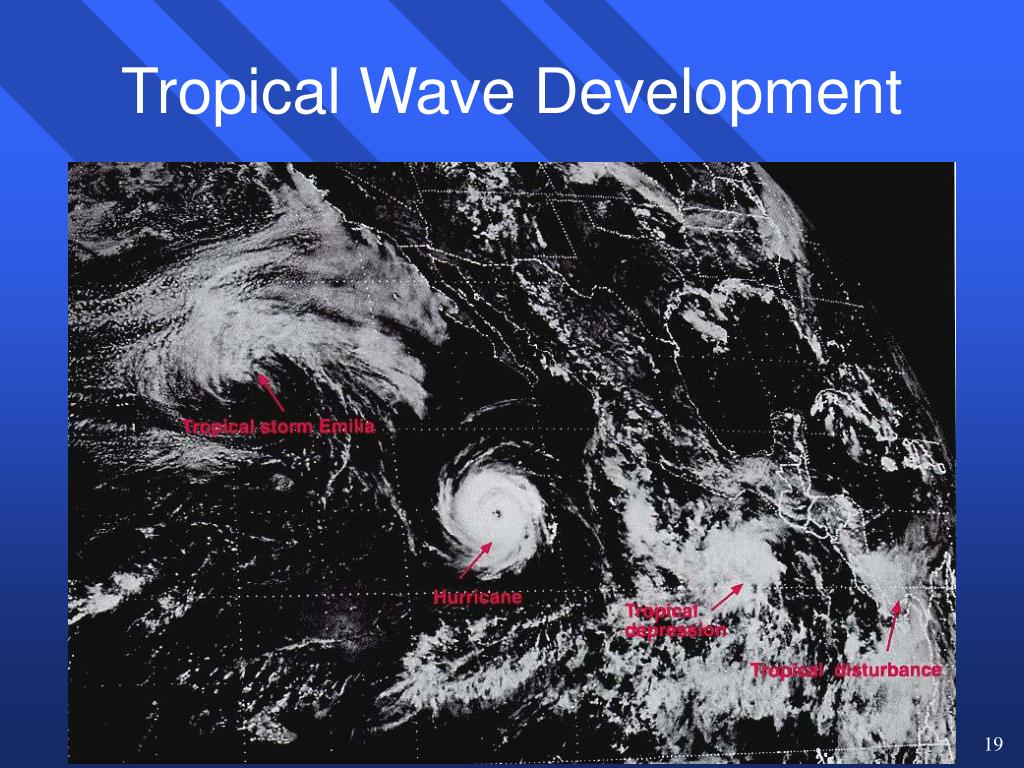

Tropical Wave Development

  • Tropical Disturbance

    • A collection of thunderstorms with a slight circulation.

  • Tropical Depression

    • Closed circulation

    • Wind speeds between 20-34 knots.

  • Tropical Storm

    • Closed circulation

    • Wind speeds between 35-64 knots.

    • The storm is named.


Tropical wave development17 l.jpg
Tropical Wave Development

  • Tropical Disturbance

    • A collection of thunderstorms with a slight circulation.

  • Tropical Depression

    • Closed circulation

    • Wind speeds between 20-34 knots.

  • Tropical Storm

    • Closed circulation

    • Wind speeds between 35-64 knots.

    • The storm is named.


Tropical wave development18 l.jpg
Tropical Wave Development

  • Hurricane

    • Closed circulation

    • Sustained wind speeds in excess of 64 kts (~74 mph).

  • Saffir-Simpson Scale

    • A numerical scale (1-5) that describes the damage potential of a hurricane.

    • A quick and easy description of the strength of a hurricane.



Hurricane hazards l.jpg
Hurricane Hazards

  • Strong Winds

    • Hurricane sustained wind speeds are in excess of 74 mph.

    • Occasionally can get as high as 155 kts.

    • Winds are typically stronger in Pacific storms -- storms have more time grow in the larger Pacific ocean.

    • Wind damage can be significant especially to weakly built houses.

    • Spin-up vortices can cause very strong and damaging wind gusts.



Hurricane winds22 l.jpg
Hurricane Winds

  • Hurricane winds are typically the strongest on the right side of the storm.

  • The forward motion of the storm is added to the wind speeds on the right side of the storm to enhance the surface winds.

Strongest winds

on the right side

of the storm.

Weaker

winds



Hurricane hazards24 l.jpg
Hurricane Hazards

  • Inland Flooding

    • Torrential rains can, especially if the hurricane moves slowly inland, can cause substantial flooding.

      • Camille (1969)

        • Inland in Mississippi

        • Flooding in Virginia

      • Agnes (1972)

        • Inland in Florida

        • $6.3 Billion in damage along the East Coast

        • Flooding in Pennsylvania

      • Alberto (1994)

        • Never a hurricane! (Tropical Storm)

        • Stalled over Georgia -- Americus, GA received 21”


Flooding in richmond va l.jpg
Flooding in Richmond, VA

Hurricane Camille -- 19 August 1969


Flooding in wilkes barre pa l.jpg

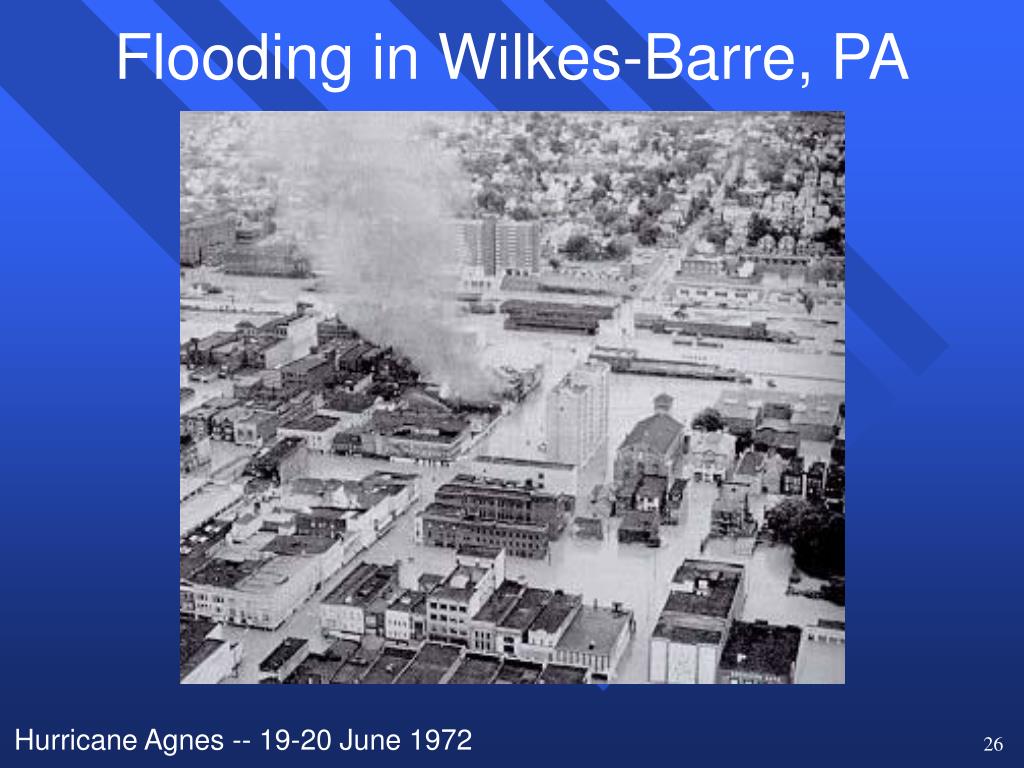

Flooding in Wilkes-Barre, PA

Hurricane Agnes -- 19-20 June 1972


Storm surge l.jpg

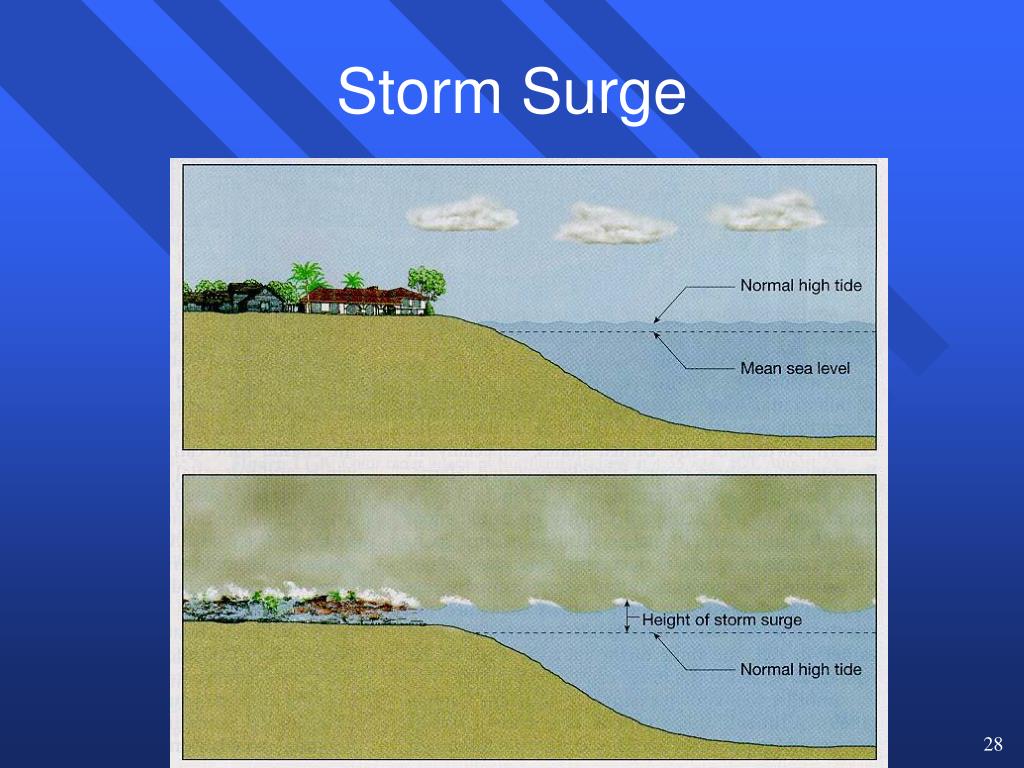

Storm Surge

  • The abnormal rise in the ocean level associated with the hurricane landfall.

  • As the hurricane approaches the coast, it “pushes” a large mass of water in front of it.

  • When this pile of water reaches the coast, the water levels can rise as much as 7 meters (~22 feet).



Storm surge29 l.jpg

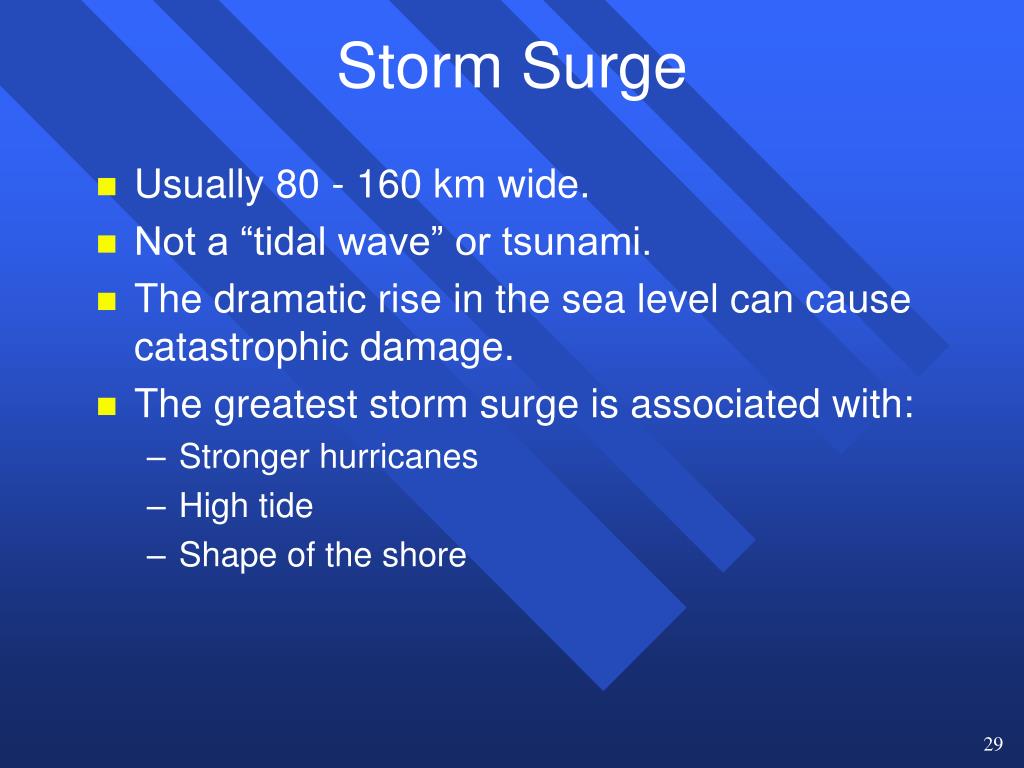

Storm Surge

  • Usually 80 - 160 km wide.

  • Not a “tidal wave” or tsunami.

  • The dramatic rise in the sea level can cause catastrophic damage.

  • The greatest storm surge is associated with:

    • Stronger hurricanes

    • High tide

    • Shape of the shore


Before the hurricane l.jpg
Before the Hurricane

Richelieu Apartments -- Pass Christian, MS

Hurricane Camille -- 17 Aug 1969



Camille storm surge l.jpg
Camille Storm Surge

Pass Christian, MS Storm Surge = 7.4 m

Hurricane Camille -- 17 Aug 1969


Before hugo l.jpg
Before Hugo

Folly Beach, SC -- 22 September 1989


After hugo l.jpg
After Hugo

Folly Beach, SC -- 22 September 1989


Death of a hurricane l.jpg
Death of a Hurricane

  • Moves out of the warm, moist tropical air.

  • Moves over land.

    • Loss of moisture source

    • Increased surface friction

    • Temperature of the land is cooler than the warm ocean

  • Moved under unfavorable large scale flow.

    • High shear can rip a storm apart

    • Large scale subsidence can inhibit convection


Hurricane warnings l.jpg
Hurricane Warnings

  • Hurricane warnings are designed to protect human life and their property.

    • Possible Evacuations

  • Detection techniques

    • Satellites

    • Radar

    • Aircraft Reconnaissance

    • Data Buoys

    • Weather Channel Reporters!


Satellite detection of camille l.jpg
Satellite Detection of Camille

NIMBUS III Satellite -- 21 August 1969


Satellite tracking of allen l.jpg
Satellite Tracking of Allen

Hurricane Allen -- August 1980


Satellite tracking of allen39 l.jpg
Satellite Tracking of Allen

Hurricane Allen -- August 1980


Satellite tracking of allen40 l.jpg
Satellite Tracking of Allen

Hurricane Allen -- August 1980


Radar detection of hurricanes l.jpg

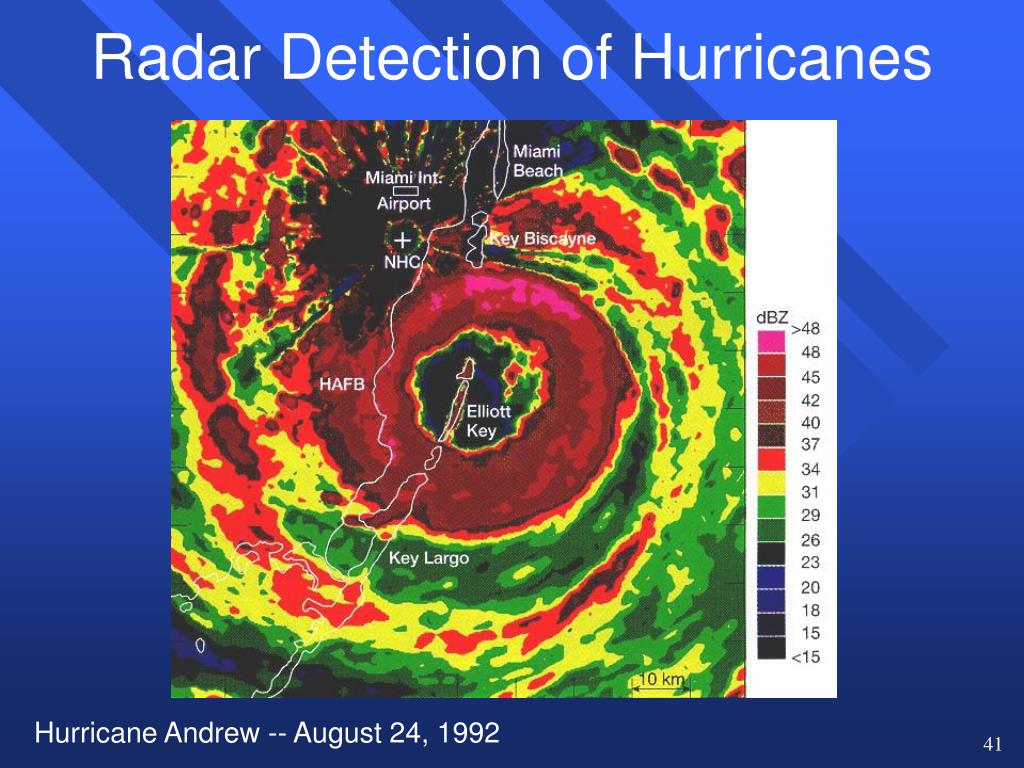

Radar Detection of Hurricanes

Hurricane Andrew -- August 24, 1992


Aircraft detection of hurricanes l.jpg
Aircraft Detection of Hurricanes

Dropsondes

WP-3 Aircraft


Tropical storm warnings l.jpg
Tropical Storm Warnings

  • Tropical Storm Watch

    • Possible tropical storm conditions expected in the next 36 hours.

    • Prepare to take appropriate action.

  • Tropical Storm Warning

    • Tropical storm conditions are expected in the next 24 hours.

    • Take action!


Hurricane warnings44 l.jpg
Hurricane Warnings

  • Hurricane Watch

    • Possible hurricane conditions expected in the next 36 hours.

    • Prepare to take appropriate action.

  • Hurricane Warning

    • Hurricane conditions are expected in the next 24 hours.

    • Get out of Dodge!



Building for disaster l.jpg
Building for Disaster?

  • 45 million people now live along hurricane-prone regions in the U.S.

  • Gulf Coast population:

    • 1960 -- 5.2 Million

    • 1990 -- 10.1 Million

    • Doubled in only 30 years.

  • Florida to Virginia

    • 1960 -- 4.4 Million

    • 1990 -- 9.2 Million


Can we evacuate l.jpg
Can We Evacuate?

  • Hurricane evacuation times currently range from 15 - 30 hours depending on the locale.

  • Current warnings are only valid for 24 hours.

  • Can the transportation infrastructure handle such a mass exodus quickly enough?


Building for disaster48 l.jpg
Building for Disaster?

  • We are constructing more and larger dwellings along our hurricane-prone coastlines.



Better construction l.jpg
Better Construction

  • Improved construction techniques may help alleviate some storm damage.

    • Reinforcing seawalls

    • Creating larger sand dunes and beaches

    • Building housing on “stilts”

    • Better tie-downs between the foundation and the walls and between the walls and the roof.

  • Not much will stop a 7 m storm surge.



Prediction difficulty l.jpg
Prediction Difficulty

  • We still have difficulty predicting the precise landfall of most hurricanes.

  • Some hurricanes can “loop.”

  • What if we evacuate and the hurricane goes elsewhere -- the “Cry Wolf” problem.

  • False alarms are still high and many people become apathetic.

    • We see that here with tornado watches and warnings!


Prediction difficulty53 l.jpg
Prediction Difficulty

Hurricane Elena -- 28 August - 4 September 1985


Possible solutions l.jpg
Possible Solutions

  • Increased Research on Hurricane Prediction

  • Evacuation Studies

  • Emergency procedures in the event evacuation is not feasible

  • Population growth management

  • Hurricane education

  • Improved construction building codes

  • Wetland management

  • Hurricane Modification ????
