  1. Effective Use of Insulin in Diabetes: Update for 2007 Thomas M. Flood, MD Director Georgia Center for Diabetes Atlanta, Georgia

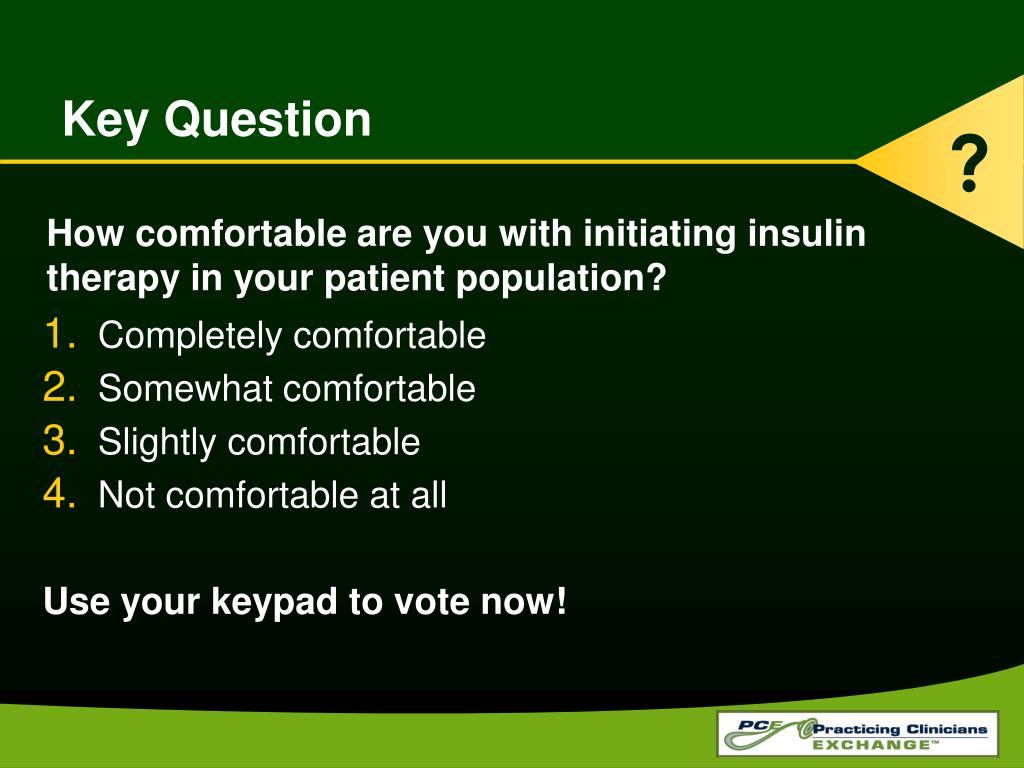

  2. ? Key Question • Completely comfortable • Somewhat comfortable • Slightly comfortable • Not comfortable at all Use your keypad to vote now! How comfortable are you with initiating insulin therapy in your patient population?

  3. Faculty Disclosure • Dr Floodhas no relevant financial relationships with any commercial interests to disclose.

  4. Learning Objectives • State current management goals for diabetes • Identify barriers to optimal use of insulin, and how to overcome them • Discuss the roles of short-, intermediate-, and long-acting insulins in the management of diabetes

  5. A1C Targets Suggested by Different Organizations Optimal target:A1C <6% (normal range) *As close to normal (<6%) without significant hypoglycemia. AACE = American Association of Clinical Endocrinologists; ADA = American Diabetes Association; EASD = European Association for the Study of Diabetes.

  6. ? Key Question What percentage of patients with diabetes achieve the AACE goal of A1C <6.5%? • 25% • 35% • 55% • 75% Use your keypad to vote now!

  7. State of Diabetes in America: Blood Sugar Control Across the United States as Measured by A1C National average = 67% above goal (A1C 6.5%) WA 68.4 ME 27.2 MT 55.2 ND 29.7 MN 59.3 VT = 26.7 NH = 20.4 MA = 29.5 CT = 28.4 RI = 29.5 NJ = 67.3 DE = 66.4 MD = 68.1 VT OR 64.2 NH ID 63.3 NY 71.1 W 24.2I SD 24.6 MA MI 65.4 WY 63.0 CT RI IA 58.9 PA 70.9 NE 56.5 NJ OH 71.7 NV 67.3 IL 72.6 IN 66.4 MD UT 72.4 DE CO 67.1 WV 69.5 CA 34.5 VA 67.7 KS 67.0 KY 66.8 MO 66.2 NC 65.7 TN 65.6 OK 65.6 AR 69.6 AZ 67.3 SC 66.3 NM 68.6 MS 72.8 AL 71.3 GA 69.3 LA 71.3 TX 67.7 FL 63.9 N >157,000 Top 10 Highest AACE. State of Diabetes in America. May 2005. Available at: http://www.aace.com/public/awareness/stateofdiabetes/DiabetesAmericaReport.pdf

  8. Diabetes Demographics in the United States Population Aged ≥20 Years Adapted from: National Center for Health Statistics. Health, United States, 2006. With Chartbook on Trends in the Health of Americans. Hyattsville, Md: 2006.

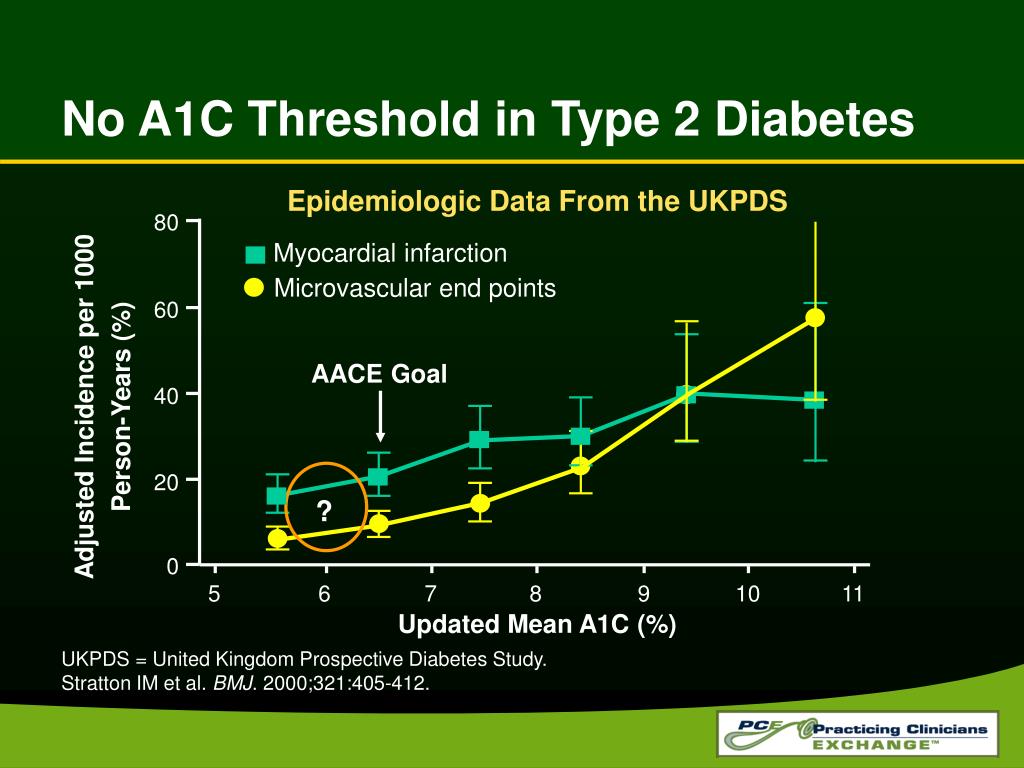

  9. No A1C Threshold in Type 2 Diabetes Epidemiologic Data From the UKPDS 80 Myocardial infarction Microvascular end points 60 AACE Goal Adjusted Incidence per 1000 Person-Years (%) 40 20 ? 0 5 6 7 8 9 10 11 Updated Mean A1C (%) UKPDS = United Kingdom Prospective Diabetes Study. Stratton IM et al. BMJ. 2000;321:405-412.

  10. Risk Factor Control in Adults With Diabetes: NHANES III (1988-1994)/NHANES 1999-2000 NHANES III, n = 1204 NHANES 1999-2000, n = 370 48.2% 50 44.3% P <.001 37.0% 40 35.8% 33.9% 29.0% 30 Patients (%) 20 10 7.3% 5.2% 0 A1C <7% BP <130/80 mm Hg TC <200 mg/dL Good control* *Achieved all 3 indicated goals. BP = blood pressure; NHANES = National Health and Nutrition Examination Survey; TC = total cholesterol. Saydah SH et al. JAMA. 2004;291:335-342.

  11. Stages of Type 2 Diabetes: Criteria for Advancing to Next Stage? A1C not at target: 7.0% 100 Monotherapy 75 Combination oral therapy β-Cell Function (% β) 50 Insulin 25 Type 2 Diabetes Phase I Type 2 Diabetes Phase II Phase III 0 -12 -10 -6 -2 0 2 6 10 14 Years From Diagnosis Based on data of UKPDS 16. UKPDS Group. Diabetes. 1995;44:1249-1258.

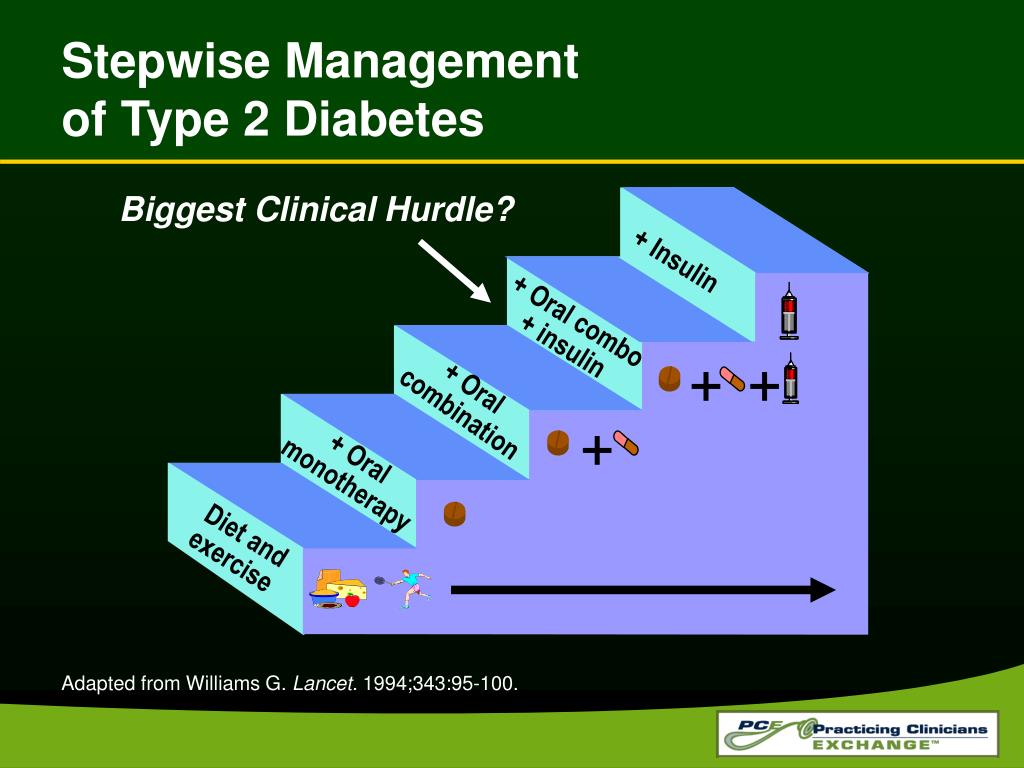

  12. Biggest Clinical Hurdle? +Insulin +Oral combo + insulin + + +Oral combination + +Oral monotherapy Diet and exercise Stepwise Management of Type 2 Diabetes Adapted from Williams G. Lancet. 1994;343:95-100.

  13. ? Key Question What is the approximate amount that A1C can be lowered through use of oral agents? • 1% • 2% • 3% • 4% Use your keypad to vote now!

  14. Nateglinide Sitagliptin Rosiglitazone Pioglitazone Repaglinide Glimepiride Glipizide GITS Metformin Insulin 0 -1.0 -1.5 -2.0 -0.5 Reduction in A1C (%) Oral Antihyperglycemic MonotherapyMaximum Therapeutic Effect on A1C Acarbose Precose [PI]. West Haven, Conn: Bayer; 2003; Aronoff S et al. Diabetes Care. 2000;23:1605-1611; Garber AJ et al. Am J Med. 1997;102:491-497; Goldberg RB et al. Diabetes Care. 1996;19:849-856; Hanefeld M et al.Diabetes Care. 2000;23:202-207; Lebovitz HE et al. J Clin Endocrinol Metab. 2001;86:280-288; Simonson DC et al. Diabetes Care. 1997;20:597-606; Wolfenbuttel BH, van Haeften TW.Drugs. 1995;50:263-288.

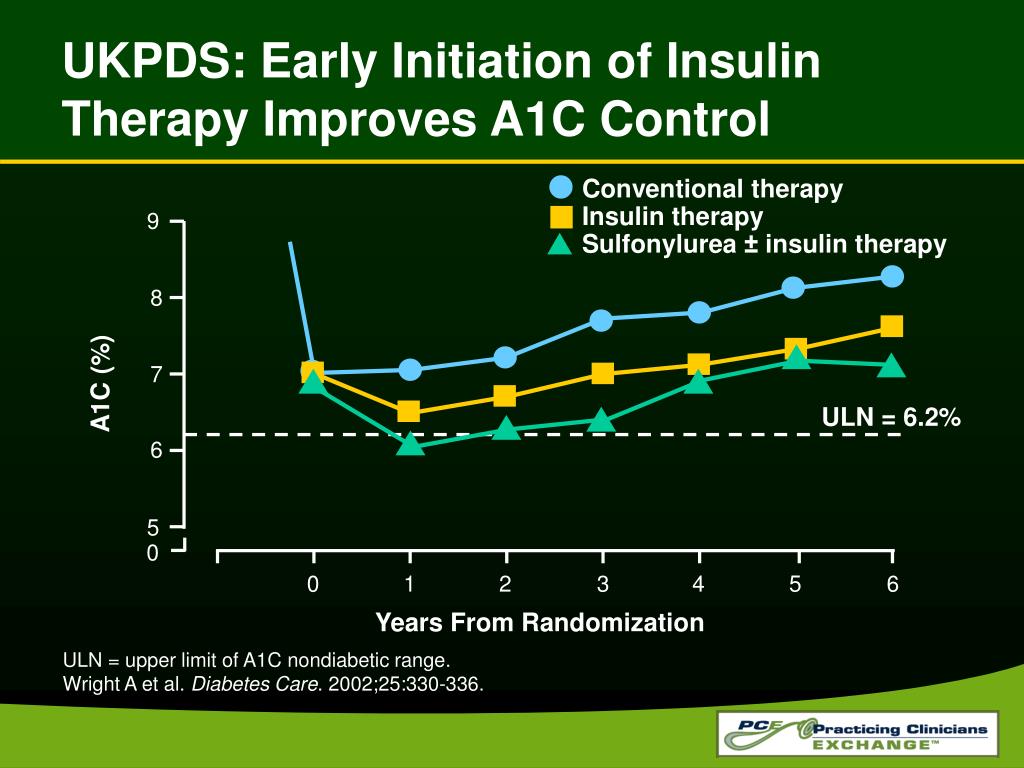

  15. UKPDS: Early Initiation of Insulin Therapy Improves A1C Control Conventional therapy Insulin therapy Sulfonylurea ± insulin therapy 9 8 7 A1C (%) ULN = 6.2% 6 5 0 0 1 2 3 4 5 6 Years From Randomization ULN = upper limit of A1C nondiabetic range. Wright A et al. Diabetes Care. 2002;25:330-336.

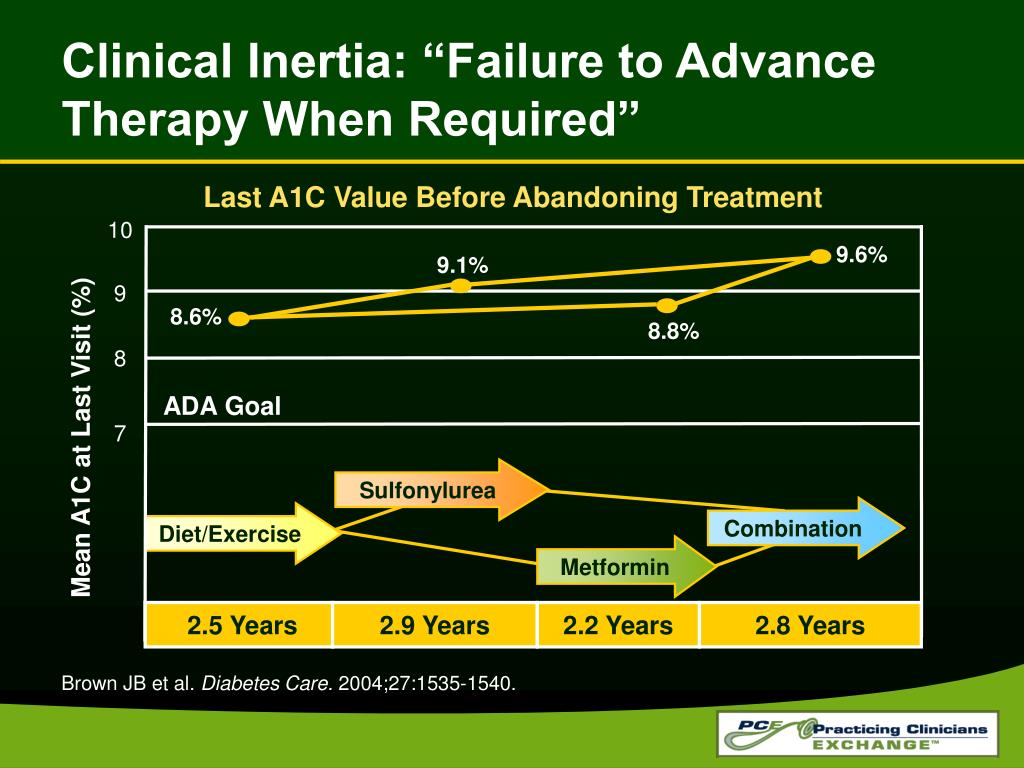

  16. Clinical Inertia: “Failure to Advance Therapy When Required” Last A1C Value Before Abandoning Treatment 10 9.6% 9.1% Mean A1C at Last Visit (%) 9 8.6% 8.8% 8 ADA Goal 7 Sulfonylurea Combination Diet/Exercise Metformin 2.5 Years 2.9 Years 2.2 Years 2.8 Years Brown JB et al. Diabetes Care. 2004;27:1535-1540.

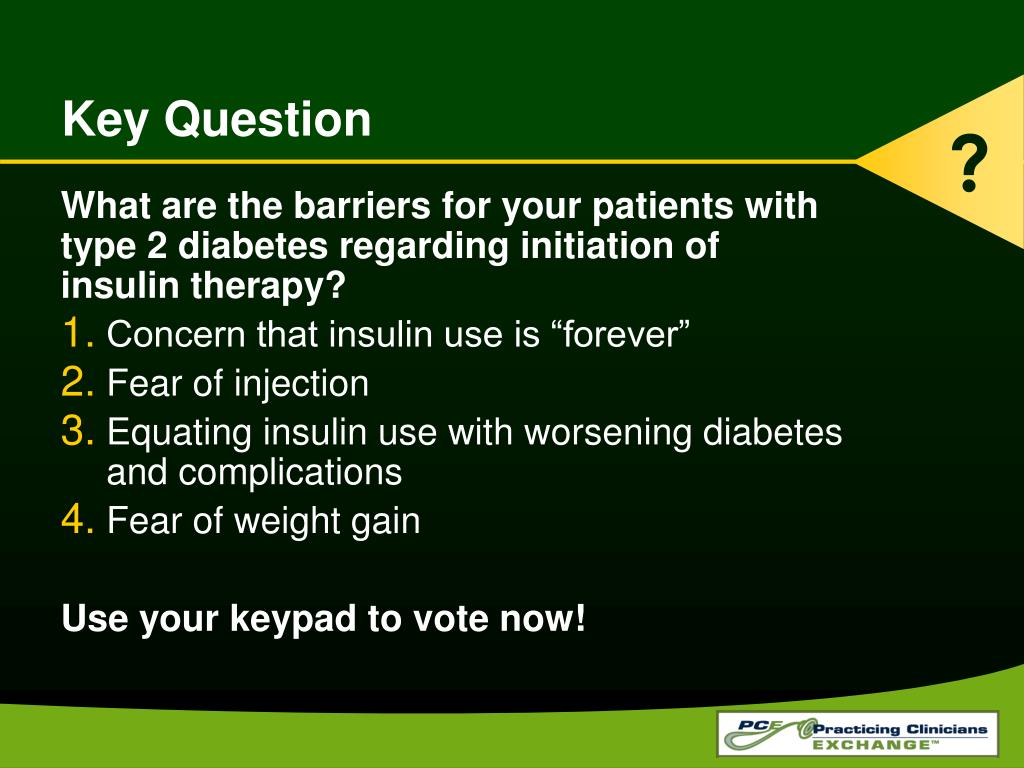

  17. ? Key Question What are the barriers for your patients with type 2 diabetes regarding initiation of insulin therapy? • Concern that insulin use is “forever” • Fear of injection • Equating insulin use with worsening diabetes and complications • Fear of weight gain Use your keypad to vote now!

  18. Patient Barriers to Insulin Use: Perception vs Reality OAD = oral antidiabetic drug. Meese J. Diabetes Educ. 2006;32:9S-18S; Peyrot M et al. Diabet Med. 2005;22:1379-1385.

  19. Clinician Barriers to Insulin Use: Perception vs Reality Douek IF et al. DiabetMed. 2005;22:634-640; Malmberg K et al. J Am Coll Cardiol. 1995;26:57-65; Malmberg K et al. BMJ. 1997;314:1512-1515; Romano G et al. Diabetes. 1997;46:1601-1606; UKPDS Group. Lancet. 1998;352:837-853.

  20. Information and Patient Education Links for Healthcare Professionals • American Association of Diabetes Educators (www.diabeteseducator.org) • American Association of Clinical Endocrinologists (www.aace.com) • American Diabetes Association (www.diabetes.org) • International Diabetes Federation (www.idf.org) • National Diabetes Education Initiative (www.ndei.org) • National Diabetes Education Program (ndep.nih.gov) • National Institute of Diabetes and Digestive and Kidney Diseases (www2.niddk.nih.gov)

  21. Next Steps… • What do we do for the patient who has failed on 1 or 2 oral agents?

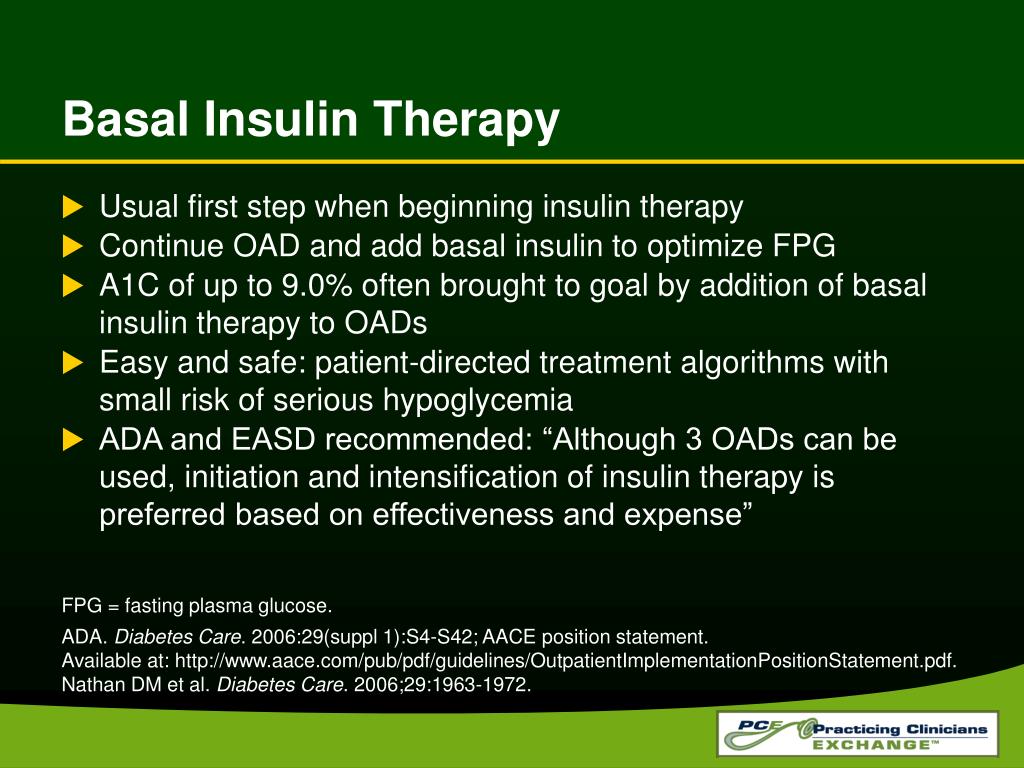

  22. Basal Insulin Therapy • Usual first step when beginning insulin therapy • Continue OAD and add basal insulin to optimize FPG • A1C of up to 9.0% often brought to goal by addition of basal insulin therapy to OADs • Easy and safe: patient-directed treatment algorithms with small risk of serious hypoglycemia • ADA and EASD recommended: “Although 3 OADs can be used, initiation and intensification of insulin therapy is preferred based on effectiveness and expense” FPG = fasting plasma glucose. ADA. Diabetes Care. 2006:29(suppl 1):S4-S42; AACE position statement. Available at: http://www.aace.com/pub/pdf/guidelines/OutpatientImplementationPositionStatement.pdf. Nathan DM et al. DiabetesCare. 2006;29:1963-1972.

  23. Rationale for Basal Insulin Therapy:Insulin and Glucose Patterns Basal insulin Normal T2DM Glucose Insulin 400 120 100 300 80 μU/mL mg/dL 200 60 40 100 20 6:00 10:00 14:00 18:00 22:00 2:00 6:00 6:00 10:00 14:00 18:00 22:00 2:00 6:00 B L D B L D Time Time B = breakfast; D = dinner; L = lunch; T2DM = type 2 diabetes mellitus. Polonsky KS et al. N Engl J Med. 1988;318:1231-1239.

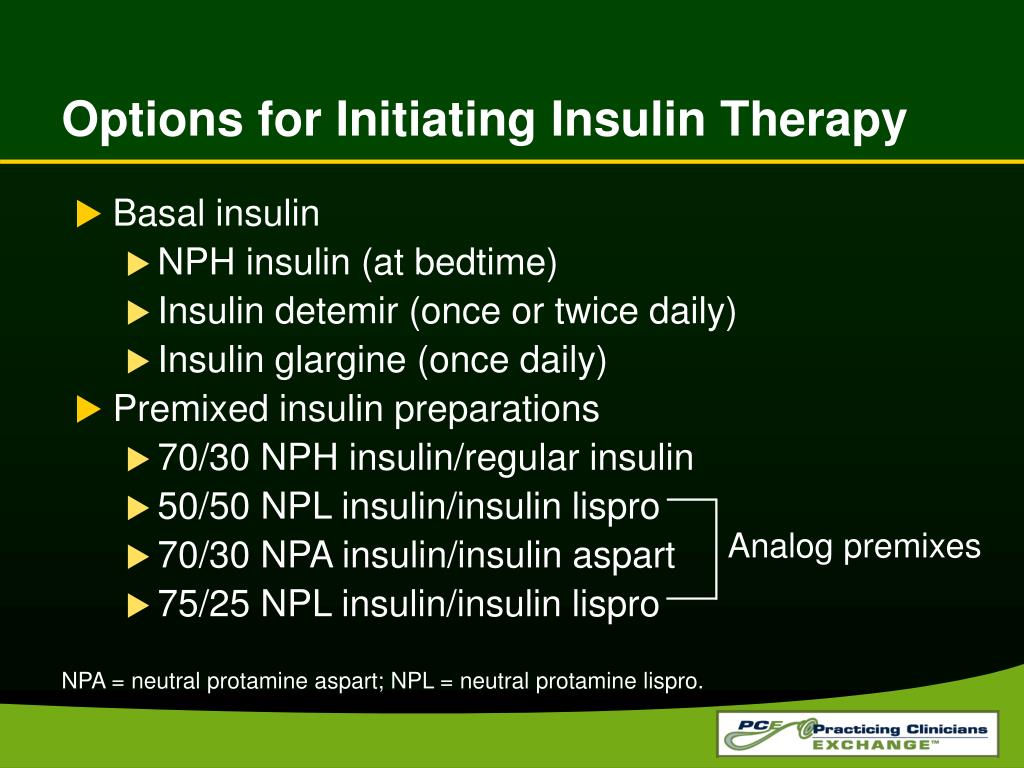

  24. Options for Initiating Insulin Therapy • Basal insulin • NPH insulin (at bedtime) • Insulin detemir (once or twice daily) • Insulin glargine (once daily) • Premixed insulin preparations • 70/30 NPH insulin/regular insulin • 50/50 NPL insulin/insulin lispro • 70/30 NPA insulin/insulin aspart • 75/25 NPL insulin/insulin lispro Analog premixes NPA = neutral protamine aspart; NPL = neutral protamine lispro.

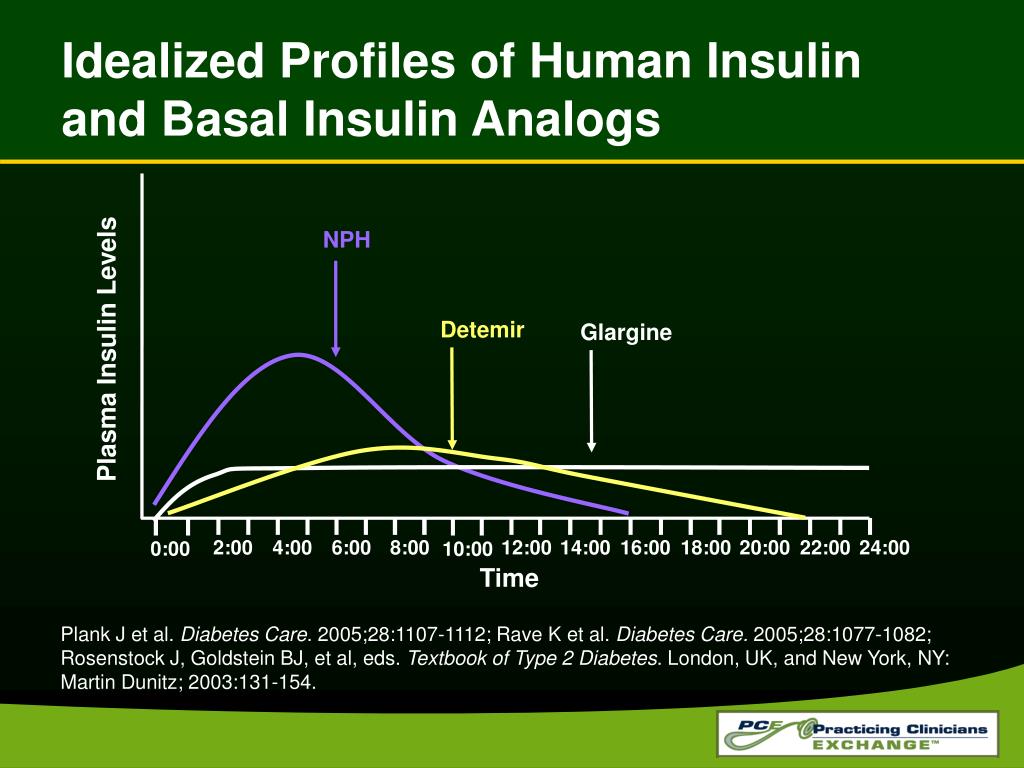

  25. Idealized Profiles of Human Insulinand Basal Insulin Analogs NPH Plasma Insulin Levels Detemir Glargine 2:00 4:00 6:00 8:00 12:00 14:00 16:00 18:00 20:00 22:00 24:00 0:00 10:00 Time Plank J et al. Diabetes Care. 2005;28:1107-1112; Rave K et al. Diabetes Care. 2005;28:1077-1082; Rosenstock J, Goldstein BJ, et al, eds. Textbook of Type 2 Diabetes. London, UK, and New York, NY: Martin Dunitz; 2003:131-154.

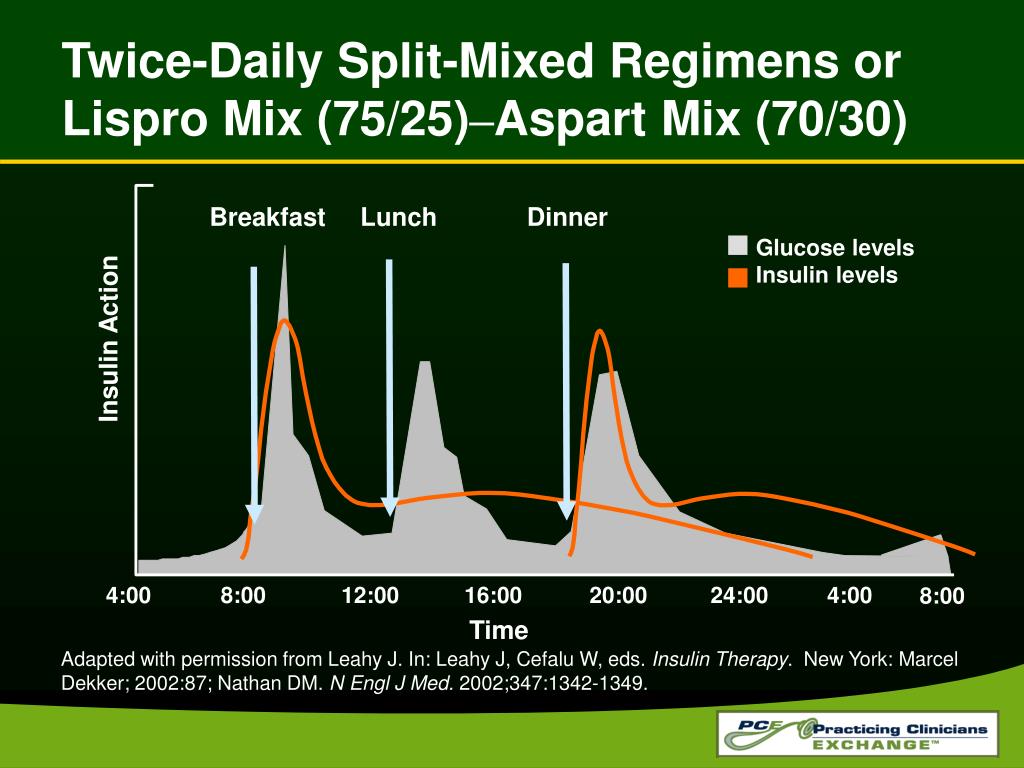

  26. Breakfast Lunch Dinner Insulin Action 4:00 8:00 12:00 16:00 20:00 24:00 4:00 8:00 Time Twice-Daily Split-Mixed Regimens or Lispro Mix (75/25)–Aspart Mix (70/30) Glucose levelsInsulin levels Adapted with permission from Leahy J. In: Leahy J, Cefalu W, eds. Insulin Therapy. New York: Marcel Dekker; 2002:87; Nathan DM. N Engl J Med. 2002;347:1342-1349.

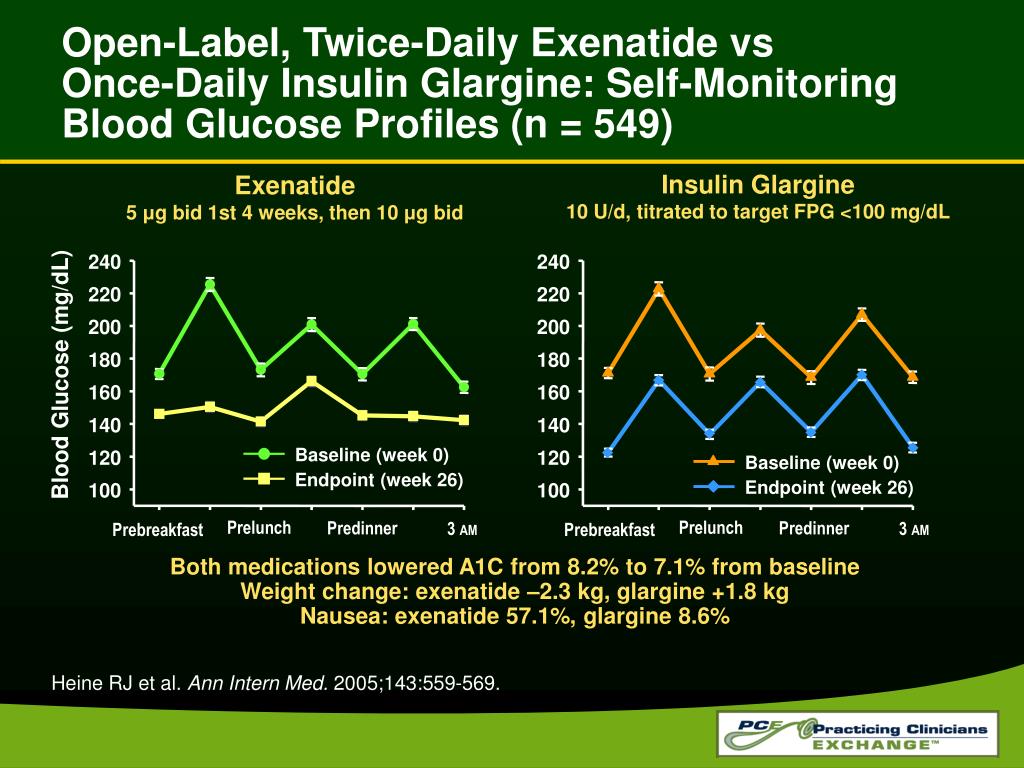

  27. Open-Label, Twice-Daily Exenatide vs Once-Daily Insulin Glargine: Self-Monitoring Blood Glucose Profiles (n = 549) Insulin Glargine 10 U/d, titrated to target FPG <100 mg/dL Exenatide 5 μg bid 1st 4 weeks, then 10 μg bid 240 240 220 220 200 200 180 180 Blood Glucose (mg/dL) 160 160 140 140 Baseline (week 0) 120 120 Baseline (week 0) Endpoint (week 26) Endpoint (week 26) 100 100 Prelunch Prelunch Predinner Predinner 3 AM 3 AM Prebreakfast Prebreakfast Both medications lowered A1C from 8.2% to 7.1% from baseline Weight change: exenatide –2.3 kg, glargine +1.8 kg Nausea: exenatide 57.1%, glargine 8.6% Heine RJ et al. Ann Intern Med. 2005;143:559-569.

  28. STEP 3 STEP 4 STEP 2 STEP 1 Add insulin Last meal Add insulin Next largestmeal • Glargine, Detemir, • or NPH HS • Weekly titration based on FPG • All oral agents continued Above target Above target Above target Add insulin Main meal Steps in Transition From Basal to Basal-Bolus Insulin Therapy in T2DM Above target: A1C >7.0% FPG >110 mg/dL A1C <7.0%, FPG <110 mg/dL HS = at bedtime. Adapted with permission from Karl DM. Curr Diab Rep. 2004;4:352-357.

  29. Case Study

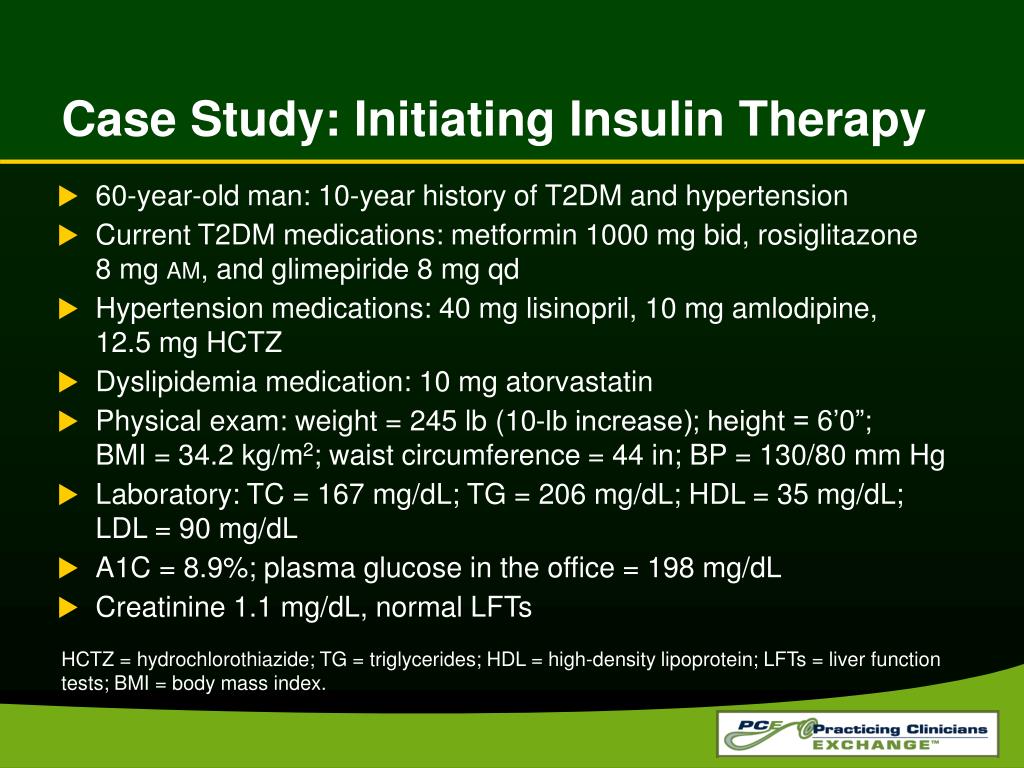

  30. Case Study: Initiating Insulin Therapy • 60-year-old man: 10-year history of T2DM and hypertension • Current T2DM medications: metformin 1000 mg bid, rosiglitazone 8 mg AM, and glimepiride 8 mg qd • Hypertension medications: 40 mg lisinopril, 10 mg amlodipine, 12.5 mg HCTZ • Dyslipidemia medication: 10 mg atorvastatin • Physical exam: weight = 245 lb (10-lb increase); height = 6’0”; BMI = 34.2 kg/m2; waist circumference = 44 in; BP = 130/80 mm Hg • Laboratory: TC = 167 mg/dL; TG = 206 mg/dL; HDL = 35 mg/dL; LDL = 90 mg/dL • A1C = 8.9%; plasma glucose in the office = 198 mg/dL • Creatinine 1.1 mg/dL, normal LFTs HCTZ = hydrochlorothiazide; TG = triglycerides; HDL = high-density lipoprotein; LFTs = liver function tests; BMI = body mass index.

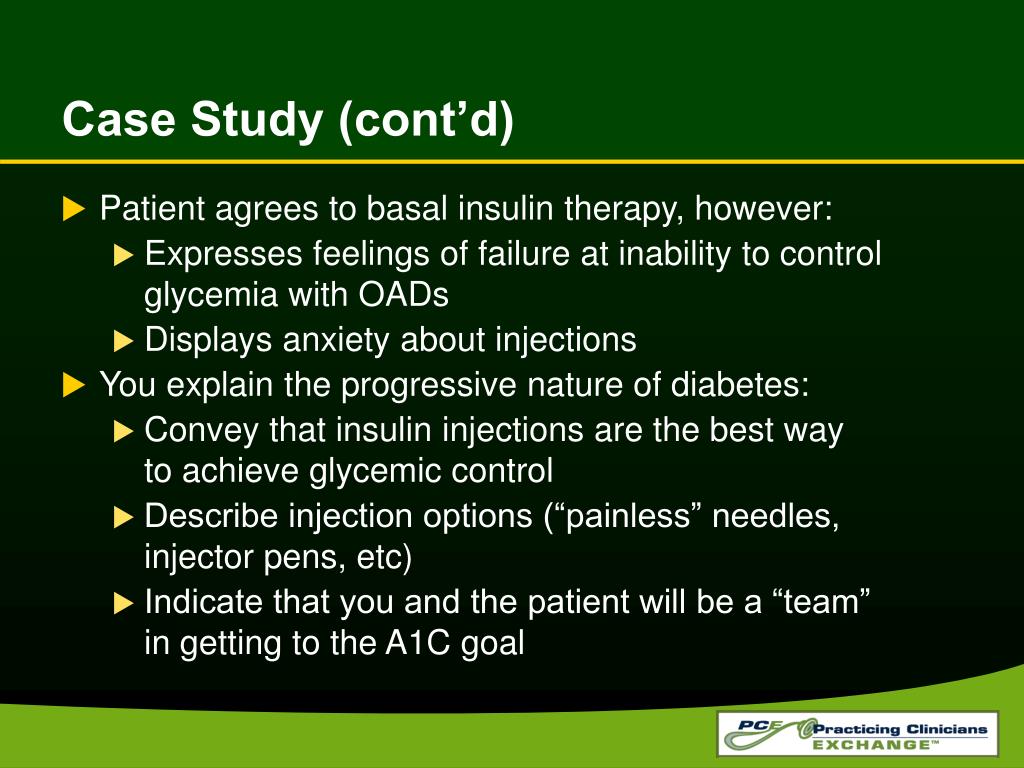

  31. Case Study (cont’d) • Patient agrees to basal insulin therapy, however: • Expresses feelings of failure at inability to control glycemia with OADs • Displays anxiety about injections • You explain the progressive nature of diabetes: • Convey that insulin injections are the best way to achieve glycemic control • Describe injection options (“painless” needles, injector pens, etc) • Indicate that you and the patient will be a “team” in getting to the A1C goal

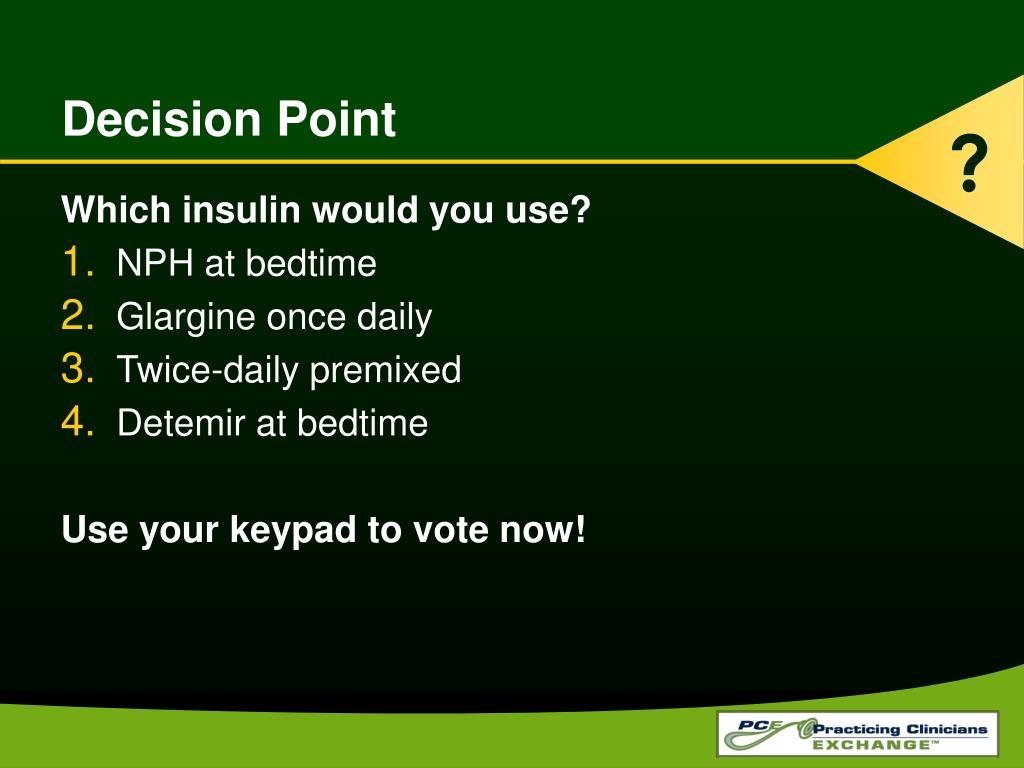

  32. ? Decision Point Which insulin would you use? • NPH at bedtime • Glargine once daily • Twice-daily premixed • Detemir at bedtime Use your keypad to vote now!

  33. Treat-to-Target Trial: Oral Agents + Glargine or NPH at Bedtime • Patients (n = 756) with inadequate glycemic control (A1C >7.5%) taking 1 or 2 oral agents • Started with 10 U/d bedtime basal insulin and adjusted weekly to target FPG 100 mg/dL: Hermansen K et al. Diabetes Care. 2006;29:1269-1274; Riddle MC et al. Diabetes Care. 2003;26:3080-3086.

  34. Treat-to-Target Trial: Oral Agents + Glargine or NPH at Bedtime (n=756): Efficacy Results *In both groups, FPG decreased from 194 or 198 mg/dL to 117 or 130 mg/dL, respectively, by study end, and A1C decreased from 8.6% to 6.9% by 18 weeks. Riddle MC et al. Diabetes Care. 2003;26:3080-3086.

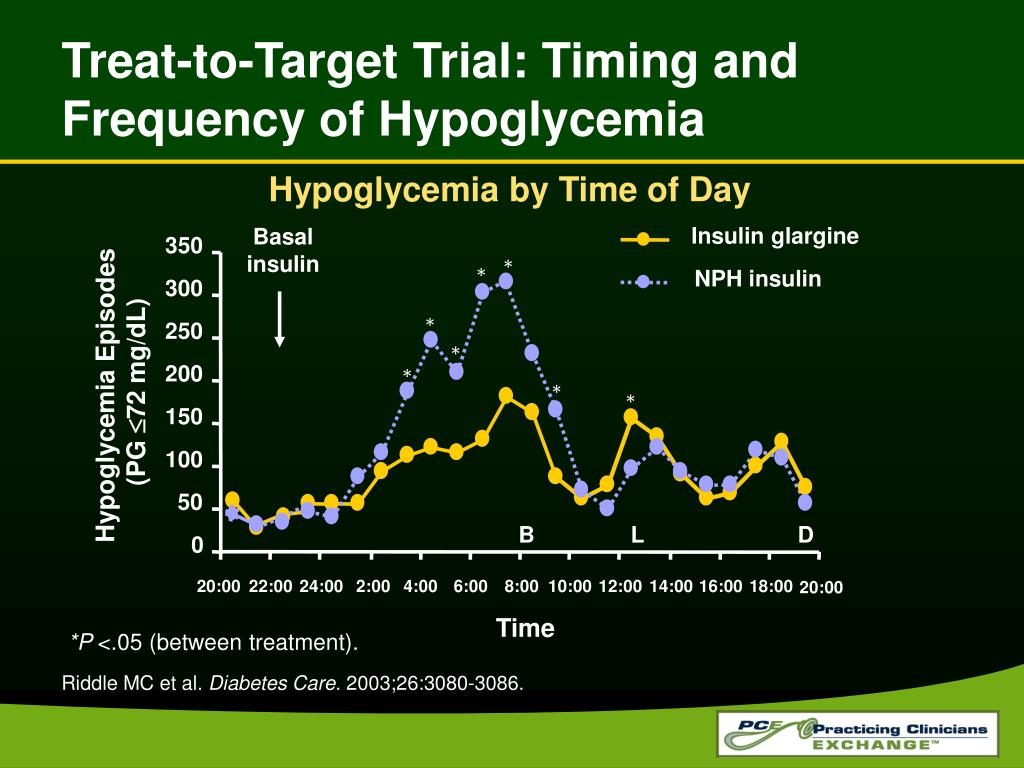

  35. Treat-to-Target Trial: Timing and Frequency of Hypoglycemia Hypoglycemia by Time of Day Basal insulin Insulin glargine 350 * * NPH insulin 300 * 250 * Hypoglycemia Episodes (PG 72 mg/dL) * 200 * * 150 100 50 B L D 0 20:00 22:00 24:00 2:00 4:00 6:00 8:00 10:00 12:00 14:00 16:00 18:00 20:00 Time *P <.05 (between treatment). Riddle MC et al. Diabetes Care. 2003;26:3080-3086.

  36. Detemir vs NPH Insulin in T2DM (n = 476) Detemir NPH 400 350 300 250 200 150 100 50 0 A1C (%) 10.0 9.0 8.0 7.0 6.0 Detemir NPH Hypoglycemia Events* 8 20 24 0 2 12 16 4 8 20 24 -2 0 12 16 4 Study Week Study Week *All reported events, including symptoms only. Hermansen K et al. Diabetes Care. 2006;29:1269-1274.

  37. Case Study (cont’d) • 10 U glargine is added to OADs • Patient is sent home with the “2, 4, 6, 8 algorithm” with a target FPG goal of 100 to 110 mg/dL.1 Similar algorithm can be used with detemir2 FPG (mg/dL) Insulin Dose (U/d) 120-140 2 140-160 4 160-180 6 >180 8 Alternative strategy: increase basal insulin dose by 2 units every 3 days until FPG 100 mg/dL*3 *Certain populations (children, pregnant women, and the elderly) require special considerations. • Riddle MC et al. Diabetes Care. 2003;26:3080-3086. • Hermansen K et al. Diabetes Care. 2006;29:1259-1271. • Davies M et al. Diabetes. 2004;53(suppl 2):1980.

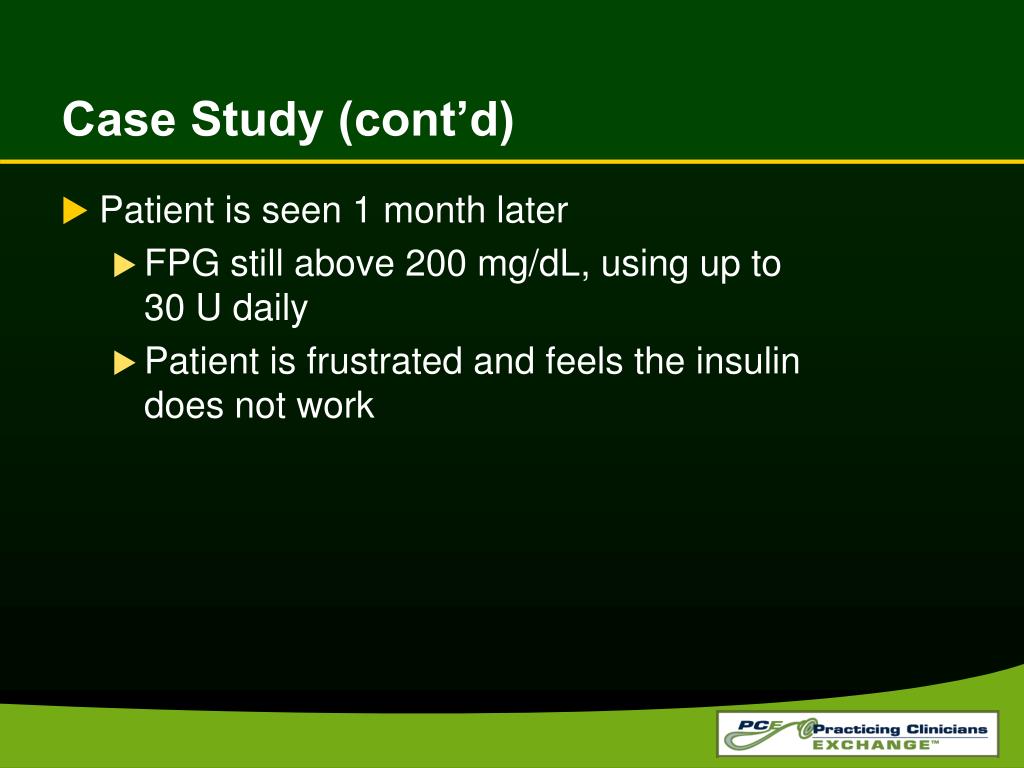

  38. Case Study (cont’d) • Patient is seen 1 month later • FPG still above 200 mg/dL, using up to 30 U daily • Patient is frustrated and feels the insulin does not work

  39. ? Decision Point What do you do now? • Keep increasing the insulin dose • Go to twice-daily premixed • Switch to exenatide • Send patient for gastric bypass consult Use your keypad to vote now!

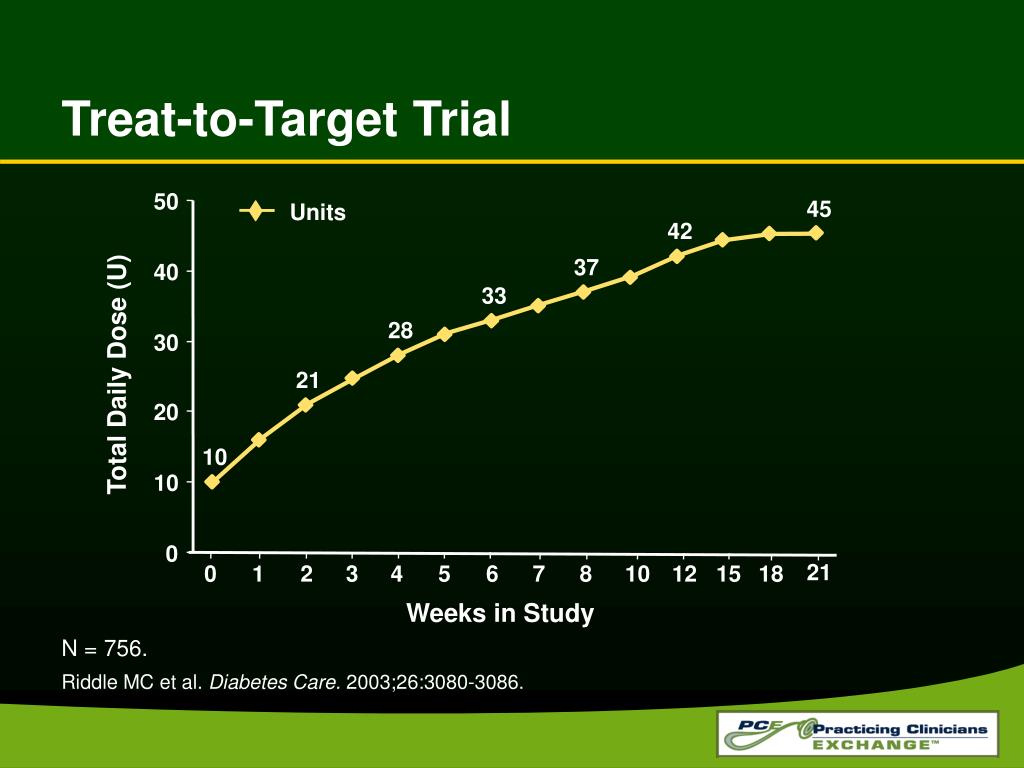

  40. Treat-to-Target Trial 50 45 Units Total Daily Dose (U) 42 37 40 33 28 30 21 20 10 10 0 21 0 1 2 3 4 5 6 7 8 10 12 15 18 N = 756. Riddle MC et al. Diabetes Care. 2003;26:3080-3086. Weeks in Study

  41. Case Study (cont’d) • Patient is taking 75 U with FPG controlled (<100 mg/dL to rarely >110 mg/dL) since last visit 4 months ago • Patient’s last A1C = 6.9%, monitoring occasional postprandial blood sugars • Patient finds insulin injections painless and after speaking with you, feels that he is now a partner in his therapy program

  42. Case Study (cont’d) • Over the next 3 years, patient seen for routine follow-up every 3 to 4 months • Remains medically stable, with A1C values 6.5% to 7.2% • 3.25 years after adding basal insulin glargine, A1C has increased to 8.2%, however, FPG checks remain <120 mg/dL

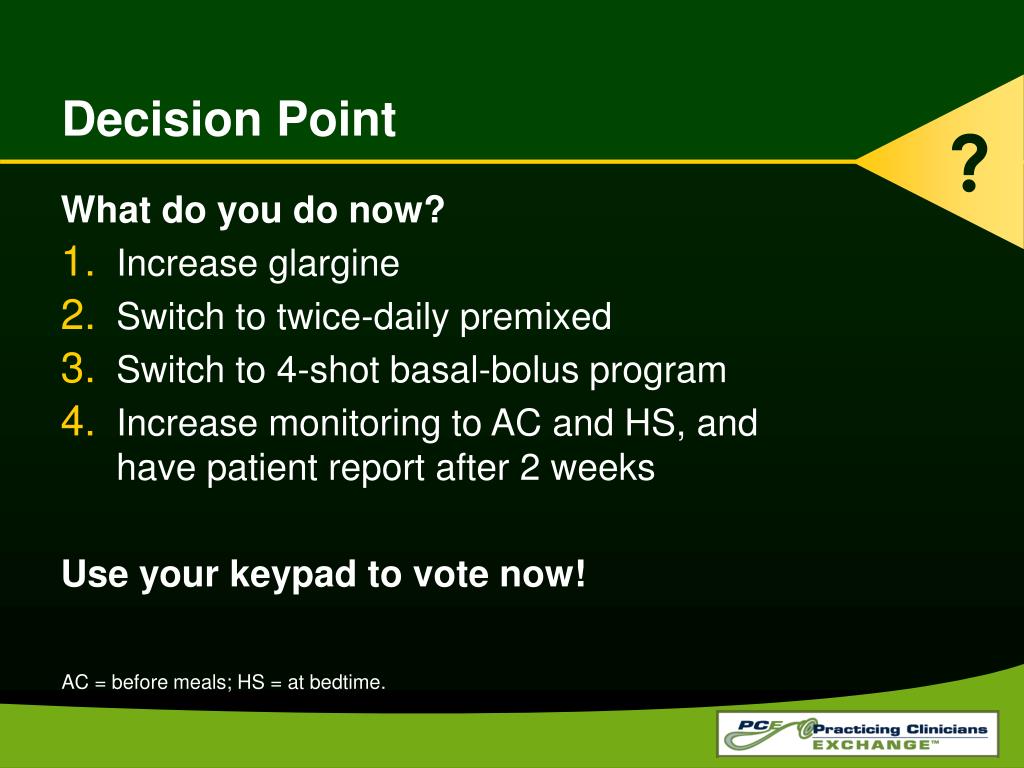

  43. ? Decision Point What do you do now? • Increase glargine • Switch to twice-daily premixed • Switch to 4-shot basal-bolus program • Increase monitoring to AC and HS, and have patient report after 2 weeks Use your keypad to vote now! AC = before meals; HS = at bedtime.

  44. Case Study (cont’d) • Because the patient’s FPGs are good and post-prandial glucose levels are high, the decision is made to switch to twice-daily premixed insulin • The patient is encouraged to increase daily monitoring to adjust insulin dose

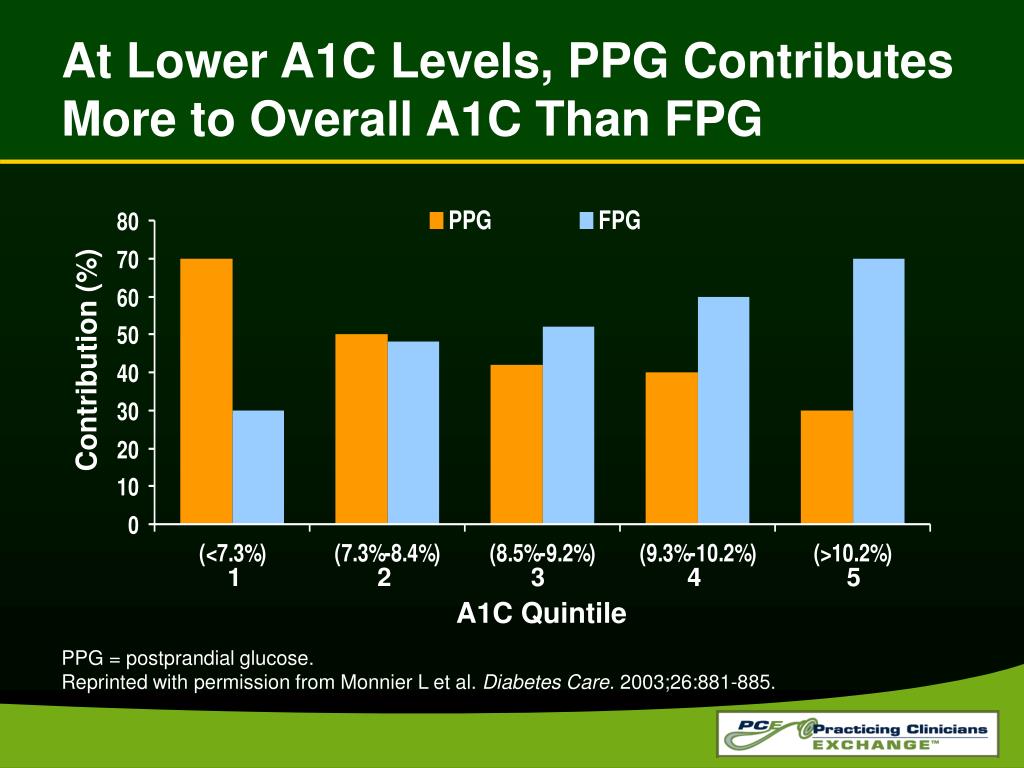

  45. At Lower A1C Levels, PPG Contributes More to Overall A1C Than FPG Contribution (%) 1 2 3 4 5 A1C Quintile PPG = postprandial glucose. Reprinted with permission from Monnier L et al. Diabetes Care. 2003;26:881-885.

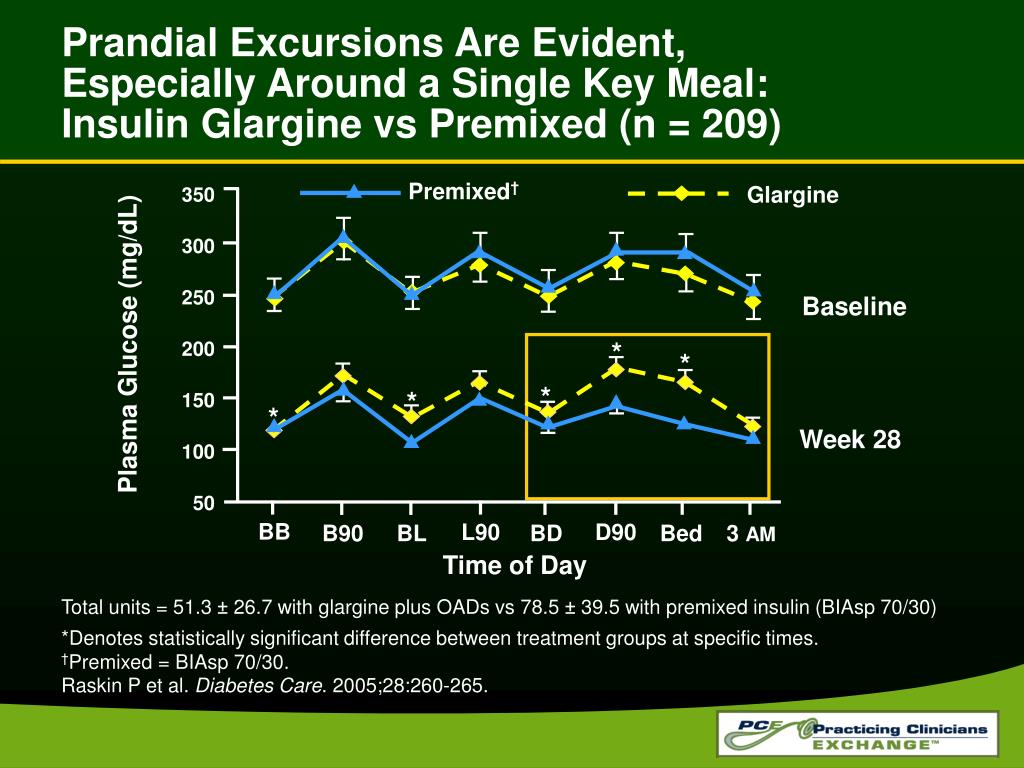

  46. Prandial Excursions Are Evident, Especially Around a Single Key Meal: Insulin Glargine vs Premixed (n = 209) 350 300 250 200 150 100 50 Premixed† Glargine Baseline Plasma Glucose (mg/dL) * * * * * Week 28 BB L90 D90 B90 BL BD Bed 3 AM Time of Day Total units = 51.3 ± 26.7 with glargine plus OADs vs 78.5 ± 39.5 with premixed insulin (BIAsp 70/30) *Denotes statistically significant difference between treatment groups at specific times. †Premixed = BIAsp 70/30. Raskin P et al. Diabetes Care. 2005;28:260-265.

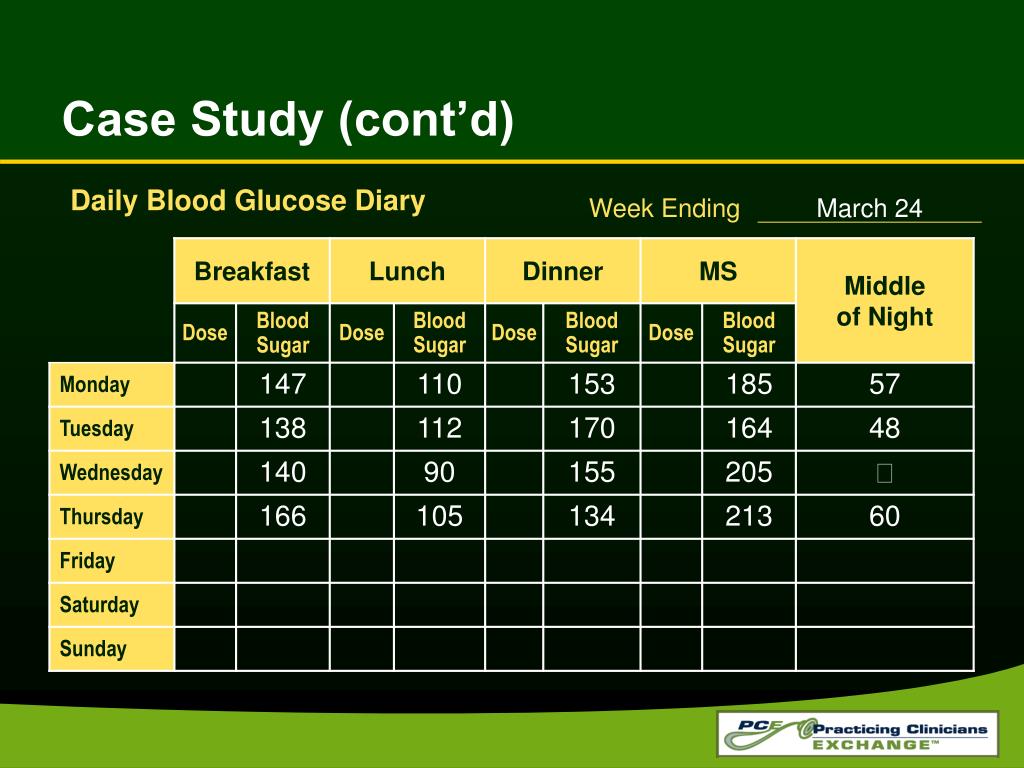

  47. Case Study (cont’d) Daily Blood Glucose Diary Week Ending March 24

  48. Breakfast Lunch Dinner Insulin Action 4:00 8:00 12:00 16:00 20:00 24:00 4:00 8:00 Time Twice-Daily Split-Mixed Regimens or Lispro Mix (75/25)–Aspart Mix (70/30) Glucose levelsInsulin levels Adapted with permission from Leahy J. In: Leahy J, Cefalu W, eds. Insulin Therapy. New York: Marcel Dekker; 2002:87; Nathan DM. N Engl J Med. 2002;347:1342-1349.

  49. Rapid-acting Inhaled insulin* Idealized Profiles: Rapid-Acting Insulin Analogs Regular insulin Plasma Insulin Levels 2:00 4:00 6:00 8:00 12:00 14:00 16:00 18:00 20:00 22:00 24:00 0:00 10:00 Time *Inhaled dry human insulin (Exubera®) powder Rosenstock J, Goldstein BJ, et al, eds. Textbook of Type 2 Diabetes. London, UK, and New York, NY: Martin Dunitz; 2003:131-154; Plank J et al. Diabetes Care. 2005; 28:1107-1112; Rave K et al. Diabetes Care. 2005;28:1077-1082.

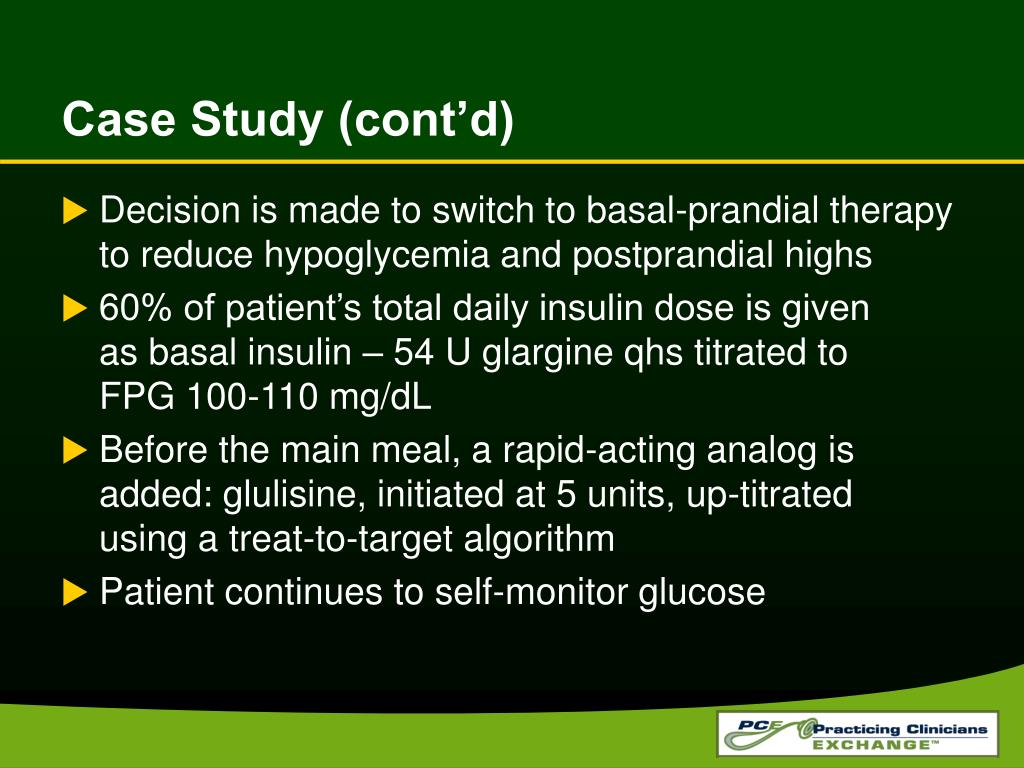

  50. Case Study (cont’d) • Decision is made to switch to basal-prandial therapy to reduce hypoglycemia and postprandial highs • 60% of patient’s total daily insulin dose is given as basal insulin – 54 U glargine qhs titrated to FPG 100-110 mg/dL • Before the main meal, a rapid-acting analog is added: glulisine, initiated at 5 units, up-titrated using a treat-to-target algorithm • Patient continues to self-monitor glucose
