  1. Cyclohexane Production Unit Presented by Brian Clifton

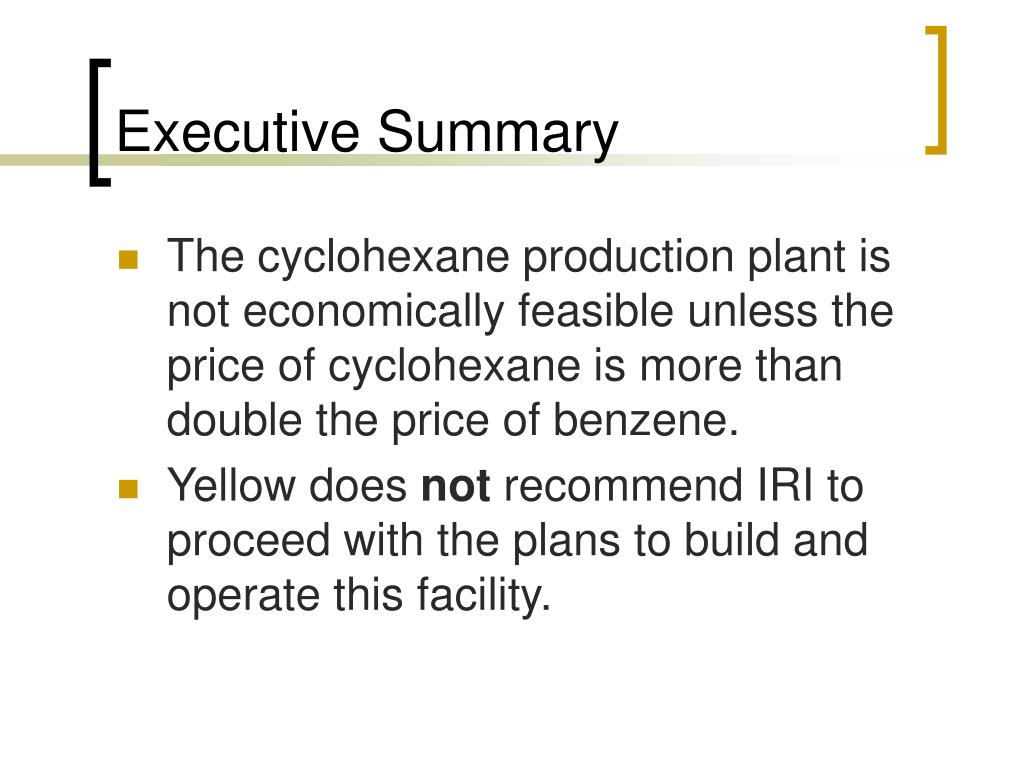

  2. Executive Summary • The cyclohexane production plant is not economically feasible unless the price of cyclohexane is more than double the price of benzene. • Yellow does not recommend IRI to proceed with the plans to build and operate this facility.

  3. Outline • Process Overview • Economic and Risk Analysis • Pipe Network • Pump System • Heat Exchanger • Distillation Column

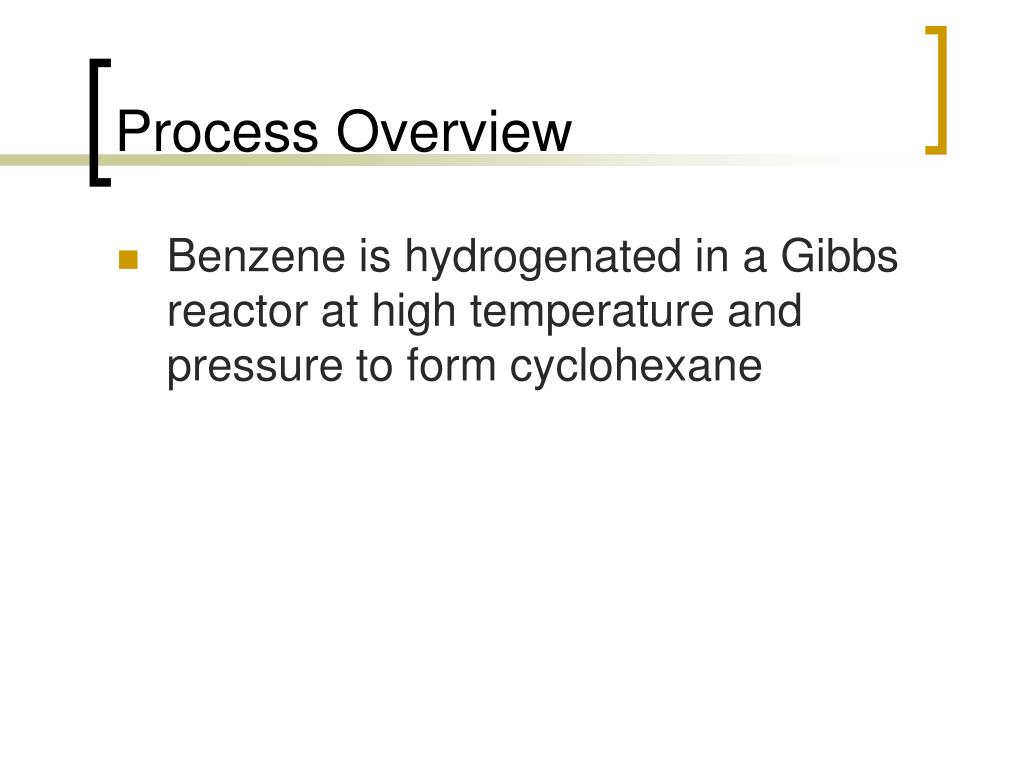

  4. Process Overview • Benzene is hydrogenated in a Gibbs reactor at high temperature and pressure to form cyclohexane

  5. Process Overview

  6. Economic Analysis

  7. Economic Analysis • Production Cost: $7.14/gal • Revenue: $3.60/gal • TCI: $2.5 million • NPW: negative $1 billion • Accuracy: ±10% • Required ROI: 8%

  8. Strauss Plots/Propagation of Error • Strauss plots for FCI, product cost, and product cost • Propagation of error method

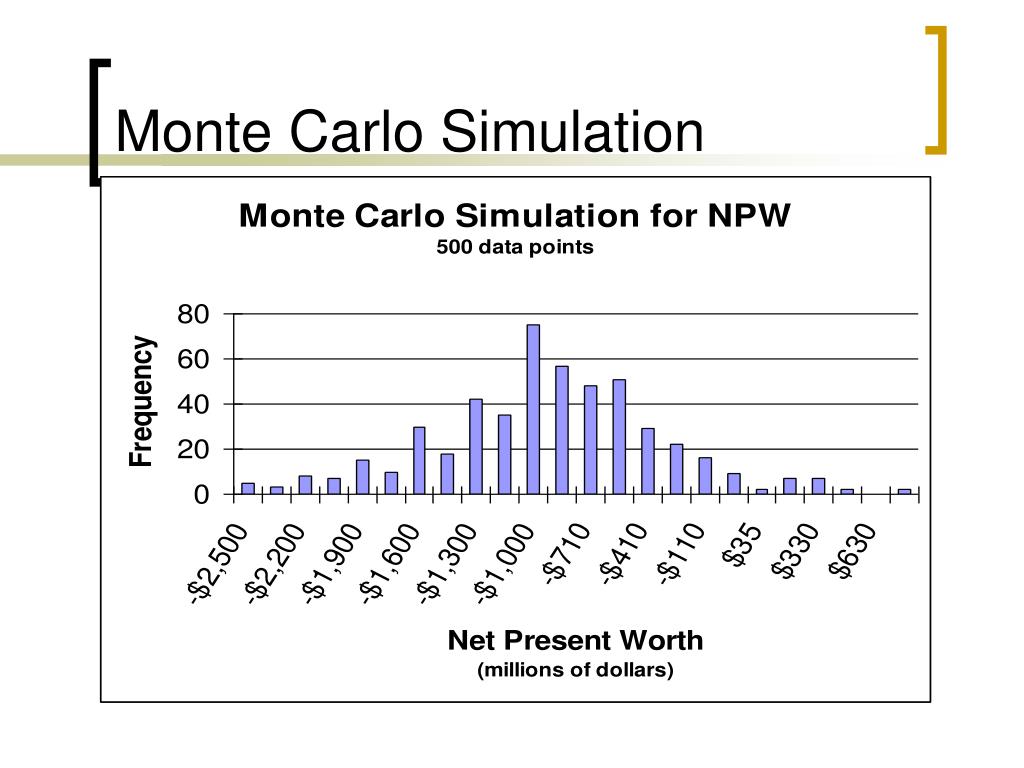

  9. Monte Carlo Simulation

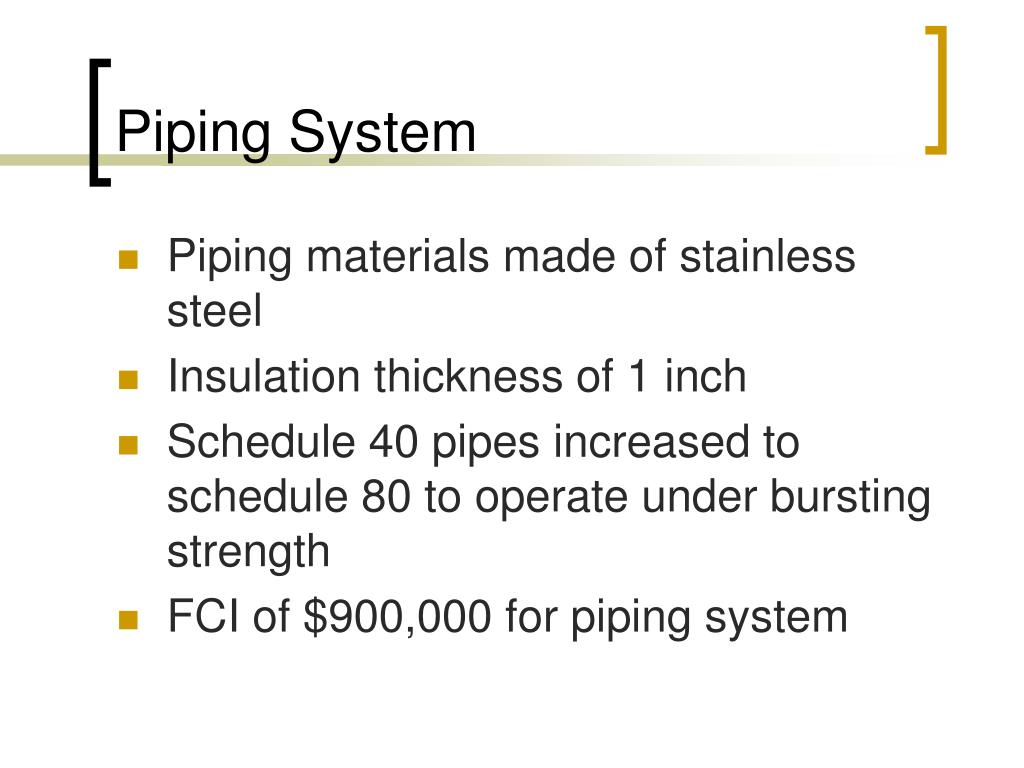

  10. Piping System • Piping materials made of stainless steel • Insulation thickness of 1 inch • Schedule 40 pipes increased to schedule 80 to operate under bursting strength • FCI of $900,000 for piping system

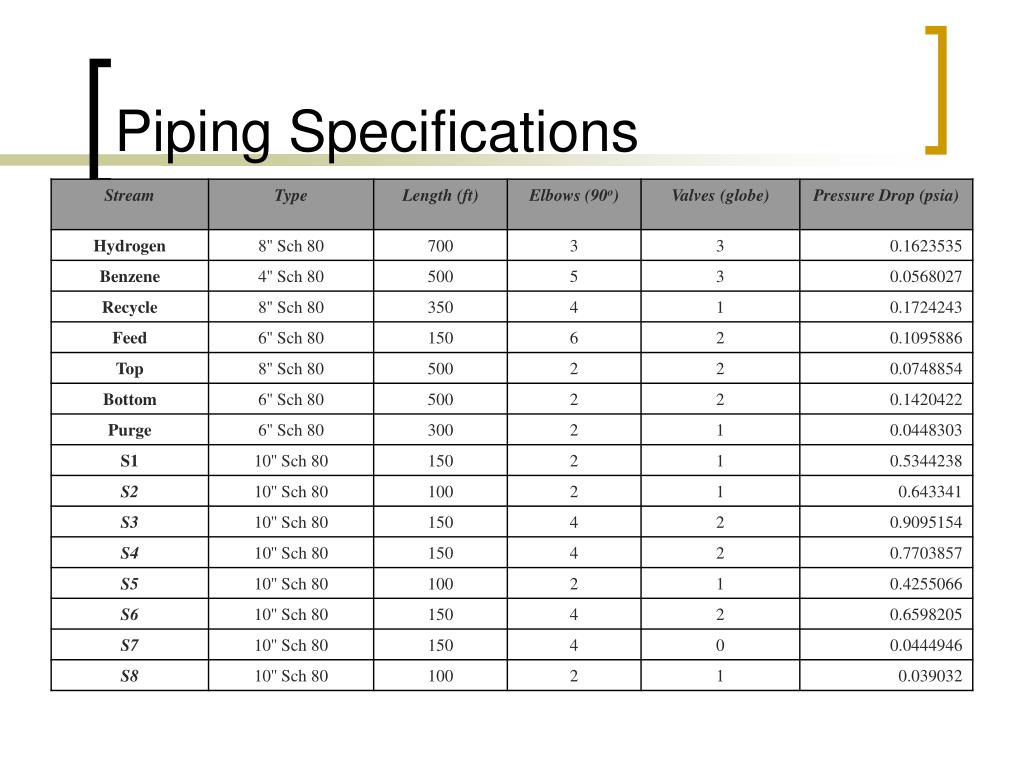

  11. Piping Specifications

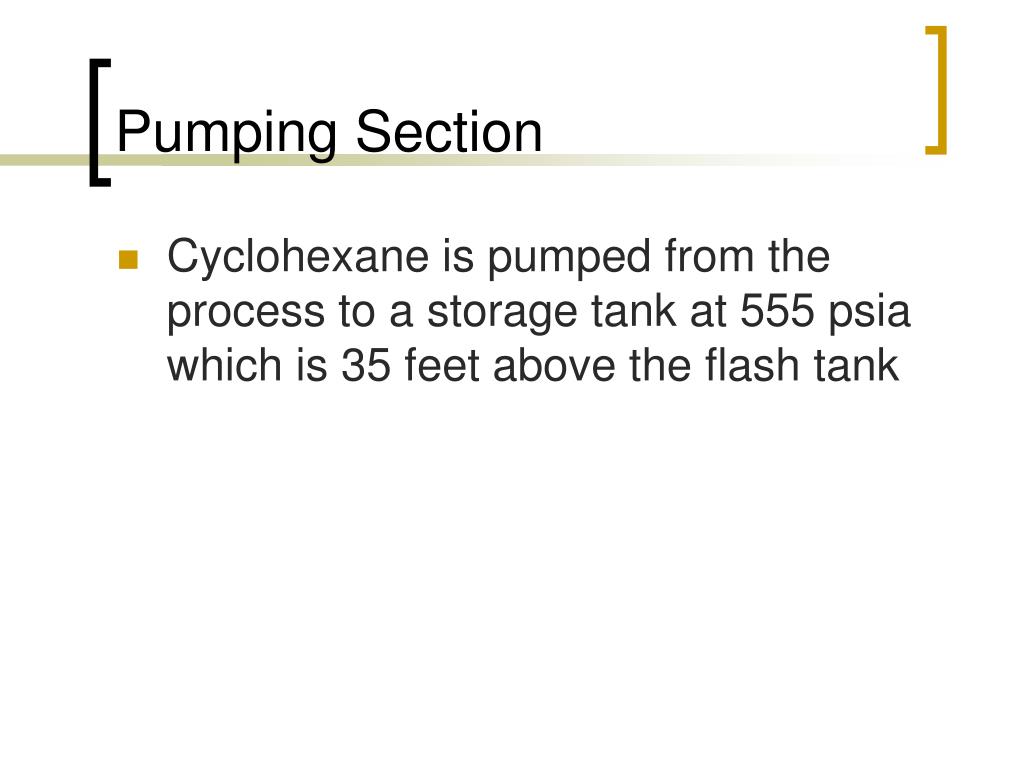

  12. Pumping Section • Cyclohexane is pumped from the process to a storage tank at 555 psia which is 35 feet above the flash tank

  13. Pumping Section

  14. Pump Section • Piping • All pipe are stainless steel schedule 40 • ability to resist corrosion

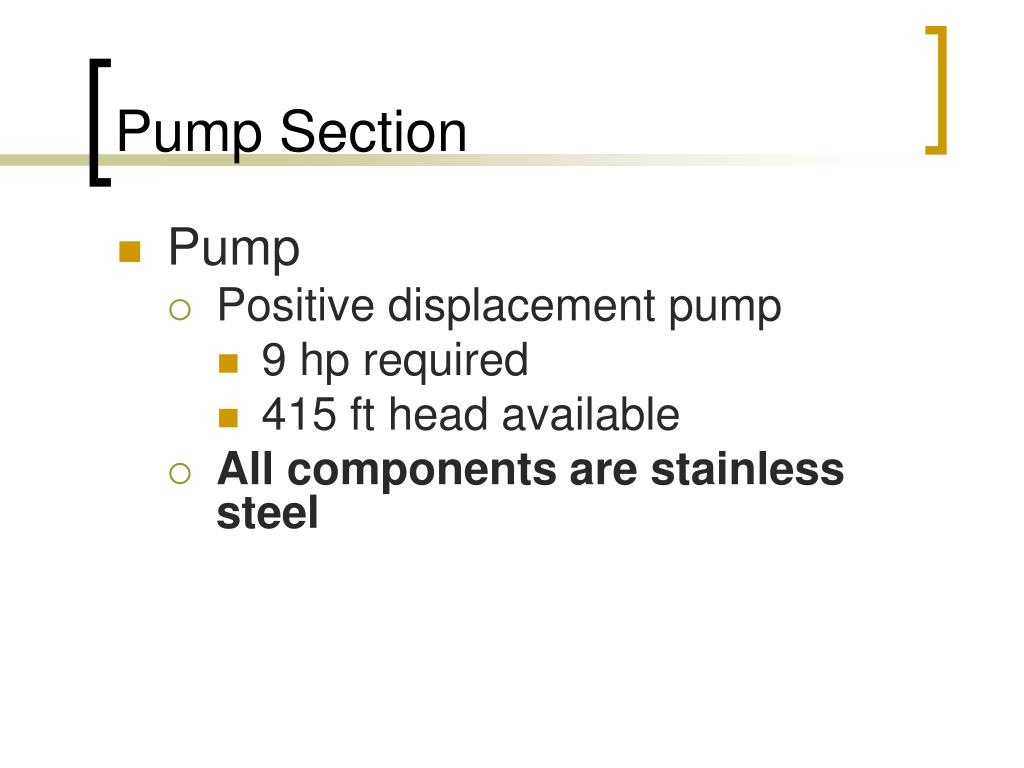

  15. Pump Section • Pump • Positive displacement pump • 9 hp required • 415 ft head available • All components are stainless steel

  16. Pumping Section • Cost for installation of the pumping section, including the pump, pipes, and valves, was determined to be $105,000 • Total fixed capital investment for the cyclohexane plant up to $2.4 million.

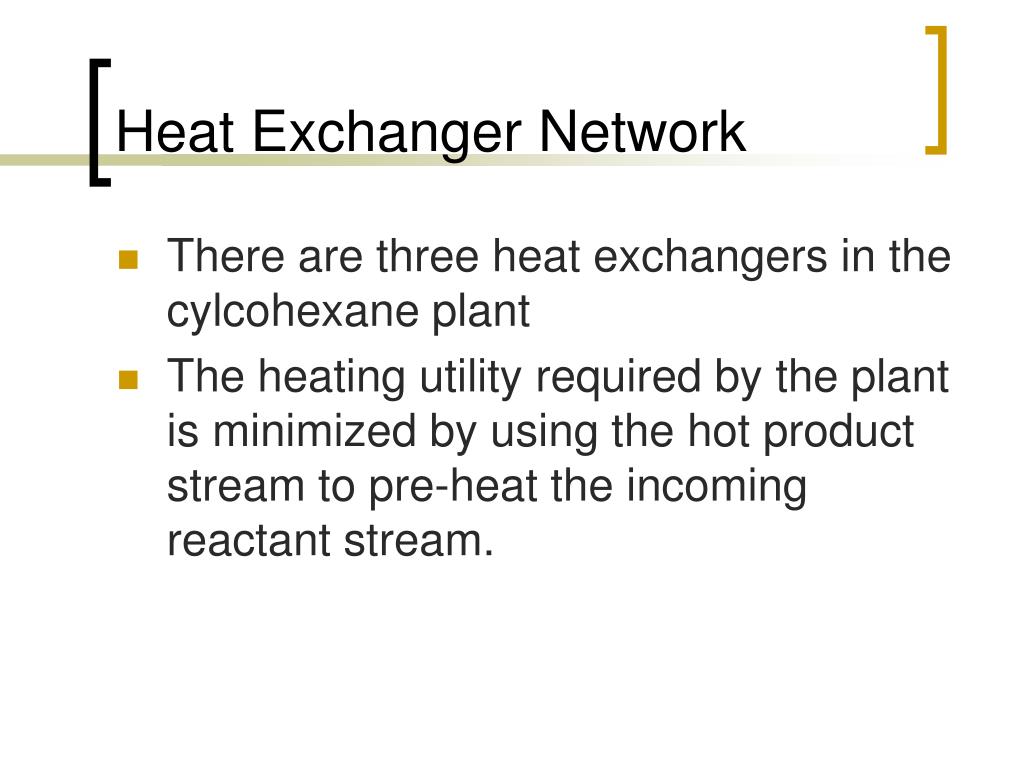

  17. Heat Exchanger Network • There are three heat exchangers in the cylcohexane plant • The heating utility required by the plant is minimized by using the hot product stream to pre-heat the incoming reactant stream.

  18. Heat Exchanger Network • Heat exchanger 1 was designed rigorously • A temperature – heat diagram was created

  19. Heat Exchanger: Design

  20. Heat Exchanger: Design • The single pass, countercurrent design was selected • No baffles were used, in order to maintain the shell-side pressure drop under 5 psi

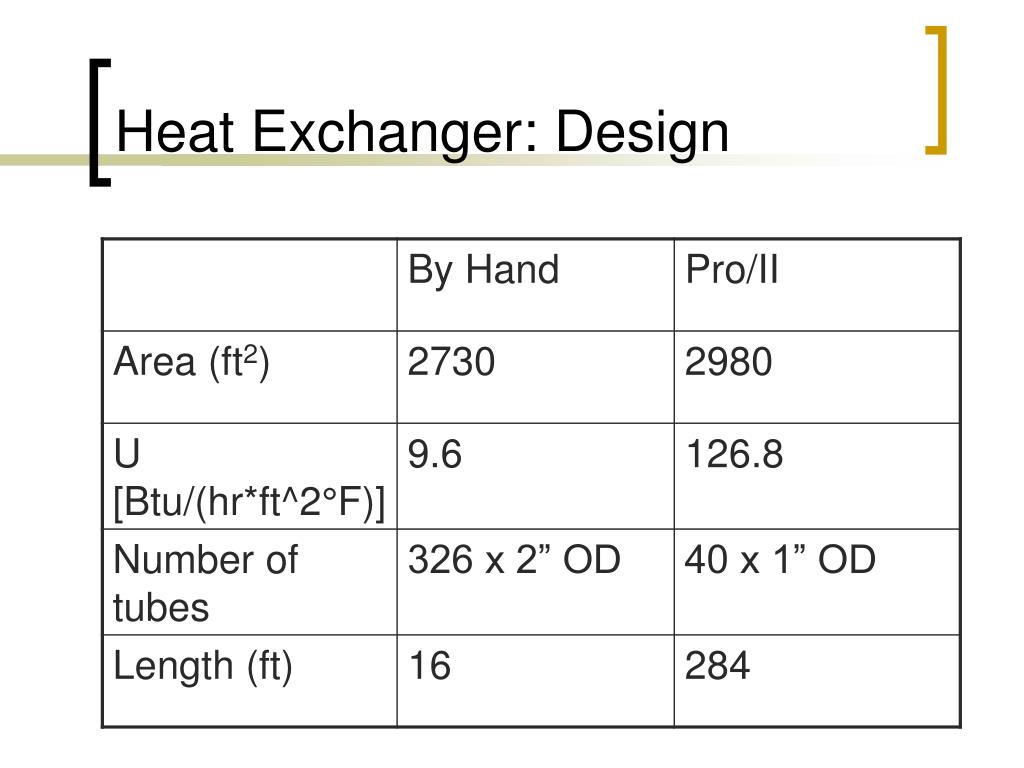

  21. Heat Exchanger: Design

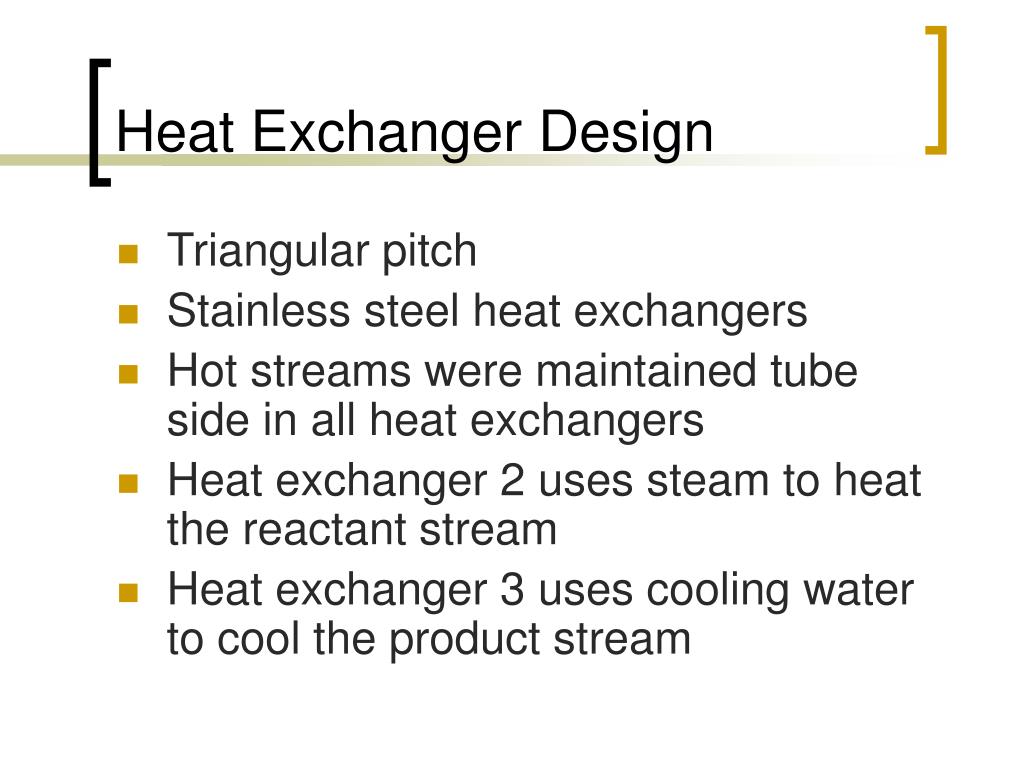

  22. Heat Exchanger Design • Triangular pitch • Stainless steel heat exchangers • Hot streams were maintained tube side in all heat exchangers • Heat exchanger 2 uses steam to heat the reactant stream • Heat exchanger 3 uses cooling water to cool the product stream

  23. Distillation Column • 30 theoretical trays • Optimal feed location: 16th tray • Column height: 32 feet • Column diameter: 42 inches

  24. Distillation Column • Valve trays • 94 valves / tray • Tray spacing: 24 inches • Condenser heat duty: -1.9 MM Btu/hr • Reboiler heat duty: 3.01 MM Btu/hr

  25. Summary • After the detailed designs were conducted, the cyclohexane plant was shown to not meet IRI’s criteria for profitablity. • Yellow does not recommend IRI building and operating this facility.

  26. Questions ?
